SSANGYONG  REXTON XDi(RHD)

5-132  ELECTRICAL WIRING DIAGRAMS

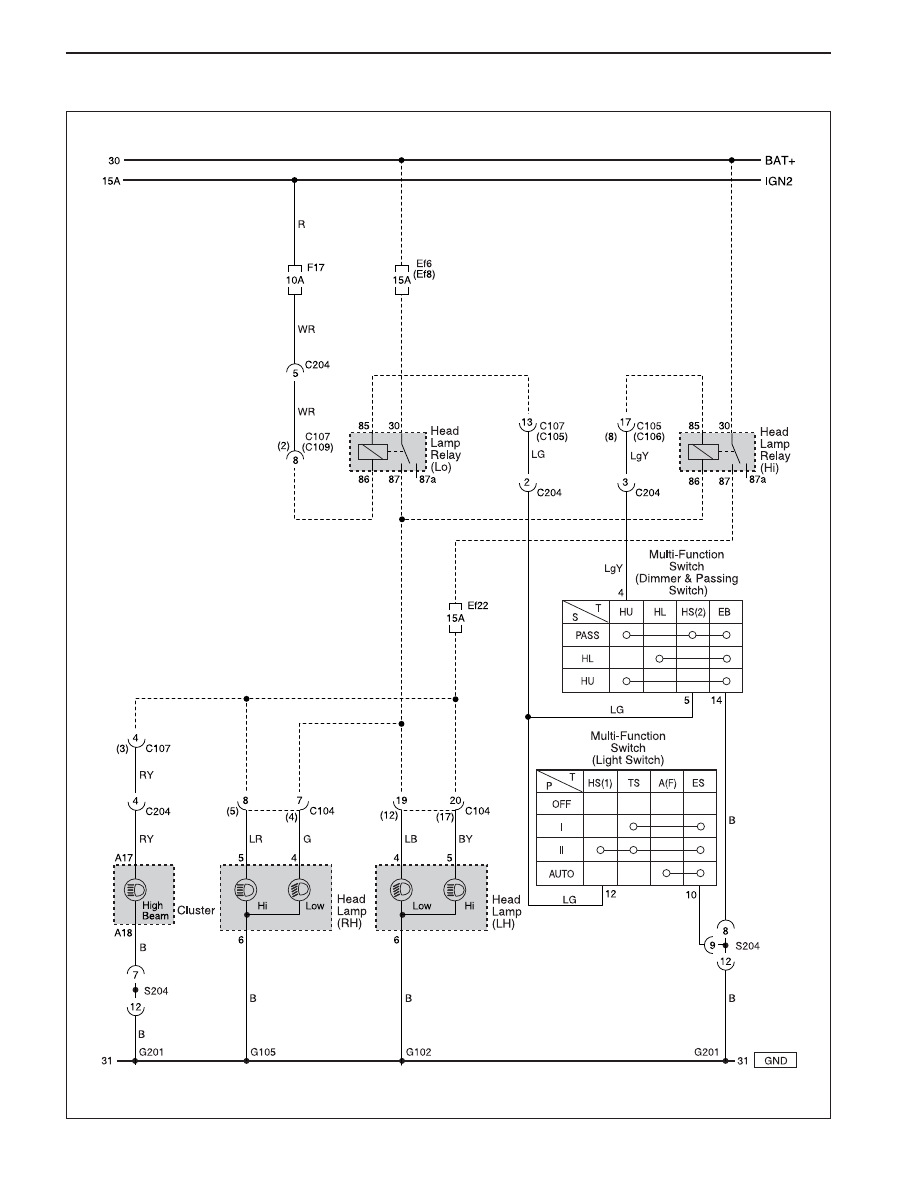

35. HEAD LAMP CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-133

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(M) - Engine

W/H Floor(LH)

W/H Main

W/H Engine

W/H Engine

W/H Main

C104(20Pin, White)

C105(22Pin, White)

C106(18Pin, White)

C107(14Pin, White)

C109(16Pin, White)

C204(20Pin, Black)

S204(14Pin, Black)

G102

G105

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Behind the Left the FATC

Center BATT

Behine the Right Head Lamp

Inside Driver Side Cowl PNL

GND

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-134  ELECTRICAL WIRING DIAGRAMS

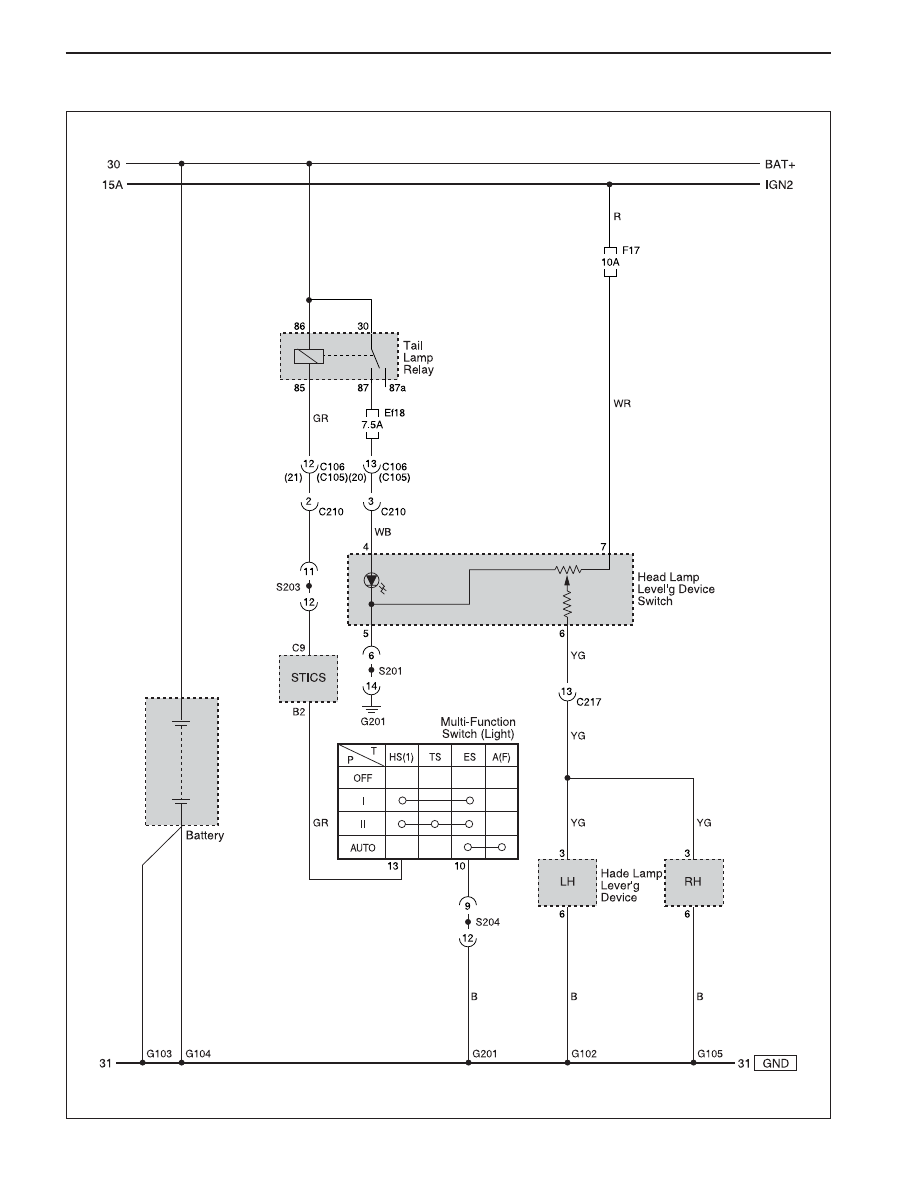

36. HEAD LAMP LEVELING DEVICE CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-135

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

C105(22Pin, White)

C106(18Pin, White)

C210(13Pin, Green)

C217(20Pin, Black)

S201(14Pin, Black)

S203(14Pin, Black)

S204(14Pin, Black)

G102

G105

G201

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Main - Floor(LH)

Engine - Main(RH)

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Upper the I/P Relay Box

Behind the Left FATC

Center BATT

Behine the Right Head Lamp

Inside Driver Side Cowl PNL

GND

GND

GND

Remark

Connector Position
