SSANGYONG  REXTON XDi(RHD)

5-128  ELECTRICAL WIRING DIAGRAMS

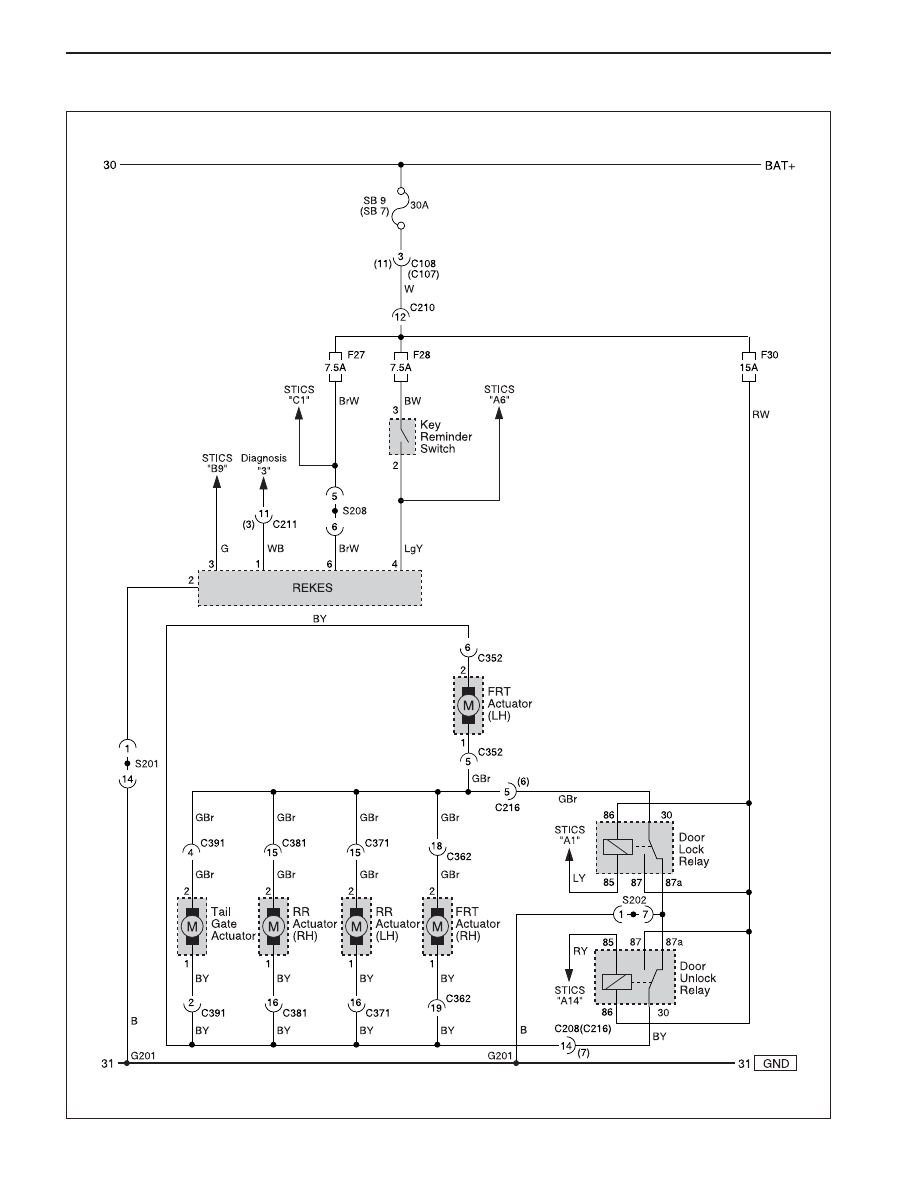

33. REKES CIRCUIT ( ~ 2003 MODEL)

(   ): 2003 Model

ELECTRICAL WIRING DIAGRAMS  5-129

SSANGYONG  REXTON XDi(RHD)

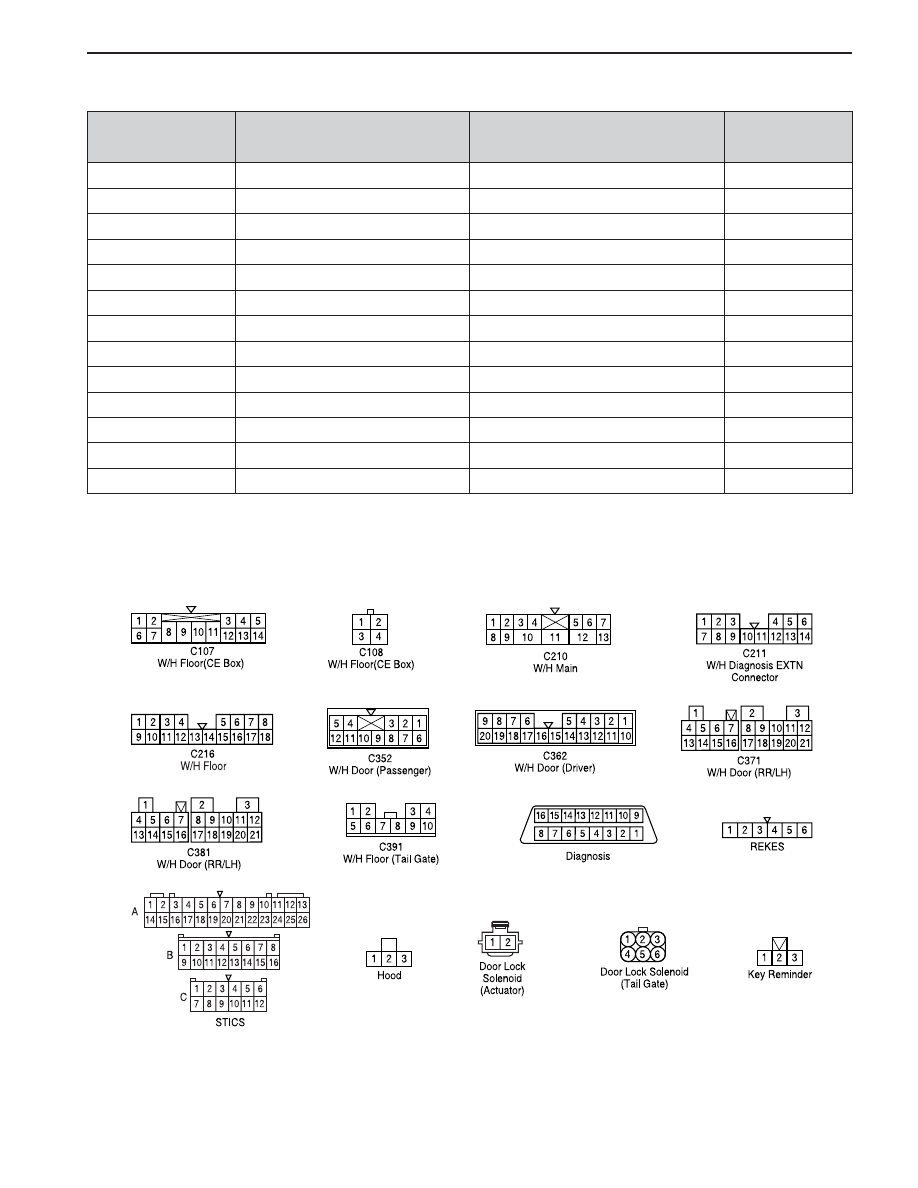

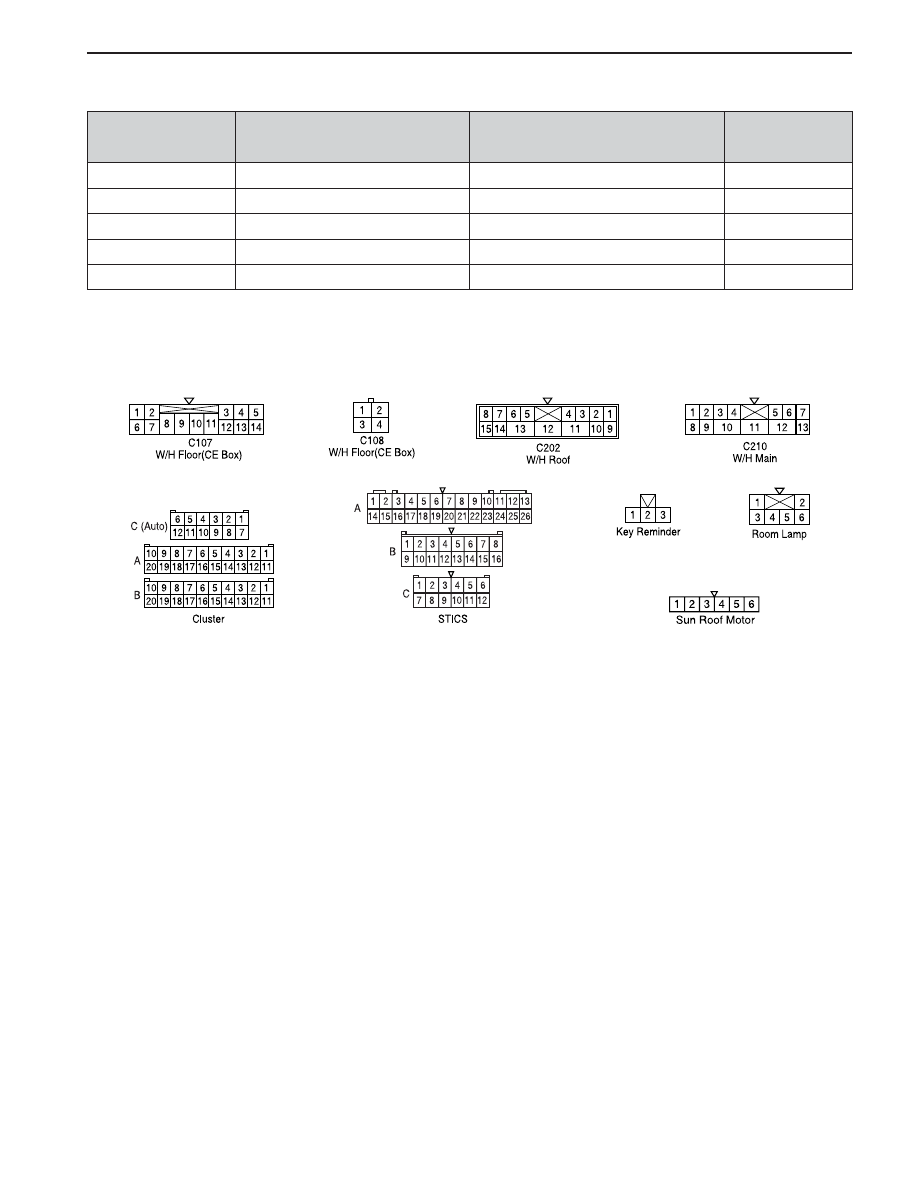

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(K) - Engine

Main - Floor(LH)

Main - Diagnosis Connector

Main - Floor(RH)

Floor - Co-Driver Door

Floor - Driver Door

Floor - RR Left Door

Floor - RR Right Door

Floor - Tail Gate

W/H Main

W/H Main

W/H Main

C107(14Pin, White)

C108(4Pin, Colorless)

C210(13Pin, Green)

C211(14Pin, White)

C216(18Pin, White)

C352(12Pin, White)

C362(20Pin, White)

C371(21Pin, White)

C381(21Pin, White)

C391(10Pin, White)

S201(14Pin, Black)

S208(14Pin, Black)

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Under Left “B” Filler

Under Right “B” Filler

Inside the Left Side Cover the Tail Gate

Upper the I/P Relay Box

Behind the Right the FATC

Inside Driver Side Cowl PNL

Behinel Conn Holder

Behinel Conn Holder

GND

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-130  ELECTRICAL WIRING DIAGRAMS

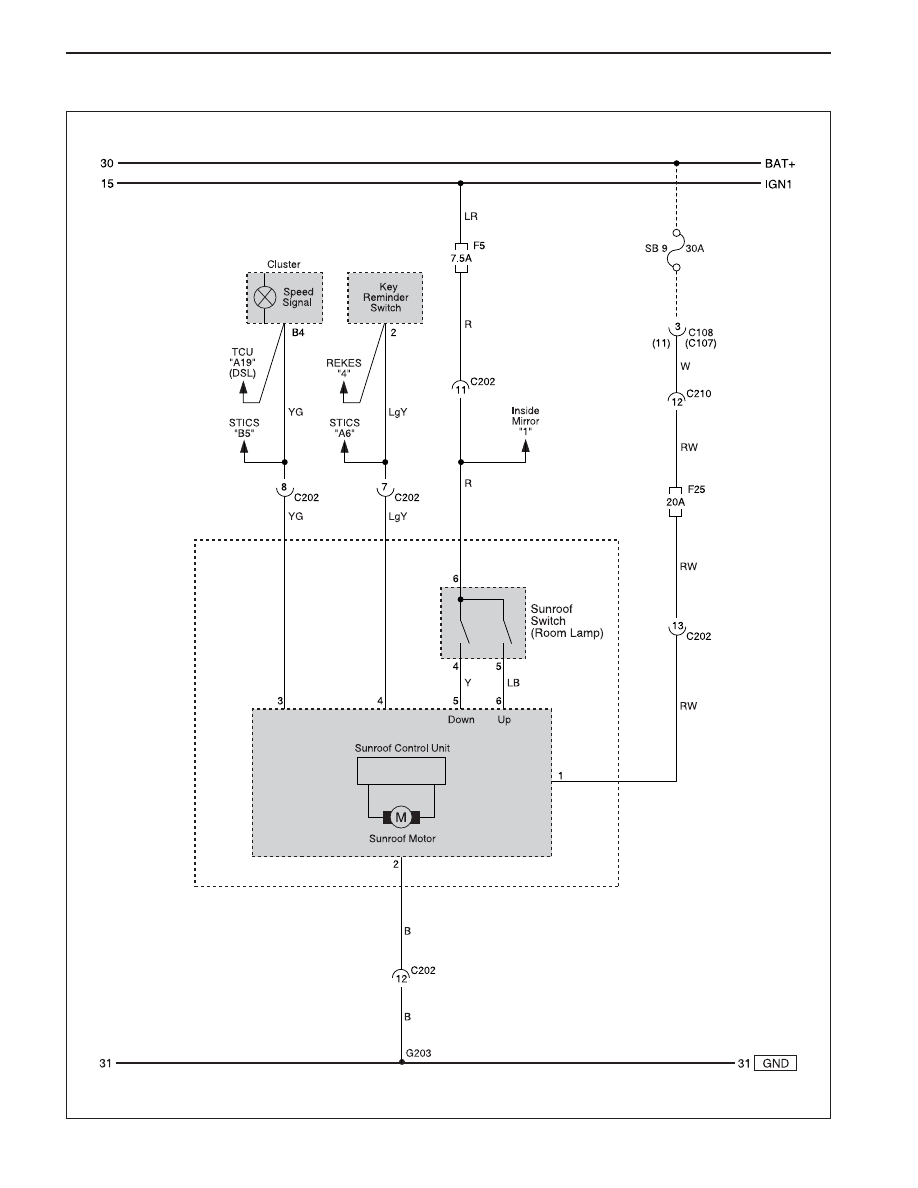

34. SUN ROOF CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-131

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(K) - Engine

Main - Roof

Main - Floor(LH)

W/H Main

C107(14Pin, White)

C108(4Pin, Colorless)

C202(15Pin, White)

C210(13Pin, Green)

G203

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Co-Driver Side Cowl PNL

Under the Seat Heating SW

W/H Air Bag

Remark

Connector Position
