SSANGYONG  REXTON XDi(RHD)

5-96  ELECTRICAL WIRING DIAGRAMS

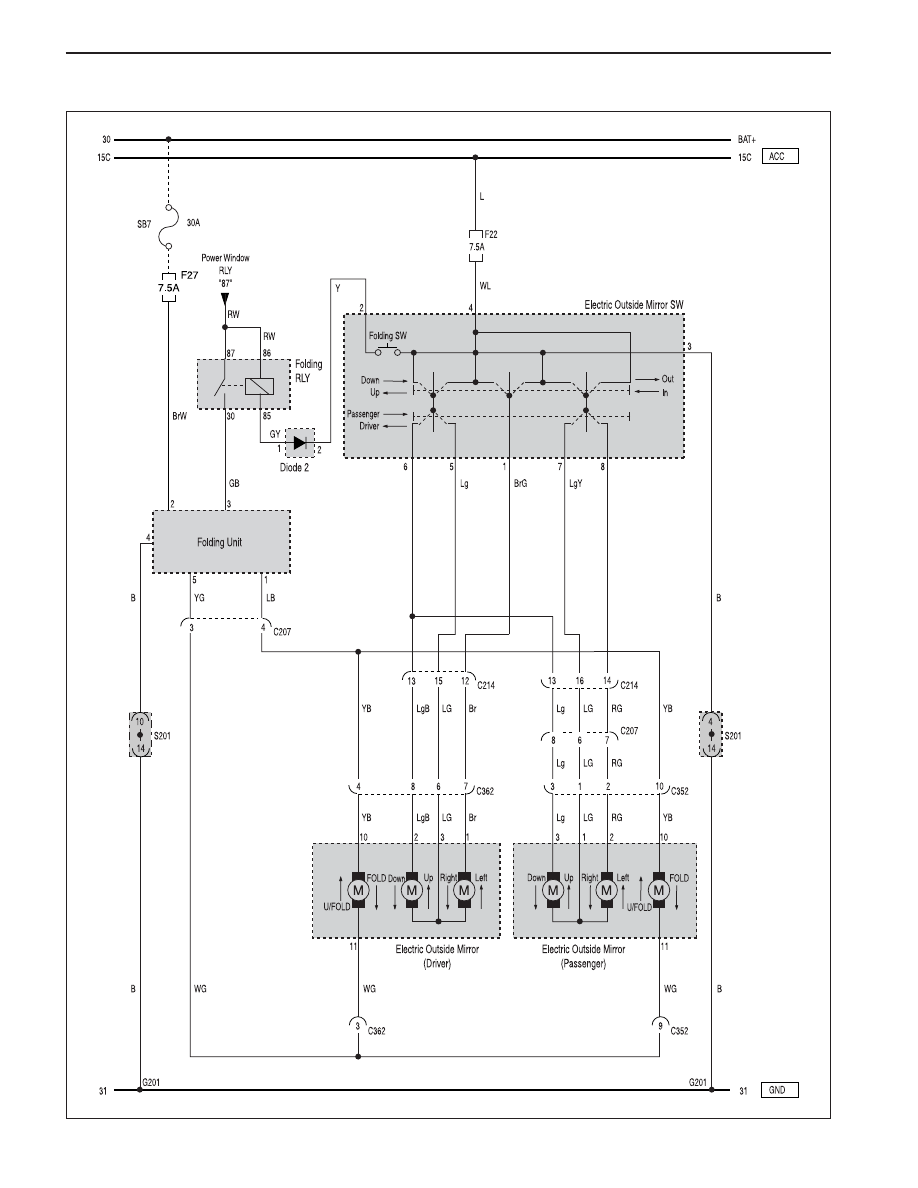

22. POWER O/SIDE MIRROR, DEFOGGER, FOLDING CIRCUIT(W/O MEMORY)

1) GENERAL

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-97

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(RH)

Floor - Co-Driver Door

Floor - Co-Driver Door

Floor - Driver Door

Floor - RR Defogger

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Floor

W/H Floor

C107(14Pin, White)

C109(16Pin, White)

C204(20Pin, Black)

C207(15Pin, Blue)

C214(20Pin, Black)

C351(13Pin, White)

C352(12Pin, White)

C362(20Pin, White)

C393(4Pin, White)

S201(14Pin, Black)

S204(14Pin, Black)

G201

G302

G303

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside the Upper the Tail Gate

Upper the I/P Relay Box

Behind the Left the FATC

Inside Driver Side Cowl PNL

Under Driver Seat

Under the Left “B” Filler

Behind the Quter Grass #1

Behinel Conn Holder

Behinel Conn Holder

Behinel Conn Holder

GND

GND

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-98  ELECTRICAL WIRING DIAGRAMS

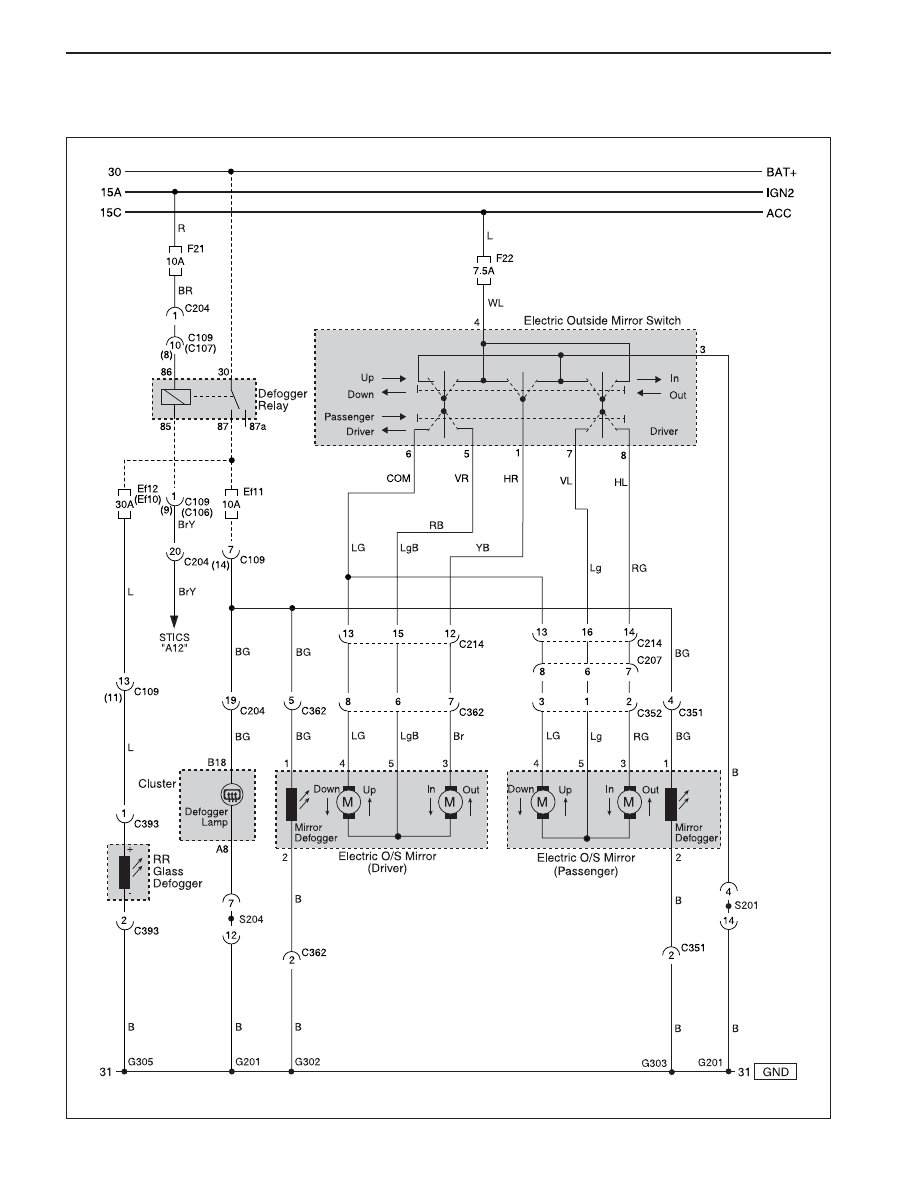

2) XDi, 2004 MODEL ~

ELECTRICAL WIRING DIAGRAMS  5-99

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(RH)

Floor - Co-Driver Door

Floor - Co-Driver Door

Floor - Driver Door

Floor - RR Defogger

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Floor

W/H Floor

C109(16Pin, White)

C204(20Pin, Black)

C207(15Pin, Blue)

C214(20Pin, Black)

C351(13Pin, White)

C352(12Pin, White)

C362(20Pin, White)

C393(4Pin, White)

S201(14Pin, Black)

S204(14Pin, Black)

G201

G302

G303

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside the Upper the Tail Gate

Upper the I/P Relay Box

Behind the Left the FATC

Inside Driver Side Cowl PNL

Under Driver Seat

Under the Left “B” Filler

Behind the Quter Grass #1

Behinel Conn Holder

Behinel Conn Holder

Behinel Conn Holder

GND

GND

Remark

Connector Position
