SSANGYONG  REXTON XDi(RHD)

5-88  ELECTRICAL WIRING DIAGRAMS

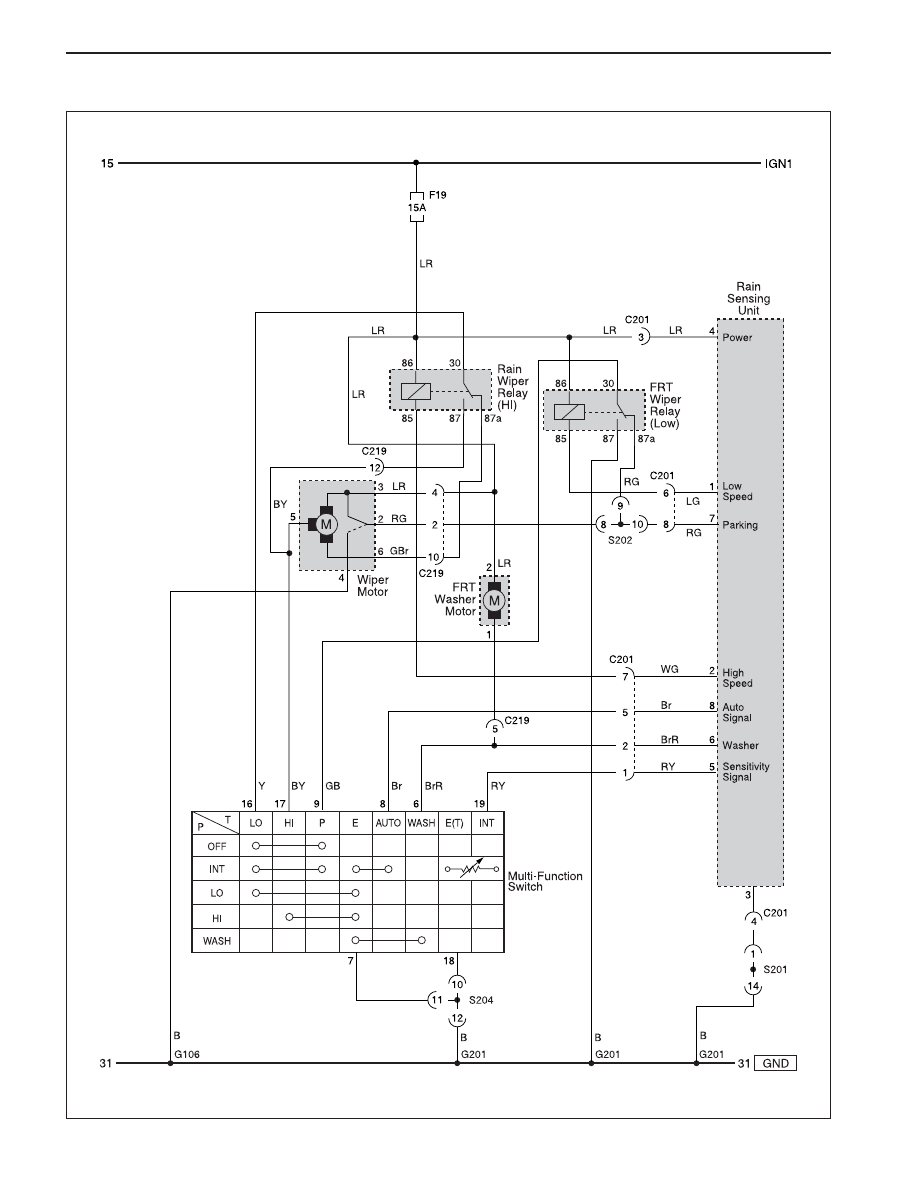

2) 2003 MODEL(W/ XDi) ~

ELECTRICAL WIRING DIAGRAMS  5-89

SSANGYONG  REXTON XDi(RHD)

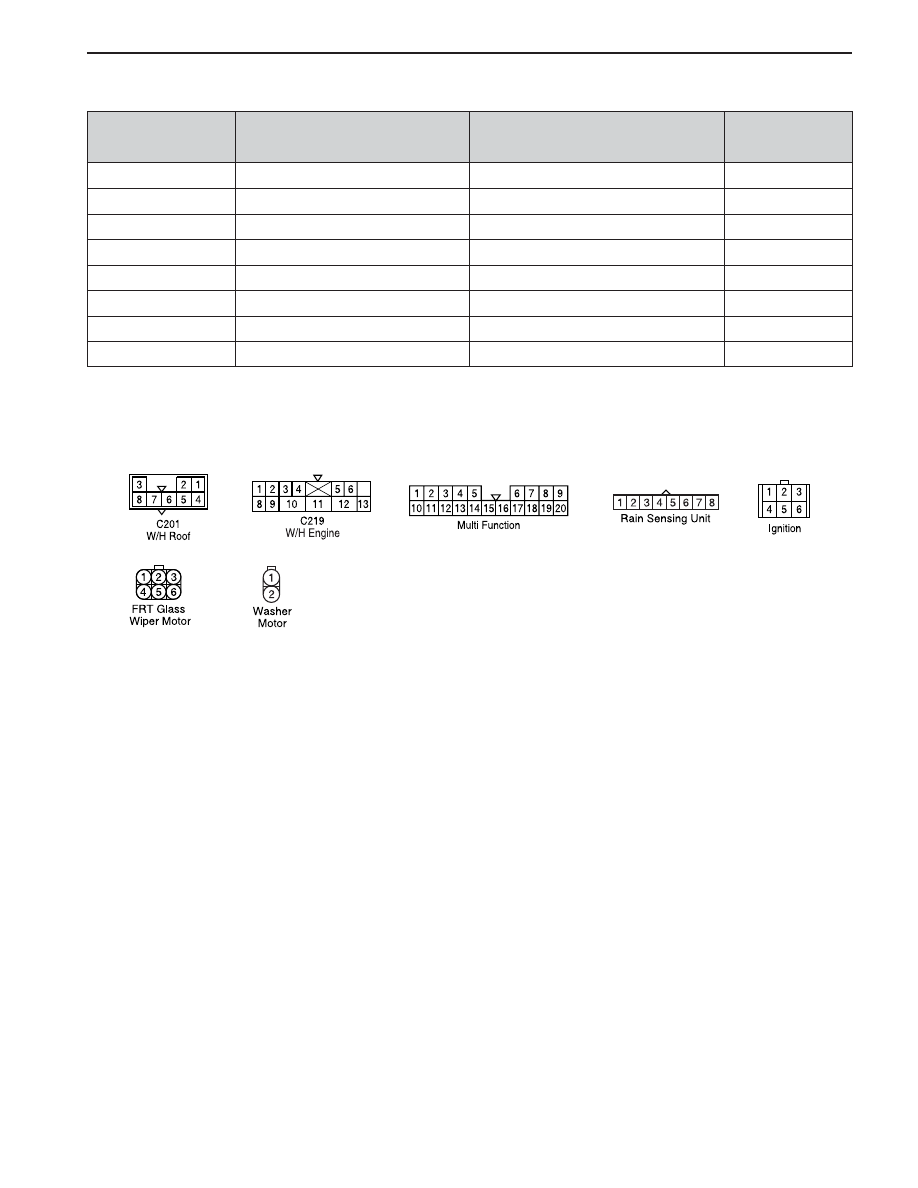

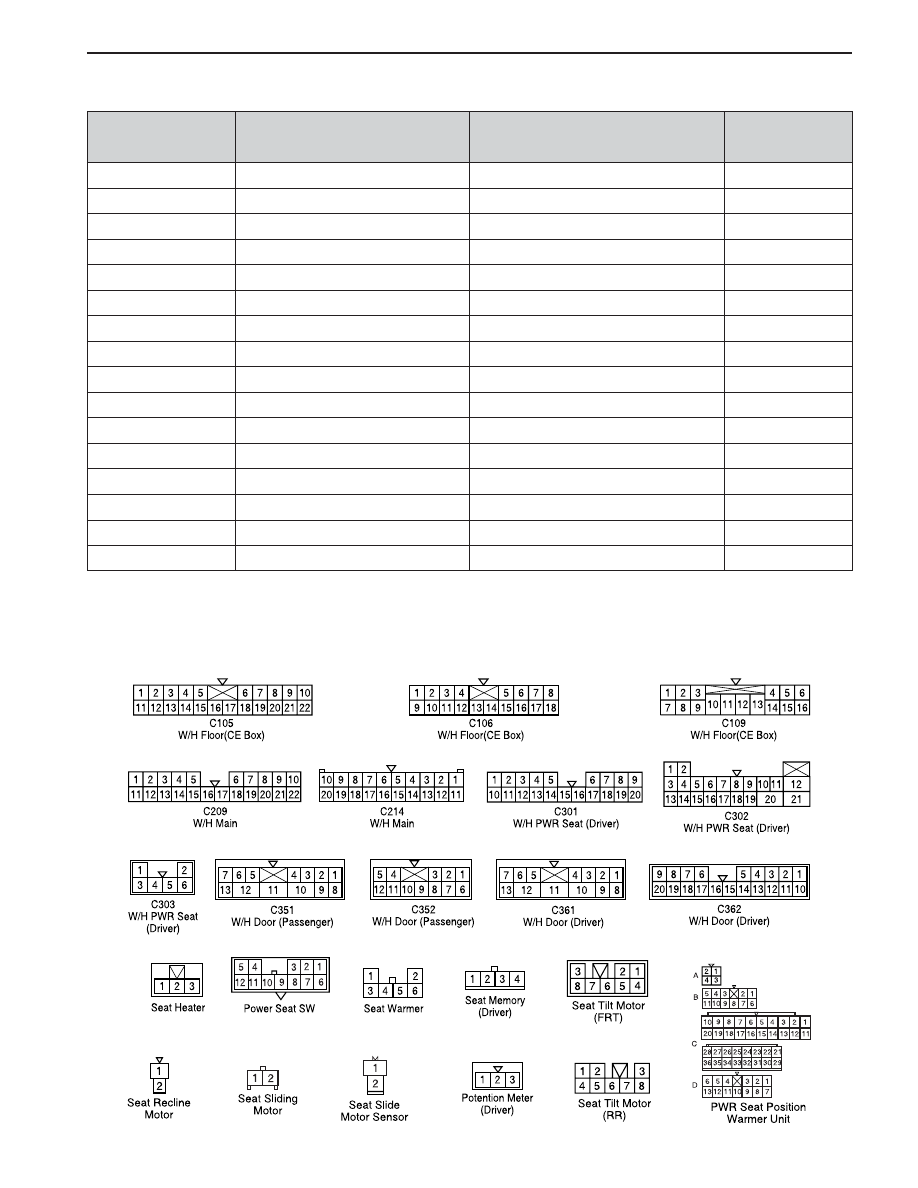

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Main - Roof

Engine - Main(RH)

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Main

W/H Main

C201(8Pin, White)

C219(13Pin, Green)

S201(14Pin, Black)

S202(14Pin, Black)

S204(14Pin, Black)

G106

G201

G203

Connecting Wiring

Harness

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Upper the I/P Relay Box

Behind the Left FATC

Beside the Engine Coolant Reserve Tank

Inside Co-Driver Side Cowl PNL

Under the Seat Heating SW

GND

GND

ABS, ABD

W/H Air Bag

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-90  ELECTRICAL WIRING DIAGRAMS

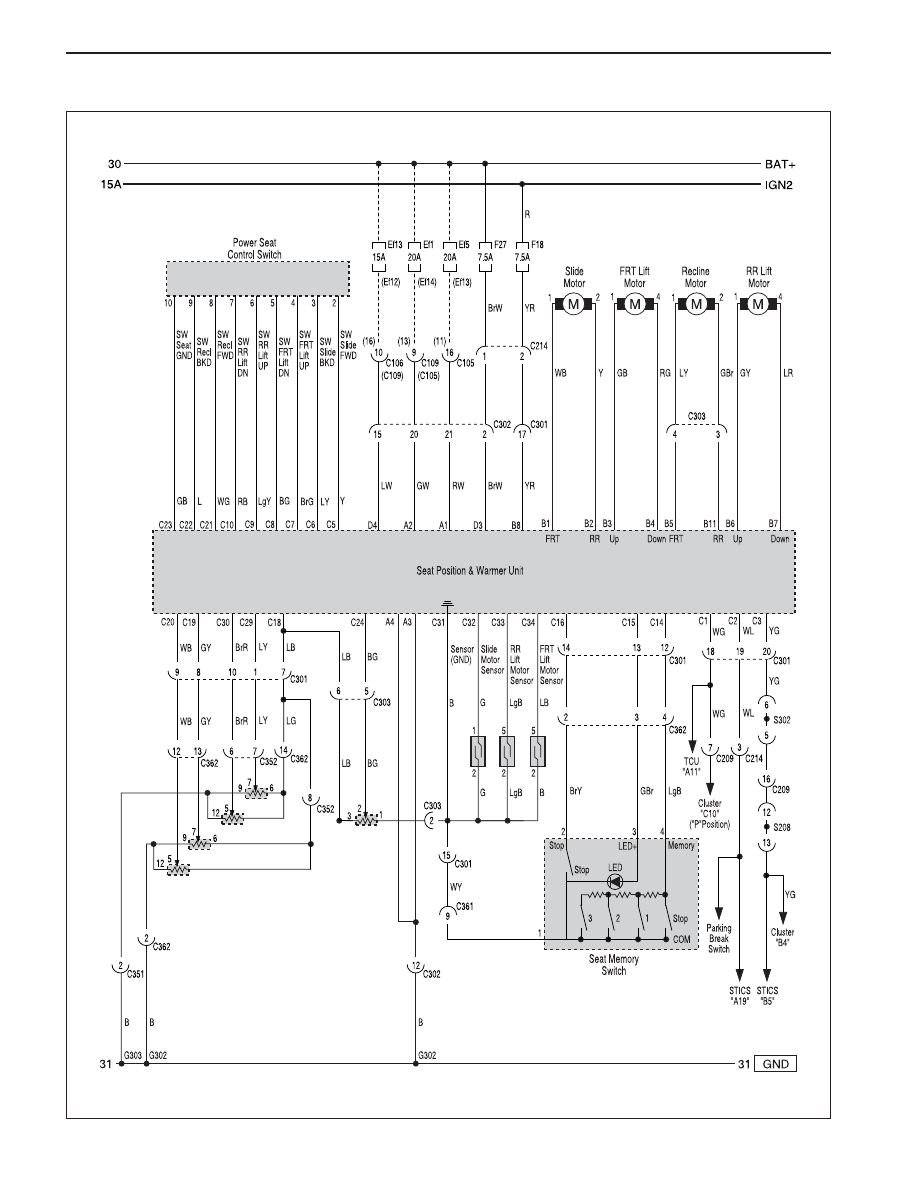

19. POWER SEAT CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-91

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Main - Floor(RH)

Floor - Driver Seat

Floor - Driver Seat

Driver Seat - Seat Back

Floor - Co-Driver Door

Floor - Co-Driver Door

Floor - Driver Door

Floor - Driver Door

W/H Main

W/H Floor

W/H Floor

W/H Floor

C105(22Pin, White)

C106(18Pin, White)

C109(16Pin, White)

C209(22Pin, Yellow)

C214(20Pin, Black)

C301(20Pin, White)

C302(21Pin, White)

C303(6Pin, White)

C351(13Pin, White)

C352(12Pin, White)

C361(13Pin, White)

C362(20Pin, White)

S208(14Pin, Black)

S302(14Pin, Black)

G302

G303

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Under the Driver Seat

Under the Driver Seat

Under the Driver Seat

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Behind the Right the FATC

Under Driver Seat

Under Driver Seat

Under the Left “B” Filler

A/T

Power Seat

Power Seat

Power Seat

Behinel Conn Holder

Behinel Conn Holder

Behinel Conn Holder

Behinel Conn Holder

Remark

Connector Position
