SSANGYONG  REXTON XDi(RHD)

5-84  ELECTRICAL WIRING DIAGRAMS

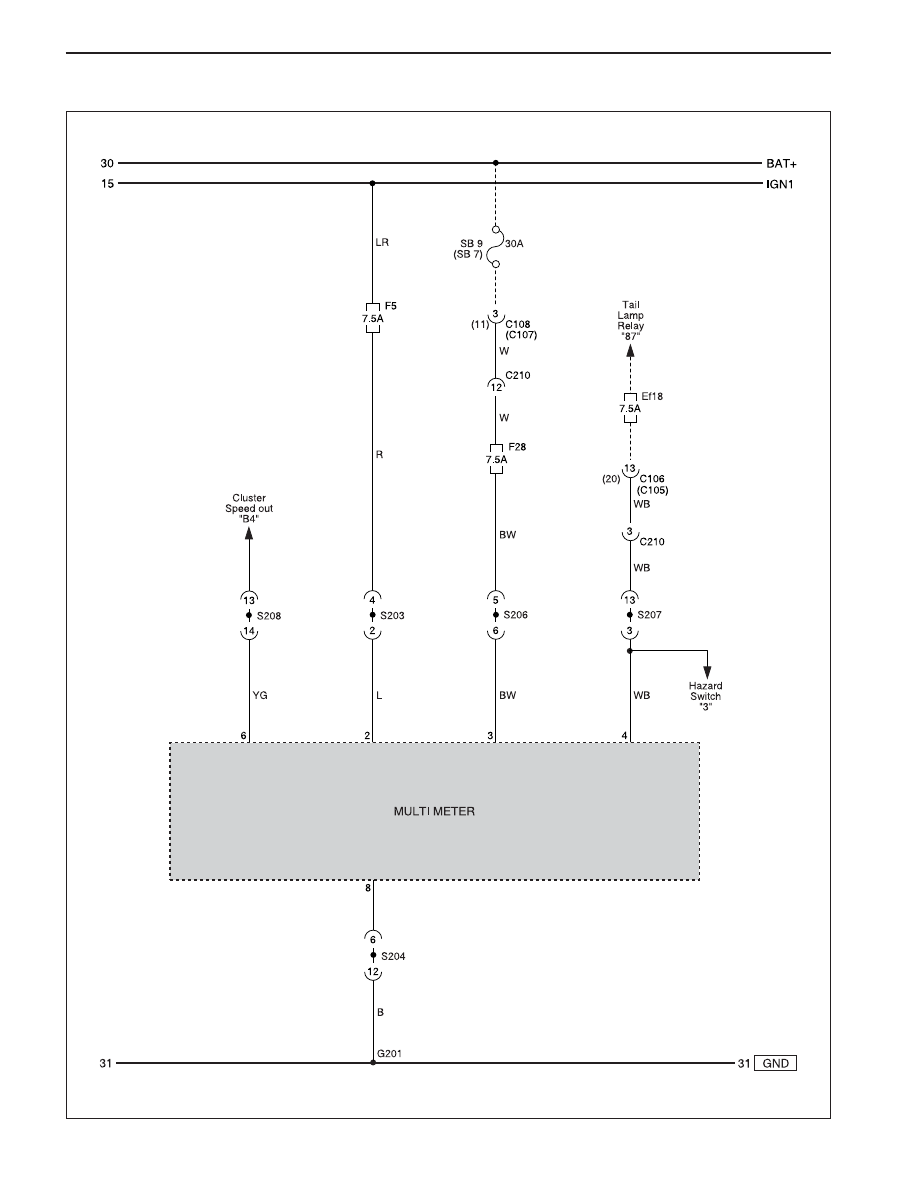

17. MULTI METER CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-85

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(K) - Engine

Main - Floor(LH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

C105(22Pin, White)

C106(18Pin, White)

C107(14Pin, White)

C108(4Pin, Colorless)

C210(13Pin, Green)

S203(14Pin, Black)

S204(14Pin, Black)

S206(14Pin, Black)

S207(14Pin, Black)

S208(14Pin, Black)

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Behind the Right the FATC

Inside Driver Side Cowl PNL

GND

Tail Lamp

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-86  ELECTRICAL WIRING DIAGRAMS

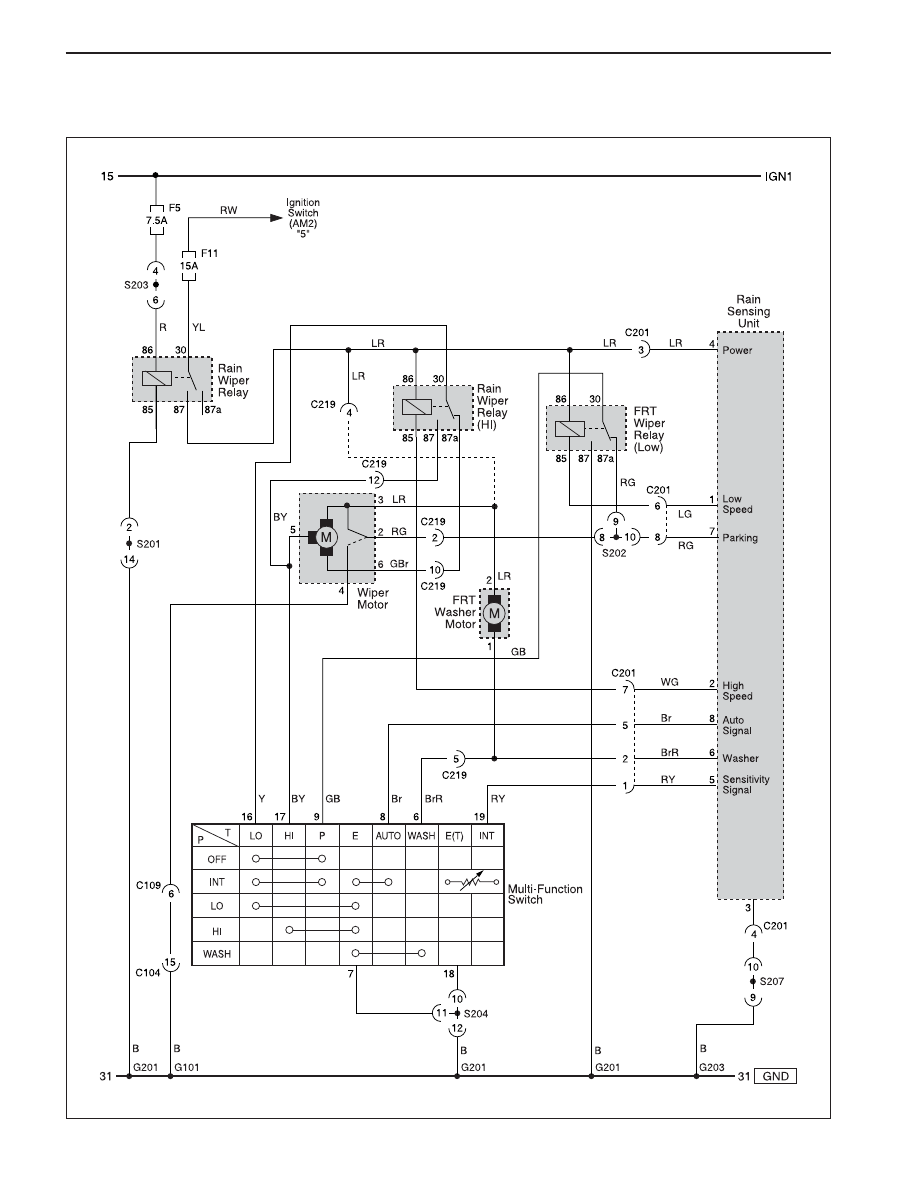

18. RAIN SENSING WIPER CIRCUIT

1) ~ 2002 MODEL

ELECTRICAL WIRING DIAGRAMS  5-87

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(M) - Engine

Main - Roof

Engine - Main(RH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Main

W/H Main

C104(20Pin, White)

C109(16Pin, White)

C201(8Pin, White)

C219(13Pin, Green)

S201(14Pin, Black)

S202(14Pin, Black)

S203(14Pin, Black)

S204(14Pin, Black)

S207(14Pin, Black)

G101

G201

G203

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Upper the I/P Relay Box

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Right the FATC

Center the Engine Room Fuse Box

Inside Driver Side Cowl PNL

Under the Seat Heating SW

GND

GND

Tail Lamp

W/H Air Bag

Remark

Connector Position
