SSANGYONG  REXTON XDi(RHD)

5-16  ELECTRICAL WIRING DIAGRAMS

3. EGR(EXHAUST GAS RECIRCULATION) CONTROL CIRCUIT(DSL)

1) ~ 2002 MODEL

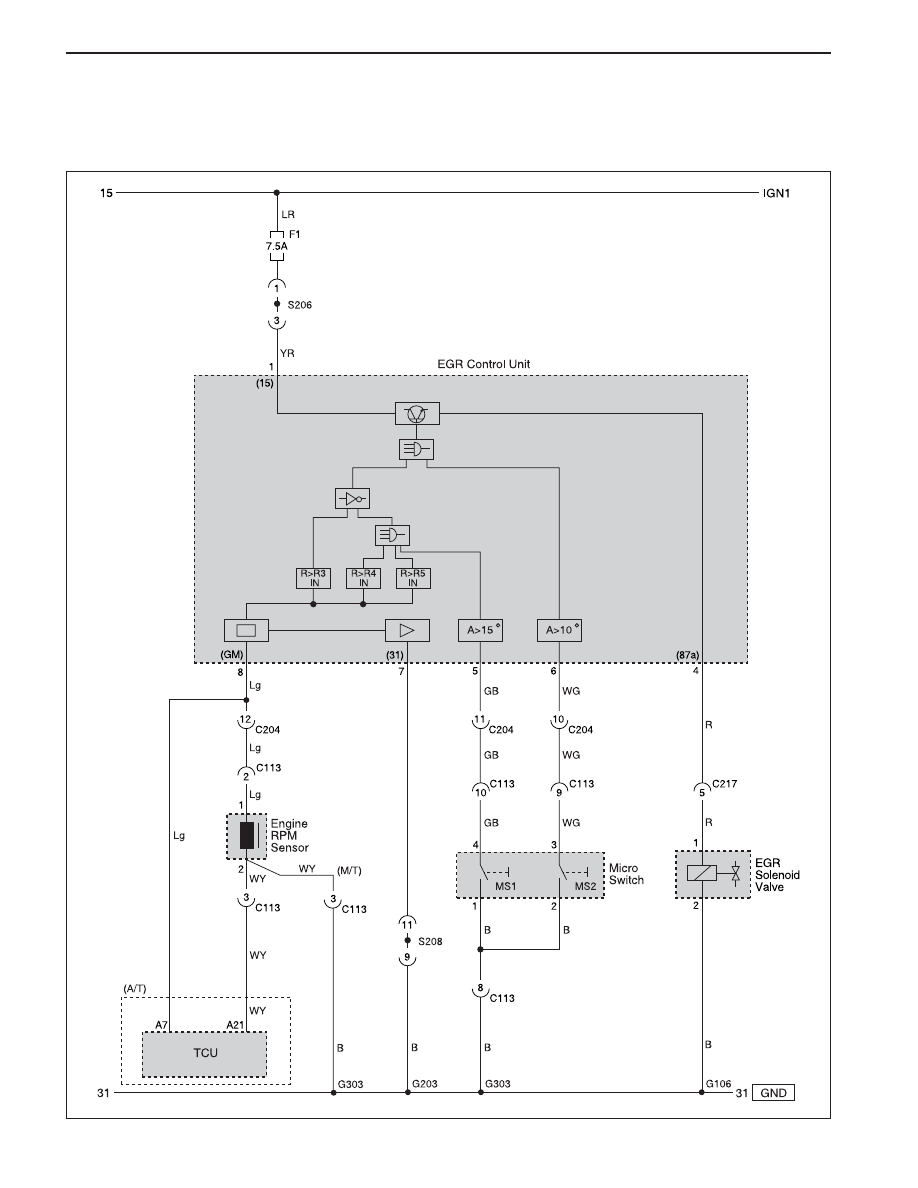

(1) GENERAL

ELECTRICAL WIRING DIAGRAMS  5-17

SSANGYONG  REXTON XDi(RHD)

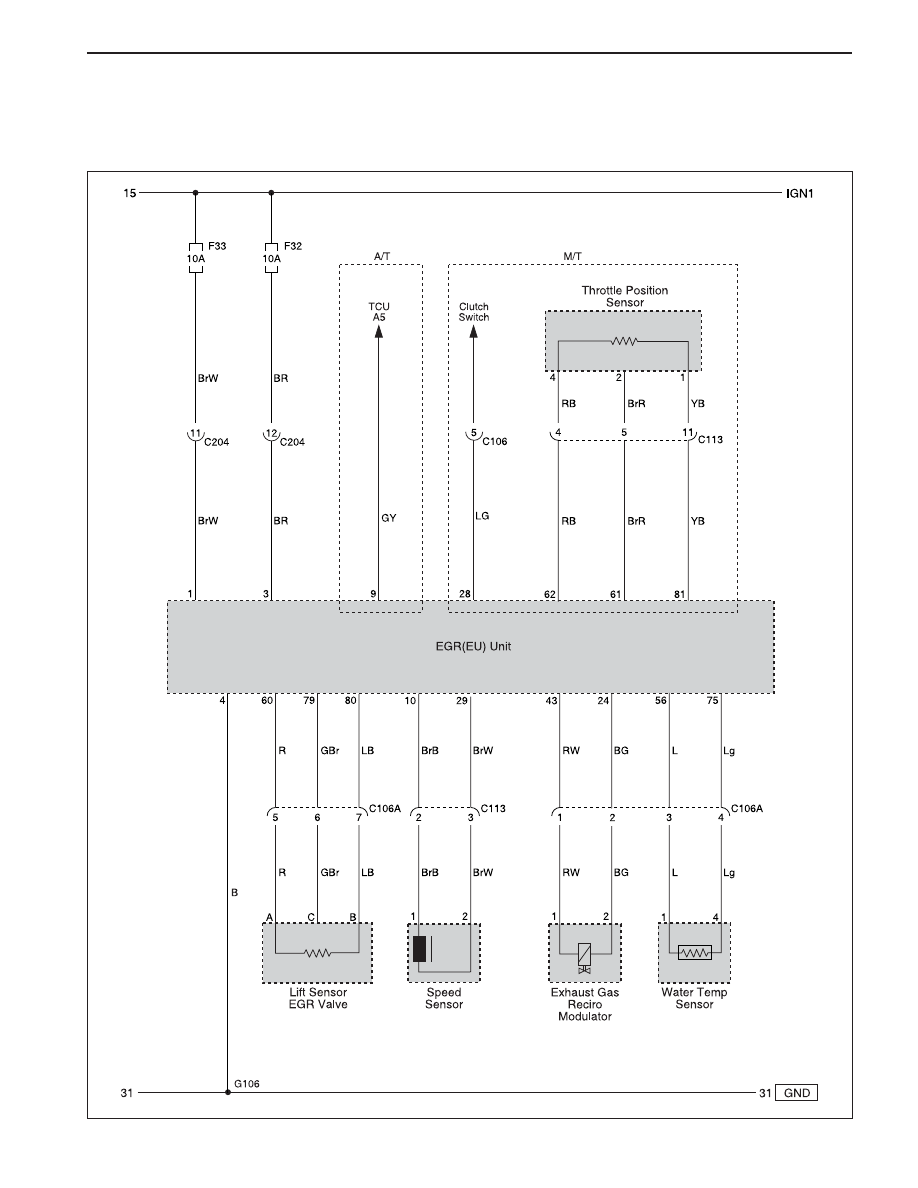

(2) EURO(2002 MODEL)

SSANGYONG  REXTON XDi(RHD)

5-18  ELECTRICAL WIRING DIAGRAMS

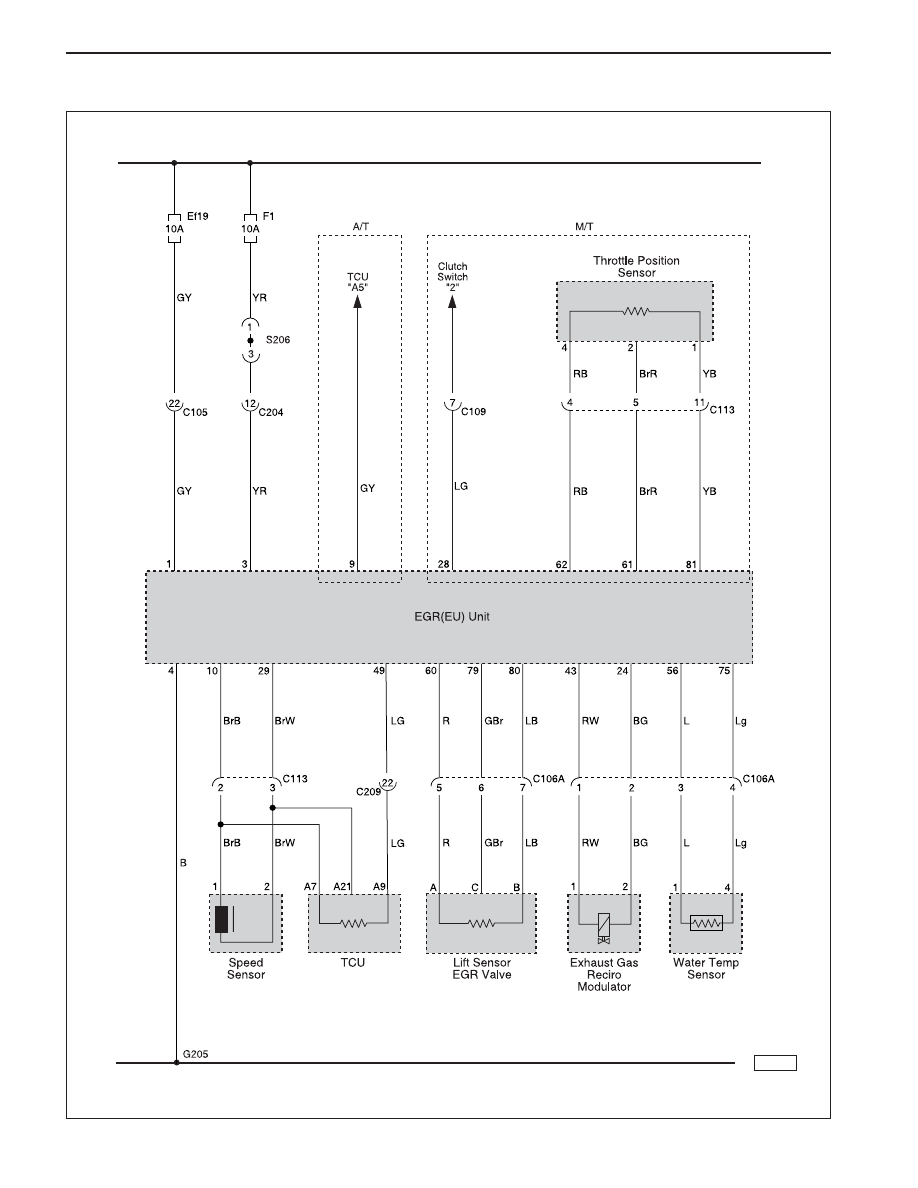

(3) EURO(2003 MODEL ~ )

31

 31

GND

15

 IGN1

ELECTRICAL WIRING DIAGRAMS  5-19

SSANGYONG  REXTON XDi(RHD)

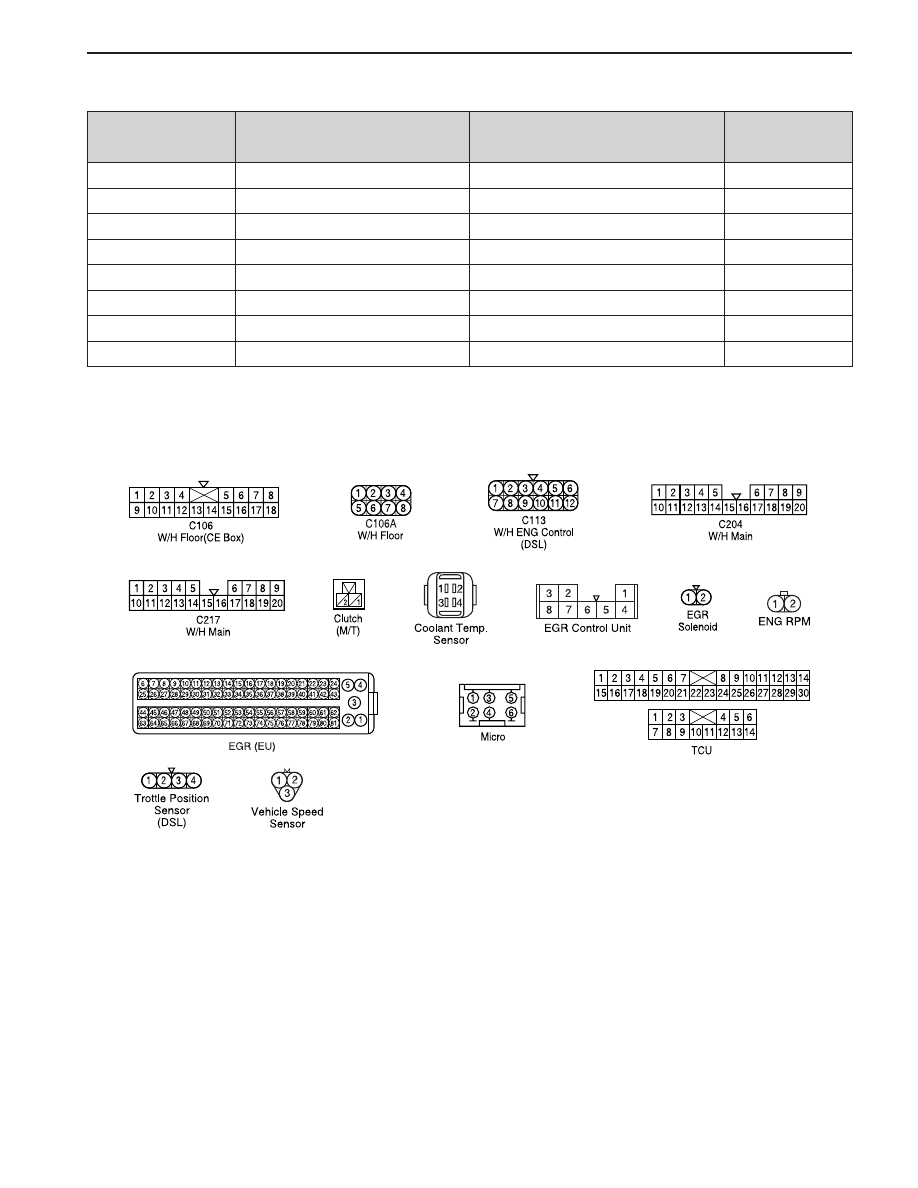

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(F) - Engine

Engine Control - Engine

Engine Room Fuse Box(M) - Engine

Engine - Engine Control

Main - Floor(LH)

Engine - Main(RH)

W/H Main

W/H Engine

C106(18Pin, White)

C106A(8Pin, White)

C109(16Pin, White)

C113(12Pin, Black)

C204(20Pin, Black)

C217(20Pin, Black)

S206(14Pin, Black)

G106

Connecting Wiring

Harness

Engine Room Fuse Box

Under the Engine Room Fuse Box EGR

Engine Room Fuse Box

Right Engine Room Dash PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Behind the Left FATC

Beside the Engine Coolant Reserve Tank

DSL

ABS, ABD

Remark

Connector Position
