SSANGYONG  REXTON XDi(RHD)

5-12  ELECTRICAL WIRING DIAGRAMS

2. PREHEATING UNIT CIRCUIT

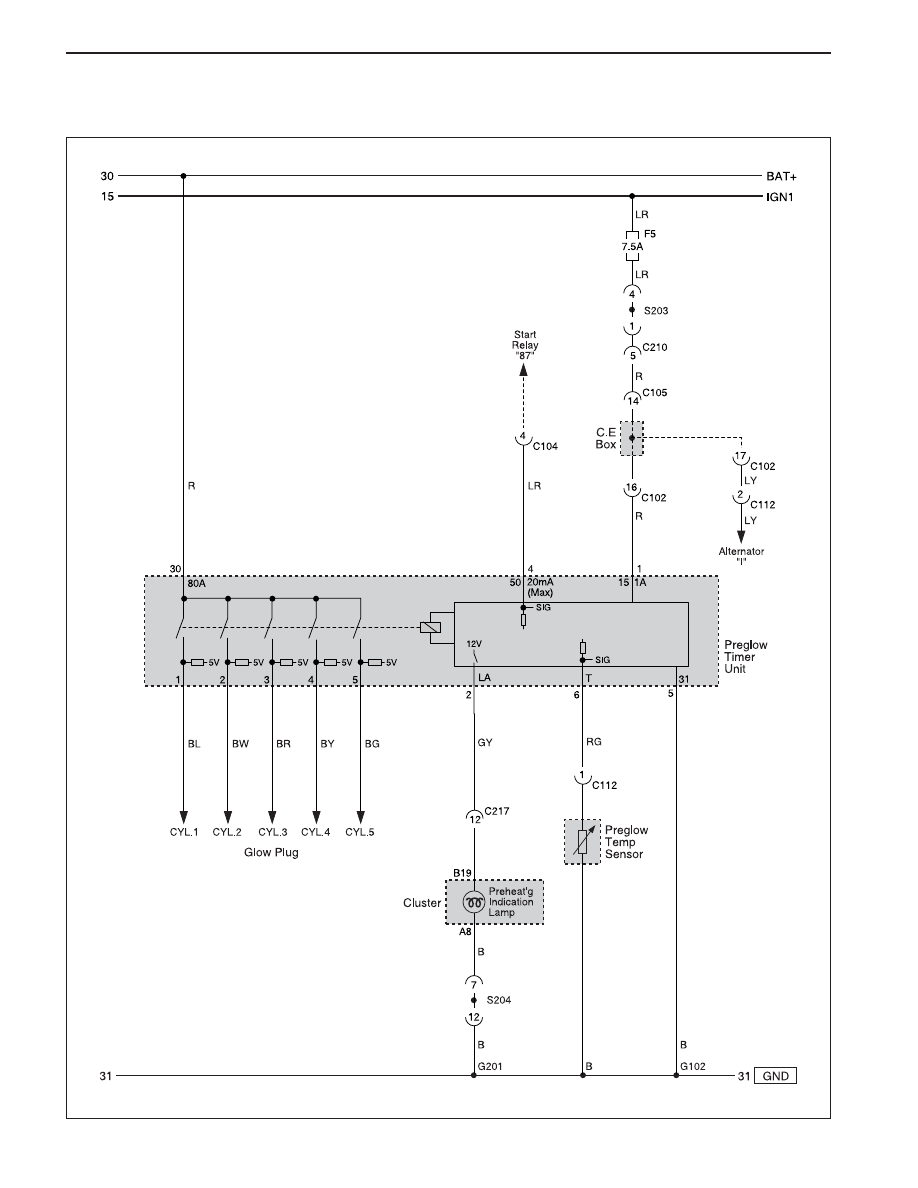

1) ~ 2002 MODEL

ELECTRICAL WIRING DIAGRAMS  5-13

SSANGYONG  REXTON XDi(RHD)

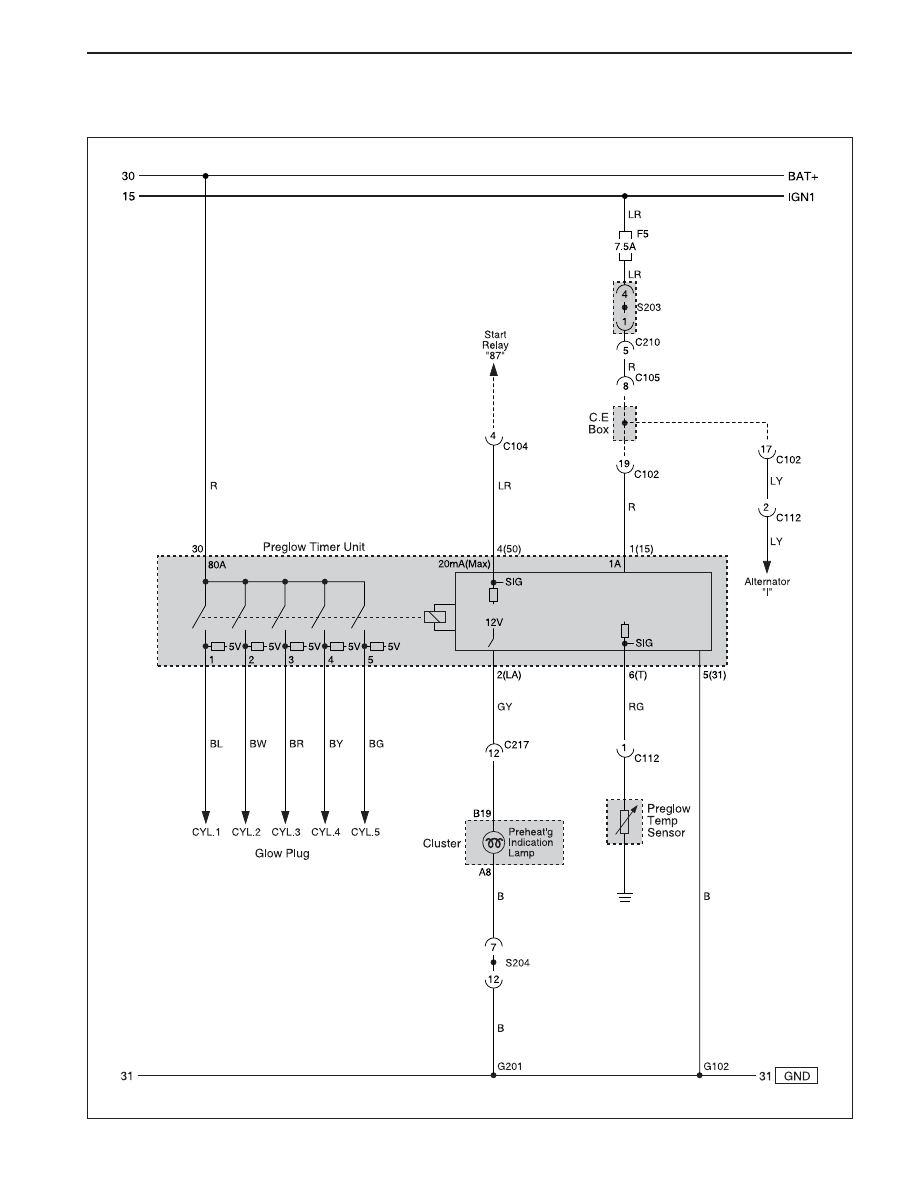

2) 2003 MODEL ~

SSANGYONG  REXTON XDi(RHD)

5-14  ELECTRICAL WIRING DIAGRAMS

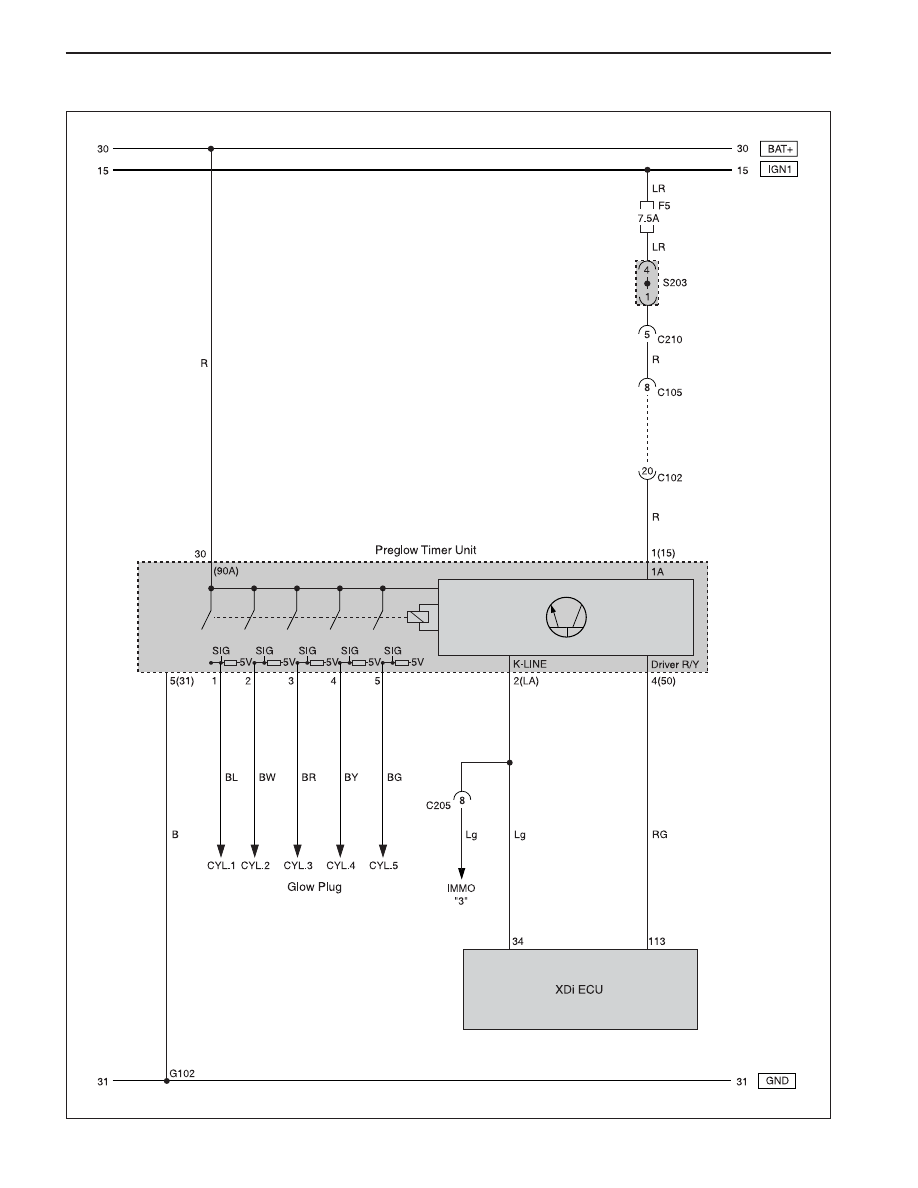

3) XDi

ELECTRICAL WIRING DIAGRAMS  5-15

SSANGYONG  REXTON XDi(RHD)

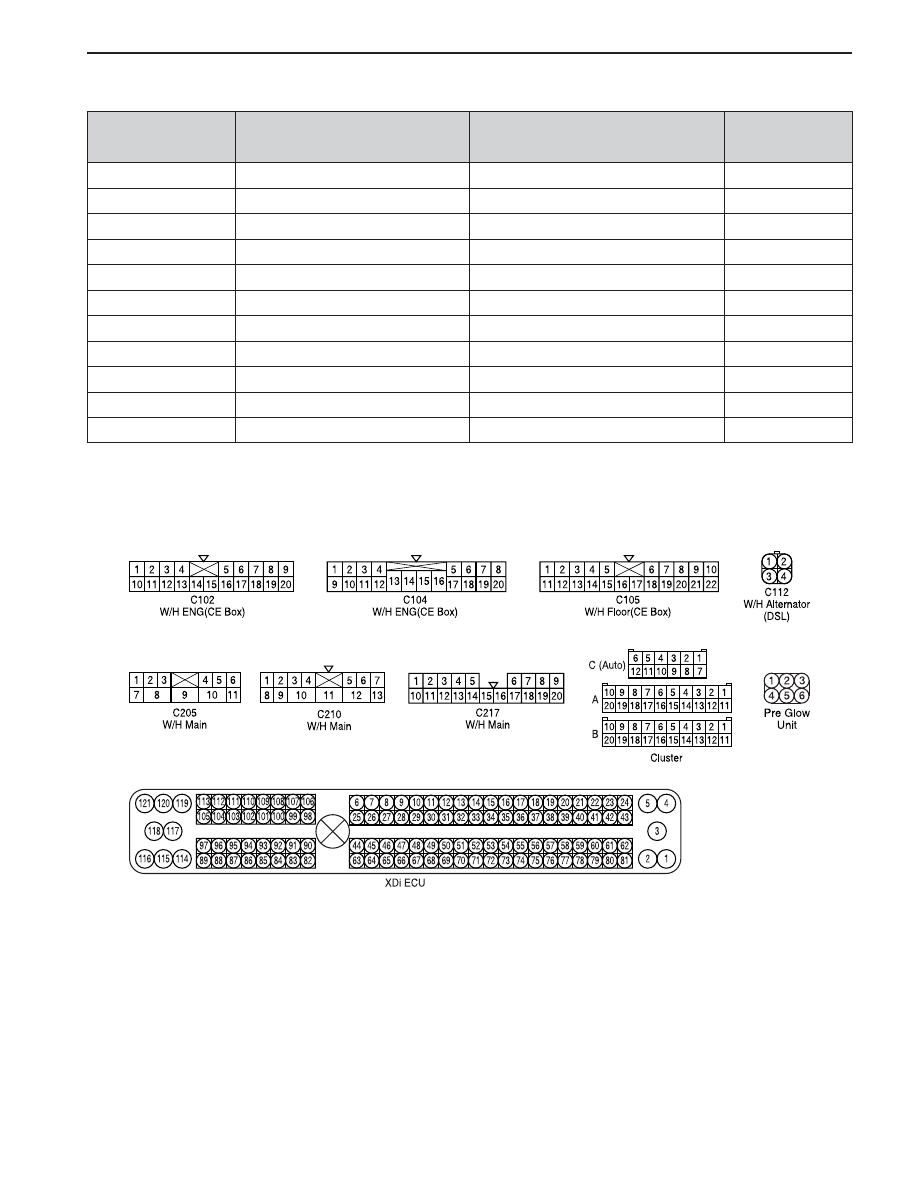

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(B) - Engine

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine - Alternator

Main - Floor(LH)

Main - Floor(LH)

Engine - Main(RH)

W/H Main

W/H Main

W/H Engine

W/H Main

C102(20Pin, White)

C104(20Pin, White)

C105(22Pin, White)

C112(4Pin, Black)

C205(11Pin, White)

C210(13Pin, Green)

C217(20Pin, Black)

S203(14Pin, Black)

S204(14Pin, Black)

G102

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the Coolant Reserve Tank

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left the FATC

Center BATT

Inside Driver Side Cowl PNL

DSL

GND

Remark

Connector Position
