SsangYong Rexton. Service manual - part 162





SSANGYONG  REXTON XDi(RHD)

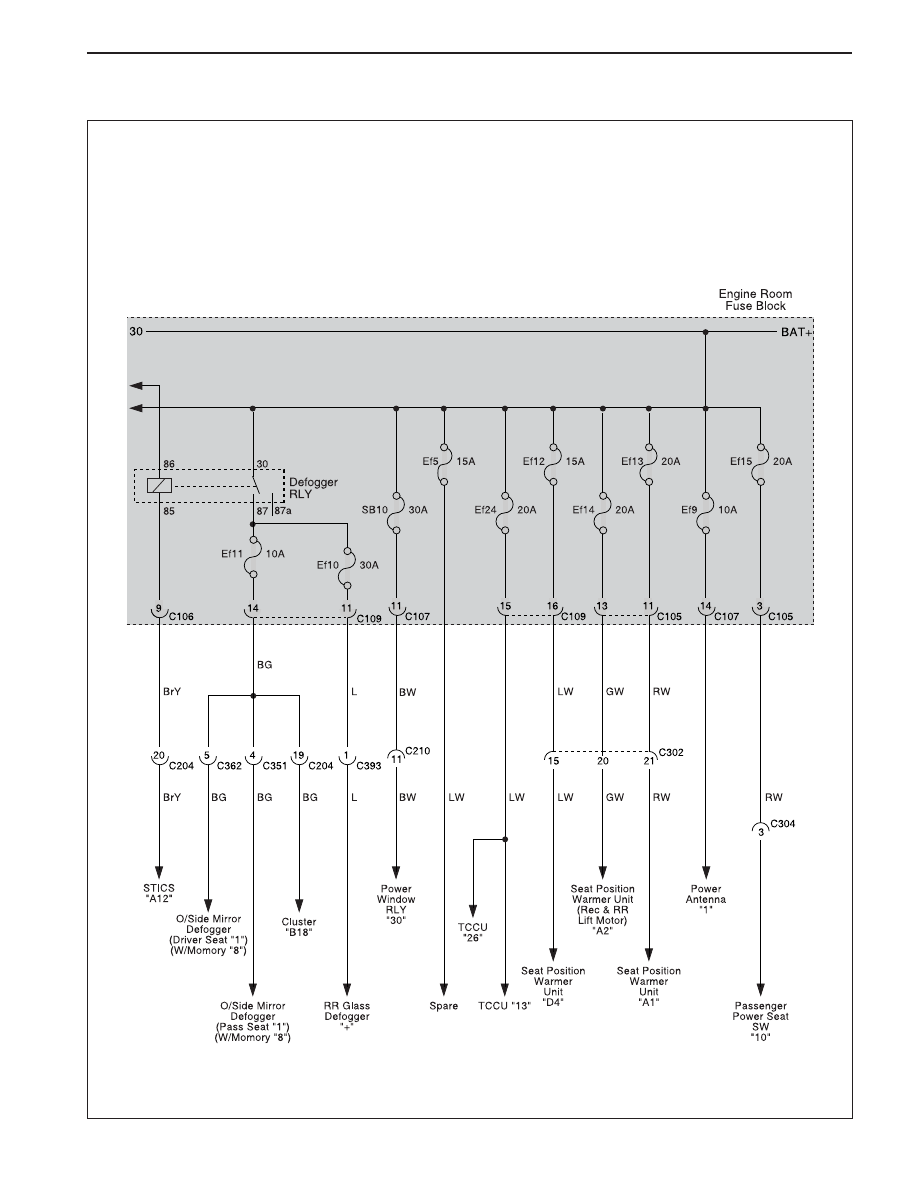

3-12  WIRING DIAGRAM FOR POWER SUPPLIES

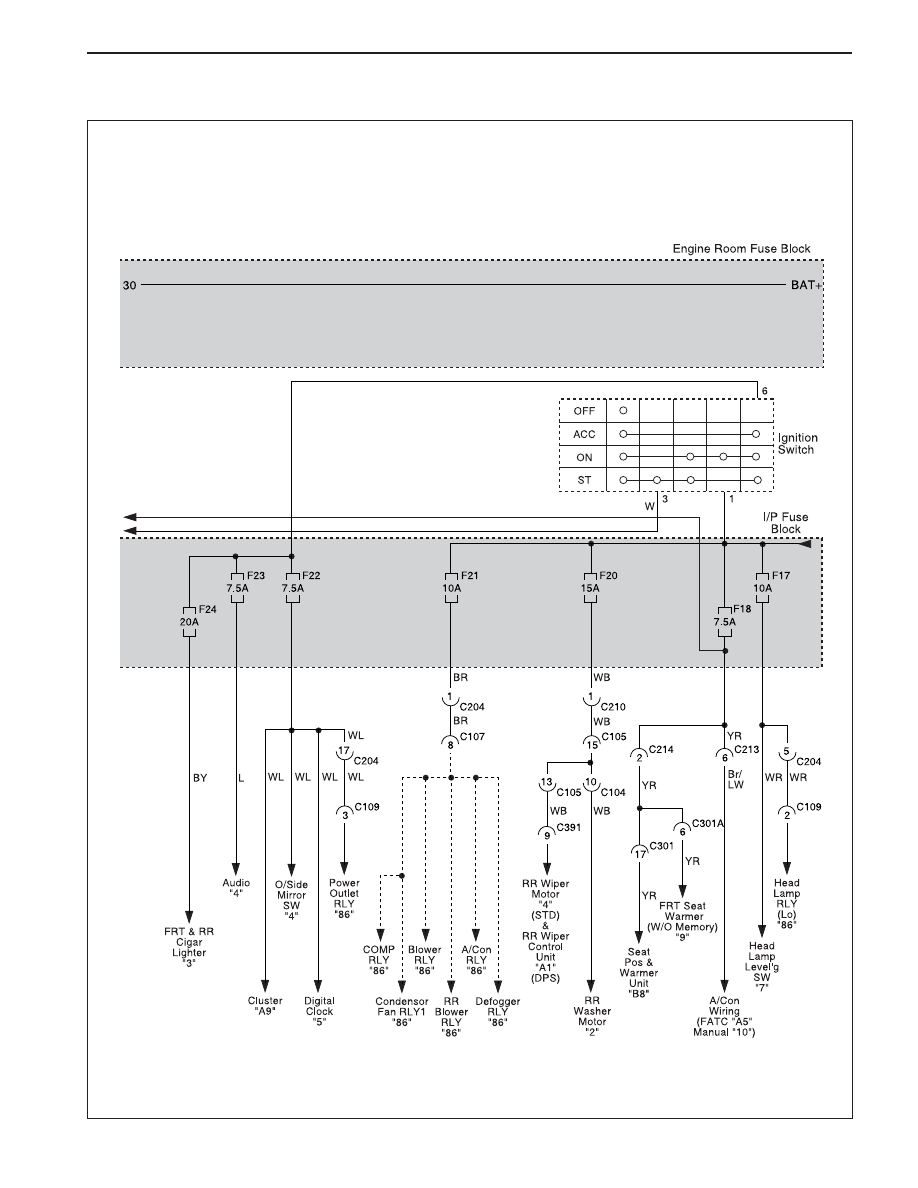

WIRING DIAGRAM FOR POWER SUPPLIES  3-13

SSANGYONG  REXTON XDi(RHD)

SSANGYONG  REXTON XDi(RHD)

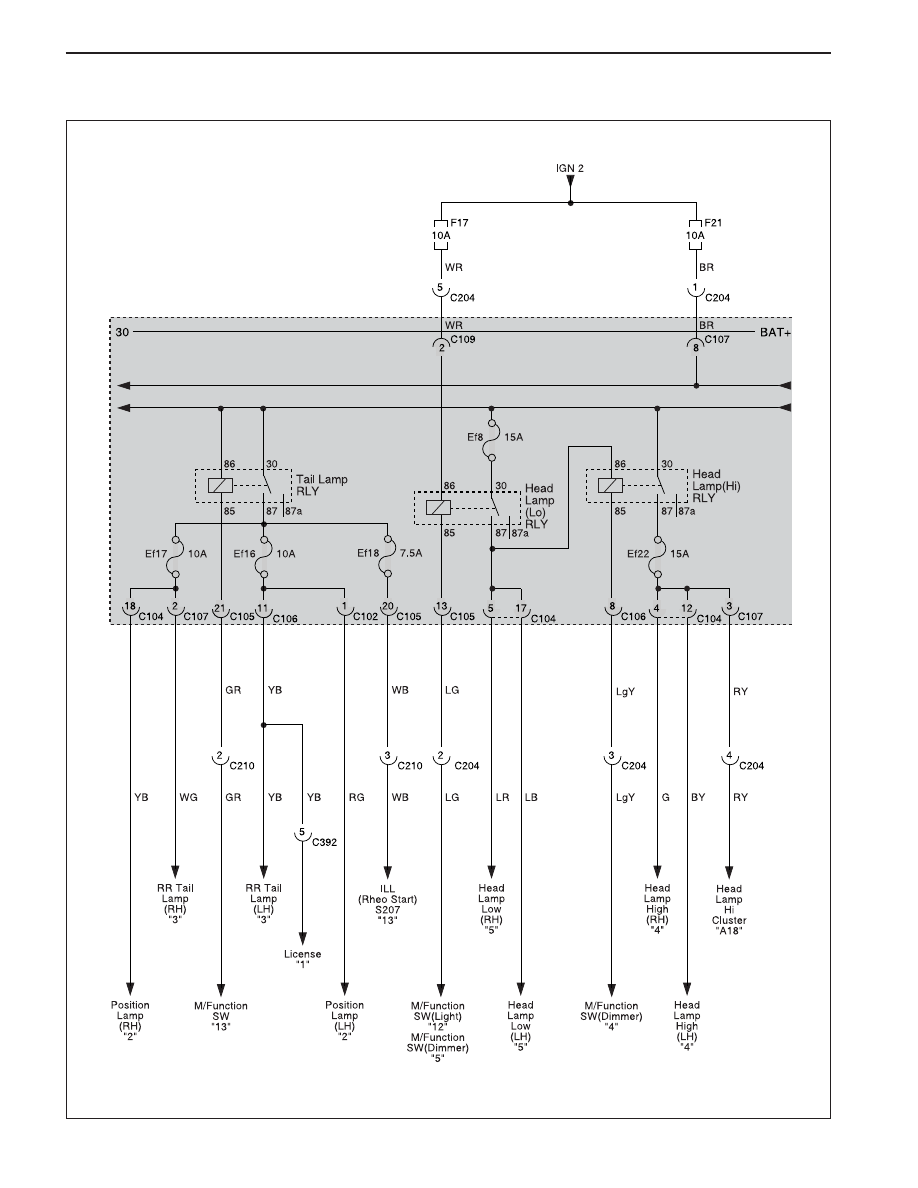

3-14  WIRING DIAGRAM FOR POWER SUPPLIES

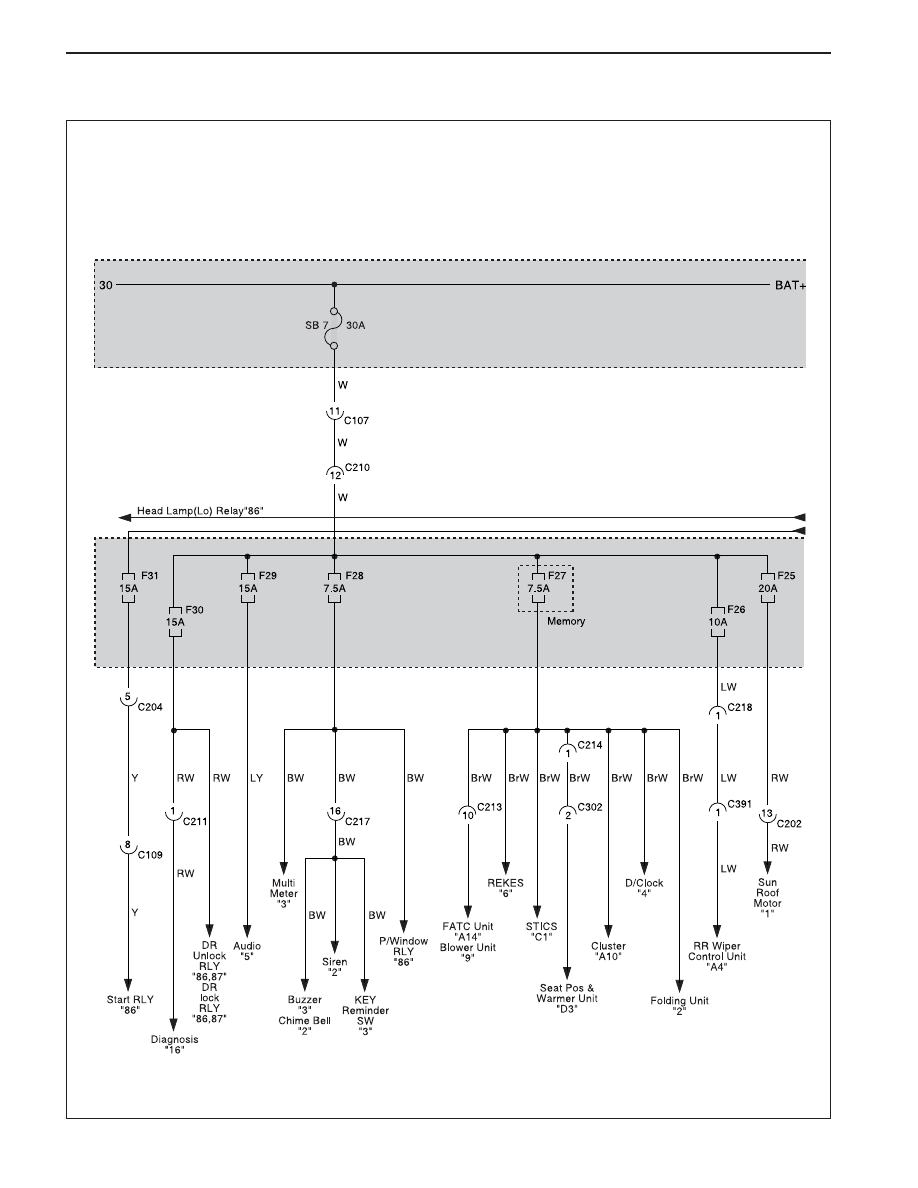

WIRING DIAGRAM FOR POWER SUPPLIES  3-15

SSANGYONG  REXTON XDi(RHD)
