SSANGYONG  REXTON XDi(RHD)

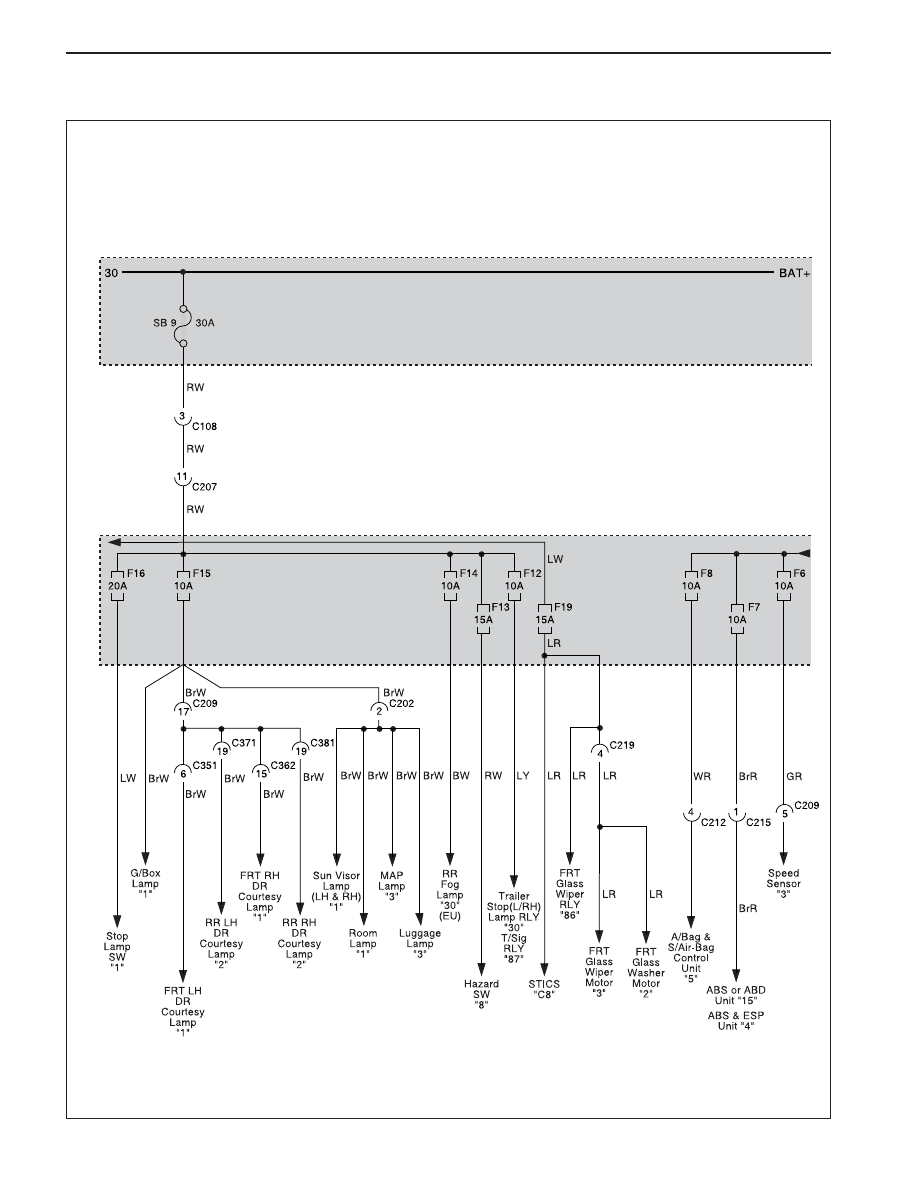

3-8  WIRING DIAGRAM FOR POWER SUPPLIES

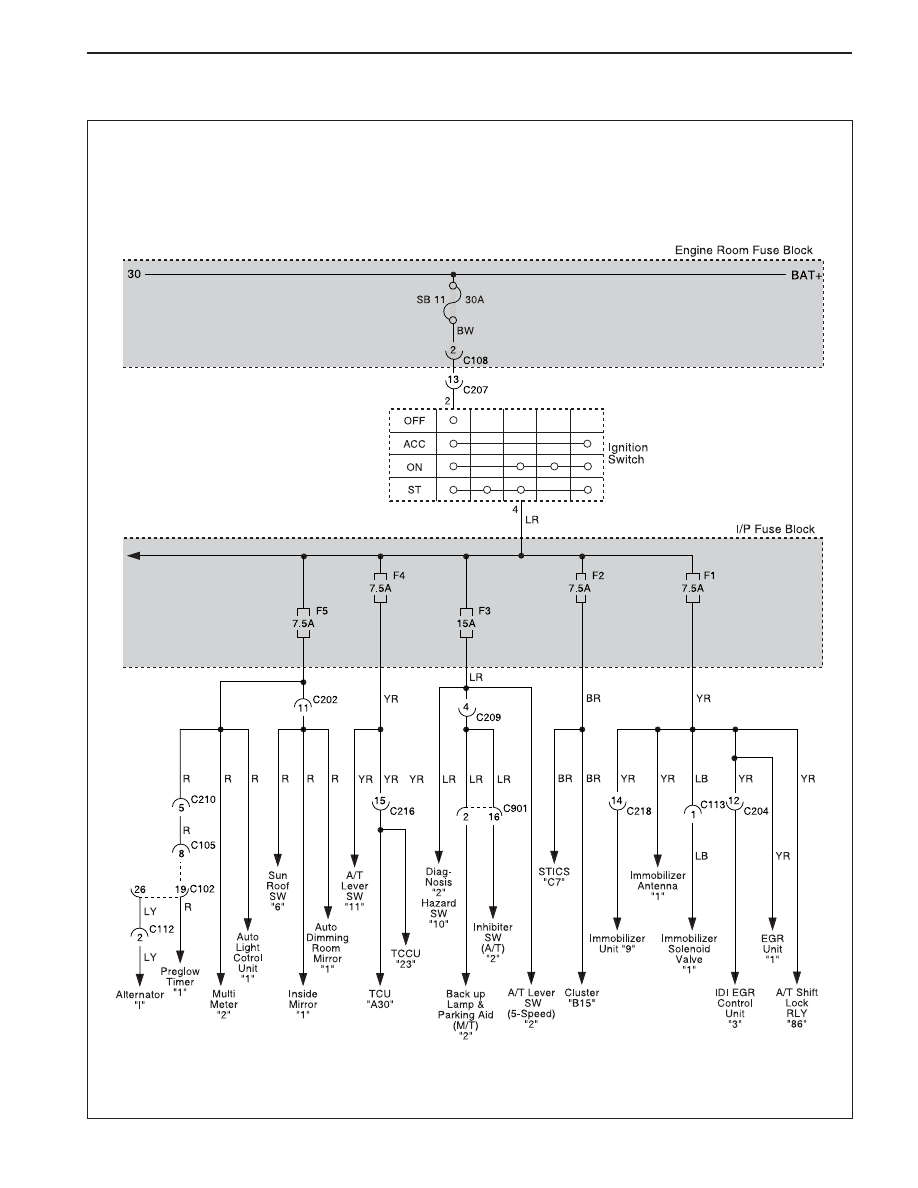

WIRING DIAGRAM FOR POWER SUPPLIES  3-9

SSANGYONG  REXTON XDi(RHD)

SSANGYONG  REXTON XDi(RHD)

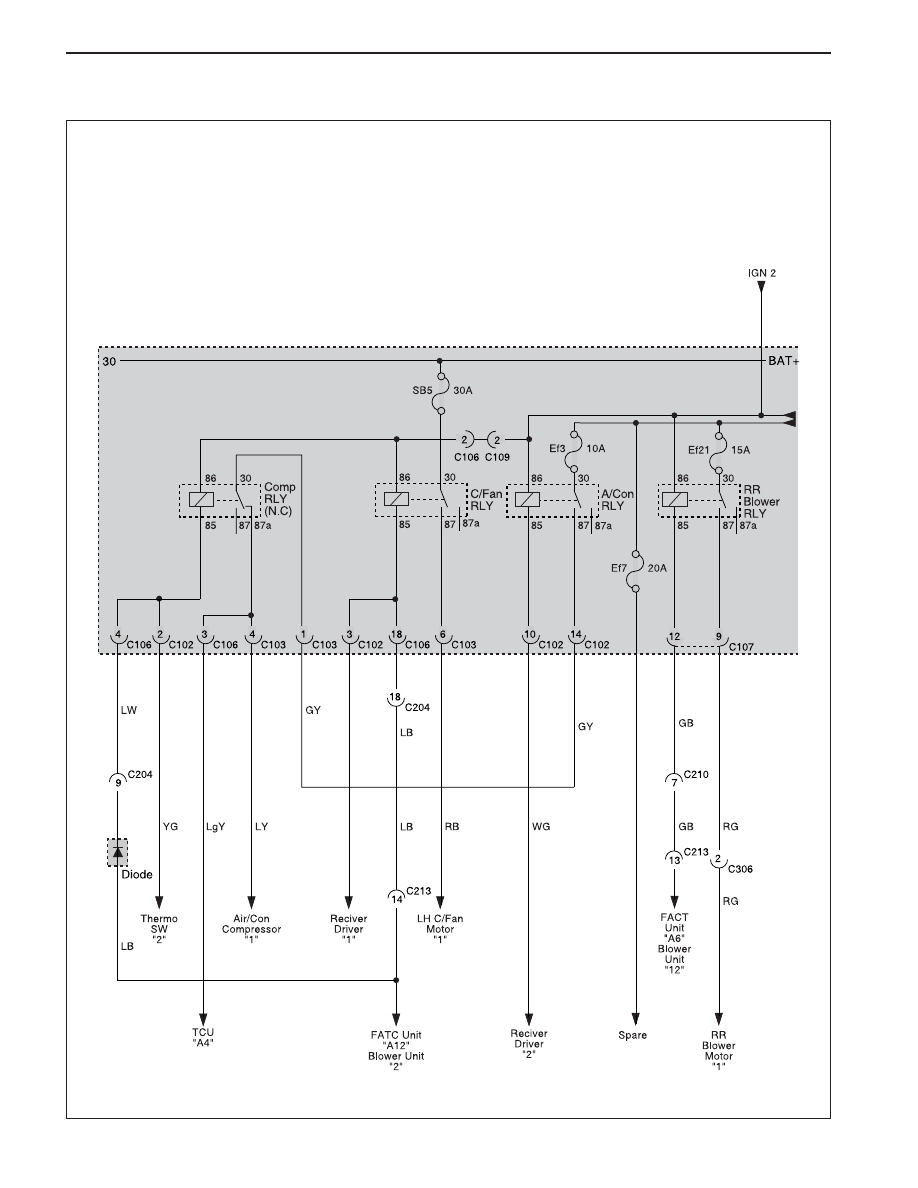

3-10  WIRING DIAGRAM FOR POWER SUPPLIES

2) 2003 MODEL ~

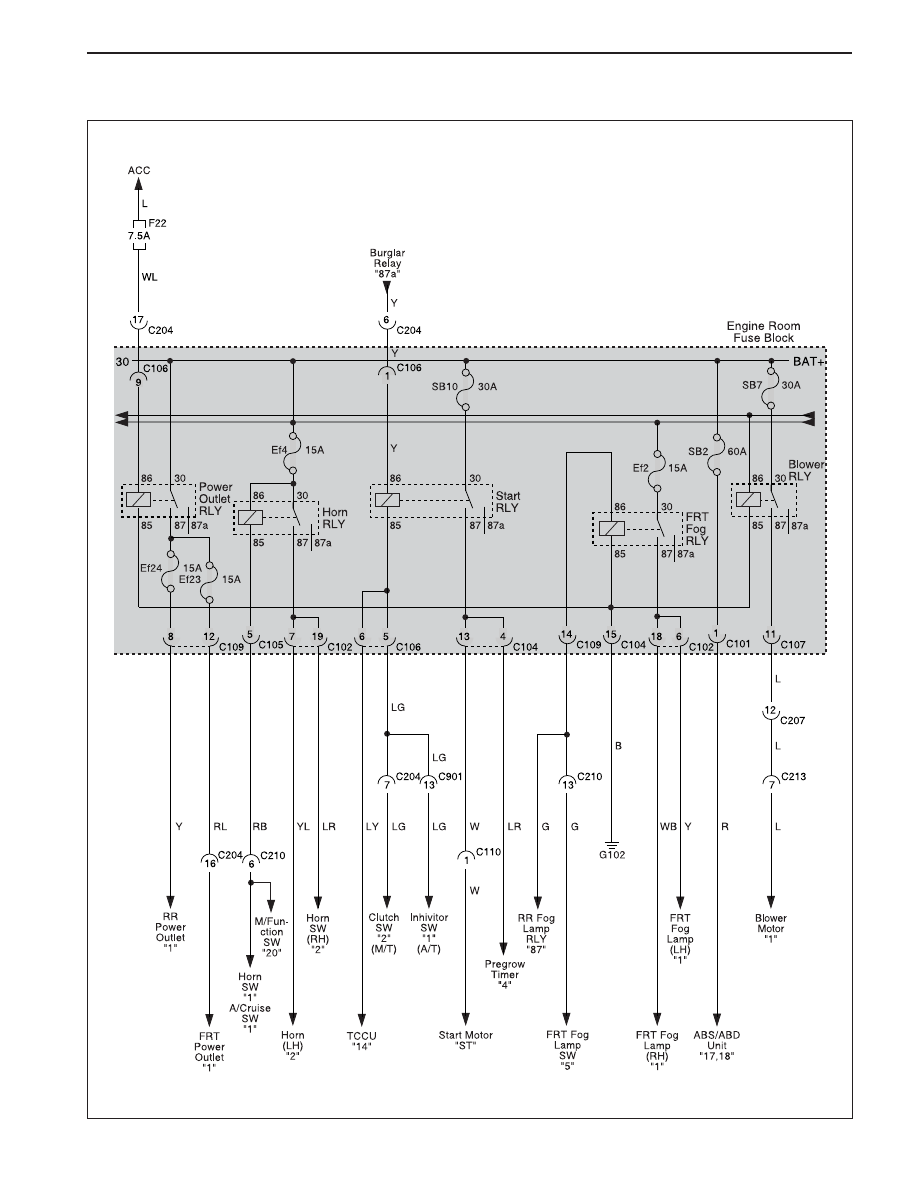

WIRING DIAGRAM FOR POWER SUPPLIES  3-11

SSANGYONG  REXTON XDi(RHD)
