SsangYong Rexton. Service manual - part 101

DI10-9

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10019

Y220_10018

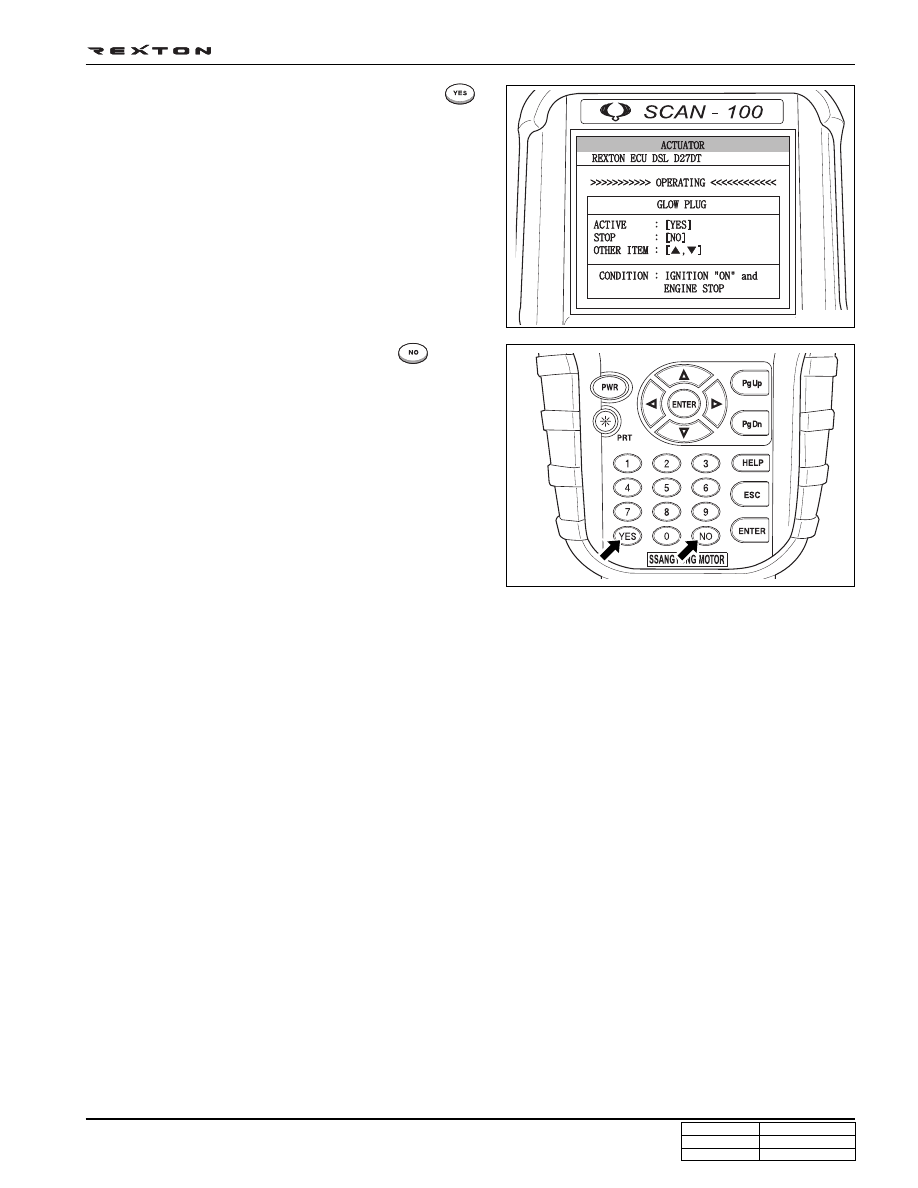

4. If you want to operate the glow plug relay, press “

”

key. The “OPERATING” message appears and the relay
operation alarm sounds.

5. If you want to stop the operation press “

” key in

keyboard.

DI10-10

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10020

Y220_10021

Y220_10022

Y220_10023

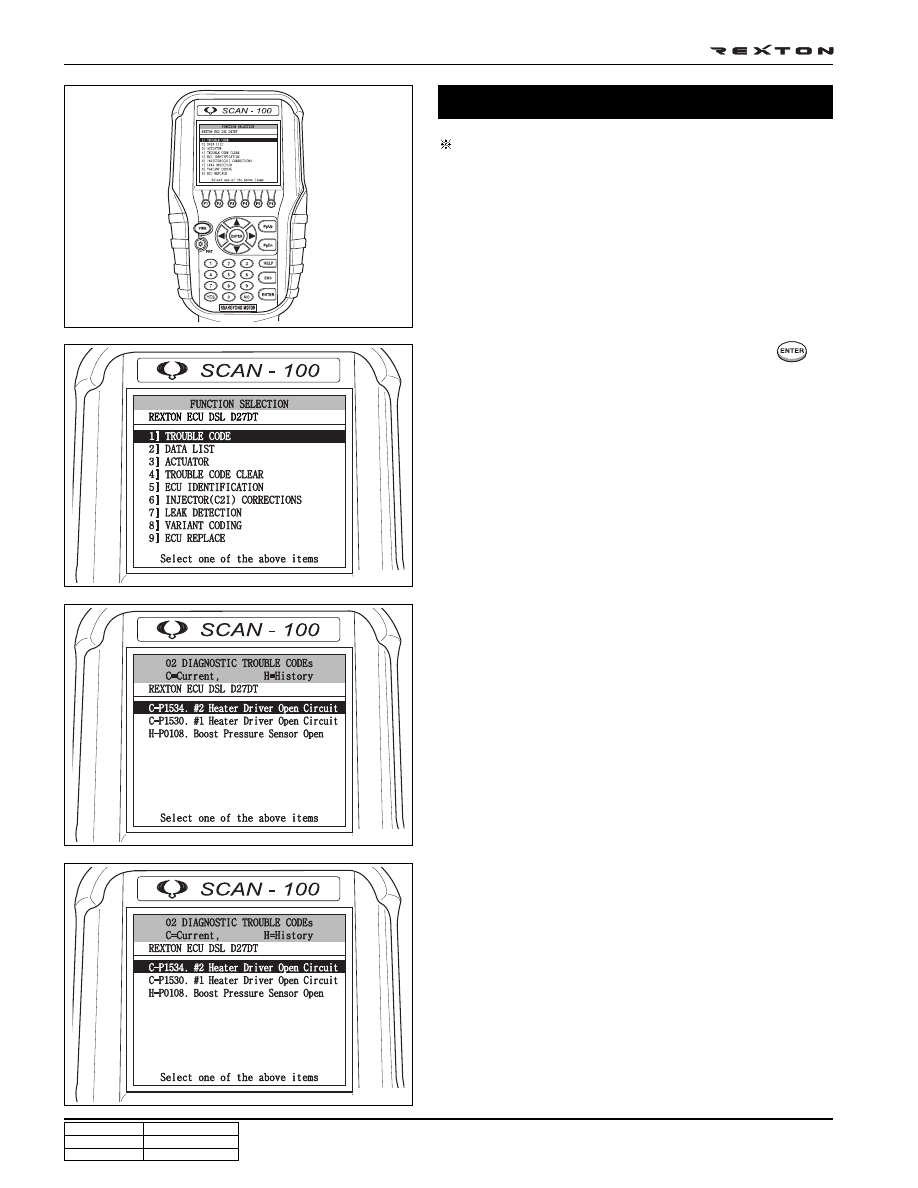

Trouble Code Clear

Preceding Work: Perform the “Entering Diagnosis Proce-
dures”

1. Select “1] TROUBLE CODE” and press “

” in

“FUNCTION SELECTION” screen.

2. The “DIAGNOSTIC TROUBLE CODEs” screen is

displayed and it shows the trouble.

Note

C = Current trouble, H = History trouble

3. Fix the trouble and go back to “1] TROUBLE CODE”

screen and check if the trouble has been changed to “H
(History trouble code)” code.

DI10-11

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10024

Y220_10025

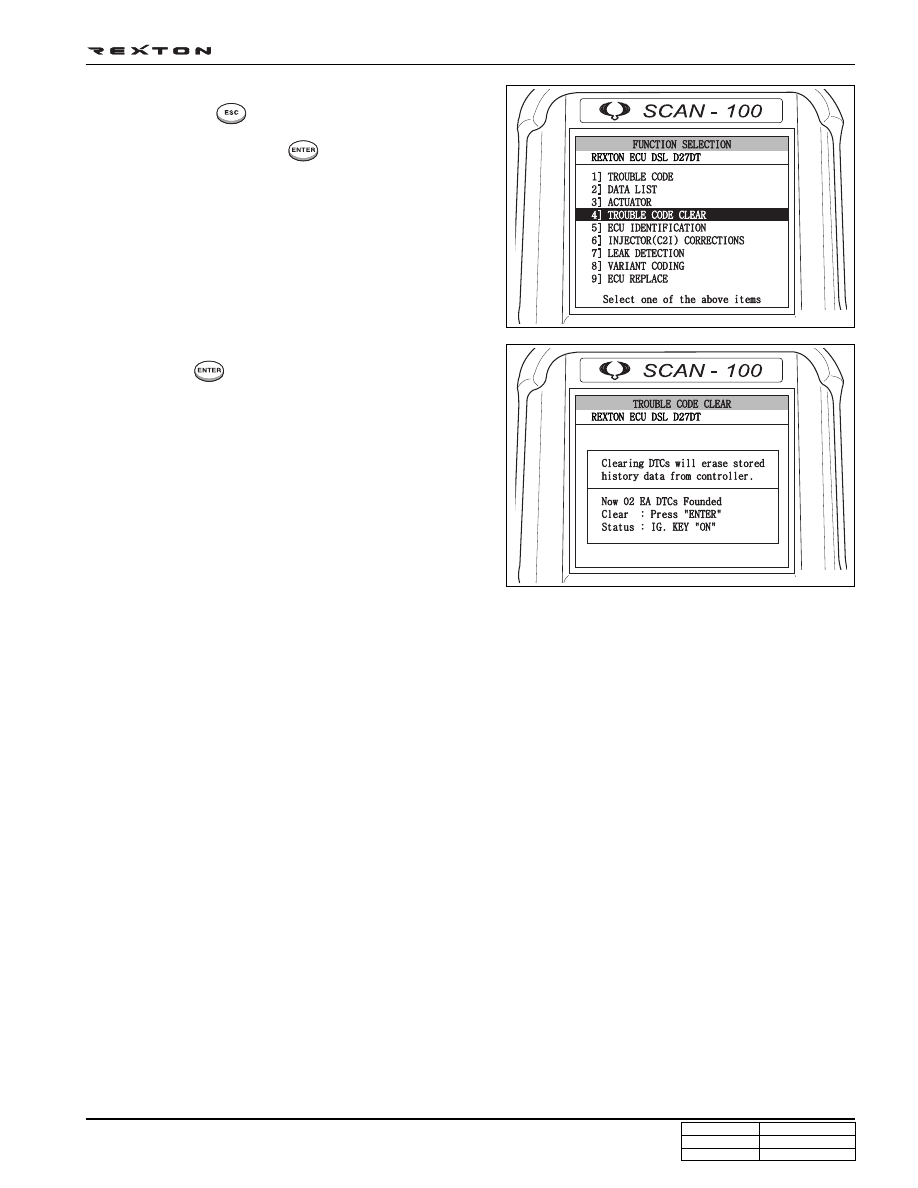

4. If the trouble has been change to “H (History trouble code)”

code, press “

” key to go back to “FUNCTION

SELECTION” screen. In this screen, select “4] TROUBLE
CODE CLEAR” and press “

”.

5. The “TROUBLE CODE CLEAR” screen is displayed. If

you press “

”, only the history trouble codes will be

cleared.

Note

•

Current trouble codes will not be cleared.

•

Check the trouble codes after clearing the trouble
codes.

DI10-12

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10027

Y220_10028

Y220_10029

Y220_10030

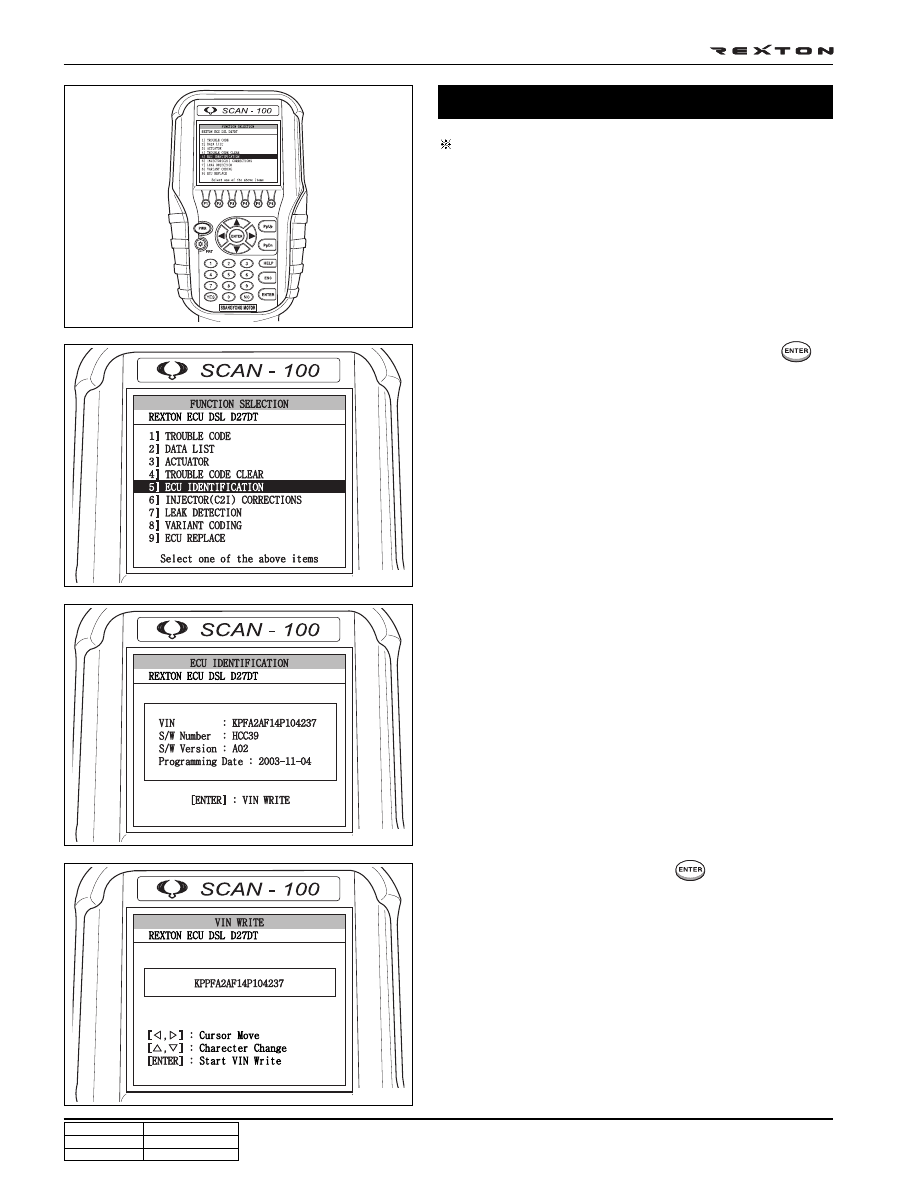

ECU Identification

Preceding Work: Perform the “Entering Diagnosis Proce-
dures”

1. Select “1] ECU IDENTIFICATION” and press “

” in

“FUNCTION SELECTION” screen.

2. The “ECU IDENTIFICATION” screen that shows the VIN,

ECU software number, ECU software version and
programming date is displayed.

3. If you replaced the ECU, press “

” to input the vehicle

identification number.
