DI10-1

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

DIAGNOSIS

 00

SECTION DI10

Table of Contents

SCAN-I OPERATING PROCEDURES -
XDi270 ENGINE .......................................................... DI10-3

TROUBLE DIAGNOSIS TABLE ................................. DI10-23

FUEL SYSTEM DIAGNOSIS ................................... DI10-177

DI10-3

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

SCAN-I OPERATING PROCE-

DURES - XDi270 ENGINE

ENTERING DIAGNOSIS PROCEDURES .................... DI10-4

FUNCTION SELECTION ............................................. DI10-6

Check the trouble code .......................................... DI10-6

Sensor data check .................................................. DI10-7

Actuator check ........................................................ DI10-8

Trouble code clear ................................................ DI10-10

ECU identification .................................................. DI10-12

Injector coding (C2I) ............................................. DI10-13

Leak detection ...................................................... DI10-15

Variant coding ....................................................... DI10-16

ECU replace .......................................................... DI10-18

DI10-4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10002

SCAN-I OPERATING PROCEDURES - D27DT ENGINE

Y220_10001

Y220_10003

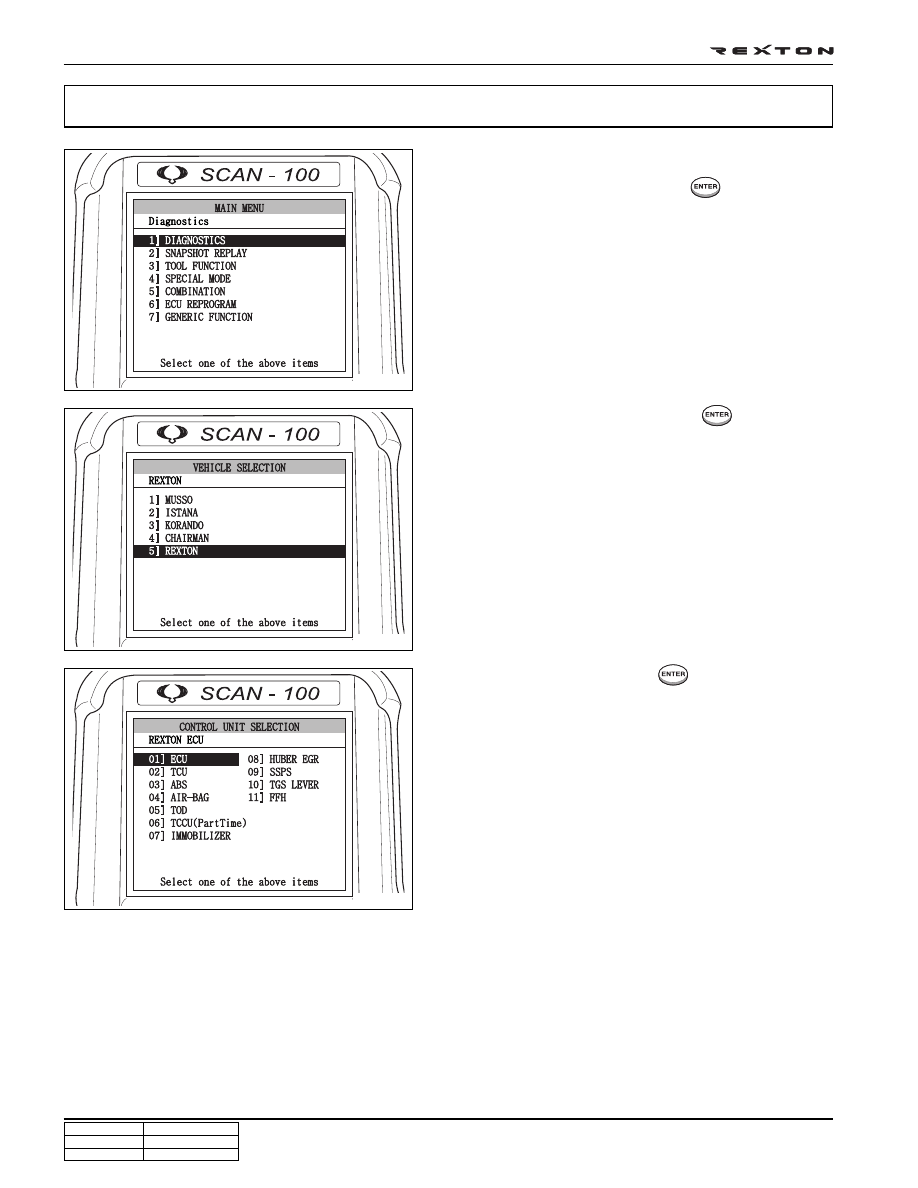

ENTERING DIAGNOSIS PROCEDURES

1. Select “1] DIAGNOSIS” and press “

” in “MAIN MENU”

screen.

2. Select “5] REXTON” and press “

” in “VEHICLE

SELECTION” screen.

3. Select “1] ECU” and press “

” in “CONTROL UNIT

SELECTION” screen.
