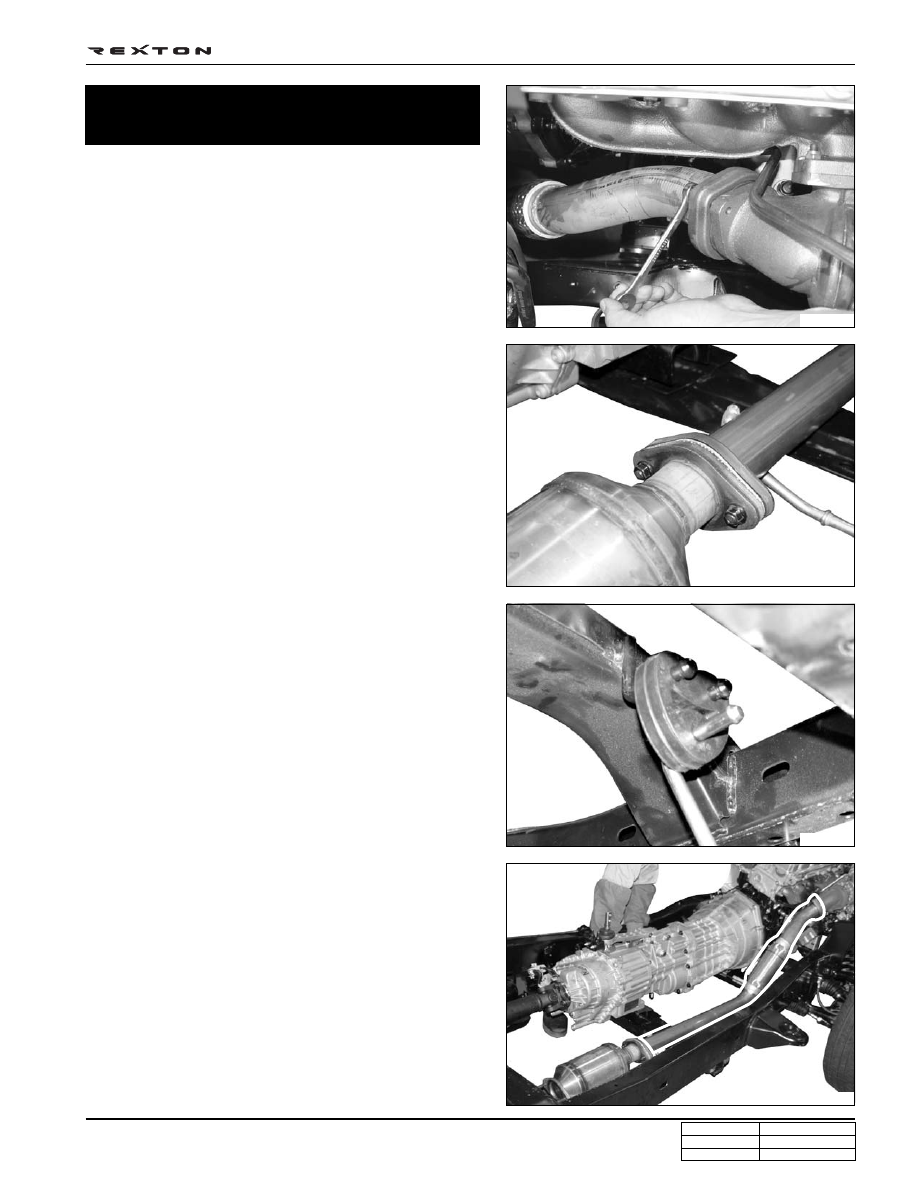

#1 Exhaust Pipe
- Removal and Installation

1. Remove the upper bolts at turbo charger.

Notice

Use the universal type wrench.

2. Remove the lower bolts and gasket.

3. Remove the pipe mounting rubber.

4. Remove the #1 exhaust pipe.

5. Install in the reverse order of removal.

DI04-42

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

EXHAUST SYSTEM

DI ENG SM - 2004.4

Y220_04052

Y220_04051

Y220_04050

Y220_04053

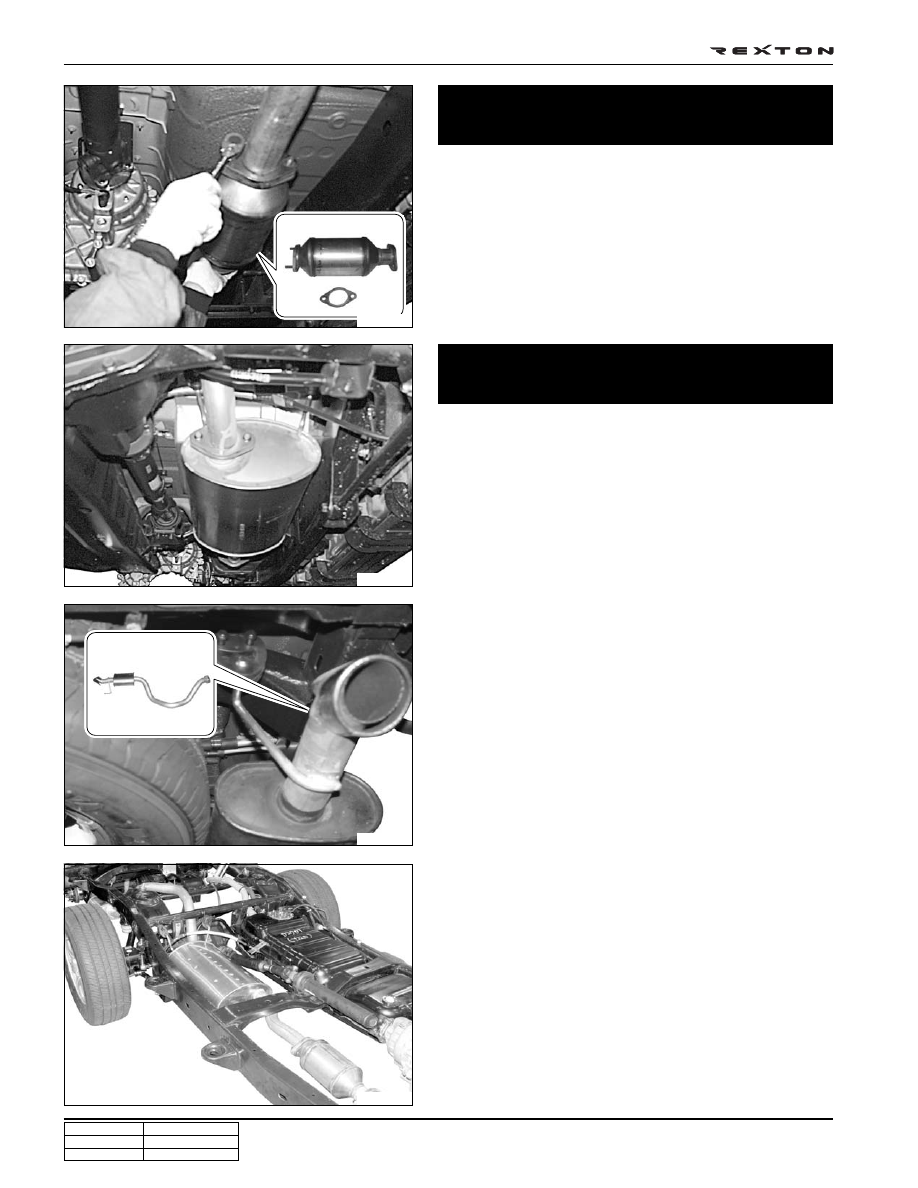

Catalytic Converter
- Removal and Installation

1. Unscrew the bolts at both sides and remove the gasket

and the converter.

2. Install in the reverse order of removal.

#2 Exhaust Pipe
- Removal and Installation

1. Unscrew the bolts and remove the gasket.

2. Release the rear mounting lever with a screwdriver.

3. Remove the #2 exhaust pipe.

4. Install in the reverse order of removal.
