SsangYong Rexton. Service manual - part 6

DI0A-17

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.4

Exhaust pipe

Catalytic converter

Muffler

Ambient

air

Exhaust gas

EGR vacuum
modulator

To turbocharger
booster

Turbocharger
booster vacuum
modulator

EGR valve

EGR pipe

Turbocharger booster

Turbocharger

(turbine side)

Exhaust manifold

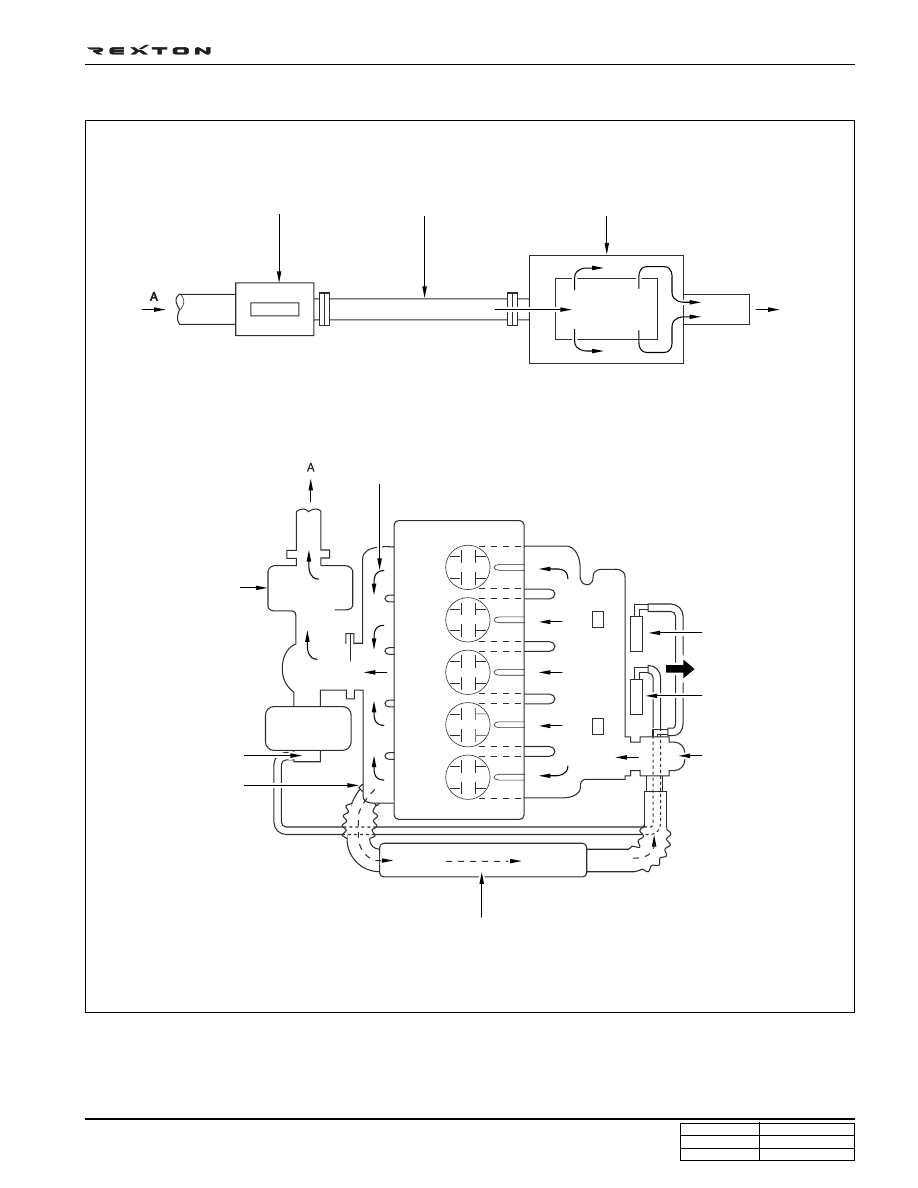

EXHAUST AIR FLOW CHART

Y220_0A010

DI0A-18

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.4

Oil dipstic

PCV valve

Engine oil filter

housing

Engine oil pump

Oil pan

Engine oil cooler

Engine oil pressure

switch

Cylinder head cover

Y220_0A011

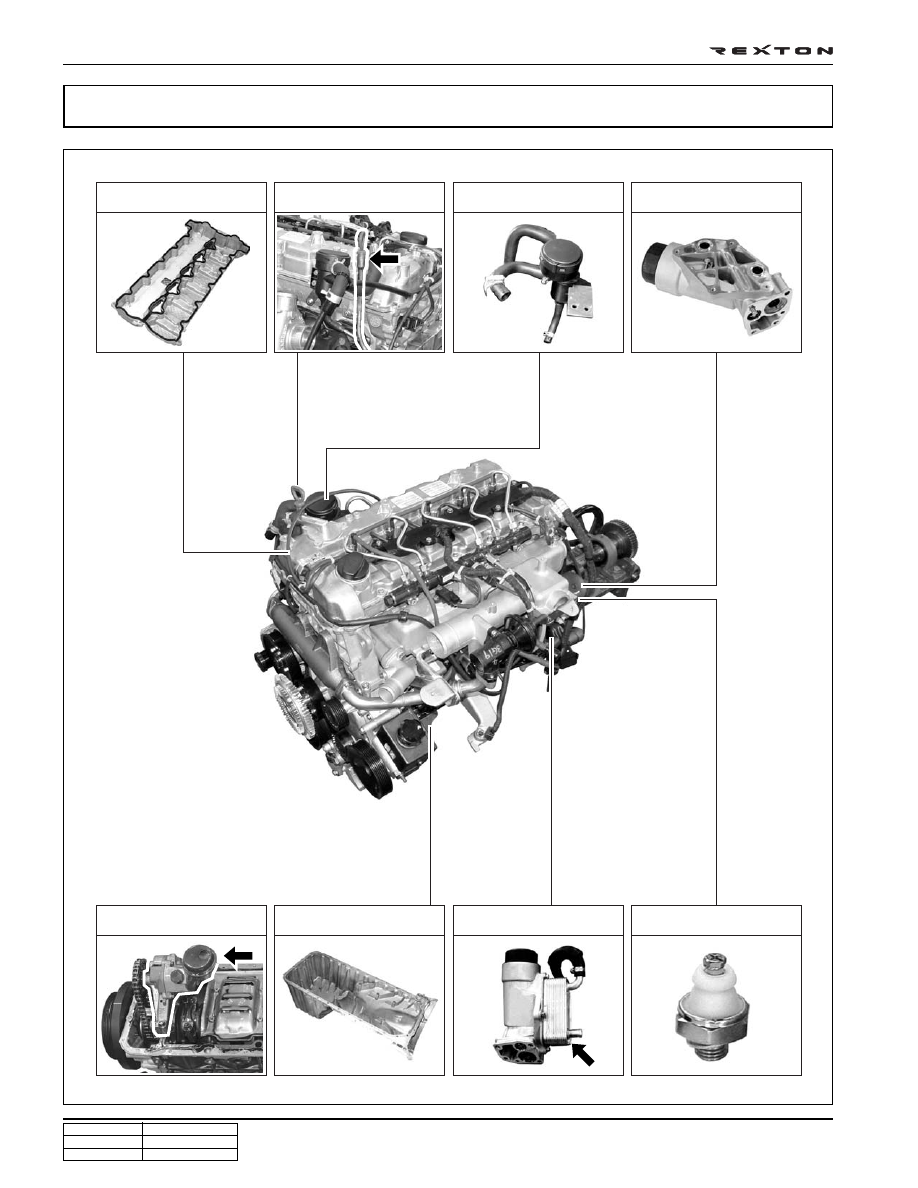

LUBRICATION SYSTEM

DI0A-19

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.4

Y220_0A013

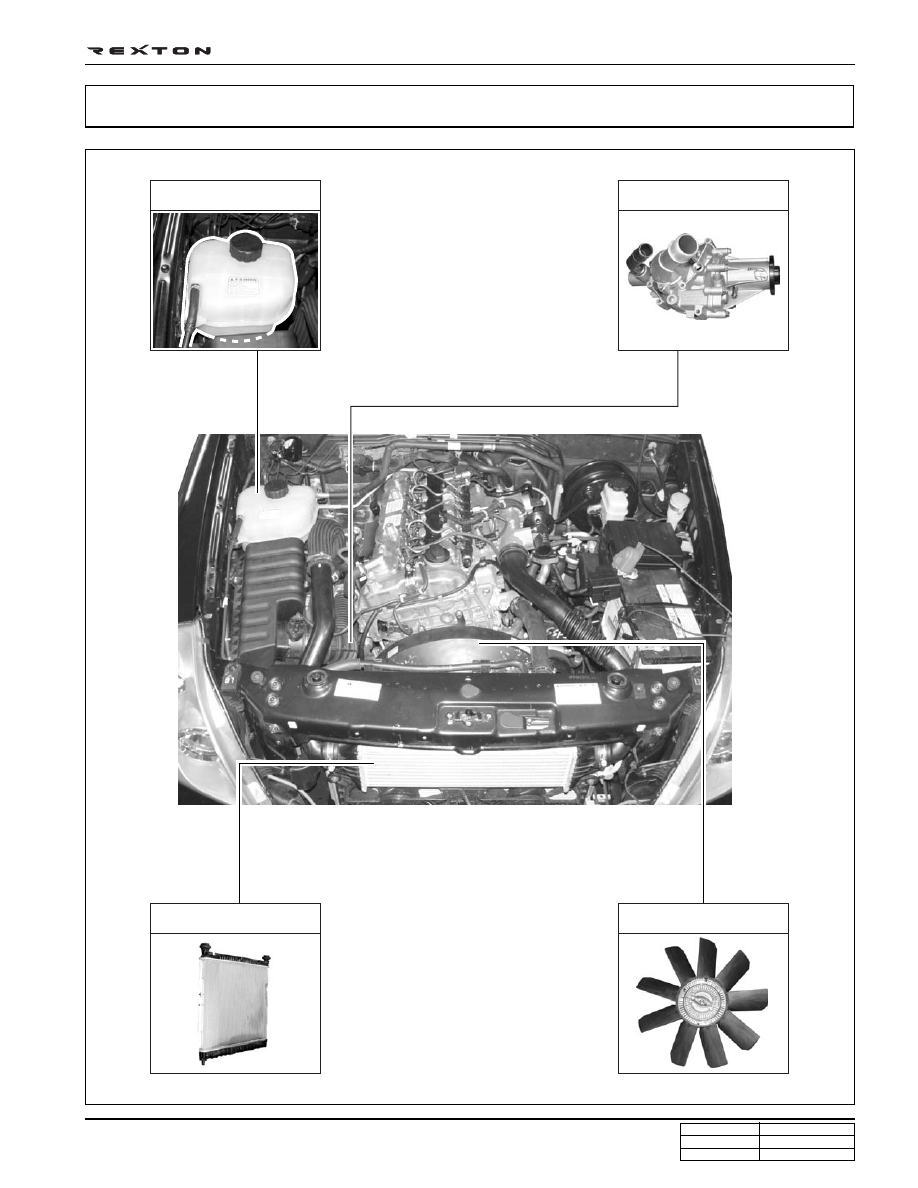

COOLING SYSTEM

Coolant reservoir

Radiator assembly

Cooling fan and fan

clutch

Water pump

DI0A-20

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.4

Coolant reservoir

Thermostat

Heater

Intake manifold

Coolant outlet port

Outlet hose

Radiator

Cooling fan

Inner hose

Water pump

Y220_0A014

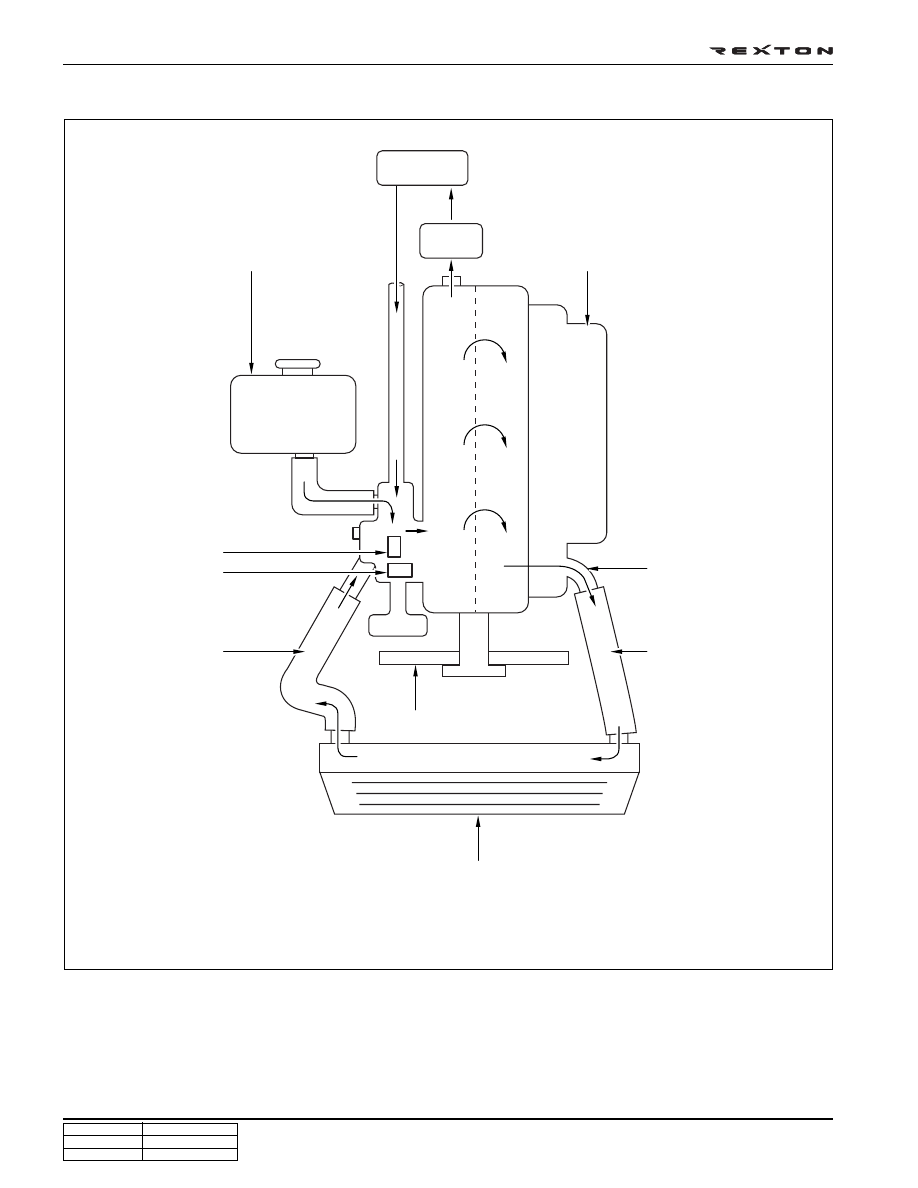

COOLANT FLOW CHART

Oil cooler
