SsangYong Rexton. Service manual - part 4

DI0A-9

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.4

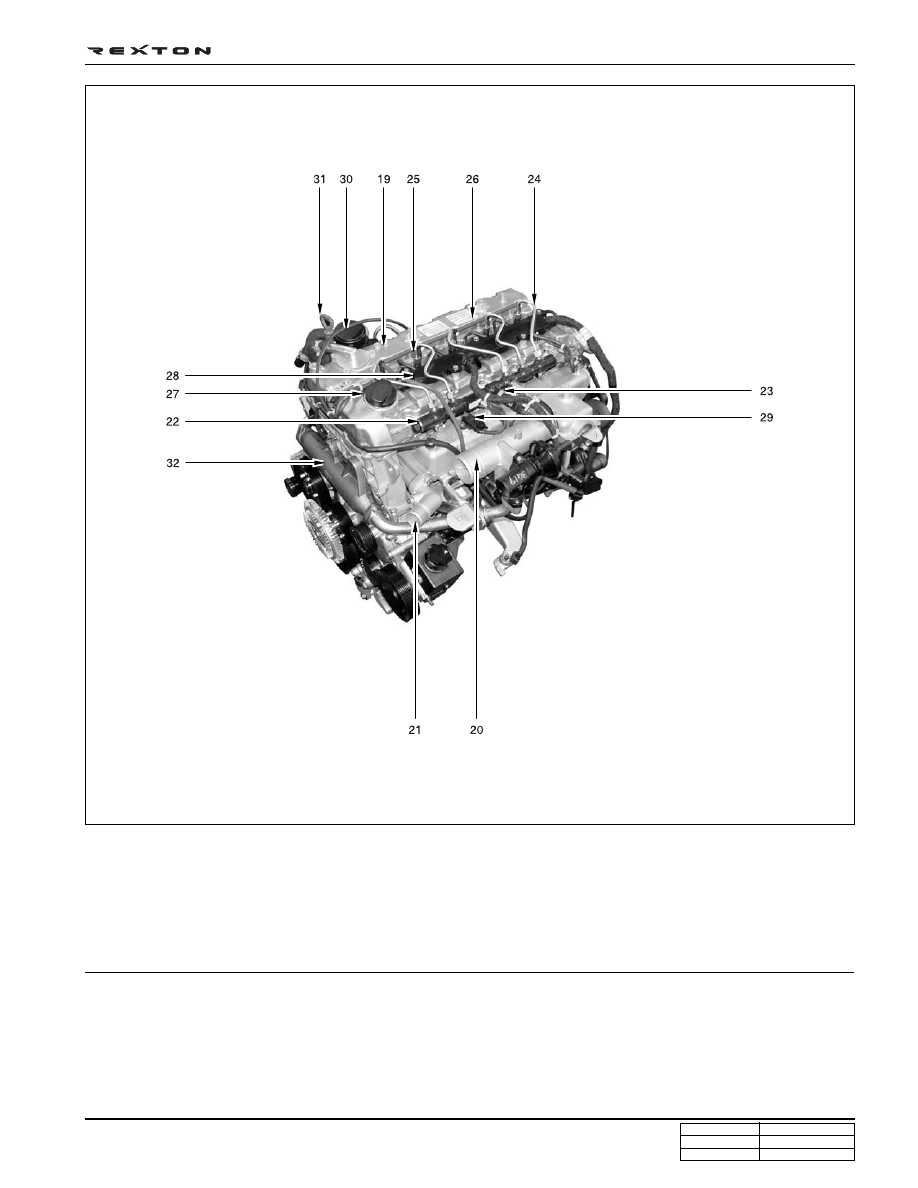

Top view

Y220_0A002

19. Cylinder head cover

20. Intake manifold

21. Water outlet port

22. Common rail

23. Fuel pressure sensor

24. Fuel pipe

25. Injector

26. Fuel return line

27. Oil filler cap

28. Glow plug

29. Booster pressure sensor

30. Oil separator

31. Oil dipstic

32. EGR center pipe

DI0A-10

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.4

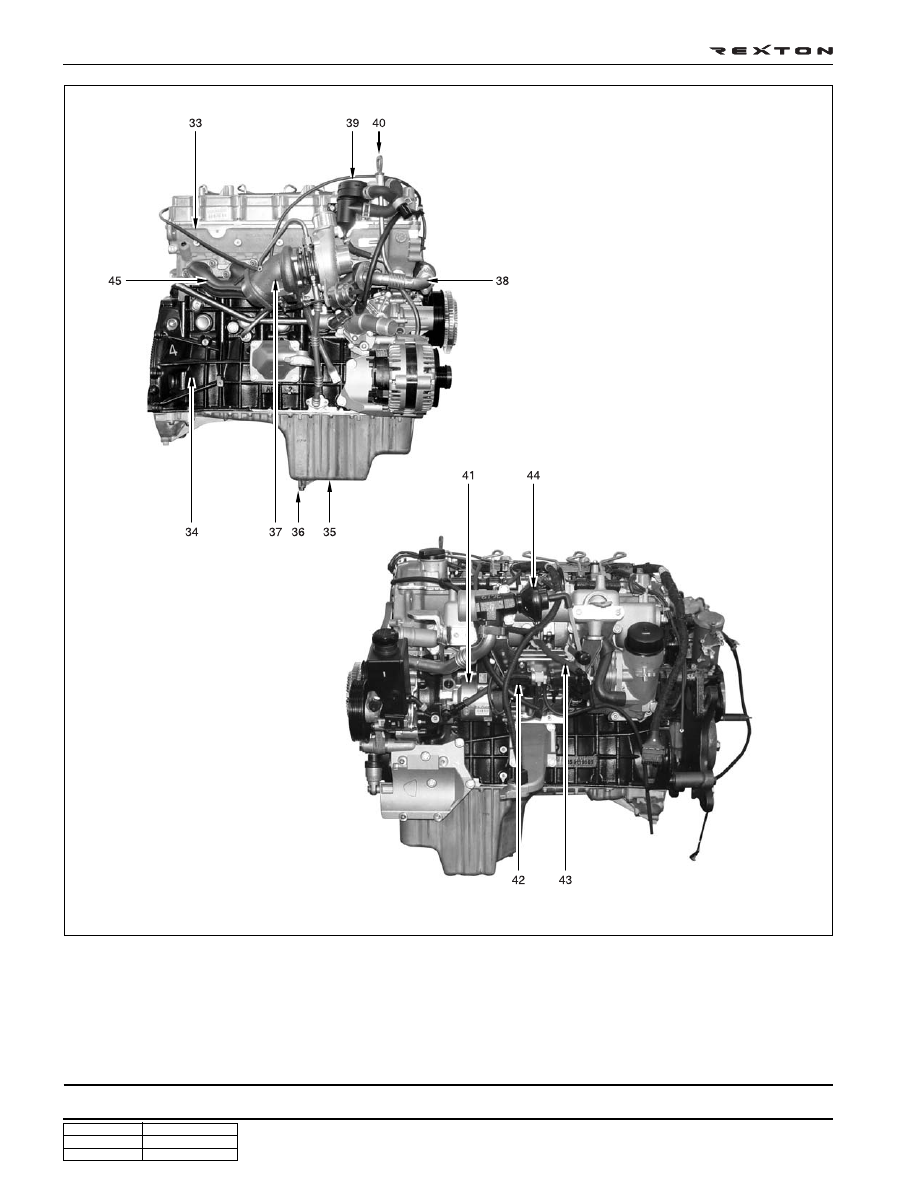

Right side view

Left side view

Y220_0A003

33. Cylinder head

34. Cylinder block

35. Oil pan

36. Drain plug

37. Turbocharger

38. EGR - RH pipe

39. Oil separator

40. Oil dipstic

41. HP pump

42. Turbocharger vacuum modulator

43. EGR valve vacuum modulator

44. EGR valve

45. Exhaust manifold

DI0A-11

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.4

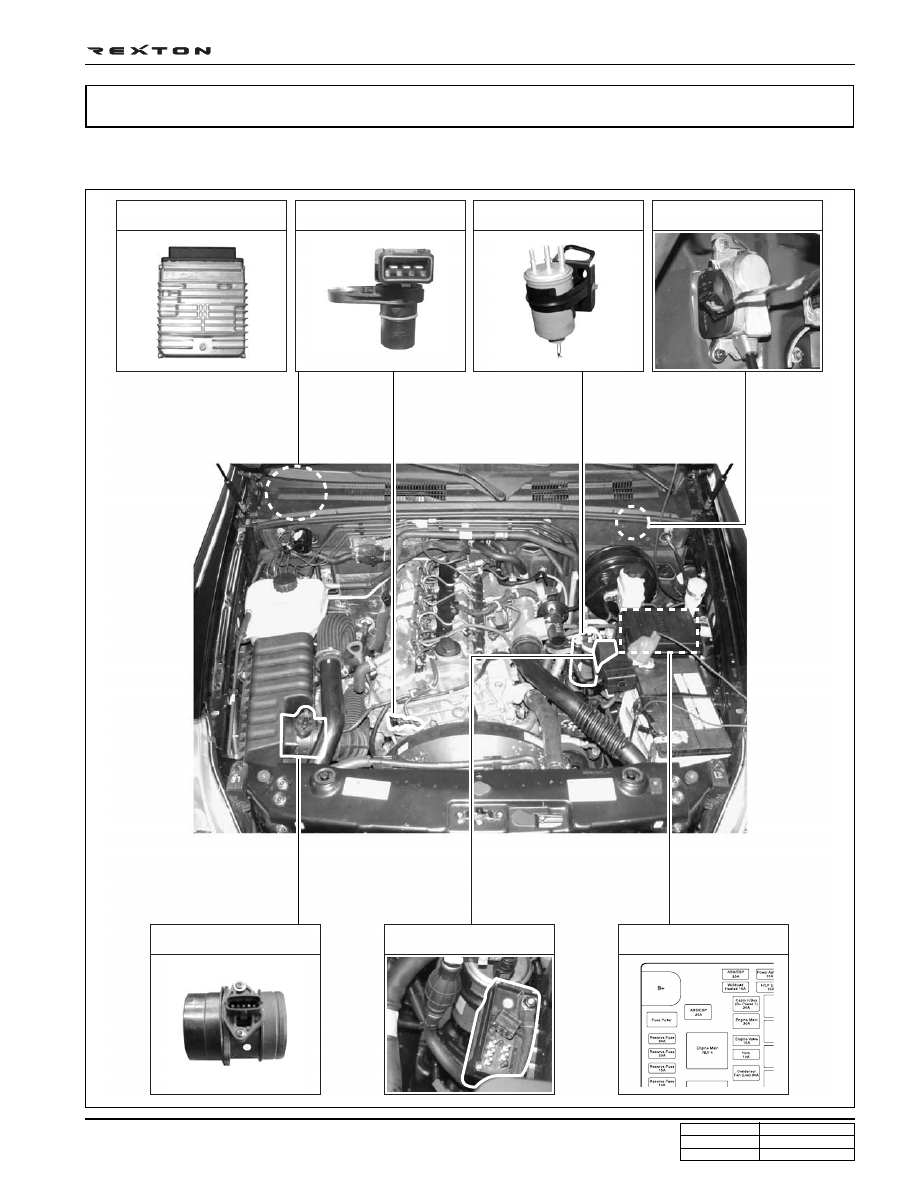

HFM sensor/intake air

temperature sensor

Pre heating time relay

Main relay

ECU/barometric sensor

Cam position sensor

Fuel filter

(water detection sensor)

Accelerator pedal sensor

ECU RELATED COMPONENTS

ENGINE CONTROLS

Y220_0A004

DI0A-12

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.4

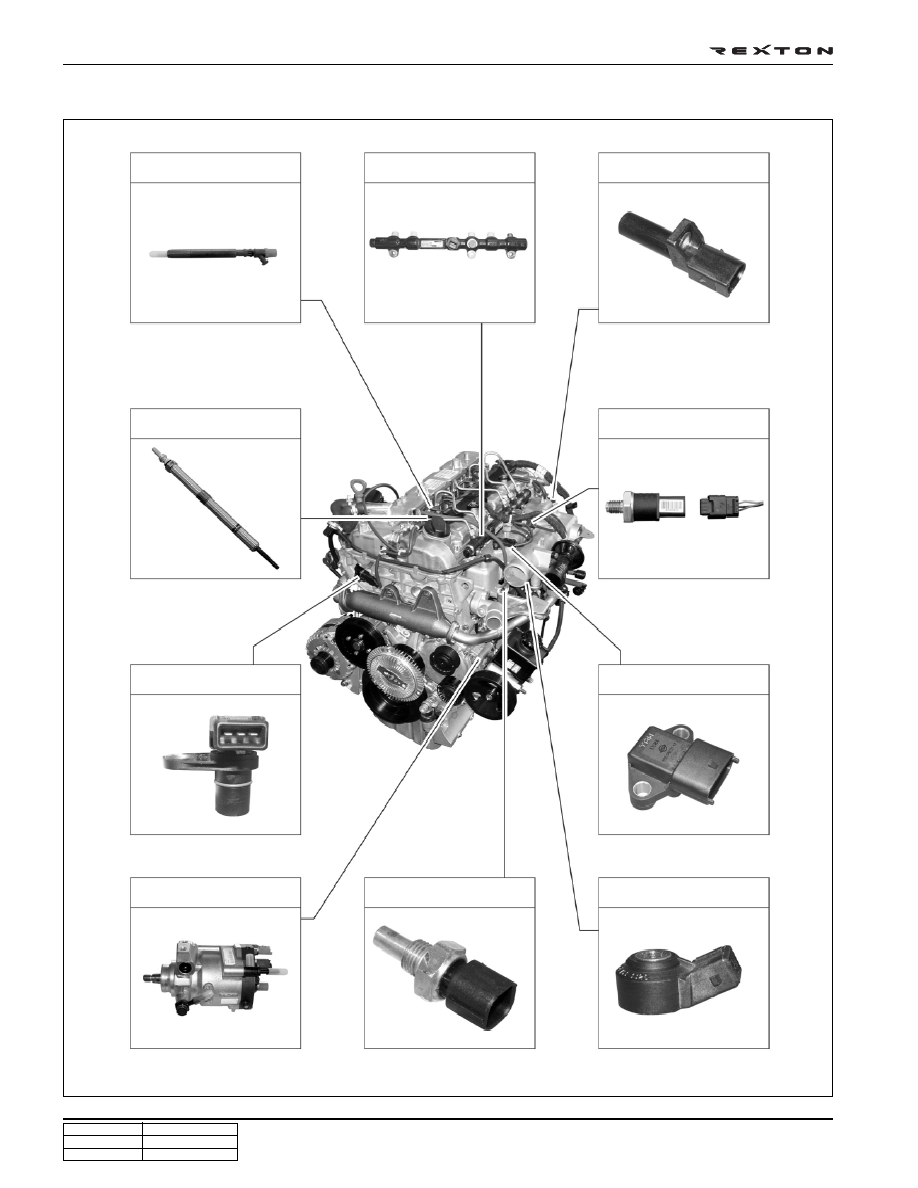

Common rail

Fuel pressure sensor

Booster pressure sensor

Camshaft position

sensor

Knock sensor (2)

Crankshaft position

sensor

Injector

HP pump

Glow plug

Coolant temperature

sensor

ENGINE AND SENSORS

Y220_0A005
