DRIVING POSITION: LEFT-HAND DRIVE

(1/2)

2 3

5 6 7 8

10 11

1.51

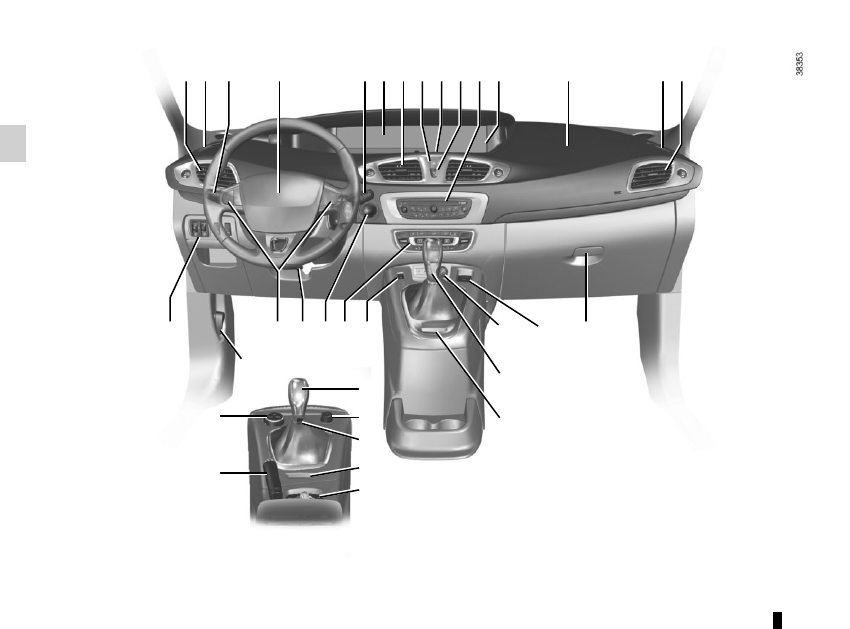

DRIVING POSITION: LEFT-HAND DRIVE

(2/2)

1  Side air vent.
2  Side window demister outlet.
3  Stalk for:

–  direction indicator lights;
– exterior lights;
–  front fog lights;
–  rear fog light.

4 Location for driver’s air bag and

horn.

5 –

Steering column stalk for wind-

screen and rear screen wash/

wiper.

–

On-board computer information

read-out control and vehicle set-

tings customisation menu.

6 Instrument panel.
7 Centre air vents.
8 Hazard warning lights switch.
9 Instrument panel customisation

menu control.

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

21 Cruise control/speed limiter control.
22 Heating and ventilation controls.
23 Engine start/stop button.
24 Control for adjusting steering wheel

height and reach.

25 Cruise control/speed limiter controls.
26 Bonnet release.
27 Controls for:

–

headlight beam height remote ad-

justment;

–

lighting dimmer for control instru-

ments;

–

activation/deactivation of the trac-

tion control;

–

activation/deactivation of the

function Stop and Start.

28 Traction control.
29 Control for some multimedia equip-

ment.

Door central locking/unlocking

switch.

Location for radio, navigation

system, etc.

12 – Display (depending on the vehi-

cle) of time, temperature, radio

information, navigation system in-

formation, etc.

–

Driver and front passenger seat

belt unfastened and passenger

airbag deactivated warning lights.

13 Location for passenger air bag.
14 Side window demister outlet.
15 Side air vent.
16 Glove box.
17 Electronic parking brake or manual

parking brake control.

18 Storage compartment, accessories

socket or cigarette lighter/multime-

dia socket.

19 Gear lever.
20 RENAULT card reader.

1.52

DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

6 7 8

1.53

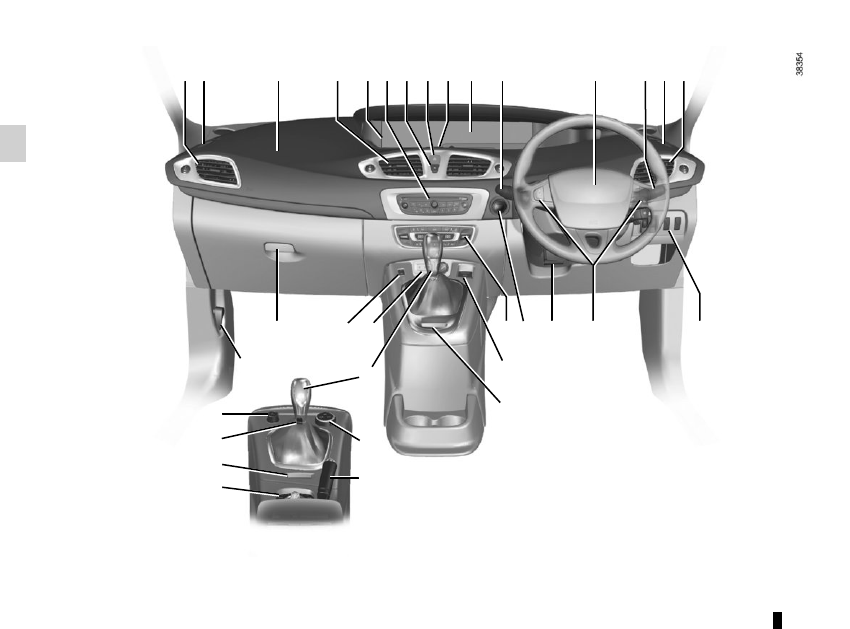

DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1  Side air vent.
2  Side window demister outlet.
3  Location for passenger air bag.
4  Centre air vents.
5 –

Display (depending on the vehi-

cle) of time, temperature, radio

information, navigation system in-

formation, etc.

–

Driver and front passenger seat

belt unfastened and passenger

airbag deactivated warning lights.

6 Location for radio, navigation

system, etc.

7 Central door locking/unlocking con-

trols.

8 Hazard warning lights switch.
9 Instrument panel customisation

menu control.

10 Instrument panel.

17 Cruise control/speed limiter controls.
18 Control for adjusting steering wheel

height and reach.

19 Engine Start/Stop button.
20 Heating and ventilation controls.
21 Electronic parking brake or manual

parking brake control.

22 RENAULT card reader.
23 Gear lever.
24 Storage compartment, accessories

socket or cigarette lighter/multime-

dia socket.

25 Cruise control/speed limiter control.
26 Glove  box.
27 Bonnet  release.
28 Traction  control.
29 Control for some multimedia equip-

ment.

11 Stalk for:

–  direction indicator lights;
– exterior lights;
–  front fog lights;
–  rear fog light.

12 Location for driver’s air bag and

horn.

13 – Steering column stalk for wind-

screen and rear screen wash/

wiper.

–

On-board computer information

read-out control and vehicle set-

tings customisation menu.

14 Side window demister outlet.
15 Side air vent.
16 Controls for:

–

headlight beam height remote ad-

justment;

–

lighting dimmer for control instru-

ments;

–

activation/deactivation of the trac-

tion control;

–

activation/deactivation of the

function Stop and Start.

1.54

WARNING LIGHTS

(1/5)

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

Warning light

means you

should drive very carefully to an

authorised dealer as soon as

possible. If you fail to follow this

recommendation, you risk damag-

ing your vehicle.

The

warning light

requires you to stop imme-

diately, for your own safety,

as soon as traffic conditions allow.

Switch off the engine and do not re-

start it. Contact an approved Dealer.

Instrument panelA: lights up when the

ignition is switched on.

In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

ÐÏ

Speed limiter and cruise

control indicator lights

See the information on the “Speed lim-

iter” and “Cruise control” in Section 2.

Side light tell-tale light

Dipped beam headlight tell-

tale light

Main beam headlight tell-tale

light

Front fog light tell-tale light

You have an instrument panel A with a

customisable display.
The customisable instrument panel

can be identified by the presence of

switch 1 or 2 on the dashboard.
To customise your instrument panel,

please refer to the information on

“Displays and indicators” in Section 1.

Rear fog light tell-tale light

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

1.55

WARNING LIGHTS

(2/5)

Automatic main beam head-

light indicator light

Please refer to the information

on “External signals and lights” in

Section 1.

Left-hand direction indicator

tell-tale light

Right-hand direction indica-

tor tell-tale light

Toxic Fume Filter System

Warning Light

This lights up when the ignition is

switched on and goes out when the

engine is started.

– If it lights up continuously, consult an

approved Dealer as soon as possi-

ble;

– if it flashes, reduce the engine speed

until the light stops flashing. Contact

your approved Dealer as soon as

possible.

Please refer to the information on

“Maintenance and anti-pollution advice”

in Section 2.

Low fuel level warning light

This comes on when the igni-

tion is switched on and goes out after a

few seconds. If it comes on when driv-

ing and is accompanied by a beep, fill

up with fuel as soon as possible.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

}

Handbrake “on” or elec-

tronic parking brake warn-

ing light

Refer to the information on the

“Handbrake” or “Electronic parking

brake” in Section 2.

Driver’s seat belt reminder

and, depending on the vehi-

cle, front passenger seat belt re-

minder.

This lights up on the instrument panel

when the ignition is started, then, if the

driver’s or front passenger’s seat belt

(if this seat is occupied) is not fastened

and the vehicle has reached approxi-

mately 12 mph (20 km/h), it flashes and

a bleep sounds for around 120 sec-

onds.

Note: an object placed on the passen-

ger seat base can activate the warning

light.

Preheating warning light

(diesel version)

This should come on when the igni-

tion is switched on. It indicates that the

heater plugs are in operation. It goes

out when preheating is complete. The

engine can be started.

1.56

WARNING LIGHTS

(3/5)

Airbag warning light

This lights up when the engine

is started and goes out after approxi-

mately three seconds. If it does not

come on when the ignition is switched

on or if it remains lit, there is a fault in

the system.

Contact your approved Dealer as soon

as possible.

Passenger airbag OFF

Please refer to the information

on “Child safety: deactivating/activating

the front passenger airbag” in Section 1.

›

Passenger airbag ON

Please refer to the information

on “Child safety: deactivating/activating

the front passenger airbag” in Section 1.

Rear seat belt reminder (depending

on vehicle)

Warning light

comes on, ac-

companied (depending on the vehicle)

by a message indicating the number

of fastened seat belts on the instru-

ment panel for approximately 30 sec-

onds, each time the vehicle is started,

a door is opened or a seat belt is fas-

tened/unfastened. Check that the rear

passengers are wearing seat belts and

that the number of seat belts shown as

fastened corresponds to the number of

rear seat places occupied.

Anti-lock braking warning

light

This lights up when the ignition is

switched on and goes out after approxi-

mately three seconds. If it does not go

out after the ignition is switched on, or

lights up when driving, there is a fault

with the ABS. The braking system then

operates as it would on a vehicle with-

out the system ABS.
Contact an approved Dealer as soon as

possible.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Hill start assistance warning

light

Please refer to the information on the

“Driver correction devices and aids” in

Section 2.

Warning light for electronic

stability program ( ESC ) and

traction control system
Refer to information on “Driver correc-

tion devices and aids” in Section 2.

1.57

STOP light
This lights up when the ignition

is switched on and goes out after ap-

proximately three seconds. It comes on

with other warning lights and/or mes-

sages, and is accompanied by a beep.
It requires you to stop immediately,

for your own safety, as soon as traf-

fic conditions allow. Switch off the

engine and do not restart it.
Contact an approved Dealer.

WARNING LIGHTS

(4/5)

Warning light
This lights up when the ignition

is switched on and goes out after ap-

proximately three seconds. It can light

up in conjunction with other warning

lights and/or messages on the instru-

ment panel.

It means you should drive very care-

fully to an authorised dealer as soon

as possible. If you fail to follow this rec-

ommendation, you risk damaging your

vehicle.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

The following warning lights come
on accompanied by the

warn-

ing light.

Brake circuit fault warning

light

If it comes on during braking and is ac-
companied by the

warning light

and a beep, it indicates that the fluid

level in the circuit is low or that there is

a braking system fault. Stop as soon as

traffic conditions allow and contact an

authorised dealer.

Battery charge warning light
This lights up when the ignition

is switched on and goes out after ap-

proximately three seconds. If it comes

on together with the warning light

and a beep, this indicates a fault

in the electrical circuit.

1.58

Oil pressure warning light
This lights up when the ignition

is switched on and goes out after ap-

proximately three seconds. If it comes

on on the road, accompanied by the

warning light and a beep, stop

immediately and cut the ignition. Check

the oil level (refer to the information on

“Engine oil level” in Section 4). If the

level is normal, the light has come on

for another reason: please contact an

authorised dealer.

Engine coolant temperature

warning light

This lights up when the ignition is

switched on and goes out when the

engine is started. If it comes on on
the road, accompanied by the

warning light and a beep, stop immedi-

ately and cut the ignition.

Check the coolant level (please refer

to the information on “Levels” in

Section 4). If the level is normal, the

light has come on for another reason:

contact an authorised dealer.

WARNING LIGHTS

(5/5)

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Lane departure system

warning light

Please refer to the information on “Lane

departure warning” in Section 2.

Engine standby warning

light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.

Unavailability of engine

standby warning light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.

Black ice warning light
Please refer to the information

on the “Clock and exterior temperature”

in Section 1.

Gear change indicators
This lights up to advise

you to change to a higher gear (up

arrow) or lower gear (down arrow).

Tyre pressure monitoring

system

Refer to the information on the “Tyre

pressure monitoring system” in

Section 2.

1.59

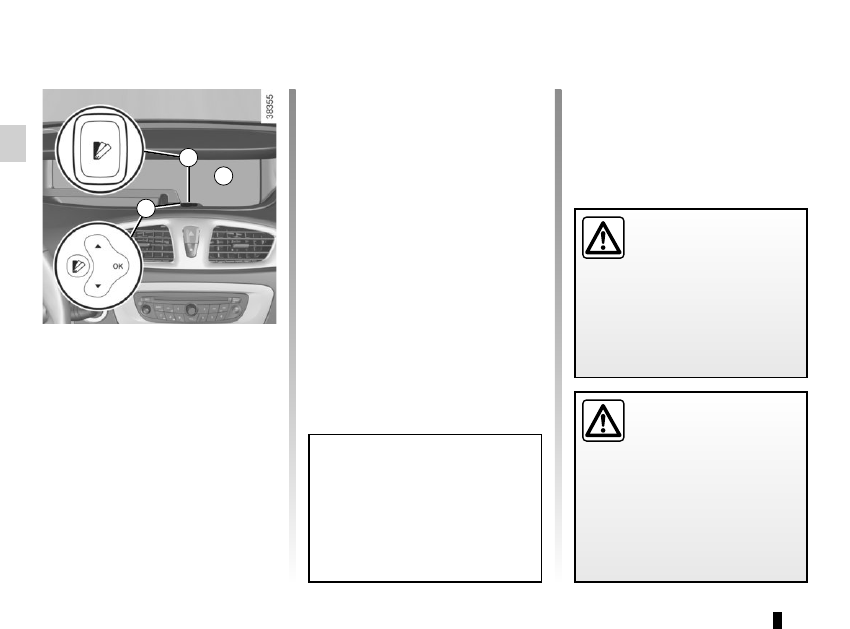

DISPLAYS AND INDICATORS

(1/2)

You may customise your instrument

panel A with content and colours of

your choice.
Press switch 1 or 2 as many times as

necessary to obtain the desired display.

Rev counter (rpm × 1,000)

This is displayed according to how the

instrument panel is customised.

Speedometer (km/h or mph)

Fuel gauge

If the level is at the minimum, the

warning light integrated in the indicator

comes on, accompanied by a beep. Fill

up as soon as possible.

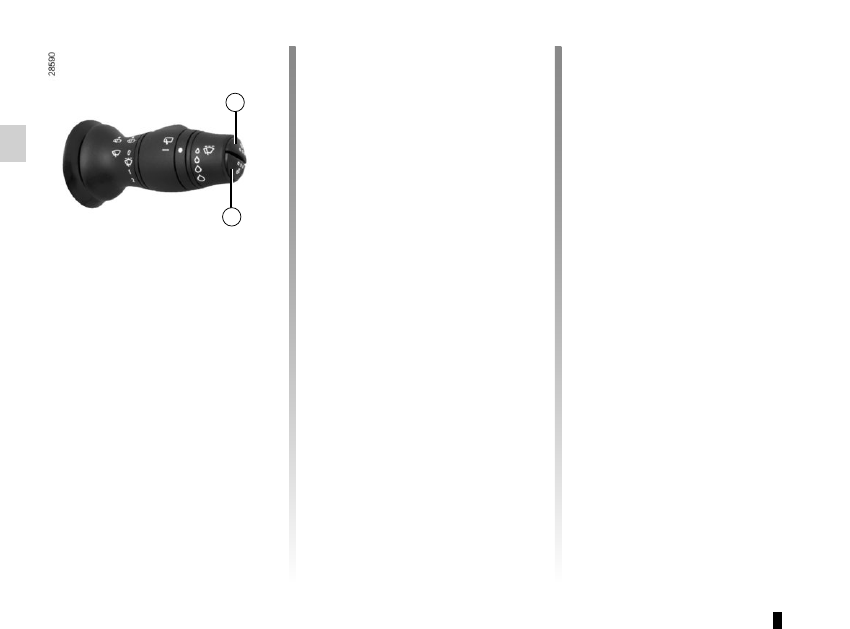

Engine oil level low warning

When the engine is started, the instru-

ment panel display alerts you when the

minimum oil level is reached. Refer to

Section 4: “Engine oil level”.
The first time the warning appears, it

can be cleared by pressing button 4

or 5 on the end of stalk 3.
Subsequent warnings will disappear

automatically after 30 seconds.

1.60

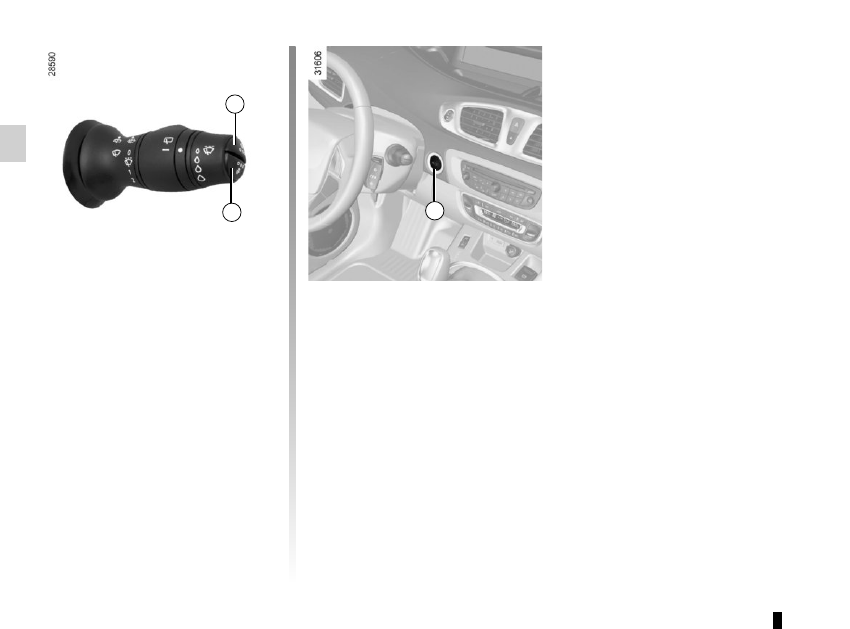

DISPLAYS AND INDICATORS

(2/2)

Instrument panel in miles

(option to switch to km/h)
– With the ignition off, press button 4

or 5 and the start button 6;

– the speedometer unit indicator

flashes for approximately ten sec-

onds, then the new unit is displayed:

release button 4 or 5 when the unit

stops flashing.

To return to the previous mode, repeat

the same operation.
Note: once the battery is switched off,

the trip computer and warning system

automatically returns to the original unit

of measurement.

Overspeed buzzer

Depending on the vehicle and country,

a buzzer sounds for approximately

10 seconds every 40 seconds, as long

as the vehicle is travelling in excess of

72 mph (120 km/h).
Trip computer and warning system

Refer to the information on the “Trip

computer and warning system” in

Section 1.

1.61

c) mileage before service;
d) tyre pressure monitor;
e) trip log, operating faults and informa-

tion message readout.

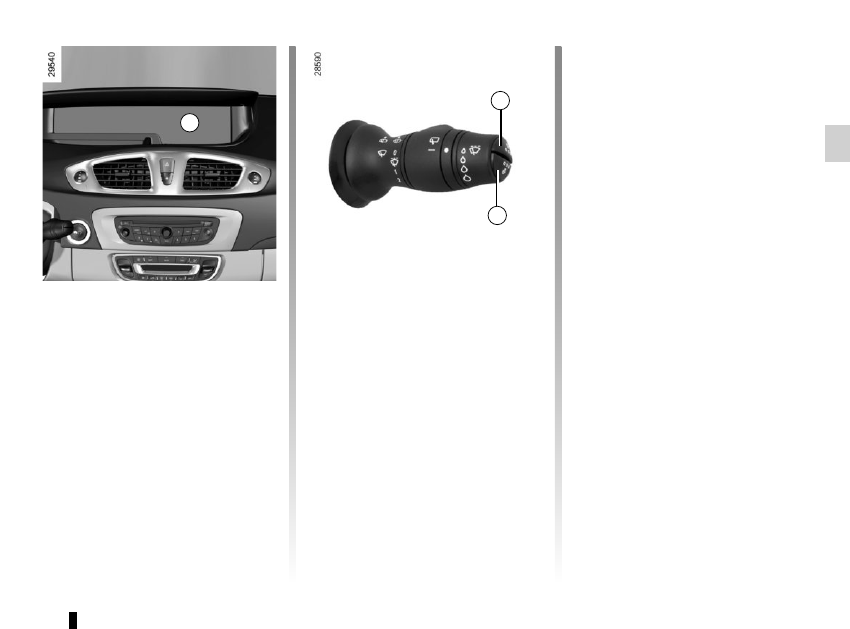

Display selection keys 2

and 3

Scroll through the following informa-

tion upwards (button 2) or downwards

(button 3) by pressing briefly and suc-

cessively (the display depends on the

vehicle equipment and country).
a) total mileage and trip mileage re-

corder;

b) journey parameters:

– fuel used;

– average fuel consumption;

–

current fuel consumption;

– estimated range;

– distance travelled;

– average speed;

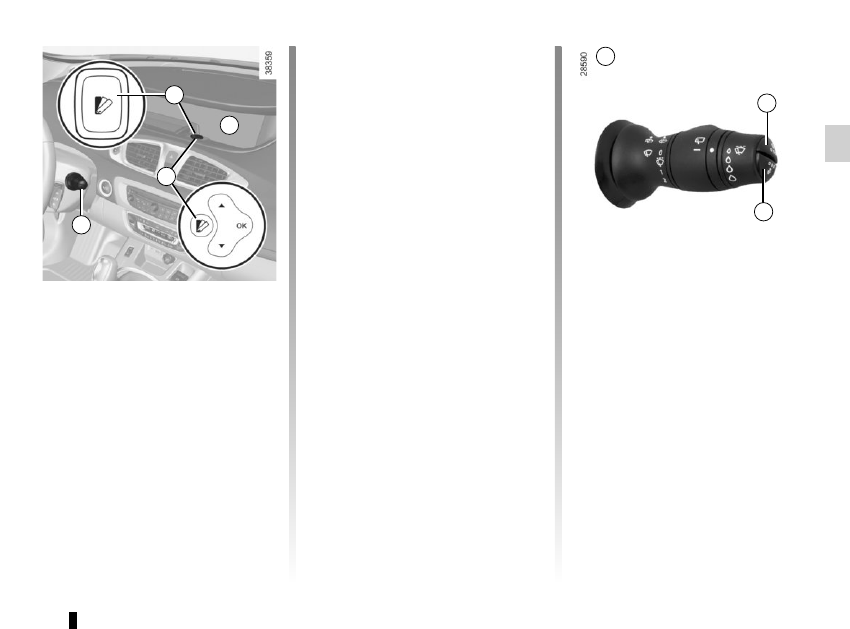

Trip computer and warning

system 1

Depending on the vehicle, this includes

the following functions:
– distance travelled;
– journey parameters;
– information messages;
– operating fault messages (associ-

ated with the

warning light);

– warning messages (associated with

the

warning light);

– vehicle settings customisation menu.
All these functions are described on the

following pages.

TRIP COMPUTER: general information

(1/2)

1.62

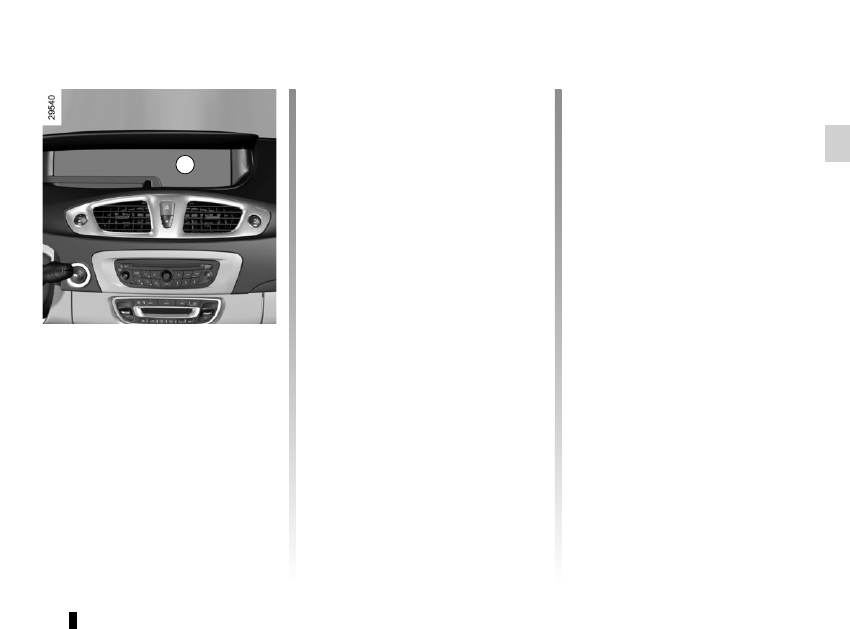

ON-BOARD COMPUTER: general information

(2/2)

Automatic resetting of the

journey parameters

Resetting occurs automatically when

the maximum value of any of the pa-

rameters is exceeded.

Journey record

Once the engine is switched off, you

will see “journey record” displayed, en-

abling you to view information relating

to your last journey:
– distance travelled;
– average fuel consumption;
– total consumption.

Interpreting some of the

values displayed after

resetting

The values showing average fuel con-

sumption and average speed will

become more stable and reliable the

further you have travelled since the last

time the Reset button was pressed.
The average fuel consumption may de-

crease when:
–

the vehicle stops accelerating;

–

the engine reaches its operating

temperature (if the engine was cold

when the reset key was pressed);

–

when driving from an urban area

onto the open road.

Trip mileage resetting

With “trip mileage recorder” selected on

the display, press button 2 or 3 until the

mileage recorder resets to zero.

Resetting the journey

parameters (reset button)

With one of the journey parameters se-

lected on the display, press button 2

or 3 until the display resets.

1.63

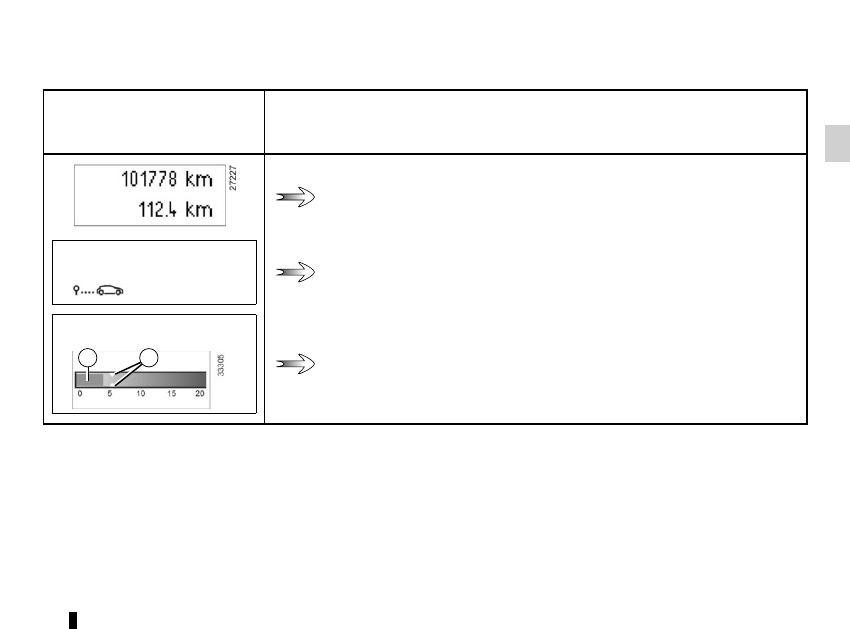

ON-BOARD COMPUTER: trip settings

(1/5)

Examples of selections

Interpreting the display selected

a) Total mileage and trip mileage recorder.

Fuel used

b) Journey parameters.

Fuel used.

Fuel consumed since the last reset.

Fuel consumption

L/100

Current fuel consumption A.

This value is displayed above a speed of approximately 3 mph (5 km/ h).
Average fuel consumption B since the last reset.

The value is displayed after having travelled at least 400 metres since the

last reset.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.64

ON-BOARD COMPUTER: trip settings

(2/5)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

Range

Estimated range with remaining fuel.

The value is displayed after driving 400 metres.

541km

Distance

Distance travelled since the last reset.

522km

Average

Average speed since the last reset.

The value is displayed after driving 400 metres.

123.4km/H

1.65

ON-BOARD COMPUTER: trip settings

(3/5)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

On-board computer with mileage-

before-service message

c) Mileage before service or oil change.

Mileage before service

With the ignition switched on and the engine not running,

when the message “Mileage before next service” is displayed,

press button 2 or 3 for around 5 seconds to display the mile-

age before the next service (distance or time remaining before

the next service). When the distance value approaches its limit,

there are several possible scenarios:

–

distance/time remaining less than 900 miles (1,500 km) or

one month: the message “Service due in” is displayed ac-

companied by the nearest term (distance or time);

–

distance equal to 0 miles or service date reached: the

message “service vehicle” is displayed accompanied by the

warning light.

The vehicle requires a service as soon as possible.

SERVICE

INTERVALS

Service in

30 000 Kms /

12 Months

Service due in

300 Kms / 24 days

Service required

Resetting: to reset the distance before service, press and hold button 2 or 3 for approximately 10 seconds until the display

shows the service mileage without flashing.
NB: if a service is performed without changing the engine oil, only the mileage before the next service should be reset. In the

event of an oil change, both the distance before the next service and the next oil change should be reset.

Renault Grand Scenic (2016 year). Manual - part 4
