Dacia Pick-Up 1304/1305/1307. Service manual - part 138

85

WINDSCREEN WIPERS

85 - 1

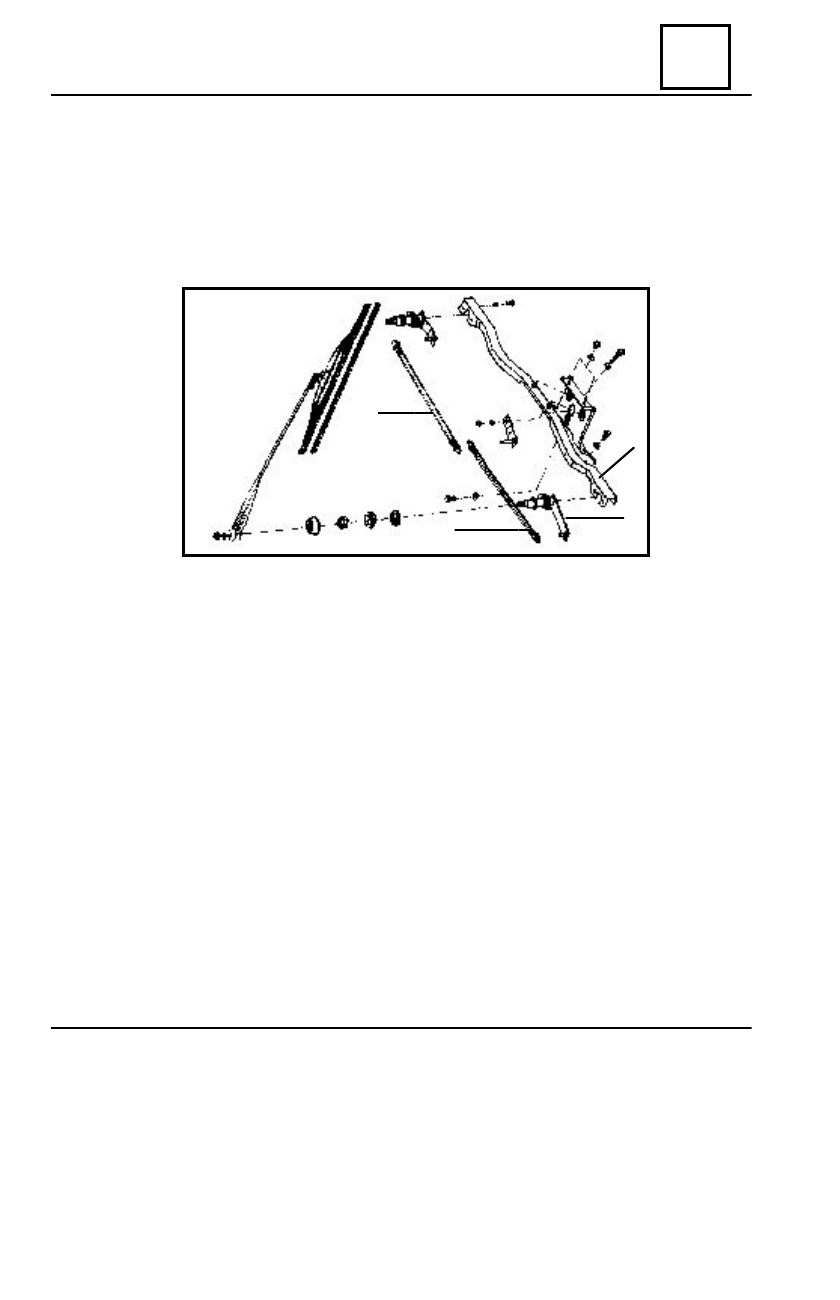

The windscreen wiper mechanism which is equipping the  DACIA pick-ups and its

components may be seen in the following detailed drawing.

Subject to the type of dashboard which the DACIA pick-ups are equipped with

(restyled dashboard or dash board type CN) the mechanism dismounting shall be perform
differently.

According to the type of the vehicle equipment , with or without  windscreen wiper timer, the

windscreen wiper is connected to its wiring as per following diagrams:

a )  with windscreen wiper timer.
b)  without windscreen wiper timer.

On these diagrams the following elements may be identified:

1. Windscreen wiper motor
2. Right connection plate (+ DC )
3. Windscreen wiper washer pump
4. Washer – wiper switch
5. Windscreen wiper timer

WINDSCREEN WIPER MECHANISM

WINDSCREEN WIPERS

85

85 - 2

VEHICLE WITH DASH BOARD TYPE  1325

D

ISMO UNTING

Disconnect the battery.
Dismount the attachment nuts of the windscreen wiper arms and the blades.
Unscrew the attachment nuts of the shafts on the lower frame of the windscreen, recover the

rubber washers  and bushings.

Dismount the dashboard.
Disconnect the wiring connector from the windscreen wiper drive motor.
Unscrew the attachment screws of the mechanism on the plate.
Draw the mechanism backwards and then take it out from the right side of  the steering wheel.

R

EMOUNTING

Perform the dismounting operations in  the reverse order.

NOTE: When mounting the windscreen wiper arms, the wiper drive engine must

be in position “stop at fixe point “.

WINDSCREEN WIPER MECHANISM

85

WINDSCREEN WIPERS

85 - 3

WINDSCREEN WIPER MECHANISM

                                   WINDSCREEN WIPER DRIVE SHAFT REPAIR

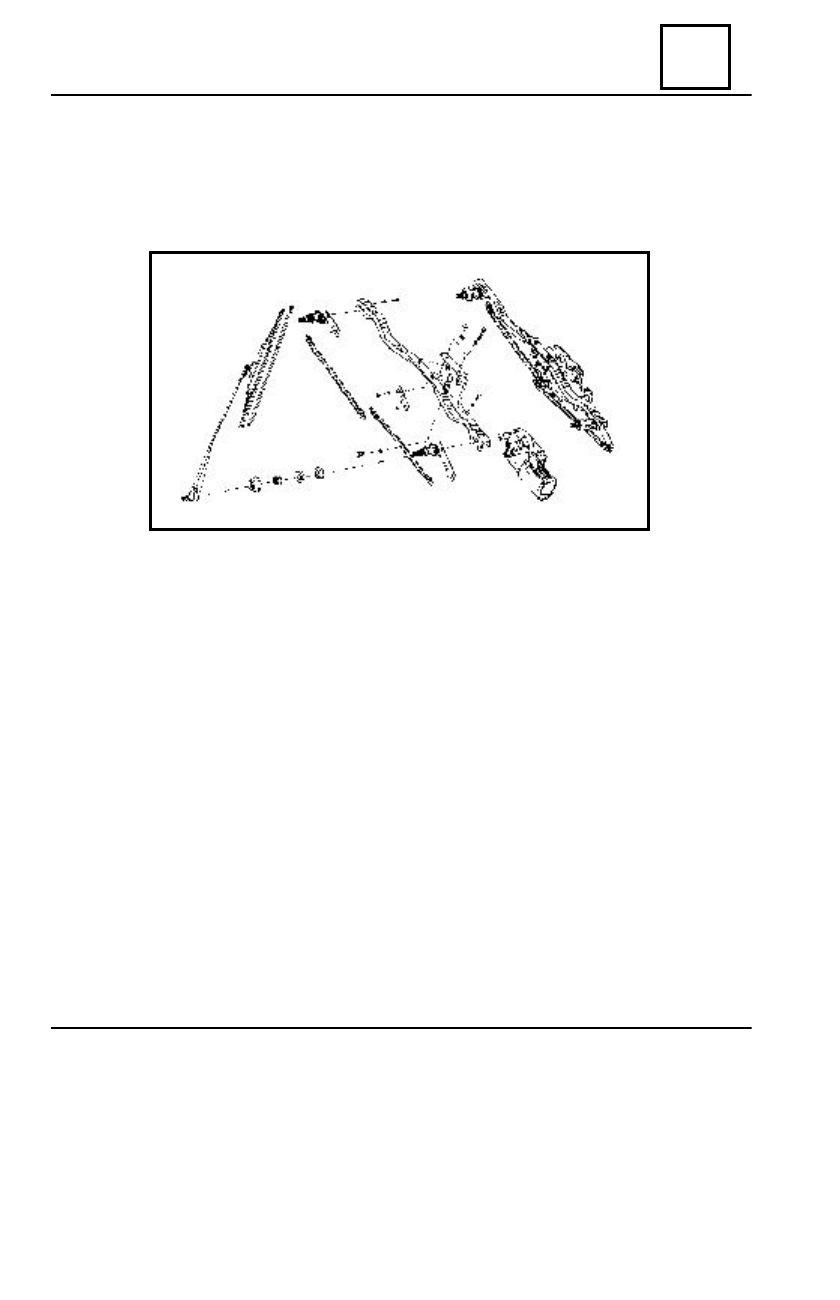

This operation shall be performed for Dacia vehicles, as per the following drawing, after

dismounting the mechanism from the vehicle.

D

ISMO UNTING

Disconnect the auxiliary connecting rods (A) and (B) off the shafts.
Dismount the shafts (1) off the mechanism support (2).
Depress the grooved bushing.
Dismount the shaft; recover the bushing and the rubber gaskets.

     R

EMO UNTING

Check the state of the rubber gaskets.
Clean the parts to be free of oxides.
Grease the parts with grease Li Ca Pb type II.
Remount  :the rubber gasket on the shaft, the rubber gasket shaft and the bushing.
Press the grooved bushing.
Mount the shafts on the mechanism support.
Grease the joints with grease type II Li Ca Pb and couple the auxiliary connecting rods on

the shafts (A) and (B).

A

B

1

2

WINDSCREEN WIPERS

85

85 - 4

 D

ISMO UNTING

Unscrew the attachment nut of the control auxiliary connecting rod,  ( B ) on the drive motor shaft.
Unscrew the attachment screws of the drive motor on the mechanism support.

R

EMOUNTING

Perform the dismounting operations in reverse order.

NOTE: When remounting, the auxiliary connecting rods A and B shall be

aligned, the drive motor being “stopped at fix position”.

WINDSCREEN WIPER DRIVE MOTOR REPAIRING

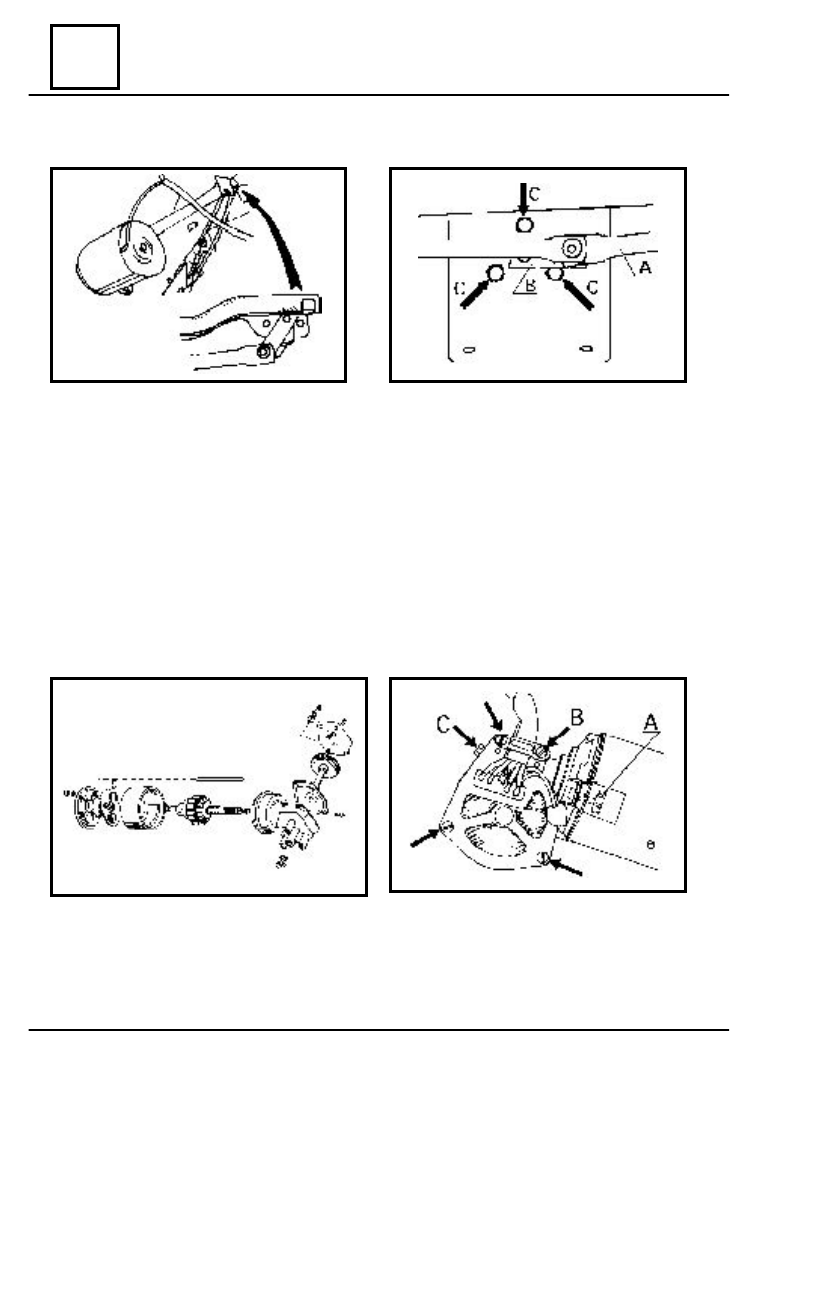

Windscreen drive motor ( components parts drawing ).

D

ISMO UNTING

Dismount the windscreen wiper drive motor off the mechanism support.

1. Reduction gear dismounting :

- unscrew the attachment screws of the cap (B);

The operation shall be  performed after dismounting the mechanism off the vehicle.

WINDSCREEN WIPER DRIVE MOTOR
