FRONT SEATS FRAMES AND RUNNERS

75 - 1

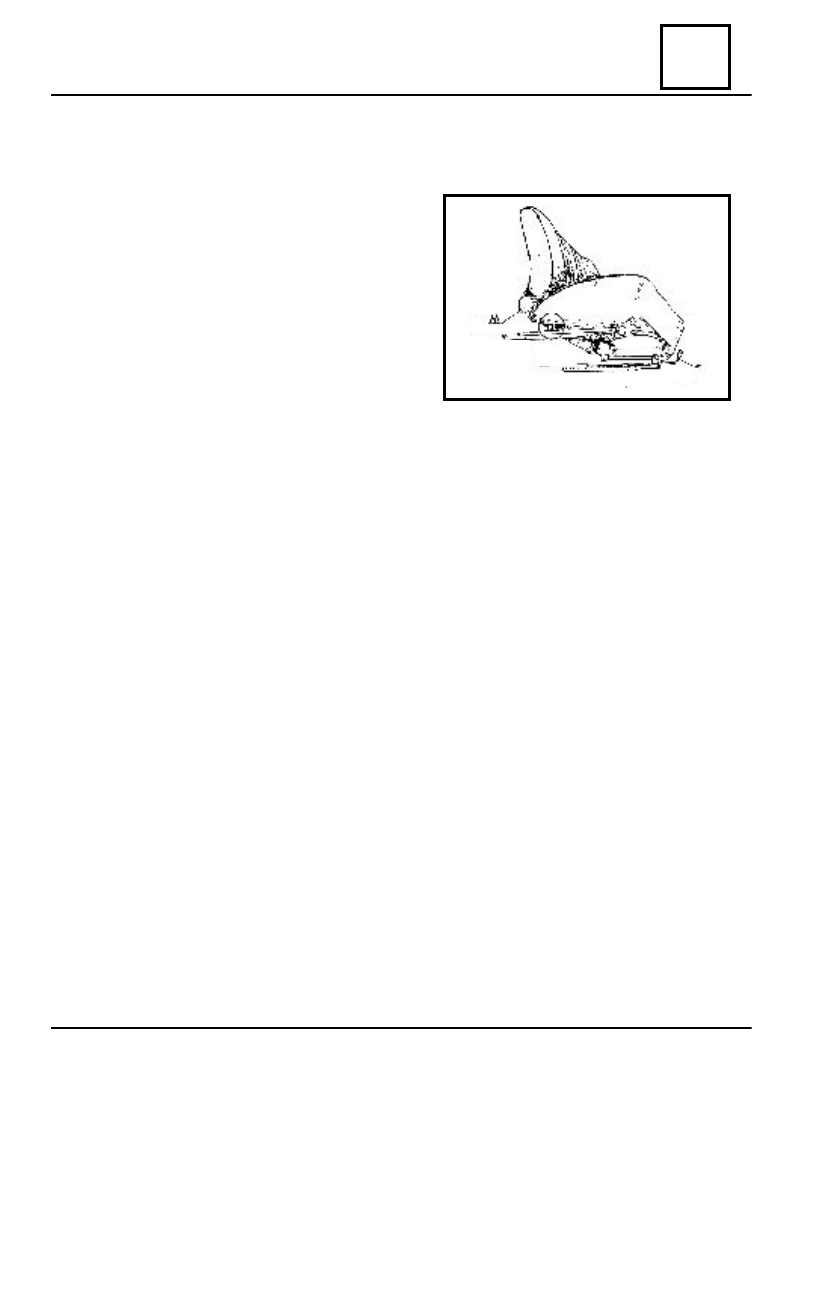

FRONT SEATS

A

DJUSTMENTS

  The front seats equipping the Dacia

vehicles offer the following adjustment
possibilities:

-

longitudinal displacement  back and

forth which may be performed by using the
control lever (L).

- the back rest rocking until the horizontal

position is obtained by using the button
(M).

D

ISMO UNTING

In order to dismount the seat, perform the following operations :
Lift the control lever (L), bring the seat in the front position  and dismount the screws

(5) as well as the seat attachment cross-pieces (6) on the central floor (the rear part).

Bring the seat in the back position and dismount the seat attachments screws (2) and

cross-pieces (1) on the central floor (the front part).

R

EMO UNTING

Perform the dismounting operations in  the reverse order.

FRONT SEATS FRAMES AND RUNNERS

75

75 - 2

REPLACEMENT

D

ISMO UNTING

Dismount the seat off the vehicle.
Dismount the slide guides from the front seat.
Remove the upholstery and the clothing from the armature.

R

EMOUNTING

Perform the dismounting operations in the reverse order.

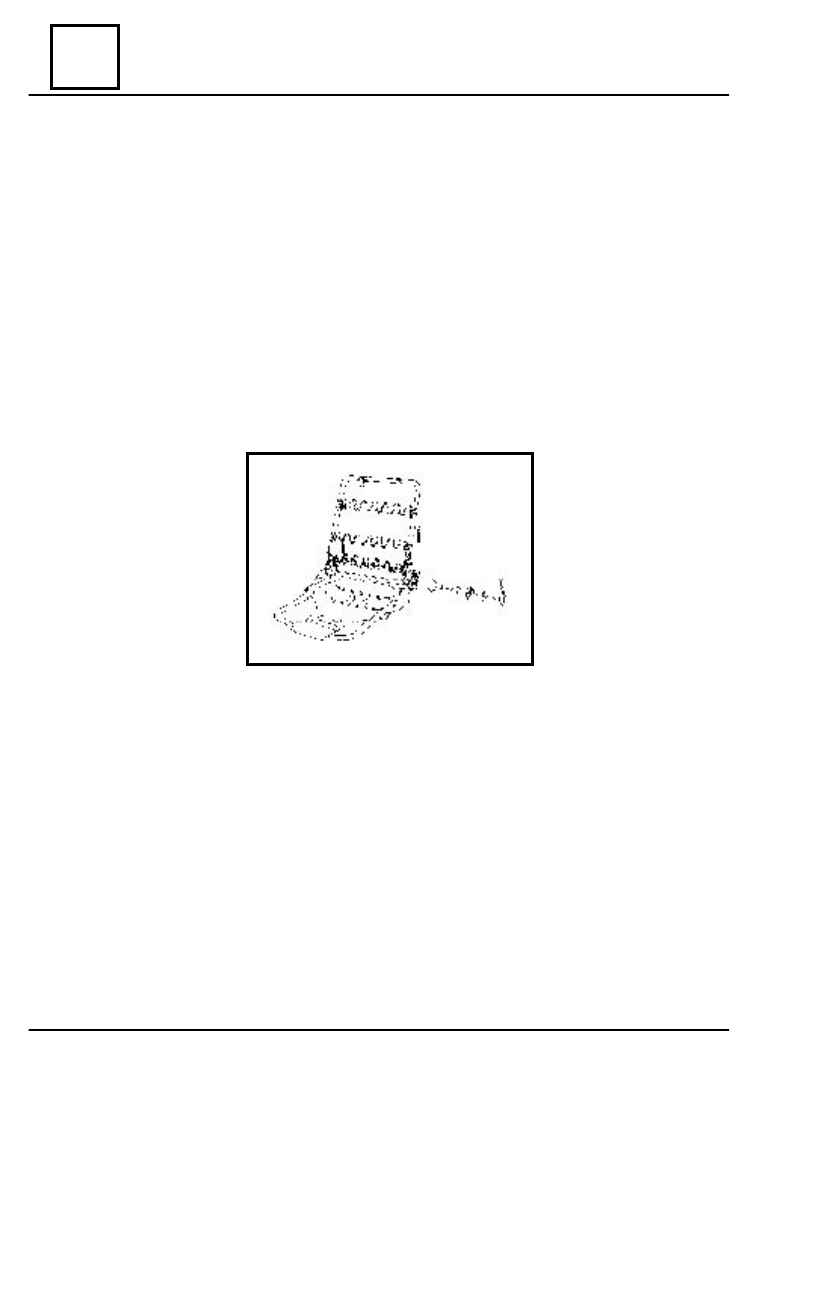

FRONT SEATS FRAMES

75

FRONT SEATS FRAMES AND RUNNERS

75 - 3

D

ISMO UNTING

Dismount:
- the front seat attachment screws (5)

and cross- pieces (3) and (6)on the central
floor;

- the slide guides (1) and (2) attachment

screw (4) on the seat armature;

- release the slide guides (1) and (2).

R

EMOUNTING

Perform the dismounting operations in

the reverse order.

1

3

5

6

2

4

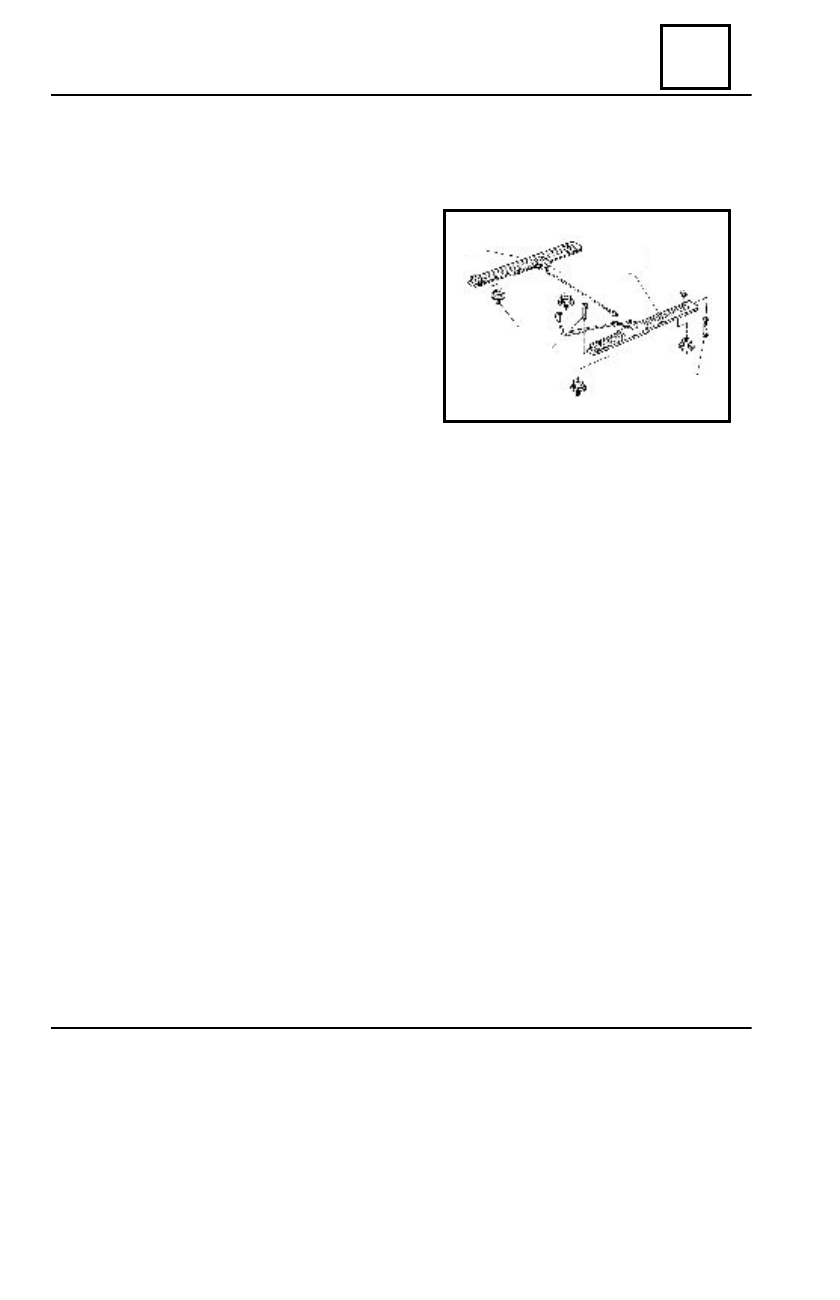

FRONT SEATS SLIDE GUIDES

76

REAR SEAT FRAMES AND RUNNERS

D

ISMO UNTING

Dismount the closing plate (1) by removing it from the clips of the rear bench back

rest.

Dismount the upholstery and clothing from the rear bench back rest (2).

R

EMOUNTING

Perform the dismounting operations in the reverse order

76 - 1

3

4

2

1

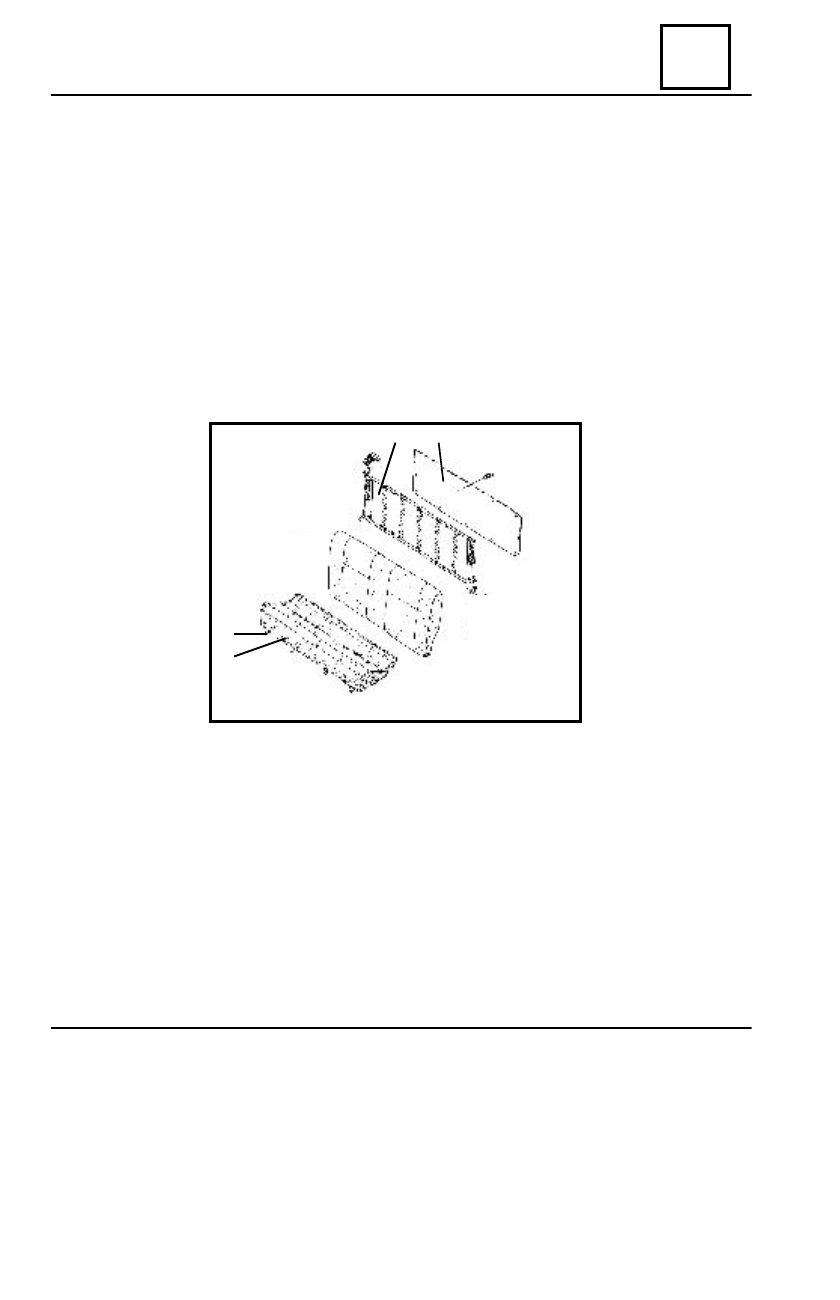

BACK REST ARMATURE
