Dacia Pick-Up 1304/1305/1307. Service manual - part 124

INTERNAL BODY TRIM

71

71 - 2

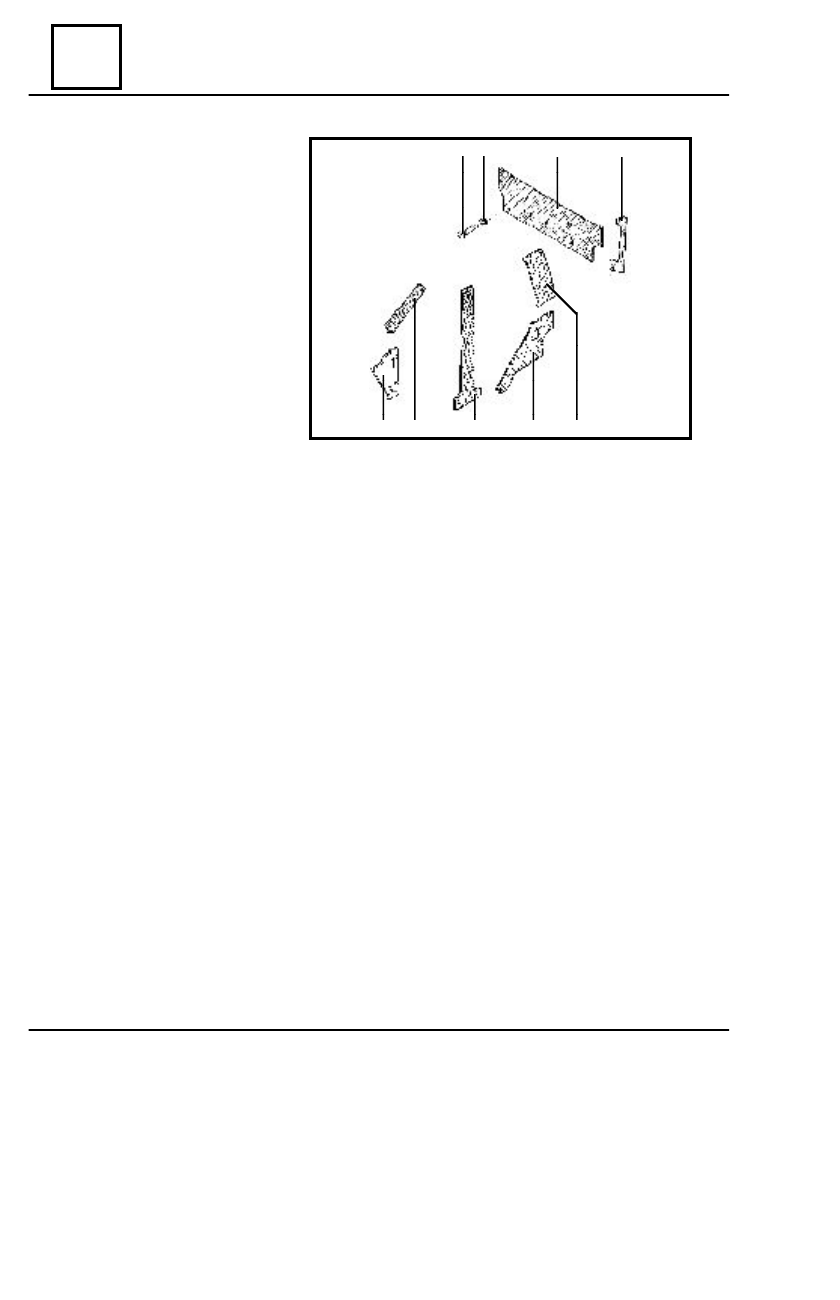

WINDSCREEN COVERING

1. front pillar covering
2. windscreen covering
3. middle pillar lining
4. side lining lower covering
5. upper side panel lining
6. side panel covering
7. cabin wall lining
8. plate screw
9. flat washer

REPLACEMENT OF THE WINDSCREEN COVERING

DISMOUNTING

Dismount :

- the windscreen
- partially the front doors weather-strip.

Unstuck the windscreen covering

REMOUNTING

   Perform the dismounting operations in the reverse order.

6

8 9

7

5

4

3

2

1

71

INTERNAL BODY TRIM

71 - 3

REPLACEMENT OF THE MIDDLE PILLAR LINING

DISMOUNTING

Move ahead the front seat, in order to enable the access at the middle pillar.

Dismount :

- the front thresholds
- partially the front/rear doors weather-strips
- the front safety belts at their upper/lower part attachment on the middle pillar.

Unstuck in the reverse order of the dismounting operations.

REMOUNTING

Perform the dismounting operations in the reverse order.

 MIDDLE PILLAR LINING

INTERNAL BODY TRIM

71

71 - 4

REPLACEMENT OF THE UPPER SIDE PANEL LINING

DISMOUNTING

Swing over the rear bench back
Dismount :

- the rear safety belts at the upper part.
- partially the rear doors weather-strip.

Unstuck the upper side panel lining.

REMOUNTING

Perform the dismounting operations in the reverse order.

UPPER SIDE PANEL LINING

71

INTERNAL BODY TRIM

71 - 5

REPLACEMENT OF THE CABIN WALL LINING

DISMOUNTING

Swing over the rear bench back
Dismount :

- the rear glass grill
- the rear cabin glass
- the screws and washers attaching the cabin wall lining.

REMOUNTING

Perform the dismounting operations in the reverse order.

CABIN WALL LINING
