Dacia Pick-Up 1304/1305/1307. Service manual - part 112

55

EXTERNAL PROTECTIONS

D

ISMO UNTING

Dismount :

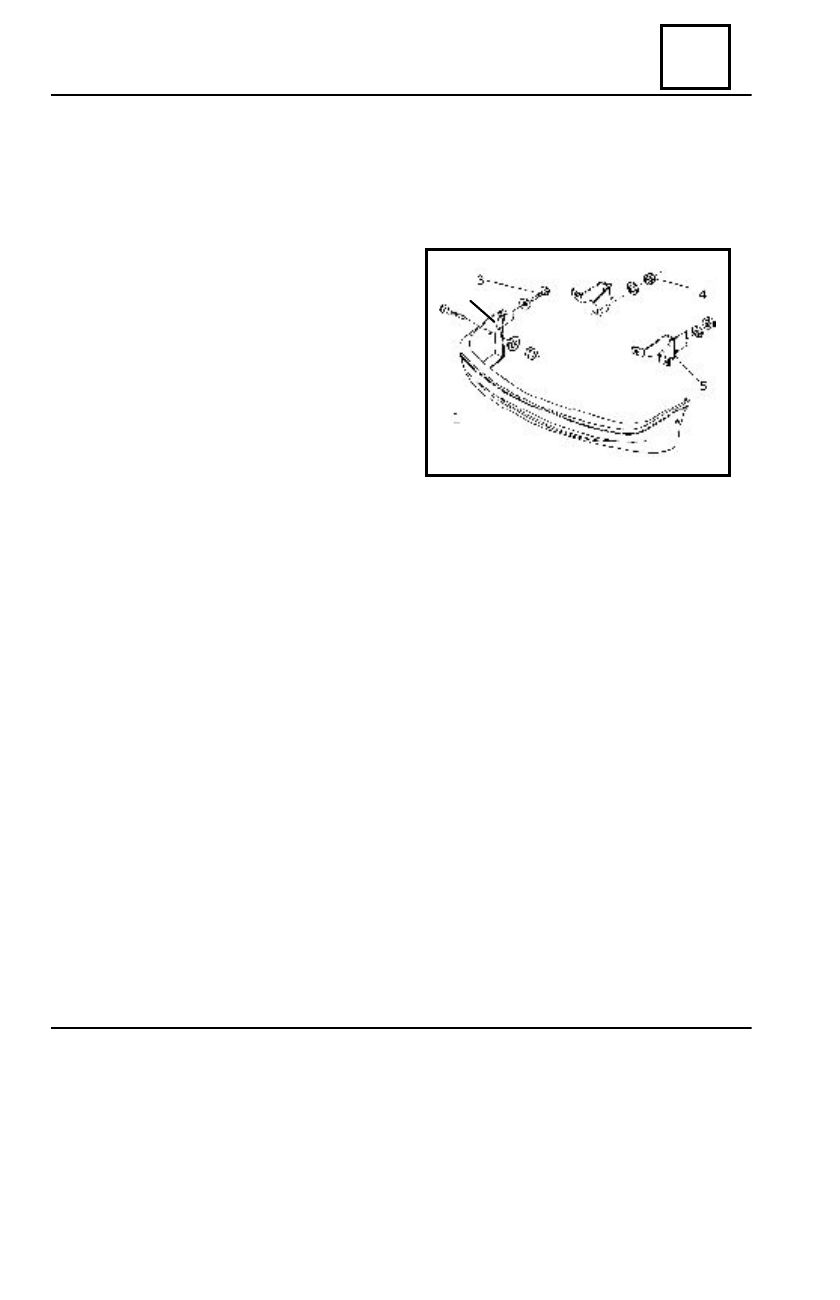

         - the attachment screw (1) and (3) of
the front bumper  (2) on the front wings;

- the  nuts  (4) which attach the

bumper supports (5) on the front grill;

- release the front bumper.

R

EMO UNTING

Perform the dismounting operations in  the reverse order.

55 - 1

2

FRONT BUMPER

EXTERNAL PROTECTIONS

55

REAR BUMPER

( for vehicles Dacia 1304 Pk., 1307 )

R

EMO UNTING

Perform the dismounting operations in the reverse order.

55 - 2

D

ISMO UNTING

Dismount :

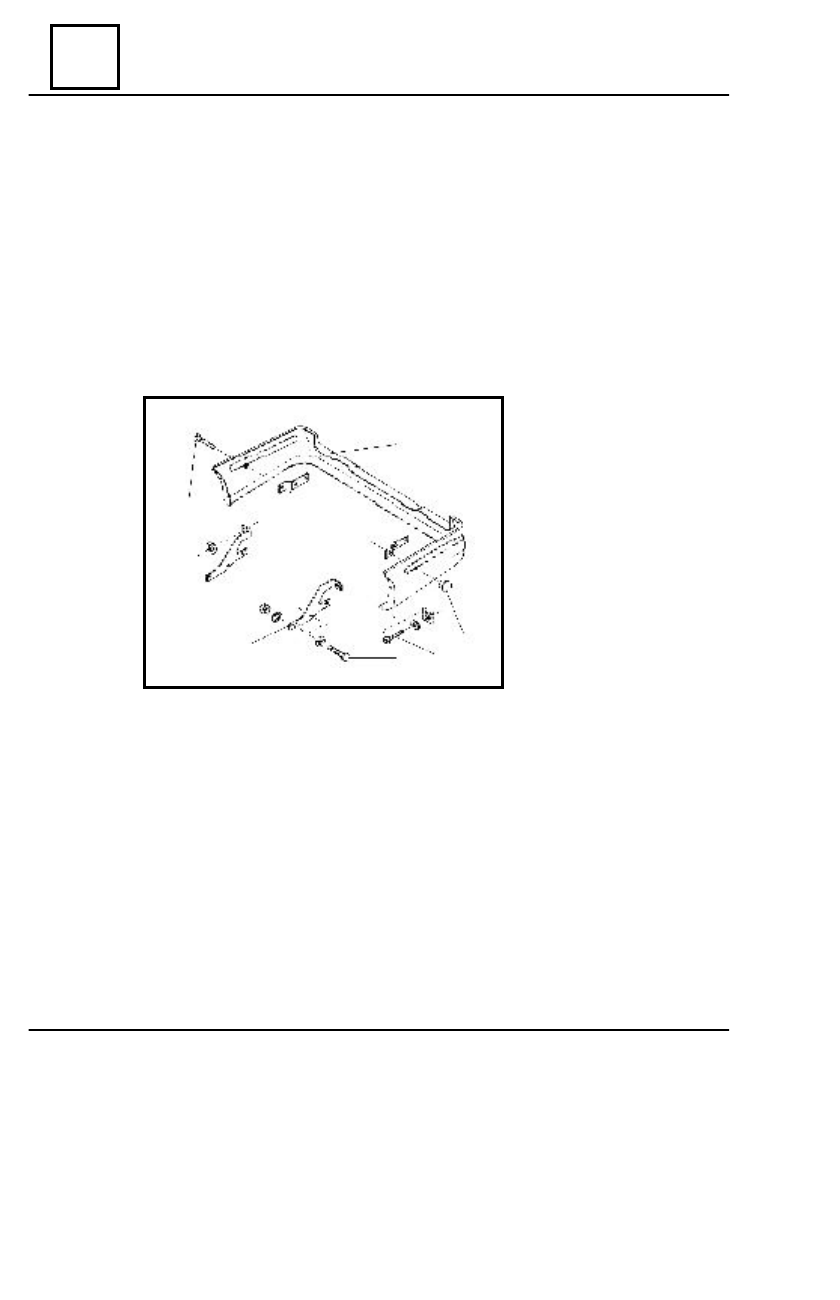

- the protectors (1) and the side attachment screws (2) of the rear bumper (3);
- the attachment screws (4) of the rear bumper on side panels ;
- the attachment screws (5) of the rear bumper supports (6) on the rear girders;

         - release the rear bumper.

2

6

5

4

1

3

REAR BUMPER

55

EXTERNAL PROTECTIONS

REAR BUMPER

( for Dacia 1304 platform drop side )

R

EMO UNTING

Perform the dismounting operations in the reverse order.

55 - 3

D

ISMO UNTING

Dismount :

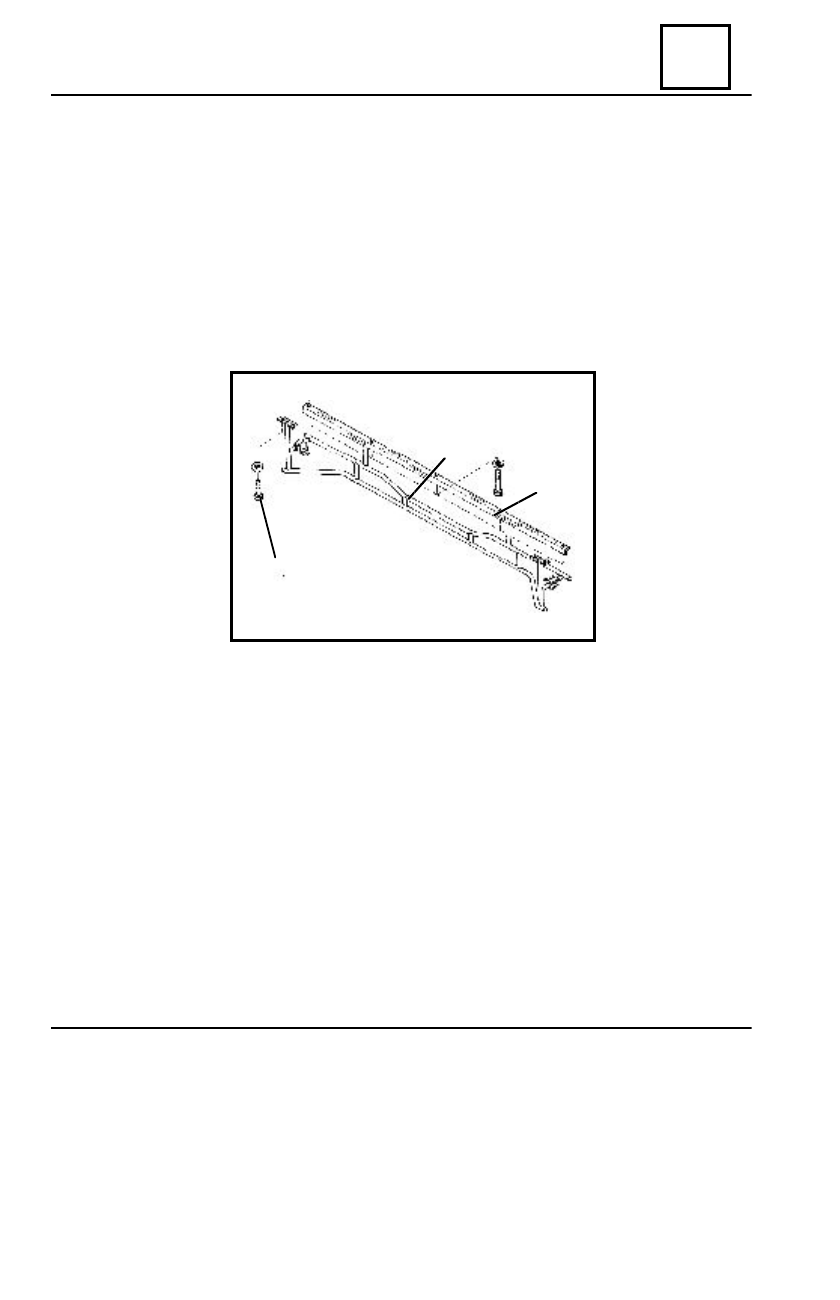

- the attachment screws (3) of the rear bumper (2) on the end rear cross bar;
- the attachment screws (4) of the rear bumper supports on the rear girders;
- release the rear bumper.

1

2

3

REAR BUMPER

56

EXTERNAL ACCESSORIES

OUTSIDE REAR VIEW MIRROR

R

EMO UNTING

Perform the dismounting operations in the reverse order.

56 - 1

D

ISMO UNTING

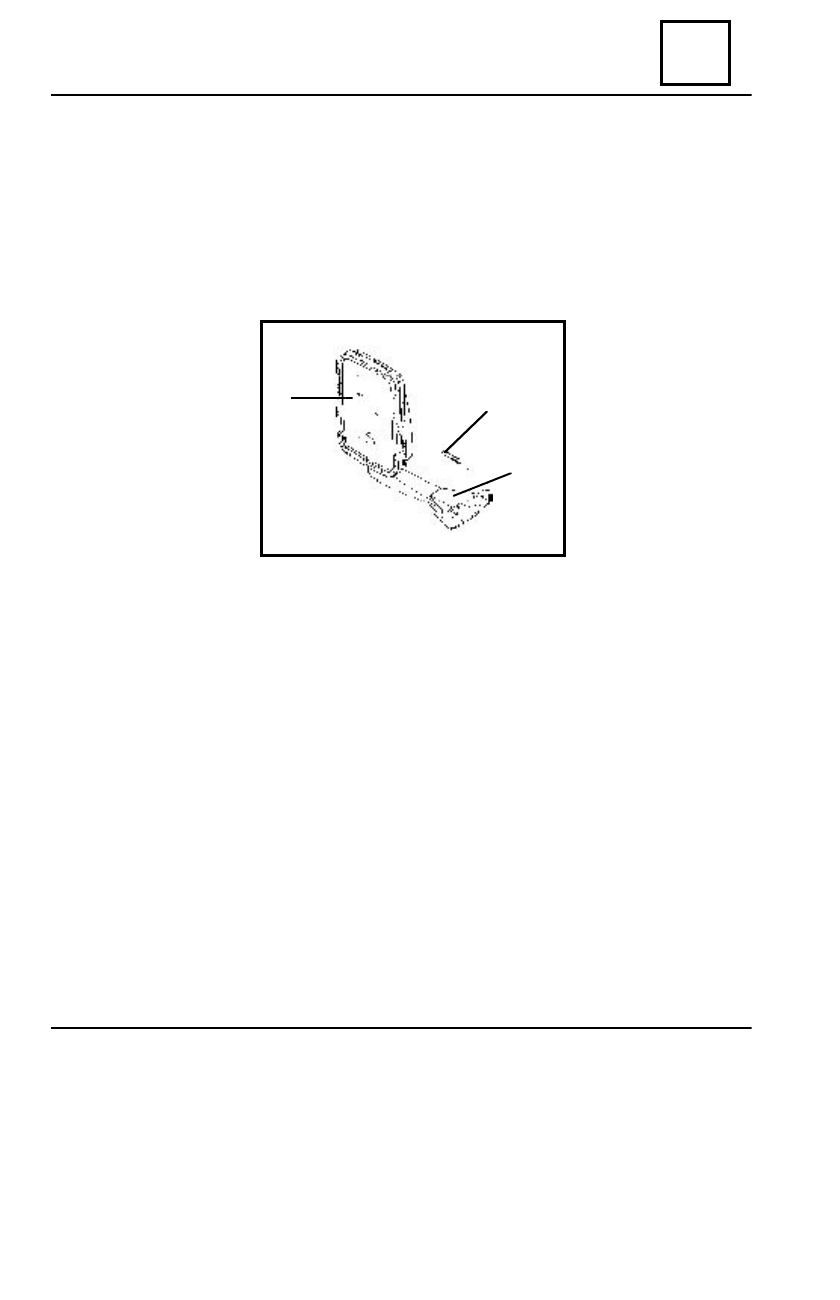

Detach the protector of the outside rear view mirror (3).
Dismount the attachment screws (2) of outside rear view mirror (1).
Release the outside rear view mirror.

1

2

3
