Peugeot 607 (2007.5). Manual

  Make  a  careful  note  of  the
number  on  each  key.  The
key number is coded on the
label attached to the key.

  If the keys are lost, your PEUGEOT
dealer  can  rapidly  supply  you  with
new keys.
  The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock your ve-
hicle, without you being aware of it.
  The  remote  control  does  not  oper-
ate  when  the  key  is  in  the  ignition,
even when the ignition is switched
off, except for reprogramming.
  Do  not  operate  the  deadlocking
function  if  there  is  anyone  inside
the vehicle.
  Driving  with  the  doors  locked  may
make access to the passenger com-
partment by the emergency services

more difi cult in an emergency.
  As  a  safety  precaution  (with  chil-
dren on board), remove the ignition
key  when  you  leave  the  vehicle,
even for a short time.
  Do not repeatedly press the button
of your remote control out of range
and  out  of  sight  of  your  vehicle.
You run the risk of stopping it from
working  and  the  remote  control
would have to be reprogrammed.

CONFIDENTIAL CARD

  When  purchasing  a  second-hand
vehicle:
   -

ensure that you are given the

coni dential card;

have the key codes memorised
by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.

Do not make any modii cations to

the electronic engine immobiliser
system.

This is given to you on delivery of your

vehicle with the duplicate keys.

It contains the identii cation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-
tronic immobiliser system. This code

is hidden by a i lm, which should be

removed only if necessary.
  Keep  your  card  in  a  safe  place,
never inside the vehicle.
When  undertaking  a  long  trip  or

journey, however, it is advisable to

take it with you along with your per-

sonal papers.

Changing the remote control
battery

Reprogramming the remote
control

Following disconnection of the vehicle’s

battery, replacement of the remote con-

trol battery or in the event of a remote

control malfunction, the remote control

must be reinitialised.


Switch off the ignition.



Switch the ignition on again.

 Press the remote control locking but-

ton immediately for a few seconds.



Switch off the ignition and remove

the remote control key from the
ignition lock.

The remote control is now working

again.

ELECTRONIC ENGINE
IMMOBILISER

This locks the engine control system

a few moments after the ignition has

been switched off and therefore pre-

vents starting of the vehicle by anyone

who does not have the key.

The ignition key has an electronic chip

which has a special code. When the

ignition is switched on, the code is rec-

ognised and starting is possible.
If the system does not function cor-
rectly,

the service warning light comes

on, accompanied by an audible signal

and a message on the multifunction

display.

In this case, your vehicle will not start.

Contact a PEUGEOT dealer as soon

as possible.

A heavy object attached to the key (key

ring, ...), weighing down on the shaft

of the key in the switch, may cause a

malfunction.

Battery ref.: CR1620/3 volts.

The information "battery l at" is given

by displaying of the service warning

light, accompanied by an audible

signal and a message on the multi-

function display.

To replace the battery, unclip the

casing using a coin at the notch.
If the remote control does not work

after the battery has been changed,

reprogramme the remote control.

Do not discard the batteries,

they contain metals which are

harmful to the environment.

Take them to an approved

collection point.

  Make  a  careful  note  of  the
number  on  each  key.  The
key number is coded on the
label attached to the key.

CONFIDENTIAL CARD

  When  purchasing  a  second-hand
vehicle:
   -

ensure that you are given the

coni dential card;

have the key codes memorised
by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.

Do not make any modii cations to

the electronic engine immobiliser
system.

This is given to you on delivery of your

vehicle with the duplicate keys.

It contains the identii cation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-
tronic immobiliser system. This code

is hidden by a i lm, which should be

removed only if necessary.
  Keep  your  card  in  a  safe  place,
never inside the vehicle.
When  undertaking  a  long  trip  or

journey, however, it is advisable to

take it with you along with your per-

sonal papers.

  Make  a  careful  note  of  the
number  on  each  key.  The
key number is coded on the
label attached to the key.

CONFIDENTIAL CARD

  When  purchasing  a  second-hand
vehicle:
   -

ensure that you are given the

coni dential card;

have the key codes memorised
by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.

Do not make any modii cations to

the electronic engine immobiliser
system.

This is given to you on delivery of your

vehicle with the duplicate keys.

It contains the identii cation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-
tronic immobiliser system. This code

is hidden by a i lm, which should be

removed only if necessary.
  Keep  your  card  in  a  safe  place,
never inside the vehicle.
When  undertaking  a  long  trip  or

journey, however, it is advisable to

take it with you along with your per-

sonal papers.

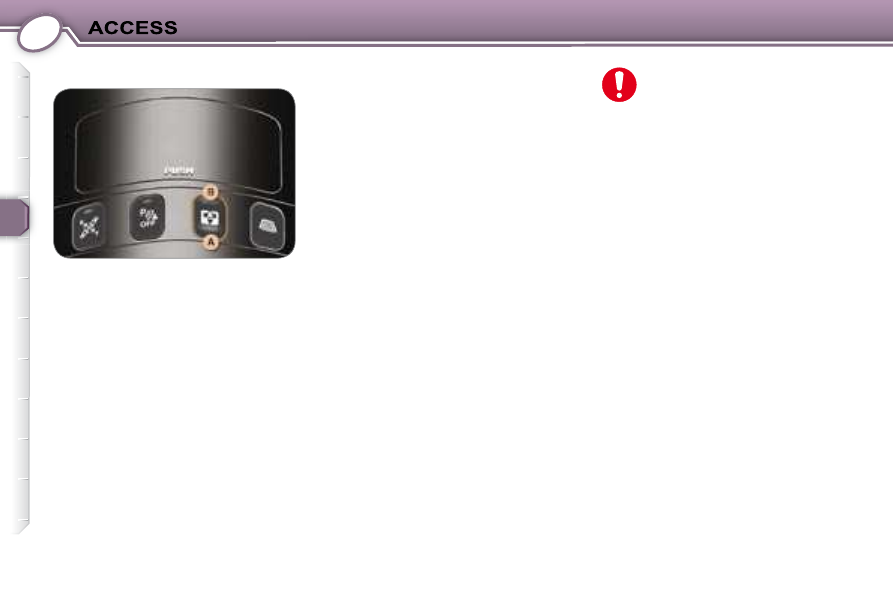

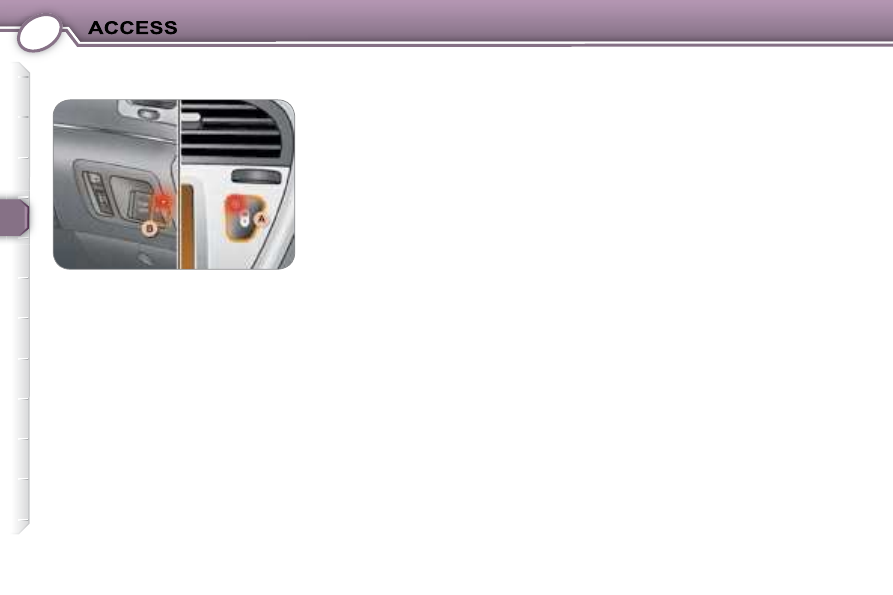

ALARM

Setting the alarm



Switch off the ignition and get out

of the vehicle.

 Set the alarm by locking or dead-

locking using the remote control
(button A

indicator light l ashes

once per second).

When the alarm is triggered, the siren

sounds and the direction indicators

l ash for thirty seconds.

The alarm remains set following each

triggering incident.

Disarming

Unlock the vehicle with the remote

control key (button B indicator light
goes out).
Note: if the alarm has been triggered

while you were away from your car, the

rapid l ashing of the indicator light will

stop when you switch on the ignition.

Automatic activation *

The alarm is activated automatically

two minutes after the last closing of a

door or the boot.
In order to avoid accidental triggering

of the alarm when a door or the boot

is opened, it is essential to press the

remote control opening button i rst.

This provides two types of protection:
-

exterior protection

, it sounds if

a door, the boot or the bonnet is

opened.

interior protection

, it sounds if

the sensors detect a variation in

the air movement inside the ve-

hicle (breaking of a window or a

movement inside the vehicle).

Warning: if the alarm has
been triggered ten times in

succession, on the eleventh

time it becomes inactive.

Note: if button A

l ashes rapidly, the

alarm has been triggered while you

were away from your vehicle.

If you wish to lock your vehicle without

setting the alarm, use the door lock.

To set the alarm with exterior
protection only

Failure of the remote control



Unlock the doors with the key and

open the door. The alarm is trig-

gered.



Switch on the ignition in the next

ten seconds. The alarm is dis-
armed.

Incorrect operation

When the ignition is switched on, if

button A

lights for ten seconds, there

is a fault in the siren connection.
Contact a PEUGEOT dealer to have

the system checked.

If, while you are away from the vehi-

cle, you wish to leave a window par-

tially open or a pet inside the vehicle,

you should choose exterior protection

only.


Switch off the ignition.



In the next ten seconds, press but-

ton B until its indicator light is on
continuously.



Get out of the vehicle.

 Set the alarm by locking or dead-

locking using the remote control
(button A and button B indicator

lights l ash once a second).

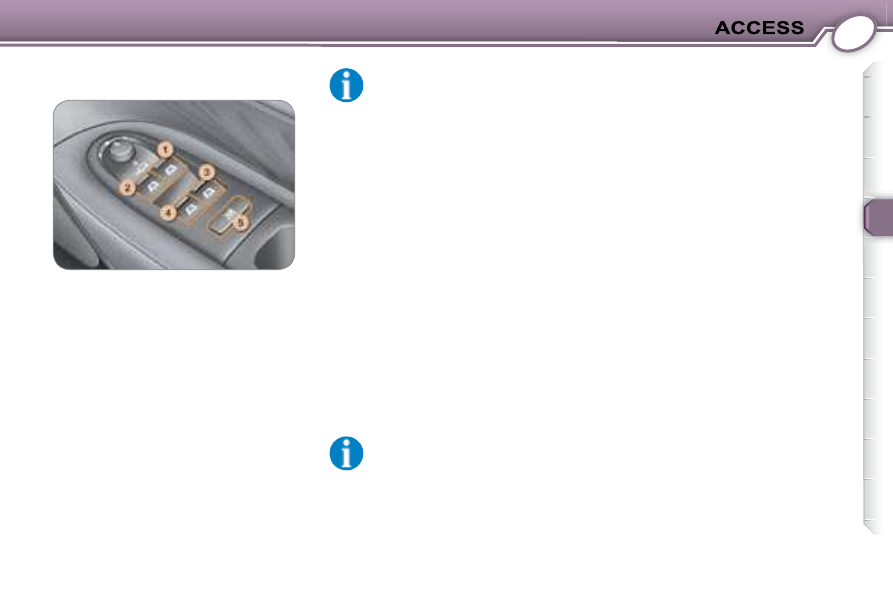

ELECTRIC WINDOWS

The electric windows are de-

activated temporarily if the

energy economy mode is ac-

tivated.

To keep your children safe, press

switch 5 to prevent operation of the

rear windows.

To reactivate the controls, press con-

trol 5 again.
You have two options:

Manual operation:


press or pull switch 1 gently. The

window stops as soon as the

switch is released.

Automatic operation:


press or pull switch 1 fully. The

window opens or closes complete-

ly when the switch is released.

Pressing the switch again stops

the movement of the window.

Safety auto-reverse
When the window rises and meets an

obstacle, it stops and lowers again.

In the case of unwanted opening of the

window on closing (for example, in the

case of ice), if the window will not rise,

pull the switch until the window clos-

es completely. Continue to press the

switch for one second after closing.

Following reconnection of the battery,

in the event of a malfunction, you must

reinitialise the safety auto-reverse

function:

- open the window completely, then

close it, it will rise in stages of a

few centimetres with each press,

repeat the operation until the win-

dow is completely closed,

- continue to press the switch for at

least one second after reaching

this position.

The safety auto-reverse function is not
operational during these operations.

1. Driver's electric window switch.
2. Passenger's electric window

switch.

3. Rear right electric window

switch.

4. Rear left electric window

switch.

5. Neutralisation of the electric

controls located in the rear
(child safety).

Approximately 45 seconds fol-

lowing removal of the ignition

key, none of the windows can

be opened or closed. You must

switch the ignition on again to

open or close the windows.

Always remove the key from

the ignition when leaving the

vehicle, even for a short time.

In the event of contact when

operating the windows, you must re-

verse the movement of the window. To

do this, press the switch concerned.

When the driver operates the passen-

ger window switches, he must ensure

that no one is preventing correct clos-

ing of the window.

The driver must ensure that passengers

use the electric windows correctly.

Be aware of children when operating

the windows.

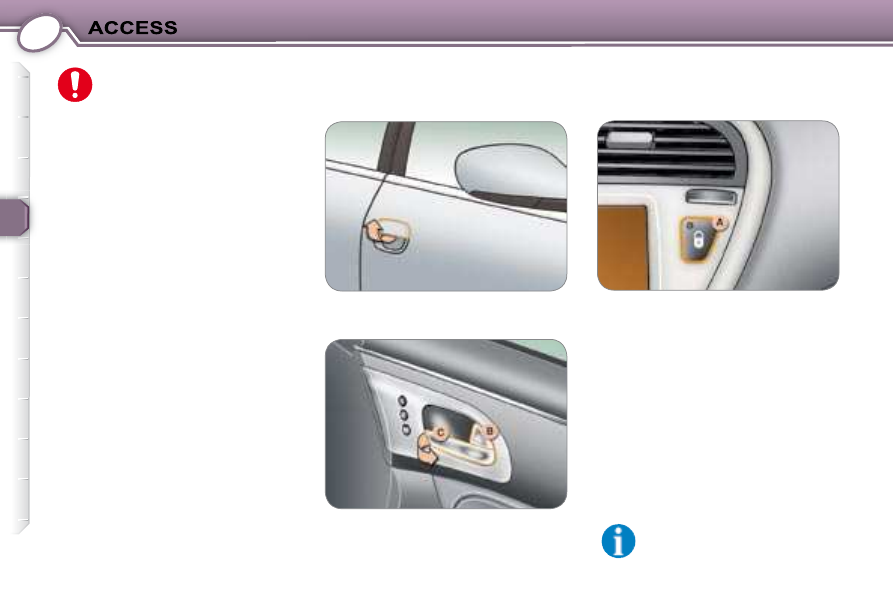

DOORS

Opening the doors from outside

Opening the doors from inside

Locking/unlocking from the inside

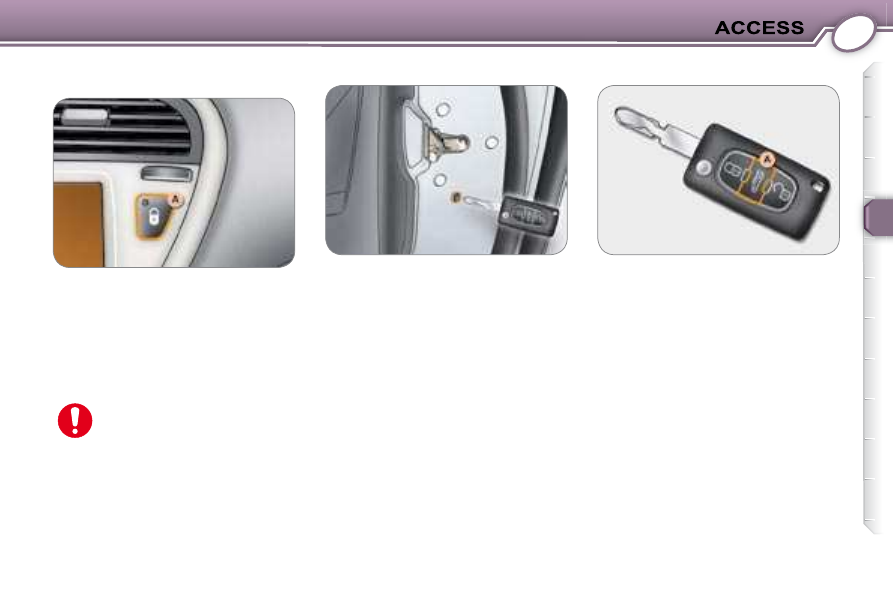

Using button A

of the centre console:

this allows the doors, the boot and

the fuel i ller l ap to be locked or

unlocked.
Note: the button A indicator light is lit

or l ashes when the vehicle is locked.
-

Using button B

on the door:

on the front doors this allows the

doors, the boot and the fuel i ller

l ap to be locked or unlocked.

on the rear doors this allows the

door concerned to be locked or
unlocked.

Buttons A and B and control C

are deactivated if the vehicle

is deadlocked.

Always remove the key from

the ignition when leaving the

vehicle, even for a short time.

In the event of contact when

operating the windows, you must re-

verse the movement of the window. To

do this, press the switch concerned.

When the driver operates the passen-

ger window switches, he must ensure

that no one is preventing correct clos-

ing of the window.

The driver must ensure that passengers

use the electric windows correctly.

Be aware of children when operating

the windows.

DOORS

Opening the doors from outside

Opening the doors from inside

Locking/unlocking from the inside

Using button A

of the centre console:

this allows the doors, the boot and

the fuel i ller l ap to be locked or

unlocked.
Note: the button A indicator light is lit

or l ashes when the vehicle is locked.
-

Using button B

on the door:

on the front doors this allows the

doors, the boot and the fuel i ller

l ap to be locked or unlocked.

on the rear doors this allows the

door concerned to be locked or
unlocked.

Buttons A and B and control C

are deactivated if the vehicle

is deadlocked.

Child safety

Automatic central locking of the
doors

"Door open" alert
With the engine running or when the ve-

hicle is moving, the door open warning

light comes on accompanied by an au-

dible signal and/or a diagram indicating

the relevant door on the multifunction

display.

MOTORISED BOOT

The doors can lock automatically while

driving (speed above 6 mph [10 km/h]).

You can activate or deactivate this

function by pressing button A for more

than 2 seconds.
This is indicated by a message on the

multifunction display.

This prevents either of the rear doors

being opened from inside.


Turn the switch on each rear

door a quarter of a turn using the
ignition key.

Opening the boot

Driving with the doors locked

may make access to the pas-

senger compartment by the

emergency services more dif-

i cult in an emergency.

Vehicle locked/deadlocked
 Press button A on the remote

control key.

This action will also unlock the doors

and the fuel i ller l ap.

Child safety

Automatic central locking of the
doors

"Door open" alert
With the engine running or when the ve-

hicle is moving, the door open warning

light comes on accompanied by an au-

dible signal and/or a diagram indicating

the relevant door on the multifunction

display.

MOTORISED BOOT

The doors can lock automatically while

driving (speed above 6 mph [10 km/h]).

You can activate or deactivate this

function by pressing button A for more

than 2 seconds.
This is indicated by a message on the

multifunction display.

This prevents either of the rear doors

being opened from inside.


Turn the switch on each rear

door a quarter of a turn using the
ignition key.

Opening the boot

Driving with the doors locked

may make access to the pas-

senger compartment by the

emergency services more dif-

i cult in an emergency.

Vehicle locked/deadlocked
 Press button A on the remote

control key.

This action will also unlock the doors

and the fuel i ller l ap.

Child safety

Automatic central locking of the
doors

"Door open" alert
With the engine running or when the ve-

hicle is moving, the door open warning

light comes on accompanied by an au-

dible signal and/or a diagram indicating

the relevant door on the multifunction

display.

MOTORISED BOOT

The doors can lock automatically while

driving (speed above 6 mph [10 km/h]).

You can activate or deactivate this

function by pressing button A for more

than 2 seconds.
This is indicated by a message on the

multifunction display.

This prevents either of the rear doors

being opened from inside.


Turn the switch on each rear

door a quarter of a turn using the
ignition key.

Opening the boot

Driving with the doors locked

may make access to the pas-

senger compartment by the

emergency services more dif-

i cult in an emergency.

Vehicle locked/deadlocked
 Press button A on the remote

control key.

This action will also unlock the doors

and the fuel i ller l ap.

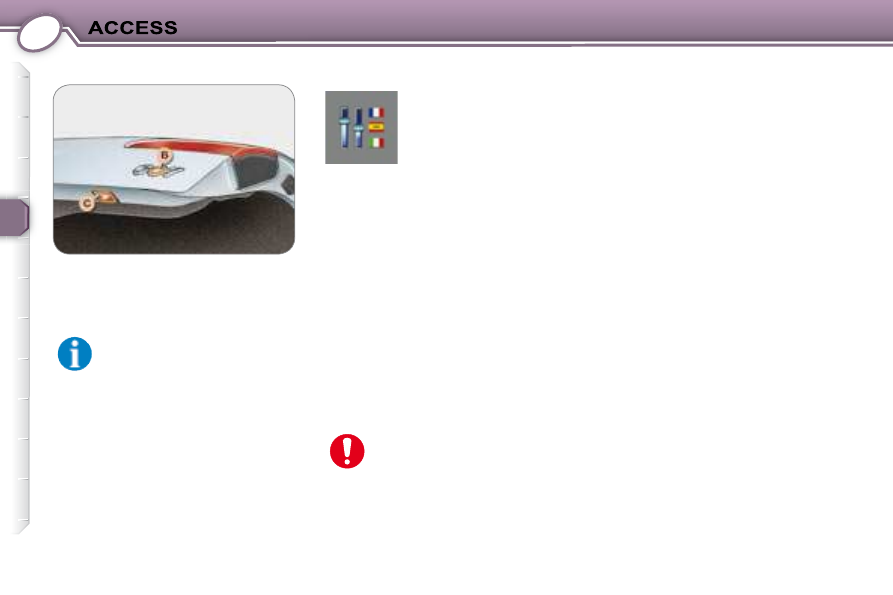

Permanent locking of the boot

This function can be

activated or deactivated

via the multifunction dis-

play "Personalisation-

Coni guration" menu.

Vehicle unlocked

Closing the boot lid

Press the push button C to start elec-

tric closing of the boot lid.
Note: do not hinder closing of the boot

lid: any obstacle to closing causes the

boot lid to stop and rise a few centime-

tres automatically.

"Boot open" warning
With the engine running or when

the vehicle is moving, the door open

warning light comes on, accompanied

by an audible signal and/or a diagram
indicating the boot on the multifunc-

tion display, if the boot is not properly

closed.

Stopping opening or closing of
the boot lid

While electric opening or closing of the

boot lid is in progress, you can stop its

movement at any time:


press the push-button B or C on

the boot lid.

or


press button A on the remote

control key.

When it is stopped, the boot lid is held

in an intermediate position electrically

for approximately 10 minutes.

After this time, the system switches to

standby and releases the boot lid.
To leave the intermediate position,

start an electric opening or closing op-

eration or move the boot lid manually.



When the function is active, the boot

can only be opened by pressing but-

ton A on the remote control key.

This action will only unlock the boot.

 Press button A on the remote con-

trol key or press the push button B

on the boot lid.

  When  opening  or  closing
the  boot,  ensure  that  no-
one  is  close  to  the  rear  of
the vehicle to avoid the risk
of injury.

To close the boot lid manually, use one

of the two handles inside the boot lid.

If the automatic central locking

is activated, when the vehicle

reaches a speed of 6 mph

(10 km/h), the boot is locked

and the push button B is deactivated.

It is reactivated when stationary by the

opening of one of the doors.

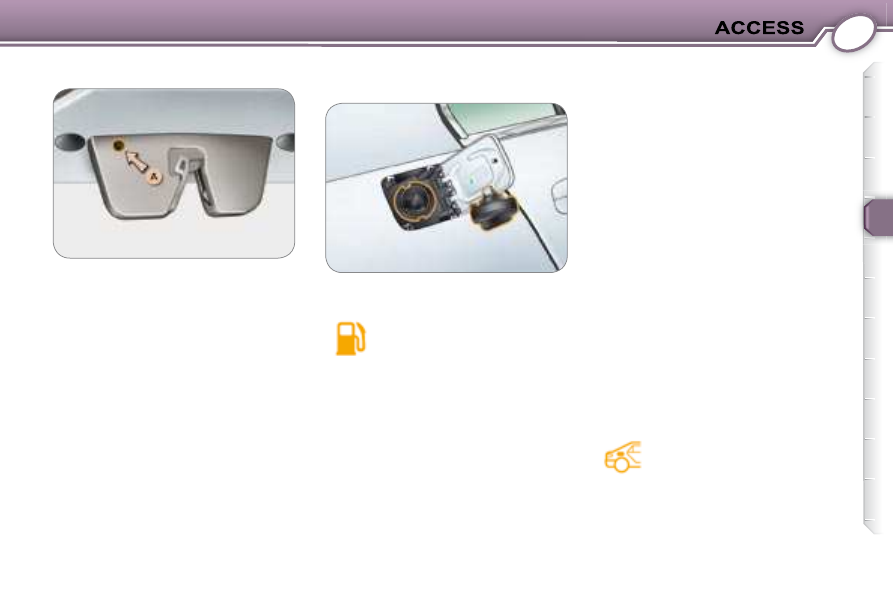

Tailgate release

This enables the tailgate to be un-

locked in the event of a central locking

fault.
-

Fold back the rear seats to gain
access to the lock from inside the

boot,

- Insert a small screwdriver into hole

A of the lock to unlock the tailgate.

FILLING WITH FUEL

Low fuel level

When the minimum fuel level

is reached, this warning light

comes on, accompanied by an

audible signal and a message

on the multifunction display.

You can can still drive approximate-

ly 30 miles (50 km) without i lling up

with fuel.

Filling with fuel
Locking and unlocking of the fuel i ller

l ap, the doors and the boot is simul-

taneous.

The engine and the ignition must

be switched off when i lling with

fuel:


Open the fuel i ller l ap by pressing

the front,



Unscrew the cap and hook it over

the tab located on the inside of the

l ap.

When i lling up your tank, do not con-

tinue after the 3rd cut-off of the pump;

this could cause your vehicle to mal-

function.
  The capacity of the tank is approxi-
mately 80 litres.
   

After i lling the tank, screw the cap

on fully and close the fuel i ller

l ap.

Fuel i ller cap open

When this light comes on,

accompanied by an audible

signal and/or a message

on the multifunction display,

screw the cap on again and

close the fuel i ller l ap.

Tailgate release

This enables the tailgate to be un-

locked in the event of a central locking

fault.
-

Fold back the rear seats to gain
access to the lock from inside the

boot,

- Insert a small screwdriver into hole

A of the lock to unlock the tailgate.

FILLING WITH FUEL

Low fuel level

When the minimum fuel level

is reached, this warning light

comes on, accompanied by an

audible signal and a message

on the multifunction display.

You can can still drive approximate-

ly 30 miles (50 km) without i lling up

with fuel.

Filling with fuel
Locking and unlocking of the fuel i ller

l ap, the doors and the boot is simul-

taneous.

The engine and the ignition must

be switched off when i lling with

fuel:


Open the fuel i ller l ap by pressing

the front,



Unscrew the cap and hook it over

the tab located on the inside of the

l ap.

When i lling up your tank, do not con-

tinue after the 3rd cut-off of the pump;

this could cause your vehicle to mal-

function.
  The capacity of the tank is approxi-
mately 80 litres.
   

After i lling the tank, screw the cap

on fully and close the fuel i ller

l ap.

Fuel i ller cap open

When this light comes on,

accompanied by an audible

signal and/or a message

on the multifunction display,

screw the cap on again and

close the fuel i ller l ap.

The operation of the sunroof is

deactivated 45 seconds after

the ignition is switched off.

The operation of the sunroof

will be deactivated temporarily if the

energy economy mode is activated.

Always remove the key from the igni-

tion when leaving the vehicle, even for

a short time.
In the event of contact when operat-

ing the sunroof, you must reverse the

movement of the sunroof. To do this,

press the switch concerned.

When the driver operates the sunroof

switch, he must ensure that no one is

preventing correct closing of the sun-

roof.
The driver must ensure that passen-

gers use the electric sunroof correctly.
Be aware of children when operating

the sunroof.

SUNROOF *

You have two options:

Manual operation:


lightly press the switch; the roof

stops as soon as the switch is re-

leased.

Safety auto-reverse
(on sliding only)
When the sunroof is closing and

meets an obstacle, it stops then par-

tially opens again.

In the event of unwanted opening of

the sunroof on closing:

- press part B of the switch until the

sunroof is fully open,

- as soon as the sunroof stops,

press part A of the switch until the

sunroof is fully closed.

  The  safety  auto-reverse  function  is
not operational during this operation.
  Note:  the sunroof shutter is manual.

Automatic operation:


press the switch down fully; the

roof opens or closes completely

depending on where the switch is

pressed.

to partially open the roof: press

part A of the switch. To close it,

press part B of the switch.

to open the roof completely:

press part B of the switch.

to close it completely: press part

of the switch.

* According to country.

Peugeot 607 (2007.5). Manual - part 5
