Peugeot 307 Break Dag (2007 year). Manual

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control system

a few moments after the ignition

has been switched off and therefore

prevents starting of the vehicle by

anyone who does not have the key.

The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code is

recognised and starting is possible.

If the system does not function

correctly, the service warning light

comes on, accompanied by an audi-

ble signal and a message on the mul-

tifunction display.

In this case, your vehicle will not start.

Contact a PEUGEOT dealer as soon

as possible.

A heavy object attached to the key

(key ring, ...), weighing down on the

shaft of the key in the switch, may

cause a malfunction.

Battery ref.: CR1620/3 volts.

The information "battery ﬂat" is given

by displaying of the service warning

light, accompanied by an audible sig-

nal and a message on the multifunc-

tion display.

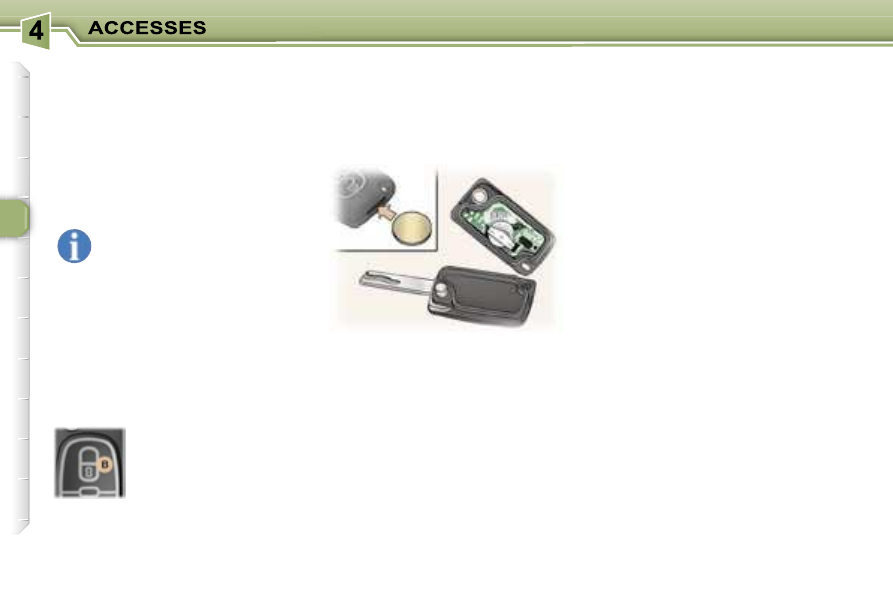

To replace the battery, unclip the

casing using a coin at the notch.

If the remote control does not work

after the battery has been changed,

re-programme the remote control.

Key in ignition

A buzzer sounds on opening the driv-

er’s door, if the key has been left in

the ignition.

remote control battery or in the event

of a remote control malfunction, the

remote control must be reinitialised.


Switch off the ignition.



Switch the ignition on again.



Press the remote control locking but-

ton immediately for a few seconds.



Switch off the ignition and remove

the remote control key from the ig-

nition lock.

The remote control is now working

again.

Locating your vehicle

Using the key


Turn the key in the lock on the

driver's door to lock the vehicle.



Turn the key again within ﬁve

seconds to deadlock the vehicle.

Each action is conﬁrmed by ﬁxed

lighting of the direction indicators for

approximately two seconds.

When the vehicle is locked,

if unlocking is activated inad-

vertently without a door being

opened within 30 seconds,

the vehicle will lock automatically.

The folding and unfolding of the ex-

terior mirrors can be deactivated by

a PEUGEOT dealer.

To locate your vehicle, if

you have locked it, in a

car park:



press button

B, the courtesy lights

come on and the direction indica-

tors ﬂash for a few seconds.

Changing the remote control

battery

Reprogramming the remote

control

Following disconnection of the

vehicle’s battery, replacement of the

Make a careful note of the

number on each key. The

key number is coded on the

label attached to the key.

If the keys are lost, your PEUGEOT

dealer can rapidly supply you with

new keys.

The high frequency remote con-

trol is a sensitive system; do not

operate it while it is in your pocket

as there is a possibility that it may

unlock your vehicle, without you

being aware of it.

The remote control does not oper-

ate when the key is in the ignition,

even when the ignition is switched

off, except for reprogramming.

Do not operate the deadlocking

function if there is anyone inside

the vehicle.

Driving with the doors locked may

make access to the passenger

compartment by the emergency

services more difﬁcult in an emer-

gency.

As a safety precaution (with chil-

dren on board), remove the ignition

key when you leave the vehicle,

even for a short time.

Do not repeatedly press the but-

ton of your remote control out of

range and out of sight of your ve-

hicle. You run the risk of stopping

it from working and the remote

control would have to be repro-

grammed.

When purchasing a second-hand

vehicle;

- ensure that you are given the

conﬁdential card;

- have the key codes memorised

by a PEUGEOT dealer, to ensure

that the keys in your possession

are the only ones which can start

the vehicle.

Do not make any modiﬁcations to

the electronic engine immobiliser

system.

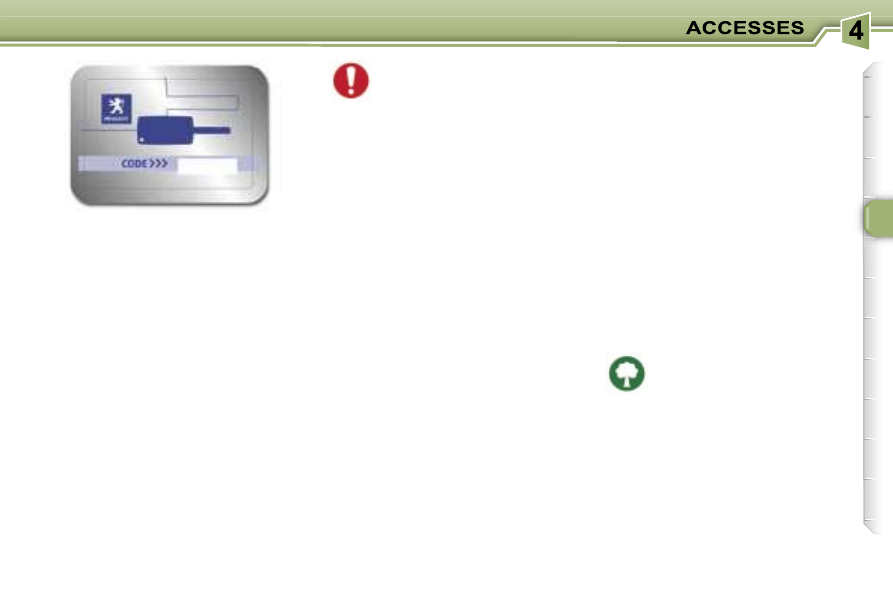

CONFIDENTIAL CARD

This is given to you on delivery of

your vehicle with the duplicate keys.

It contains the identiﬁcation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-

tronic immobiliser system. This code

is hidden by a ﬁlm, which should be

removed only if necessary.

Keep your card in a safe place,

never inside the vehicle.

When undertaking a long trip or jour-

ney, however, it is advisable to take

it with you along with your personal

papers.

Do not throw the remote con-

trol batteries away, they con-

tain metals which are harmful

to the environment.

Take them to an approved collection

point.

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control system

a few moments after the ignition

has been switched off and therefore

prevents starting of the vehicle by

anyone who does not have the key.

The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code is

recognised and starting is possible.

If the system does not function

correctly, the service warning light

comes on, accompanied by an audi-

ble signal and a message on the mul-

tifunction display.

In this case, your vehicle will not start.

Contact a PEUGEOT dealer as soon

as possible.

A heavy object attached to the key

(key ring, ...), weighing down on the

shaft of the key in the switch, may

cause a malfunction.

Battery ref.: CR1620/3 volts.

The information "battery ﬂat" is given

by displaying of the service warning

light, accompanied by an audible sig-

nal and a message on the multifunc-

tion display.

To replace the battery, unclip the

casing using a coin at the notch.

If the remote control does not work

after the battery has been changed,

re-programme the remote control.

Key in ignition

A buzzer sounds on opening the driv-

er’s door, if the key has been left in

the ignition.

remote control battery or in the event

of a remote control malfunction, the

remote control must be reinitialised.


Switch off the ignition.



Switch the ignition on again.



Press the remote control locking but-

ton immediately for a few seconds.



Switch off the ignition and remove

the remote control key from the ig-

nition lock.

The remote control is now working

again.

Locating your vehicle

Using the key


Turn the key in the lock on the

driver's door to lock the vehicle.



Turn the key again within ﬁve

seconds to deadlock the vehicle.

Each action is conﬁrmed by ﬁxed

lighting of the direction indicators for

approximately two seconds.

When the vehicle is locked,

if unlocking is activated inad-

vertently without a door being

opened within 30 seconds,

the vehicle will lock automatically.

The folding and unfolding of the ex-

terior mirrors can be deactivated by

a PEUGEOT dealer.

To locate your vehicle, if

you have locked it, in a

car park:



press button

B, the courtesy lights

come on and the direction indica-

tors ﬂash for a few seconds.

Changing the remote control

battery

Reprogramming the remote

control

Following disconnection of the

vehicle’s battery, replacement of the

Make a careful note of the

number on each key. The

key number is coded on the

label attached to the key.

If the keys are lost, your PEUGEOT

dealer can rapidly supply you with

new keys.

The high frequency remote con-

trol is a sensitive system; do not

operate it while it is in your pocket

as there is a possibility that it may

unlock your vehicle, without you

being aware of it.

The remote control does not oper-

ate when the key is in the ignition,

even when the ignition is switched

off, except for reprogramming.

Do not operate the deadlocking

function if there is anyone inside

the vehicle.

Driving with the doors locked may

make access to the passenger

compartment by the emergency

services more difﬁcult in an emer-

gency.

As a safety precaution (with chil-

dren on board), remove the ignition

key when you leave the vehicle,

even for a short time.

Do not repeatedly press the but-

ton of your remote control out of

range and out of sight of your ve-

hicle. You run the risk of stopping

it from working and the remote

control would have to be repro-

grammed.

When purchasing a second-hand

vehicle;

- ensure that you are given the

conﬁdential card;

- have the key codes memorised

by a PEUGEOT dealer, to ensure

that the keys in your possession

are the only ones which can start

the vehicle.

Do not make any modiﬁcations to

the electronic engine immobiliser

system.

CONFIDENTIAL CARD

This is given to you on delivery of

your vehicle with the duplicate keys.

It contains the identiﬁcation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-

tronic immobiliser system. This code

is hidden by a ﬁlm, which should be

removed only if necessary.

Keep your card in a safe place,

never inside the vehicle.

When undertaking a long trip or jour-

ney, however, it is advisable to take

it with you along with your personal

papers.

Do not throw the remote con-

trol batteries away, they con-

tain metals which are harmful

to the environment.

Take them to an approved collection

point.

Make a careful note of the

number on each key. The

key number is coded on the

label attached to the key.

If the keys are lost, your PEUGEOT

dealer can rapidly supply you with

new keys.

The high frequency remote con-

trol is a sensitive system; do not

operate it while it is in your pocket

as there is a possibility that it may

unlock your vehicle, without you

being aware of it.

The remote control does not oper-

ate when the key is in the ignition,

even when the ignition is switched

off, except for reprogramming.

Do not operate the deadlocking

function if there is anyone inside

the vehicle.

Driving with the doors locked may

make access to the passenger

compartment by the emergency

services more difﬁcult in an emer-

gency.

As a safety precaution (with chil-

dren on board), remove the ignition

key when you leave the vehicle,

even for a short time.

Do not repeatedly press the but-

ton of your remote control out of

range and out of sight of your ve-

hicle. You run the risk of stopping

it from working and the remote

control would have to be repro-

grammed.

When purchasing a second-hand

vehicle;

- ensure that you are given the

conﬁdential card;

- have the key codes memorised

by a PEUGEOT dealer, to ensure

that the keys in your possession

are the only ones which can start

the vehicle.

Do not make any modiﬁcations to

the electronic engine immobiliser

system.

CONFIDENTIAL CARD

This is given to you on delivery of

your vehicle with the duplicate keys.

It contains the identiﬁcation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-

tronic immobiliser system. This code

is hidden by a ﬁlm, which should be

removed only if necessary.

Keep your card in a safe place,

never inside the vehicle.

When undertaking a long trip or jour-

ney, however, it is advisable to take

it with you along with your personal

papers.

Do not throw the remote con-

trol batteries away, they con-

tain metals which are harmful

to the environment.

Take them to an approved collection

point.

THE ALARM

This provides two types of protection:

exterior protection: it sounds if

a door, the boot or the bonnet is

opened.

interior protection: it sounds if the

volume inside the passenger compart-

ment changes (breaking of a window

or a movement inside the vehicle).



In the next ten seconds, press

button

A until the indicator light is

on continuously,



Get out of the vehicle,



Set the alarm by locking or dead-

locking using the remote control

(button

A indicator light ﬂashes

once a second).

In order for the alarm to be set in

this mode, these operations must be

carried out each time the ignition is

switched off.

Setting the alarm



Switch off the ignition and get out

of the vehicle.



Set the alarm, by locking or dead-

locking using the remote control

(button

A indicator light ﬂashes

once per second).

Note: if you wish to lock your vehi-

cle without setting the alarm, use the

door lock.

When the alarm is triggered, the si-

ren sounds and the direction indica-

tor lights ﬂash for thirty seconds.

After triggering, the alarm remains

set.

Disarming

Unlock the vehicle with the remote

control key (button

A indicator light

goes out).

Note: if the alarm has been triggered

while you were away from your vehicle,

the rapid ﬂashing of the indicator light will

stop when you switch on the ignition.

Failure of the remote control



Unlock the doors with the key and

open the door. The alarm is trig-

gered.



Switch on the ignition. The alarm

is disarmed.

Incorrect operation

When the ignition is switched on, if

button

A lights for ten seconds, there

is a fault in the siren connection.

Contact a PEUGEOT dealer to have

the system checked.

* According to country.

If the alarm has been trig-

gered ten times in succes-

sion, on the eleventh time it

becomes inactive.

If button

A indicator light ﬂashes ra-

pidly, the alarm has been triggered

while you were away from your ve-

hicle.

45 seconds following pressing of the

locking button on the remote control,

the alarm is set, regardless of the

status of the doors or boot.

When washing your vehicle, to pre-

vent triggering of the alarm:

- lock the doors using the key,

- set the exterior alarm only.

To set the alarm with exterior

protection only

If, while you are away from the vehi-

cle, you wish to leave a window par-

tially open or a pet inside the vehicle,

you should choose exterior protec-

tion only.


Switch off the ignition,

Automatic activation*

The alarm is activated automatically

two minutes after the last closure of a

door or the boot.

In order to avoid accidental triggering

of the alarm when a door or the boot

is opened, it is essential to ﬁrst press

the unlocking button on the remote

control.

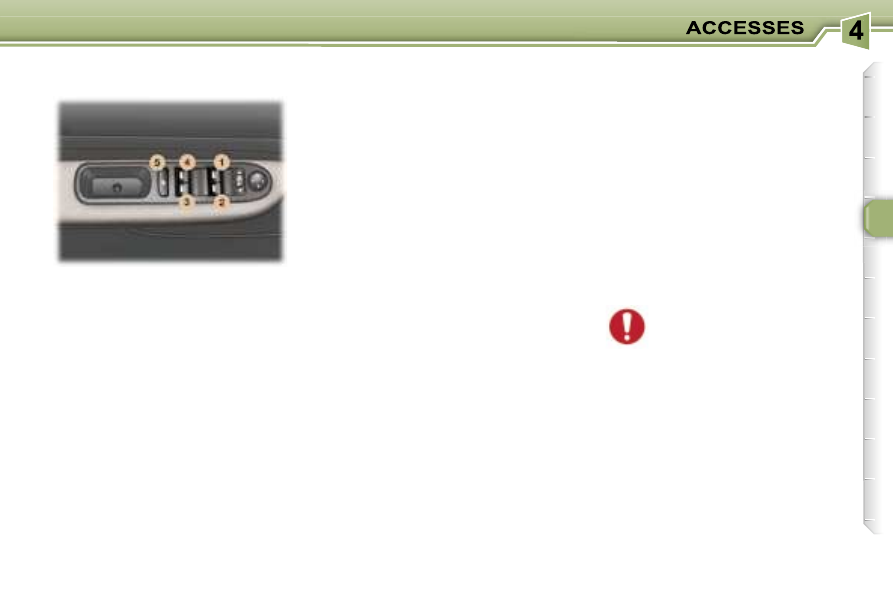

1. Driver’s electric window

switch.

2. Passenger’s electric window

switch.

3. Rear right electric window

switch.

4. Rear left electric window

switch.

5. Disarming of the rear electric

window switches (child lock).

You have two options:

Automatic operation:

Press or pull the switch fully: the

window opens or closes completely

when the switch is released. Press-

ing the switch again stops the move-

ment of the window.

Note: approximately 45 seconds fol-

lowing removal of the ignition key,

none of the windows can be opened

or closed. The ignition must be

switched on again to open or close

the windows.

Always remove the key from

the ignition when leaving

the vehicle, even for a short

time.

In the event of contact during opera-

tion of the windows, you must reverse

the movement of the window. To do

this, press the switch concerned.

When the driver operates the pas-

senger electric window switches, he

must ensure that no one is prevent-

ing correct closing of the windows.

The driver must ensure that the pas-

sengers use the electric windows

correctly.

Be aware of children when operating

the windows.

Reinitialisation of the

windows

Following reconnection of the battery

or in the event of a malfunction:

- release the switch and pull it again

until it closes completely,

- hold the switch for approximately

one second after closing,

- press the switch to lower the

window automatically,

- when the window has reached the

low position, press the switch again

for approximately one second.

The safety auto-reverse function is

not active during these operations.

Manual operation:

Press or pull the switch gently. The

window stops as soon as the switch

is released.

ELECTRIC WINDOWS

Safety auto-reverse

When the window rises and meets

an obstacle, it stops and partially

lowers again.

Disarming the rear window

controls

For the safety of your children, press

switch

5 to prevent operation of the

rear windows irrespective of their

position.

When the button is pressed down,

disarming is active. When the button

is raised, disarming is deactivated.

Note:

In the event of unwanted opening

of the window on closing (for exam-

ple in the presence of frost), press

the switch until it opens completely,

then pull it immediately until it clos-

es. Continue to hold the switch for

approximately one second after the

window has closed.

The safety auto-reverse function is

not active during these operations.

Opening the doors from inside

The door opening control permits

complete unlocking of the vehicle.

Note: the door opening switches

do not function when the vehicle is

deadlocked.

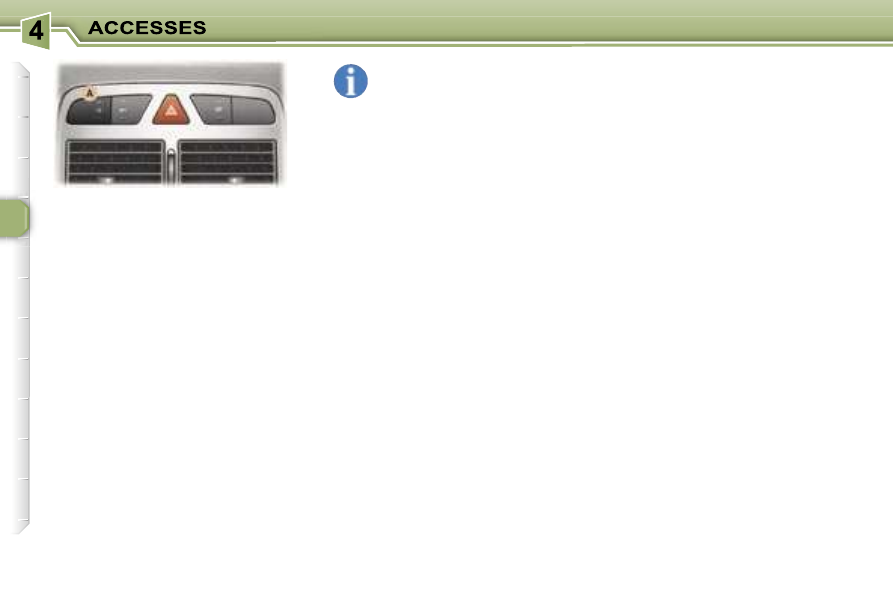

Pressing button

A permits locking or

unlocking of the vehicle.

The red warning light on the button

comes on when the vehicle is locked

and switches off when it is unlocked.

Note: if the vehicle is locked or dead-

locked from outside, the red warning

light ﬂashes and button

A does not

function. In this case, use the key or

the remote control for unlocking.

THE DOORS

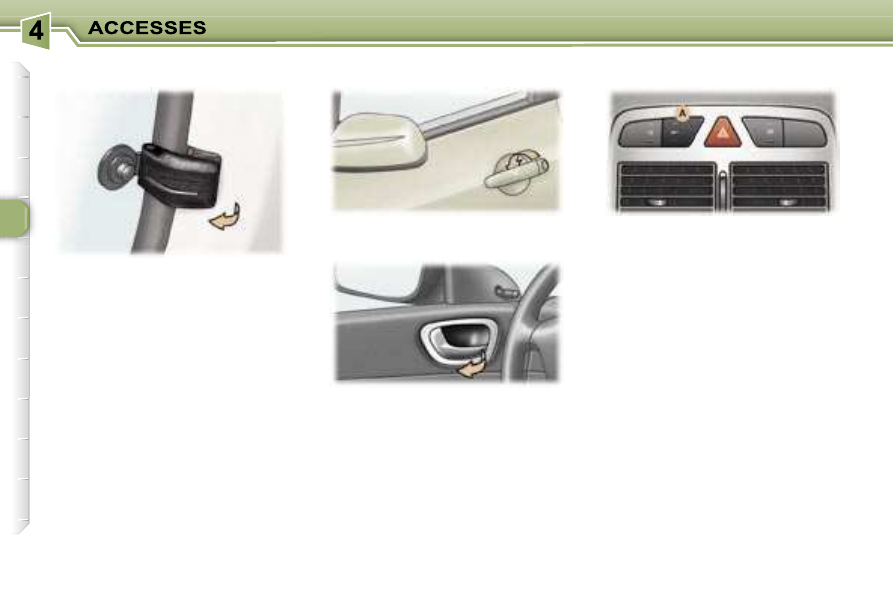

Opening the doors from outside

To partially open the rear windows,

tilt the lever and push it fully to lock

the windows in the open position.

REAR WINDOWS

Locking/Unlocking from

the inside

Opening the doors from inside

The door opening control permits

complete unlocking of the vehicle.

Note: the door opening switches

do not function when the vehicle is

deadlocked.

Pressing button

A permits locking or

unlocking of the vehicle.

The red warning light on the button

comes on when the vehicle is locked

and switches off when it is unlocked.

Note: if the vehicle is locked or dead-

locked from outside, the red warning

light ﬂashes and button

A does not

function. In this case, use the key or

the remote control for unlocking.

THE DOORS

Opening the doors from outside

To partially open the rear windows,

tilt the lever and push it fully to lock

the windows in the open position.

REAR WINDOWS

Locking/Unlocking from

the inside

To switch on

Press and hold button

Activation of the function is accom-

panied by a message on the multi-

function display.

Automatic central locking

of the doors

The doors can lock automatically

when you are driving (at a speed of

more than 6 mph (10 km/h)).

Above 6 mph (10 km/h), press button

brieﬂy to unlock the doors temporarily.

You can activate or deactivate this

function.

To switch off

Press and hold button

Deactivation of the function is ac-

companied by a message on the

multifunction display.

"Door open" alert

If a door has not been closed properly:

when the engine is running, you

are warned by a diagram and a

message on the multifunction dis-

play for a few seconds,

when the vehicle is moving

(speed above 6 mph (10 km/h)),

the service warning light comes on.

This is accompanied by an audible

signal, a message and a diagram

on the multifunction display for a

few seconds.

This prevents either of the rear doors

being opened from inside.


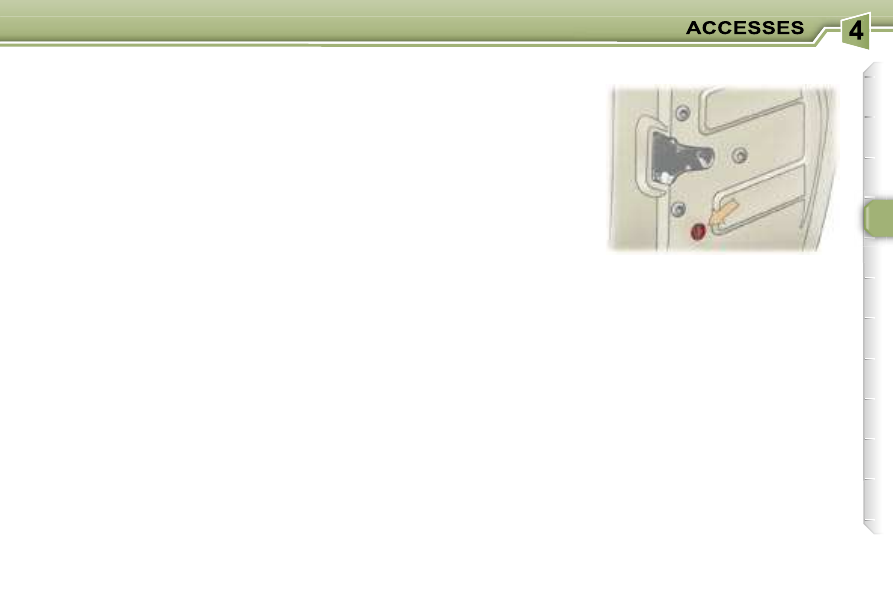

Turn the switch on each rear door

a quarter of a turn using the igni-

tion key.

Child safety

Notes:

If one of the doors is open, locking

from the inside and automatic central

locking are not possible.

If the boot is open, automatic central

locking of the doors is active.

To switch on

Press and hold button

Activation of the function is accom-

panied by a message on the multi-

function display.

Automatic central locking

of the doors

The doors can lock automatically

when you are driving (at a speed of

more than 6 mph (10 km/h)).

Above 6 mph (10 km/h), press button

brieﬂy to unlock the doors temporarily.

You can activate or deactivate this

function.

To switch off

Press and hold button

Deactivation of the function is ac-

companied by a message on the

multifunction display.

"Door open" alert

If a door has not been closed properly:

when the engine is running, you

are warned by a diagram and a

message on the multifunction dis-

play for a few seconds,

when the vehicle is moving

(speed above 6 mph (10 km/h)),

the service warning light comes on.

This is accompanied by an audible

signal, a message and a diagram

on the multifunction display for a

few seconds.

This prevents either of the rear doors

being opened from inside.


Turn the switch on each rear door

a quarter of a turn using the igni-

tion key.

Child safety

Notes:

If one of the doors is open, locking

from the inside and automatic central

locking are not possible.

If the boot is open, automatic central

locking of the doors is active.

Simultaneous locking or

unlocking of the tailgate

and the doors

The tailgate is locked or unlocked

by the remote control or the driver’s

door lock.

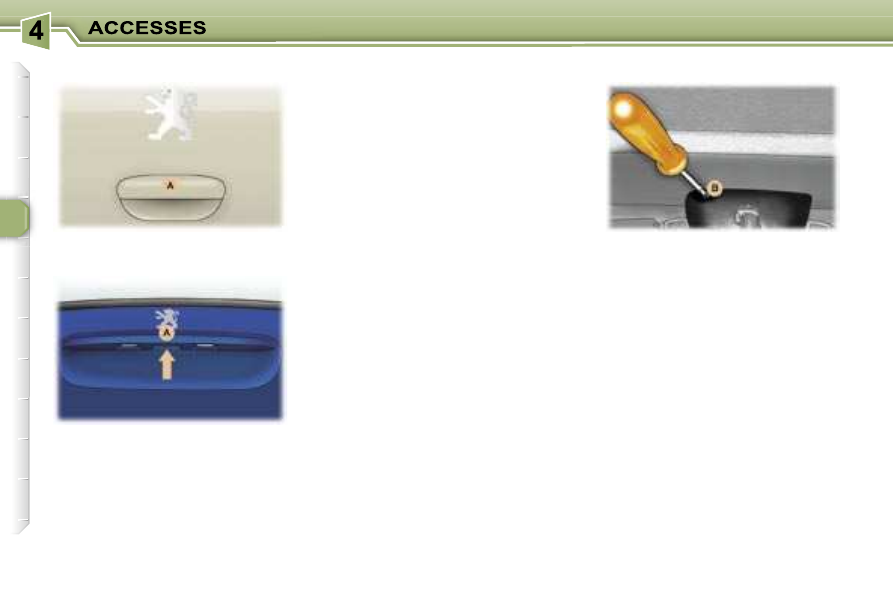

To open, pull handle

A and lift the

tailgate.

Note: the tailgate locks automatically

when the vehicle is being driven at

6 mph (10 km/h). It unlocks when

one of the doors is opened or when

the central locking button is pressed

(speed below 6 mph (10 km/h)).

TAILGATE

Saloon

This enables the tailgate to be un-

locked in the event of a central locking

fault.


Fold back the rear seats to gain

access to the lock from inside the

boot.



Insert a small screwdriver into

hole

B of the lock to unlock the

tailgate.

Estate

"Tailgate open" warning

If the tailgate is not properly closed:

with the engine running, you are

warned by a diagram and a mes-

sage on the multifunction display

for a few seconds,

when the vehicle is moving

(speed above 6 mph (10 km/h)),

the service warning light comes

on. It is accompanied by an audible

signal, a diagram and a message

on the multi-function display for a

few seconds.

Tailgate release

Notes:

After reconnecting the battery, in the

event of a malfunction, you must

reinitialise the safety auto-reverse:

- place the control in the maximum

partial opening position (3rd notch

to the right),

- wait until the roof is in the maximum

partially open position,

- press the control for at least one

second.

In the event of unwanted opening of

the roof on closing (for example, in

the presence of ice), and immediate-

ly after the roof stops:

- move the control to the

"O" position

and press the control immediately,

- continue to press the control until

the roof is fully closed.

The safety auto-reverse function is

not active during these operations.

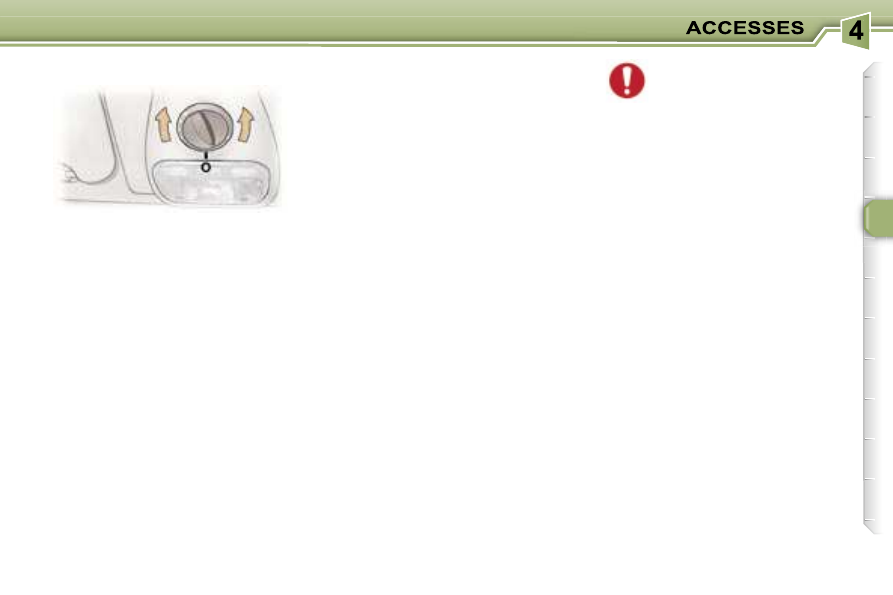

To partially open the roof: Turn

the switch to the right (three pos-

sible settings).

To open the roof completely:

Turn the switch to the left (six pos-

sible settings).

To close it completely: Turn the

switch back to position

"O".

Safety auto-reverse: When the

sunroof is closing and meets an ob-

stacle, it stops then partially opens

again.

The sunroof shutter is manual.

Always remove the key from

the ignition when leaving

the vehicle, even for a short

time.

In the event of contact during opera-

tion of the roof, you must reverse

the movement of the roof. To do this,

press the switch concerned.

When the driver operates the roof

switch, he must ensure that no one

is preventing correct closing of the

roof.

The driver must ensure that the pas-

sengers use the sunroof correctly.
Be aware of children when operating

the roof.

SUNROOF

The engine must be switched off

when ﬁlling with fuel.


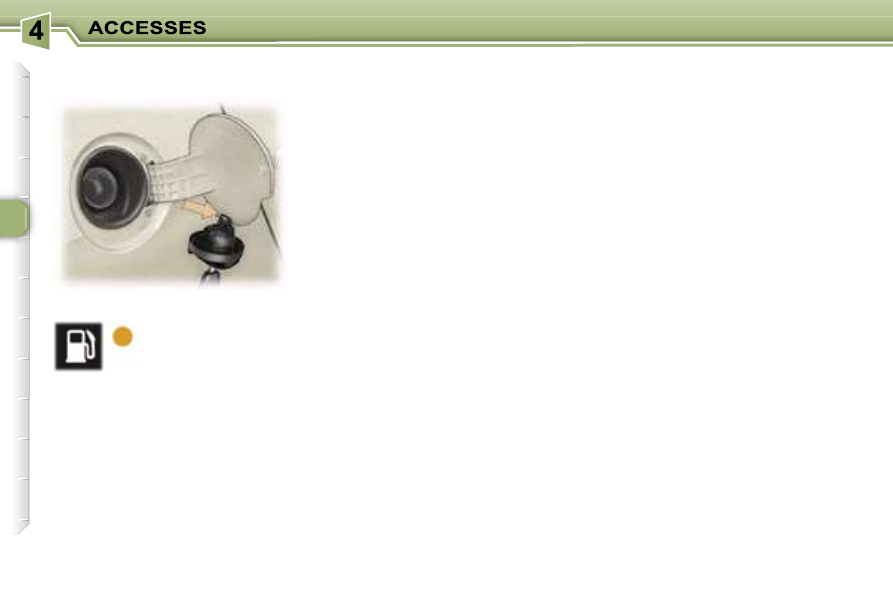

Open the fuel ﬁller ﬂap.



Insert the key then turn it to the

left.



Remove the cap and hang it on

the hook located on the inside of

the ﬂap.

A label afﬁxed to the inside of the fuel

ﬁller ﬂap indicates which type of fuel

to use.

When you ﬁll your tank, do not con-

tinue after the third cut-off of the

pump. This could cause your vehicle

to malfunction.

The capacity of the tank is

approximately 60 litres.


After ﬁlling the tank, lock the cap

and close the fuel ﬁller ﬂap.

Low fuel level

When the minimum

fuel level in the tank is

reached, this warning

light comes on on the

instrument panel.

You can still drive approximately

30 miles (50 km).

Operating fault

With the ignition on, if the fuel gauge

needle remains in or returns to the

rest positon (below zero), this in-

dicates a malfunction of the fuel

gauge.

Contact a PEUGEOT dealer.

FILLING WITH FUEL

Front and rear lights (ring A)



Place ring

A in the required posi-

tion.

Dipped/Main beam change


Pull the stalk towards you.

Vehicles ﬁtted with front fog

lamps and a rear fog lamp (ring C)

Lights off

Side lights

Dipped/main beam

headlamps

Rear fog lamp

Front fog lamps (ﬁrst rota-

tion of the ring forwards)

Front and rear fog

lamps (2nd rotation

of the ring forwards).

Note: to switch off

the rear fog lamp

and the front fog lamps, turn the ring

backwards twice in succession.

Vehicles ﬁtted with a rear fog

lamp (ring B)

This operates with the dipped/main

beam headlamps.

Note: when the lights are switched off

automatically, the rear fog lamp and

the dipped headlamps will remain on.

Turn the ring backwards to switch off

the rear fog lamp. The dipped head-

lamps will then be switched off.

The front fog lamps operate with

the side lights and the dipped head-

lamps.

Front fog lamps and rear fog

lamp



Turn ring

B or C forwards to switch

on and backwards to switch off.

The status is conﬁrmed by the

indicator light on the instrument

panel.

Lights on buzzer

With the ignition off and the automat-

ic switching on of the lights deactivat-

ed, when the driver’s door is opened,

a buzzer sounds to warn you that you

have left your lights on.

The rear fog lamp will be de-

activated automatically when

towing or when a bicycle car-

rier ﬁtted with a fog lamp is

ﬁtted.

LIGHTS STALK

In good or rainy weather,

both day and night, the front

fog lamps and the rear fog

lamp are dazzling and are

prohibited.

Do not forget to switch them off when

they are no longer needed.

Automatic switching

on of the lights

Automatic switching on of the

lights

Side lights and dipped beam head-

lamps switch on automatically if the

light is poor, or during operation of

the windscreen wipers. They switch

off as soon as the light becomes

bright enough or the windscreen wip-

ers stop.

Note: in foggy weather or in snow,

the brightness sensor can detect suf-

ﬁcient light. As a consequence, the

lights will not come on automatically.

Deactivation


Turn ring

A to a position other

than

"AUTO". Switching off is ac-

companied by a message on the

multifunction display.

If the brightness sensor does not

function correctly, the lights come

on accompanied by the service warn-

ing light, an audible signal and a mes-

sage on the multifunction display.

Contact a PEUGEOT dealer.

Manual "Follow-me-home"

lighting

When the automatic switching on of

the lights function is deactivated, the

side lights and dipped headlamps re-

main on for the duration selected for the

automatic "follow-me-home" lighting.

If the vehicle is not ﬁtted with the

automatic switching on of the lights

function, when you leave your vehicle,

the side lights and dipped headlamps

remain on for thirty seconds.

Direction indicators (ﬂashers)

Left: downwards.

Right: upwards.

Note: if you forget to cancel the di-

rection indicator, the volume of the

audible signal will increase, if you

are driving at a speed greater than

50 mph (80 km/h).

Automatic "Follow me home"

lighting

With the ignition off, when you leave

your vehicle with the

automatic

switching on of the lights function

activated, the side lights and dipped

headlamps remain on for the select-

ed duration.

Activation:


switch off the engine,



"ﬂash" the headlamps,



get out of the vehicle and lock it.

Deactivation:


"ﬂash" the headlamps again,



get out of the vehicle and lock it.

To deactivate or activate

this function, go to the mul-

tifunction display conﬁgura-

tion menu.

The duration of the timed

period must also be set (15, 30,

60 seconds), via the multifunction

display conﬁguration menu, except

in the case of the

monochrome

screen A for which it is pre-set.

Cancelling:


"ﬂash" the headlamps,



get out of the vehicle and lock it.

Activation


Turn ring

A to the "AUTO" posi-

tion. The automatic lighting is ac-

companied by a message on the

multifunction display.

Do not cover the brightness

sensor, coupled with the rain

sensor, located in the centre

of the windscreen, behind

the interior mirror. It is used for the

automatic switching on of the lights.

Peugeot 307 Break Dag (2007 year). Manual - part 5
