Peugeot 307 Break Dag (2007 year). Manual - part 2

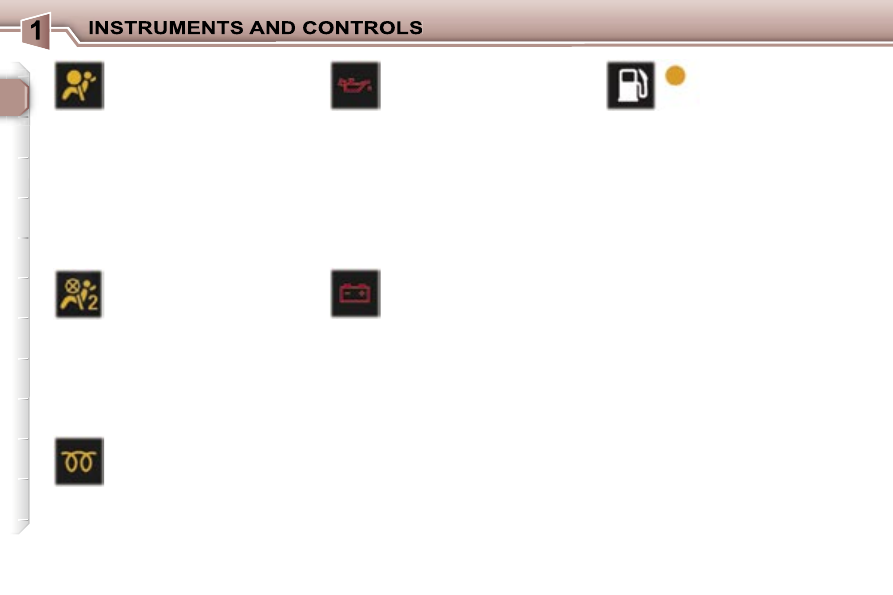

Engine oil pressure

warning light*

Linked to the central

STOP

warning light.

If it comes on with the engine run-

ning, it is accompanied by an audible

signal and a message on the multi-

function display.

Stop immediately.

If there is a lack of oil in the lubrica-

tion circuit, top up the level.

Contact a PEUGEOT dealer without

delay.

Battery charge warning

light*

This comes on for a few

seconds each time the igni-

tion is switched on.

If it comes on with the engine run-

ning, it is accompanied by an audible

signal and a message on the multi-

function display.

According to country, this warning

light may be replaced by the service

warning light.

It can indicate:

- faulty operation of the charging

circuit,

- loose battery or starter terminals,

- a cut or slack alternator belt,

- an alternator fault.

Contact a PEUGEOT dealer.

Low fuel level

warning light

This comes on for a

few seconds each

time the ignition is

switched on.

When this light comes on with the en-

gine running, it is accompanied by an

audible signal and a message on the

multifunction display.

When the warning light comes on,

you have enough fuel left to drive

approximately

30 miles (50 km).

The tank capacity is approximately

60 litres.

Passenger air bag

disarmed indicator light*

This comes on for a few

seconds each time the

ignition is switched on.

If the passager air bag is disarmed,

the indicator light remains on.

In all cases, if the indicator light ﬂash-

es, contact a PEUGEOT dealer.

Diesel pre-heat light

This comes on for a few

seconds each time the igni-

tion is switched on.

Wait until it goes out before trying the

starter.

Engine oil pressure warning*

Linked to the central

STOP warning

light.

When the engine is running, the en-

gine oil pressure warning message is

accompanied by an audible signal.

Stop immediately.

If there is a lack of oil in the lubrica-

tion circuit, top up the level.

Contact a PEUGEOT dealer as soon

as possible.

* According to country.

Air bag warning light

This comes on for a few

seconds each time the igni-

tion is switched on.

Illumination of this warning light, with

the engine running, is accompanied

by an audible signal and a message

on the multifunction display indicat-

ing:

- a fault in the front air bags,

- a fault in the side air bags or curtain

air bags.

Contact a PEUGEOT dealer.

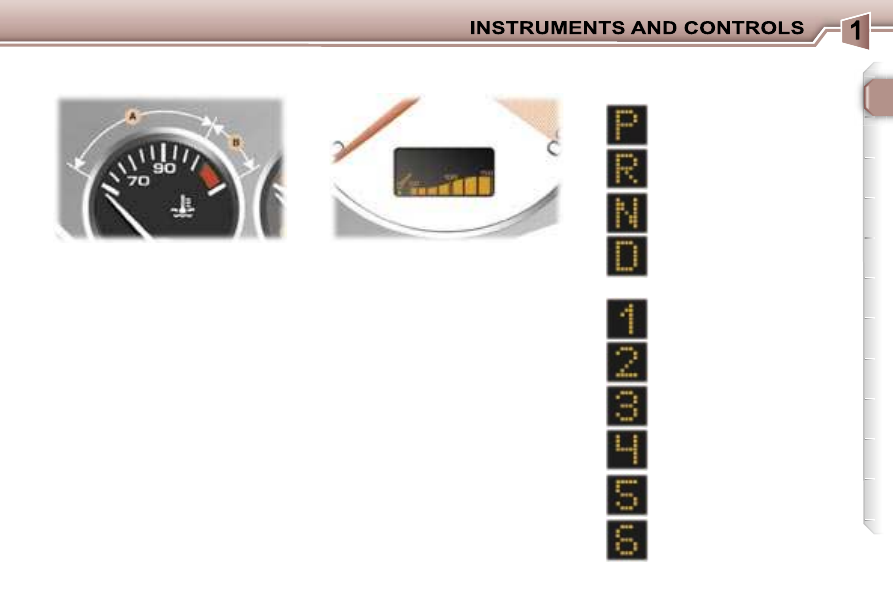

Coolant temperature indicator

Engine oil temperature gauge

When the needle is in zone

A, the

temperature is correct.

When the needle is in zone

B, the

temperature is too high. The central

STOP warning light ﬂashes, accom-

panied by an audible signal and a

message on the multifunction dis-

play.

You must stop immediately.

Warning: wait for the engine to cool

before topping up the level.

The cooling system is pressurised.

In order to avoid any risk of scalding,

unscrew the cap two turns to allow

the pressure to drop.

When the pressure has dropped, re-

move the cap and top up the level.

Contact a PEUGEOT dealer.

When the engine is running, this indi-

cates the oil temperature.

The temperature is too high if the

maximum graduation is reached.

You must stop immediately.

Contact a PEUGEOT dealer.

Park

Automatic gearbox lever

positions indicator

Reverse

Neutral

Drive

Manual mode:

1st gear engaged

2nd gear engaged

3rd gear engaged

4th gear engaged

5th gear** engaged

6th gear** engaged

** According to model.

After switching on the ignition, three

functions are shown in succession:

- service indicator,

- engine oil level indicator,

- total distance recorder (total and

trip distances).

Note: the total and trip distances are

displayed for 30 seconds when the

ignition is switched off, on opening

the driver’s door, as well as on lock-

ing and unlocking the vehicle.

It also displays the information

relating to the cruise control or

speed limiter, when either of these is

activated (see corresponding section).

Service indicator

This indicates when the next service

is due in accordance with the manu-

facturer’s servicing schedule.

The point at which the next service

is due is calculated from the last indi-

cator zero reset (see corresponding

section). It is determined by two pa-

rameters:

- the distance travelled,

- the time which has elapsed since

the last service.

Note: the distance remaining before

the next service may be weighted

by the time factor, depending on the

user’s driving habits.

INSTRUMENT PANEL DISPLAY

In the event of under-revving or over-

revving, the gear selected ﬂashes for

a few seconds, then the actual gear

engaged is displayed.

This comes on when the

"SPORT" programme on

the automatic gearbox is

selected.

This comes on when the

"SNOW" programme on the

automatic gearbox is selected.

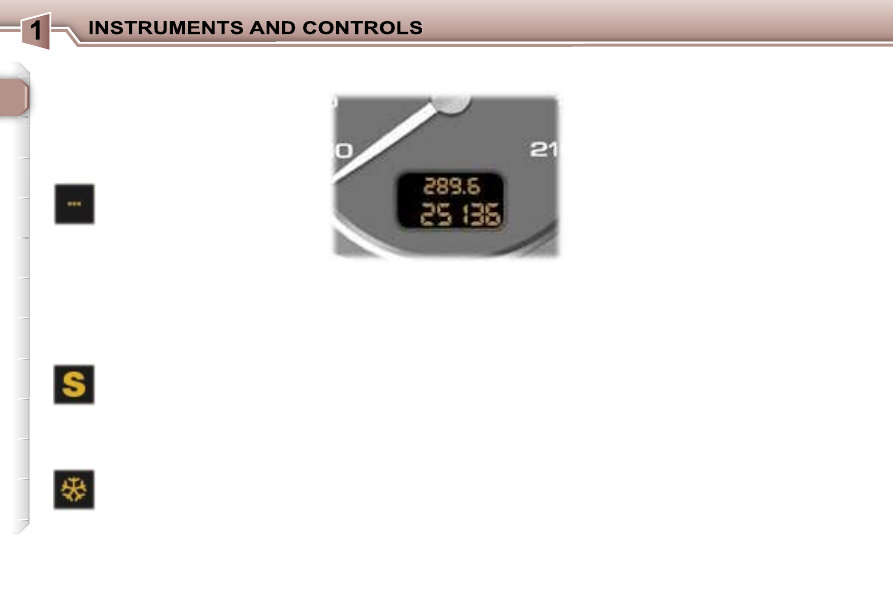

Automatic gearbox indicator

lights

"SNOW" indicator light

This is displayed if a gear is

not engaged correctly (selec-

tor between two positions).

"SPORT" indicator light

Invalid value during manual

operation

Operation

For 5 seconds after the ignition is

switched on, the spanner symbolis-

ing the servicing operations comes

on; the distance recorder display

indicates the number of miles

[kilometres] (rounded off) remaining

until the next service.

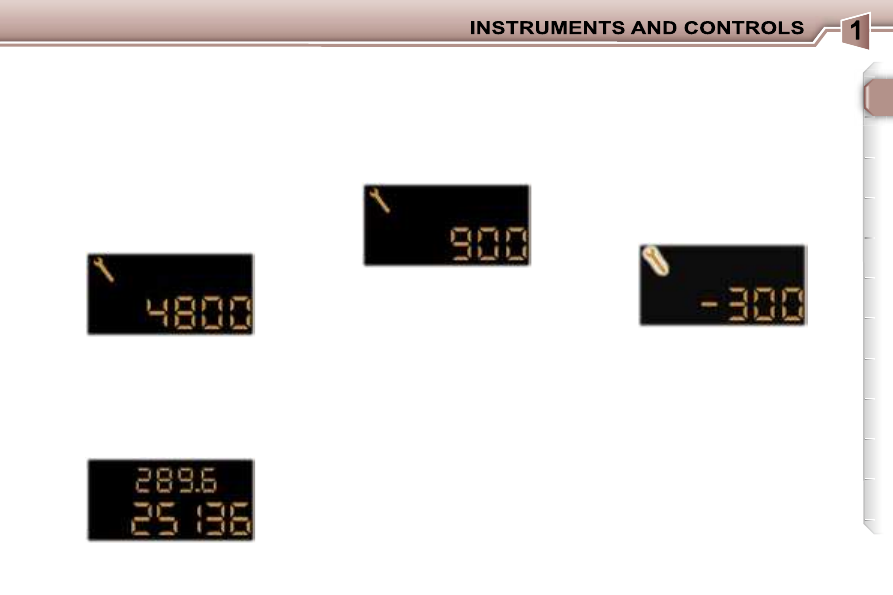

Example: 4,800 miles/km remain

before the next service. For ﬁve sec-

onds after the ignition is switched on,

the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the display indicates the total and trip

distance.

The service is overdue.

The spanner ﬂashes for 5 seconds

after the ignition is switched on.

Example: the service is overdue by

300 miles/km, your vehicle must be

serviced as soon as possible.

For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and the

spanner remains lit. The display indi-

cates the total and trip distance.

Note: the spanner may also come on

if more than two years have elapsed

since the last service.

The distance remaining to

the next service is less than

500 miles (1,000 km).

Example: 400 miles (900 km) remain

before the next service.

For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the spanner remains lit.

It indicates that a service must be

carried out soon. The display indi-

cates the total and trip distance.

Your PEUGEOT dealer carries out

this operation after each service.

However, if you carry out the service

yourself, the re-set procedure is as

follows:


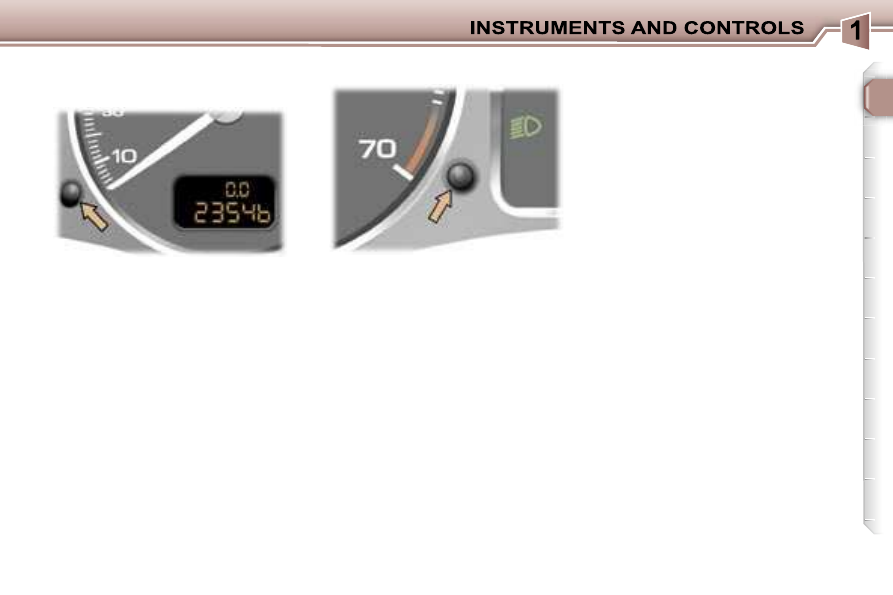

Switch off the ignition,



Press and hold the trip recorder

re-set button,



Switch on the ignition.

The display begins a countdown.

When the display shows

"=0", re-

lease the button; the spanner disap-

pears.

Important: after this operation, if you

wish to disconnect the battery, lock

the vehicle and wait for at least ﬁve

minutes, otherwise the zero re-set

will not be registered.

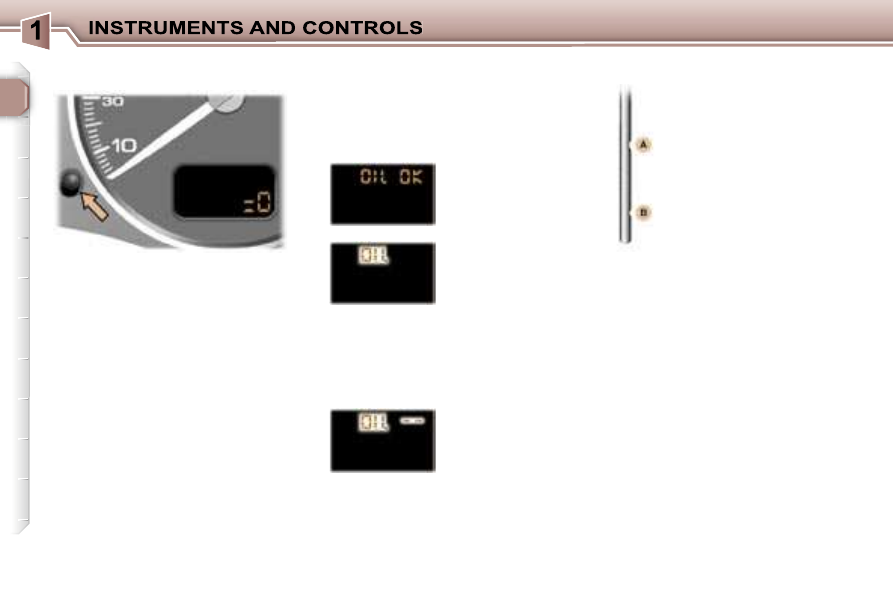

Engine oil level indicator

When the ignition is switched on, the

engine oil level is indicated for a few

seconds, after the service information.

Oil level correct

Oil level gauge fault

Flashing of

"OIL --"

indicates a malfunc-

tion of the engine oil

level gauge.

Contact a PEUGEOT dealer.

The level read will only be correct if

the vehicle is on level ground and

the engine has been off for more

than 15 minutes.

Flashing of

"OIL",

linked with the serv-

ice warning light,

accompanied by an

audible signal and

a message on the

multifunction display, indicates a lack of

oil which could damage the engine.

If the lack of oil is conﬁrmed by a

check using the dipstick, it is essen-

tial that the level is topped up.

Lack of oil

Dipstick

There are 2 marks on the

dipstick:

- never exceed level A,

- in position B, top up the

level via the oil ﬁller cap,

using the type of oil suited

to your engine.

A = max.

B = min.

Service indicator zero re-set

After switching on the ignition, three

functions are shown in succession:

- service indicator,

- engine oil level indicator,

- total distance recorder (total and

trip distances).

Note: the total and trip distances are

displayed for 30 seconds when the

ignition is switched off, on opening

the driver’s door, as well as on lock-

ing and unlocking the vehicle.

It also displays the information

relating to the cruise control or

speed limiter, when either of these is

activated (see corresponding section).

Service indicator

This indicates when the next service

is due in accordance with the manu-

facturer’s servicing schedule.

The point at which the next service

is due is calculated from the last indi-

cator zero reset (see corresponding

section). It is determined by two pa-

rameters:

- the distance travelled,

- the time which has elapsed since

the last service.

Note: the distance remaining before

the next service may be weighted

by the time factor, depending on the

user’s driving habits.

INSTRUMENT PANEL DISPLAY

In the event of under-revving or over-

revving, the gear selected ﬂashes for

a few seconds, then the actual gear

engaged is displayed.

This comes on when the

"SPORT" programme on

the automatic gearbox is

selected.

This comes on when the

"SNOW" programme on the

automatic gearbox is selected.

Automatic gearbox indicator

lights

"SNOW" indicator light

This is displayed if a gear is

not engaged correctly (selec-

tor between two positions).

"SPORT" indicator light

Invalid value during manual

operation

After switching on the ignition, three

functions are shown in succession:

- service indicator,

- engine oil level indicator,

- total distance recorder (total and

trip distances).

Note: the total and trip distances are

displayed for 30 seconds when the

ignition is switched off, on opening

the driver’s door, as well as on lock-

ing and unlocking the vehicle.

It also displays the information

relating to the cruise control or

speed limiter, when either of these is

activated (see corresponding section).

Service indicator

This indicates when the next service

is due in accordance with the manu-

facturer’s servicing schedule.

The point at which the next service

is due is calculated from the last indi-

cator zero reset (see corresponding

section). It is determined by two pa-

rameters:

- the distance travelled,

- the time which has elapsed since

the last service.

Note: the distance remaining before

the next service may be weighted

by the time factor, depending on the

user’s driving habits.

INSTRUMENT PANEL DISPLAY

In the event of under-revving or over-

revving, the gear selected ﬂashes for

a few seconds, then the actual gear

engaged is displayed.

This comes on when the

"SPORT" programme on

the automatic gearbox is

selected.

This comes on when the

"SNOW" programme on the

automatic gearbox is selected.

Automatic gearbox indicator

lights

"SNOW" indicator light

This is displayed if a gear is

not engaged correctly (selec-

tor between two positions).

"SPORT" indicator light

Invalid value during manual

operation

Operation

For 5 seconds after the ignition is

switched on, the spanner symbolis-

ing the servicing operations comes

on; the distance recorder display

indicates the number of miles

[kilometres] (rounded off) remaining

until the next service.

Example: 4,800 miles/km remain

before the next service. For ﬁve sec-

onds after the ignition is switched on,

the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the display indicates the total and trip

distance.

The service is overdue.

The spanner ﬂashes for 5 seconds

after the ignition is switched on.

Example: the service is overdue by

300 miles/km, your vehicle must be

serviced as soon as possible.

For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and the

spanner remains lit. The display indi-

cates the total and trip distance.

Note: the spanner may also come on

if more than two years have elapsed

since the last service.

The distance remaining to

the next service is less than

500 miles (1,000 km).

Example: 400 miles (900 km) remain

before the next service.

For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the spanner remains lit.

It indicates that a service must be

carried out soon. The display indi-

cates the total and trip distance.

Your PEUGEOT dealer carries out

this operation after each service.

However, if you carry out the service

yourself, the re-set procedure is as

follows:


Switch off the ignition,



Press and hold the trip recorder

re-set button,



Switch on the ignition.

The display begins a countdown.

When the display shows

"=0", re-

lease the button; the spanner disap-

pears.

Important: after this operation, if you

wish to disconnect the battery, lock

the vehicle and wait for at least ﬁve

minutes, otherwise the zero re-set

will not be registered.

Engine oil level indicator

When the ignition is switched on, the

engine oil level is indicated for a few

seconds, after the service information.

Oil level correct

Oil level gauge fault

Flashing of

"OIL --"

indicates a malfunc-

tion of the engine oil

level gauge.

Contact a PEUGEOT dealer.

The level read will only be correct if

the vehicle is on level ground and

the engine has been off for more

than 15 minutes.

Flashing of

"OIL",

linked with the serv-

ice warning light,

accompanied by an

audible signal and

a message on the

multifunction display, indicates a lack of

oil which could damage the engine.

If the lack of oil is conﬁrmed by a

check using the dipstick, it is essen-

tial that the level is topped up.

Lack of oil

Dipstick

There are 2 marks on the

dipstick:

- never exceed level A,

- in position B, top up the

level via the oil ﬁller cap,

using the type of oil suited

to your engine.

A = max.

B = min.

Service indicator zero re-set

With the lights on, press the button

to vary the intensity of the lighting of

the instruments and controls. When

the lighting reaches the minimum (or

maximum) setting, release the but-

ton then press it again to increase (or

reduce) the brightness.

As soon as the lighting is of the re-

quired brightness, release the button.

Trip recorder zero reset

button

With the ignition on, press the button

until the zeros appear.

Pressing the button enables you to

alternate between the distance re-

corder and cruise control or speed

limiter displays, when either of these

is activated.

Lighting rheostat

TRIP COMPUTER



Press the button, located at the

end of the

wipers stalk, to display

the various items of trip computer

data in succession.

The trip computer data is the follow-

ing:

System which provides current infor-

mation concerning the route travelled

(range, consumption, ...).



Press the control for more than

two seconds to reset the distance

travelled, the average consump-

tion and the average speed to

zero.

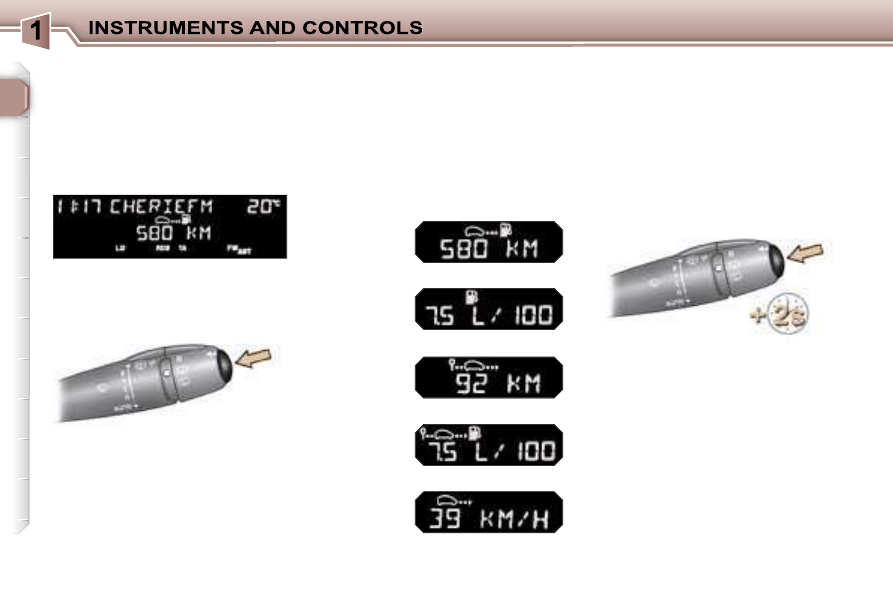

Monochrome screen A

Zero reset

Data displays

- the range,

- the current consumption,

- the distance travelled,

- the average consumption,

- the average speed.

- the current information

tab with:

- the range,

- the current consumption,

- the distance remaining to

be travelled,

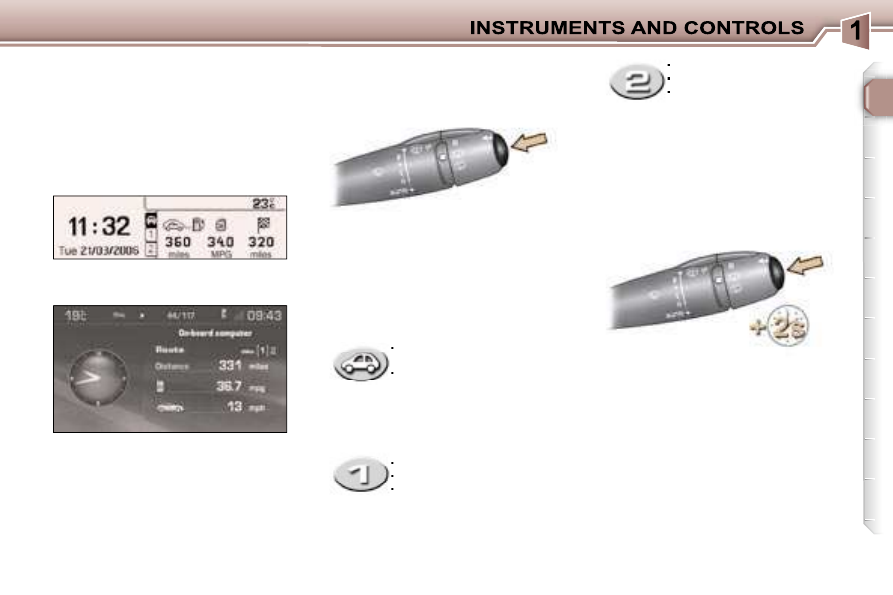

Colour screen

Route zero reset

Monochrome screen C



Press the button, located at the

end of the

wipers stalk, to display

the various trip computer tabs in

succession:

Data displays



When the route required is dis-

played, press the control for more

than two seconds.

- the route

"1" tab with:

- the distance travelled,

- the average consump-

tion,

- the average speed,

for the ﬁrst route.

- the route

"2" tab with:

- the distance travelled,

- the average consump-

tion,

- the average speed,

for the second route.

Routes

"1" and "2" are independent

but their use is identical.

Route

"1" permits, for example, daily

calculations, and route

"2" monthly

calculations.

TRIP COMPUTER

System which provides current infor-

mation concerning the route travelled

(range, consumption, …).

Distance remaining

to be travelled

(km or miles)

This is the distance remain-

ing to be travelled to the ﬁnal destina-

tion. It is either calculated instantly by

the navigation system if guidance is

activated, or entered by the user.

If the distance is not entered, dashes

are displayed in place of the digits.

Average speed

(km/h or mph)

This is the average speed

calculated since the last trip

computer zero reset (ignition

on).

Range

(km or miles)

This indicates the number

of miles (or kilometres)

which can still be travelled with the

fuel remaining in the tank in relation

to the average consumption over the

last few miles (kilometres) travelled.

Current consumption

(l/100 km or km/l or mpg)

This is the average quantity

of fuel consumed over the

last few seconds.

Average consumption

(l/100 km or km/l or mpg)

This is the average

quantity of fuel consumed

since the last trip computer zero

reset.

Distance travelled

(km or miles)

This indicates the dis-

tance travelled since the

last trip computer zero

reset.

A few deﬁnitions…

When the range falls below 20 miles

(30 km), dashes are displayed. After

ﬁlling with at least 5 litres of fuel, the

range is recalculated and is displayed

when it exceeds 60 miles (100 km).

If dashes are displayed

continuously while driving in

place of the digits, contact a

PEUGEOT dealer.

This function is only displayed

from 20 mph (30 km/h).

This ﬁgure may increase fol-

lowing a change of driving

style or relief, resulting in a

signiﬁcant change in the cur-

rent consumption.

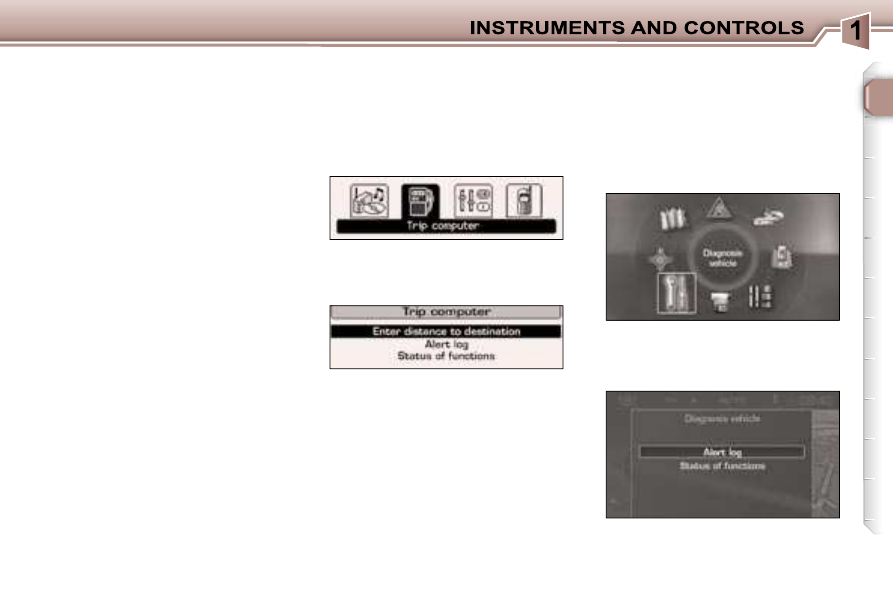

Screen C



Press the

"MENU" button to gain

access to the general menu.



Press the arrows, then the

"OK"

button to select the

"Trip compu-

ter" menu.



On the

"Trip computer" menu,

select one of the following appli-

cations:

Warnings log

This summarises the active warning

messages, displaying them in suc-

cession on the multifunction display.

Status of the functions

This summarises the active or inac-

tive status of the functions present on

the vehicle.

Enter the distance to the

destination

This enables you to enter an approxi-

mate value for the distance to the ﬁnal

destination.

"TRIP COMPUTER" MENU

System which provides general infor-

mation concerning the status of certain

equipment with which your vehicle is

equipped, such as the warnings log,

the status of the functions...

"DIAGNOSTICS" MENU



On the

"Diagnostics" menu,

select one of the following appli-

cations:

Colour screen



Press the

"MENU" button to gain

access to the general menu.



Turn the dial and press it to select

the

"Diagnostics" menu.

Presentation

This displays the following informa-

tion:

- the time,

- the date,

- the outside temperature* (this

ﬂashes if there is a risk of ice),

- the status of the accesses (doors,

boot, ...),

- the warning messages (e.g.: "Emis-

sion control system faulty") or infor-

mation messages (e.g.: "Auto lights

on"), displayed temporarily, can be

cleared by pressing the

"ESC" but-

ton,

- the trip computer (see correspond-

ing section).

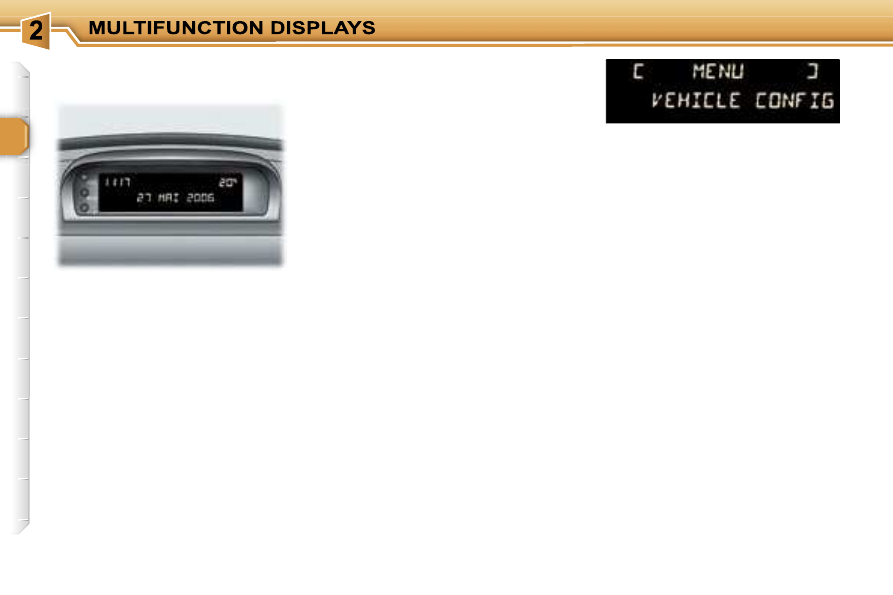

MONOCHROME DISPLAY A

(without RD4 audio equipment)

Parameter conﬁguration

There are three display control but-

tons:

"ESC" to abandon the operation in

progress,

"MENU" to scroll through the men-

us or sub-menus,

"OK" to select the menu or sub-

menu required.

General menu

Press the

"MENU" button to scroll

through the various menus of the

general menu:

- vehicle conﬁguration,

- options,

- display settings,

- languages,

- units.

Press the

"OK" button to select the

menu required.

* With air conditioning only.

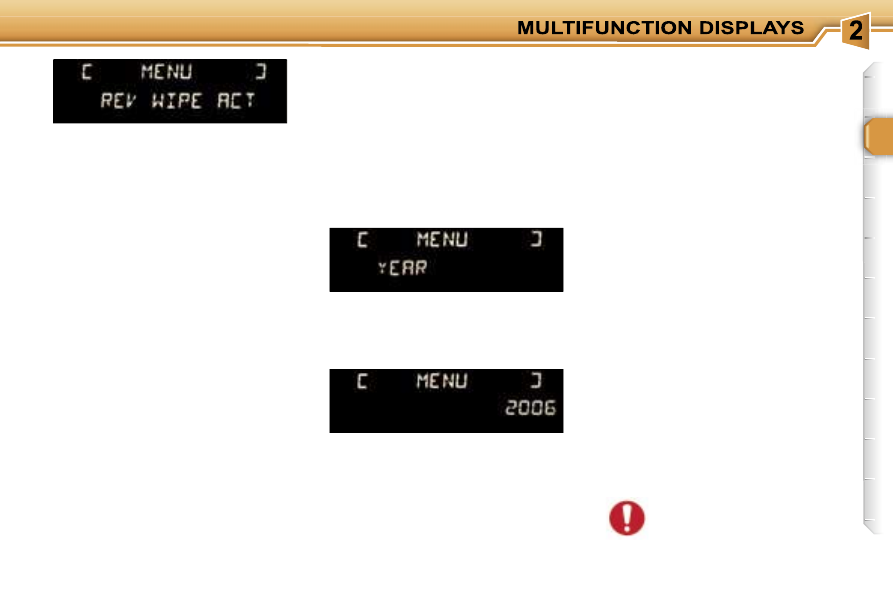

Vehicle conﬁguration

Once the "Vehicle conﬁguration"

menu has been selected, you can

activate or deactivate the following

equipment:

- wiper linked with reverse gear (re-

fer to the "Visibility" section),

- "follow-me-home" lighting (refer to

the "Visibility" section),

- parking assistance (refer to the

"Driving" section).

Options

Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active,

not active, faulty).

Languages

Once the "Languages" menu has

been selected, you can change

the language used by the display

(Français, Italiano, Nederlands, Por-

tugues, Portugues-Brasil, Deutsch,

English, Espanol).

Display settings

Once the "Display settings" menu

has been selected, you can gain ac-

cess to the following settings:

- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.

Units

Once the "Units" menu has been se-

lected, you can change the units of

the following parameters:

- temperature (°C or °F),

- fuel consumption (l/100, mpg or km/l).

Once you have selected a setting,

press the

"OK" button to change its

value.

Wait for approximately ten seconds

without any action to allow the changed

data to be recorded or press the

"ESC"

button to cancel.

The display then returns to the nor-

mal display.

For safety reasons, conﬁgu-

ration of the multifunction

displays by the driver must

take place when stationary.

Content .. 1 2 3 ..
