Peugeot 307 Break Dag (2007 year). Manual - part 1

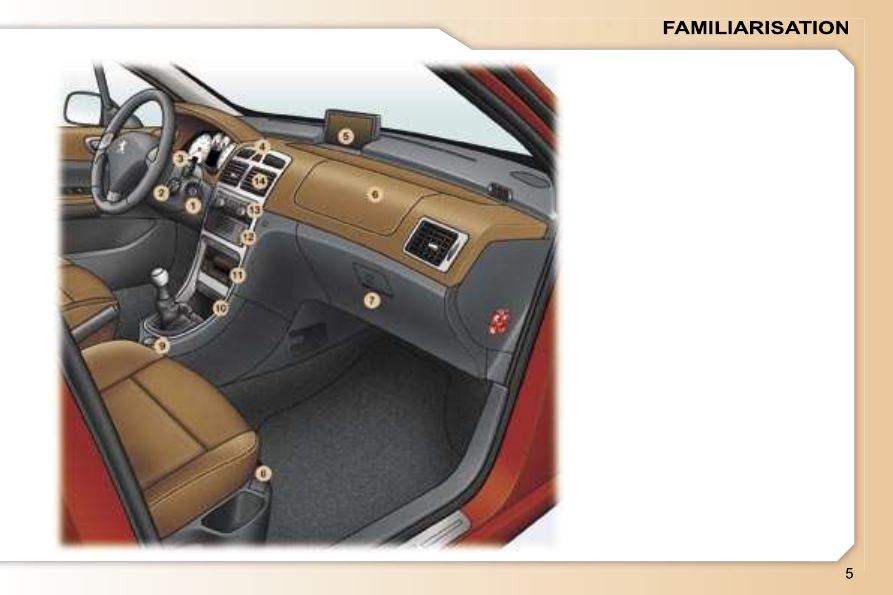

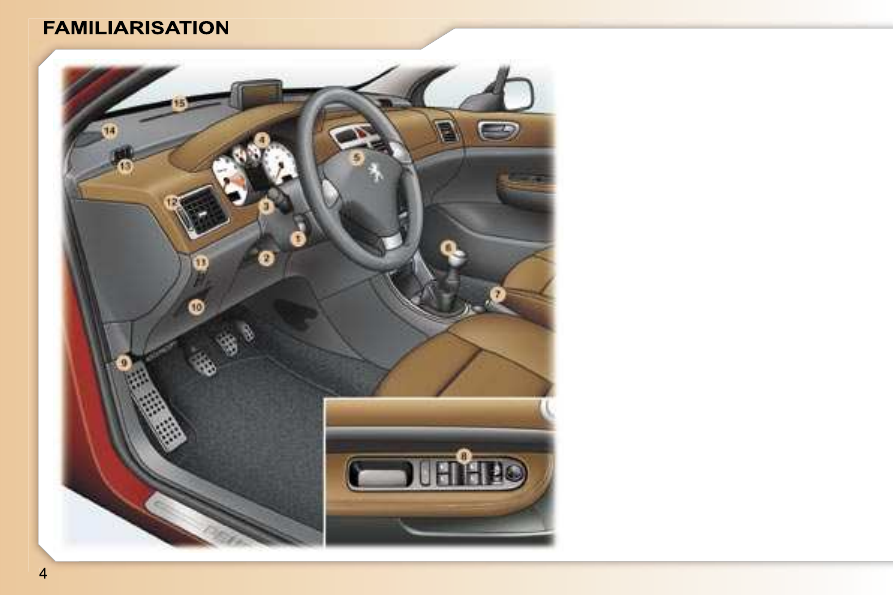

INSTRUMENTS AND CONTROLS

1. Cruise control/speed limiter

control.

2. Steering wheel adjustment

control.

3. Lights and direction indicators

stalk.

4. Instrument dials.
5. Driver’s air bag.

Horn.

6.  Gear lever.
7.  Handbrake.
8.  Electric mirror controls.

Window controls.

Rear window disarming control.

9.  Bonnet opening control.
10.  Fuse box.
11.  Headlamp height adjustment.
12.  Side adjustable and closing

vent.

13. Front door window demisting

vent.

14. Speaker (tweeter).
15. Windscreen demisting vents.

1. Steering lock and ignition.
2. Audio equipment steering wheel

control.

3. Windscreen wipers/wash-wipe/

trip computer stalk.

4. Alarm button.

Central locking button.

Hazard warning lights switch.

Electronic stability control button

(ESP/ASR).

Front seat belts unfastened/not

fastened warning light.

5.  Multifunction display.
6.  Passenger air bag.
7.  Glove box/Audio/video sockets.
8.  Heated seats controls.
9.  12 volt socket.
10.  Front ashtray.
11.  Heating/air conditioning

controls.

12. CD changer.
13. RD4 audio equipment or RT4

GPS audio/telephone.

14. Central adjustable and closing

vents.

INSTRUMENTS AND CONTROLS

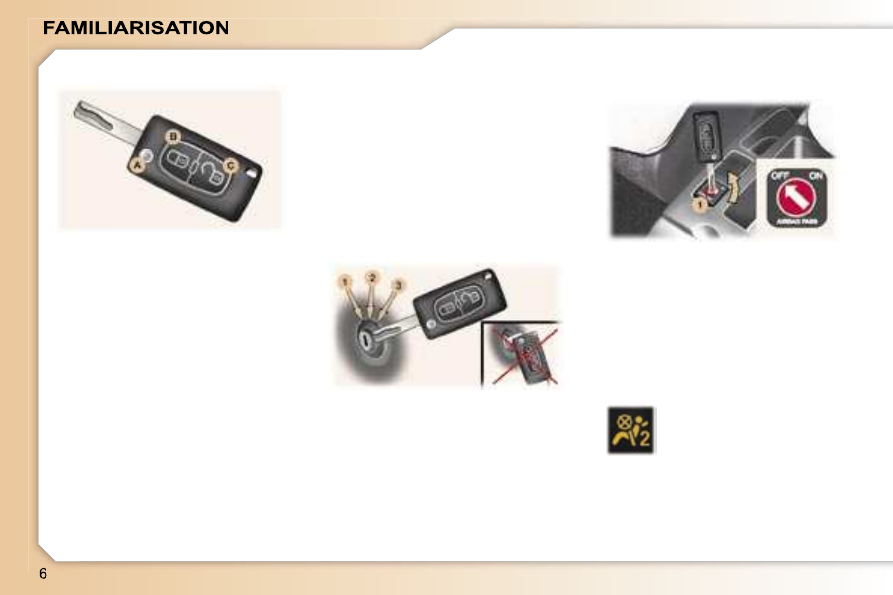

THE REMOTE CONTROL KEY

Unfolding/Folding the key

First press button

Unlocking
Press button

C to unlock the vehicle.

This is conﬁrmed by rapid ﬂashing of

the direction indicators for approxi-

mately two seconds.

STARTING

DISARMING THE

PASSENGER AIR BAG*

With the ignition on, illumi-

nation of this warning light

indicates that the passen-

ger air bag is disarmed

(switch in the

"OFF" posi-

tion).

The warning light remains on through-

out the duration of disarming.

Disarming check

Locking

Press button

B to lock the vehicle.

This is conﬁrmed by ﬁxed lighting of

the direction indicators for approxi-

mately two seconds.

* According to country.



The remote control permits locking,

deadlocking, unlocking and locating

of the vehicle, as well as folding and

unfolding of the exterior mirrors.

The key allows you to switch on the

ignition and mechanically and inde-

pendently operate the lock on the

glove box, the fuel ﬁller cap, the pas-

senger air bag disarming switch and

the child lock.

From the driver’s door, the key allows

you to electrically control the locking,

deadlocking and unlocking of the

doors and boot and the folding and

the unfolding of the exterior mirrors.



A heavy object attached to the key

(key ring, ...) and weighing down on

the shaft of the key in the ignition,

may cause a malfunction.

1. STOP position:

The ignition is off.

2. Running position:

The ignition is on and the ac-

cessories can be used.

3. Starting position:

Operates the starter.

With the ignition off, insert the key

in the passenger air bag disarming

switch

1, turn it to the "OFF" posi-

tion, then remove it keeping it in this

position.

As soon as you remove the child

seat, turn the air bag switch to the

"ON" position, to activate the air bag

again.

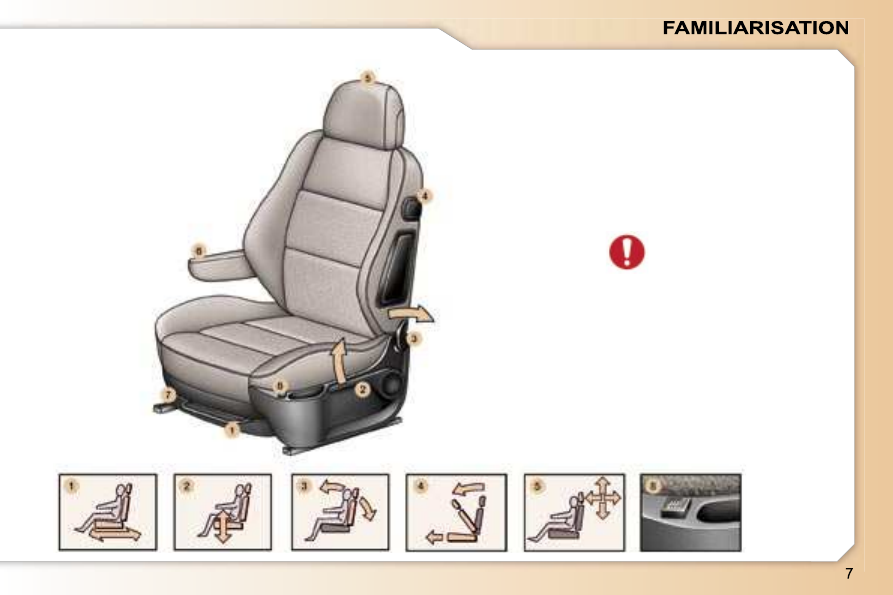

FRONT SEATS

1. Forwards-backwards adjustment.

2. Driver or passenger seat height

adjustment.

3. Seat back angle adjustment.

4. Access to the rear seats (3 door).

5. Head restraint height and angle

adjustment.

Never drive with the head

restraints removed.

6. Removable front armrest

(5 door).

7. Storage drawer.

8. Heated seats control.



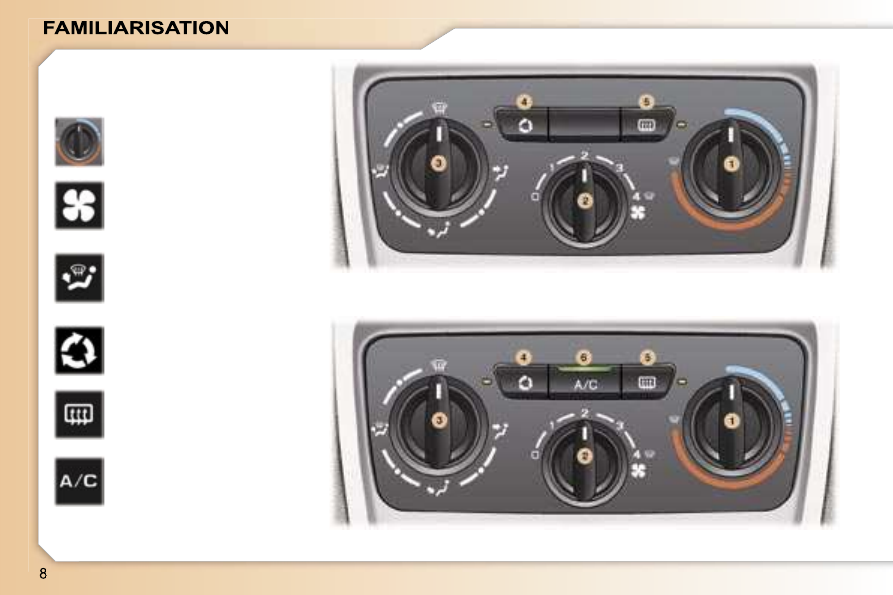

1. Temperature adjustment.

HEATING/MANUAL AIR

CONDITIONING

2. Air ﬂow adjustment.

3. Air distribution

adjustment.

4. Air intake/

Air recirculation.

5. Rear screen and

mirrors demisting.

6. Air conditioning on/off.



–

I require...

Heating or Manual air conditioning

Air distribution

Air ﬂow

Air recirculation/Intake

of exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DE-ICING

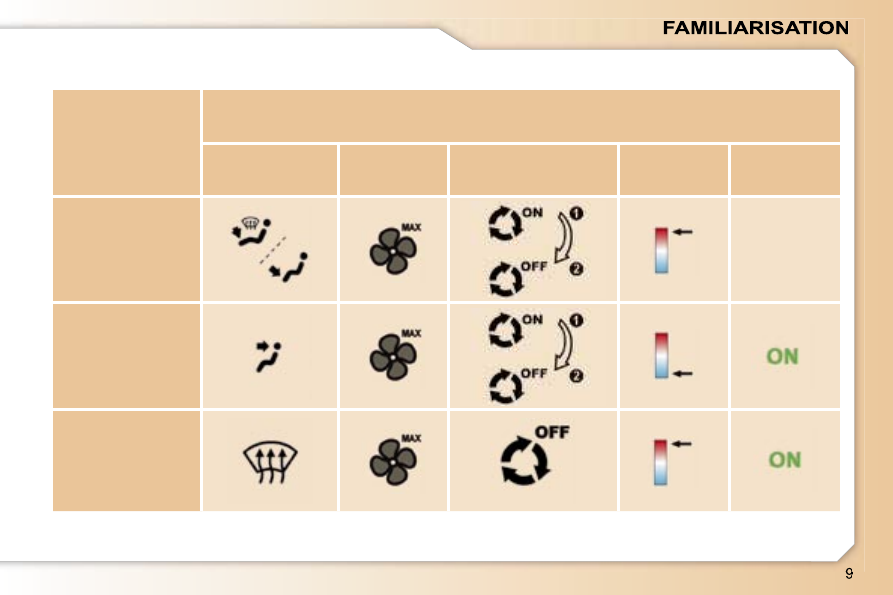

RECOMMENDED INTERIOR SETTINGS



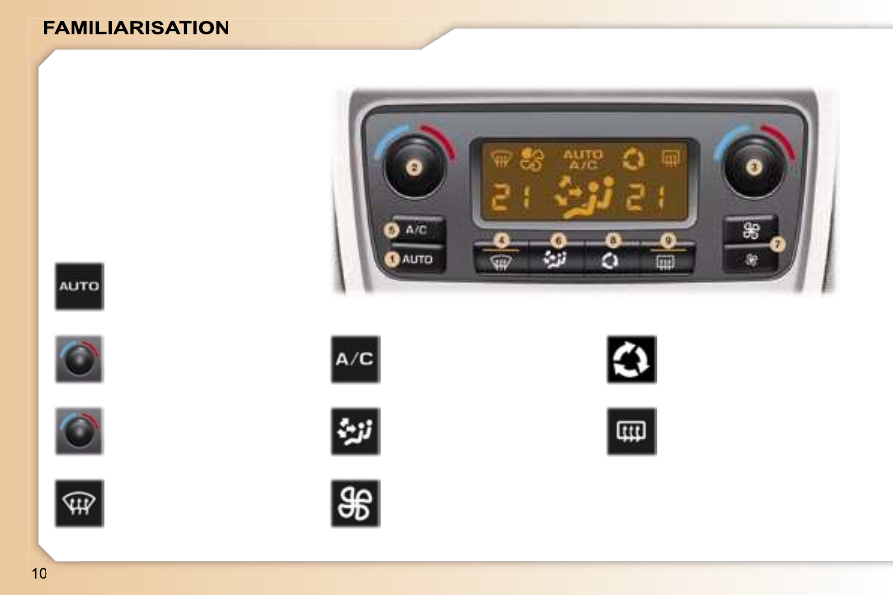

1. Automatic comfort

programme.

DUAL ZONE AUTOMATIC AIR

CONDITIONING

The driver and his front passenger

can each adjust the temperature to

their requirements.

It is preferable to use the automatic

mode which optimises all of the func-

tions: temperature, air ﬂow, air distri-

bution and air recirculation.

2. Driver’s temperature

adjustment.

3. Passenger temperature

adjustment.

4. Automatic visibility

programme.

5. Air conditioning On/Off.

6. Air distribution

adjustment.

7. Air ﬂow adjustment.

8. Air intake/

Air recirculation.

9. Rear screen and

mirrors demisting.

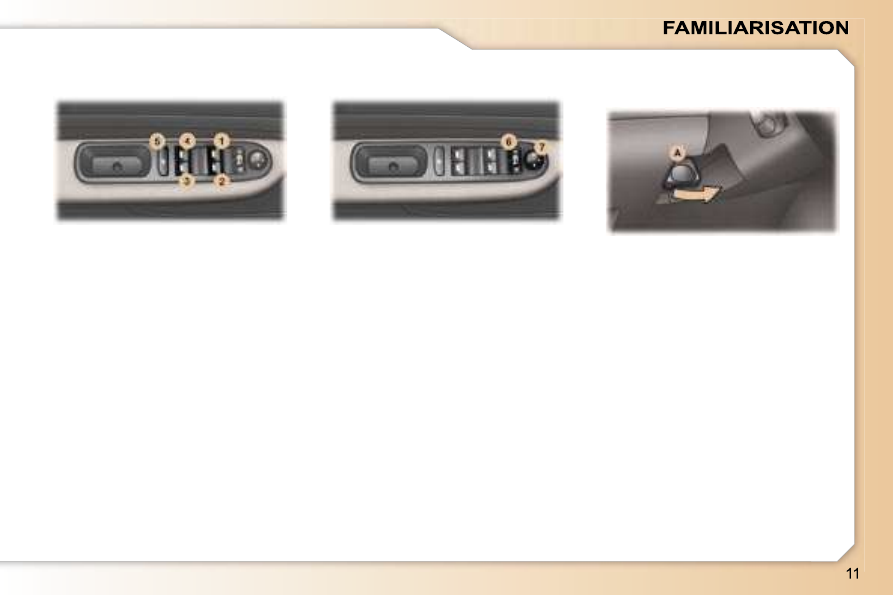

ELECTRIC MIRRORS

STEERING WHEEL HEIGHT

AND DEPTH ADJUSTMENT

ELECTRIC WINDOWS

Manual operation:


Press or pull the switch lightly.

The window stops as soon as the

switch is released.

1. Driver’s electric window

2. Passenger’s electric window.

3. Rear right electric window.

4. Rear left electric window.

5. Disarming the rear window

switches.



Move control

6 to the right or left to

select the mirror to be adjusted.



Move control

7 in all four directions

to adjust.



Return control

6 to the centre position.

When parking the vehicle, the mir-

rors can be folded back electrically,

by pulling control

6 rearwards or au-

tomatically on locking the vehicle us-

ing the remote control or the key.





When stationary, pull handle

A to

unlock the steering wheel.



Adjust the height and depth of the

steering wheel.



Lock it by pushing handle

A fully.



Automatic operation:


Press or pull the switch ﬁrmly. One

touch completely opens or closes

the window.



Front

Rapid wipe.

Normal wipe.

Intermittent wipe.

Off.

AUTO  Automatic wipe or single wipe.

Windscreen wash-wipe: pull the stalk

towards you.

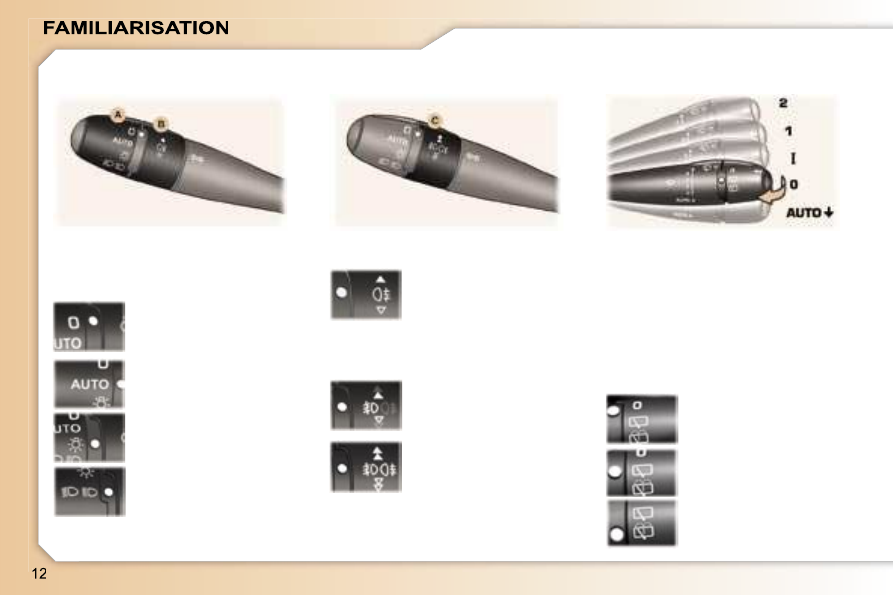

LIGHTS STALK

Front and rear lights (ring A)

Lights off.

Automatic switching on

of the lights.

Side lights.

Rear fog lamp (rotation

of the ring forwards)

Front fog lamps (ﬁrst

rotation of the ring for-

wards)

Front fog lamps and

rear fog lamp (second

rotation of the ring for-

wards)

Switching off: rotation of the ring

backwards.



Dipped/main beam head-

lamps.

Vehicles ﬁtted with a rear fog

lamp (ring B)

Vehicles ﬁtted with front fog

lamps and a rear fog lamp (ring C)

Rear

Off

Intermittent wipe

Wash-wipe



The position is indicated on the in-

strument panel by the corresponding

indicator light.

WINDSCREEN WIPERS

STALK

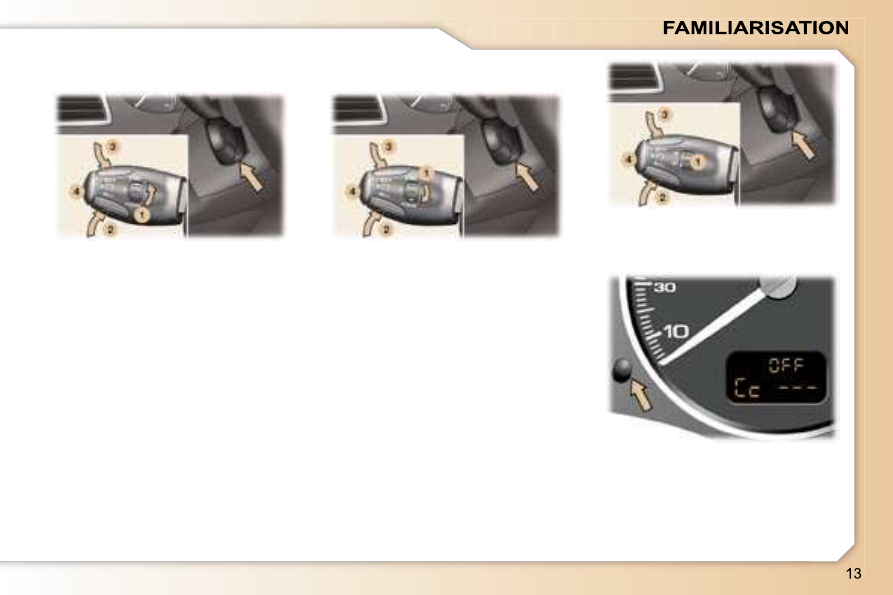

1. Function Selection/Off.

2. Decreasing of the speed.

3. Increasing of the speed.

4. Activation/Deactivation of the

system.

The values must be set with the en-

gine running.



CRUISE CONTROL



102

The cruise control or speed limiter

function appears on the instrument

panel when it is activated.

Pressing the button enables you to

alternate between the activated func-

tion display and the distance record-

er displays.

SPEED LIMITER

1. Function Selection/Off.

2. Storing of a speed/Decreasing

of the stored speed.

3. Storing of a speed/Increasing of

the stored speed.

4. Deactivation/Reactivation of the

cruise control.

In order to be stored or activated,

the vehicle speed must be above ap-

proximately 25 mph (40 km/h), with

at least fourth gear engaged on the

manual gearbox (second gear on the

automatic gearbox).



100

Instrument panel display

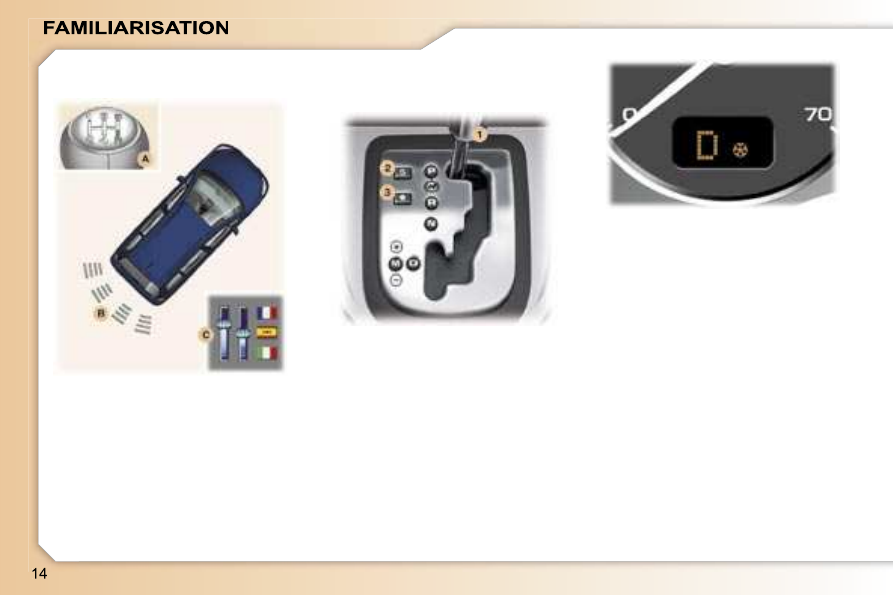

"PORSCHE TIPTRONIC

SYSTEM" AUTOMATIC

GEARBOX

1. Gear lever.

2. "SPORT" button.

3. "SNOW" button.

Gear selection gate

Move the lever in the gate to select

one of the positions.

Once selected, the indicator light

which corresponds to this position is

shown on the instrument panel dis-

play.

VISUAL AND AUDIBLE REAR

PARKING ASSISTANCE

A. Switching on.

B. Detection.

C. Activation/Deactivation.

Activate or deactivate the sys-

tem by going to the multifunc-

tion display conﬁguration menu.

When reverse gear is engaged, you

are guided by an audible signal, and

a graphic depending on the multi-

function display, during the reversing

manoeuvre.



104

Instrument panel display

P : Park.

R : Reverse.

N : Neutral.

D : Drive.

M : Manual mode.

S : Sport programme.

* : Snow programme.

1 2 3 4 5* 6*: gears engaged.

* According to model.

Switching on the engine

With the handbrake applied, select

position

P or N.

Switch on the ignition.

Moving off

With the engine running, in position

P or N, with your foot on the brake,

release the handbrake.

Select position

R, D or M.

Gradually release the brake pedal;

the vehicle moves off immediately.



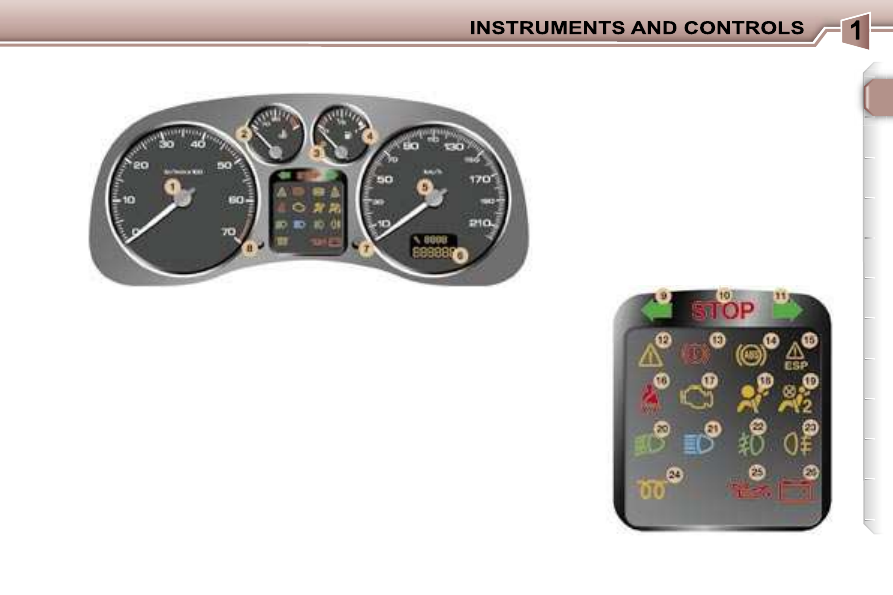

1. Rev counter.

2. Coolant temperature indicator.

3. Low fuel level warning light.

4. Fuel gauge.

5. Speedometer.

6. Service indicator, oil level

indicator, distance recorder and

cruise control/speed limiter.

7. Trip recorder zero reset button.

8. Lighting rheostat button.

9. Left-hand direction indicator.

10. Central STOP warning light.

11. Right-hand direction indicator.

12. Service warning light.

13. Handbrake, brake ﬂuid level

and electronic brake force

distribution warning light.

14. Anti-lock braking system (ABS)

warning light.

15. Electronic stability control (ESP/

ASR) warning light.

16. Driver’s seat belt not fastened

warning light.

17. Emission control system

warning light.

18. Air bags warning light.

19. Passenger air bag disarmed

indicator light*.

20. Dipped beam headlamps

indicator light.

21. Main beam headlamps indicator

light.

22. Front fog lamps indicator light.

23. Rear fog lamp indicator light.

24. Diesel engine preheating light.

25. Engine oil pressure warning

light*.

26. Battery charge warning light*.

PETROL/DIESEL INSTRUMENT PANEL DIALS: MANUAL

GEARBOX

* According to country.

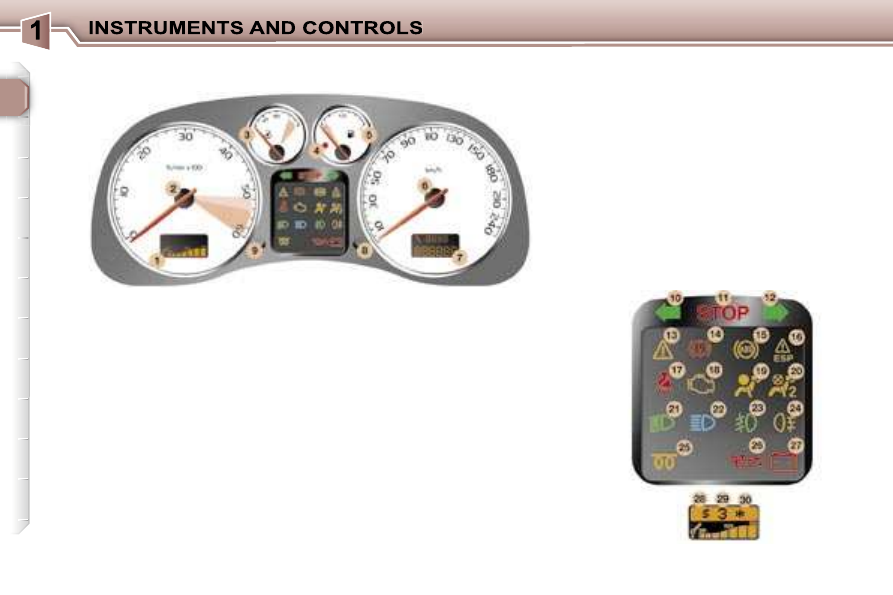

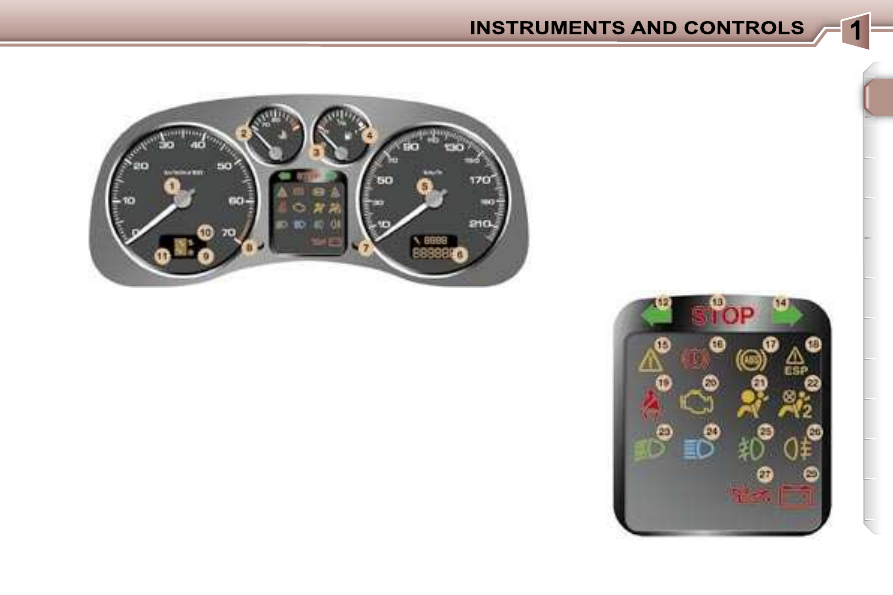

1. Engine oil temperature indicator.

2. Rev counter.

3. Coolant temperature indicator.

4. Low fuel level warning light.

5. Fuel gauge.

6. Speedometer.

7. Service indicator, oil level

indicator, distance recorder

and cruise control/speed limiter.

8. Trip recorder zero reset button.

9. Lighting rheostat button.

10. Left-hand direction indicator.

11. Central STOP warning light.

12. Right-hand direction indicator.

13. Service warning light.

14. Handbrake, brake ﬂuid level and

electronic brake force

distribution warning light.

15. Anti-lock braking system (ABS)

warning light.

16. Electronic stability control

(ESP/ASR) warning light.

17. Driver’s seat belt not fastened

warning light.

18. Emission control system

warning light.

19. Air bags warning light.

20. Passenger air bag disarmed

indicator light*.

21. Dipped beam headlamps

indicator light.

22. Main beam headlamps

indicator light.

23. Front fog lamps indicator light.

24. Rear fog lamp indicator light.

25. Diesel engine preheating light.

26. Engine oil pressure warning

light*.

27. Battery charge warning light*.

28. Sport programme indicator light.

29. Gear lever position indicator.

30. Snow programme indicator light.

PETROL/DIESEL SPORT INSTRUMENT PANEL DIALS: MANUAL/

AUTOMATIC GEARBOX

* According to country.

1. Rev counter.

2. Coolant temperature indicator.

3. Low fuel level warning light.

4. Fuel gauge.

5. Speedometer.

6. Service indicator, oil level

indicator, distance recorder and

cruise control/speed limiter.

7. Trip recorder zero reset button.

8. Lighting rheostat button.

9. Snow programme indicator light.

10. Sport programme indicator light.

11. Gear lever position indicator.

12. Left-hand direction indicator.

13. Central STOP warning light.

14. Right-hand direction indicator.

15. Service warning light.

16. Handbrake, brake ﬂuid level

and electronic brake force

distribution warning light.

17. Anti-lock braking system (ABS)

warning light.

18. Electronic stability control (ESP/

ASR) warning light.

19. Driver’s seat belt not fastened

warning light.

20. Emission control system

warning light.

21. Air bags warning light.

22. Passenger air bag disarmed

indicator light*.

23. Dipped beam headlamps

indicator light.

24. Main beam headlamps indicator

light.

25. Front fog lamps indicator light.

26. Rear fog lamp indicator light.

27. Engine oil pressure warning

light*.

28. Battery charge warning light*.

PETROL INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX

* According to country.

OPERATION WARNING

LIGHTS

A permanently lit warning light or

one that ﬂashes with the engine

running, indicates an operating

fault in the relevant unit. Some

warning lights may be linked to

buzzers and a message on the

multi-function display. Do not

ignore this warning: contact a

PEUGEOT dealer as soon as

possible.

If the Central STOP warning light

comes on when you are driving,

stop immediately where it is safe

to do so.

Central STOP

warning light

This light comes on

for a few seconds

each time the igni-

tion is switched on.

It is linked to the "engine oil pres-

sure"*, "low brake ﬂuid level" and

"electronic brake force distribution

fault" warning lights and the coolant

temperature gauge.

Stop immediately if it ﬂashes with

the engine running.

Contact a PEUGEOT dealer.

It also comes on in the event of a

puncture, accompanied by an audi-

ble signal and a message on the mul-

tifunction display locating the wheel

concerned.

Service warning light

This light comes on for a

few seconds each time

the ignition is switched on.

If it remains on or comes

on when the engine is running, ac-

companied by an audible signal and

a message on the multifunction dis-

play, it indicates one of the following:

- a battery charge fault*,

- an automatic gearbox operation

fault,

- an engine immobiliser system

fault,

- an engine management system

fault,

- a speed control system fault (cruise

control/speed limiter),

- a rear parking assistance system

fault,

- an automatic switching on of the

lights system fault,

- an automatic headlamp height

adjustment system fault,

- a tyre under-inﬂation detection

system fault,

- a deﬂated wheel,

- a ﬂat remote control battery,

- one or more door(s) open at a vehi-

cle speed above 6 mph (10 km/h),

- a low diesel additive reservoir level

(Diesel),

- a lack of engine oil,

- the start of saturation of the particle

emission ﬁlter (Diesel) due to ex-

ceptionally prolonged urban driving

conditions: low speed, long trafﬁc

jams, ...

In order to regenerate the ﬁlter, you

are advised to drive at a speed of

40 mph (60 km/h) or above for at

least ﬁve minutes (until the warn-

ing light is switched off) as soon

as possible, when trafﬁc conditions

permit. If the warning light remains

on, contact a PEUGEOT dealer.

During regeneration of the particle

emission ﬁlter, relay noise may be

heard from underneath the fascia.

- the presence of water in the diesel

ﬁlter (Diesel)*.

Risk of damage to the injection

system.

Contact a PEUGEOT dealer as

soon as possible.

- a low coolant level**.

Stop immediately.

Warning: wait for the engine to

cool before topping up the level.

The cooling system is pressurised.

In order to avoid any risk of scald-

ing, unscrew the cap by two turns

to allow the pressure to drop. When

the pressure has dropped, remove

the cap and top up the level.

Contact a PEUGEOT dealer.

* According to country.
** According to engine.

Electronic stability

programme (ESP/ASR)

warning light

This comes on for a few

seconds each time the igni-

tion is switched on.

If the light remains on or comes on

when the engine is running and the

vehicle is moving, it is accompanied

by an audible signal and a message

on the multifunction display; contact

a PEUGEOT dealer.

When the engine is running and the

vehicle is moving, it ﬂashes if the

system is activated.

It is lit continuously when the system

is disarmed.

Emission control system

warning light

This comes on each time

the ignition is switched on.

It should switch off a few seconds

after the engine is started.

If the light comes on when the en-

gine is running, accompanied by an

audible signal and a message on the

multifunction display, this indicates a

malfunction of the emission control

system.

Contact a PEUGEOT dealer as soon

as possible.

Handbrake, low brake

ﬂuid level and electronic

brake force distribution

fault warning light

Linked to the central

STOP

warning light.

This comes on for a few seconds

each time the ignition is switched

on.

Illumination of this light is accompa-

nied by an audible signal and a mes-

sage on the multifunction display in-

dicating:

- that the handbrake is applied or

has not been released correctly,

- an excessive drop in the brake ﬂuid

level (if the light remains on even

with the handbrake released),

- a malfunction of the electronic

brake force distribution, if linked to

the ABS warning light.

Stop immediately in the last two

cases.

Contact a PEUGEOT dealer.

Anti-lock braking system

(ABS) warning light

This light comes on for a

few seconds each time the

ignition is switched on.

If it remains on or comes on above

8 mph (12 km/h), this indicates a

malfunction of the ABS.

However, the vehicle retains conven-

tional servo-assisted braking.

Illumination of this light is accom-

panied by an audible signal and a

message on the multifunction

display.

Contact a PEUGEOT dealer.

Seat belt unfastened/not

fastened warning light

When

the

ignition

switched on, the light

comes on if the driver has

not fastened his seat belt.

With the engine running and the

doors closed, the light switches off

automatically after 30 seconds.

If the seat belt is unfastened:

- below 12 mph (20 km/h), the light

comes on continuously,

- above 12 mph (20 km/h) and for

two minutes, the light ﬂashes

accompanied by an audible signal

of increasing volume. Once these

two minutes have elapsed, the light

remains on until the driver fastens

his seat belt.

Content .. 1 2 3 ..
