00 – 18 SERVICE INFORMATION

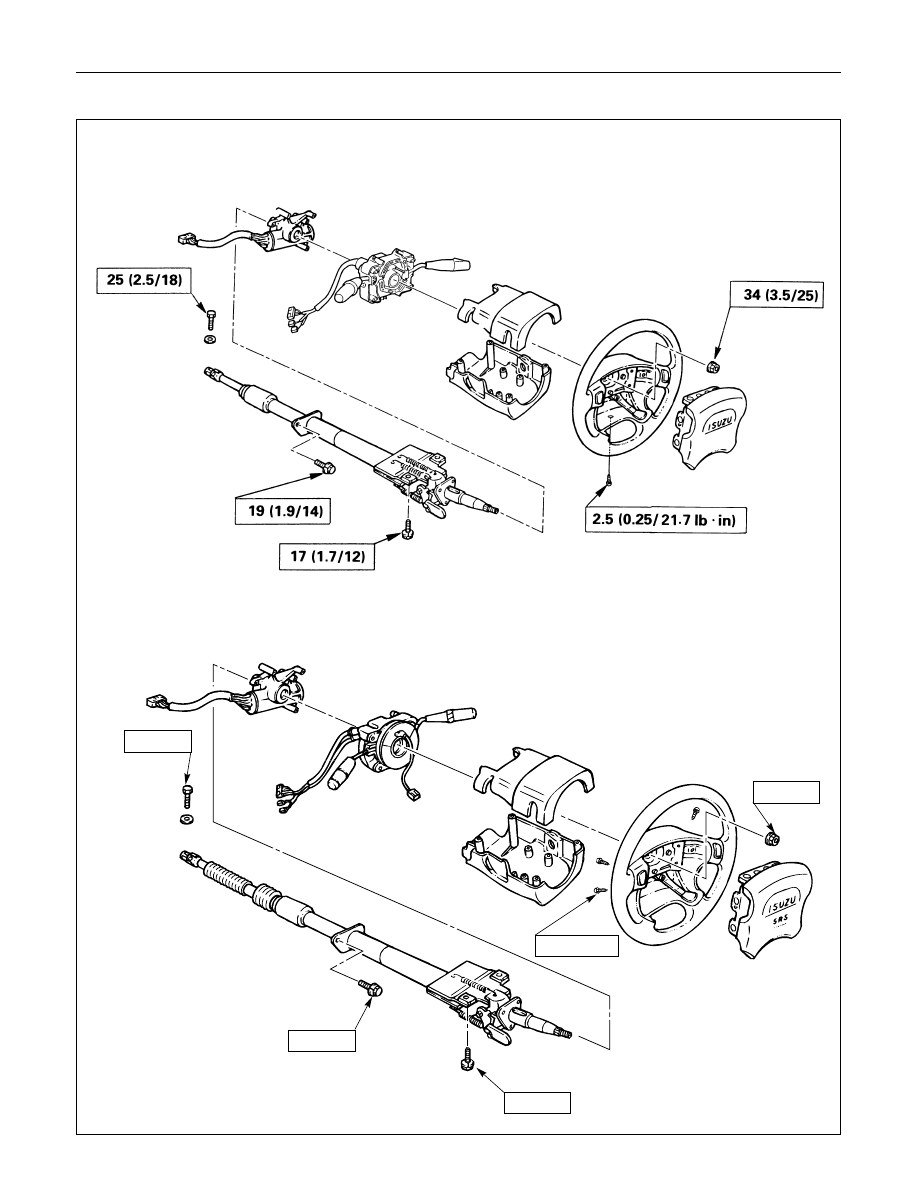

Steering Column

N·m (kg·m/lb·ft)

25 (2.5/18)

8 (0.8/69 lb·in)

34 (3.5/25)

19 (1.9/14)

17 (1.7/12)

This illustration is based on the LHD model.

E03RW010

This illustration is based on the LHD model.

This illustration is based on the LHD model.

SERVICE INFORMATION  00 – 19

Illustration

Part No.

Part Name

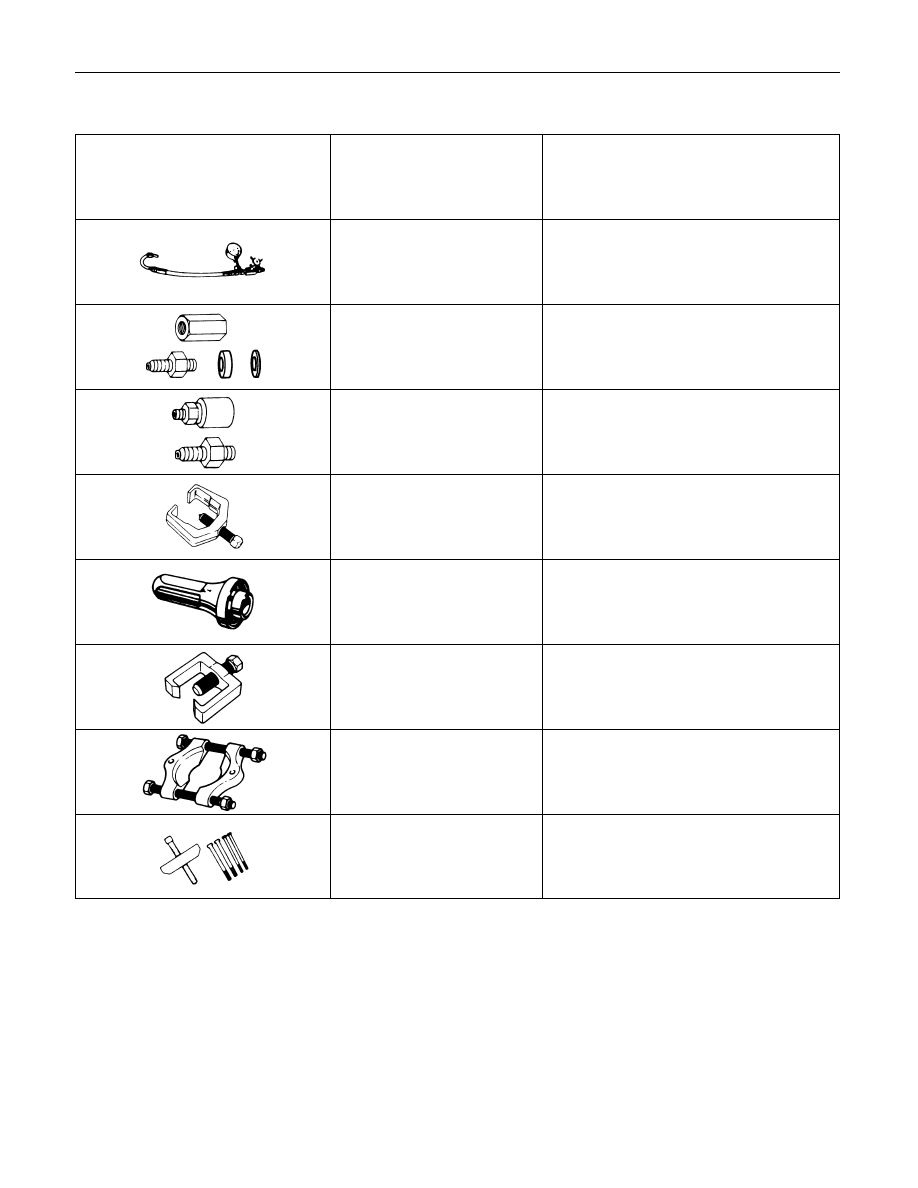

SPECIAL TOOLS

5–8840–0135–0

(J–29877–A)

5–8840–2297–0

(J–39213)

5–8522–0026–0

(J–26508)

5–8840–2121–0

(J–36831)

5–8840–0015–0

(J–22912–01)

5–8521–0016–0

(J–29752)

Tester:

Power steering

Adapter:

Power steering tester

For 6VD1, 6VE1, 4JX1

5–8840–0136–0

(J–33996)

Adapter:

Power steering tester

For 4JG2

Remover:

Pitman arm

Installer:

Extension housing oil sael

Remover:

Tie rod end

Remover:

Relay lever

Remover:

Steering wheel

5–8840–2005–0

(J–29107)

MEMO

FRONT END ALIGNMENT  2A – 1

SECTION 2A

FRONT END ALIGNMENT

CONTENTS

PAGE

General Description.......................................................................................................... 2A – 2

Definition of Terms ....................................................................................................... 2A – 2

On-Vehicle Service............................................................................................................ 2A – 3

Inspection ..................................................................................................................... 2A – 3

Trim Height Adjustment .............................................................................................. 2A – 3

Caster Adjustment ....................................................................................................... 2A – 4

Camber Adjustment ..................................................................................................... 2A – 4

Toe-in Adjustment ........................................................................................................ 2A – 5

Maximum Steering Angle Adjustment ...................................................................... 2A – 5

SECTION
