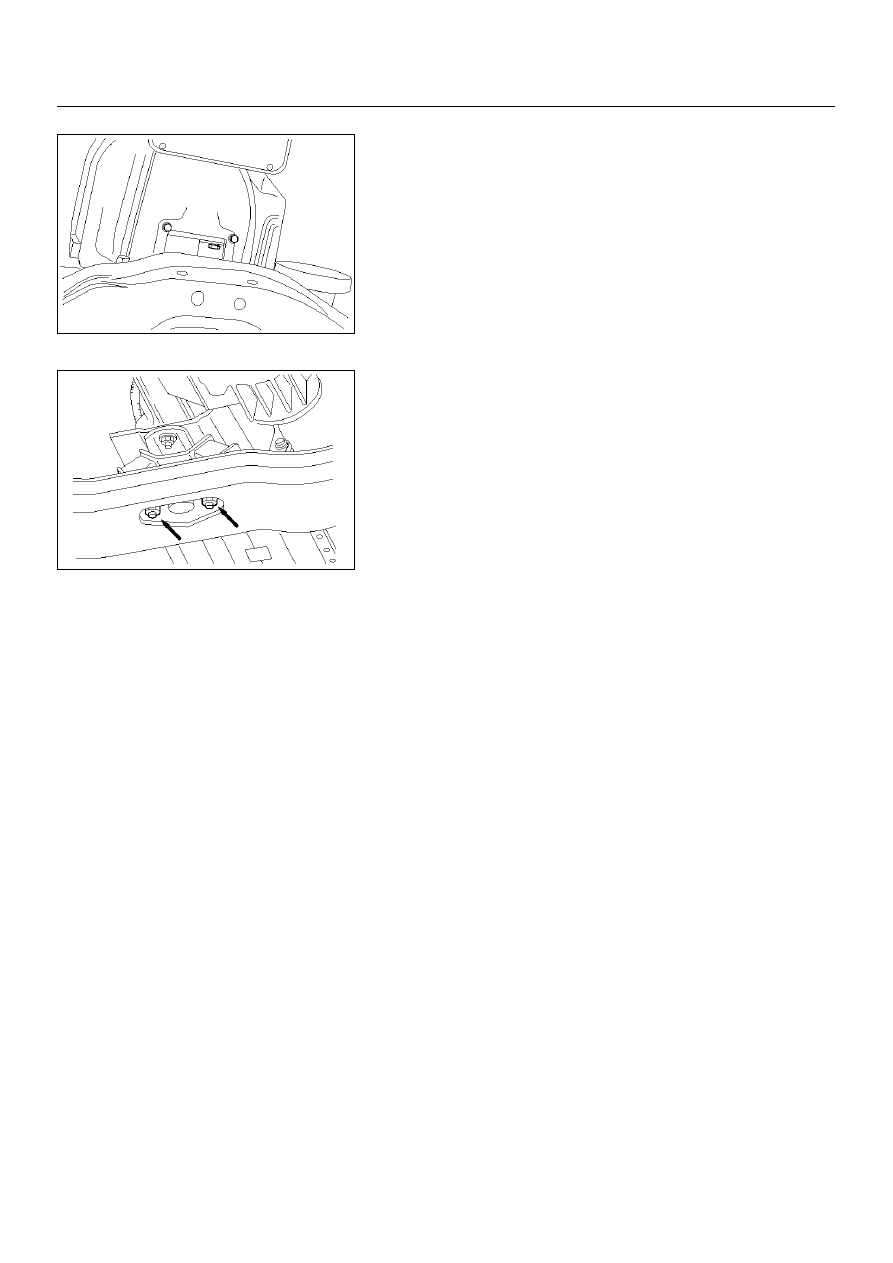

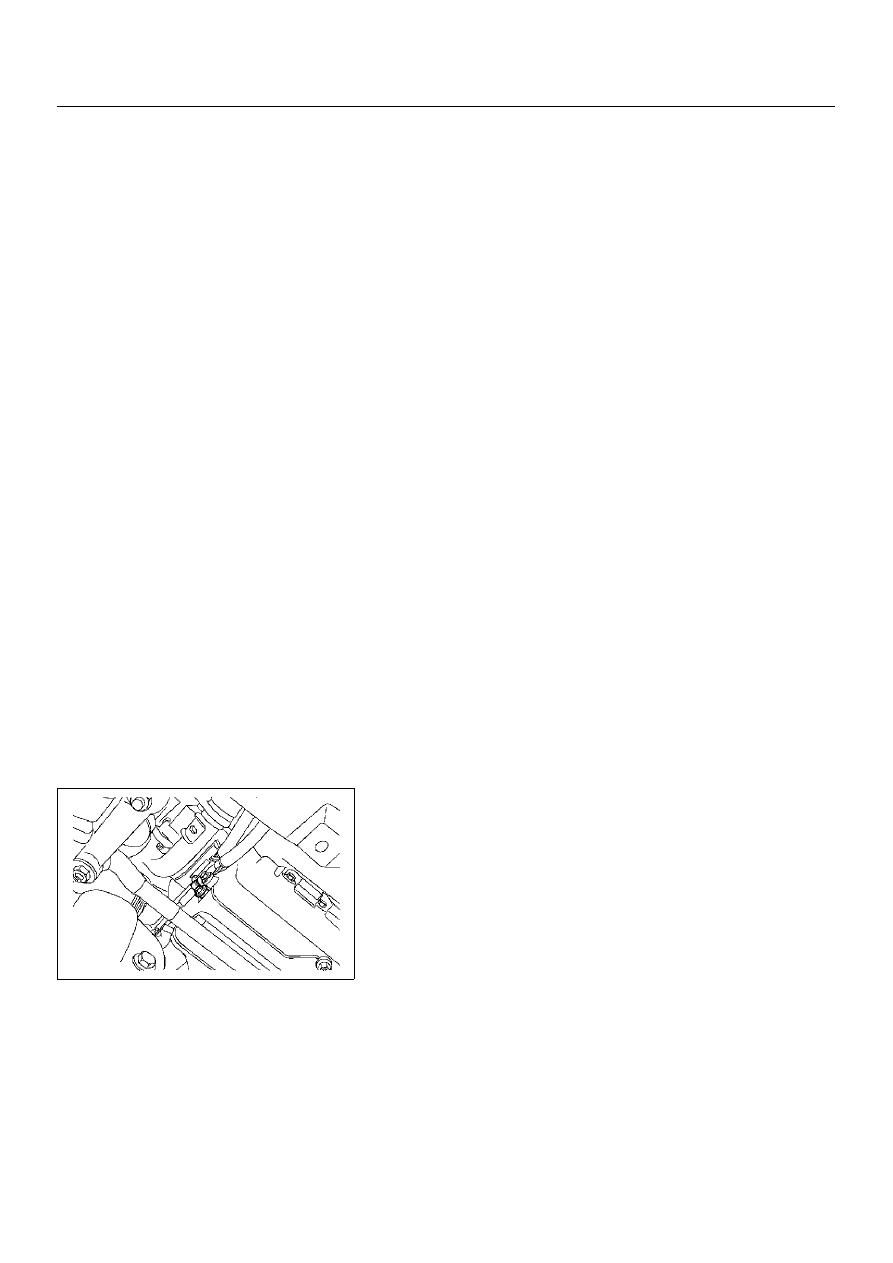

AUTOMATIC TRANSMISSION (AW30-40LE) 7A–87 253RY00001 REMOVAL Preparation: • Remove engine hood. • Disconnect negative (–) battery cable. 1. Transfer protector 2. Rear sound cover 3. Front sound cover 4. Rear propeller shaft 5. Front propeller shaft NOTE: 6. Exhaust pipe • Remove the 2nd front exhaust pipe from the 1st front exhaust pipe and exhaust silencer. 7. Transmission harness connector • Disconnect the harness connectors from the transmission. 8. Front console, selector lever assembly, and transfer control lever • Disconnect the transfer control lever knob. • Remove the front console. • Disconnect the harness connector. • Remove the selector lever assembly. • Disconnect the shift control rod from the transmission. 9. Transfer case assembly • Disconnect the breather hose from the transfer case. • Remove the transfer case assembly from the transmission. 10. ATF cooler pipe and clamp • Disconnect two ATF cooler pipes from A/T side. • Remove oil pipe clamp from torque converter housing side. • Loosen oil pipe clamp bolt at engine mount side. |
