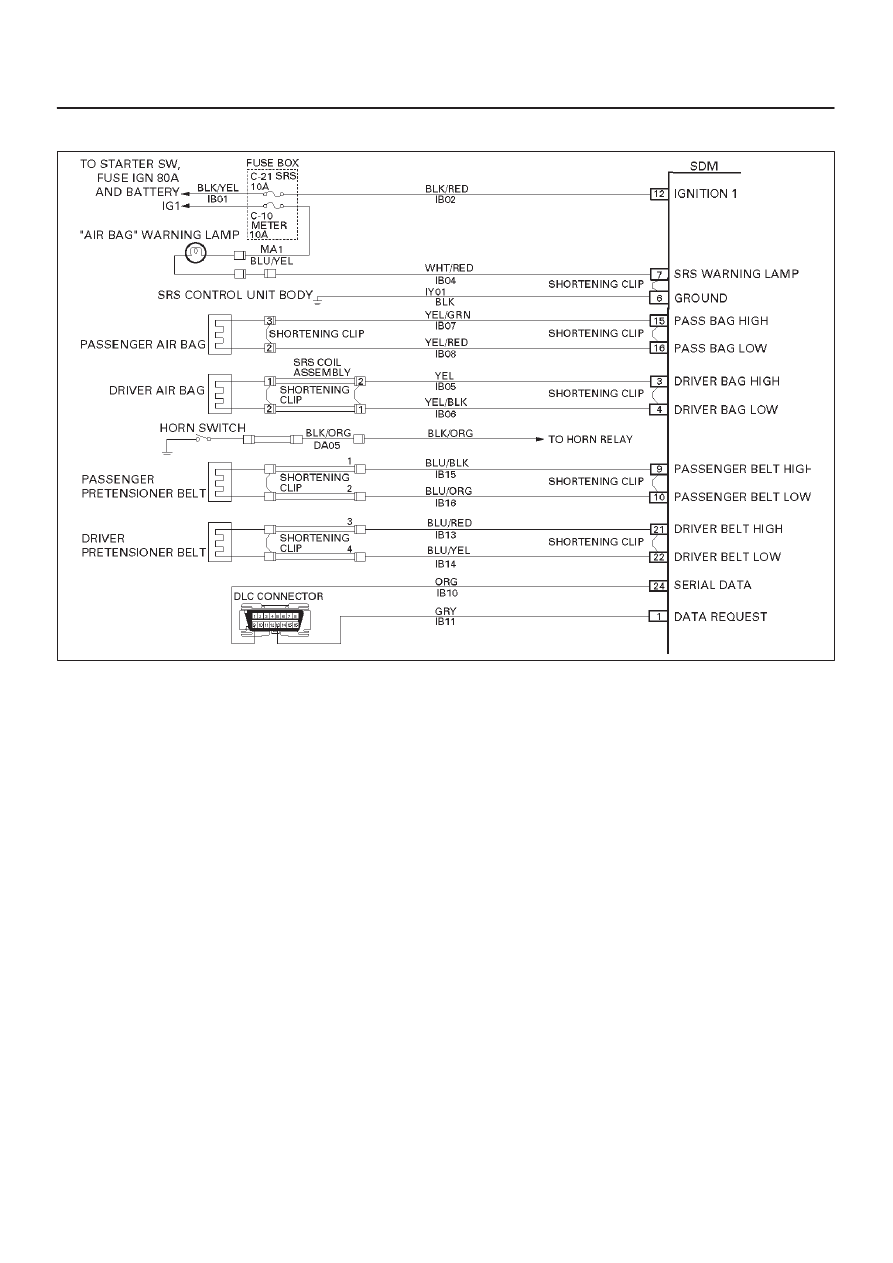

RESTRAINT CONTROL SYSTEM 9J1–60 DTC 45 Driver Pretensioner Loop Short To Ground Step Action Yes No 1 Was the “SRS Diagnostic System Check” performed? Go to Step 2 Go to the “SRS Diagnostic System Check” 2 1. When measurements are requested in this chart use 5–8840–0285–0 DVM with correct terminal adapter from 2. Ignition switch “OFF.” given in the scan tool operator’s manual. 4. Ignition switch “ON.” Is driver belt sense LO less than 1.5 volts? Go to Step 3 Go to Chart A 3 1. Ignition switch “OFF.” connector located at base of the driver seat, leave passenger 3. Connect SRS driver / passenger load tool 5–8840–2421–0 and appropriate adapter to driver pretensioner assembly 4. Ignition switch “ON.” Is DTC 45 current? Go to Step 4 Go to Step 6 4 1. Ignition switch “OFF.” terminal “6” (ground). Does 5–8840–0285–0 display “OL” (infinite)? Go to Step 5 Replace SRS harness or repair chassis harness Go to Step 6 5 Measure resistance on SDM harness connector from terminal Does 5–8840–0285–0 display “OL” (infinite)? Go to Chart A Replace SRS harness or repair chassis harness Go to Step 6 6 1. Reconnect all components ensure all component are properly mounted. 2. Clear diagnostic trouble codes. Was this step finished? Go to the “SRS Diagnostic System Check” Go to Step 6 |
