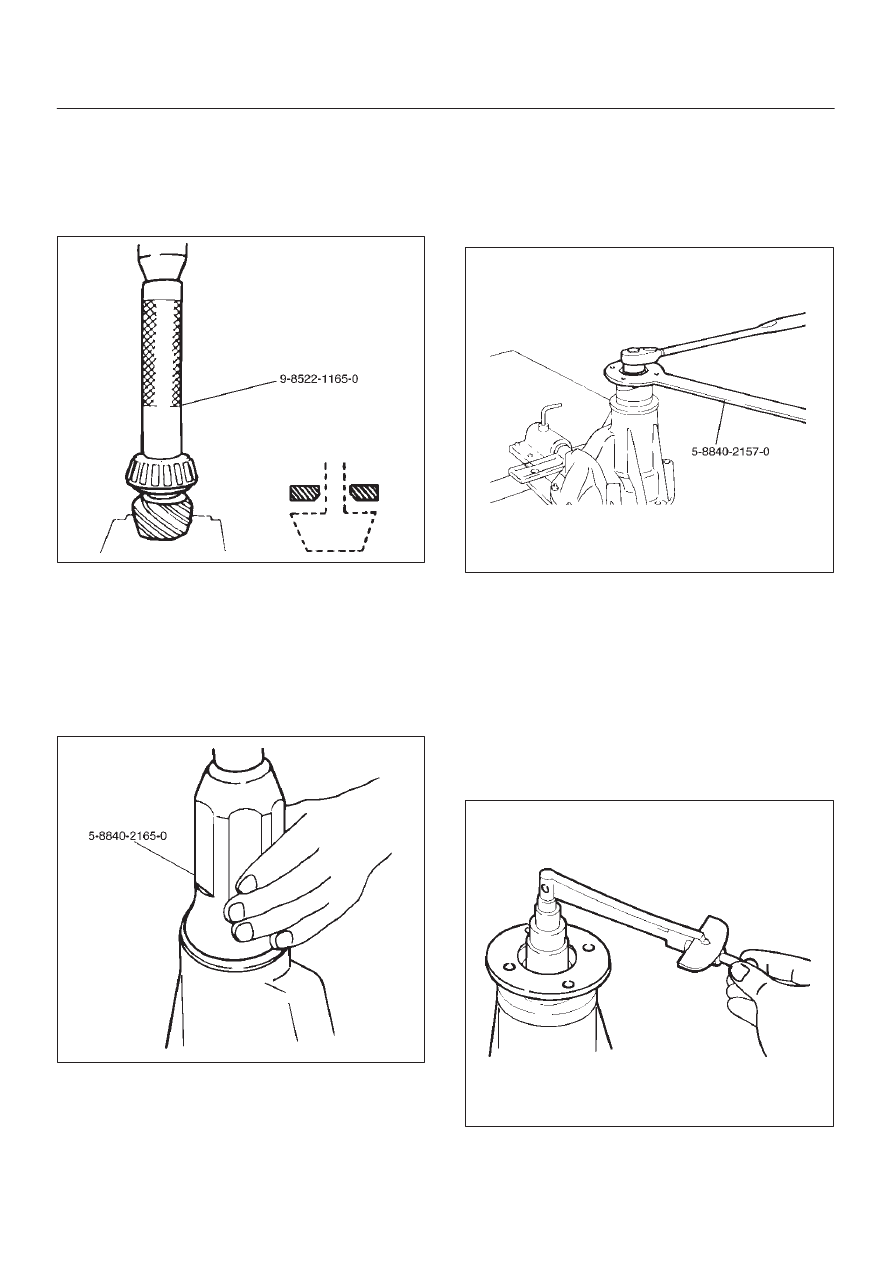

4A2A–16 DIFFERENTIAL (REAR 220mm) 4. Place the shim on the drive pinion, with the chamfered side turned towards the pinion head then install the NOTE: Do not apply pressure to the roller cage and apply 425RW048 5. Discard the used collapsible spacer and install a new one. 6. Install pinion gear. oil seal that has been soaked in rear axle lubricant. NOTE: Take care to use a front differential oil seal, NOT 415RW029 9. Install dust cover. 10. Install flange. 11. Install flange nut. 1. Apply lubricant to the pinion threads. 2. Tighten the nut to the specified torque using the pinion flange holder 5–8840–2157–0. Torque: 245–294N·m (25.0–28.0kg·m/181–217 lb f NOTE: Discard used flange nut and install new one and 425RW057 3. Adjust pinion bearing preload. a. Measure the bearing preload by using a torque meter. Note the scale reading required to b. Continue tightening flange nut until the specified starting torque is obtained. Starting torque: 425RS027 4. Using punch 5–8840–2293–0, stake the flange nut at two points. |
