Opel Frontera UBS. Service manual - part 1076
4D2–20 TRANSFER CASE (TOD)

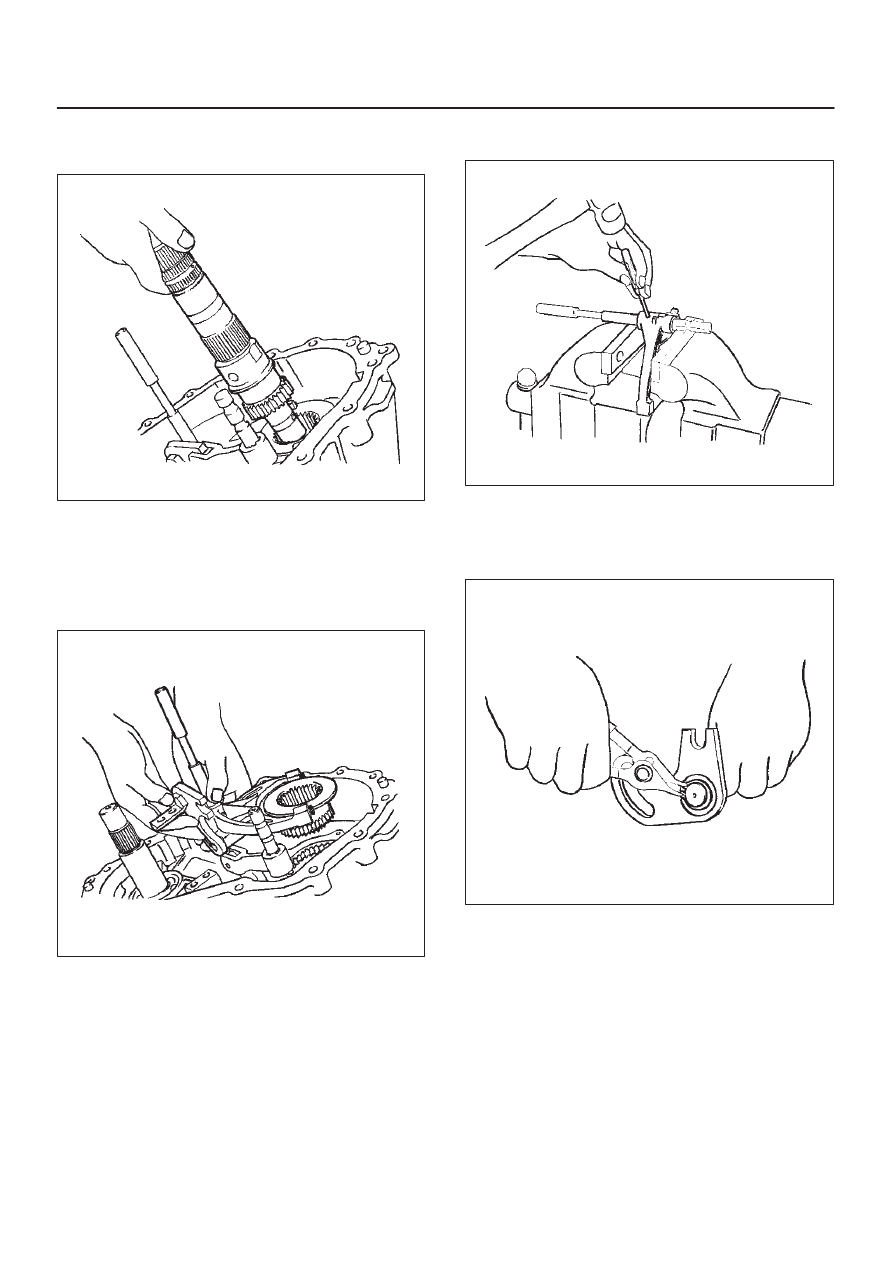

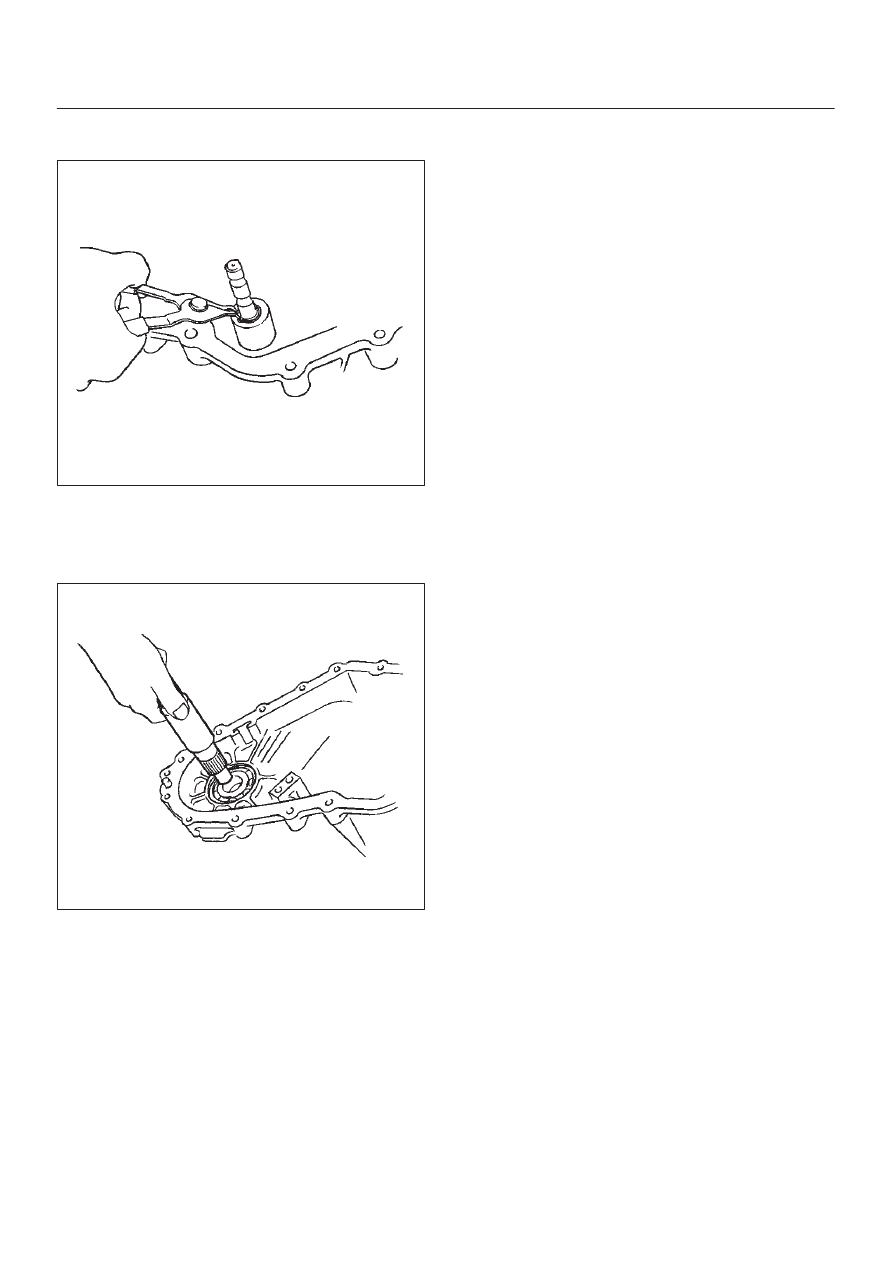

Output Shafts and Shift Control Shaft

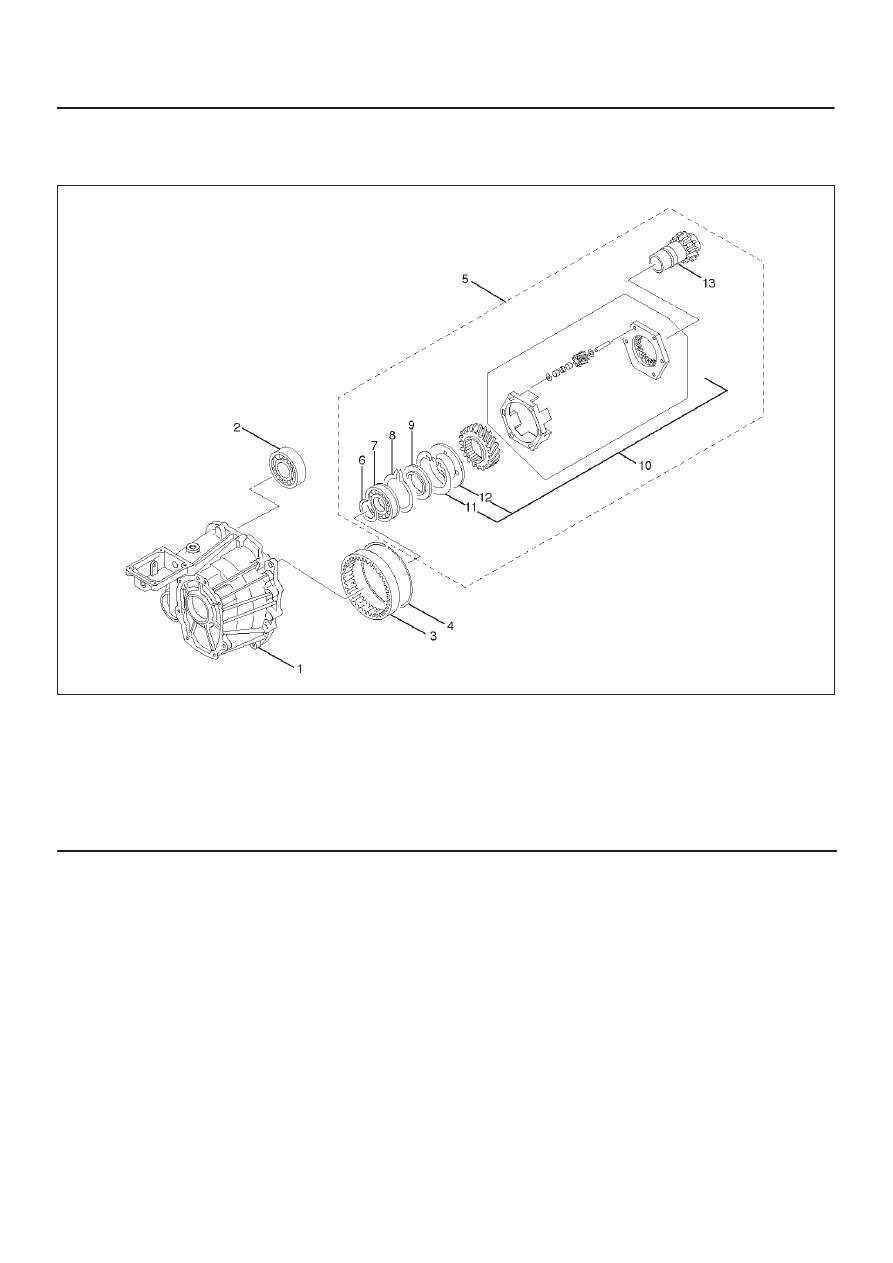

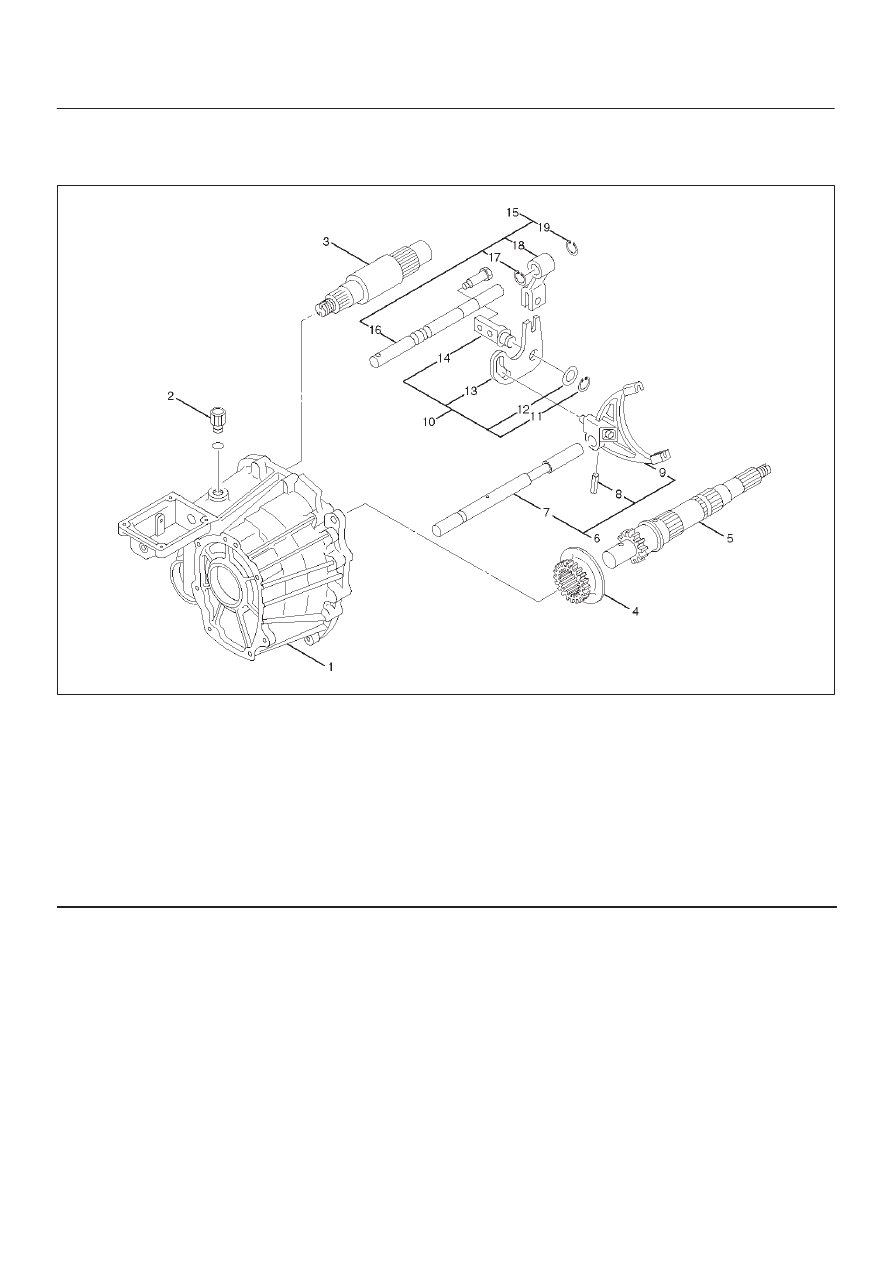

Disassembled View
261RW010–1
Legend
(1) Transfer Case Assembly(2) Detent Spring(3) Front Output Shaft(4) Reduction Hub(5) Output Shaft(6) Reduction Fork Assembly(7) Lock-up Shaft(8) Spring Pin(9) Reduction Fork
(10) Cam Assembly
(11) Snap Ring
(12) Washer(13) Cam(14) Cam Pilot Block(15) Shifter Shaft Assembly(16) Shifter Lever Shaft(17) Snap Ring(18) Reduction Lever Assembly(19) Snap Ring
