Nissan Titan (2019 year). Manual - part 18

LHA4490

Monitor, climate, audio, phone and voice recognition systems

4-37

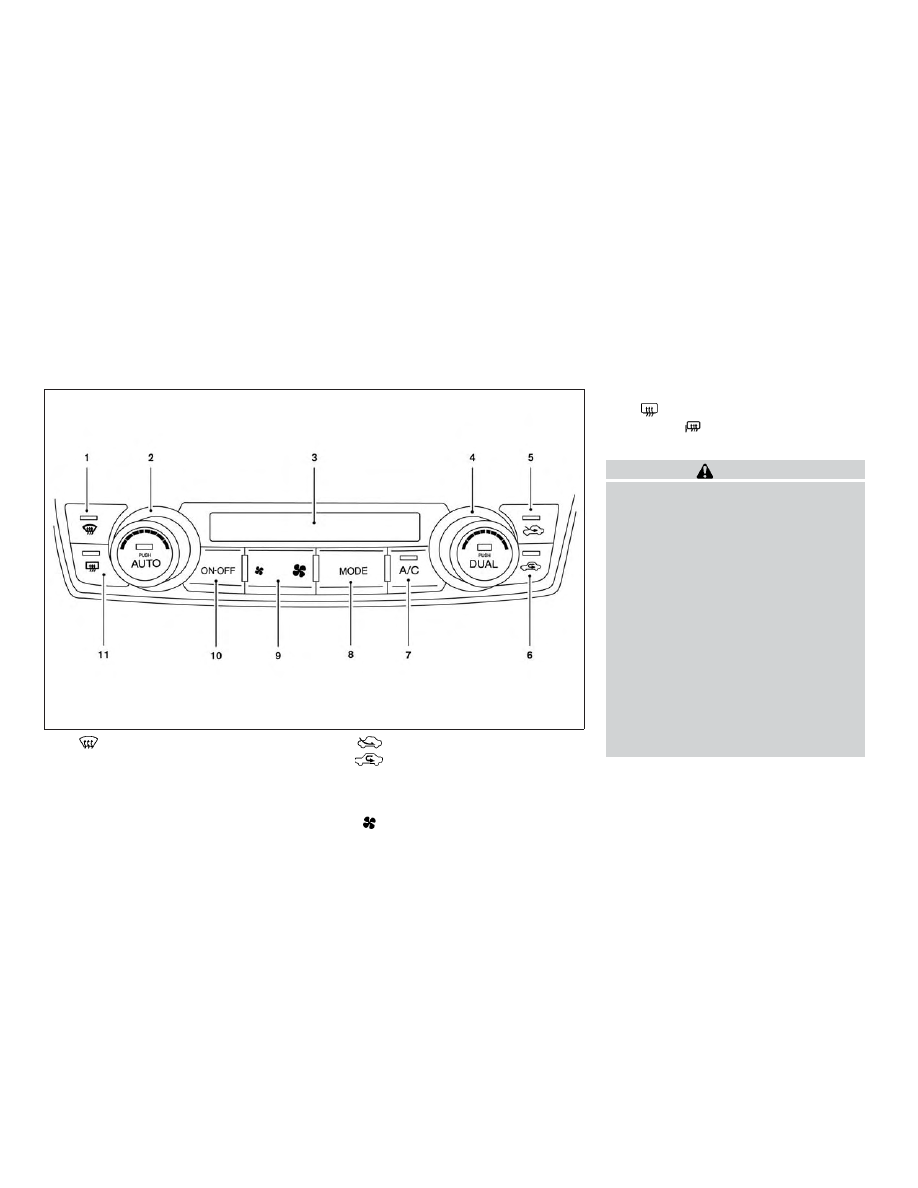

Front defroster button

Temperature control dial (driver’s
side)/AUTO button

Display screen

Temperature control dial (passen-
ger’s side)/DUAL button

Fresh air intake button

Air recirculation button

A/C (air conditioner) button

MODE (manual air flow control)
button

Fan speed control buttons

10.

ON-OFF button

11.

Rear window

and/or

outside mirror (if so

equipped) defroster switch

WARNING

∙ The air conditioner cooling function

operates only when the engine is
running.

∙ Do not leave children or adults who

would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be left alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

∙ Do not use the recirculation mode for

long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up.

LHA3575

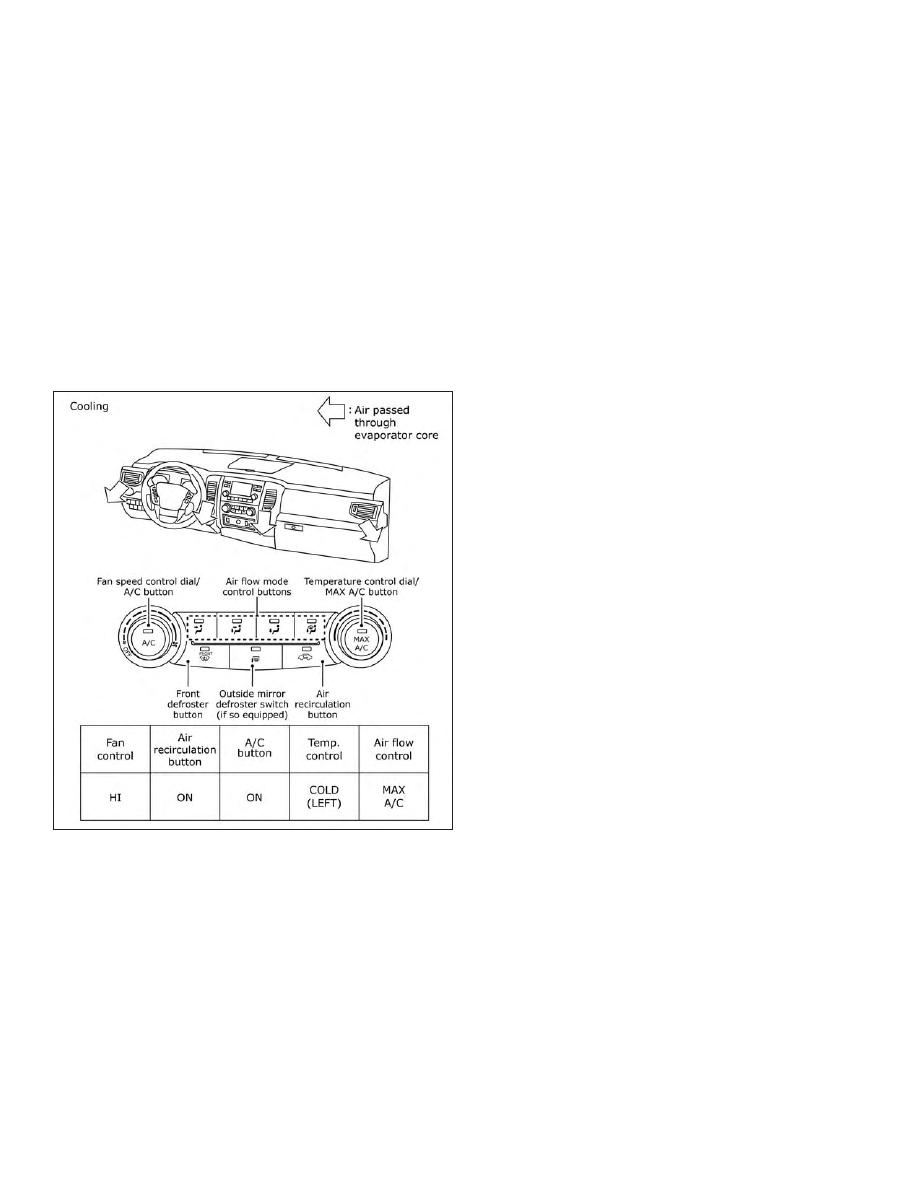

HEATER AND AIR CONDITIONER
(automatic) (if so equipped)

4-38

Monitor, climate, audio, phone and voice recognition systems

NOTE:

∙ Odors from inside and outside the ve-

hicle can build up in the air condi-
tioner unit. Odor can enter the pas-
senger compartment through the
vents.

∙ When parking, set the heater and air

conditioner controls to turn off air re-
circulation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.

AUTOMATIC OPERATION

Cooling or heating (auto)

This mode may be normally used all year
round as the system automatically works
to keep a constant temperature. Air flow
distribution and fan speed are also con-
trolled automatically.

1. Press the AUTO button on.

2. Turn the temperature dial to the left or

right to set the desired temperature.
Driver and passenger temperatures
can be set independently. Press the
DUAL button to activate dual climate
control functions. Turn the passenger’s

side temperature control dial to the left
or right to set the desired passenger’s
temperature.

∙ Adjust the temperature dial to about

75°F (24°C) for normal operation.

∙ The temperature of the passenger

compartment will be maintained auto-
matically. Air flow distribution, fan speed
and A/C on/off are also controlled auto-
matically. The A/C button indicator will
remain in the last user setting. Under
this condition, the indicator light on the
A/C button indicator will not turn on if
the user had not selected the A/C but-
ton off. Turning off the air conditioning
via the A/C button is not allowed in this
mode. If the A/C button indicator was
on when entering this mode, and the
A/C button is selected in this mode, the
A/C button indicator will turn off, but the
A/C compressor will still be automati-
cally enabled. For additional informa-
tion, refer to “Air flow control” in this sec-
tion.
To turn off the compressor, turn off auto
mode, then turn the A/C on then off
until the A/C button indicator is not lit.

∙ A visible mist may be seen coming from

the vents in hot, humid conditions as
the air is cooled rapidly. This does not
indicate a malfunction.

Heating (A/C OFF)

The air conditioner does not activate. When
you need to heat only, use this mode.

1. Press the AUTO button.

2. Turn the temperature control dial to

the left or the right to set the desired
temperature. Driver and passenger
temperatures can be set indepen-
dently. Press the DUAL button to acti-
vate dual climate control functions.
Turn the passenger’s side temperature
control dial to the left or right to set the
desired passenger’s temperature.

∙ The temperature of the passenger

compartment will be maintained auto-
matically. Air flow distribution and fan
speed are also controlled automatically.

∙ Do not set the temperature lower than

the outside air temperature. Otherwise,
the system may not work properly.

∙ Not recommended if windows fog up.

Monitor, climate, audio, phone and voice recognition systems

4-39

Dehumidified defrosting or

defogging

1. Press the

defroster control but-

ton to turn the system on. The indicator
light in the button will illuminate.

2. Turn the temperature dial to the left or

right to set the desired temperature.

∙ To quickly remove ice from the outside

of the windows, press the

fan

speed control button to the maximum
position.

∙ As soon as possible after the wind-

shield is clean, press the AUTO button to
return to the auto mode.

∙ When the

control is activated, the

air conditioner will automatically be
turned on at outside temperatures
above 36°F (2°C). This dehumidifies the
air which helps defog the windshield.
Under this condition, the indicator light
on the A/C button indicator will not turn
on if the user had selected A/C off prior
to entering this mode. Turning off the air
condition via the A/C button is not al-
lowed in this mode. If the A/C button
indicator was on when entering this
mode, and the A/C button is selected in
this mode, the A/C compressor will still
be automatically enabled. The air recir-
culation mode automatically turns off,
allowing outside air to be drawn into the
passenger compartment to further im-
prove the defogging performance.

Remote Engine Start with
Intelligent Climate Control (if so
equipped)

Vehicles equipped with automatic climate
controls and Remote Engine Start function
may go into automatic heating or cooling
mode when Remote Engine Start is acti-
vated depending on outside and cabin
temperatures. During this period, the cli-
mate control display and buttons will be
inoperable until the ignition switch is

turned on. In Remote Engine Start defrost-
ing mode, the rear window defroster and
heated steering wheel (if so equipped) may
be activated automatically.

Voice Recognition logic (if so
equipped)

When the climate control system is on, the
front and rear (if so equipped) fan speeds
may be automatically lowered so that
commands are more easily recognized.
Fan speed can be adjusted using the fan

speed

decrease

and

increase

buttons, if desired.

MANUAL OPERATION

Fan speed control

Press the

fan speed control buttons

to manually control the fan speed.
Press the AUTO button to return to auto-
matic control of the fan speed.

When adjusting the manual fan from auto
mode,

the

outlet

direction

(floor,

floor/defrost, vent, bi-level) will still auto-
matically change. To fix the outlet to a
manual mode, select the desired air flow
location using the MODE button.

4-40

Monitor, climate, audio, phone and voice recognition systems

Temperature control dial

The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right. Temperature can be ad-
justed on the driver’s and passenger’s side.

Air recirculation

Press the

air recirculation button to

recirculate interior air inside the vehicle
when:

∙ driving on a dusty road

∙ to prevent traffic fumes from entering

passenger compartment.

∙ for maximum cooling when using the

air conditioning system.

Press the AUTO button to return to auto-
matic mode.

The air recirculation button will not be acti-
vated when the air conditioner is in
mode.

When the outside temperature exceeds
70°F (21°C), the air conditioning system may
default to air recirculation mode automati-
cally to reduce overall power consumption.
To exit air recirculation mode, select the
fresh air intake button to enter fresh air
mode.
In Floor/Defrost mode, the recirculation
button can be selected to block outside
odors. However, for maximum defogging in
this mode, it is recommended to turn recir-
culation off when possible.

Fresh air intake

Press the

fresh air intake button to

draw outside air into the passenger com-
partment.

Automatic intake air control

In the AUTO mode, the intake air will be
controlled automatically. When the outside
temperature exceeds 70°F (21°C), the air
conditioning system may default to air re-
circulation mode automatically to reduce
overall power consumption. To exit air re-
circulation mode, select the fresh air intake
button to enter fresh air mode. The air re-
circulation indicator will turn off, the fresh
air indicator will turn on.

To manually control the intake air, press
the

fresh air intake button. To return

the

automatic

control

mode

the

fresh air indicator is illuminated,

press and hold the

fresh air intake

button for about 2 seconds. The fresh air
indicator and air recirculation indicator
lights will flash twice, and then the intake air
will be controlled automatically. To return
to

the

automatic

control

mode

the

air recirculation icon is illumi-

nated, press and hold the

air recircu-

lation

button

for

about

seconds.

The

air

recirculation

indicator

and

fresh air intake indicator lights

will flash twice and the intake air will be
controlled automatically.

A/C (air conditioner) button

Start the engine, turn the

fan speed

control buttons to the desired position and
press the

button to turn on the air

conditioner. To turn off the air conditioner,
press the

button again.

The air conditioner cooling function op-
erates only when the engine is running.

Monitor, climate, audio, phone and voice recognition systems

4-41

Air flow control

Press the MODE button to manually control
air flow and select the air outlet.

— Air flows from center and side

vents.

— Air flows from center and side

vents and foot outlets.

— Air flows mainly from foot

outlets.

— Air flows from defroster and

foot outlets.

To turn system off

Press the ON-OFF button.

Rear window and/or outside
mirror (if so equipped) defroster
switch

For additional information, refer to “Rear
window

and/or

outside

mirror

(if

equipped) defroster switch” in the “Instru-
ments and controls” section of this manual.

OPERATING TIPS

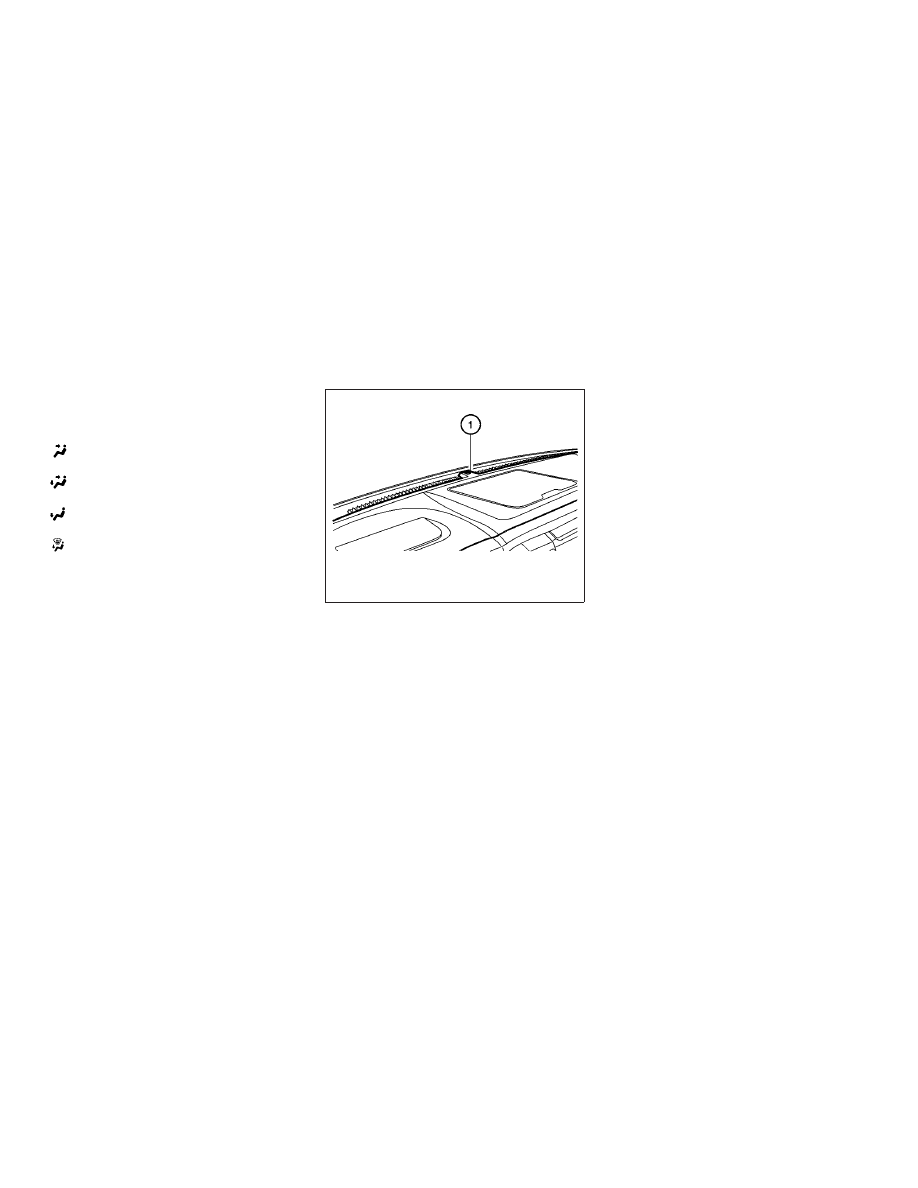

The sunload sensor (if so equipped)

䊊

, lo-

cated on the top center of the instrument
panel, helps the system maintain a con-
stant temperature. Do not put anything on
or around this sensor.

∙ When the climate system is in auto-

matic operation and the engine coolant
temperature and outside air tempera-
ture are low, the air flow outlet may de-
fault to defroster mode for a maximum
of 2 minutes 30 seconds. This is not a
malfunction. After the engine coolant
temperature warms up, the air flow out-
let will return to foot mode and opera-
tion will continue normally.

∙ When the outside and interior cabin

temperatures are moderate to high, the
intake setting may default to turn off air
recirculation to allow fresh air into the
passenger compartment. You may no-
tice air flow from the foot mode, bi-level
mode, or side demist vent outlets for a
maximum of 15 seconds. This may oc-
cur when previous climate setting was
system off. This is not a malfunction.
After the initial warm air is expelled, the
intake will return to automatic control,
air flow outlet will return to previous set-
tings, and operation will continue nor-
mally. To exit, press any climate control
button.

∙ Keep the windows closed while the air

conditioner is in operation.

LHA4126

4-42

Monitor, climate, audio, phone and voice recognition systems

∙ If you feel that the air flow mode you

have selected and the outlets the air is
coming out do not match, select
the

mode.

∙ When you change the air flow mode,

you may feel air flow from the feet vents
for just a moment. This is not a mal-
function.

The air conditioner system in your NISSAN
vehicle is charged with a refrigerant de-
signed with the environment in mind.
This refrigerant does not harm the
earth’s ozone layer.

Special charging equipment and lubricant
is required when servicing your NISSAN air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to
your air conditioner system. For additional
information, refer to “Air conditioner sys-
tem refrigerant and oil recommendations”
in the “Technical and consumer informa-
tion” section of this manual.

It is recommended that you visit a NISSAN
dealer to service your “environmentally
friendly” air conditioner system.

WARNING

The air conditioner system contains re-
frigerant under high pressure. To avoid
personal injury, any air conditioner ser-
vice should be done only by an experi-
enced

technician

with

proper

equipment.

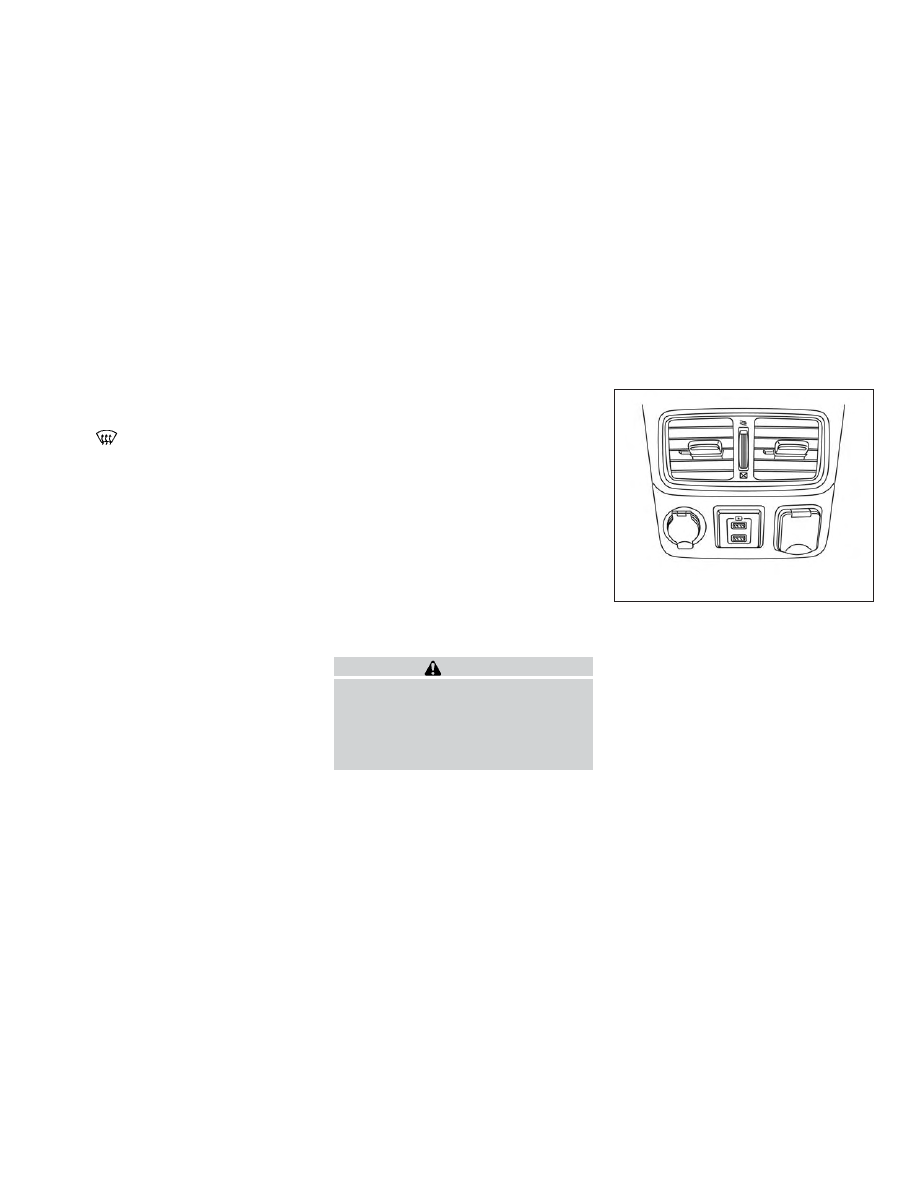

There is a USB/iPod® charging port located
in the 2nd row on the back of the center
console. This port will charge compatible
devices.

NOTE:

The USB/iPod® charging port will not op-
erate the display screen or the Rear Seat
Infotainment (RSI) (if so equipped). Only
the USB connection port located in the
console box will allow operation of
USB/iPod® devices through the audio
system.

2nd row

LHA4864

SERVICING AIR CONDITIONER

USB/iPod® CHARGING PORT

Monitor, climate, audio, phone and voice recognition systems

4-43

The antenna cannot be shortened, but can
be removed. When you need to remove the
antenna, turn the antenna rod counter-
clockwise.

To install the antenna rod, turn the antenna
rod clockwise and hand tighten.

CAUTION

∙ Always properly tighten the antenna

rod during installation or the antenna
rod

may

break

during

vehicle

operation.

∙ Be sure that the antenna is removed

before the vehicle enters an auto-
matic car wash.

WARNING

∙ It is unlawful in most jurisdictions for

a person to drive a motor vehicle
which is equipped with a television
monitor or screen that is visible, di-
rectly or indirectly, to the driver while
operating the vehicle. In the interest
of safety, the unit should never be in-
stalled where it will be directly or indi-
rectly visible, by the operator of the
motor vehicle.

∙ If your vehicle is equipped with a wire-

less rear seat audio system or any
other wireless infrared device, make
sure it is powered off when operating
the RSI system. If both systems are
powered on at the same time, the two
systems may obstruct each other,
possibly creating undesirable audio
interference

through

the

wireless

headphones.

∙ For safety reasons when changing

discs, it is recommended that the ve-
hicle is not in motion, and that you do
not allow children to unfasten safety
belts to change discs or make any ad-
justments to the system. System ad-
justments can be accomplished using
the remote control, while safety belts
remain fastened.

∙ Enjoy your RSI system but remember

that safety of all passengers remains
the number one priority. Devices in-
stalled in the USB, HDMI, or head-
phone jack may protrude and create a
potential eye impact hazard for un-
belted passengers during a vehicle
accident. To reduce the risk of injury,
use only SD cards (hidden on left side
of driver side monitor) or low-profile
USB storage devices.

ANTENNA

REAR SEAT INFOTAINMENT (RSI) (if
so equipped)

4-44

Monitor, climate, audio, phone and voice recognition systems

CAUTION

∙ Do not touch the inner pins of the

jacks on the front panel. Electrostatic
discharge

may

cause

permanent

damage to the device.

∙ The LCD display screen is not touch-

screen. Do not put pressure or add
suction cups on the screen.

∙ Caution children to avoid touching or

scratching the screen, as it may be-
come dirty or damaged.

∙ Be sure to run the vehicle engine while

using the system. Using this system
without running the engine can result
in battery drain. To avoid the risk of
battery drain, please remember to
turn off the system when the vehicle
is not in use.

WELCOME

Thank you for purchasing this advanced
Rear Seat Infotainment (RSI) system with
built-in Wi-Fi and DVD player. Before oper-
ating this system, read this sectionl thor-
oughly and retain it for future reference.

System features

∙ Twin 8-inch Color TFT-LCD Panels with

1024x600 Resolution

∙ Top-load DVD Player (Driver Side Only)

∙ Internal Wi-Fi Network

∙ Bluetooth® 4.1 Audio Streaming

∙ Miracast®/Smart View Capability

∙ SmartStream Content Sharing

∙ USB 2.0 Port, SDXC Card Input

∙ HDMI 1.4 Input with MHL 2.0 Support

∙ Exclusive Slingplayer® Application

∙ 3.5mm Stereo Headphone Output

∙ Front Panel Capacitive Touch Controls

∙ Infrared Wireless Headphones

∙ Full-Function Slimline Remote Control

∙ Monitor Screen Sharing

GETTING STARTED

Turning the monitor on or off

1. Press the

button on the top of the

monitor or the remote control to turn
the monitor on or off. When in use, the
front panel controls will illuminate.

2. After the monitor has been turned on

and

displaying

picture,

the

up/down viewing angle can be ad-
justed to optimize the picture quality.

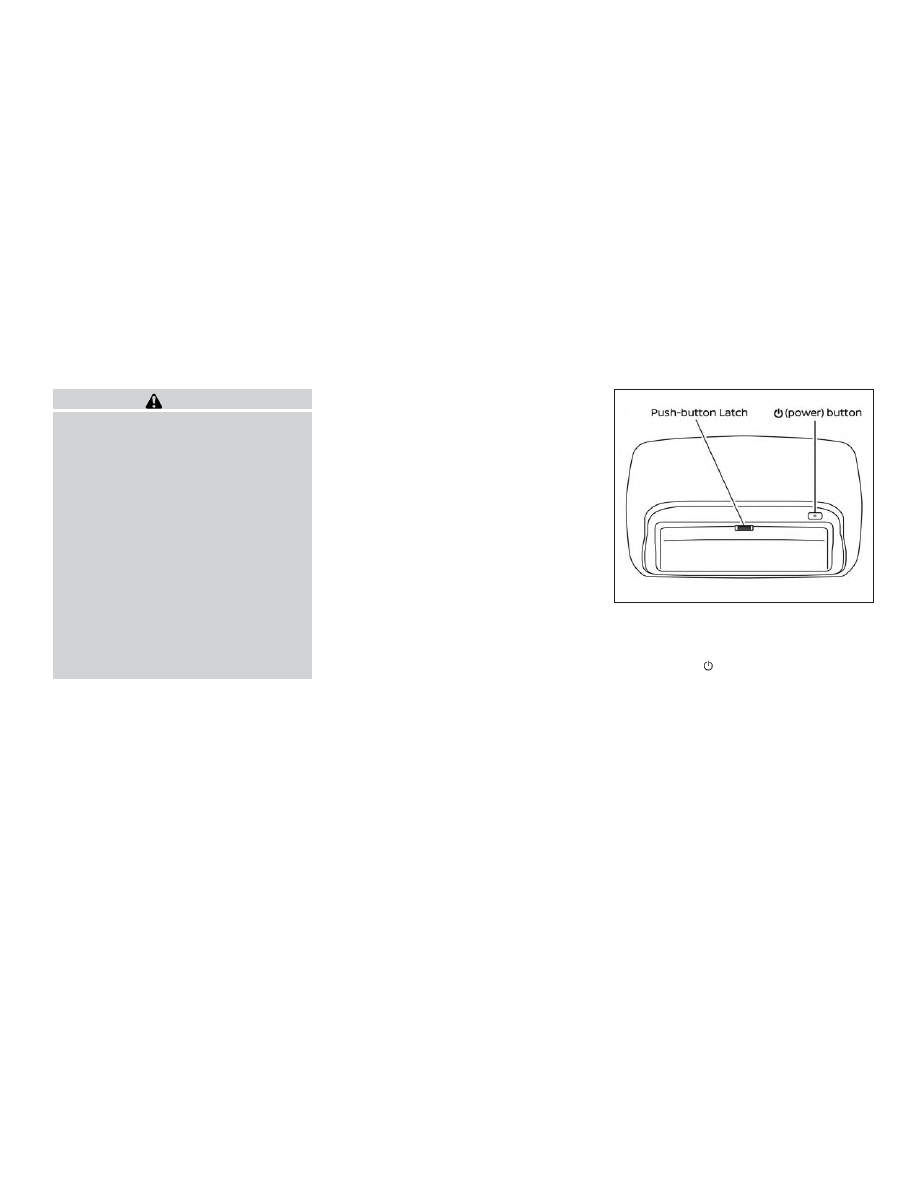

Press the push-button latch located on
the top of the monitor to pivot the
screen.

LHA4871

Monitor, climate, audio, phone and voice recognition systems

4-45

Power up tips

1. After the ignition is turned on, there is a

second

delay

before

the

monitor

(power) button is oper-

able.

2. On some vehicles after the ignition is

turned off, the system will continue to
work for 10 minutes, or until the driver’s
door is opened.

3. Remember to turn the monitor off and

pivot the screen to the locked (latched)
position when not in use.

Audio options

Wireless headphones

Each monitor includes a built-in dual chan-
nel infrared transmitter for use with wire-
less

headphones. The

wireless

head-

phones must be used within a line of sight
from the transmitter as infrared signals, like
visible light, travel only in a straight line.

How to use the wireless headphones

When placing the headphones on your
head, make sure to observe the left and
right orientation. The headphones must be
oriented correctly (facing forward) to re-
ceive

the

audio

signal.

Press

the

(power) button on the head-

phones, then select channel “A” to listen to
monitor A, or channel “B” to listen to moni-
tor B. Adjust the audio level using the vol-
ume control on each headphone.

Wired headphones

There is a 3.5mm stereo headphone out-
put on each monitor which can be used
with most standard stereo headphones
(wired headphones sold separately).

Bluetooth® streaming audio

To listen to audio throughout the entire ve-
hicle, the system includes the ability to
stream audio over a Bluetooth® connec-
tion to the vehicle’s stereo system.

When monitor A is selected as the source
to stream from, the audio output to the
wireless and wired headphones will be dis-
abled (only on monitor A). To use the wire-
less or wired headphones with monitor A,
you must turn off the Bluetooth® stream-
ing feature. To enable/disable Bluetooth®
streaming, navigate to the “SETTINGS”
menu, or press

on the remote control

during content playback. For additional in-
formation, refer to “Settings” in this section.

Notes on discs

∙ To keep a disc clean, do not touch its

surface. Handle the disc by its edge.

∙ Keep your discs in their cases or sleeves

when not in use. Also, do not subject
disc to heat/high temperature. Avoid
leaving them in a parked vehicle or on a
dashboard/rear tray.

∙ Do not attach labels, or use discs with

sticky ink/residue. The following mal-
functions may result from using such
discs:

LHA4873

4-46

Monitor, climate, audio, phone and voice recognition systems

∙ Inability to eject a disc due to a label

or sticker peeling off and jamming
the disc mechanism.

∙ Inability to read audio data correctly

(i.e., playback skipping, or no play-
back) due to heat shrinking of a
sticker or label causing a disc to
warp.

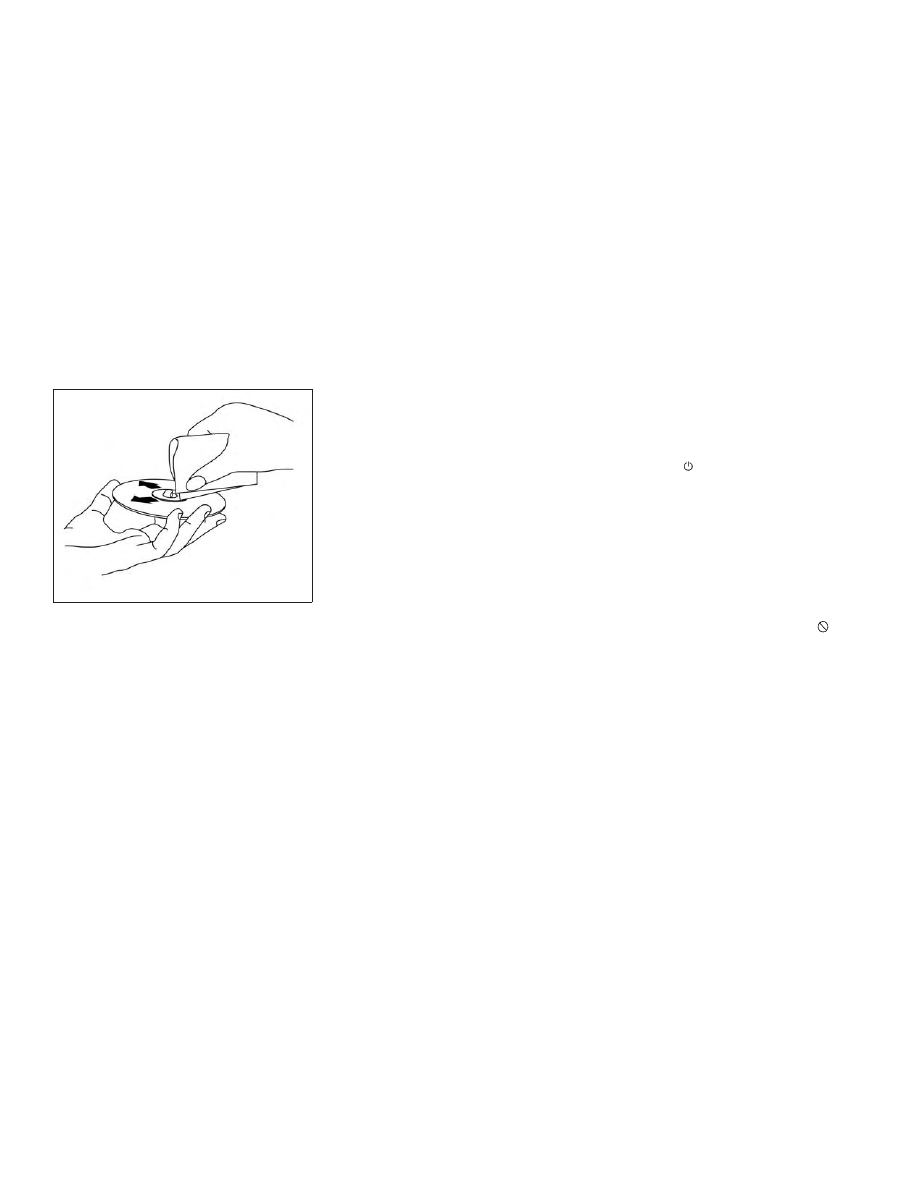

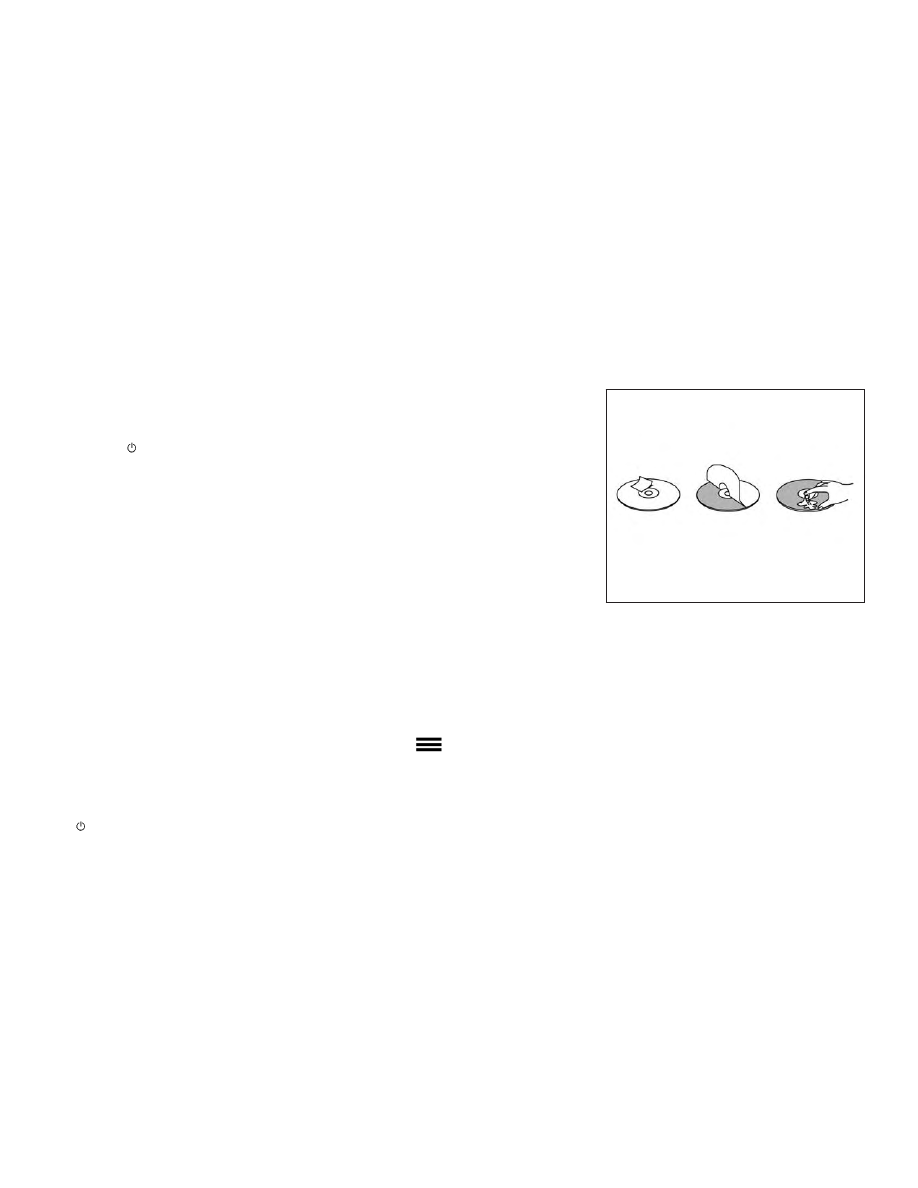

∙ Before playing, clean the discs with a

commercially available cleaning cloth.
Wipe each disc from the center out. Do
not use solvents such as benzene, thin-
ner, commercially available cleaners, or
antistatic spray intended for analog
discs.

∙ Use only normal, circular discs. If you

insert

irregular,

non-round,

shaped

discs they may jam in the DVD player or
not play properly.

Region coding

DVD players and discs are coded by region.
These regional codes must match in order
for the disc to play. The system is preset to
the region code designated for your area
by the DVD Copy Control Association. Other
regions may not be played in this system.

Supported disc types

DVD-Video: DVD contains video
DVD +/- R: DVD contains video
CD-DA: CD contains audio
CD-Video: CD contains video
CD-R/RW: CD contains audio

Unsupported disc types

Super Audio CD
Optical disc CD-1
CD-ROM
DVD-ROM
DVD-RAM
DualDisc
DIVX
MiniDisc

AVCHD
HD DVD
Blu-ray

Loading and playing discs

Press the

(power) button to turn the

monitor on. Insert the disc about halfway
into the disc compartment slot on the driv-
er’s side monitor, with the disc’s label facing
the rear of the vehicle. Do NOT insert the
disc at an angle. The disc must be inserted
straight into the player.
The disc will load automatically and begin
to play. Some discs may start at the root
menu, where playback must be selected to
start a movie. Depending on the disc and
playback location on the disc, a “

” icon

may be displayed in the upper-left corner
of the screen indicating that playback is
not possible during certain times.
DVD playback will automatically play on
each monitor if there is no content already
playing. You may also select “DVD” from the
source menu to begin DVD playback mode.

LHA4874

Monitor, climate, audio, phone and voice recognition systems

4-47

Media compatibility

For a list of compatible media formats for
this system, refer to “Storage device for-
matting” in this section.

∙ The metadata or file information of

some audio and video files may not be
correctly displayed.

∙ It is not possible to play content that is

protected by DRM (Digital Rights Man-
agement).

∙ There may be a delay before playback

begins when using USB flash drives or
SD cards with complex folder hierar-
chies or many files.

∙ Some audio, video, and image files may

be incompatible with this system due
to file characteristics, file format, record-
ing software used, directory structure,
and/or the type of audio/video encod-
ing used.

Storage device formatting

This system is compatible with several
types of formatting for USB flash drives and
SD cards. Refer to the documentation that
comes with your storage device for more
details on how to format.

FAT32 - USB and SDHC
Good for smaller capacity storage devices,
but individual files on the drive must be
<4GB. This format is good for music and
images.

EX-FAT - USB and SDXC
Better choice for larger capacity storage
devices with files that are >4GB. This format
is better for larger files such as full-length
movies.

NTFS - USB and SDXC
Best choice for very large capacity storage
devices - with no limitations on file size. This
format can be used for all file sizes.

4-48

Monitor, climate, audio, phone and voice recognition systems

Supported Formats

Format

Extension

Supported Variations/Codecs

VIDEO

ASF

.wmv

H.263, H.264, MPEG-2 Part 2, WMV

AVI

.avi

H.263, H.264, MPEG-2 Part 2, Xvid, WMV

MP4

.mp4, .m4v

H.263, H.264, MPEG-2 Part 2, MPEG-4 Part 2

Matroska

.mkv

H.263, H.264, MPEG-2 Part 2, MPEG-4 Part 2, WMV

MPEG

.mpg, .mpeg, .vob

H.264, MPEG-2 Part 2, MPEG-4 Part 2

AUDIO

AAC

.m4a, .aac

ASF

.wma

WMA, WMA Lossless, WMA Voice, WMA Pro

FLAC

.flac

FLAC 1.2.1

Matroska

.mka

MPEG

.mp1, .mp2, .mp3

MPEG-1 Audio Layer 1, 2, 3, MPEG-2/2.5 Audio Layer 1, 2, 3

OGG

.ogg

WAV

.wav


BMP

.bmp

GIF

.gif

JPEG

.jpg, .jpeg

PNG

.png

TIFF

.tiff, .tif

WebP

.webp

Video Profiles Supported:
ASF: WMV7, WMV8, WMV9; H.264:Baseline, Main, Extended, High MPEG-2 Part 2:Simple, Main, High;

MPEG-4 Part 2:Simple, Advanced Simple Profile, Xvid

Monitor, climate, audio, phone and voice recognition systems

4-49

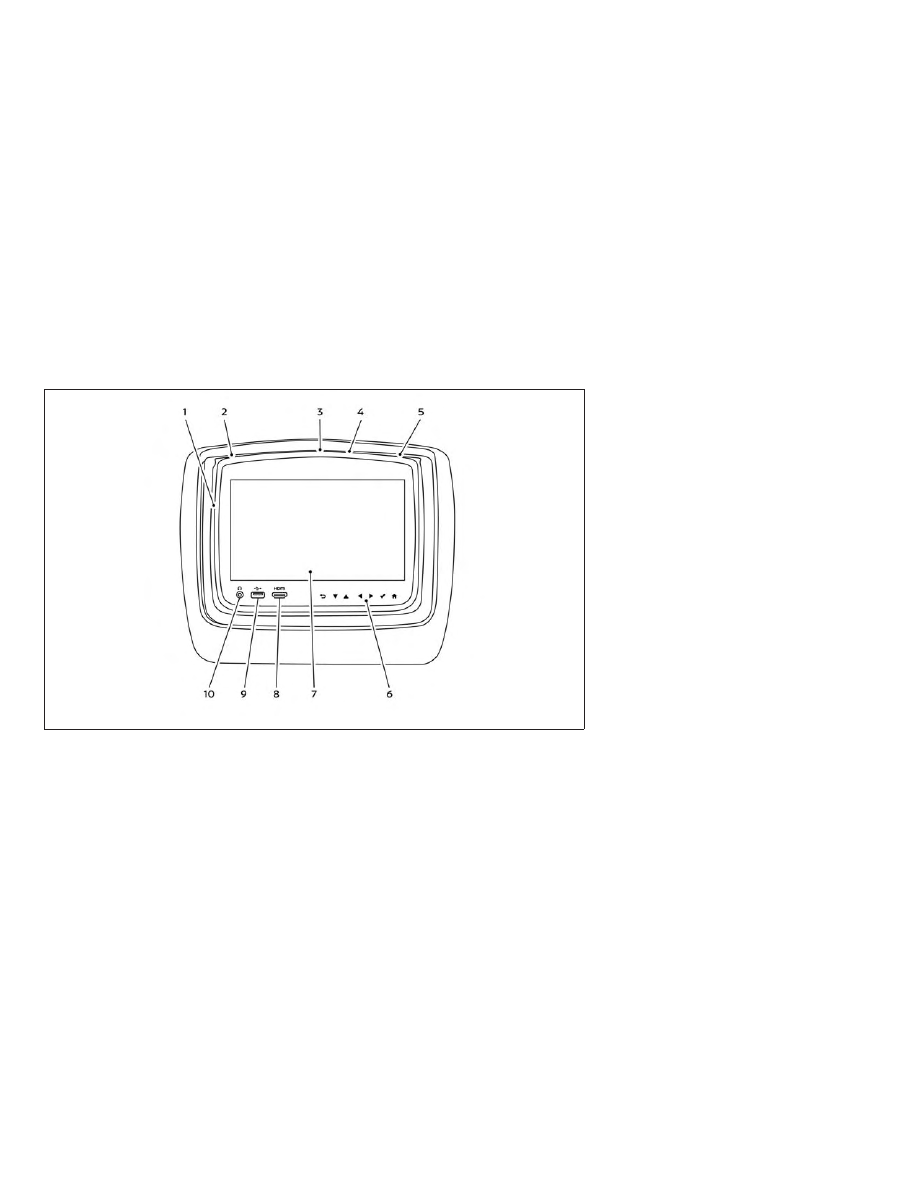

Monitor A (Drivers Side) With DVD

LHA4875

4-50

Monitor, climate, audio, phone and voice recognition systems

CONTROL DESCRIPTION

1. Screen latch

Press the push-button latch located on
the top of the monitor to pivot the
screen. Remember to turn the monitor

off and pivot the screen to the locked
(latched) position when not in use.

2. Eject

Press this button to eject a disc.

3. SD Card Slot

Play videos, music, and images stored
on most SD cards. The full-size SD card
slot is accessible on the left side of the
monitor when the screen is in the open
position.

4. Monitor screen display

Includes an 8-inch TFT Liquid Crystal
Display with 1024 x 600 resolution.

5. Headphone output jack

Connect wired headphones using a
3.5mm stereo connector.

6. USB 2.0 port

Play videos, music, and images stored
on most USB devices. Provides up to
2 amps of output to charge most mo-
bile devices.

7. HDMI port

Connect

external

audio/video

source using a full-size HDMI connector.
Supports MHL 2.0 playback and charg-
ing.

8. Front panel controls

Capacitive-touch buttons provide user
interface navigation, Select, Back, and
Home functions.

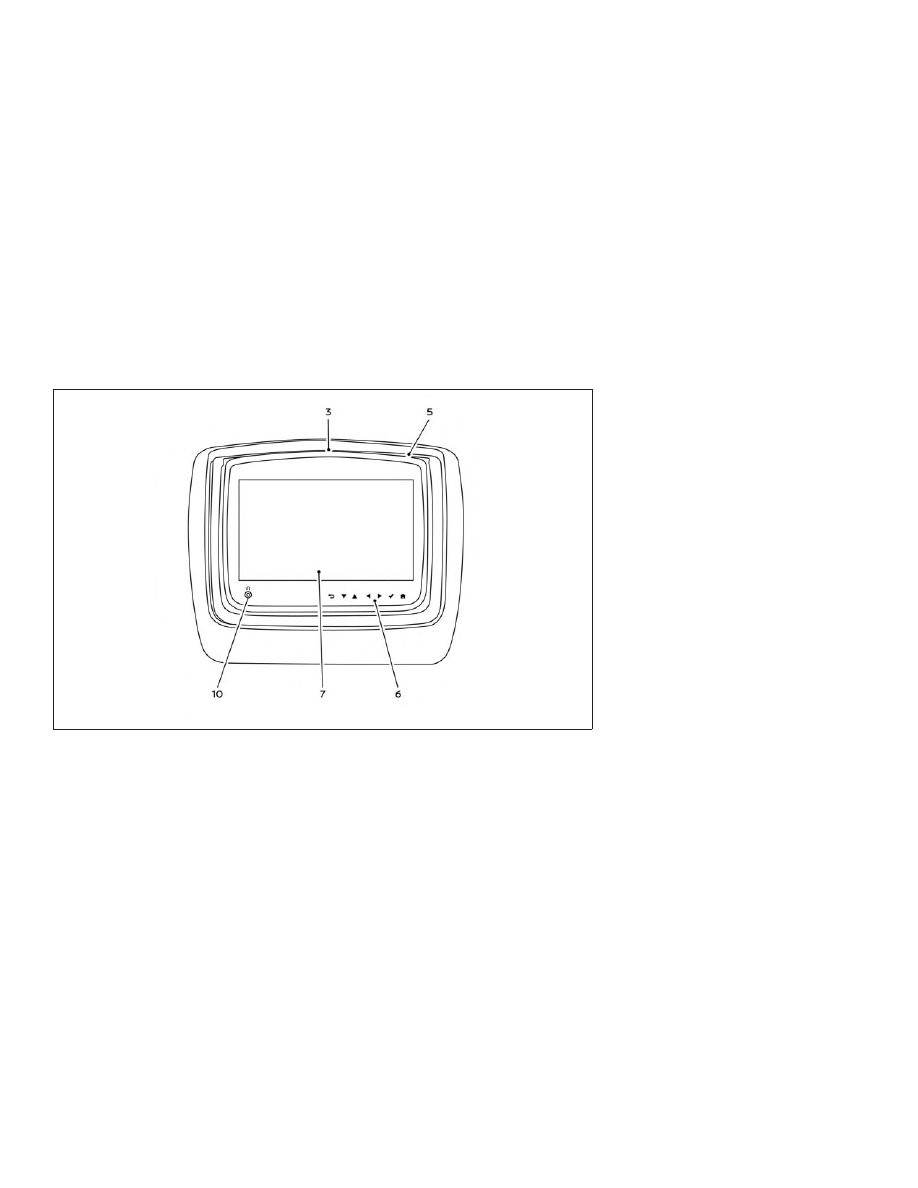

Monitor B (Passenger’s Side) Without DVD

LHA4876

Monitor, climate, audio, phone and voice recognition systems

4-51

9. Power (Monitor A)

Press this button to turn the monitor
on. Press again to turn the monitor off.
Press and hold for 6 seconds to reset
the system (Monitor A only)

Power (Monitor B)
Press this button to turn the monitor
on. Press again to turn the monitor off.

10. Disc slot

Play DVDs and CDs using standard size
DVD or CD discs.

CAUTION

∙ Do not use any harsh solvents or

chemicals when cleaning the monitor.

∙ Do not use any abrasive cleaners that

may scratch the screen. Use only a
lightly dampened lint free cloth to
wipe the screen if it is dirty.

∙ The LCD display screen is not touch-

screen. Do not put pressure or add
suction cups on the screen.

∙ Caution children to avoid touching or

scratching the screen, as it may be-
come dirty or damaged.

∙ Place the monitor in the fully closed

position when not in use.

REMOTE CONTROL OPERATION

Before use

Before attempting to operate your remote
control, turn the remote control face down
and remove the battery insulator by pulling
the clear plastic tab away from the remote
control.

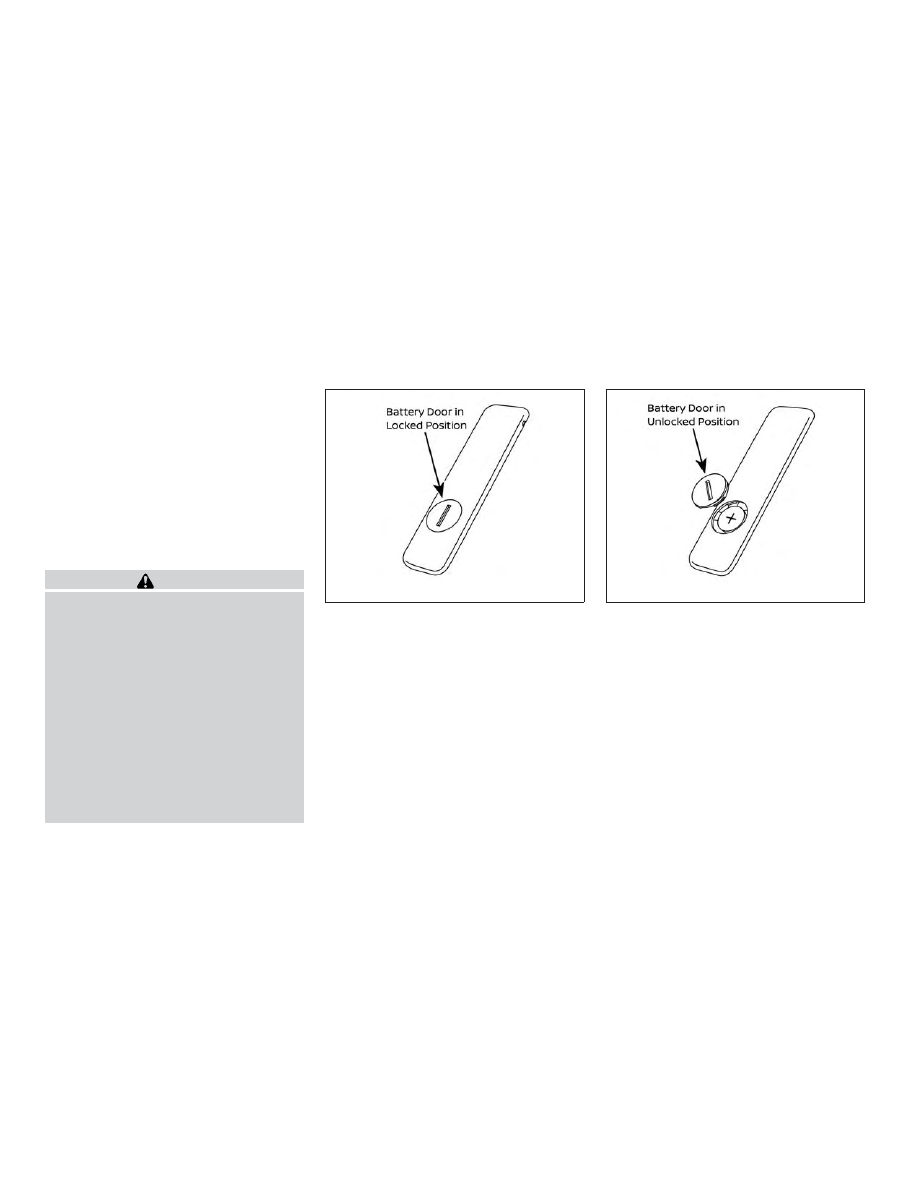

Replacing the battery

1. Turn the remote control face down. Use

a coin to turn the battery cover
counter-clockwise and remove it.

2. Replace the battery with a CR2032 or

equivalent. Make sure that proper po-
larity is observed. The positive (+) side of
the battery should face upwards.

3. Place the cover back into position and

turn it clockwise until it locks into place.

The remote control will only operate this
device. It is not a universal remote control
and will not control other equipment.

LHA4877

LHA4878

4-52

Monitor, climate, audio, phone and voice recognition systems

Content .. 16 17 18 19 ..
