Nissan Titan (2019 year). Manual - part 16

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line

䊊

are dis-

played on the monitor.

Distance guide lines

Indicate distances from the vehicle body.

∙ Red line

䊊

: approx. 1.5 ft (0.5 m)

∙ Yellow line

䊊

: approx. 3 ft (1 m)

∙ Green line

䊊

: approx. 7 ft (2 m)

Vehicle width guide lines

䊊

Indicate the vehicle width when backing
up.

Predicted course lines

䊊

Indicate the predicted course when back-
ing up. The predicted course lines will be
displayed on the monitor when the shift
lever is in the R (Reverse) position and the
steering wheel is turned. The predicted
course lines will move depending on how
much the steering wheel is turned and will
not be displayed while the steering wheel is
in the straight-ahead position.

The vehicle width guide lines and the width
of the predicted course lines are wider than
the actual width and course.

Center guide lines

䊊

Indicates the vehicle’s center to improve
trailer hitching guidance.

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

The displayed guidelines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or downhill
surfaces or projecting objects will be actu-
ally located at distances different from
those displayed in the monitor relative to
the guidelines (refer to illustrations). When
in doubt, turn around and view the objects
as you are backing up, or park and exit the
vehicle to view the positioning of objects
behind the vehicle.

LHA4980

Monitor, climate, audio, phone and voice recognition systems

4-5

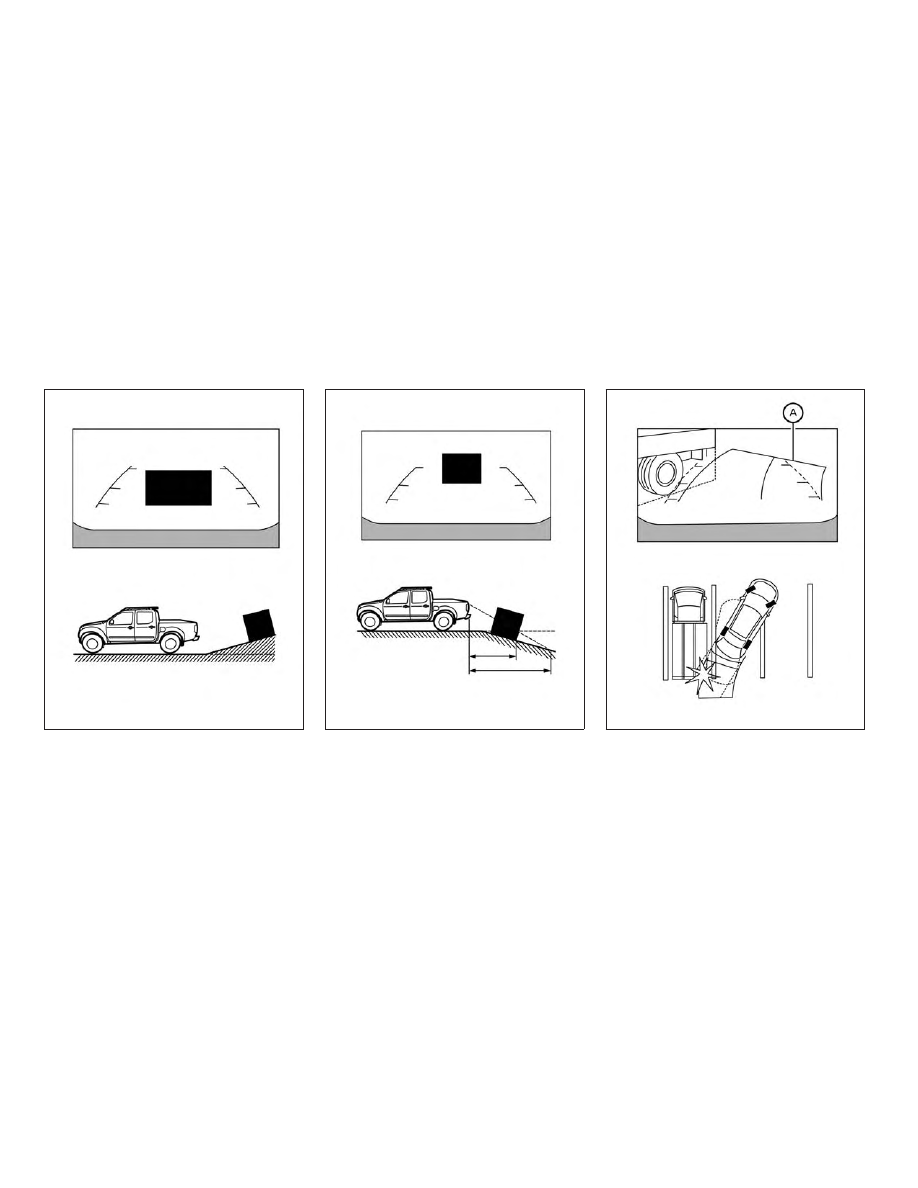

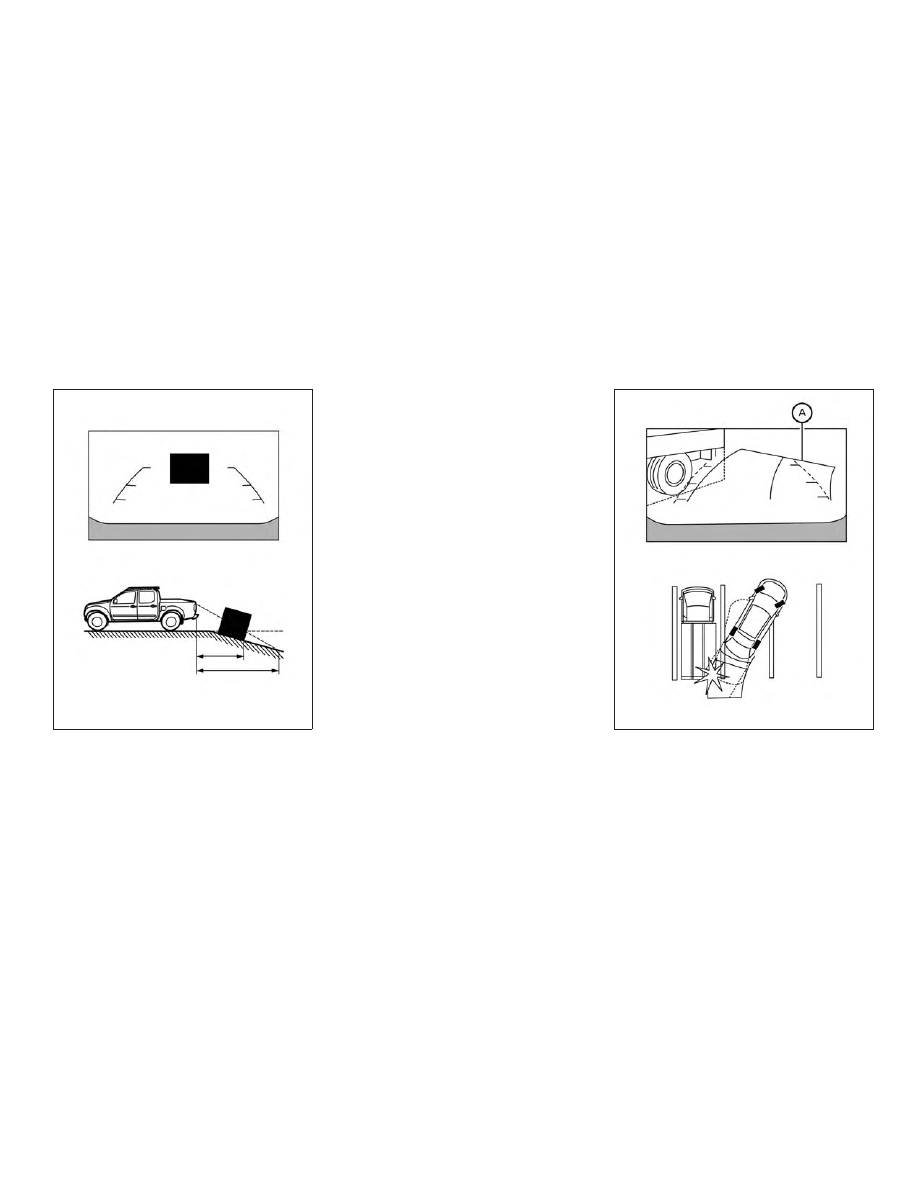

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.

Backing up near a projecting
object

The vehicle may seem to nearly clear the
object in the display. However, the vehicle
may hit the object if it projects over the
actual backing up course.

LHA4981

LHA4982

LHA4983

4-6

Monitor, climate, audio, phone and voice recognition systems

Backing up behind a projecting
object

The position

䊊

is shown farther than the

position

䊊

in the display. However, the po-

sition

䊊

is actually at the same distance as

the position

䊊

. The vehicle may hit the

object when backing up to the position

䊊

if the object projects over the actual back-
ing up course.

HOW TO PARK WITH PREDICTED
COURSE LINES

WARNING

∙ If the tires are replaced with different

sized tires, the predicted course lines
may be displayed incorrectly.

∙ On a snow-covered or slippery road,

there may be a difference between
the predicted course line and the ac-
tual course line.

∙ If the battery is disconnected or be-

comes

discharged,

the

predicted

course lines may be displayed incor-
rectly. If this occurs, please perform
the following procedures:

– Turn the steering wheel from lock

to lock while the engine is running.

– Drive the vehicle on a straight road

for more than 5 minutes.

∙ When the steering wheel is turned

with the ignition switch in the ACC po-
sition, the predicted course lines may
be displayed incorrectly.

1. Visually check that the parking space is

safe before parking your vehicle.

2. The rear view of the vehicle is displayed

on the screen

䊊

when the shift lever is

moved to the R (Reverse) position.

LHA4984

LHA4986

Monitor, climate, audio, phone and voice recognition systems

4-7

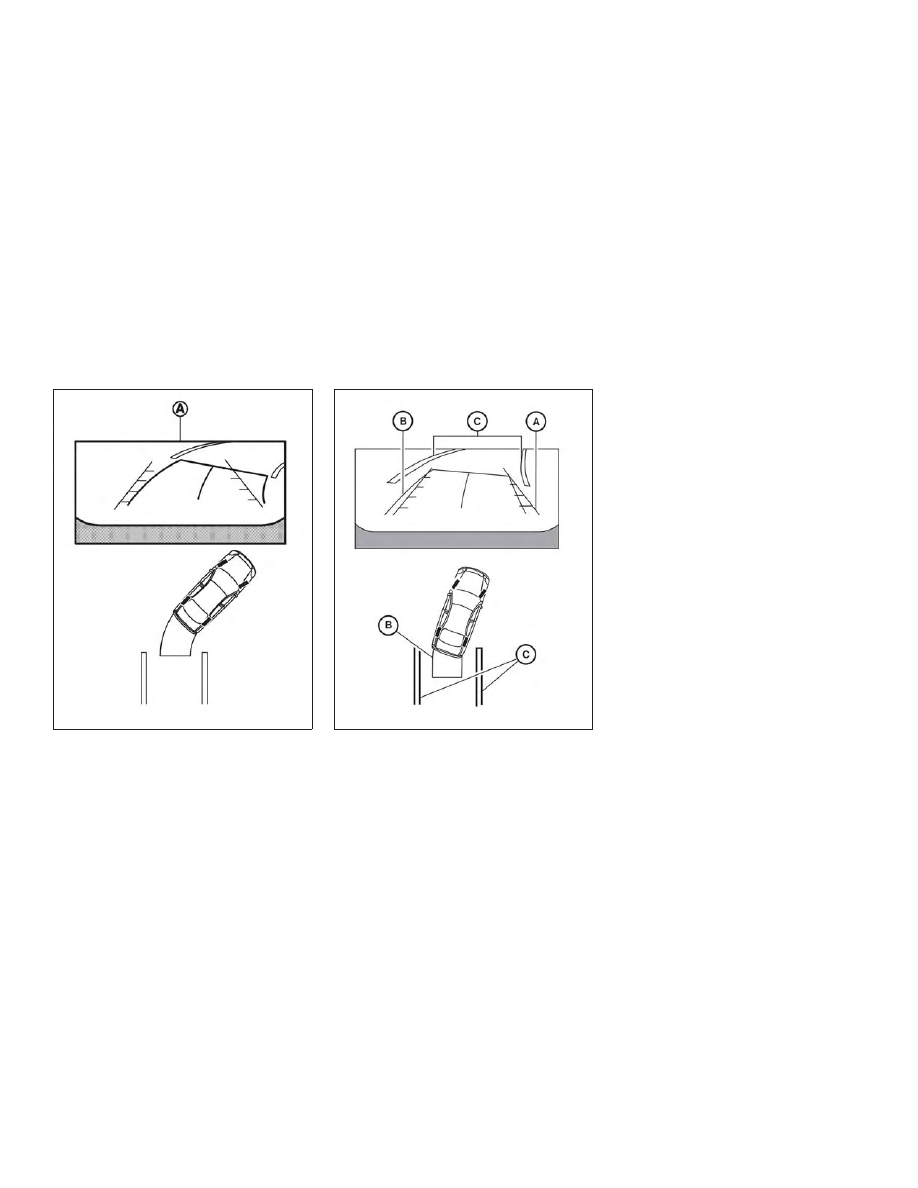

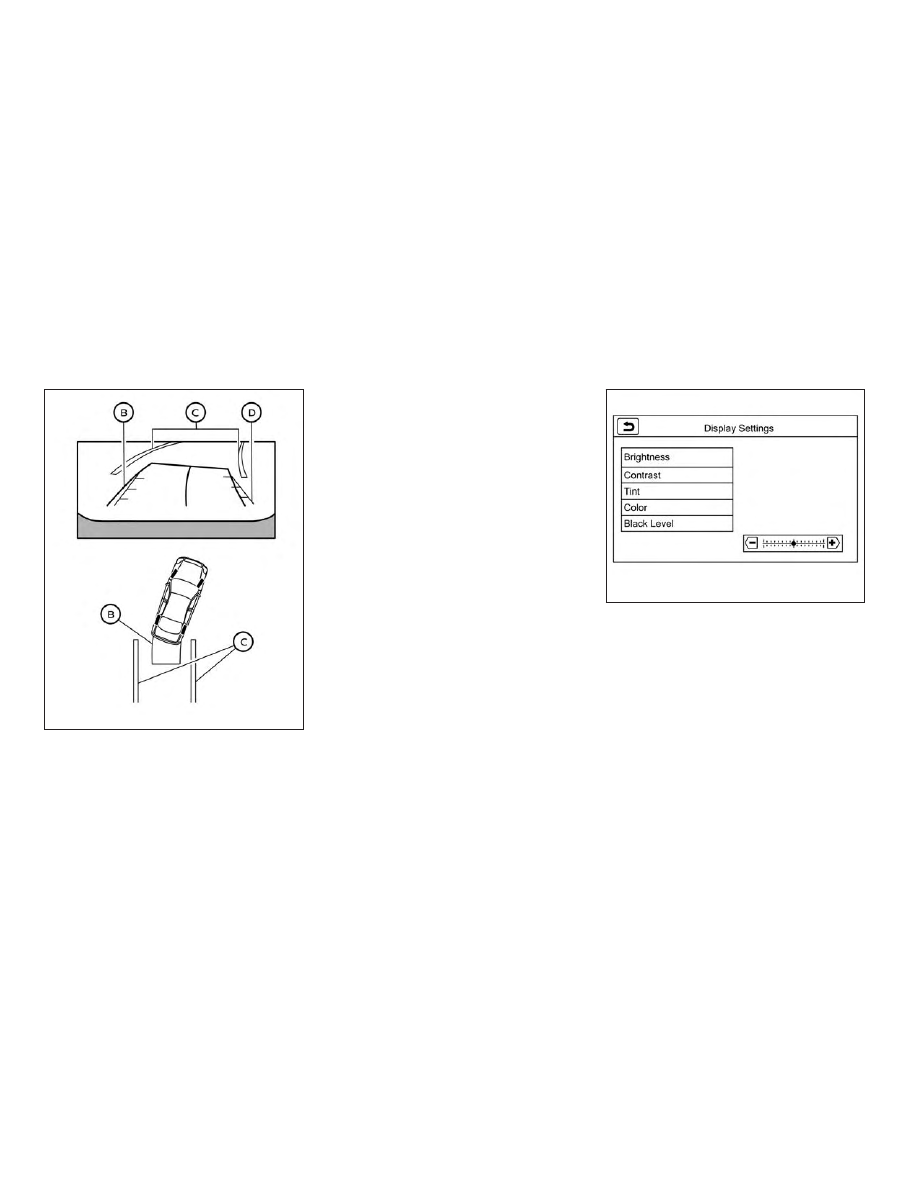

3. Slowly back up the vehicle adjusting

the steering wheel so that the pre-
dicted course lines

䊊

enter the park-

ing space

䊊

4. Maneuver the steering wheel to make

the vehicle width guide lines

䊊

parallel

to the parking space

䊊

while referring

to the predicted course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the
P (Park) position and apply the parking
brake.

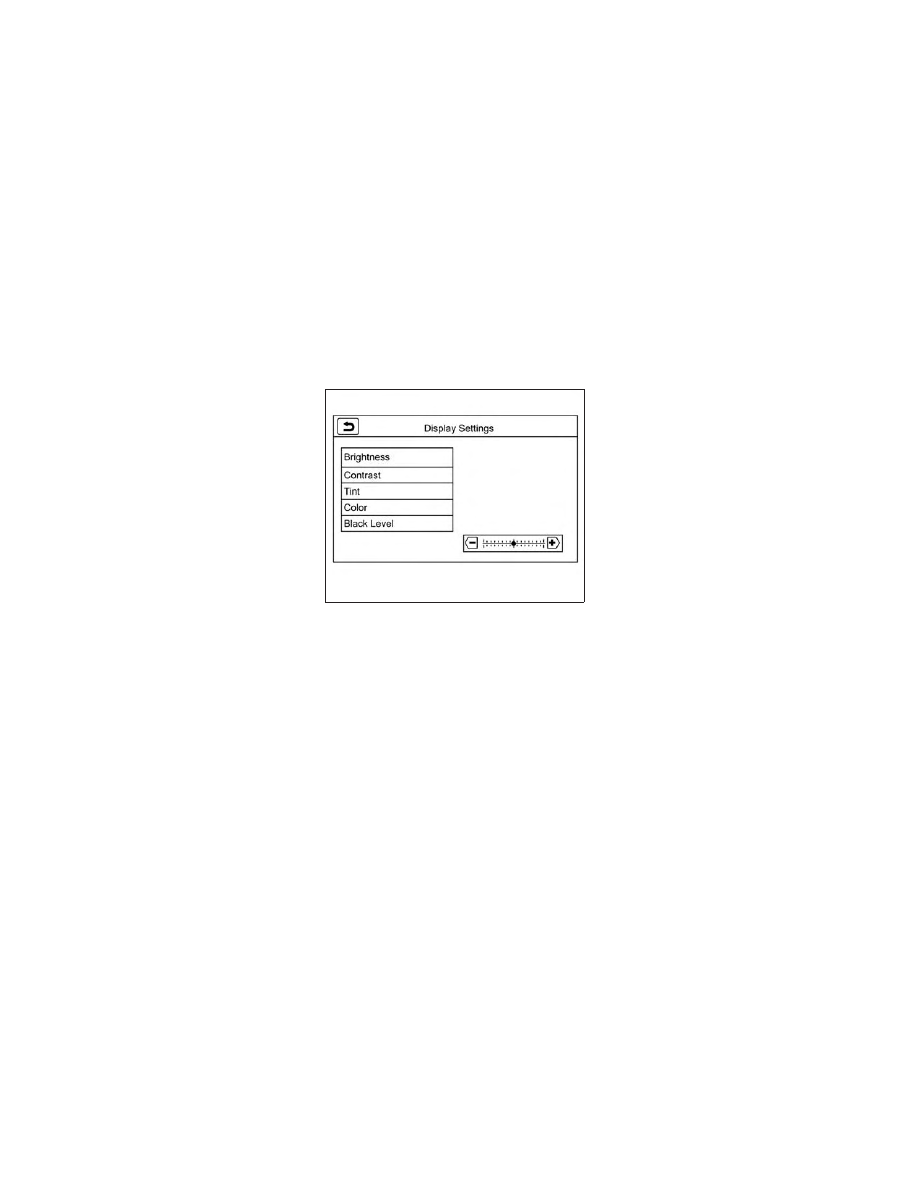

ADJUSTING THE SCREEN

1. Press the CAMERA button.

2. Touch the “Display Settings” key.

3. Touch the “Brightness”, “Contrast”, Tint”,

“Color”, or “Black Level” key.

4. Adjust the item by touching the “+” or “–”

key on the touch-screen display.

NOTE:

Do not adjust any of the display settings
of the RearView Monitor while the ve-
hicle is moving.

LHA4987

LHA3522

4-8

Monitor, climate, audio, phone and voice recognition systems

HOW TO TURN ON AND OFF
PREDICTED COURSE LINES

To toggle ON and OFF the predicted course
lines while in the P (Park) position:

1. Press the CAMERA button.

2. Touch the “Predicted Course Lines” key

to turn the feature ON or OFF.

To toggle ON and OFF the predicted course
lines or center guide line while in the R (Re-
verse) position, press the CAMERA button.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ The system cannot completely elimi-

nate blind spots and may not show
every object.

∙ Underneath the bumper and the cor-

ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.

∙ Objects viewed in the RearView Moni-

tor differ from actual distance be-
cause a wide-angle lens is used.

∙ Objects in the RearView Monitor will

appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.

∙ Use the displayed lines as a reference.

The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.

∙ Make sure that the tailgate is securely

closed when backing up.

∙ Do not put anything on the rearview

camera. The rearview camera is in-
stalled on the tailgate.

∙ When washing the vehicle with high

pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.

∙ Do not strike the camera. It is a preci-

sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.

The following are operating limitations and
do not represent a system malfunction:

∙ When the temperature is extremely

high or low, the screen may not clearly
display objects.

∙ When strong light directly shines on the

camera, objects may not be displayed
clearly.

∙ Vertical lines may be seen in objects on

the screen. This is due to strong re-
flected light from the bumper.

∙ The screen may flicker under fluores-

cent light.

∙ The colors of objects on the RearView

Monitor may differ somewhat from the
actual color of objects.

Monitor, climate, audio, phone and voice recognition systems

4-9

∙ Objects on the monitor may not be

clear in a dark environment.

∙ There may be a delay when switching

between views.

∙ If dirt, rain or snow accumulate on the

camera, RearView Monitor may not dis-
play objects clearly. Clean the camera.

∙ Do not use wax on the camera lens.

Wipe off any wax with a clean cloth
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.

SYSTEM MAINTENANCE

CAUTION

∙ Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

∙ Do not damage the camera as the

monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on the
camera

䊊

, the RearView Monitor may not

display objects clearly. Clean the camera
by wiping it with a cloth dampened with a
diluted mild cleaning agent and then wip-
ing it with a dry cloth.

LHA3671

4-10

Monitor, climate, audio, phone and voice recognition systems

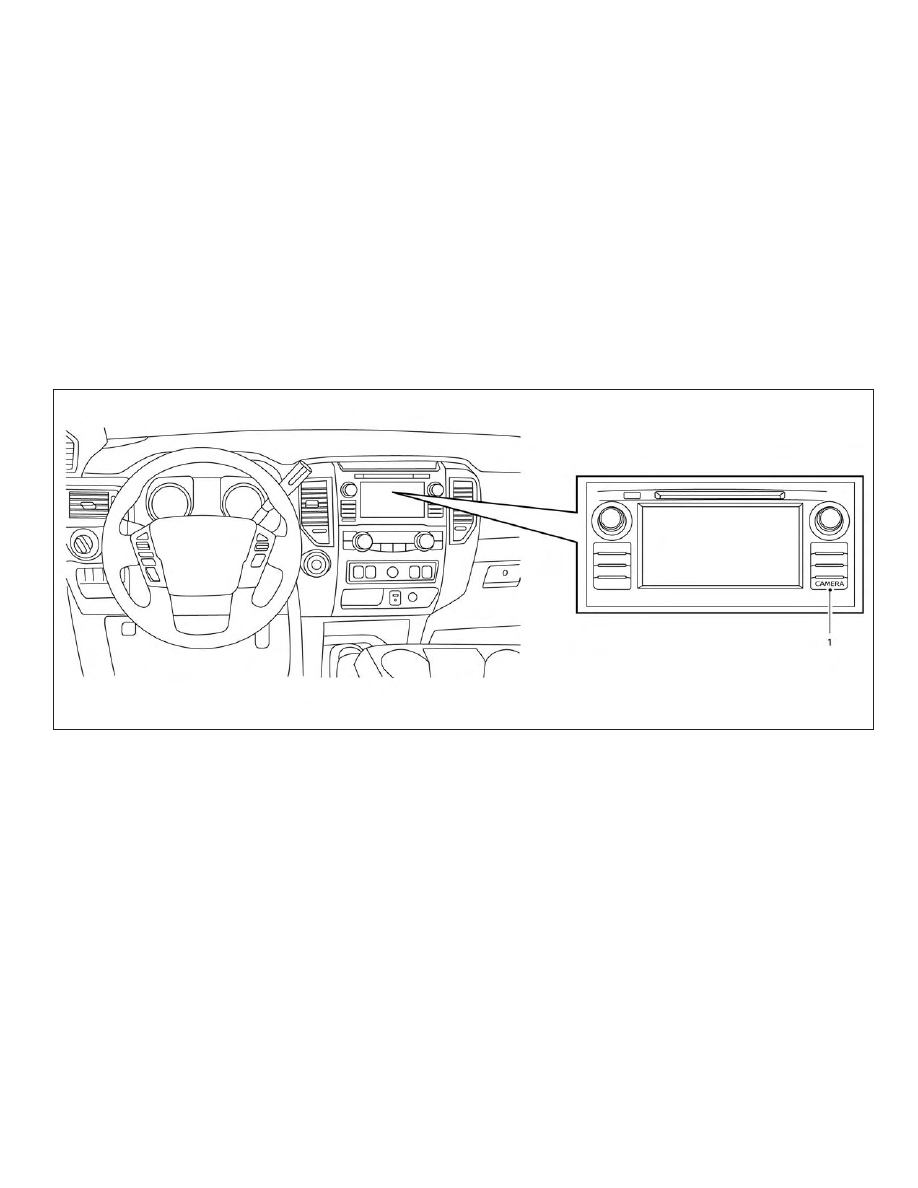

1. CAMERA button

LHA4859

INTELLIGENT AROUND VIEW
MONITOR (if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-11

WARNING

∙ Failure to follow the warnings and in-

structions for the proper use of the
Intelligent Around View Monitor sys-
tem could result in serious injury or
death.

∙ The Intelligent Around View Monitor is

a convenience feature and is not a
substitute for proper vehicle opera-
tion because it has areas where ob-
jects cannot be viewed. The four cor-
ners of the vehicle in particular, are
areas where objects do not always
appear in the bird’s-eye, front, or rear
views. Always check your surround-
ings to be sure that it is safe to move
before operating the vehicle. Always
operate the vehicle slowly.

∙ The driver is always responsible for

safety

during

parking

and

other

maneuvers.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The Intelligent Around View Monitor sys-
tem is designed as an aid to the driver in
situations such as slot parking or parallel
parking.

The monitor displays various views of the
position of the vehicle in a split screen for-
mat. Not all views are available at all times.

Available views:

∙ Front View

An approximately 150–degree view of
the front of the vehicle.

∙ Rear View

An approximately 150–degree view of
the rear of the vehicle.

∙ Bird’s-Eye View

The surrounding views of the vehicle
from above.

∙ Front-Side View

The view around and ahead of the front
passenger’s side wheel.

∙ Rear-Wide View

An approximately 180–degree view of
the rear of the vehicle.

To display the multiple views, the Intelligent
Around View Monitor system uses cam-
eras located in the front grille, on the vehi-
cle’s outside mirrors and one on the tail-
gate

䊊

INTELLIGENT AROUND VIEW
MONITOR SYSTEM OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse) po-
sition to operate the Intelligent Around
View Monitor.

LHA3909

4-12

Monitor, climate, audio, phone and voice recognition systems

When the camera is first activated with the
bird’s-eye view in the display, a red icon (if so
equipped) will flash on the screen. This in-
dicates that the sonar system (if so
equipped) is activated. For additional infor-
mation on the front and rear sonar system
(if so equipped), refer to “Front and rear so-
nar system” in the “Starting and driving”
section of this manual.

The screen displayed on the Intelligent
Around View Monitor will automatically re-
turn to the previous screen 3 minutes after
the CAMERA button has been pressed with
the shift lever in a position other than the R
(Reverse) position.

Available views

WARNING

∙ The distance guide lines and the ve-

hicle width lines should be used as a
reference only when the vehicle is on a
paved, level surface. The apparent
distance viewed on the monitor may
be different than the actual distance
between the vehicle and displayed
objects.

∙ Use the displayed lines and the bird’s-

eye view as a reference. The lines and
the bird’s-eye view are greatly af-
fected by the number of occupants,
cargo, fuel level, vehicle position, road
condition and road grade.

∙ If the tires are replaced with different

sized tires, the predicted course lines
and the bird’s-eye view may be dis-
played incorrectly.

∙ When driving the vehicle up a hill, ob-

jects viewed in the monitor are fur-
ther than they appear. When driving
the vehicle down a hill, objects viewed
in the monitor are closer than they
appear.

∙ Objects in the rear view will appear

visually opposite compared to when
viewed in the monitor and outside
mirrors.

∙ Use the mirrors or actually look to

properly judge distances to other
objects.

∙ On a snow-covered or slippery road,

there may be a difference between
the predicted course lines and the ac-
tual course line.

∙ The

vehicle

width

and

predicted

course lines are wider than the actual
width and course.

∙ The

displayed

lines

will

appear

slightly off to the right, because the
rearview camera is not installed in the
rear center of the vehicle.

Monitor, climate, audio, phone and voice recognition systems

4-13

Front and rear view

Guiding lines that indicate the approximate
vehicle width and distance to objects with
reference to the vehicle body line

䊊

are

displayed on the monitor.

Distance guide lines:

Indicate distances from the vehicle body:

∙ Red line

䊊

: approximately 1.5 ft (0.5 m)

∙ Yellow line

䊊

: approximately 3 ft (1 m)

∙ Green line

䊊

: approximately 7 ft (2 m)

∙ Green line

䊊

: approximately 10 ft (3 m)

(if so equipped)

Vehicle width guide lines

䊊

Indicate the approximate vehicle width
when backing up.

Predicted course lines

䊊

Indicate the predicted course when oper-
ating the vehicle. The predicted course
lines will be displayed on the monitor when
the steering wheel is turned. The predicted
course lines will move depending on how
much the steering wheel is turned and will

not be displayed while the steering wheel is
in the straight-ahead position.

Center guide lines

䊊

Indicates the vehicle’s center to improve
trailer hitching guidance.

The front view will not be displayed when
the vehicle speed is above 6 mph (10 km/h).

NOTE:

When the monitor displays the front
view and the steering wheel turns about
90 degrees or less from the straight-
ahead position, both the right and left
predicted course lines

䊊

are displayed.

When the steering wheel turns about 90
degrees or more, a line is displayed only
on the opposite side of the turn.

Front view

SAA1840

Rear view

LHA4988

4-14

Monitor, climate, audio, phone and voice recognition systems

Bird’s-eye view

The bird’s-eye view shows the overhead
view of the vehicle, which helps confirm the
vehicle position and the predicted course
to a parking space.

The vehicle icon

䊊

shows the position of

the vehicle. Note that the apparent dis-
tance between objects viewed in the bird’s-
eye view may differ somewhat from the
actual distance to the vehicle.

The areas that the cameras cannot cover

䊊

are indicated in black.

The non-viewable area

䊊

is highlighted in

yellow for several seconds after the bird’s-
eye view is displayed. It will be shown only
the first time after the ignition switch is
placed in the ON position.

WARNING

∙ Objects in the bird’s-eye view will ap-

pear further than the actual distance.

∙ Tall objects, such as a curb or vehicle,

may be misaligned or not displayed at
the seam of the views.

∙ Objects that are above the camera

cannot be displayed.

∙ The view of the bird’s-eye view may be

misaligned when the camera position
alters.

∙ A line on the ground may be mis-

aligned and is not seen as being
straight at the seam of the views. The
misalignment will increase as the line
proceeds away from the vehicle.

Front-side view

Guiding lines

Guiding lines that indicate the approximate
width and the front end of the vehicle are
displayed on the monitor.

The front-of-vehicle line

䊊

shows the front

part of the vehicle.

The side-of-vehicle line

䊊

shows the ap-

proximate vehicle width including the out-
side mirrors.

The extensions

䊊

of both the front

䊊

and

side

䊊

lines are shown with a green dotted

line.

LHA4394

LHA2652

Monitor, climate, audio, phone and voice recognition systems

4-15

Rear-wide view

The rear-wide view shows a wider area on
the entire screen and allows the checking
of the blind corners on right and left sides.
The rear-wide view displays an approxi-
mately 180-degree area. The predicted
course lines are not displayed when using
the rear-wide view.

Distance guide lines

Indicates distances from the vehicle body:

∙ Red line

䊊

: approximately 1.5 ft (0.5 m)

∙ Yellow line

䊊

: approximately 3 ft (1 m)

∙ Green line

䊊

: approximately 7 ft (2 m)

Vehicle width guide lines

䊊

Indicate the vehicle width when backing
up.

Center guide lines

䊊

Indicates the vehicle’s center to improve
trailer hitching guidance.

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

Backing up on a steep uphill

Rear-wide view

LHA4989

LHA4981

4-16

Monitor, climate, audio, phone and voice recognition systems

Backing up on a steep downhill

When backing up the vehicle down a hill,
the distance guide lines and the vehicle
width guide lines are shown farther than
the actual distance. Note that any object

on the hill is closer than it appears on the
monitor.

Backing up near a projecting
object

The vehicle may seem to nearly clear the
object in the display. However, the vehicle
may hit the object if it projects over the
actual backing up course.

LHA4982

LHA4983

Monitor, climate, audio, phone and voice recognition systems

4-17

Backing up behind a projecting
object

The position

䊊

is shown farther than the

position

䊊

in the display. However, the po-

sition

䊊

is actually at the same distance as

the position

䊊

. The vehicle may hit the

object when backing up to the position

䊊

if the object projects over the actual back-
ing up course.

HOW TO PARK WITH PREDICTED
COURSE LINES

WARNING

∙ If the tires are replaced with different

sized tires, the predicted course lines
may be displayed incorrectly.

∙ On a snow-covered or slippery road,

there may be a difference between
the predicted course line and the ac-
tual course line.

∙ If the battery is disconnected or be-

comes

discharged,

the

predicted

course lines may be displayed incor-
rectly. If this occurs, please perform
the following procedures:

– Turn the steering wheel from lock

to lock while the engine is running.

– Drive the vehicle on a straight road

for more than 5 minutes.

∙ When the steering wheel is turned

with the ignition switch in the ACC po-
sition, the predicted course lines may
be displayed incorrectly.

∙ There is the possibility that when the

vehicle mirrors are extended for tow-
ing, the mirrors may be shown in the
bird’s-eye view and front side view.

LHA4984

4-18

Monitor, climate, audio, phone and voice recognition systems

1. Visually check that the parking space is

safe before parking your vehicle.

2. The rear view of the vehicle is displayed

on the screen

䊊

when the shift lever is

moved to the R (Reverse) position.

3. Slowly back up the vehicle adjusting

the steering wheel so that the pre-
dicted course lines

䊊

enter the park-

ing space

䊊

4. Maneuver the steering wheel to make

the vehicle width guide lines

䊊

parallel

to the parking space

䊊

while referring

to the predicted course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the
P (Park) position and apply the parking
brake.

HOW TO SWITCH THE DISPLAY

With the ignition switch in the ON position,
press the CAMERA button or move the shift
lever to the R (Reverse) position to operate
the Intelligent Around View Monitor.

The Intelligent Around View Monitor dis-
plays different split screen views depend-
ing on the position of the shift lever. Press
the CAMERA button to switch between the
available views.

If the shift lever is in the R (Reverse) position,
the available views are:

∙ Rear view/bird’s-eye view split screen

∙ Rear view/front-side view split screen

∙ Rear-wide view

If the shift lever is in the P (Park) or D (Drive)
position, the available views are:

∙ Front view/bird’s-eye view split screen

∙ Front view/front-side view split screen

LHA3910

LHA3911

Monitor, climate, audio, phone and voice recognition systems

4-19

The display will switch from the Intelligent
Around View Monitor screen when:

∙ The shift lever is in the D (Drive) position

and the vehicle speed increases above
approximately 6 mph (10 km/h)

∙ A different screen is selected.

ADJUSTING THE SCREEN

1. Press the CAMERA button.

2. Touch the “Display Settings” key.

3. Touch the “Brightness”, “Contrast”, Tint”,

“Color”, or “Black Level” key.

4. Adjust the item by touching the “+” or “–”

key on the touch-screen display.

NOTE:

Do not adjust any of the display settings
of the Intelligent Around View Monitor
while the vehicle is moving. Make sure
the parking brake is firmly applied.

LHA3522

4-20

Monitor, climate, audio, phone and voice recognition systems

Content .. 14 15 16 17 ..
