CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:

The following lights (if so equipped) will
come on briefly and then go off:

, ATP ,

If any light does not come on or operate in
a way other than described, it may indicate
a burned-out bulb and/or a system mal-
function. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

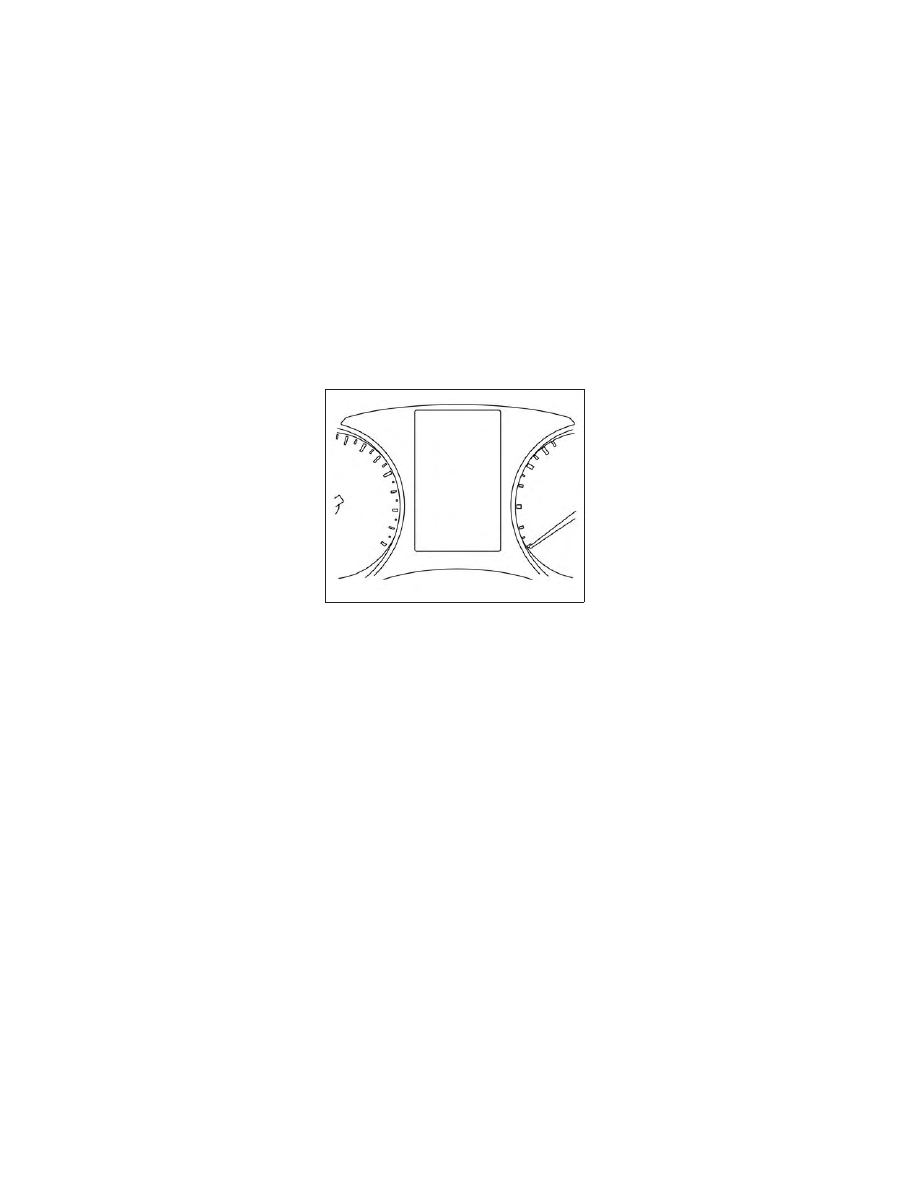

Some indicators and warnings are also dis-
played on the vehicle information display
between the speedometer and tachom-
eter. For additional information, refer to “Ve-
hicle information display” in this section.

WARNING LIGHTS

For additional information, refer to “Vehicle
information display” in this section.

Anti-lock Braking

System (ABS)

warning light

When the ignition switch is placed in the ON
position, the ABS warning light illuminates
and then turns off. This indicates the ABS is
operational.

If the ABS warning light illuminates while
the engine is running or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally but without anti-
lock assistance. For additional information,
refer to “Brake system” in the “Starting and
driving” section of this manual.

Automatic Transmission

check warning light

When the ignition switch is placed in the ON
position, the light comes on for about
2 seconds. If the light comes on at any
other time, it may indicate the automatic
transmission system is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

Automatic Transmission oil

temperature warning light

This light comes on when the automatic
transmission oil temperature is too high. If
the light comes on while driving, reduce the
vehicle speed as soon as safely possible
until the light turns off.

CAUTION

Continued vehicle operation when the
A/T oil temperature warning light is on
may

damage

the

automatic

transmission.

Instruments and controls

2-17

Automatic Transmission

Park warning light (

model)

WARNING

∙ If the 4WD mode indicator is off or the

ATP warning light is on, this indicates
that the automatic transmission P
(Park) position will not function and
could result in the vehicle moving un-
expectedly, causing serious personal
injury or property damage. Always set
the parking brake. For additional in-
formation, refer to “Using 4–wheel
drive (4WD)” in the “Starting and driv-
ing” section of this manual.

∙ If the ATP light is on, this indicates that

the automatic transmission P (Park)
position will not function and the
transfer case is in neutral.

∙ When parking, always make sure that

the 4WD shift indicator light illumi-
nates and the parking brake is set.
Failure to engage the transfer posi-
tion in 2WD, 4H or 4LO could result in
the vehicle moving unexpectedly, re-
sulting in serious personal injury or
property damage.

∙ Shift the 4WD switch into the 2WD, 4H

or 4LO position again to turn off the
ATP warning light when the shift lever
is in the P position and the ATP warn-
ing light is on. (Before shifting the
4WD switch into the 4LO position,
move the shift lever to the N position
once, shift the shift lever into P again
and make sure the ATP warning light
is off.)

This light indicates that the automatic
transmission parking function is not en-
gaged. If the transfer control is not secured
in any drive position while the shift lever is
in the P (Park) position, the transmission will
disengage and the drive wheels will not
lock.

Brake warning

light

This light functions for both the parking
brake and the foot brake systems.

Parking brake indicator

When the ignition switch is placed in the ON
position, the light comes on when the park-
ing brake is applied.

Low brake fluid warning light

When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine
is running, with the parking brake not ap-
plied, stop the vehicle and perform the fol-
lowing:

1. Check the brake fluid level. Add brake

fluid as necessary. For additional infor-
mation, refer to “Brake fluid” in the “Do-
it-yourself ” section of this manual.

2. If the brake fluid level is correct, have

the warning system checked. It is rec-
ommended that you visit a NISSAN
dealer for this service.

2-18

Instruments and controls

WARNING

∙ Your brake system may not be work-

ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for repairs.
Otherwise, have your vehicle towed
because

driving

could

dangerous.

∙ Pressing the brake pedal with the en-

gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort and pedal travel.

∙ If the brake fluid level is below the

MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended that you visit a NISSAN
dealer for this service.

Charge warning light

If this light comes on while the engine is
running, it may indicate the charging sys-
tem is not functioning properly. Turn the
engine off and check the generator belt. If
the belt is loose, broken, missing, or if the
light remains on, have the system checked.

It is recommended that you visit a NISSAN
dealer for this service.

CAUTION

∙ Do not ground electrical accessories

directly to the battery terminal. Doing
so will bypass the variable voltage
control system (if so equipped) and
the vehicle battery may not charge
completely. For additional informa-
tion, refer to “Variable voltage control
system” in the “Do-it-yourself ” sec-
tion of this manual.

∙ Do not continue driving if the genera-

tor belt is loose, broken or missing.

Diesel Particulate Filter

(DPF) warning light (if so
equipped)

For additional information, refer to the Ti-
tan Diesel Owner’s Manual.

Door open warning light

This light comes on when any of the doors
are not closed securely while the ignition
switch is in the ON position.

Driver seat belt warning

light and chime

The light and chime remind you to fasten
your seat belt. The light illuminates when-
ever the ignition switch is placed in the ON
position and remains illuminated until the
driver’s seat belt is fastened. At the same
time, the chime sounds for about 6 sec-
onds unless the driver’s seat belt is se-
curely fastened.

For additional information, refer to “Seat
belts” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.

Engine oil pressure

warning light

This light warns of low engine oil pressure. If
the light flickers or comes on during nor-
mal driving, pull off the road in a safe area,
stop the engine immediately, and call a
NISSAN dealer or other authorized repair
shop.

The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. For
additional information, refer to “Engine oil”
in the “Do-it-yourself ” section of this
manual.

Instruments and controls

2-19

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.

Low DEF warning light (if so

equipped)

For additional information, refer to the Ti-
tan Diesel Owner’s Manual.

Low tire pressure warning

light

Your vehicle is equipped with a Tire Pres-
sure Monitoring System (TPMS) that moni-
tors the tire pressure of all tires except the
spare.

The low tire pressure warning light warns
of low tire pressure or indicates that the
TPMS is not functioning properly.

After the ignition switch is placed in the ON
position, this light illuminates for about
1 second and turns off.

Low tire pressure warning

If the vehicle is being driven with low tire
pressure, the warning light will illumi-
nate. A “Tire Pressure Low - Add Air”
warning also appears in the vehicle in-
formation display (if so equipped).

When the low tire pressure warning light
illuminates, you should stop and adjust
the tire pressure of all four tires to the
recommended COLD tire pressure shown
on the Tire and Loading Information la-
bel located in the driver’s door opening.
The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure,
the vehicle must be driven at speeds
above 16 mph (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.

For vehicles with a vehicle information dis-
play, the “Tire Pressure Low - Add Air” warn-
ing appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.

For additional information, refer to “Vehicle
information display” in this section, “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” and “In case of emer-
gency” sections of this manual.

TPMS malfunction

If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The
light will remain on after 1 minute. Have the
system checked. It is recommended that
you visit a NISSAN dealer for this service.
The "Tire Pressure Low — Add Air" warning
does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.

For additional information, refer to “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Tire
pressure” in the “Do-it-yourself ” section of
this manual.

2-20

Instruments and controls

WARNING

∙ Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

∙ If the light does not illuminate with

the ignition switch placed in the ON
position, have the vehicle checked as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service.

∙ If the light illuminates while driving,

avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Se-
rious vehicle damage could occur and
may lead to an accident and could re-
sult in serious personal injury or
death. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pressure
show on the Tire and Loading Infor-
mation label located in the driver’s
door opening to turn the low tire pres-
sure warning light off. If the light still
illuminates while driving after adjust-
ing the tire pressure, a tire may be flat
or the TPMS may be malfunctioning. If
you have a flat tire, replace it with a
spare tire as soon as possible. If no tire
is flat and all tires are properly in-
flated, have the vehicle checked. It is
recommended that you visit a NISSAN
dealer for this service.

∙ When replacing a wheel without the

TPMS such as the spare tire, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN dealer
for these services.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

CAUTION

∙ The TPMS is not a substitute for the

regular tire pressure check. Be sure to
check the tire pressure regularly.

∙ If the vehicle is being driven at speeds

of less than 16 mph (25 km/h), the
TPMS may not operate correctly.

∙ Be sure to install the specified size of

tires to the four wheels correctly.

Instruments and controls

2-21

Malfunction warning light

(red) (if so equipped)

If this warning light illuminates this indi-
cates either the coolant temperature is
above a critical threshold or the exhaust
temperatures are above a critical thresh-
old. When illuminated this lamp indicates
the need to stop the engine as soon as it
can be safely done. The engine must re-
main shut down until the engine can be
repaired. For additional information, refer
to the Titan Diesel Owner’s Manual.

CAUTION

∙ Continuing vehicle operation without

proper servicing of the engine control
system could lead to poor driveability,
reduced fuel economy, and damage
to the engine control system, which
may affect the vehicle’s warranty
coverage.

∙ Failure to drain the water from the

fuel filter can cause serious damage
to the engine. It is recommended that
you contact a NISSAN dealer as soon
as possible.

Master warning light (if so

equipped)

This light comes on when various vehicle
information display warnings appear.

∙ No key warning

∙ Low fuel warning

∙ Low windshield-washer fluid warning

∙ Parking brake release warning

∙ Door open warning

∙ Loose fuel cap warning

∙ Check tire pressure warning

∙ 4WD error (if so equipped)

∙ Front & rear tire size differences (if so

equipped)

Passenger seat belt

warning light (if so
equipped)

The light reminds you to notify the passen-
ger to fasten their seat belt. The light illumi-
nates whenever the ignition is placed in the
ON or START position and remains illumi-
nated until the passenger’s seat belt is fas-
tened.

The light will remain on for a period of time
when the vehicle is shifted out of P (Park)
and the passenger seat belt is unfastened.
If the passenger seat belt is fastened, the
light will turn off.

For additional information, refer to “Seat
belts” in the “Safety-Seats, seat belts and
supplemental restraint system” section of
this manual for precautions on seat belt
usage.

Supplemental air bag

warning light

When the ignition switch is placed in the ON
or START position, the supplemental air
bag warning light illuminates for about
7 seconds and then turns off. This means
the system is operational.

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag,
and pretensioner seat belt systems need
servicing:

∙ The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

∙ The supplemental air bag warning light

flashes intermittently.

2-22

Instruments and controls

∙ The supplemental air bag warning light

does not come on at all.

It is recommended that you visit a NISSAN
dealer for these services.

Unless checked and repaired, the supple-
mental restraint system (air bag system)
and/or the pretensioner(s) may not func-
tion properly. For additional information, re-
fer to “Supplemental Restraint System
(SRS)” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

Water in Fuel warning light

(if so equipped)

For additional information, refer to the Ti-
tan Diesel Owner’s Manual.

INDICATOR LIGHTS

For additional information, refer to “Vehicle
information display” in this section.

Electronic locking rear

differential (E-Lock) system
ON indicator light (if so
equipped)

This light comes on when the electronic
locking rear differential (E-Lock) system
clutch is fully engaged.

The indicator light flashes when the sys-
tem is first turned on. When the system fully
engages, the light remains on. If the switch
is on and the indicator light continues to
flash, the system is not engaged.

For additional information, refer to “Elec-
tronic locking rear differential (E-Lock) sys-
tem switch” in this section and “Electronic
locking rear differential (E-Lock) system” in
the “Starting and driving” section of this
manual.

Front fog light indicator

light (if so equipped)

The front fog light indicator light illumi-
nates when the front fog lights are on. For
additional information, refer to “Fog light
switch” in this section.

Front passenger air bag

status light (if so equipped)

The front passenger air bag status light will
be lit and the passenger front air bag will be
off depending on how the front passenger
seat is being used.

For additional information, refer to “Front
passenger air bag and status light” in the
“Safety — Seats, seat belts and supplemen-
tal restraint system” section of this manual.

High beam indicator light

(blue)

This blue light comes on when the head-
light high beams are on and goes out when
the low beams are selected.

The high beam indicator light also comes
on when the passing signal is activated.

Instruments and controls

2-23

Hill descent control system

ON indicator light (if so
equipped)

When the ignition switch is placed in the ON
position, this light comes on briefly and
then turns off.

The light comes on when the hill descent
control system is activated.

If the hill descent control switch is on and
the indicator light blinks, the system may
be disabled.

You may feel or hear the system working;
this is normal.

If the indicator light does not come on
when the hill descent switch is on, the sys-
tem may not be functioning properly. Have
the system checked. It is recommended
that you visit a NISSAN dealer for this ser-
vice.

For additional information, refer to “Hill de-
scent control system ON indicator light” in
this section and “Hill descent control sys-
tem” in the “Starting and driving” section of
this manual.

Malfunction Indicator Light

(MIL) (yellow)

If this indicator light comes on steady or
blinks while the engine is running, it may
indicate a potential emission control mal-
function.

If this indicator light comes on steady for
20 seconds and then blinks for 10 seconds
when the engine is not running, it indicates
that the vehicle is not ready for an emission
control system inspection/maintenance
test. For additional information, refer to
“Readiness

for

inspection/maintenance

(I/M) test” in the “Technical and consumer
information” section of this manual.

Operation

The MIL will come on in one of two ways:

∙ MIL on steady — An emission control

system malfunction has been de-
tected. Check the fuel-filler cap if the
Loose Fuel Cap warning appears in the
vehicle information display. If the fuel-
filler cap is loose or missing, tighten or
install the cap and continue to drive the
vehicle. The

light should turn off

after a few driving trips. If the

light

does not turn off after a few driving
trips, have the vehicle inspected. It is
recommended that you visit a NISSAN
dealer for this service. You do not need
to have your vehicle towed to the
dealer.

∙ MIL blinking — An engine misfire has

been detected which may damage the
emission control system. To reduce or
avoid emission control system dam-
age:

– do

not

drive

speeds

above

45 mph (72 km/h).

– avoid hard acceleration or decelera-

tion.

– avoid steep uphill grades.

– if possible, reduce the amount of

cargo being hauled or towed.

2-24

Instruments and controls

The MIL may stop blinking and come on
steady. Have the vehicle inspected. It is rec-
ommended that you visit a NISSAN dealer
for this service. You do not need to have
your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.

Security indicator light

This light blinks whenever the ignition
switch is placed in the LOCK, OFF or ACC
position. This function indicates the secu-
rity system equipped on the vehicle is op-
erational.

For additional information, refer to “Security
systems” in this section.

Side light and headlight

indicator light (green)

The side light and headlight indicator light
illuminates when the side light or headlight

position is selected. For additional informa-
tion, refer to “Headlight switch” in this sec-
tion.

Slip indicator light

This indicator will blink when the Vehicle
Dynamic Control (VDC) system is operat-
ing, thus alerting that the vehicle is nearing
its traction limits. The road surface may be
slippery.

TOW mode ON indicator

light

This light comes on when the tow mode
function is on.

Turn signal/hazard

indicator lights

The appropriate light flashes when the turn
signal switch is activated.

Both lights flash when the hazard switch is
turned on.

Vehicle Dynamic Control

(VDC) OFF indicator light

This indicator light comes on when the
VDC OFF switch is pushed to off. This indi-
cates the VDC system is not operating.

Push the VDC OFF switch again or restart
the engine and the system will operate
normally. For additional information, refer
to “Vehicle Dynamic Control (VDC) system”
in the “Starting and driving” section of this
manual.

The VDC light also comes on when you
place the ignition switch in the ON position.
The light will turn off after about 2 seconds
if the system is operational. If the light stays
on or comes on along with the

indi-

cator light while you are driving, have the
VDC system checked. It is recommended
that you visit a NISSAN dealer for this ser-
vice.
While the VDC system is operating, you
might feel a slight vibration or hear the sys-
tem working when starting the vehicle or
accelerating, but this is normal.

AUDIBLE REMINDERS

Brake pad wear warning

The disc brake pads have audible wear
warnings. When a disc brake pad requires
replacement, it makes a high pitched
scraping sound when the vehicle is in mo-
tion, whether or not the brake pedal is de-
pressed. Have the brakes checked as soon
as possible if the warning sound is heard.

Instruments and controls

2-25

Light reminder chime

With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.

Turn the headlight control switch off before
leaving the vehicle.

NISSAN Intelligent Key® door
buzzer

The Intelligent Key door buzzer sounds if
the Intelligent Key is left inside the vehicle
when locking the doors. When the buzzer
sounds, be sure to check both the vehicle
and the Intelligent Key. For additional infor-
mation, refer to “NISSAN Intelligent Key®” in
the “Pre-driving checks and adjustments”
section of this manual.

The vehicle information display is located
to the left of the speedometer. It displays
such items as:

∙ Vehicle settings

∙ Trip computer information

∙ Drive system warnings and settings (if

so equipped)

∙ Cruise control system information

∙ Blind Spot Warning (BSW) system (if so

equipped)

∙ Rear Cross Traffic Alert (RCTA) system (if

so equipped)

∙ NISSAN Intelligent Key® operation infor-

mation

∙ Indicators and warnings

∙ Tire Pressure information

LIC2630

VEHICLE INFORMATION DISPLAY

2-26

Instruments and controls

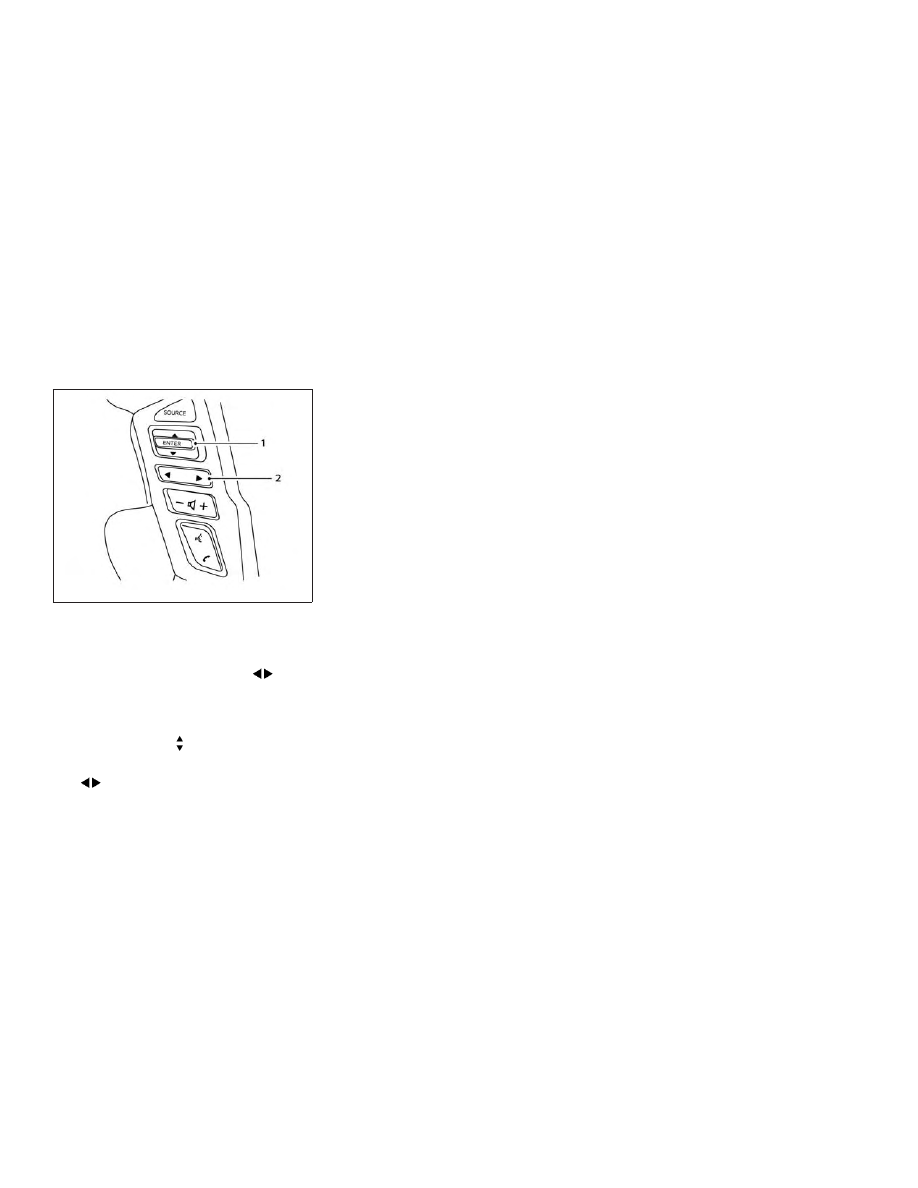

HOW TO USE THE VEHICLE
INFORMATION DISPLAY

The vehicle information display can be
navigated using the ENTER and

but-

tons located on the steering wheel.

1. ENTER — press to select the vehicle in-

formation menu items. Additionally, use
the UP/DOWN

function to navi-

gate the menu items

— move LEFT/RIGHT to navigate

through the items in the vehicle infor-
mation display

The ENTER button also controls audio
functions. For additional information, refer
to the separate NissanConnect® Owner’s
Manual.

STARTUP DISPLAY

When the vehicle is placed in the ON or ACC
(if so equipped) position, the vehicle infor-
mation display may display the following
screens:

∙ Home

∙ Off Road

∙ Auxiliary Gauges (if so equipped)

∙ DEF Level (if so equipped)

∙ Trip

∙ Fuel Economy

∙ Navigation (if so equipped)

∙ Audio

∙ Driving Aids (if so equipped)

∙ Tire Pressures

∙ Warning Confirmation

∙ Settings

Warning Confirmation will only display if
there are any warnings present. For addi-
tional information, refer to “Vehicle infor-
mation display warnings and indicators” in
this section.

To control which items display in the ve-
hicle information display, refer to “Settings”
in this section.

SETTINGS

The setting mode allows you to change the
information displayed in the vehicle infor-
mation display:

∙ Driver Assistance (if so equipped)

∙ Meter Settings

∙ Vehicle Settings

∙ Towing Settings (if so equipped)

∙ Alarm (if so equipped)

∙ Maintenance

∙ Unit

∙ Language

∙ Factory Reset

LIC4099

Instruments and controls

2-27

Driver Assistance (if so equipped)

The driver assistance menu allows the user
to change the various driving and parking
aids.

Menu item

Result

Driving Aids (if so equipped)

Displays available driving aids. For additional information, refer to “Blind Spot Warning (BSW)” and “Rear Cross Traf-
fic Alert (RCTA)” in the “Starting and driving” section of this manual.

Blind Spot (BSW)

Allows user to turn the Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA) systems on or off. For addi-
tional information, refer to “Blind Spot Warning (BSW)” and “Rear Cross Traffic Alert (RCTA)” in the “Starting and driv-
ing” section of this manual.

Parking Aids (if so equipped)

Displays available parking aids. For additional information, refer to “Front and rear sonar system” in the “Starting
and driving” section of this manual.

Moving Object (if so equipped)

Allows user to turn the Moving Object Detection (MOD) on or off. For additional information, refer to “Moving Ob-
ject Detection (MOD)” in the “Monitor, climate, audio, phone and voice recognition systems” section of this manual.

Sensor (if so equipped)

Allows the user to turn the sensors on, off, or front only.

Display

Allows user to turn the display on or off in the vehicle information display.

Volume

Allows user to adjust the volume of warning chimes.

Range

Allows user to set a specific range for the sensors to engage.

2-28

Instruments and controls

Meter Settings

The meter settings allow the user to
change the settings for the vehicle infor-
mation display.

Menu item

Result

Main Menu Selection

Allows user to customize the screens shown in the vehicle information display.

Home

Allows user to turn the home screen on or off in the vehicle information display.

Off Road

Allows user to turn the off road monitor on or off in the vehicle information display. For additional
information, refer to “Off Road Monitor” in this section.

Auxiliary Gauges

Allows user to turn the auxiliary gauges on or off in the vehicle information display. For additional
information, refer to “Auxiliary gauges” in this section.

DEF Level (if so equipped)

Allows user to turn the DEF LEVEL meter on or off in the vehicle information display. For additional
information, refer to the Titan Diesel Owner’s Manual.

4x4–i (if so equipped)

Allows user to turn the 4x4–i screen on or off in the vehicle information display. For additional information,
refer to “Using 4–wheel drive (4WD)” in the “Starting and driving” section of this manual.

Trip

Allows user to turn the trip on or off in the vehicle information display.

Fuel Economy (if so equipped)

Allows user to turn the fuel economy on or off in the vehicle information display.

Navigation (if so equipped)

Allows user to turn the navigation on or off in the vehicle information display. For additional information, refer
to the separate NissanConnect® Owner’s Manual.

Audio

Allows user to turn the audio screen on or off in the vehicle information display. For additional information,
refer to the separate NissanConnect® Owner’s Manual.

Driving Aids (if so equipped)

Allows user to turn the driving aids on or off in the vehicle information display.

Tire Pressures

Allows user to turn the tire pressures screen on or off in the vehicle information display.

TPMS (if so equipped)

Allows user to set tire pressure targets.

Body Color

Allows user to change the color of the vehicle shown in the vehicle information display.

ECO Drive Report

Allows user to access the ECO drive report.

Display

Allows user to turn the ECO drive report on or off.

View History

Allows user to view and reset ECO drive report history.

Welcome Effect

Allows user to customize the available welcome effects.

Instruments and controls

2-29

Vehicle Settings

The vehicle settings allow the user to
change the settings for lights, wipers, lock-
ing, keys, and other vehicle settings.

Menu item

Result

Rear Door Alert

Displays the available rear Door Alert options.

Alert and Horn

When selected, the alert is displayed; and the horn sounds.

Alert Only

When selected, only the alert is displayed.

Off

When selected, no alert or horn will be active.

Lighting

Displays available lighting features of the vehicle.

Welcome Light (if so equipped)

Allows user to turn the welcome light on or off.

Auto Room Lamp

Allows user to turn the auto room lamp feature on or off.

Light Sensitivity (if so equipped)

Allows user to change when the lights illuminate based on the brightness outside the vehicle.

Light Off Delay (if so equipped)

Allows user to change the duration of time that the automatic headlights stay on after the vehicle is shut off.

Turn indicator

Displays available turn indicator options.

3 Flash Pass

Allows user to turn the 3 flash pass on or off.

Locking

Displays available locking options.

I-Key Door Lock (if so equipped)

Allows user to turn I-key door lock on or off. When turned on, the request switch on the door is activated.

Selective Unlock

Allows user to turn selective unlock on or off. When turned on, only the driver’s door is unlocked after the
door unlock operation. When the door handle request switch on the driver’s or front passenger’s side door is
pushed to be unlocked, only the corresponding door is unlocked first. All the doors can be unlocked if the
door unlock operation is performed again within 1 minute. When this item is turned off, all the doors will be
unlocked after the door unlock operation is performed once.

Answer Bk. Horn

Allows user to turn answer back horn on or off.

Auto Door Unlock (if so equipped)

Displays available options for the auto door unlock.

Off

Doors will have to be manually unlocked.

IGN Off

Doors will unlock when the ignition is turned off.

Shift into P

Doors will unlock when the vehicle is shifted into P (Park).

Wipers

Displays available wiper options.

2-30

Instruments and controls

Menu item

Result

Rain Sensor (if so equipped)

Allows user to turn the rain sensor feature on or off. For additional information, refer to “Wiper and washer
switch” in this section.

Speed Dependent (if so equipped)

Allows user to turn the speed dependent feature on or off. For additional information, refer to “Wiper and
washer switch” in this section.

Memory Seat (ADP) (if so equipped)

Displays available memory seat options.

Exit Seat Slide

Allows the user to turn the exit seat slide on or off. When turned on, this feature will move the driver’s seat
backward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into
the vehicle and placing the ignition switch in the ACC position, the driver’s seat will move to the previous set
position. For additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and ad-
justments” section of this manual.

Exit Steering Up

Allows the user to turn the exit steering up feature on or off. When turned on, this feature will move the steer-
ing wheel upward for an easy exit when the ignition is turned off and the driver’s door is opened. After get-
ting into the vehicle and placing the ignition switch in the ACC position, the steering wheel moves to the pre-
vious position. For additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and
adjustments” section of this manual.

Reverse Tilt Mirror (if so equipped)

Displays reverse tilt mirror information.

Towing Settings (if so equipped)

Displays available towing settings options.

Trailer light check

Allows user to select a mode in which the vehicle will test various lights that could affect a trailer if con-
nected properly. This feature can also be activated using the NISSAN Intelligent Key®. For additional
information, refer to “NISSAN Intelligent Key®” in the “Pre-driving checks and adjustments” and “Towing a
trailer” in the Technical and consumer information” sections of this manual.

Instruments and controls

2-31

Alarm

The alarm menu allows the user to set spe-
cific alarms for various items on the vehicle.

Menu item

Result

Outside Temp.

Allows user to turn the outside temp. alarm on or off.

Timer Alert

Allows user to set the timer alert alarm.

Navigation (if so equipped)

Allows user to turn the navigation alarm on or off.

Phone

Allows user to turn the phone alarm on or off.

Mail

Allows user to turn the mail alarm on or off.

2-32

Instruments and controls

Nissan Titan (2019 year). Manual - part 8
