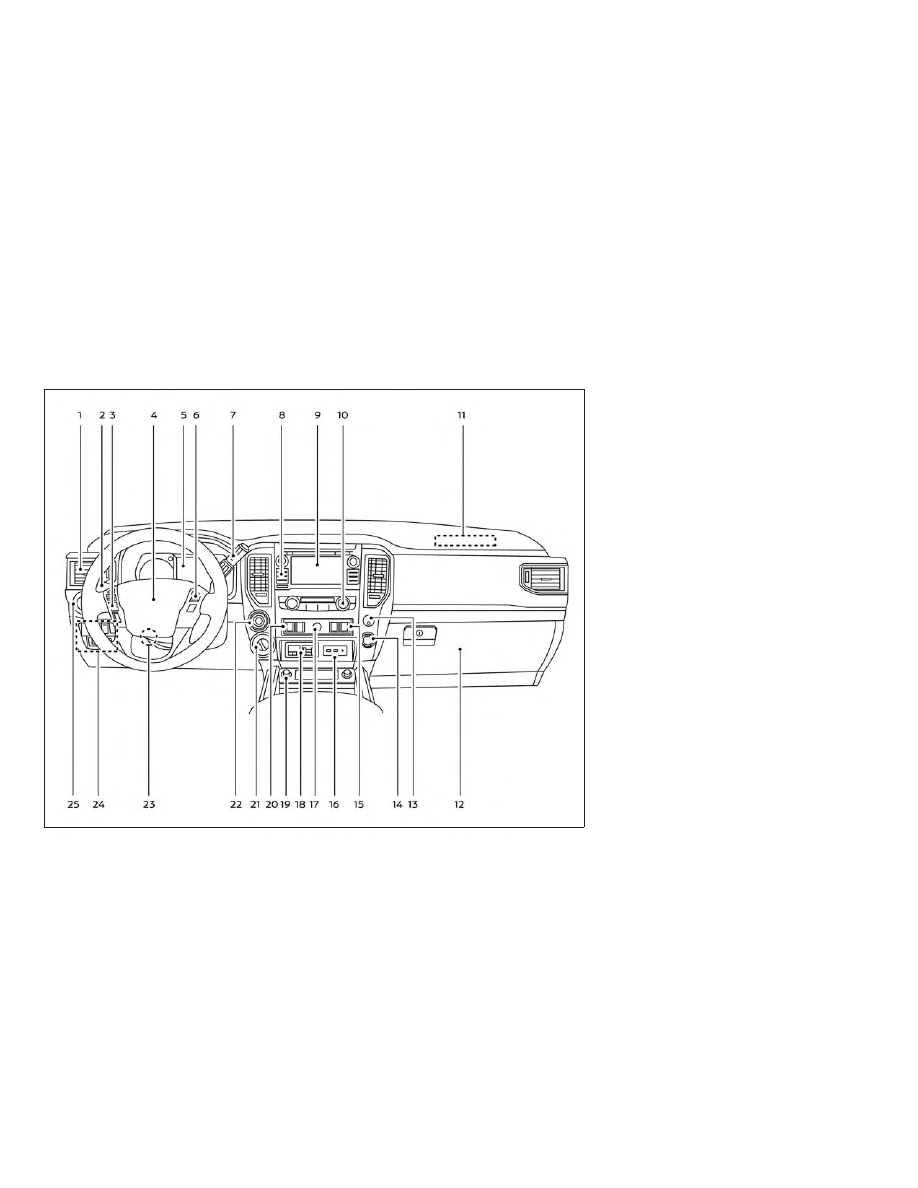

Headlight aiming control
(if so equipped) (P. 2-49)
Power inverter switch
(if so equipped) (P. 2-63)
Cargo lamp switch (P. 2-55)
Electronic locking rear differential
(E-Lock) system switch
(if so equipped) (P. 2-62)
Hill descent control system switch
(if so equipped) (P. 2-61)

25.

Headlight switch (P. 2-49)
Fog light switch (if so equipped)
(P. 2-54)
Instrument brightness control
switches (P. 2-49)
Trip reset switch (P. 2-6)

*Refer to the separate NissanConnect®
Owner’s Manual

Refer to the page number indicated in
parenthesis for operating details.

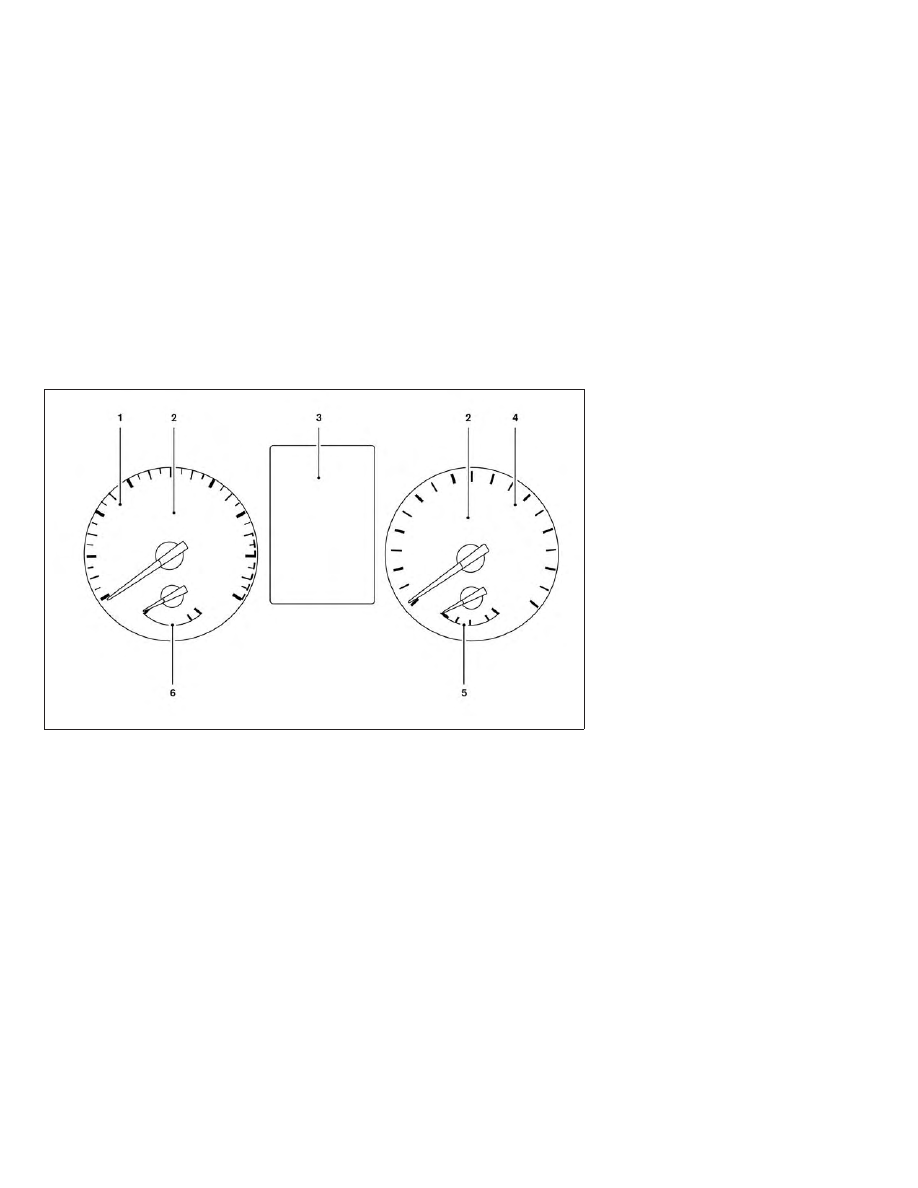

Instruments and controls

2-5

Tachometer

Warning and indicator lights

Vehicle information display
Odometer
Outside temperature display

Speedometer

Fuel gauge

Engine coolant temperature gauge

SPEEDOMETER AND ODOMETER

This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side of the meter clus-
ter. The odometer is located in the vehicle
information display to the left of the speed-
ometer and can be accessed with the ve-
hicle in the ON position.

LIC3100

METERS AND GAUGES

2-6

Instruments and controls

Speedometer

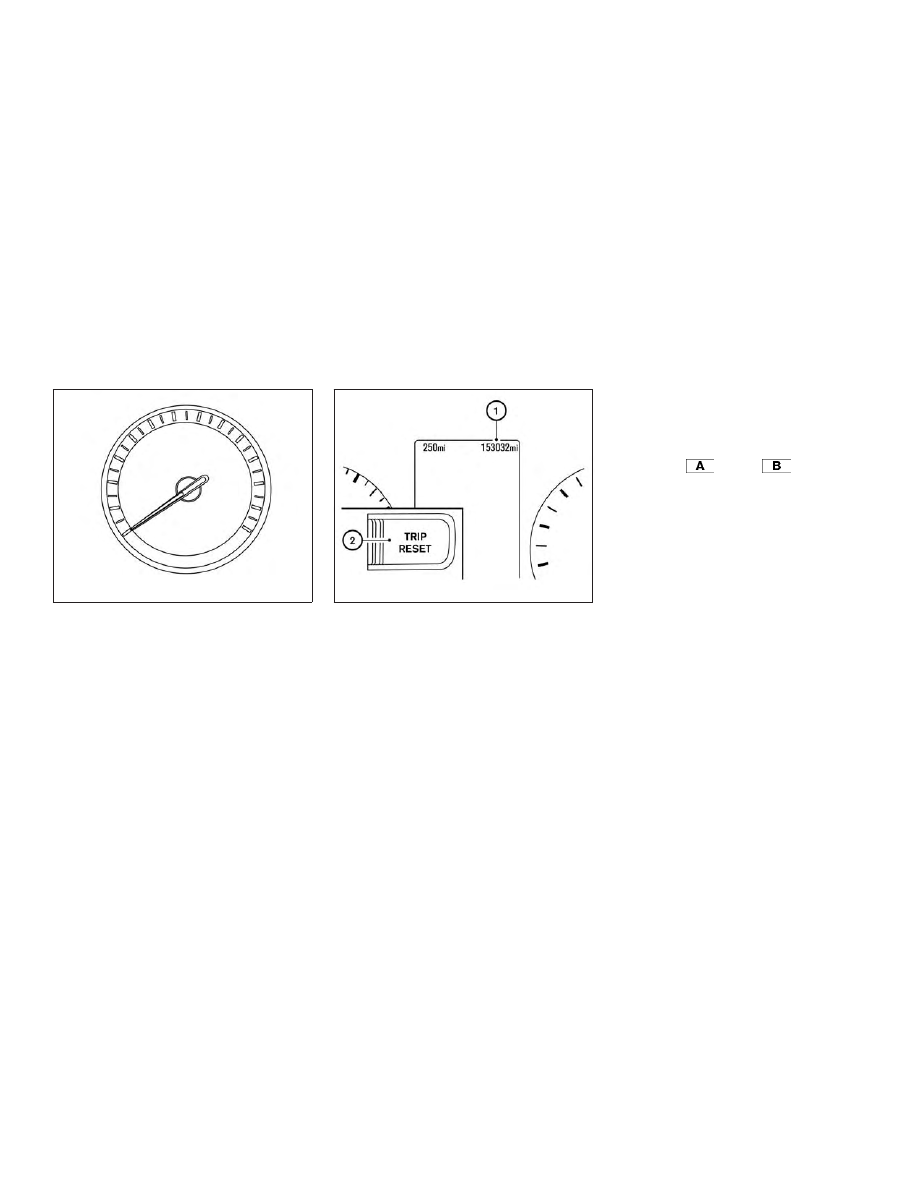

The speedometer indicates the vehicle
speed.

Odometer/Twin trip odometer

The odometer and the twin trip odometer

䊊

are displayed in the vehicle information

display when the ignition switch is placed
in the ON position.

The odometer records the total distance
the vehicle has been driven.

The twin trip odometer records the dis-
tance of individual trips.

Changing the display

Push the TRIP RESET switch

䊊

on the left

side of the instrument panel to change the
display as follows:

ODO

→ Trip

→ ODO

Resetting the trip odometer
Pushing the TRIP RESET switch

䊊

for about

2 seconds resets the currently displayed
trip odometer to zero.

LIC2255

LIC3727

Instruments and controls

2-7

TACHOMETER

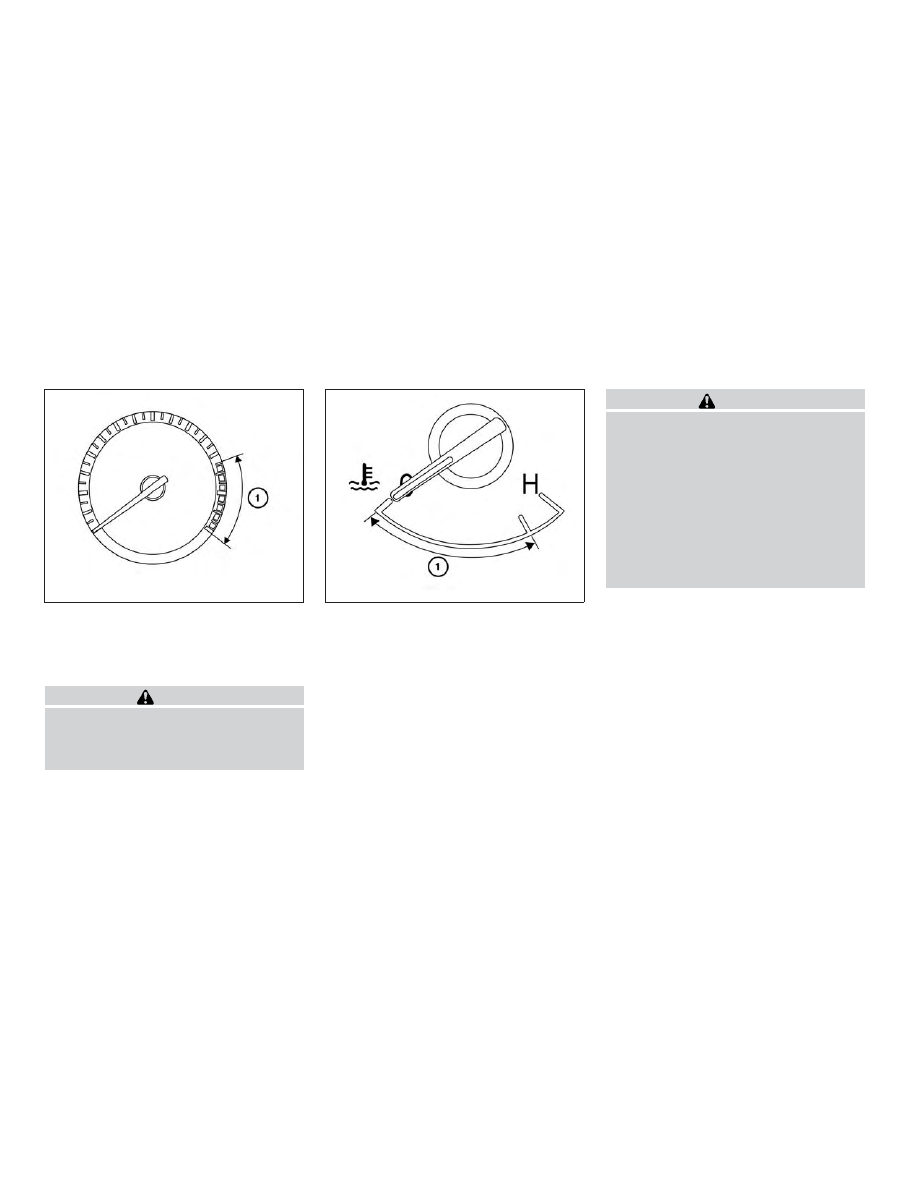

The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev
the engine into the red zone

䊊

CAUTION

When engine speed approaches the red
zone, reduce engine speed. Operating
the engine in the red zone may cause
serious engine damage.

ENGINE COOLANT TEMPERATURE
GAUGE

The gauge indicates the engine coolant
temperature. The engine coolant tempera-
ture is within the normal range

䊊

when

the gauge needle points within the zone
shown in the illustration.

The engine coolant temperature varies
with the outside air temperature and driv-
ing conditions.

CAUTION

If the gauge indicates coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature. If the gauge is over the
normal range, stop the vehicle as soon
as safely possible. If the engine is over-
heated, continued operation of the ve-
hicle may seriously damage the engine.
For additional information, refer to “If
your vehicle overheats” in the “In case
of emergency” section of this manual
for immediate action required.

LIC3543

LIC2220

2-8

Instruments and controls

FUEL GAUGE

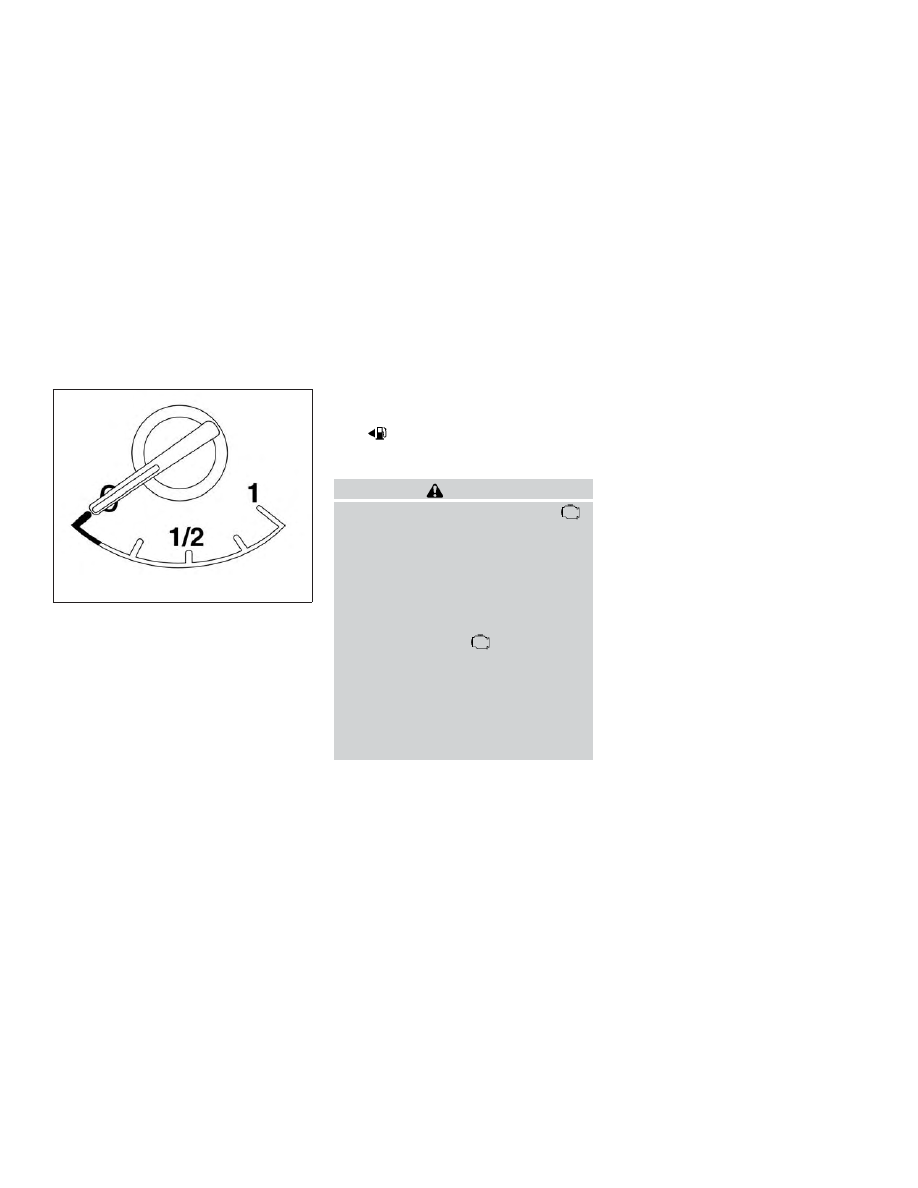

The gauge indicates the approximate fuel
level in the tank.

The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.

The gauge needle returns to 0 (Empty) af-
ter the ignition switch is placed in the OFF
position.

The low fuel warning light comes on when
the amount of fuel in the tank is getting low.

Refill the fuel tank before the gauge reg-
isters 0 (Empty).

The

indicates that the fuel-filler

door is located on the driver’s side of the
vehicle.

CAUTION

∙ If the vehicle runs out of fuel, the

Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible. If
the vehicle has run out of fuel, the sys-
tem will need to be primed. Turn the
key switch to ON for 20–30 seconds
and then back OFF. Repeat 3–4 times
or until the fuel pressure builds. Once
primed, start the vehicle. After a few
driving trips. the

light should

turn off. If the light remains on after a
few driving trips, have the vehicle in-
spected. It is recommended that you
visit a NISSAN dealer for this service.

∙ For additional information, refer to

“Malfunction Indicator Light (MIL)” in
this section.

LIC2222

Instruments and controls

2-9

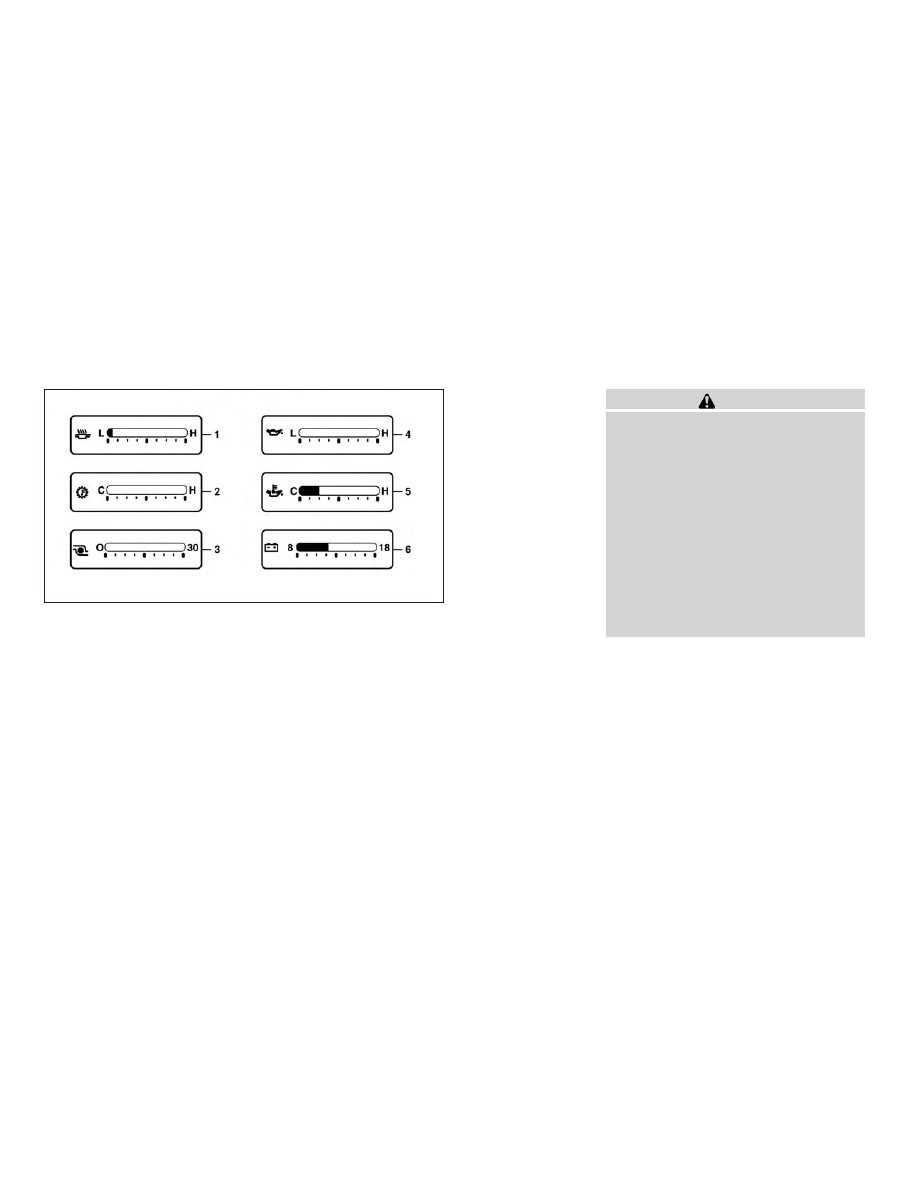

AUXILIARY GAUGES (if so
equipped)

1. Exhaust

temperature

gauge

(if

equipped)

2. Automatic Transmission fluid tem-

perature gauge

3. Turbo meter (if so equipped)

4. Engine oil pressure gauge

5. Engine oil temperature gauge

6. Voltmeter

Exhaust temperature gauge (if so
equipped)

For additional information, refer to the Ti-
tan Diesel Owner’s Manual.

Automatic Transmission fluid tempera-
ture gauge

This gauge indicates the temperature of
the automatic transmission fluid.

CAUTION

∙ This gauge is not designed to indicate

low

automatic

transmission

fluid

level. Use the dipstick to check the
fluid level. For additional information,
refer to “6- speed automatic trans-
mission fluid” in the “Do-it-yourself ”
section of this manual.

∙ If the gauge indicates automatic

transmission fluid temperature over
the normal range, stop the vehicle as
soon as safely possible. It is recom-
mended that you have the vehicle
checked by a NISSAN dealer. Contin-
ued operation of the vehicle may seri-
ously damage the transmission.

Turbo meter (if so equipped)

For additional information, refer to the Ti-
tan Diesel Owner’s Manual.

Engine oil pressure gauge

The gauge indicates the engine lubrication
system oil pressure while the engine is run-
ning. The bar should be in the middle of the
gauge when the engine is running.

LIC3390

2-10

Instruments and controls

CAUTION

∙ This gauge is not designed to indicate

low engine oil level. Use the dipstick to
check the oil level. For additional in-
formation, refer to “Engine oil” in the
“Do-it-yourself ”

section

this

manual.

∙ If the gauge needle does not move

with the proper amount of engine oil,
it is recommended that you have the
vehicle checked by a NISSAN dealer.
Continued vehicle operation in such a
condition could cause serious dam-
age to the engine.

Engine oil temperature gauge

This gauge measures the temperature of
the engine oil.

Voltmeter

When the ignition switch is placed in the ON
position, the voltmeter indicates the bat-
tery voltage. When the engine is running, it
indicates the generator voltage.

While cranking the engine, the volts drop
below the normal range. If the range is not
within the normal range (11 – 15 volts) while
the engine is running, it may indicate that
the charging system is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

DIESEL EXHAUST FLUID (DEF)
LEVEL (if so equipped)

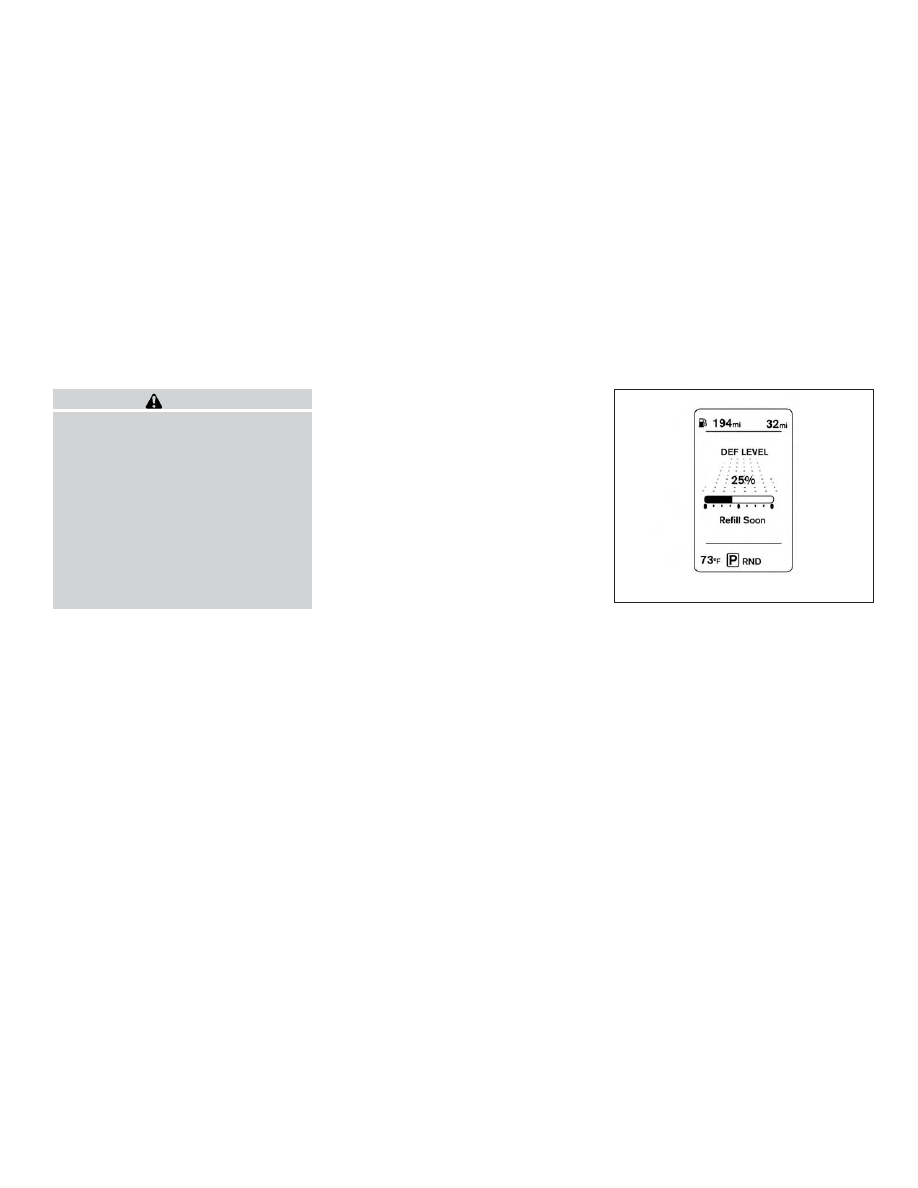

This gauge measures the DEF level re-
maining in the vehicle. For additional infor-
mation, refer to “Fuel and refueling” in the
Titan Diesel Owner’s Manual.

LIC3479

Instruments and controls

2-11

OFF-ROAD MONITOR (if so
equipped)

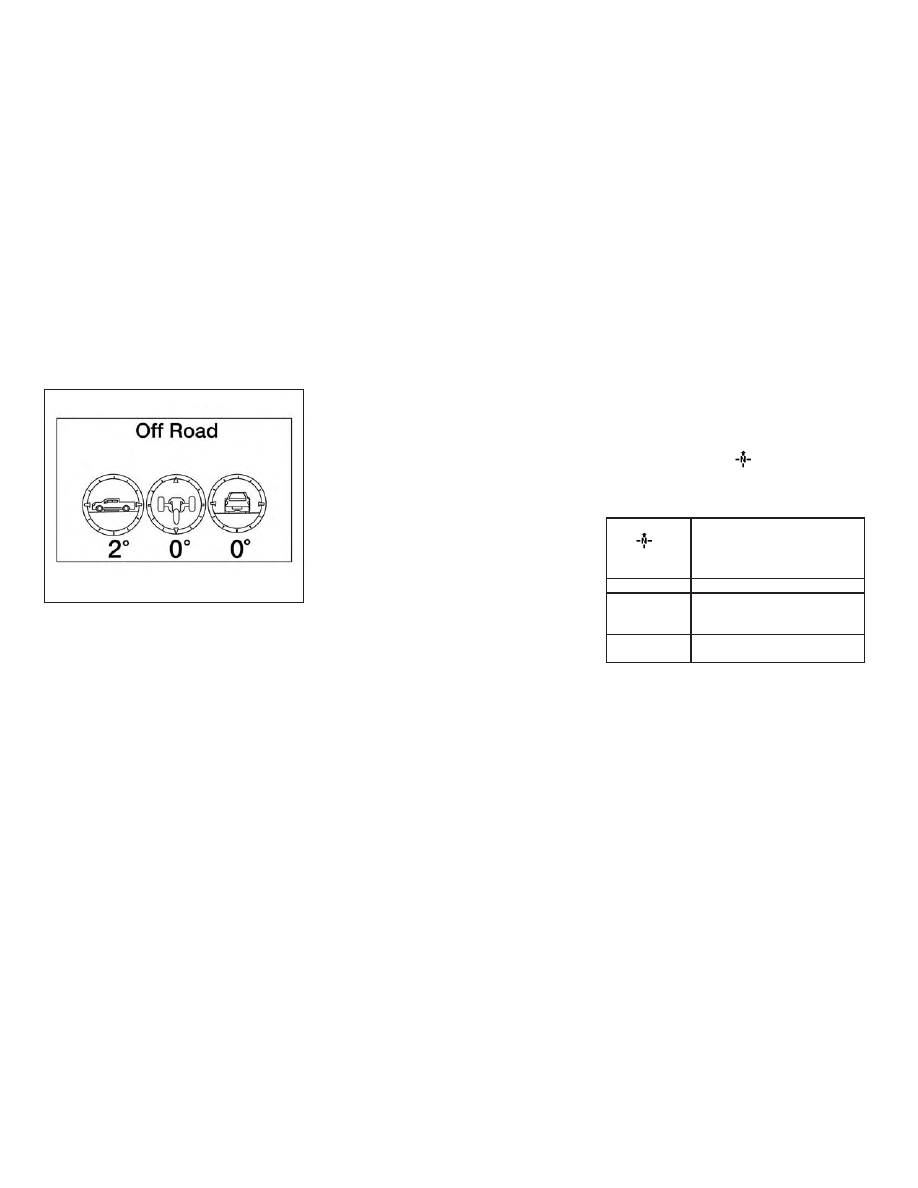

The off-road monitor displays the various
slopes of the vehicle.

The Pitch Gauge (left) indicates the angle of
the vehicle position up or down. The value
will be displayed below the gauge while the
vehicle graphic will rotate to indicate con-
dition pointed up or down.

The Tire Angle (center) indicates the angle
of the tires based on turning of the steering
wheel. The graphic image will show the ac-
tual vehicle tire position while the angle is
to be displayed below as reference.

The Roll Gauge (right) indicates the angle of
the vehicle position left and right. The value
will be displayed below the gauge while the
vehicle graphic will rotate to indicate con-
dition of the vehicle leaning to the left or
right.

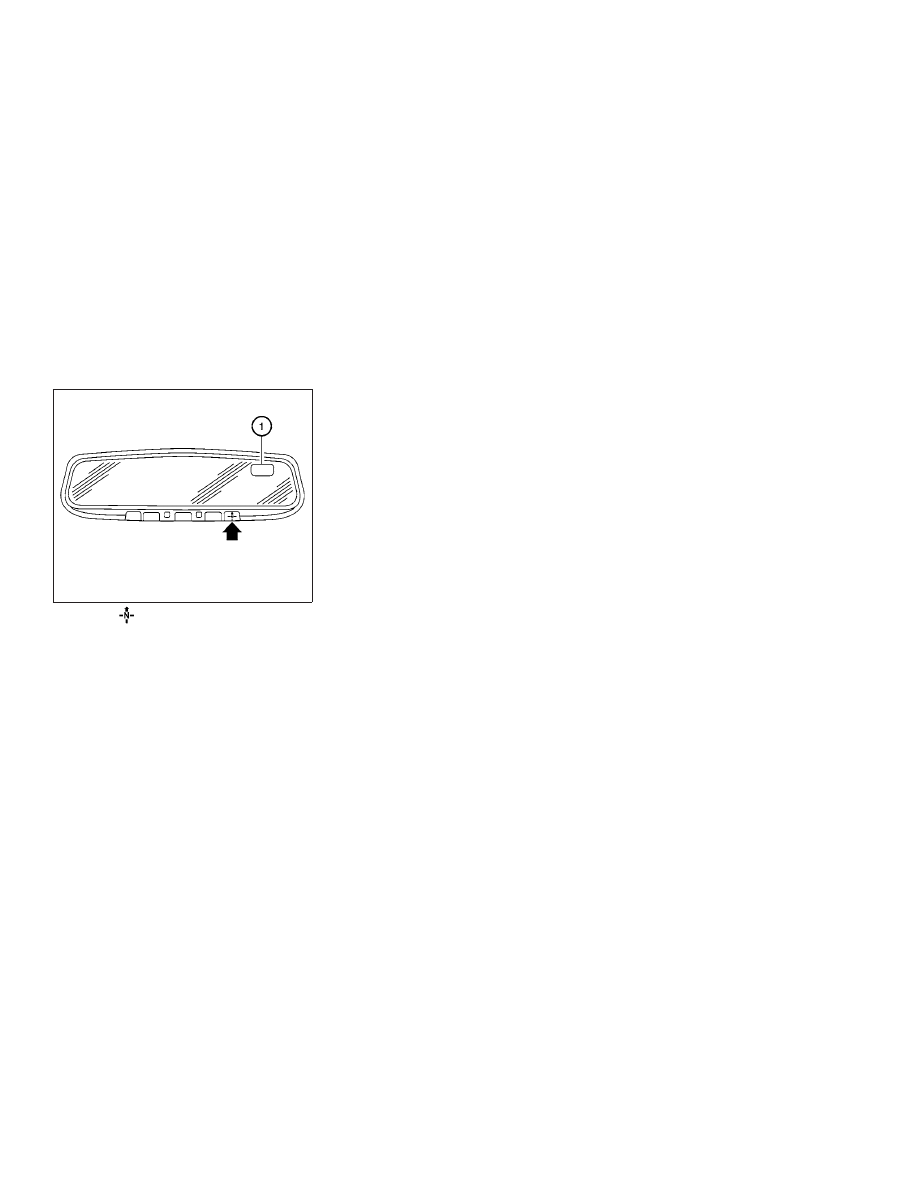

This unit measures terrestrial magnetism
and indicates the direction of the vehicle’s
heading.

With the ignition switch placed in the ON
position, press the

button as de-

scribed in the chart below to activate vari-
ous features of the automatic anti-glare
rearview mirror.

Press and hold

the
button for
about:

Feature:
(Press button again for about
1 second to change settings)

1 second

Compass display toggles on/off

5 seconds

Compass zone can be changed
to correct false compass read-
ings

9 seconds

Compass enters calibration
mode

For information about the automatic anti-
glare feature, refer to “Automatic anti-glare
rearview mirror” in the “Pre-driving checks
and adjustments” section of this manual.

LIC3417

COMPASS (if so equipped)

2-12

Instruments and controls

Press the

button for about 1 second

when the ignition switch is placed in the ON
position to toggle the compass display

䊊

on or off. The display will indicate the direc-
tion of the vehicle’s heading.
N: North
E: East
S: South
W: West

If the display reads “C”, calibrate the com-
pass by driving the vehicle in three com-
plete circles at less than 5 mph (8 km/h).

You can also calibrate the compass by driv-
ing your vehicle on your everyday route.
The compass will be calibrated once it has
tracked three complete circles.

LIC1487

Instruments and controls

2-13

Zone variation change procedure

The difference between magnetic north
and geographical north is known as vari-
ance. In some areas, this difference can
sometimes be great enough to cause false
compass readings. Follow these instruc-
tions to set the variance for your particular
location if this happens:

1. Press and hold the

button for

about 11 seconds or the

button

for about 8 seconds. The current zone
number will appear in the display. Re-
lease the button.

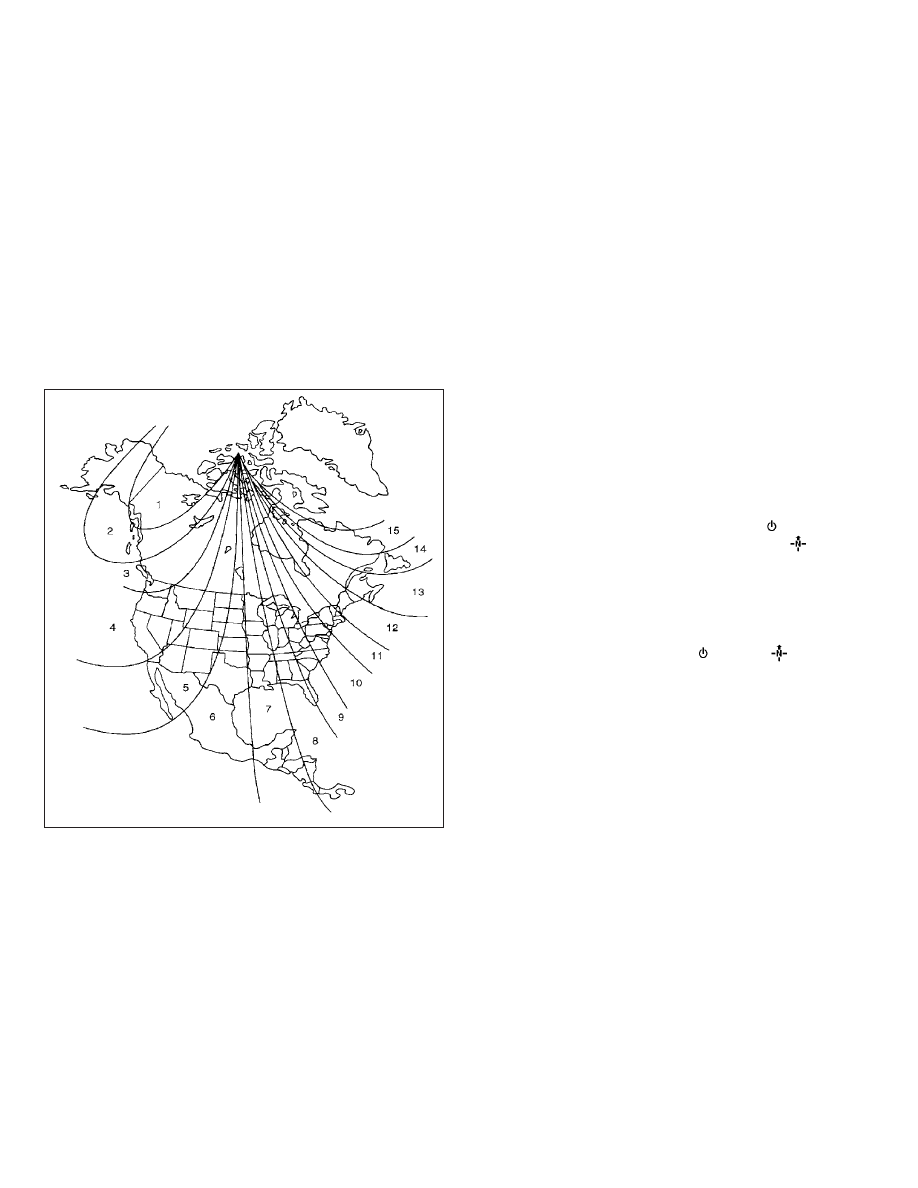

2. Find your current location on the zone

map. Refer to the illustration.

3. Press the

or the

button re-

peatedly to toggle through the zone
numbers until the desired number ap-
pears in the display. Once you have se-
lected a zone number, the display will
show a compass direction within a few
seconds.

WIC0355

2-14

Instruments and controls

NOTE:

Use zone number 5 for Hawaii.

Inaccurate compass direction

The compass display is equipped with au-
tomatic correction function. If the correct
direction is not shown, follow this proce-
dure.

1. With the display turned on, press and

hold the

for about 10 seconds.

The “C” icon in the compass display will
illuminate.

2. Calibrate the compass by driving the

vehicle in three complete circles at a
maximum speed of 5 mph (8 km/h).

3. After completing the circles, the display

should return to normal.

CAUTION

∙ Do not install a ski rack, antenna, etc.,

which are attached to the vehicle by
means of a magnet. They affect the
operation of the compass.

∙ When cleaning the mirror, use a paper

towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as it
may cause the liquid cleaner to enter
the mirror housing.

Instruments and controls

2-15

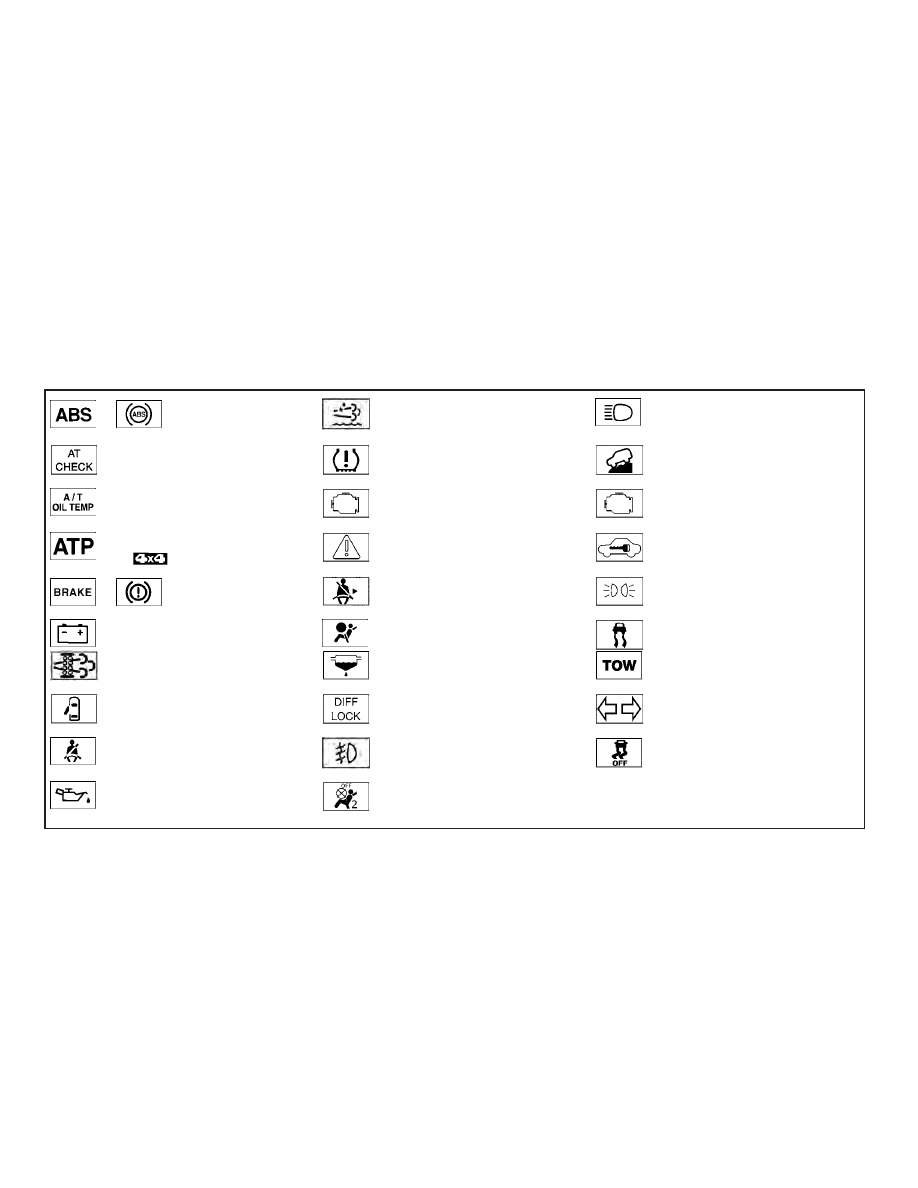

Anti-lock Braking System

(ABS) warning light

Low DEF warning light (if so equipped)

High beam indicator light (blue)

Automatic Transmission check warning

light

Low tire pressure warning light

Hill descent control system ON indicator
light (if so equipped)

Automatic Transmission oil temperature
warning light

Malfunction warning light (red)
(if so equipped)

Malfunction Indicator Light (MIL) (yellow)

Automatic Transmission Park warning

light (

model)

Master warning light (if so equipped)

Security indicator light

Brake warning light

Passenger seat belt warning light
(if so equipped)

Side light and headlight indicator light
(green)

Charge warning light

Supplemental air bag warning light

Slip indicator light

Diesel Particulate Filter (DPF) warning
light (if so equipped)

Water in Fuel warning light
(if so equipped)

TOW mode ON indicator light

Door open warning light

Electronic locking rear differential (E-Lock)
system ON indicator light (if so equipped)

Turn signal/hazard indicator lights

Driver seat belt warning light and chime

Front fog light indicator light
(if so equipped)g light (if so equipped)

Vehicle Dynamic Control (VDC) OFF
indicator light

Engine oil pressure warning light

Front passenger air bag status light
(if so equipped)

WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS

2-16

Instruments and controls

Content .. 5 6 7 8 ..
