SSS0651

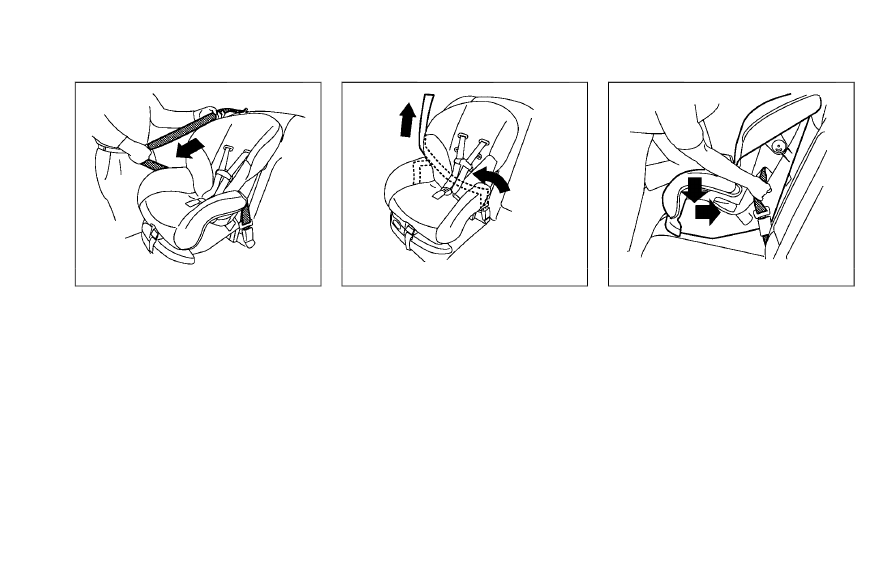

Forward-facing — step 4

4. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode). It reverts to
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.

SSS0652

Forward-facing — step 5

5. Allow the seat belt to retract. Pull up on the

shoulder belt to remove any slack in the belt.

SSS0653

Forward-facing — step 6

6. Remove any additional slack from the seat

belt; press downward and rearward firmly in
the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while pulling up on the seat
belt.

7. Tighten the tether strap according to the

manufacturer’s instructions to remove any
slack.

Safety — Seats, seat belts and supplemental restraint system

1-35

1-36

Safety — Seats, seat belts and supplemental restraint system

SSS0641

Forward-facing — step 8

8. After attaching the child restraint, test it

before you place the child in it. Push it from
side to side while holding the child restraint
near the seat belt path. The child restraint
should not move more than 1 inch (25 mm),
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the seat belt as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.

9. Check to make sure the child restraint is

properly secured prior to each use. If the

seat belt is not locked, repeat steps 2
through 8.

SSS0803

Forward-facing — step 10

10. If the child restraint is installed in the front

passenger seat, place the ignition switch in
the ON position. The front passenger air bag
status light

should illuminate. If this light

is not illuminated, see “Front passenger air
bag and status light” in this section. Move
the child restraint to another seating
position. Have the system checked by a
NISSAN dealer.

After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child
restraint mode) is canceled.

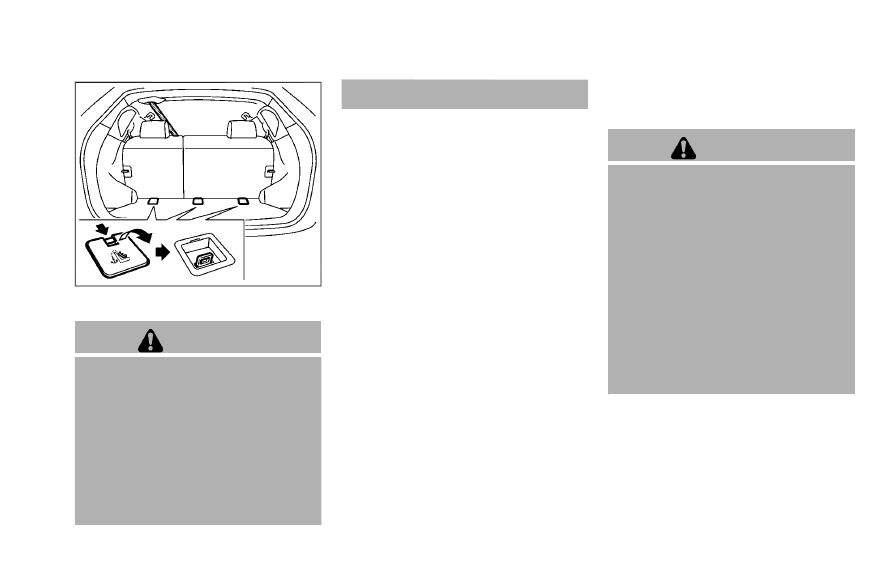

SSS0802

Installing top tether strap

WARNING

Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child
restraint will not be properly installed
using the damaged anchorage, and a
child could be seriously injured or killed

in a collision.

The child restraint top tether strap must be used
when installing the child restraint with the seat
belts.

First, secure the child restraint with the seat belt.

1. Remove the anchor cover from the anchor

point which is located directly behind the
child restraint.

2. Position the top tether strap over the top of

the seatback.

3. Secure the tether strap to the tether anchor

bracket that provides the straightest instal-
lation.

4. Tighten the tether strap according to the

manufacturer’s instructions to remove any
slack.

If you have any questions when installing a
top tether strap, consult your NISSAN
dealer for details.

BOOSTER SEATS

Precautions on booster seats

WARNING

If a booster seat and seat belt are not
used properly, the risk of a child being
injured in a sudden stop or collision
greatly increases:

. Make sure the shoulder portion of

the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the stomach.

. Make sure the shoulder belt is not

behind the child or under the child’s
arm.

. A booster seat must only be in-

stalled in a seating position that has
a lap/shoulder belt.

Safety — Seats, seat belts and supplemental restraint system

1-37

1-38

Safety — Seats, seat belts and supplemental restraint system

LRS0455

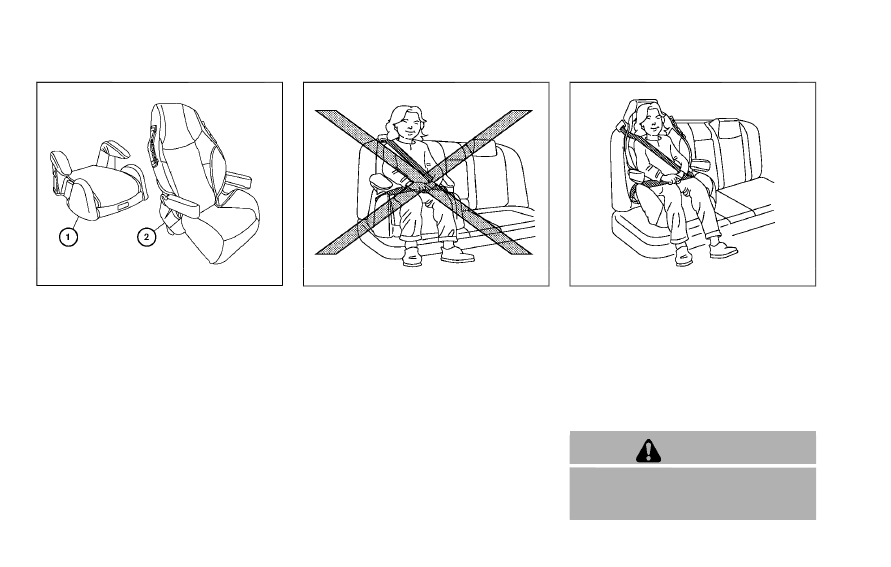

Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
. Choose only a booster seat with a label

certifying that it complies with Federal Motor
Vehicle Safety Standard 213.

. Check the booster seat in your vehicle to be

sure it is compatible with the vehicle’s seat
and seat belt system.

LRS0453

. Make sure the child’s head will be properly

supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat

is chosen, the

vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat

should be used.

. If the booster seat is compatible with your

vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.

LRS0464

All U.S. states require that infants and
small children be restrained in an ap-
proved child restraint at all times while
the vehicle is being operated.

The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.

Booster seat installation

CAUTION

Do not use the lap/shoulder belt Auto-
matic Locking Retractor (ALR) mode
when using a booster seat with the

seat belts.

Refer to all Warnings and Cautions in the “Child
safety”, “Child restraints” and “Booster seats”
sections earlier in this section before installing a
child restraint.

Follow these steps to install a booster seat in the
rear seat or in the front passenger seat:

SSS0640

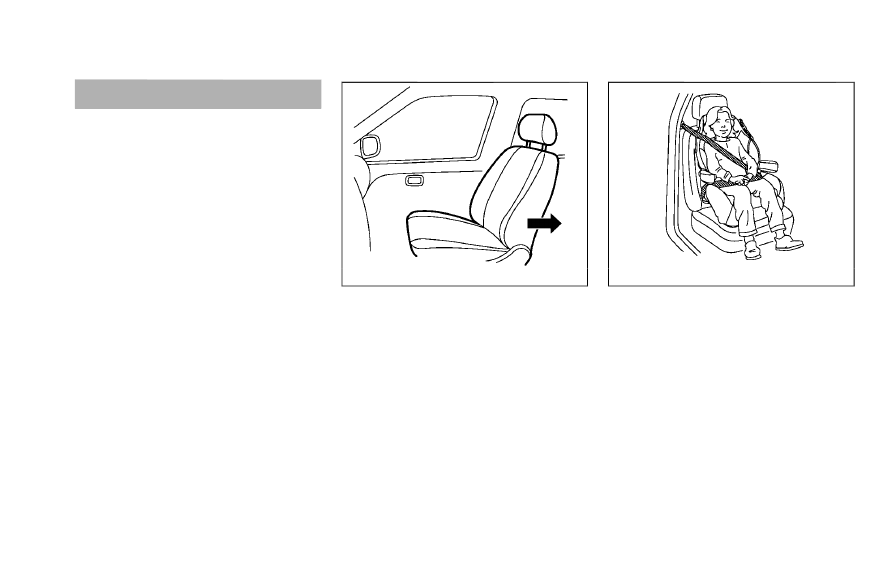

1. If you must install a booster seat in the

front seat, move the seat to the rear-
most position.

2. Position the booster seat on the seat. Only

place it in a forward-facing direction. Always
follow the booster seat manufacturer’s
instructions.

LRS0454

Front passenger position

3. The booster seat should be positioned on

the vehicle seat so that it is stable.

If necessary, adjust or remove the head
restraint/headrest to obtain the correct
booster seat fit. If the head restraint/head-
rest is removed, store it in a secure place.
Be sure to reinstall the head restraint/
headrest when the booster seat is
removed. See “Head restraints/Headrests”
(P.1-5) for head restraint/headrest adjust-
ment, removal and installation information.

If the seating position does not have an
adjustable head restraint or headrest and it
is interfering with the proper booster seat fit,

Safety — Seats, seat belts and supplemental restraint system

1-39

1-40

Safety — Seats, seat belts and supplemental restraint system

try another seating position or a different
booster seat.

4. Position the lap portion of the seat belt low

and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.

5. Pull the shoulder belt portion of the seat belt

toward the retractor to take up extra slack.
Be sure the shoulder belt is positioned
across the top, middle portion of the child’s
shoulder. Be sure to follow the booster seat
manufacturer’s instructions for adjusting the
seat belt routing.

6. Follow the warnings, cautions and instruc-

tions for properly fastening a seat belt
shown in “Seat belts” (P.1-9).

SSS0803

7. If the booster seat is installed in the front

passenger seat, turn the ignition switch to
the ON position. The front passenger air bag
status light

may or may not illuminate

depending on the size of the child and the
type of booster seat used. See “Front
passenger air bag and status light” (P.1-48).

PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM

This Supplemental Restraint System (SRS)
section contains important information concern-
ing the following systems:
. Driver and passenger supplemental front-

impact air bag (NISSAN Advanced Air Bag
System)

. Front seat-mounted side-impact supple-

mental air bag

. Roof-mounted curtain side-impact and roll-

over supplemental air bag

. Seat belt with pretensioner
Supplemental front-impact air bag system:
The NISSAN Advanced Air Bag System can
help cushion the impact force to the head and
chest of the driver and front passenger in certain
frontal collisions.

Front seat-mounted side-impact supple-
mental air bag system: This system can help
cushion the impact force to the chest and pelvis
areas of the driver and front passenger in certain
side impact collisions. The side air bags are
designed to inflate on the side where the vehicle
is impacted.

Roof-mounted curtain side-impact and
rollover supplemental air bag system: This
system can help cushion the impact force to the

head of occupants in front and rear outboard
seating positions in certain side impact or
rollover collisions. In a side impact, the curtain
air bags are designed to inflate on the side
where the vehicle is impacted. In a rollover, the
curtain air bags on both sides are designed to
inflate. Under both side-impact and rollover
situations, the curtain air bags will remain
inflated for a short period of time.

These supplemental restraint systems are de-
signed to supplement the crash protection
provided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the
occupant seated a suitable distance away from
the steering wheel, instrument panel and door
finishers. (See “Seat belts” (P.1-9) for instruc-
tions and precautions on seat belt usage.)

The supplemental air bags operate only
when the ignition switch is in the ON
position.

After turning the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.

Safety — Seats, seat belts and supplemental restraint system

1-41

SUPPLEMENTAL RESTRAINT
SYSTEM

1-42

Safety — Seats, seat belts and supplemental restraint system

SSS0131

SSS0132

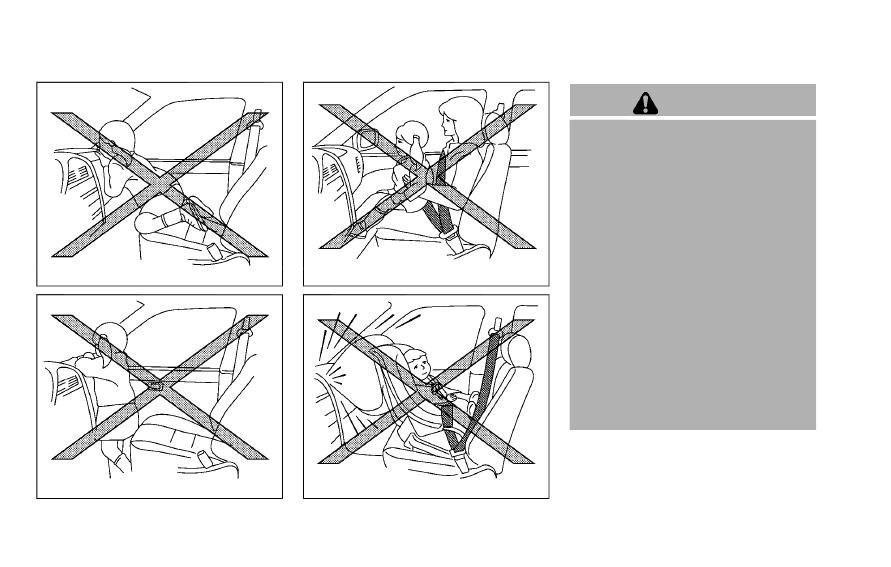

WARNING

. The front air bags ordinarily will not

inflate in the event of a side impact,
rear impact, rollover, or lower se-
verity frontal collision. Always wear
your seat belts to help reduce the
risk or severity of injury in various
kinds of accidents.

. The front passenger air bag will not

inflate if the passenger air bag
status light is lit or if the front
passenger seat is unoccupied. See
“Front passenger air bag and status
light” (P.1-48).

. The seat belts and the front air bags

are most effective when you are
sitting well back and upright in the
seat with both feet on the floor. The
front air bags inflate with great
force. Even with the NISSAN Ad-
vanced Air Bag System, if you are
unrestrained, leaning forward, sit-
ting sideways or out of position in
any way, you are at greater risk of
injury or death in a crash. You may
also receive serious or fatal injuries
from the front air bag if you are up
against it when it inflates. Always sit

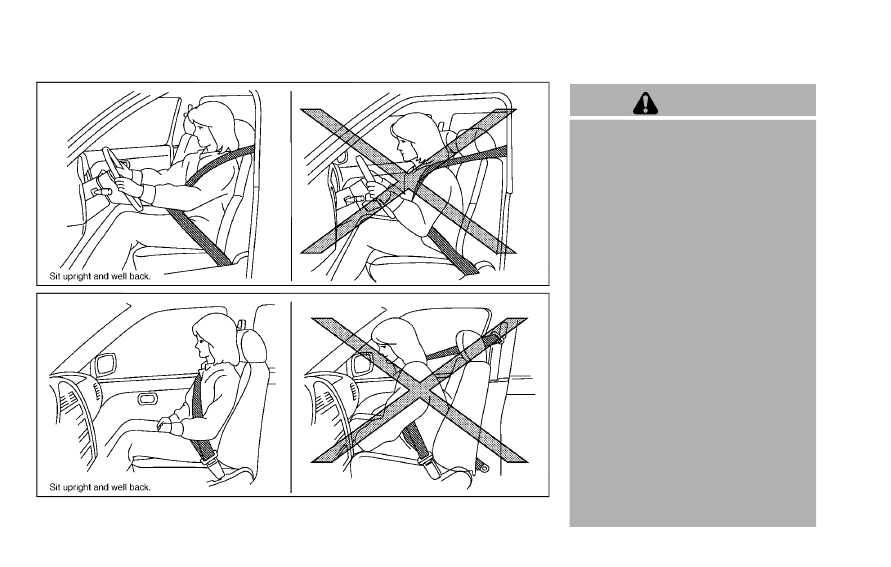

back against the seatback and as
far-away as practical from the steer-
ing wheel or instrument panel. Al-
ways use the seat belts.

. The driver and front passenger seat

belt buckles are equipped with
sensors that detect if the seat belts
are fastened. The Advanced Air Bag
System monitors the severity of a
collision and seat belt usage then
inflates the air bags as needed.
Failure to properly wear seat belts
can increase the risk or severity of
injury in an accident.

. The front passenger seat is

equipped with an occupant classifi-
cation sensor (pattern sensor) that
turns the front passenger air bag
OFF under some conditions. This
sensor is only used in this seat.
Failure to be properly seated and
wearing the seat belt can increase
the risk or severity of injury in an
accident. See “Front passenger air
bag and status light” (P.1-48).

. Keep hands on the outside of the

steering wheel. Placing them inside
the steering wheel rim could in-
crease the risk that they are injured

if the front air bag inflates.

SSS0007

SSS0006

Safety — Seats, seat belts and supplemental restraint system

1-43

1-44

Safety — Seats, seat belts and supplemental restraint system

SSS0008

SSS0009

SSS0099

SSS0100

WARNING

. Never let children ride unrestrained

or extend their hands or face out of
the window. Do not attempt to hold
them in your lap or arms. Some

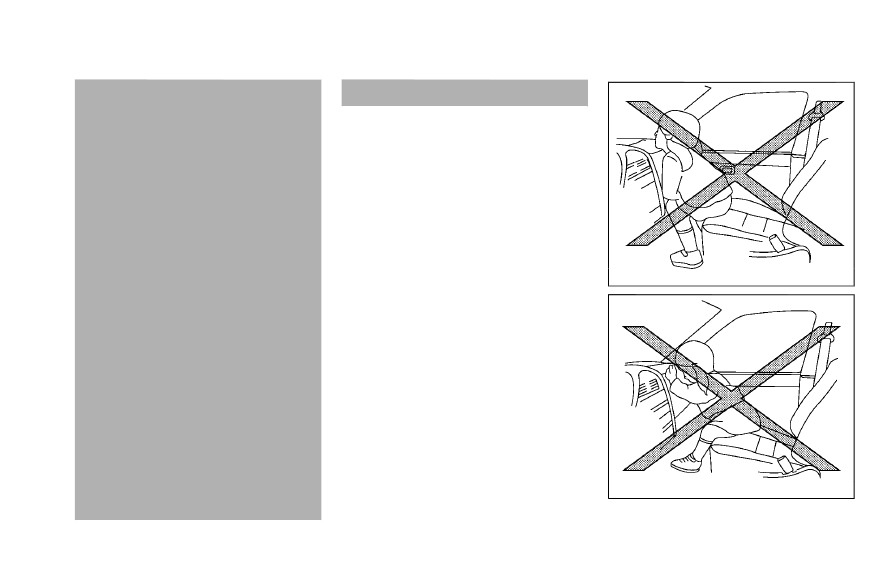

examples of dangerous riding posi-
tions are shown in the illustrations.

. Children may be severely injured or

killed when the front air bags, side
air bags or curtain air bags inflate if
they are not properly restrained.
Pre-teens and children should be
properly restrained in the rear seat,
if possible.

. Even with the NISSAN Advanced Air

Bag System, never install a rear-
facing child restraint in the front
seat. An inflating front air bag could
seriously injure or kill your child.
See “Child restraints” (P.1-21) for
details.

SSS0059A

Do not lean against doors or windows.

SSS0188A

SSS0140

SSS0162

SSS0159

WARNING

Front seat-mounted side-impact sup-
plemental air bags and roof-mounted
curtain side-impact and rollover supple-
mental air bags:

. The side air bags and curtain air

bags ordinarily will not inflate in the
event of a frontal impact, rear im-
pact or lower severity side collision.
Always wear your seat belts to help
reduce the risk or severity of injury
in various kinds of accidents.

Safety — Seats, seat belts and supplemental restraint system

1-45

1-46

Safety — Seats, seat belts and supplemental restraint system

. The seat belts, the side air bags and

curtain air bags are most effective
when you are sitting well back and
upright in the seat. The side air bag
and curtain air bag inflate with great
force. Do not allow anyone to place
their hand, leg or face near the side
air bag on the side of the seatback
of the front seat or near the side
roof rails. Do not allow anyone
sitting in the front seats or rear
outboard seats to extend their hand

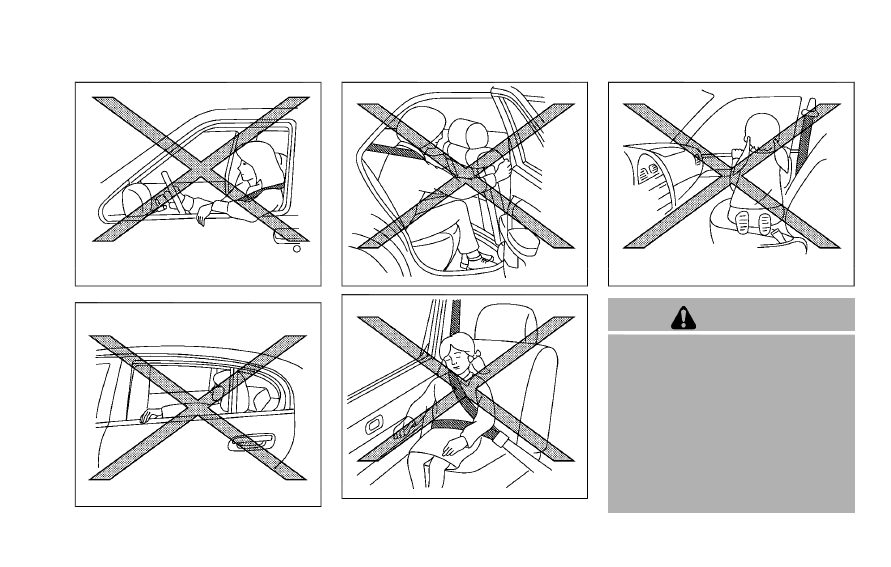

out of the window or lean against
the door. Some examples of dan-
gerous riding positions are shown
in the previous illustrations.

. When sitting in the rear seat, do not

hold onto the seatback of the front
seat. If the side air bag inflates, you
may be seriously injured. Be espe-
cially careful with children, who
should always be properly re-
strained. Some examples of danger-
ous riding positions are shown in
the illustrations.

. Do not use seat covers on the front

seatbacks. They may interfere with
side air bag inflation.

JVR0413X

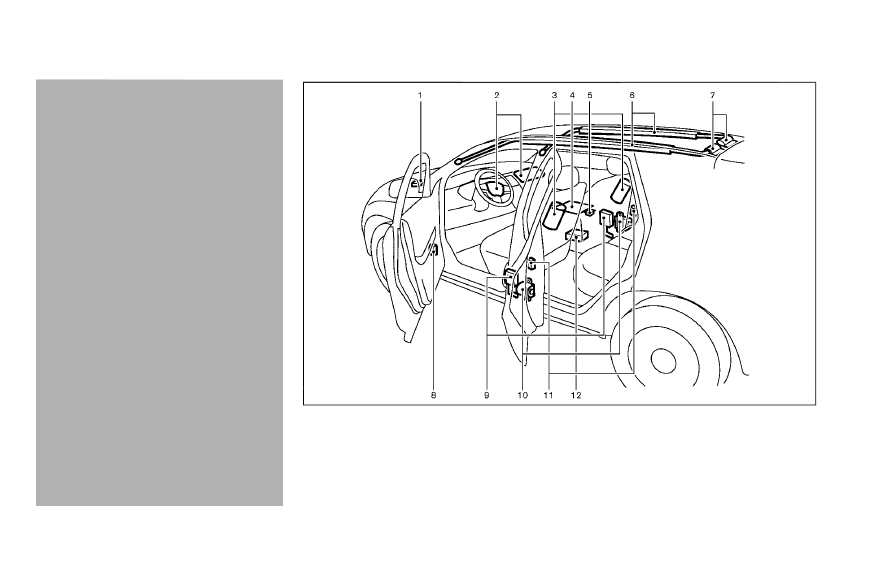

Crash zone sensor

Supplemental front-impact air bag modules

Front seat-mounted side-impact supplemental
air bag modules

Occupant classification sensor (pattern sensor)

Occupant classification system control unit

Roof-mounted curtain side-impact and rollover
supplemental air bags

Roof-mounted curtain side-impact and rollover
supplemental air bag inflators

Door satellite sensors

Lap outer pretensioners

10.

Seat belt with pretensioners

11.

Satellite sensors

12.

Air bag Control Unit (ACU)

NISSAN ADVANCED AIR BAG SYS-
TEM (front seats)

This vehicle is equipped with the NISSAN
Advanced Air Bag System for the driver and
front passenger seats. This system is designed
to meet certification requirements under U.S.
regulations. All of the information, cautions
and warnings in this manual apply and
must be followed.

The driver supplemental front-impact air bag is
located in the center of the steering wheel; the
passenger supplemental front-impact air bag is
mounted in the instrument panel above the glove
box. The front air bags are designed to inflate in
higher severity frontal collisions, although they
may inflate if the forces in another type of
collision are similar to those of a higher severity
frontal impact. They may not inflate in certain
frontal collisions. Vehicle damage (or lack of it) is
not always an indication of proper front air bag
operation.

The NISSAN Advanced Air Bag System has
dual stage air bag inflators. The system monitors
information from the crash zone sensor, satellite
sensor, Air bag Control Unit (ACU), seat belt
buckle sensors and occupant classification
sensor (pattern sensor). Inflator operation is
based on the severity of a collision and seat belt
usage for the driver. For the front passenger, the

occupant classification sensor is also monitored.
Based on information from the sensors, only one
front air bag may inflate in a crash, depending on
the crash severity and whether the front
occupants are belted or unbelted. Additionally,
the front passenger air bag may be automatically
turned OFF under some conditions, depending
on the information provided by the occupant
classification sensor. If the front passenger air
bag is OFF, the passenger air bag status light
will be illuminated (if the seat is unoccupied, the
light will not be illuminated, but the air bag will
be off). (See “Front passenger air bag and
status light” (P.1-48) for further details.) One
front air bag inflating does not indicate improper
performance of the system.

If you have any questions about your air bag
system, contact NISSAN or a NISSAN dealer. If
you are considering modification of your vehicle
due to a disability, you may also contact
NISSAN. Contact information is contained in
the front of this Owner’s Manual.

When a front air bag inflates, a fairly loud noise
may be heard, followed by release of smoke.
This smoke is not harmful and does not indicate
a fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.

Front air bags, along with the use of seat belts,
help to cushion the impact force on the head
and chest of the front occupants. They can help
save lives and reduce serious injuries. However,
an inflating front air bag may cause facial
abrasions or other injuries. Front air bags do
not provide restraint to the lower body.

Even with NISSAN Advanced Air Bags, seat
belts should be correctly worn and the driver
and passenger seated upright as far as practical
away from the steering wheel or instrument
panel. The front air bags inflate quickly in order
to help protect the front occupants. Because of
this, the force of the front air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, the air bag module during
inflation.

The front air bags will deflate quickly after a
collision.

The front air bags operate only when the
ignition switch is in the ON position.

Safety — Seats, seat belts and supplemental restraint system

1-47

1-48

Safety — Seats, seat belts and supplemental restraint system

SSS0803

Front passenger air bag status light

Front passenger air bag and status light

WARNING

The front passenger air bag is designed
to automatically turn OFF under some
conditions. Read this section carefully
to learn how it operates. Proper use of
the seat, seat belt and child restraints is
necessary for most effective protection.
Failure to follow all instructions in this
manual concerning the use of seats,
seat belts and child restraints can
increase the risk or severity of injury in

an accident.

Status light:

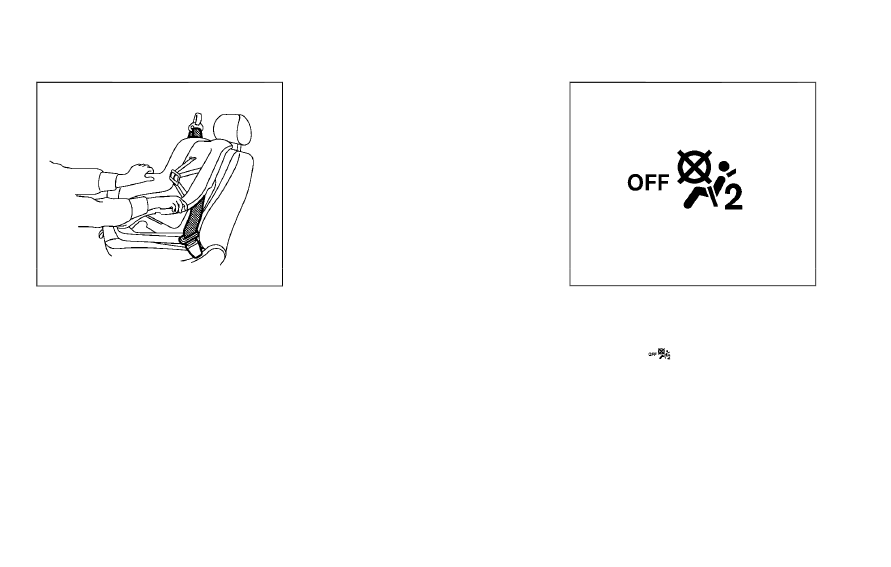

The front passenger air bag status light

located on the instrument panel below the air
conditioner controls. After the ignition switch is
placed in the “ON” position, the front passenger
air bag status light illuminates for about 7
seconds and then turns off or illuminates
depending on the front passenger seat occu-
pied status. The light operates as follows:
. Unoccupied passenger seat: The

light

is OFF and the front passenger air bag is
OFF and will not inflate in a crash.

. Passenger’s seat occupied by a small adult,

child or child restraint as outlined in this
section: The

light illuminates to indicate

that the front passenger air bag is OFF and
will not inflate in a crash.

. Occupied passenger seat and the passen-

ger meets the conditions outlined in this
section: The

light is OFF to indicate that

the front passenger air bag is operational.

Front passenger air bag:

The front passenger air bag is designed to
automatically turn OFF when the vehicle is
operated under some conditions as described
below as permitted by U.S. regulations. If the

front passenger air bag is OFF, it will not inflate
in a crash. The driver air bag and other air bags
in your vehicle are not part of this system.

The purpose of the regulation is to help reduce
the risk of injury or death from an inflating air bag
to certain front passenger seat occupants, such
as children, by requiring the air bag to be
automatically turned OFF.

The occupant classification sensor (pattern
sensor) is in the front passenger seat cushion
and is designed to detect an occupant and
objects on the seat. For example, if a child is in
the front passenger seat, the Advanced Air Bag
System is designed to turn the passenger air
bag OFF in accordance with the regulations.
Also, if a child restraint of the type specified in
the regulations is on the seat, the occupant
classification sensor can detect it and cause the
air bag to turn OFF.

Front passenger seat adult occupants who are
properly seated and using the seat belt as
outlined in this manual should not cause the
passenger air bag to be automatically turned
OFF. For small adults it may be turned OFF,
however, if the occupant does not sit in the seat
properly (for example, by not sitting upright, by
sitting on an edge of the seat, or by otherwise
being out of position), this could cause the
sensor to turn the air bag OFF. Always be sure

to be seated and wearing the seat belt properly
for the most effective protection by the seat belt
and supplemental air bag.

NISSAN recommends that pre-teens and chil-
dren be properly restrained in a rear seat.
NISSAN also recommends that appropriate
child restraints and booster seats be properly
installed in a rear seat. If this is not possible, the
occupant classification sensor is designed to
operate as described above to turn the front
passenger air bag OFF for specified child
restraints. Failing to properly secure child
restraints and to use the Automatic Locking
Retractor (ALR) mode (child restraint mode)
may allow the restraint to tip or move in an
accident or sudden stop. This can also result in
the passenger air bag inflating in a crash instead
of being OFF. (See “Child restraints” (P.1-21)
for proper use and installation.)

If the front passenger seat is not occupied, the
passenger air bag is designed not to inflate in a
crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object being detected by the occupant
classification sensor. Other conditions could
also result in air bag inflation, such as if a child is
standing on the seat, or if two children are on the
seat, contrary to the instructions in this manual.
Always be sure that you and all vehicle
occupants are seated and restrained properly.

Using the passenger air bag status light, you can
monitor when the front passenger air bag is
automatically turned OFF with the seat occu-
pied. The light will not illuminate when the front
passenger seat is unoccupied.

If an adult occupant is in the seat but the
passenger air bag status light is illuminated
(indicating that the air bag is OFF), it could be
that the person is a small adult, or is not sitting
on the seat properly.

If a child restraint must be used in the front seat,
the passenger air bag status light may or may
not be illuminated, depending on the size of the
child and the type of child restraint being used. If
the air bag status light is not illuminated
(indicating that the air bag might inflate in a
crash), it could be that the child restraint or seat
belt is not being used properly. Make sure that
the child restraint is installed properly, the seat
belt is used properly and the occupant is
positioned properly. If the air bag status light is
not illuminated, reposition the occupant or child
restraint in a rear seat.

If the passenger air bag status light will not
illuminate even though you believe that the child
restraint, the seat belts and the occupant are
properly positioned, the system may be sensing
an unoccupied seat (in which case the air bag is
OFF). Your NISSAN dealer can check that the

system is OFF by using a special tool. However,
until you have confirmed with your dealer that
your air bag is working properly, reposition the
occupant or child restraint in a rear seat.

The air bag system and passenger air bag status
light will take a few seconds to register a change
in the passenger seat status. However, if the
seat becomes unoccupied, the air bag status
light will remain off.

If a malfunction occurs in the front passenger air
bag system, the supplemental air bag warning
light

, located in the meter and gauges area,

will blink. Have the system checked by a
NISSAN dealer.

Other supplemental front-impact air bag
precautions

WARNING

. Do not place any objects on the

steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause
injury if the front air bag inflates.

Safety — Seats, seat belts and supplemental restraint system

1-49

1-50

Safety — Seats, seat belts and supplemental restraint system

. Do not place objects with sharp

edges on the seat. Also, do not
place heavy objects on the seat that
will leave permanent impressions in
the seat. Such objects can damage
the seat or occupant classification
sensor (pattern sensor). This can
affect the operation of the air bag
system and result in serious perso-
nal injury.

. Do not use water or acidic cleaners

(hot steam cleaners) on the seat.
This can damage the seat or occu-
pant classification sensor. This can
also affect the operation of the air
bag system and result in serious
personal injury.

. Immediately after inflation, several

front air bag system components
will be hot. Do not touch them; you
may severely burn yourself.

. No unauthorized changes should be

made to any components or wiring
of the supplemental air bag system.
This is to prevent accidental infla-
tion of the supplemental air bag or
damage to the supplemental air bag
system.

. Do not make unauthorized changes

to your vehicle’s electrical system,
suspension system or front end
structure. This could affect proper
operation of the front air bag sys-
tem.

. Tampering with the supplemental

air bag system may result in serious
personal injury. Tampering includes
changes to the steering wheel and
the instrument panel assembly by
placing material over the steering
wheel pad and above the instrument
panel or by installing additional trim
material around the air bag system.

. Modifying or tampering with the

front passenger seat may result in
serious personal injury. For exam-
ple, do not change the front seats by
placing material on the seat cushion
or by installing additional trim ma-
terial, such as seat covers, on the
seat that is not specifically designed
to assure proper air bag operation.
Additionally, do not stow any ob-
jects under the front passenger seat
or the seat cushion and seatback.
Such objects may interfere with the
proper operation of the occupant

classification sensor.

. No unauthorized changes should be

made to any components or wiring
of the seat belt system. This may
affect the front air bag system.
Tampering with the seat belt system
may result in serious personal in-
jury.

. Work on and around the front air

bag system should be done by a
NISSAN dealer. Installation of elec-
trical equipment should also be
done by a NISSAN dealer. The
Supplemental Restraint System
(SRS) wiring harnesses* should not
be modified or disconnected. Un-
authorized electrical test equipment
and probing devices should not be
used on the air bag system.

. A cracked windshield should be

replaced immediately by a qualified
repair facility. A cracked windshield
could affect the function of the
supplemental air bag system.

The SRS wiring harness connectors are
yellow and orange for easy identification.

When selling your vehicle, we request that you
inform the buyer about the front air bag system

Content .. 2 3 4 5 ..
