SYSTEM TEMPORARILY
UNAVAILABLE

When radar blockage is detected, the system will
be deactivated automatically. The “Side Radar
Obstruction” warning message will appear and
the BSW/RCTA indicator (white) will blink

䊊

the vehicle information display.

The system is not available until the conditions no
longer exist.

The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog. The blocked condition may also be caused
by objects such as ice, frost or dirt obstructing
the radar sensors.

NOTE:

If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.

Action to take:

When the above conditions no longer exist, the
system will resume automatically.

LSD2531

5-30

Starting and driving

Malfunction

If the BSW system malfunctions, it will turn off
automatically. The system malfunction warning
message with the BSW/RCTA indicator (orange)
will appear in the vehicle information display.

NOTE:

If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.

Action to take:

Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the hybrid
system off and restart the hybrid system. If the
message continues to appear, have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.

SYSTEM MAINTENANCE

The two radar sensors

䊊

for the BSW and

RCTA systems are located near the rear bumper.
Always keep the area near the radar sensors
clean.

The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.

The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.

Check for and remove objects obstructing the
area around the radar sensors.

Do not attach stickers (including transparent ma-
terial), install accessories or apply additional
paint near the radar sensors.

Do not strike or damage the area around the
radar sensors. It is recommended that you visit a
NISSAN dealer if the area around the radar sen-
sors is damaged due to a collision.

Radio frequency statement

For USA

FCC : OAYSRR2B

This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:

(1) This device may not cause harmful inter-
ference, and (2) this device must accept any
interference received, including interfer-
ence that may cause undesired operation.

FCC Warning

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment

LSD2223

Starting and driving

5-31

For Canada

Applicable law: Canada 310

This device complies with Industry Canada
licence-exempt RSS standard(s). Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.

Frequency bands: 24.05GHz – 24.25GHz

Output power: less than 20 milliwatts

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the RCTA system
could result in serious injury or death.

● The RCTA system is not a replacement

for proper driving procedures and is not
designed to prevent contact with ve-
hicles or objects. When backing out of a
parking space, always use the side and
rear mirrors and turn and look in the
direction your vehicle will move. Never
rely solely on the RCTA system.

The RCTA system will assist you when backing
out from a parking space. When the vehicle is in
reverse, the system is designed to detect other
vehicles approaching from the right or left of the
vehicle. If the system detects cross traffic, it will
alert you.

REAR CROSS TRAFFIC ALERT (RCTA)
(if so equipped)

5-32

Starting and driving

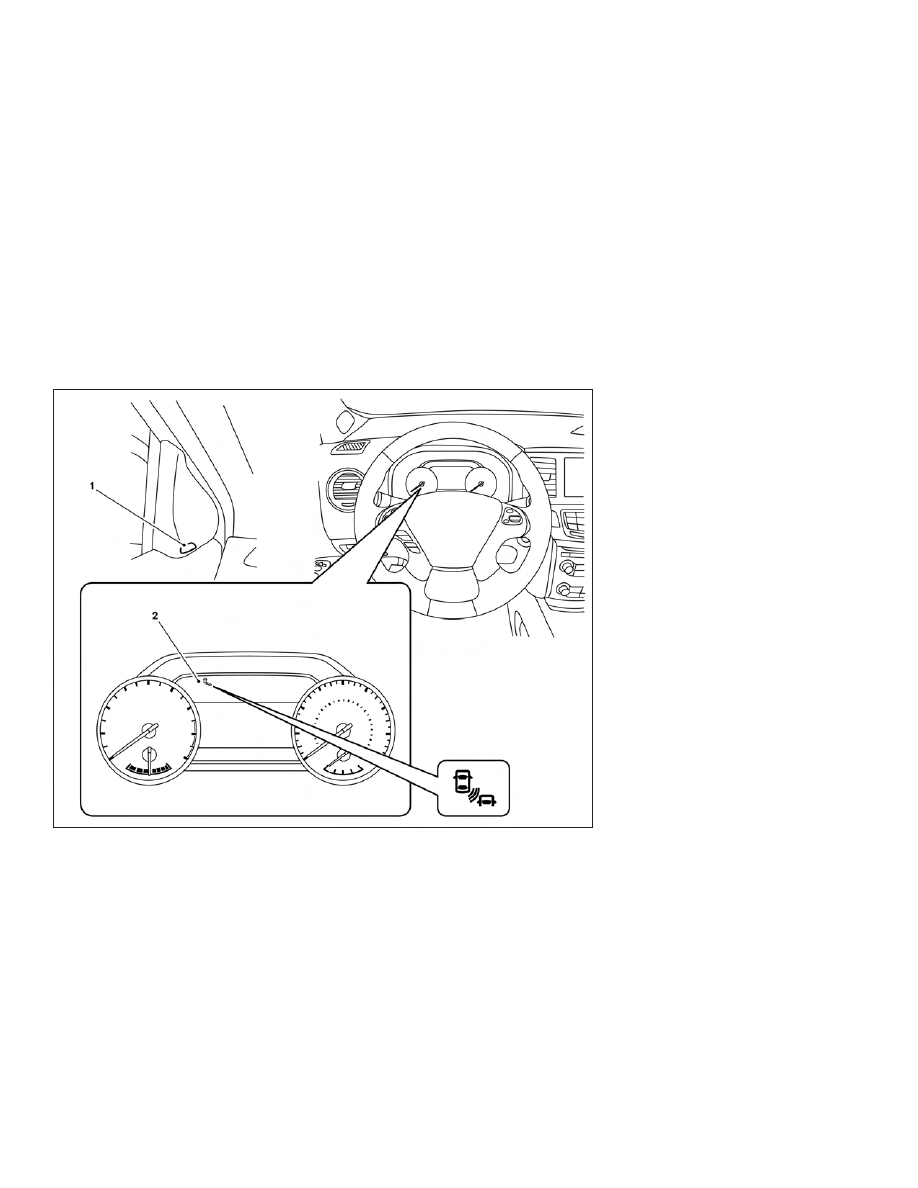

1. Side BSW/RCTA Indicator Light

2. BSW/RCTA Indicator

RCTA SYSTEM OPERATION

The RCTA system can help alert the driver of an
approaching vehicle when the driver is backing
out of a parking space.

When the shift position is in R (Reverse) and the
vehicle speed is less than approximately 5 mph
(8 km/h), the RCTA system is operational.

If the radar detects an approaching vehicle from
either side, the system chimes (once) and the
side BSW/RCTA indicator light flashes on the
side the vehicle is approaching from.

LSD2512

Starting and driving

5-33

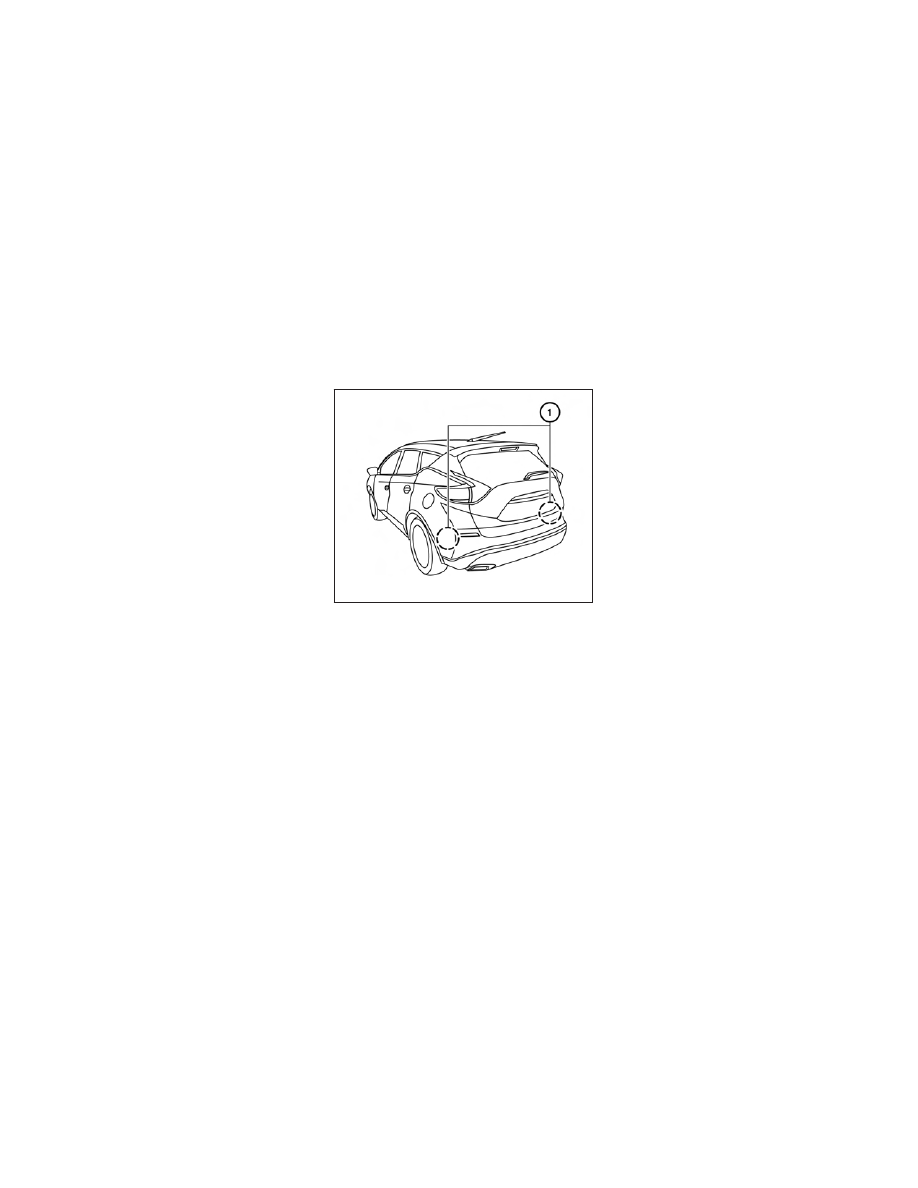

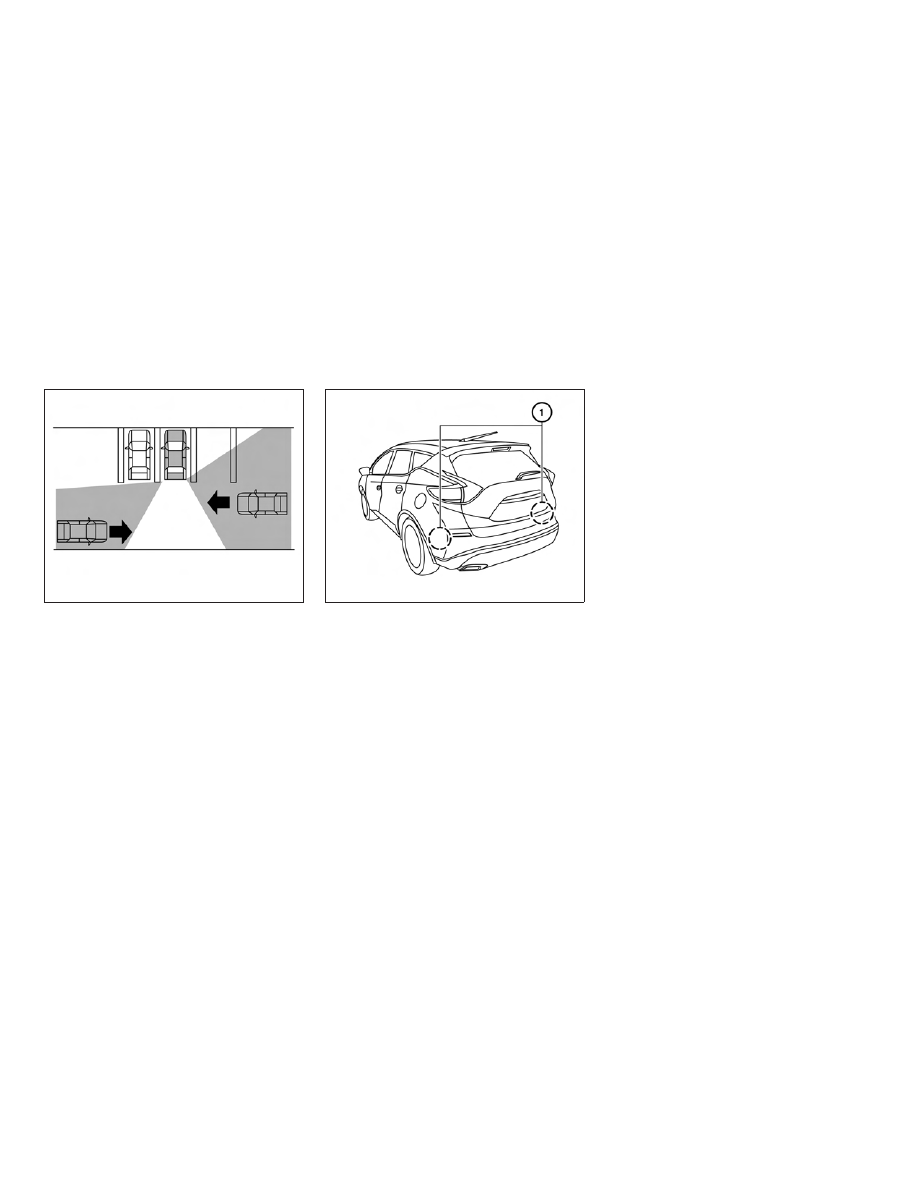

The RCTA system uses radar sensors

䊊

in-

stalled on both sides near the rear bumper to
detect an approaching vehicle.

The radar sensors

䊊

can detect an approaching

vehicle from up to approximately 66 ft. (20 m)
away.

LSD2216

LSD2223

5-34

Starting and driving

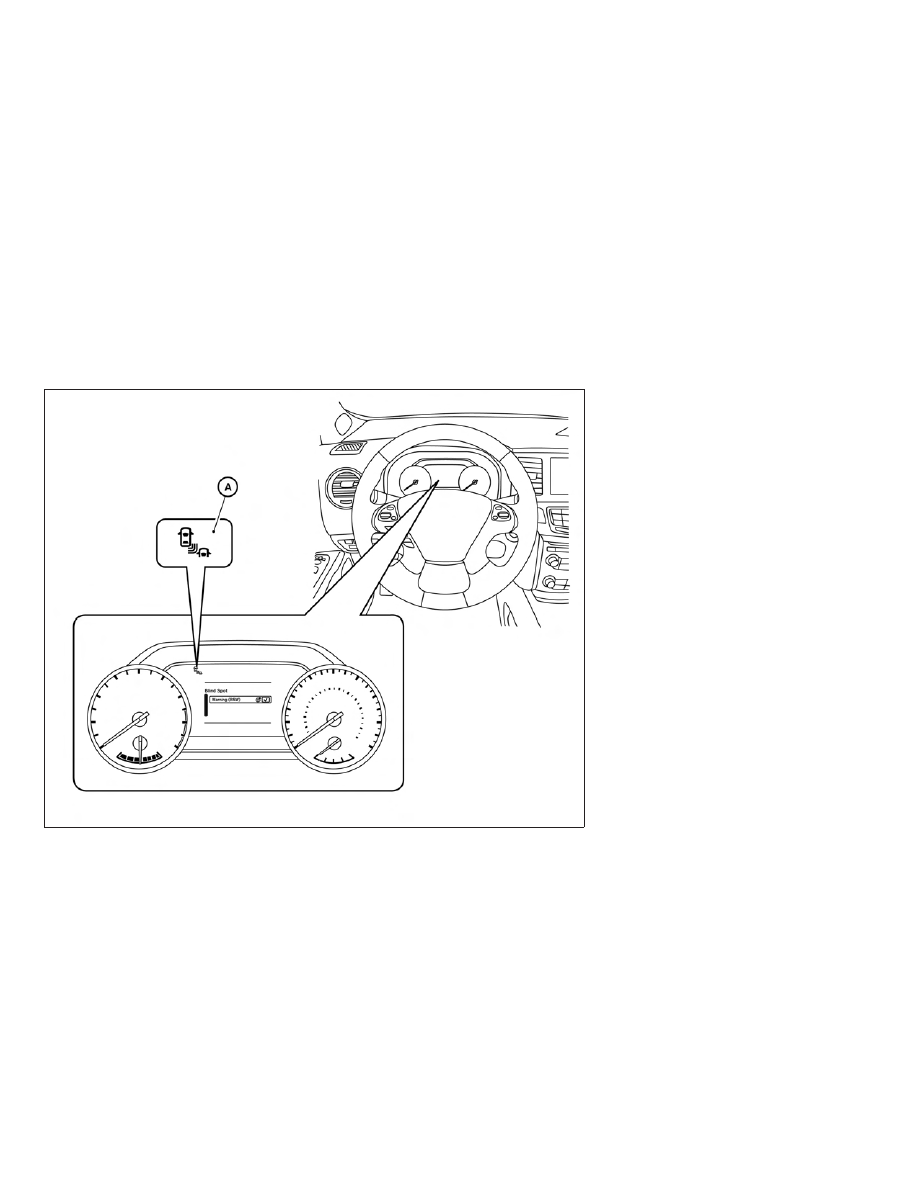

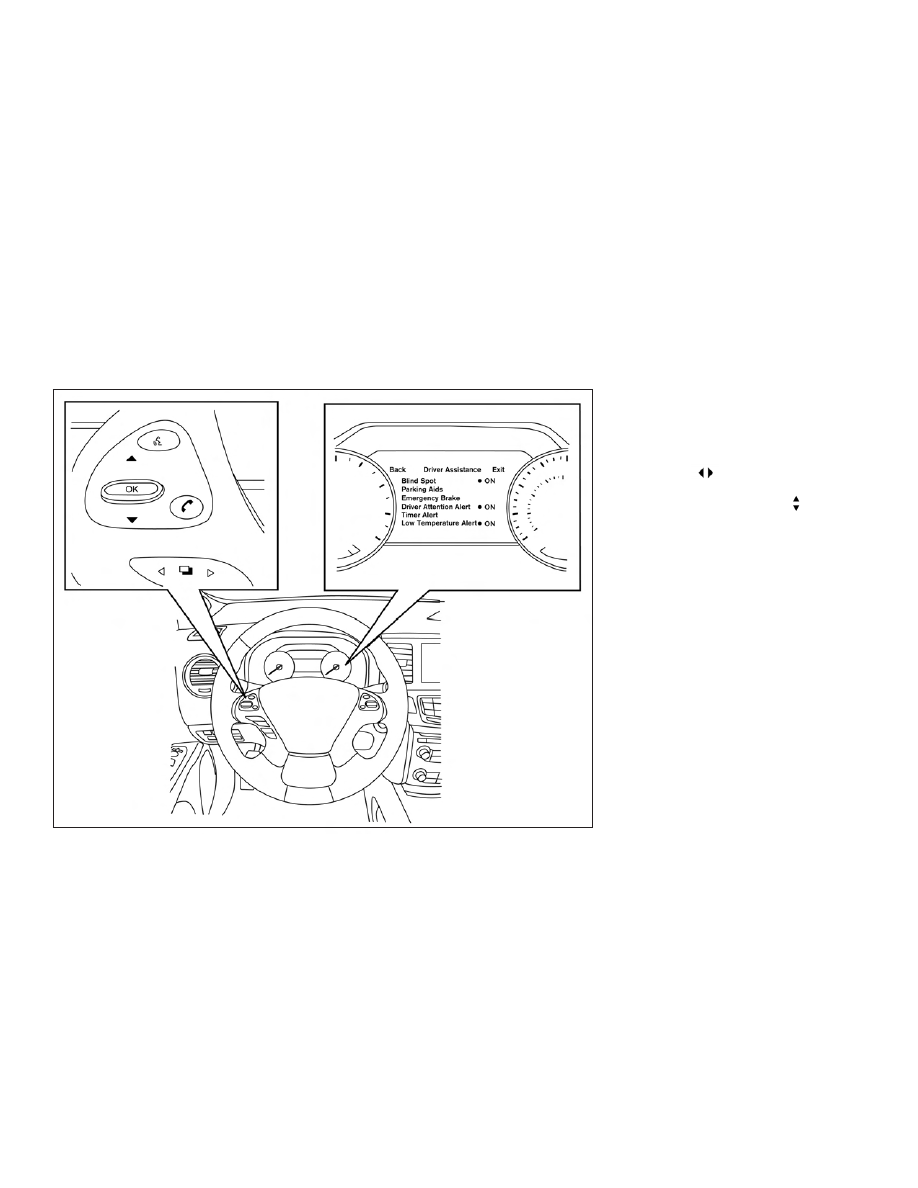

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM

Perform the following steps to enable or disable
the RCTA system.

1. Press the

button until “Settings” dis-

plays in the vehicle information display and
then press OK. Use the

button to

select “Driver Assistance”. Then press the
OK button.

2. Select “Blind Spot” and press the OK but-

ton.

When the RCTA system is turned on, the
BSW/RCTA indicator (white) in the vehicle infor-
mation display illuminates.

NOTE:

● The RCTA system is integrated into the

BSW system. There is not a separate selec-
tion in the vehicle information display for the
RCTA system. When the BSW is disabled,
the RCTA system is also disabled.

● When enabling/disabling the system, the

system setting will be retained even if the
hybrid system is restarted.

LSD2554

Starting and driving

5-35

RCTA SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations for
the RCTA system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.

● Always check surroundings and turn to

check what is behind you before backing
up. The radar sensors detect approaching
(moving) vehicles. The radar sensors can-
not detect every object such as:

– Pedestrians,

bicycles,

motorcycles,

animals or child-operated toy vehicles

– A vehicle that is passing at speeds

greater than approximately 19 mph
(30 km/h)

– A vehicle that is passing at speeds

lower than approximately 5 mph
(8 km/h)

● The radar sensors may not detect ap-

proaching vehicles in certain situations:

– Illustration a: When a vehicle parked

next to you obstructs the beam of the
radar sensor.

– Illustration b: When the vehicle is

parked in an angled parking space.

LSD2173

5-36

Starting and driving

– Illustration c: When the vehicle is

parked on inclined ground.

– Illustration d: When an approaching

vehicle turns into your vehicle’s park-
ing lot aisle.

– Illustration e: When the angle formed

by your vehicle and approaching ve-
hicle is small

● The following conditions may reduce

the ability of the radar to detect other
vehicles:

– Severe weather

– Road spray

– Ice/frost/snow

build-up

the

vehicle

– Dirt build- up on the vehicle

● Do not attach stickers (including trans-

parent material), install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles

● Excessive noise (e.g. audio system vol-

ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.

NOTE:

In the case of several vehicles approaching
in a row (Illustration 1) or in the opposite
direction (Illustration 2), a chime may not
be sounded by the RCTA system after the
first vehicle passes the sensors.

Illustration 1

LSD2043

Illustration 2

LSD2044

Starting and driving

5-37

SYSTEM TEMPORARILY
UNAVAILABLE

When radar blockage is detected, the system will
be deactivated automatically. The “Side Radar
Obstruction” warning message will appear and
the BSW/RCTA indicator (white) will blink

䊊

the vehicle information display.

The systems are not available until the conditions
no longer exist.

The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.

The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.

NOTE:

If the BSW system stops working, the RCTA
system will also stop working.

Action to take
When the above conditions no longer exist, the
system will resume automatically.

LSD2531

5-38

Starting and driving

Malfunction

When the RCTA system malfunctions, it will turn
off automatically. The system malfunction warn-
ing message with the BSW/RCTA indicator (or-
ange) will appear in the vehicle information dis-
play.

NOTE:

If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.

Action to take
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the hybrid
system off and restart the hybrid system. If the
message continues to appear, have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.

SYSTEM MAINTENANCE

The two radar sensors

䊊

for the BSW and

RCTA systems are located near the rear bumper.
Always keep the area near the radar sensors
clean.

The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.

The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.

Check for and remove objects obstructing the
area around the radar sensors.

Do not attach stickers (including transparent ma-
terial), install accessories or apply additional
paint near the radar sensors.

Do not strike or damage the area around the
radar sensors. It is recommended that you con-
sult a NISSAN dealer if the area around the radar
sensors is damaged due to a collision.

Radio frequency statement

For USA

FCC : OAYSRR2B

This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:

(1) This device may not cause harmful inter-
ference, and (2) this device must accept any
interference received, including interfer-
ence that may cause undesired operation.

FCC Warning

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment

For Canada

Applicable law: Canada 310

LSD2223

Starting and driving

5-39

Frequency bands: 24.05GHz – 24.25GHz

Output power: less than 20 milliwatts

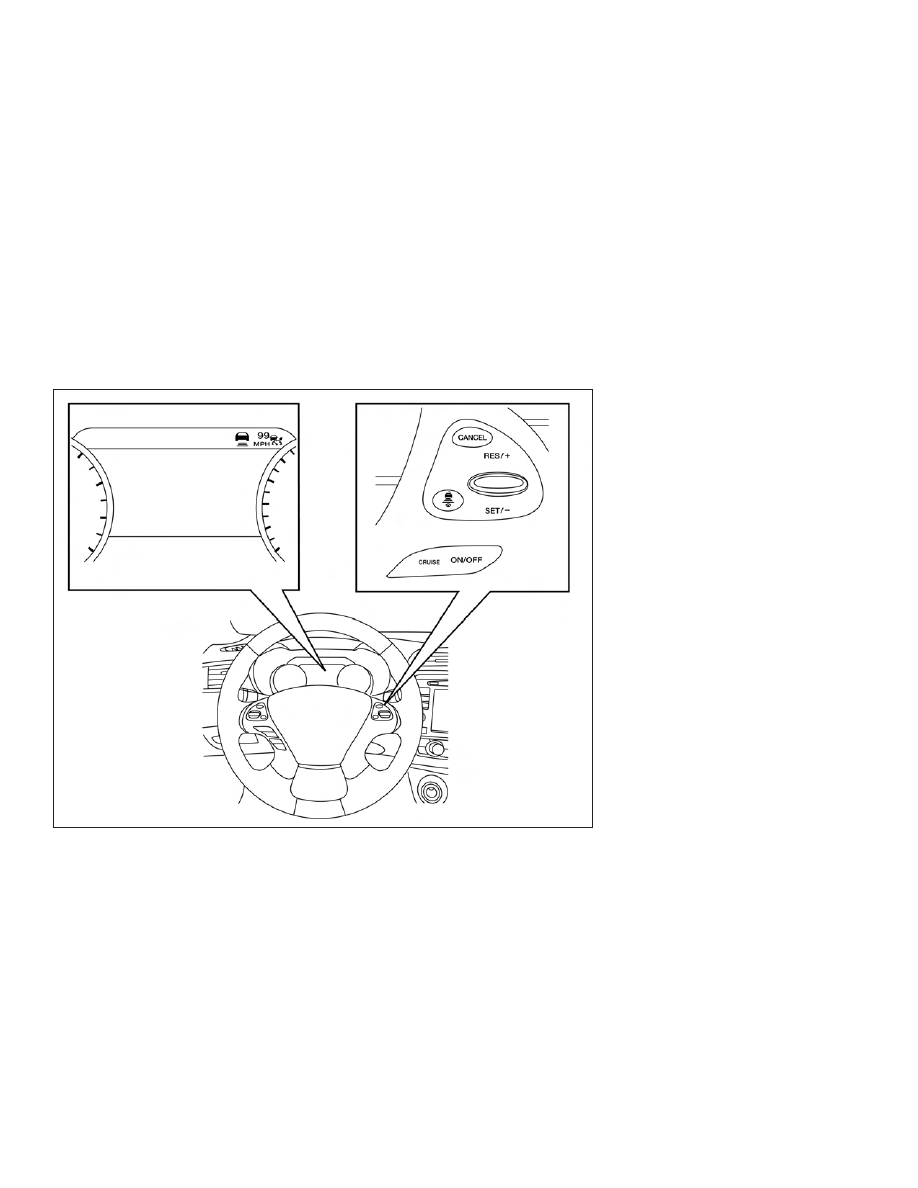

PRECAUTIONS ON CRUISE
CONTROL

1. CANCEL switch

2. RES/+ switch

3. SET/- switch

4. ON/OFF switch

● If the cruise control system malfunctions, it

cancels automatically. The CRUISE indica-
tor light in the vehicle information display
then blinks to warn the driver.

● If the CRUISE indicator light blinks, turn the

cruise control off and have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.

● The CRUISE indicator light may blink when

the cruise control switch is turned ON while
pushing the RES/+ switch, SET/- switch, or
CANCEL switch. To properly set the cruise
control system, use the following proce-
dures.

WARNING

Do not use the cruise control when driving
under the following conditions:

● When it is not possible to keep the

vehicle at a set speed.

● In heavy traffic or in traffic that varies in

speed.

● On winding or hilly roads.
● On slippery roads (rain, snow, ice, etc.).
● In very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.

LSD2516

CRUISE CONTROL (if so equipped)

5-40

Starting and driving

CRUISE CONTROL OPERATIONS

The cruise control allows driving at a speed be-
tween 25 - 90 mph (40 - 145 km/h) without
keeping your foot on the accelerator pedal.

To turn on the cruise control, push the
ON/OFF switch ON. The CRUISE indicator light
in the vehicle information display will illuminate.

To set cruising speed, accelerate the vehicle to
the desired speed, push the SET/– switch and
release it. Take your foot off the accelerator pedal.
Your vehicle maintains the set speed.

● To pass another vehicle, depress the ac-

celerator pedal. When you release the
pedal, the vehicle returns to the previously
set speed.

● The vehicle may not maintain the set speed

when going up or down steep hills. If this
happens, drive without the cruise control.

To cancel the preset speed, use one of the
following three methods.

● Push the CANCEL button.
● Tap the brake pedal.
● Push the ON/OFF switch off. The CRUISE

indicator light in the vehicle information dis-
play goes out.

The cruise control is automatically canceled if:

● you depress the brake pedal while pushing

the RES/+ or SET/– switch. The preset
speed is deleted from memory.

● the vehicle slows down more than 8 mph

(13 km/h) below the set speed.

● you move the shift lever to N (Neutral).

To reset at a faster cruising speed, use one of
the following three methods.

● Depress the accelerator pedal. When the

vehicle attains the desired speed, push and
release the SET/– switch.

● Push and hold the RES/+ switch. When the

vehicle attains the speed you desire, release
the switch.

● Push and release the RES/+ switch. Each

time you do this, the set speed increases by
about 1 mph (1.6 km/h).

To reset at a slower cruising speed, use one
of the following three methods.

● Lightly tap the brake pedal. When the ve-

hicle attains the desired speed, push the
SET/– switch and release it.

● Push and hold the SET/– switch. Release

the switch when the vehicle slows to the
desired speed.

● Push and release the SET/– switch. Each

time you do this, the set speed decreases by
about 1 mph (1.6 km/h).

To resume the preset speed, push and re-
lease the RES/+ switch. The vehicle returns to
the last set cruising speed when the vehicle
speed is over 25 mph (40 km/h).

To turn off the cruise control, use one of the
following three methods.

● Push the CANCEL button.
● Tap the brake pedal.
● Push the ON/OFF switch off. The CRUISE

indicator light in the vehicle information dis-
play goes out.

Starting and driving

5-41

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the ICC system
could result in serious injury or death.

● The ICC system is only an aid to assist

the driver and is not a collision warning
or avoidance device. It is the driver’s
responsibility to stay alert, drive safely,
and be in control of the vehicle at all
times.

● Always observe posted speed limits

and do not set the speed over them.

● Always drive carefully and attentively

when using the ICC system. Read and
understand the Owner’s Manual thor-
oughly before using the ICC system. To
avoid serious injury or death, do not rely
on the system to prevent accidents or to
control the vehicle’s speed in emer-
gency situations. Do not use the ICC
system except in appropriate road and
traffic conditions.

The ICC system is intended to enhance the op-
eration of the vehicle when following a vehicle
traveling in the same lane and direction.

The ICC system uses a radar sensor

䊊

located

on the front of the vehicle to detect vehicles
traveling ahead.

If the radar sensor detects a slower moving ve-
hicle ahead, the system will reduce the vehicle
speed so that your vehicle follows the vehicle in
front at the selected distance.

The detection range of the sensor is approxi-
mately 390ft (120 m) ahead.

LSD2249

INTELLIGENT CRUISE CONTROL (ICC)
(if so equipped)

5-42

Starting and driving

ICC SYSTEM OPERATION

The ICC system maintains a selected distance
from the vehicle in front of you within the speed
range 0 to 90 mph (0 to 144km/h) up to the set
speed. The set speed can be selected by the
driver between 20 to 90 mph (32 to 144 km/h),
based on road conditions.

The vehicle travels at the set speed when the
road ahead is clear.

The ICC system is designed to maintain a se-
lected distance from the vehicle in front of you
and can reduce the speed to match a slower
vehicle ahead. The system will decelerate the
vehicle as necessary and if the vehicle ahead
comes to a stop, the vehicle decelerates to a
standstill. However, the ICC system can only
apply up to 40% of the vehicle’s total braking
power.

This system should only be used when traffic
conditions allow vehicle speeds to remain fairly
constant or when vehicle speeds change gradu-
ally. If a vehicle moves into the traveling lane
ahead or if a vehicle traveling ahead rapidly de-
celerates, the distance between vehicles may
become closer because the ICC system cannot
decelerate the vehicle quickly enough. If this oc-
curs, the ICC system will sound a warning chime
and blink the system display to notify the driver to
take necessary action.

LSD2517

Starting and driving

5-43

For additional information, refer to “Approach
warning” in this section.

The following items are controlled in the ICC
system:

● When there are no vehicles traveling ahead,

the ICC system maintains the speed set by
the driver. The set speed range is between
approximately 20 and 90 mph (32 and
144 km/h).

● When there is a vehicle traveling ahead, the

ICC system adjusts the speed to maintain
the distance, selected by the driver, from the
vehicle ahead. If the vehicle ahead comes to
a stop, the vehicle decelerates to a standstill
within the limitations of the system. The sys-
tem will cancel once it judges a standstill
with a warning chime.

● When the vehicle traveling ahead has moved

out from its lane of travel, the ICC system
accelerates and maintains vehicle speed up
to the set speed.

The ICC system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead when approaching toll gates
or traffic congestion.

When driving on the freeway at a set speed and
approaching a slower traveling vehicle ahead, the
ICC system will adjust the speed to maintain the
distance, selected by the driver, from the vehicle
ahead. If the vehicle ahead changes lanes or exits
the freeway, the ICC system will accelerate and
maintain the speed up to the set speed. Pay
attention to the driving operation to maintain con-
trol of the vehicle as it accelerates to the set
speed.

Normally when controlling the distance to a ve-
hicle ahead, this system automatically acceler-
ates or decelerates your vehicle according to the
speed of the vehicle ahead. Depress the accel-
erator to properly accelerate your vehicle when
acceleration is required for a lane change. De-
press the brake pedal when deceleration is re-
quired to maintain a safe distance to the vehicle
ahead due to its sudden braking or if a vehicle
cuts in. Always stay alert when using the ICC
system.

SSD0254

5-44

Starting and driving

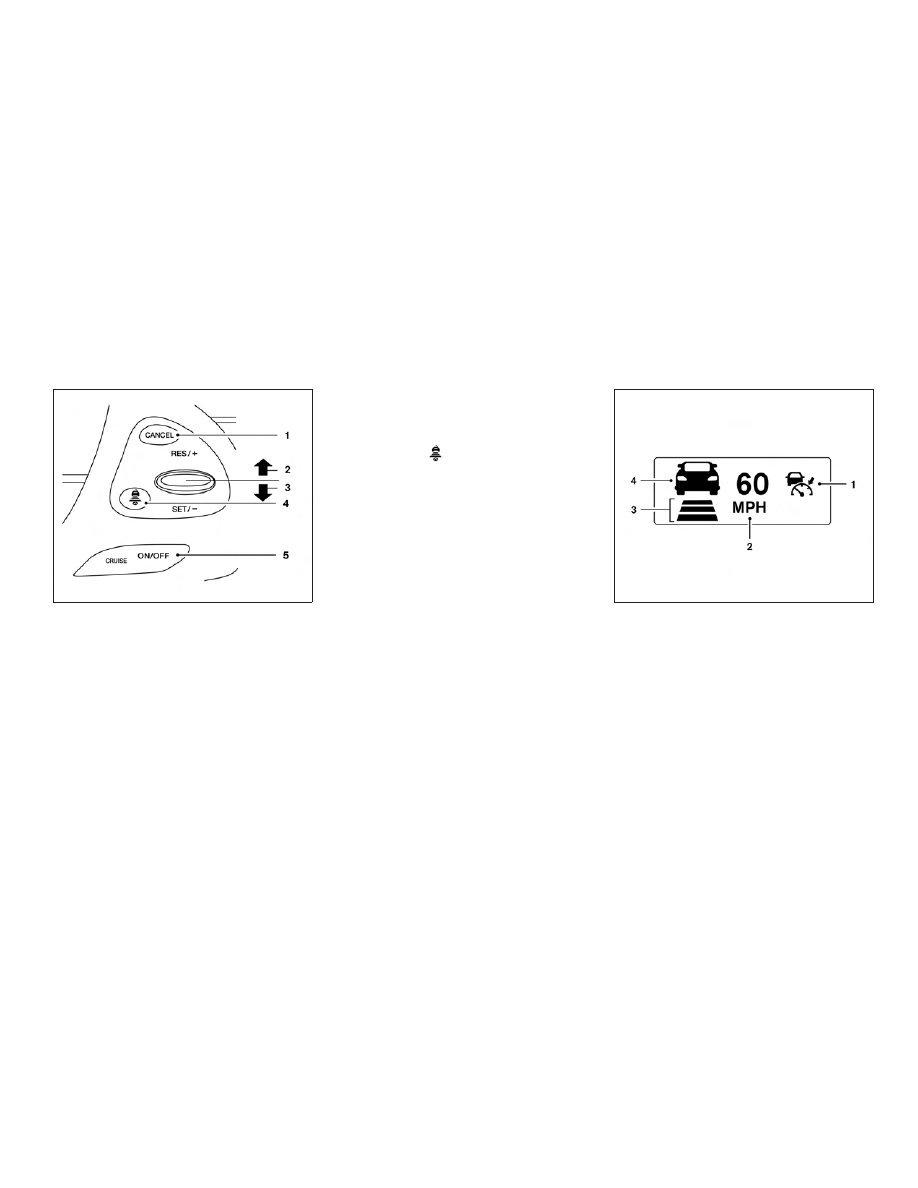

THE ICC SWITCH

The system is operated by the CRUISE ON/OFF
switch and four control switches, all mounted on
the steering wheel.

1. CANCEL switch:

Deactivates the system without erasing the
set speed.

2. RES/+ switch:

Resumes set speed or increases speed in-
crementally.

3. SET/- switch:

Sets desired cruise speed or reduces speed
incrementally.

4. DISTANCE

switch:

Changes the vehicle’s following distance:

● Long
● Middle
● Short

5. CRUISE ON/OFF switch:

Master switch to activate the system.

The ICC system display and indicators

The display is located between the speedometer
and tachometer.

1. CRUISE ON/OFF switch indicator:

● ICC system ON indicator (white): In-

dicates that the CRUISE ON/OFF switch
is ON.

● ICC system SET indicator (green):

Indicates that the cruising speed is set.

● ICC system warning (orange): Indi-

cates that if there is a malfunction in the
ICC system.

LSD2518

LSD2285

Starting and driving

5-45

Content .. 15 16 17 18 ..
