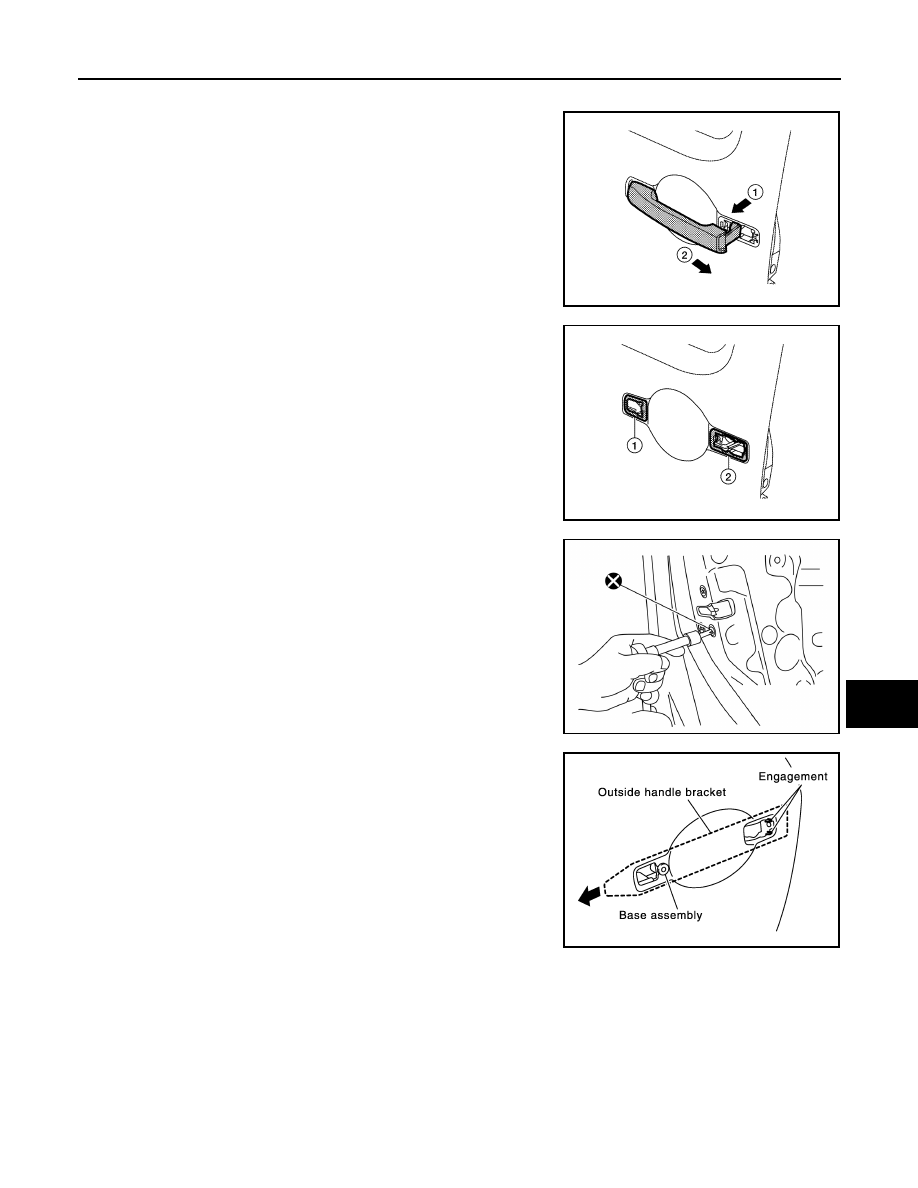

FRONT DOOR LOCK DLK-327 < REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM] C D E F G H I J L M A B DLK N O P 4. Separate the door key cylinder rod from the door key cylinder assembly (if equipped). to remove outside handle. 6. Remove the front gasket (1) and rear gasket (2). 7. Remove the door lock bolts (T30), remove the door lock assem- bly. CAUTION: Do not reuse door lock bolts. 8. While pulling outside handle bracket, slide toward rear of vehicle to remove outside handle bracket and door lock assembly as shown. 9. Disconnect the door lock actuator harness connector. ALKIA0957ZZ ALKIA0924ZZ AWKIA2018ZZ PIIA3558E August 2012 2012 Pathfinder 2012 Pathfinder |
