REAR WINDOW DEFOGGER DOES NOT OPERATE BUT BOTH OF DOOR
MIRROR DEFOGGER OPERATE.

Diagnosis Procedure

INFOID:0000000007355342

1.

 CHECK REAR WINDOW DEFOGGER POWER SUPPLY AND GROUND CIRCUIT

Check rear window defogger power supply and ground circuit.

Refer to

DEF-12, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-37, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

August 2012

2012 Pathfinder

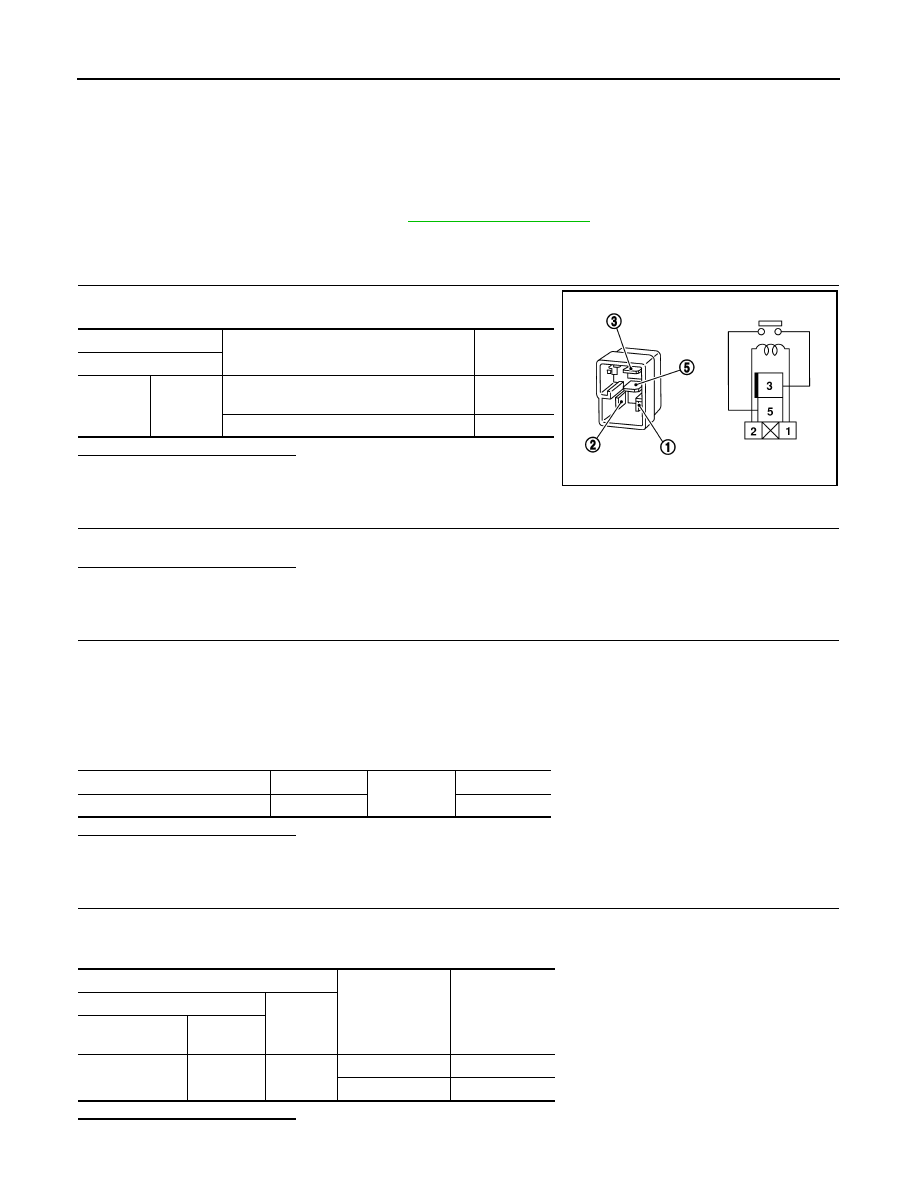

DEF-38

< SYMPTOM DIAGNOSIS >

BOTH DOORS MIRROR DEFOGGER DON’T OPERATE BUT REAR WINDOW

DEFOGGER OPERATES

BOTH DOORS MIRROR DEFOGGER DON’T OPERATE BUT REAR WIN-
DOW DEFOGGER OPERATES

Diagnosis Procedure

INFOID:0000000007355343

Regarding Wiring Diagram information, refer to

DEF-29, "Wiring Diagram"

.

1.

 CHECK HEATED MIRROR RELAY

Check heated mirror relay.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Replace heated mirror relay.

2.

 CHECK DOOR MIRROR DEFORGGER FUSE

Check fuse 43 (15A) in IPDM E/R.
Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 3

3.

 CHECK DOOR MIRROR DEFORGGER POWER SUPPLY CIRCUIT FOR A SHORT

1. Turn ignition switch OFF.

2. Disconnect the following harness connectors.

-

IPDM E/R connector E120

-

Door mirror LH

-

Door mirror RH

3. Check continuity between IPDM E/R harness connector E120 terminal 23 and ground.

Is the inspection result normal?

YES

>> Replace fuse 43 (15A).

NO

>> Repair or replace harness.

4.

 CHECK DOOR MIRROR DEFORGGER POWER SUPPLY CIRCUIT

1. Turn ignition switch ON.

2. Check voltage between IPDM E/R harness connector E120 terminal 23 and ground.

Is the inspection result normal?

YES

>> GO TO 5

Terminal

Condition

Continuity

Heated mirror relay

3

5

12V direct current supply between termi-
nals 1 and 2.

Yes

No current supply

No

SEF497Y

IPDM E/R connector

Terminal

Ground

Continuity

E120

23

No

Terminals

Condition of rear

window defogger

switch

Voltage (V)

(Approx.)

(+)

(–)

IPDM E/R con-

nector

Terminal

E120

23

Ground

ON

Battery voltage

OFF

0

August 2012

2012 Pathfinder

BOTH DOORS MIRROR DEFOGGER DON’T OPERATE BUT REAR WINDOW

DEFOGGER OPERATES

DEF-39

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

NO

>> Replace IPDM E/R. Refer to

PCS-29, "Removal and Installation of IPDM E/R"

.

5.

 CHECK DOOR MIRROR DEFOGGER

1. Check door mirror LH. Refer to

DEF-40, "Diagnosis Procedure"

.

2. Check door mirror RH. Refer to

DEF-41, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

August 2012

2012 Pathfinder

DEF-40

< SYMPTOM DIAGNOSIS >

DRIVER SIDE DOOR MIRROR DEFOGGER DOES NOT OPERATE.

DRIVER SIDE DOOR MIRROR DEFOGGER DOES NOT OPERATE.

Diagnosis Procedure

INFOID:0000000007355344

1.

 CHECK DOOR MIRROR DEFOGGER LH

Check door mirror defogger LH.

Refer to

DEF-14, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-37, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

August 2012

2012 Pathfinder

PASSENGER SIDE DOOR MIRROR DEFOGGER DOES NOT OPERATE.

DEF-41

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

PASSENGER SIDE DOOR MIRROR DEFOGGER DOES NOT OPERATE.

Diagnosis Procedure

INFOID:0000000007355345

1.

 CHECK DOOR MIRROR DEFOGGER RH

Check door mirror defogger RH.

Refer to

DEF-17, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-37, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

August 2012

2012 Pathfinder

DEF-42

< SYMPTOM DIAGNOSIS >

REAR WINDOW DEFOGGER SWITCH DOES NOT LIGHT, BUT REAR WINDOW

DEFOGGER OPERATES

REAR WINDOW DEFOGGER SWITCH DOES NOT LIGHT, BUT REAR WIN-
DOW DEFOGGER OPERATES

Diagnosis Procedure

INFOID:0000000007355346

1.

CHECK REAR WINDOW DEFOGGER SWITCH

Check that the rear window defogger switch is operating normally.
Is the inspection result normal?

YES

>> Refer to

GI-37, "Intermittent Incident"

.

NO

>> Refer to

DEF-8, "Diagnosis Procedure A/C and AV Switch Assembly"

.

August 2012

2012 Pathfinder
