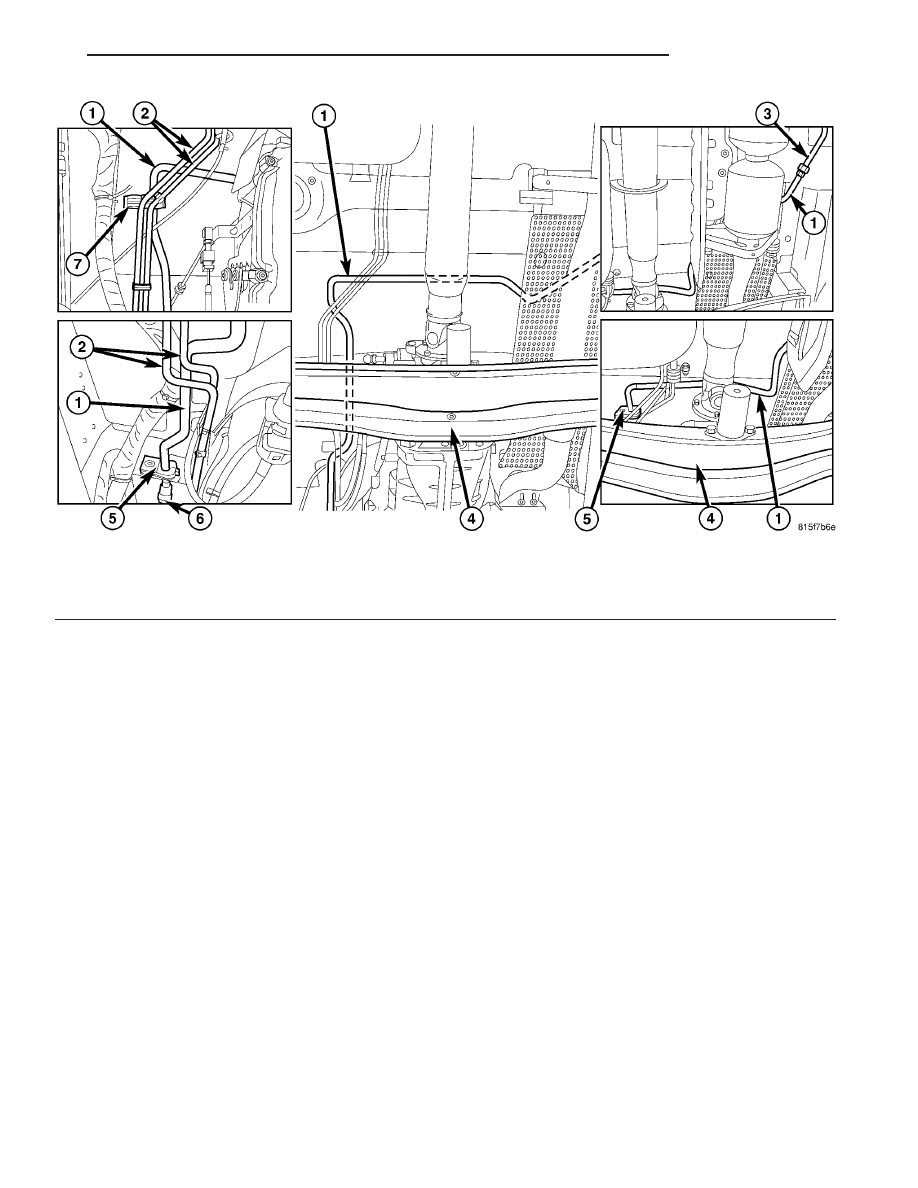

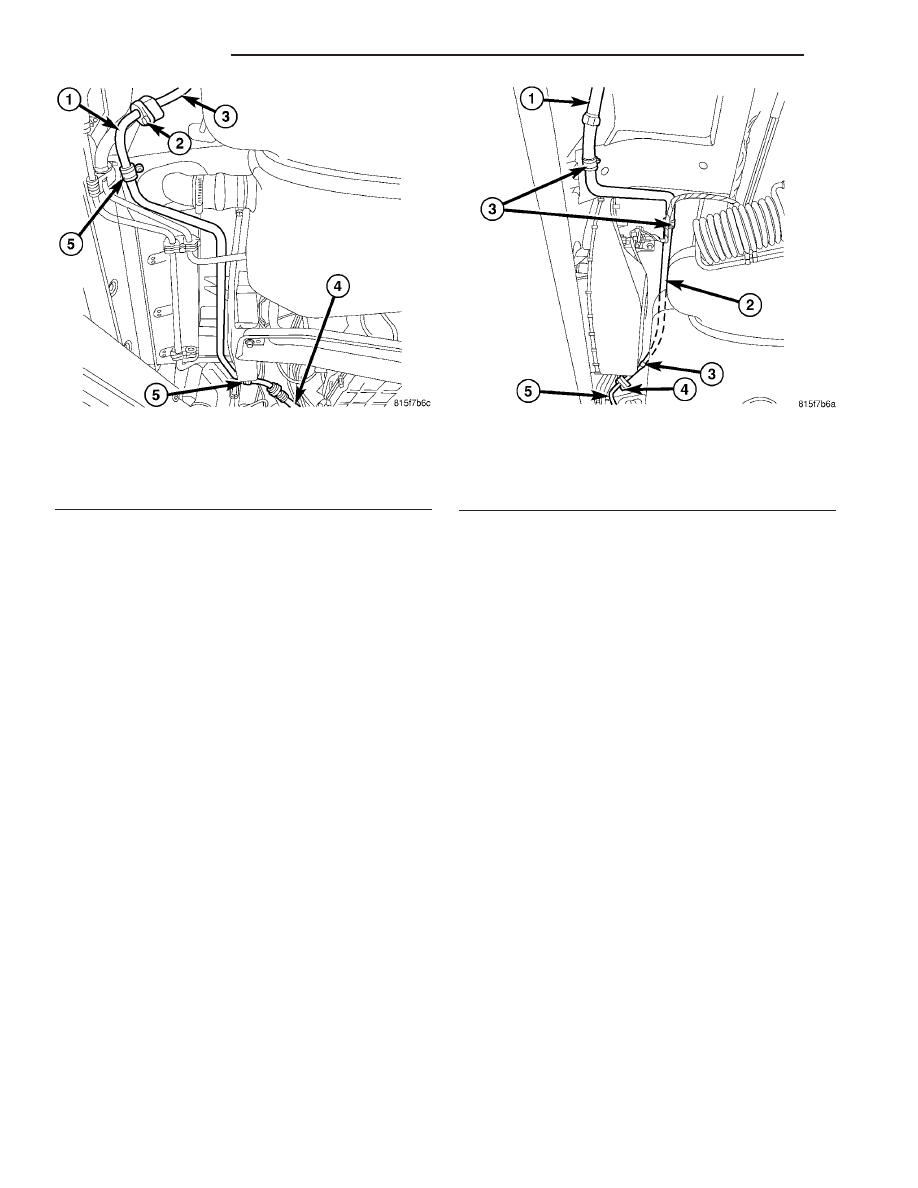

SUCTION LINE - FRONT SECTION (1) Remove the cover from the rear A/C evaporator housing (Refer to 24 - HEATING & AIR CONDI- (2) Recover the refrigerant from the rear refriger- ant system (Refer to 24 - HEATING & AIR CONDI- (3) Raise and support the vehicle. of the underbody suction line from the compressor (5) Remove the bolt that secures the connection of the front section of the underbody suction line to the (6) Disconnect the front section of the underbody suction line from the rear section and remove and (7) Install plug in, or tape over all of the opened suction line fittings. (8) Remove the screws and brackets that secure the front section of the underbody suction line to the (9) If necessary, remove the bolt that secures the compressor section of the underbody suction line to Fig. 39 Underbody Discharge Line 1 - UNDERBODY DISCHARGE LINE 5 - SCREW AND BRACKET (2) VA PLUMBING 24 - 101 |
