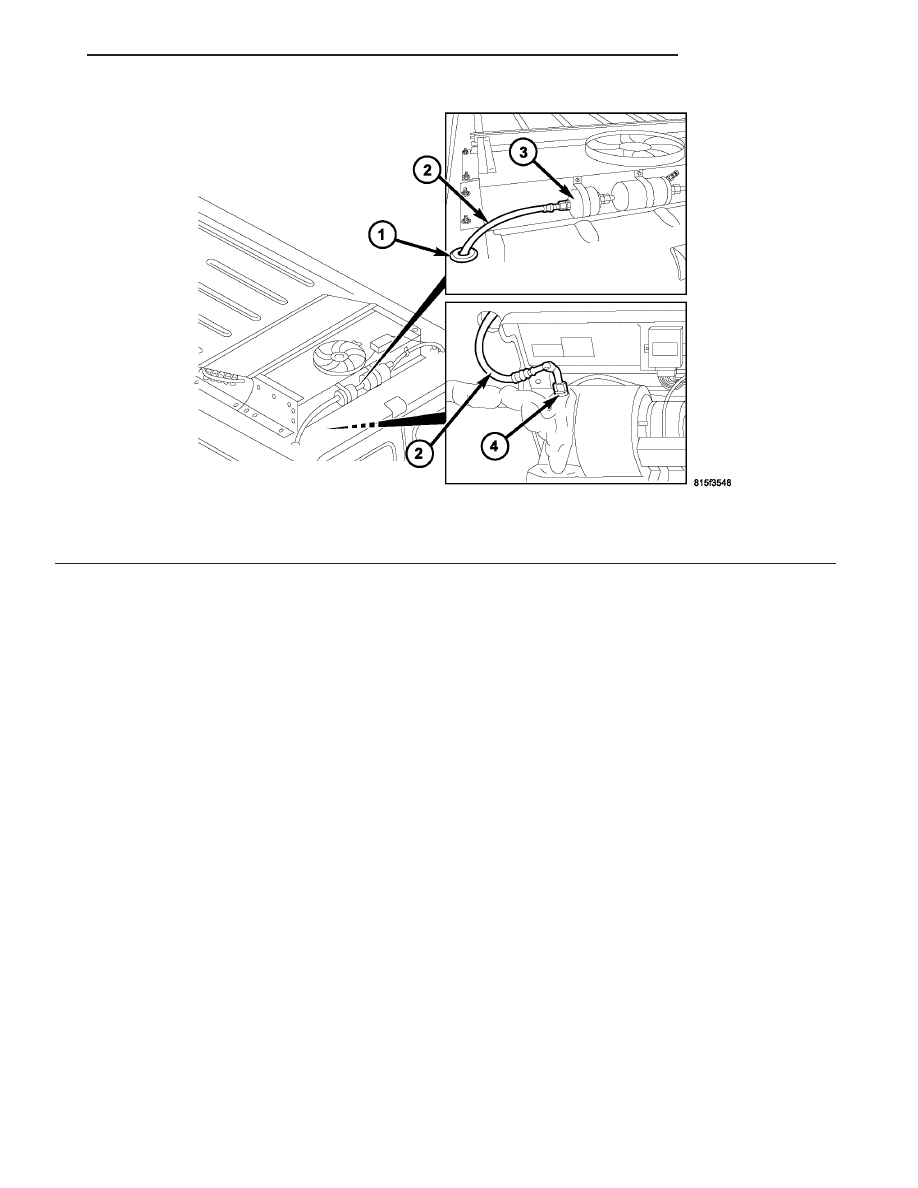

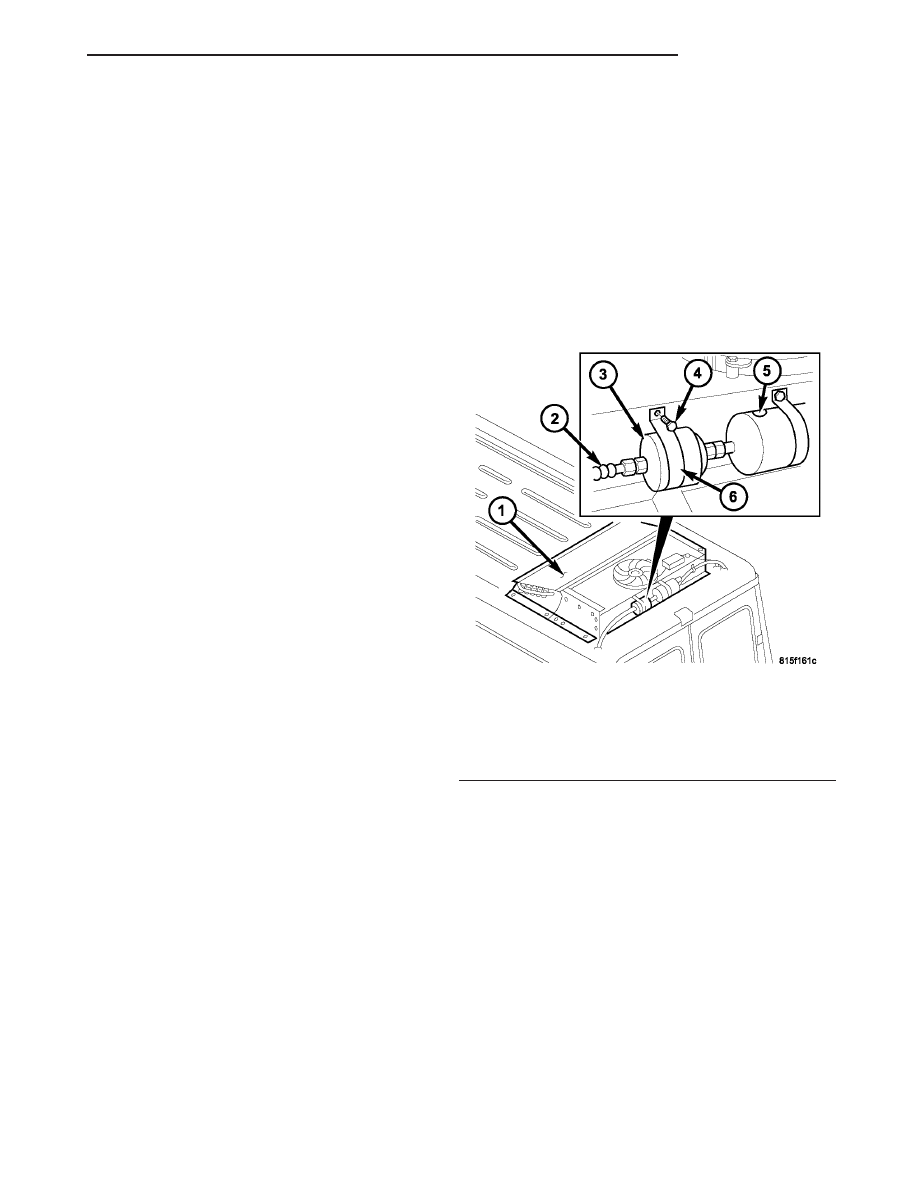

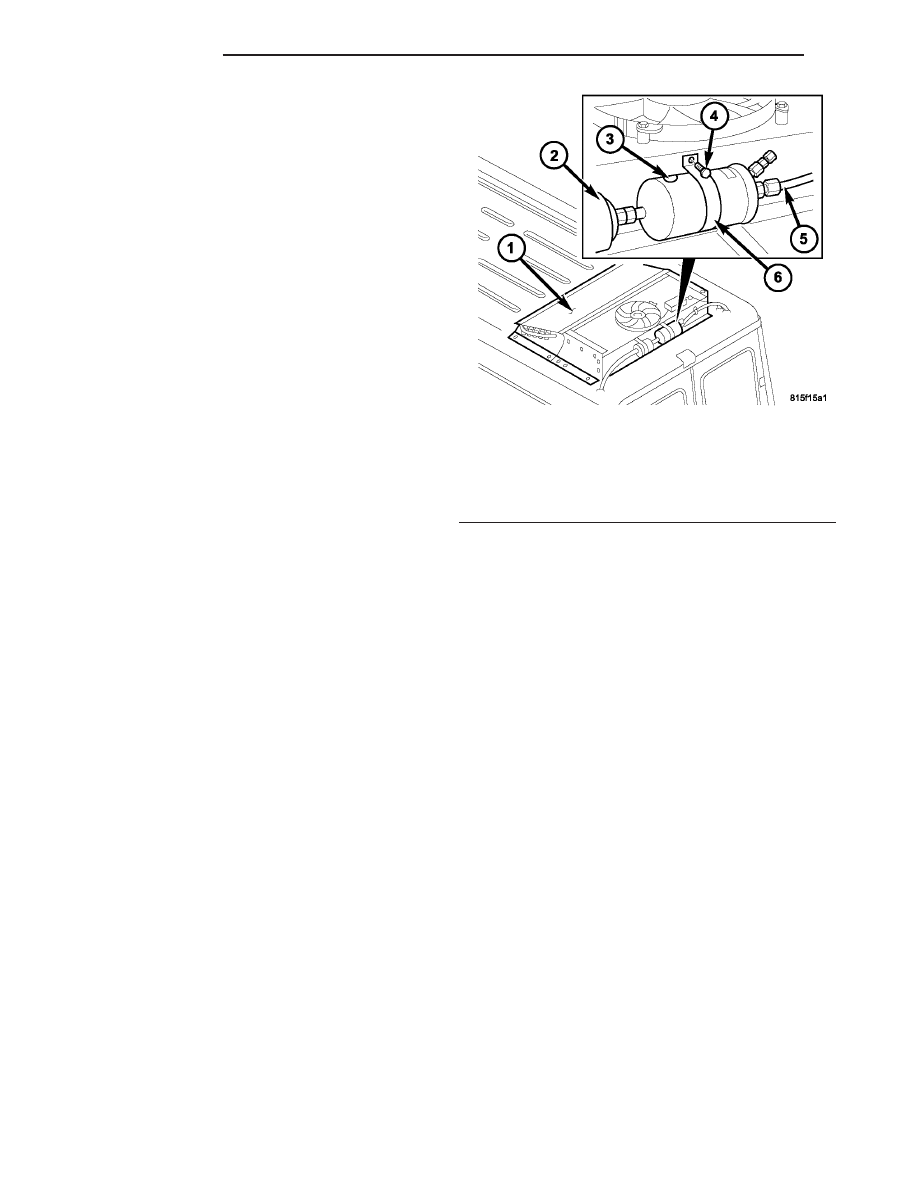

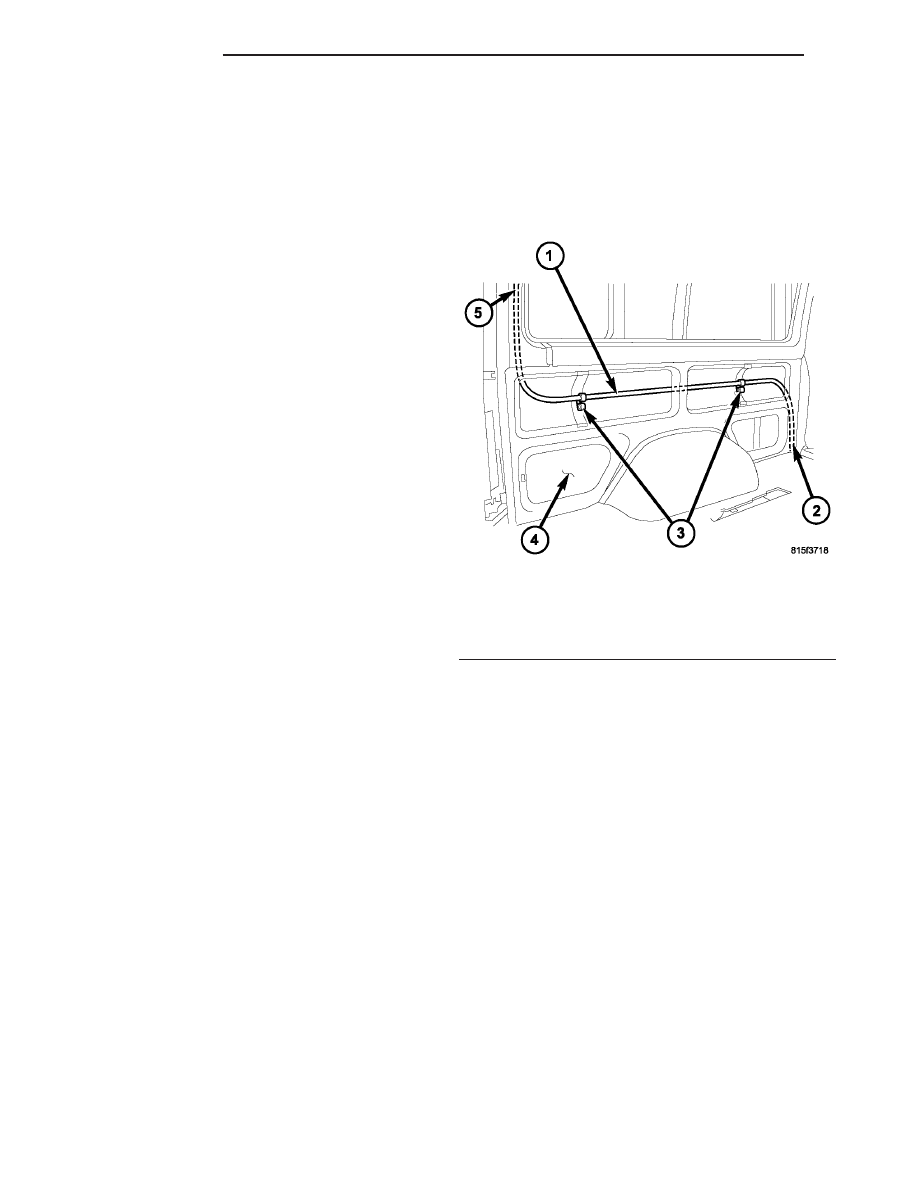

INSTALLATION CONDENSER TO RECEIVER / DRIER (1) Remove the tape or plugs from the rear liquid line fittings and receiver/drier and condenser ports. (2) Lubricate new O-ring seals with clean refriger- ant oil and install them onto the rear liquid line fit- (3) Connect the rear liquid line to the rear receiv- er/drier. Tighten the nut to 35 N·m (26 ft. lbs.). (4) Connect the rear liquid line to the rear A/C condenser. Tighten the nut to 35 N·m (26 ft. lbs.). (5) Install the retaining straps that secure the rear A/C wire harness to the rear liquid line. (6) Reconnect the negative battery cable. 24 - HEATING & AIR CONDITIONING/PLUMBING (8) Charge the rear refrigerant system (Refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - (9) Install the rear air filter (Refer to 24 - HEAT- ING & AIR CONDITIONING/DISTRIBUTION - REAR/AIR FILTER - INSTALLATION). (10) Install the cover onto the rear A/C condenser housing (Refer to 24 - HEATING & AIR CONDI- - REAR/A/C CON- DENSER COVER - INSTALLATION). RESERVOIR TO EXPANSION VALVE (1) Remove the tape or plugs from the rear liquid line fittings and the reservoir and expansion valve (2) Lubricate new O-ring seals with clean refriger- ant oil and install them onto the rear liquid line fit- (3) Connect the rear liquid line to the rear A/C expansion valve. Tighten the nut to 35 N·m (26 ft. (4) Route the liquid line through the opening in the roof and engage the grommet to the roof panel. (5) Connect the rear liquid line to the rear refrig- erant reservoir. Tighten the nut to 35 N·m (26 ft. (6) Reconnect the negative battery cable. 24 - HEATING & AIR CONDITIONING/PLUMBING Fig. 32 Rear Liquid Line - Reservoir to Expansion Valve 1 - GROMMET 3 - REAR REFRIGERANT RESERVOIR VA PLUMBING 24 - 93 |
