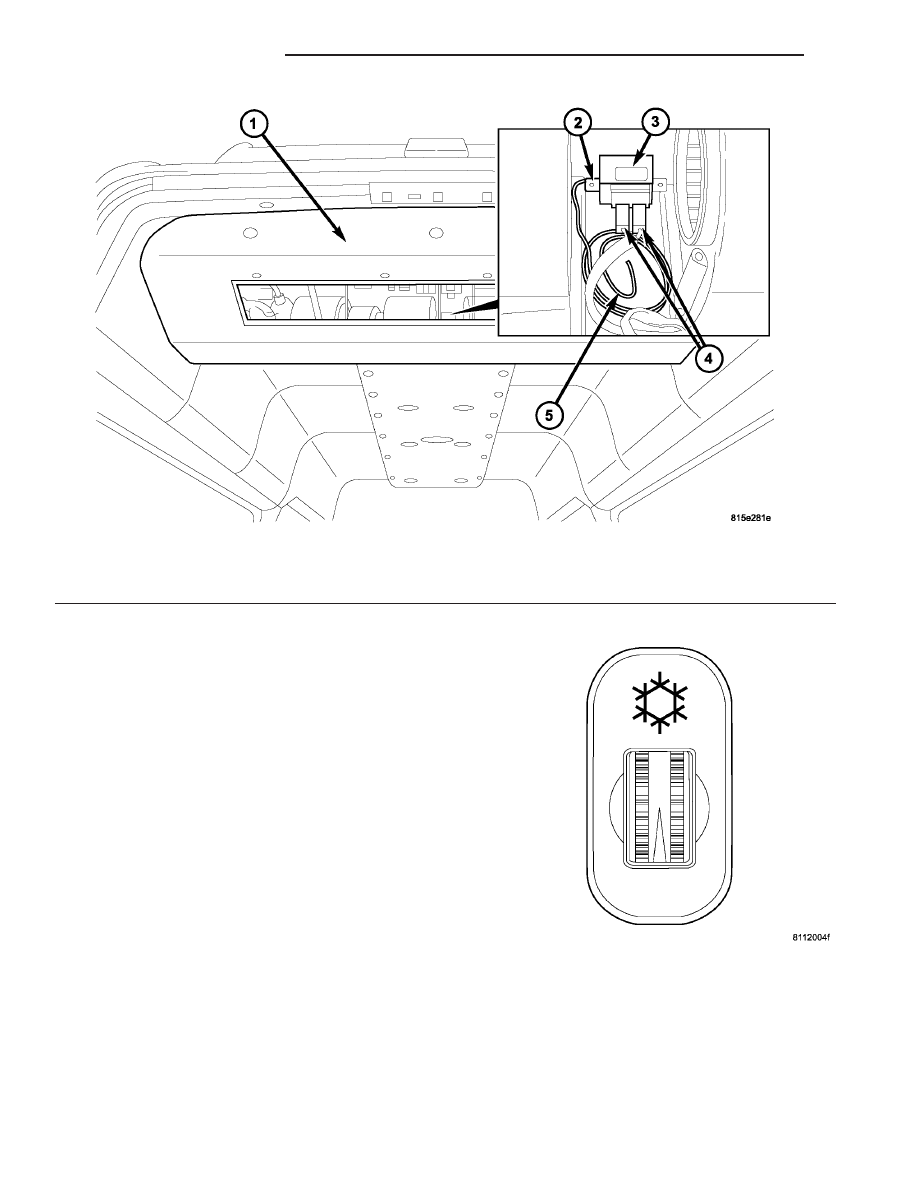

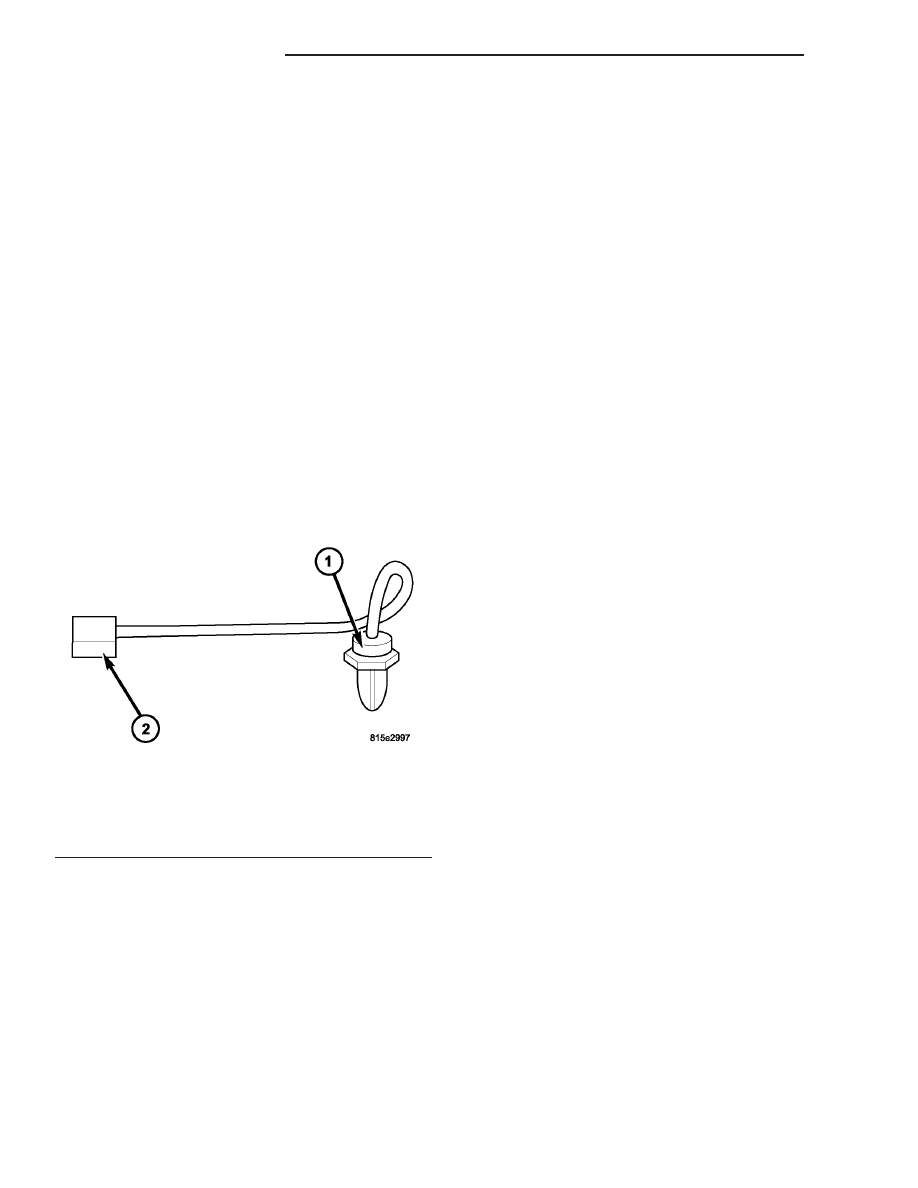

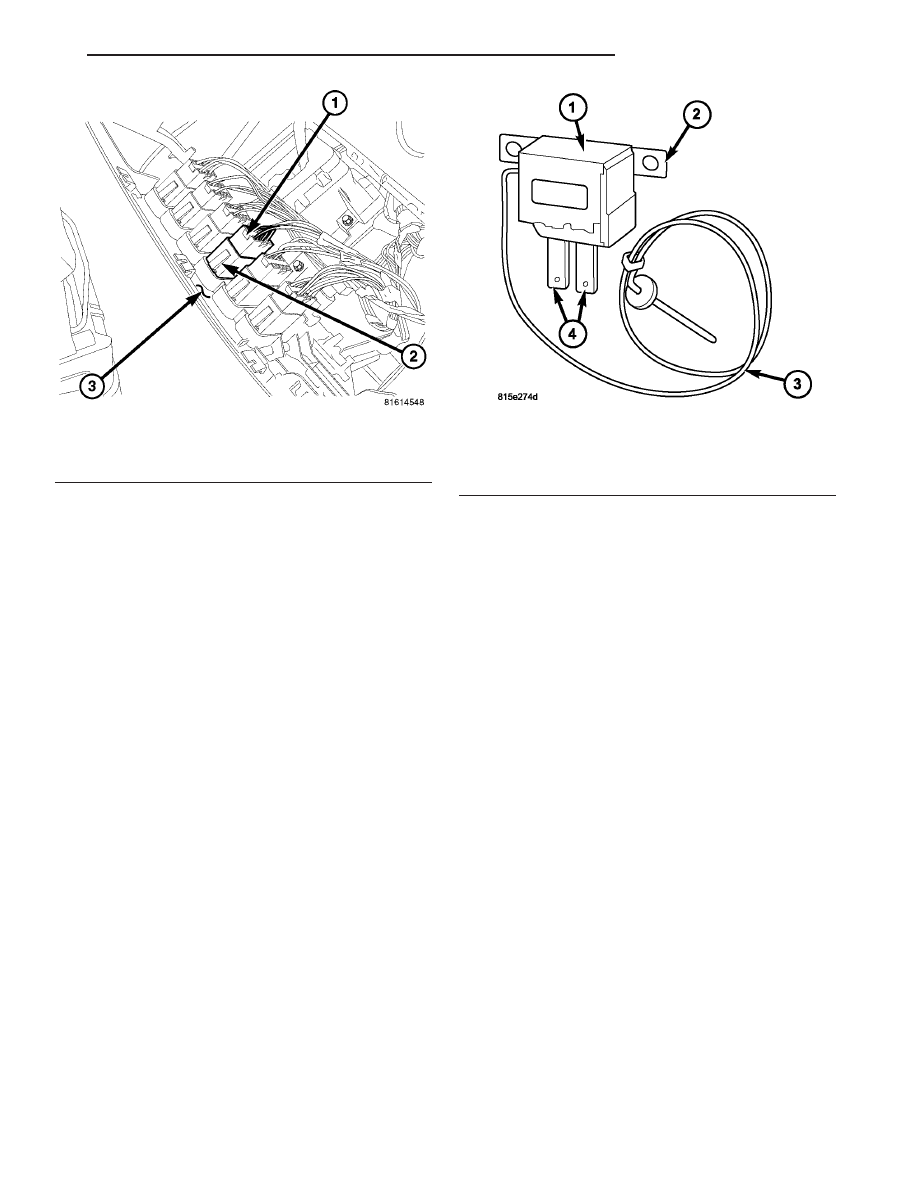

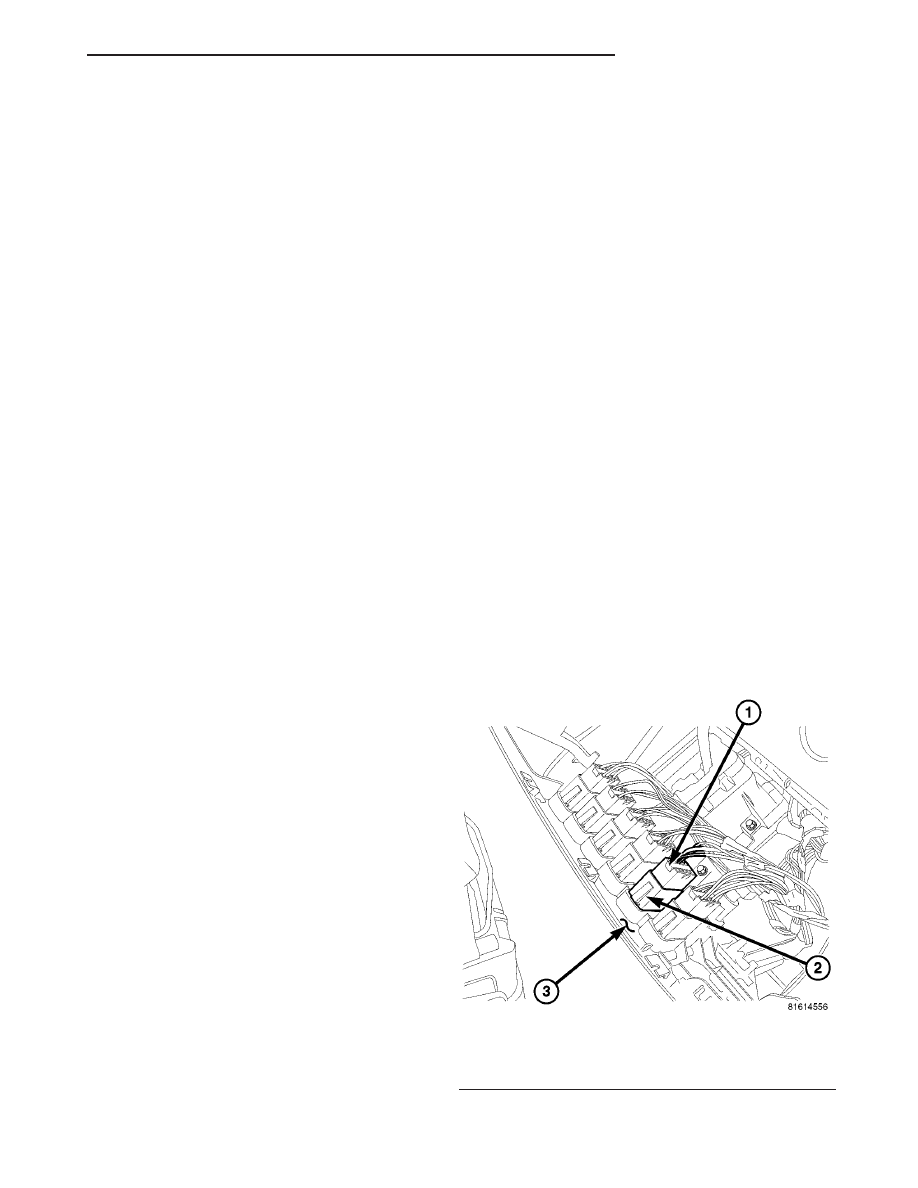

INSTALLATION (1) Install the rear A/C blower motor switch into the accessory switch panel. Make sure the retaining (2) Connect the wire harness connector to the rear A/C blower motor switch. (3) Install the accessory switch panel (Refer to 23 - BODY/INSTRUMENT PANEL/ACCESSORY SWITCH BEZEL - INSTALLATION). (4) Reconnect the negative battery cable. EVAPORATOR TEMPERATURE DESCRIPTION The rear evaporator temperature sensor (Fig. 15) is used to signal the rear A/C control module to cycle The rear evaporator temperature sensor consists of a probe and a switch unit. The probe, which is a Neg- The rear evaporator temperature sensor is located in the rear A/C evaporator housing. OPERATION The rear evaporator temperature sensor signals the rear A/C control module to cycle the rear A/C The rear evaporator temperature sensor cannot be adjusted or repaired. If faulty or damaged, it must be REMOVAL (1) Disconnect and isolate the negative battery cable. (2) Remove the air filter from the rear A/C evapo- rator housing (Refer to 24 - HEATING & AIR CON- (3) Reach up into the rear A/C evaporator housing and disconnect the two wire harness connectors from (4) Carefully remove the sensor probe from the rear A/C evaporator. (5) Remove the two screws that secure the rear evaporator sensor to the rear A/C evaporator housing Fig. 14 Rear A/C Blower Motor Switch 1 - WIRE HARNESS CONNECTOR Fig. 15 Rear Evaporator Temperature Sensor 1 - SWITCH UNIT VA CONTROLS - REAR 24 - 37 |
