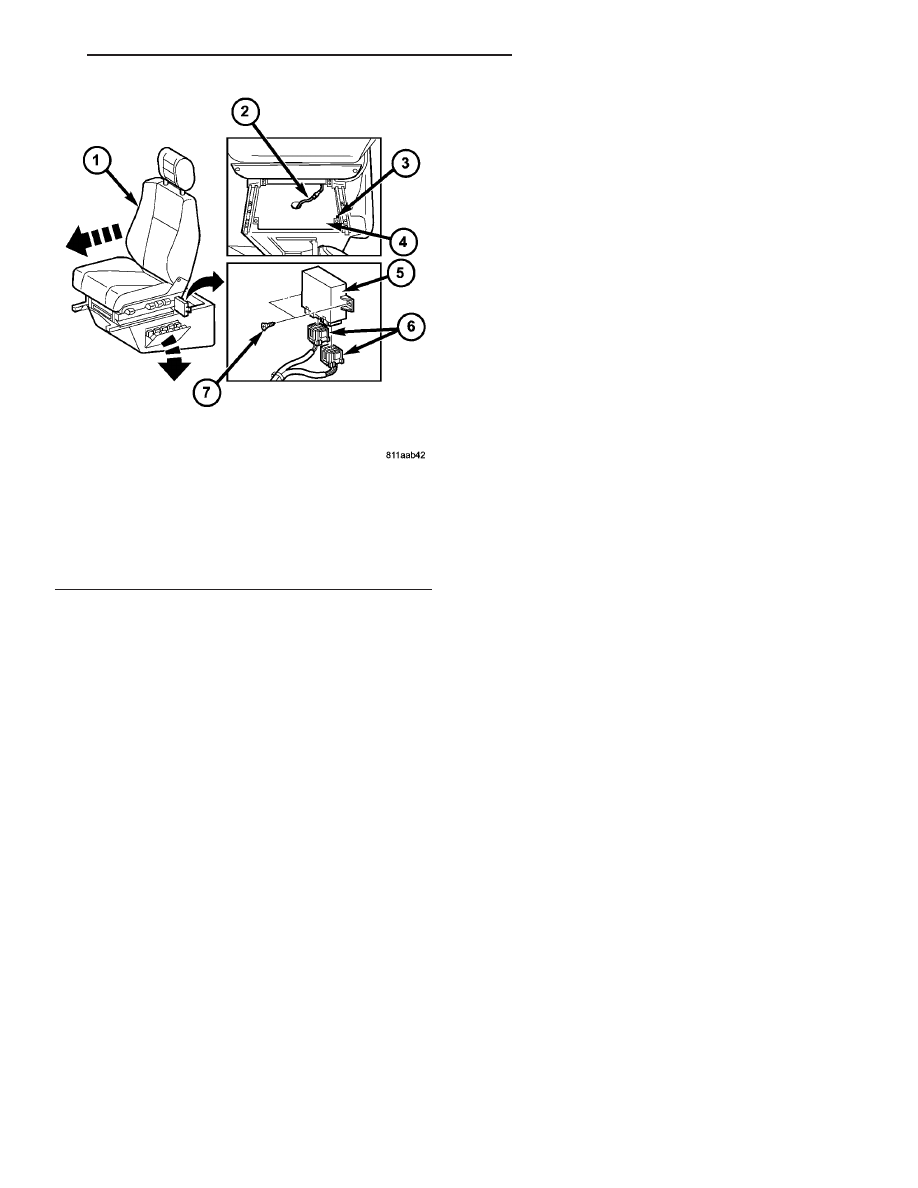

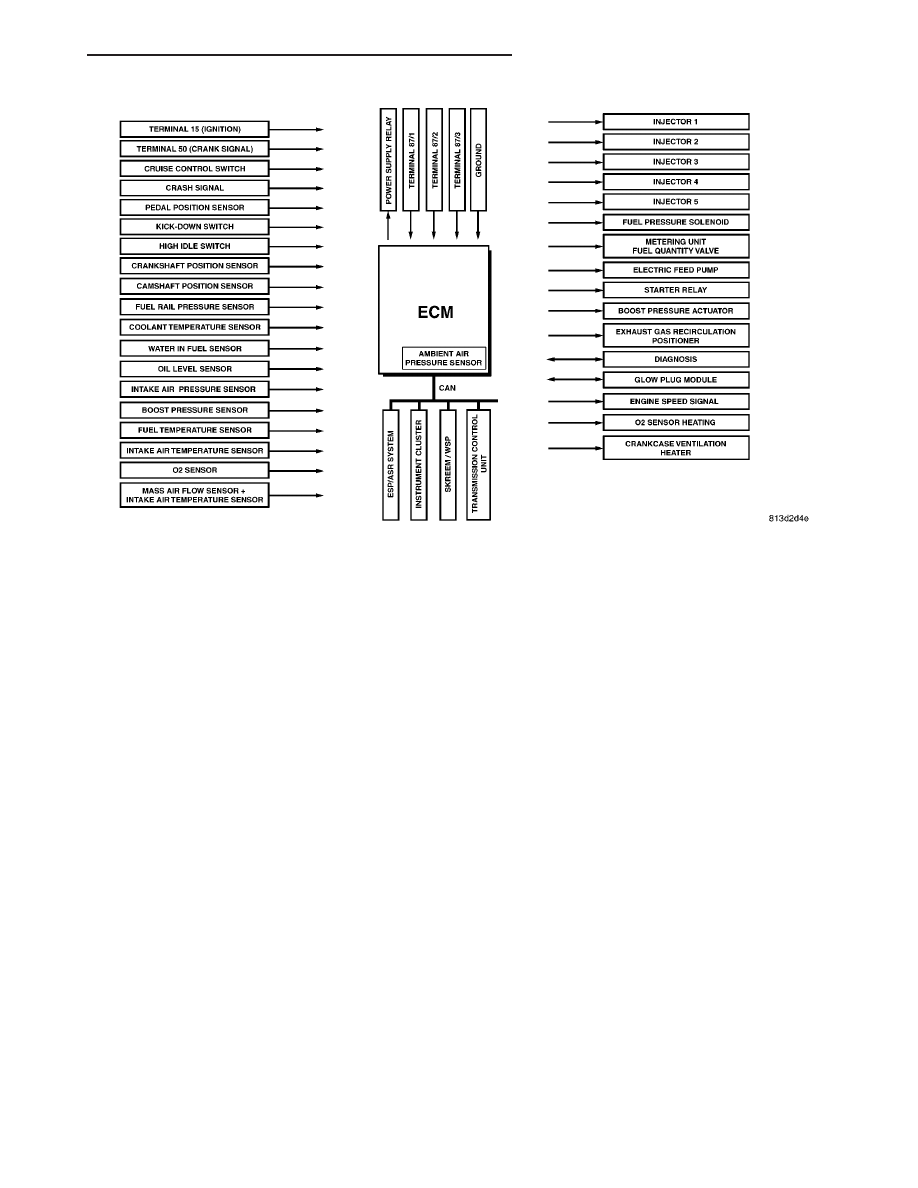

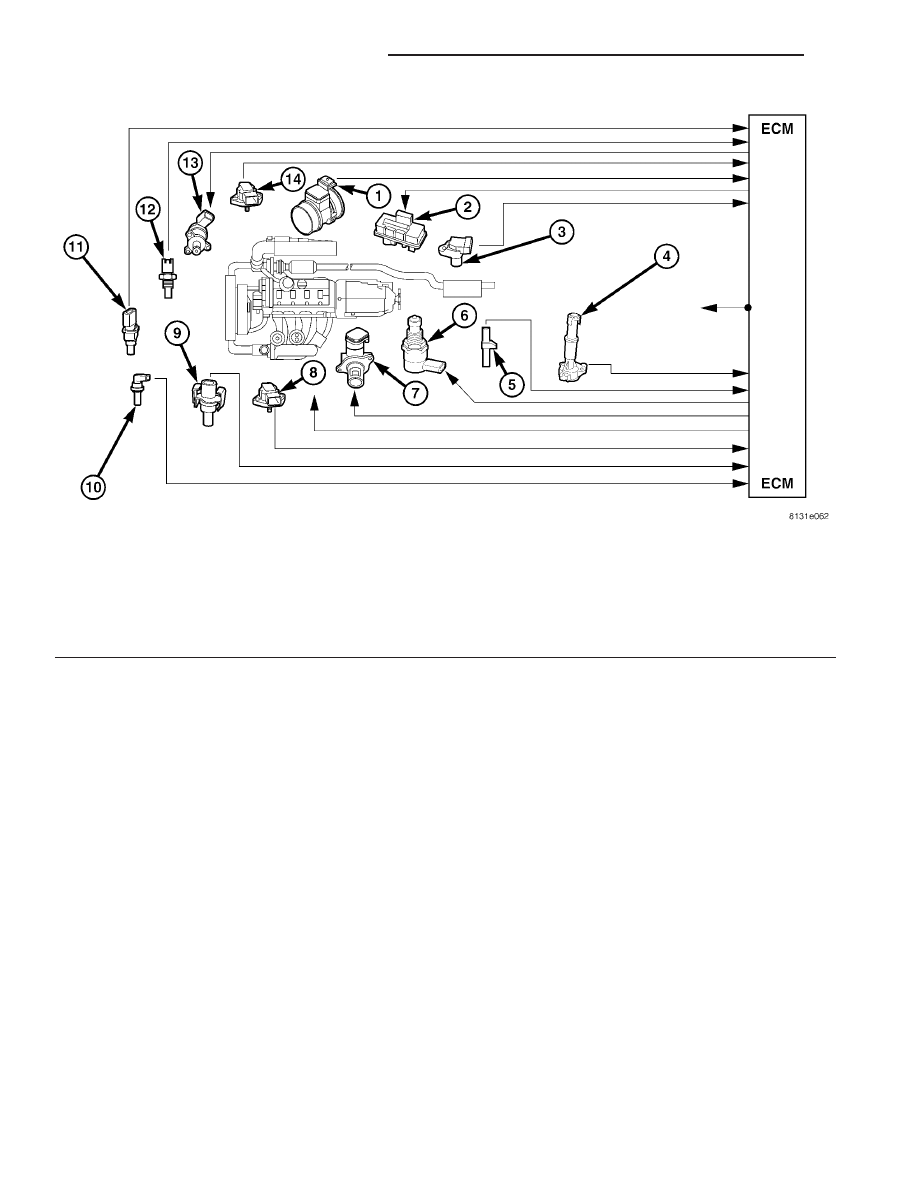

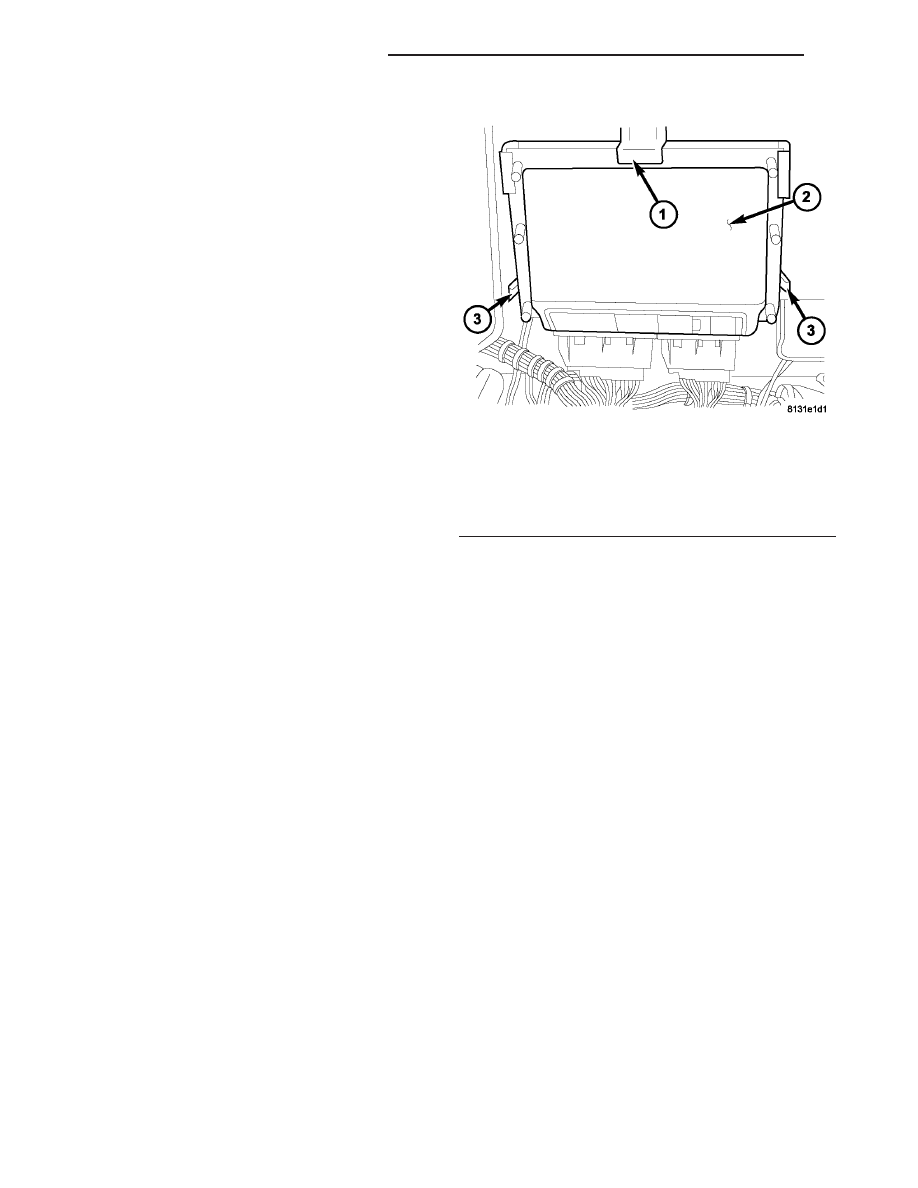

INSTALLATION (1) Position the central timer module in the vehicle central timer module. (3) Install the screws that secure the central timer module. Tighten the screws securely. (4) Route the seat belt latch wire lead through the hole in the closeout panel and position the panel (5) Install the screws that secure the closeout panel beneath the driver seat cushion. Tighten the (6) Connect the wire harness connector to the seat belt latch connector. (7) Slide the driver seat to back to its original posi- tion. (8) Reconnect the negative battery cable. CONTROLLER ANTILOCK DESCRIPTION The Controler Antilock Brake (CAB) is mounted to the Hydraulic Control Unit (HCU) and operates the REMOVAL (1) Remove the negative battery cable from the battery. (2) Pull up on the CAB harness connector release and remove connector. (3) Remove the CAB mounting bolts. INSTALLATION (1) Install CAB to the HCU. lbs.). (3) Install the wiring harness connector to the CAB and push down on the release to secure the con- (4) Install negative battery cable to the battery. ENGINE CONTROL MODULE DESCRIPTION The electronic control module (ECM) is mounted to the left lower dash panel and consists of an electronic Its task consists in controlling the following sys- tems in line with the analysis of the input signals: • Fuel Supply System • Injected Quantity Control • Emission Control System • Charge Pressure Control • Cruise Control • A/C Compressor Shut-Off • Pre-Heating Output Relay for the Glow Plugs • Vehicle Theft • Air Bag • Monitors inputs/outputs, checks plausibility and stores faults • Share information with other control modules • Diagnosis serious, the ECM will continue to operate the engine Fig. 1 Central Timer Module 1 - DRIVER SEAT VA ELECTRONIC CONTROL MODULES 8E - 3 |
