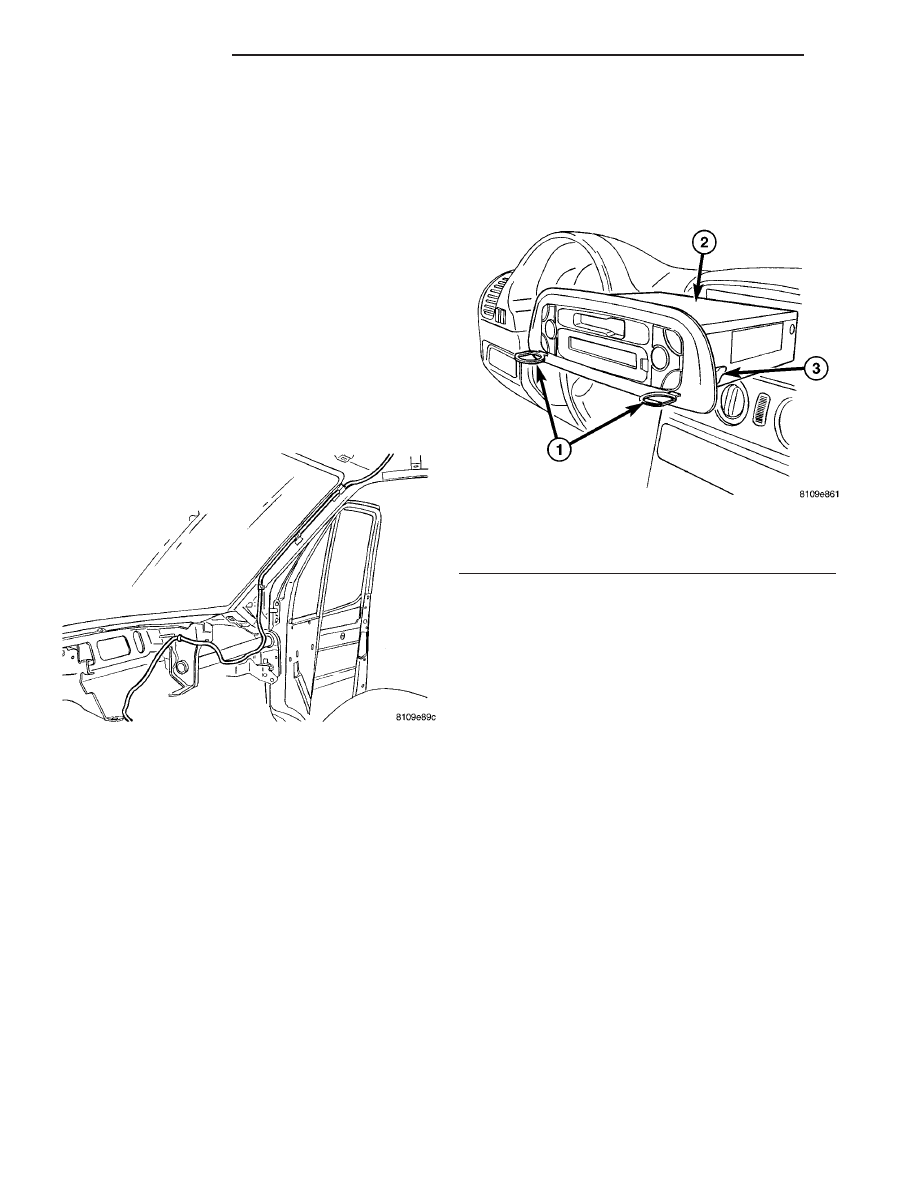

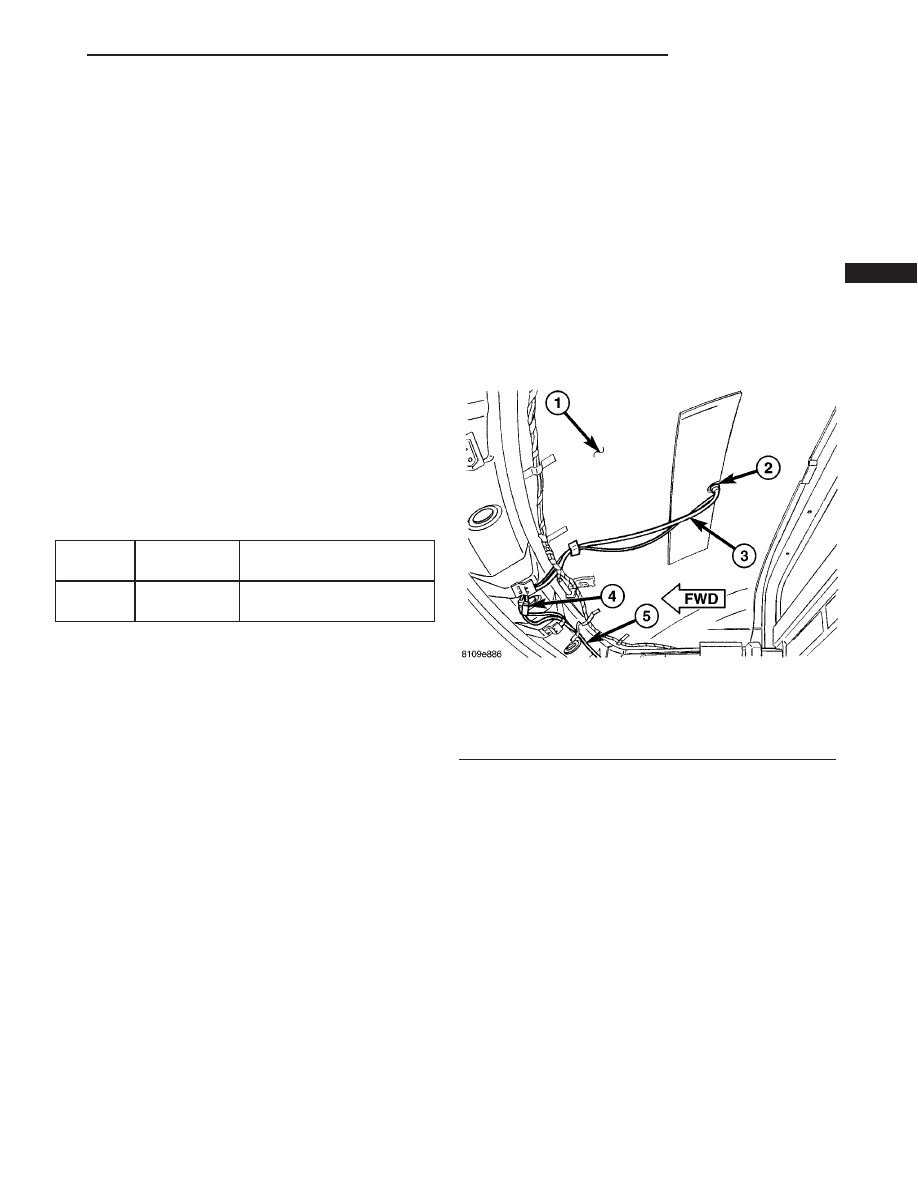

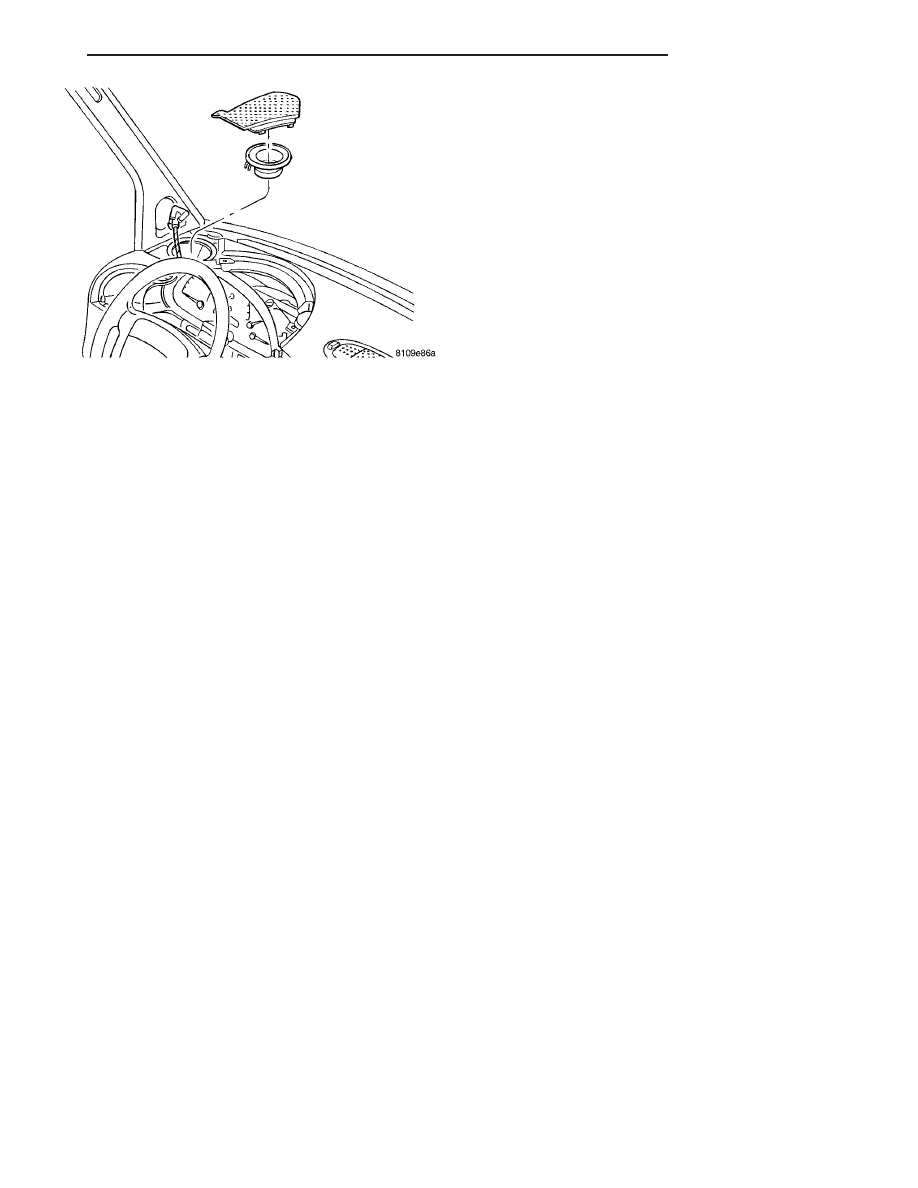

AUDIO / VIDEO TABLE OF CONTENTS page page AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ANTENNA BODY & CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 . . . . . . . . . . . . . . . . . . . . . . . . . . 1 INSTRUMENT PANEL ANTENNA CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 . . . . . . . . . . . . . . . . . . . . . . . . . . 2 RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SPEAKER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 . . . . . . . . . . . . . . . . . . . . . . . . . . 3 AUDIO SPECIAL TOOLS AUDIO SPECIAL TOOL CROSS REFERENCE CHART MB TOOL # MILLER DESCRIPTION 000 589 88 63 00 9241 RADIO EXTRACTION ANTENNA BODY & CABLE REMOVAL (1) Disconnect and isolate the battery negative cable. (2) Remove the portion of the headliner over the front seat passengers (Refer to 23 - BODY/INTERI- (3) Disconnect the antenna and electrical connec- tions near the windshield (Fig. 1). (4) Remove the mounting nut. and pull wire harness and cable through roof open- INSTALLATION (1) Feed wire harness and cable through roof open- ing and position antenna to roof panel. (2) Install and tighten antenna mounting nut. near the windshield. (4) Install the headliner (Refer to 23 - BODY/IN- TERIOR/HEADLINER - INSTALLATION). (5) Connect the battery negative cable. Fig. 1 ANTENNA CABLE 1 - ROOF PANEL VA AUDIO/VIDEO 8A - 1 |
