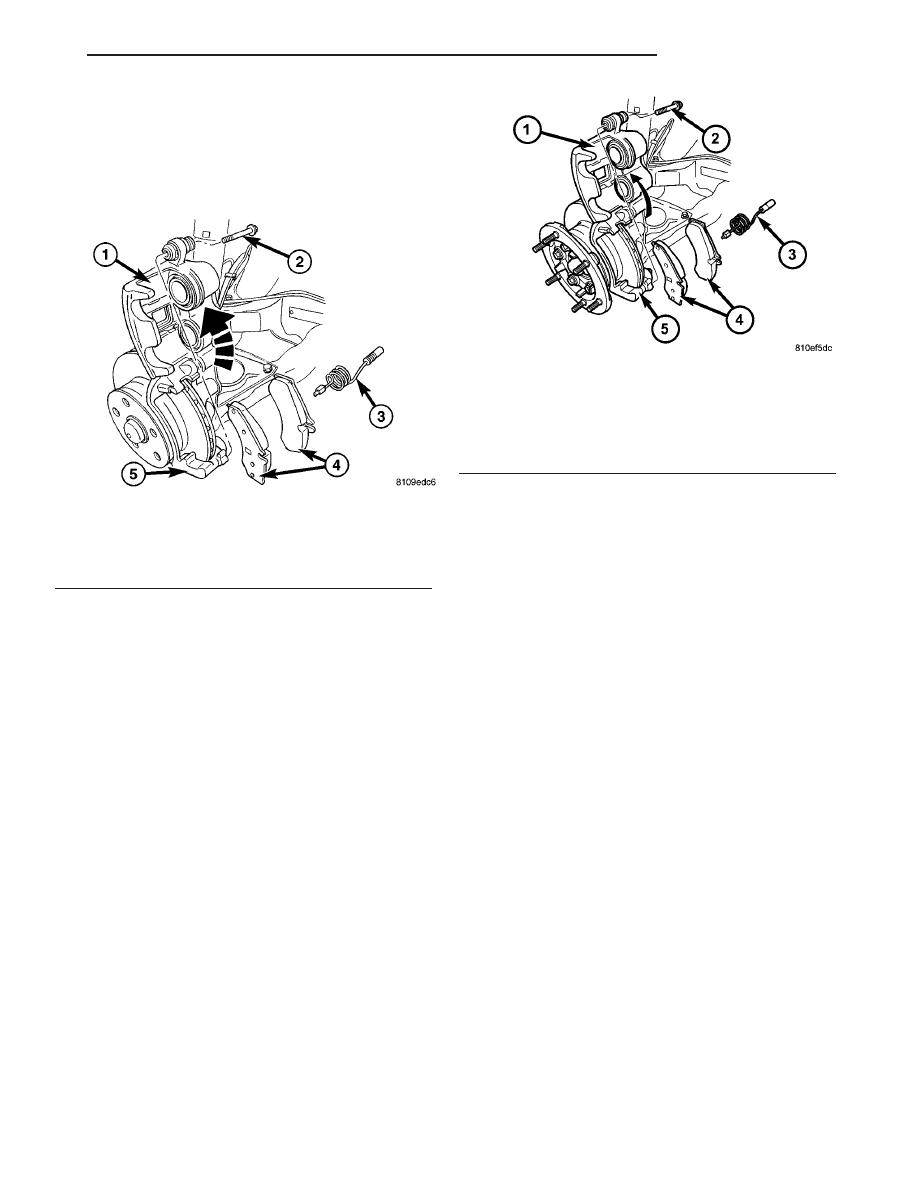

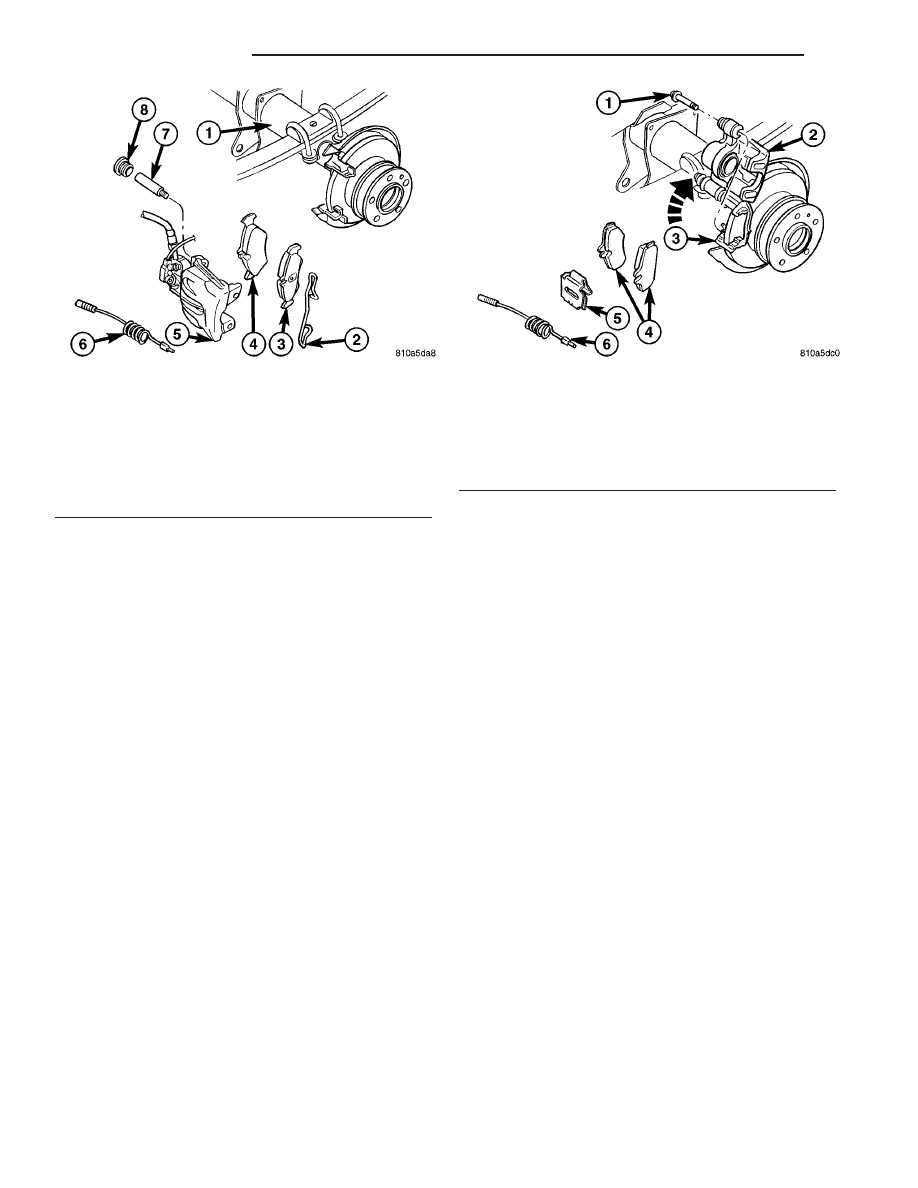

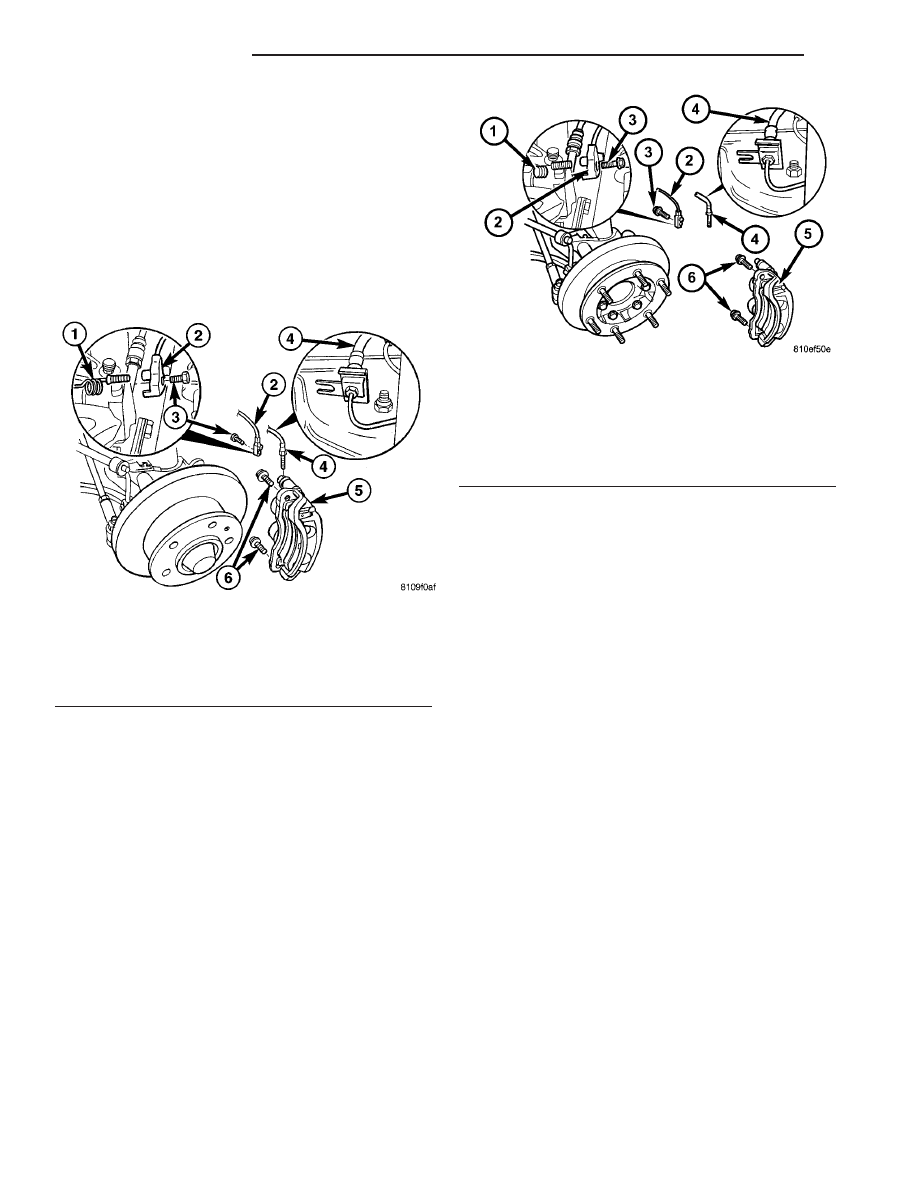

NOTE: Seal off the line ends and connection (5) Remove the brake caliper guide bolt (Fig. 4). REMOVAL - FRONT (DRW) (1) Unscrew the cap from the brake fluid reservoir. WHEELS/WHEELS - REMOVAL). (4) Remove the wear indicator cable and the wear indicator (Fig. 5). NOTE: Seal off the line ends and connection (5) Remove the brake caliper guide bolt (Fig. 5). REMOVAL - REAR (16” WHEELS) (SRW) (1) Unscrew the cap from the brake fluid reservoir. WHEELS/WHEELS - INSTALLATION). (4) Remove the wear indicator cable and the wear indicator (Fig. 6). NOTE: Seal off the line ends and connection (5) Remove the brake caliper guide pins (Fig. 6). adapter (Fig. 6). (7) Remove the retaining spring (Fig. 6). Fig. 4 FRONT BRAKE PADS 1 - DISC BRAKE CALIPER Fig. 5 FRONT DISC BRAKE PADS WITH DUAL REAR WHEELS 1 - DISC BRAKE CALIPER VA BRAKES - BASE 5 - 9 |
