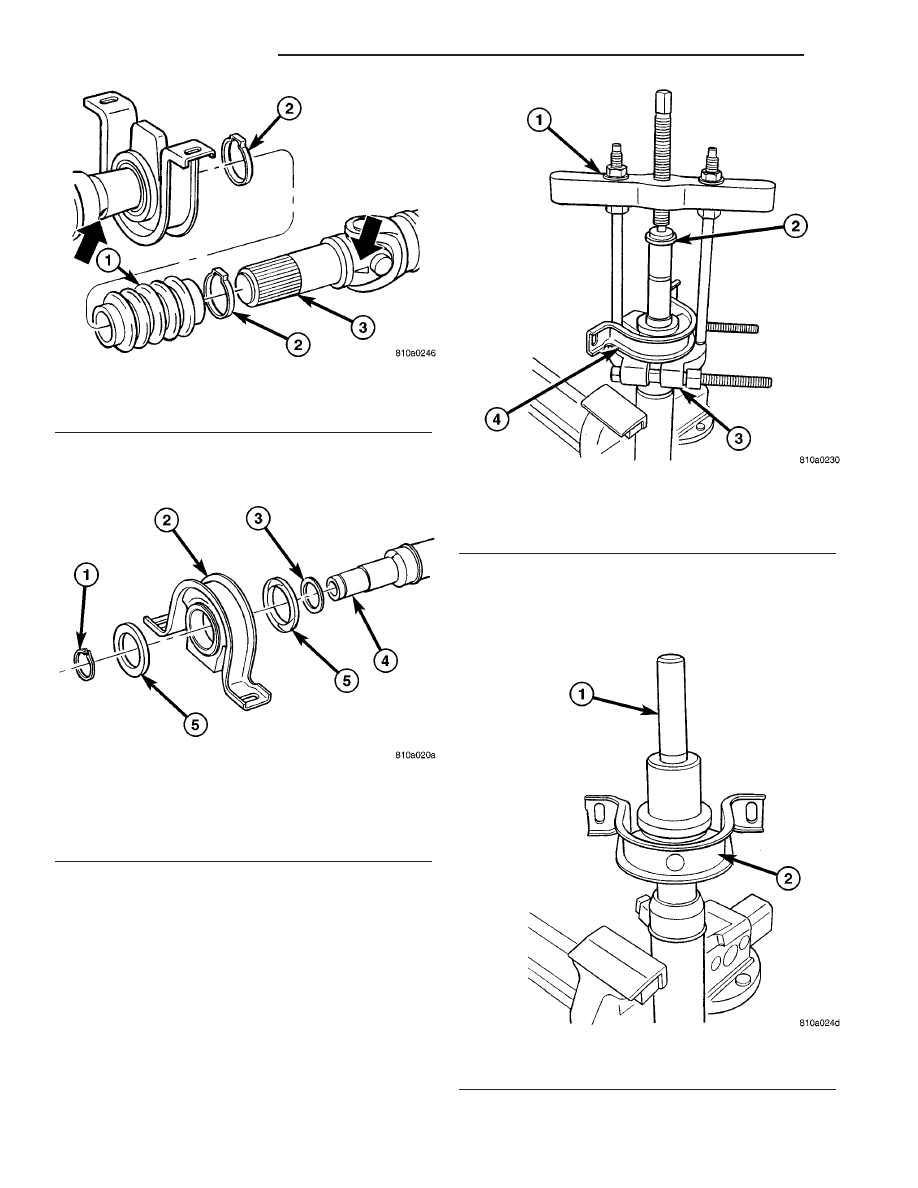

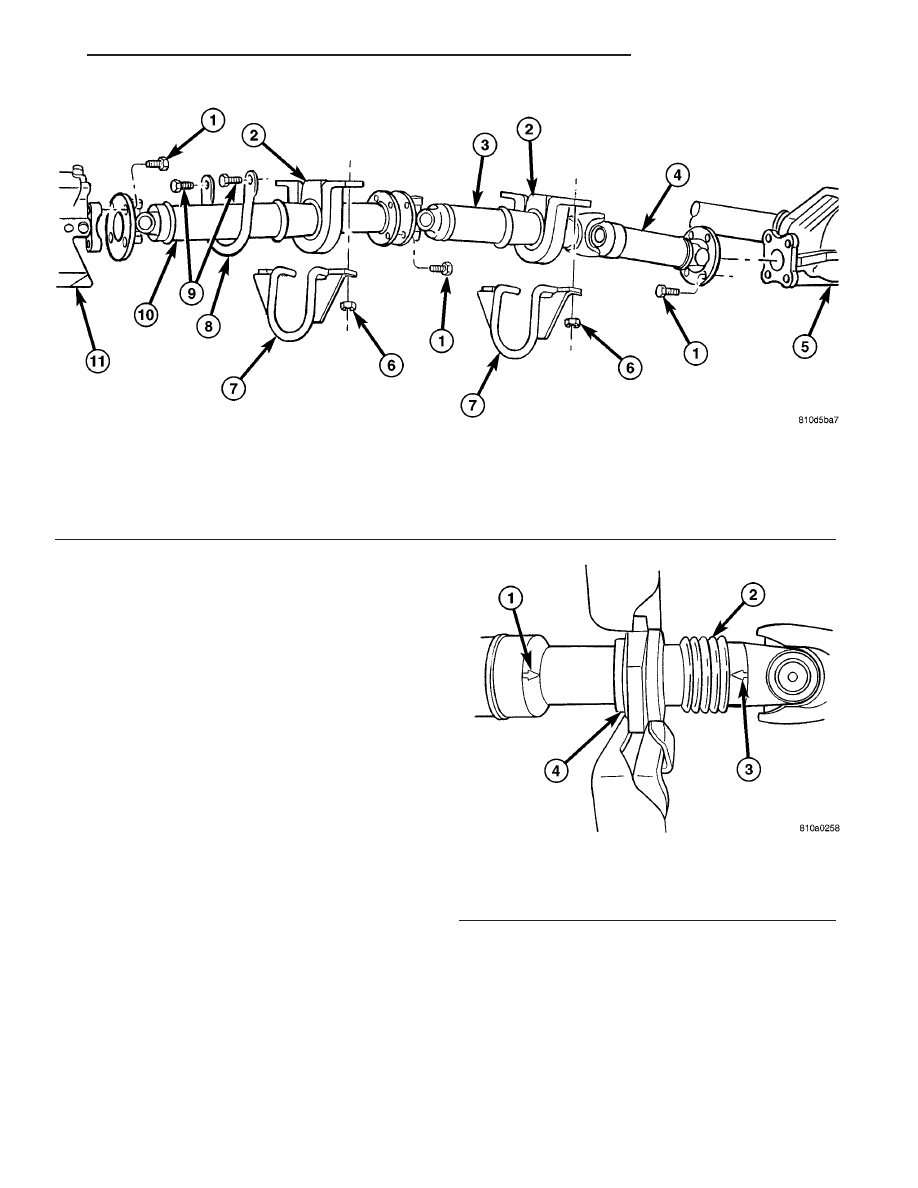

(6) Remove shaft from the vehicle. INSTALLATION (1) Install propeller shaft intermediate bearing/ bearings to support and tighten nuts to 105 N·m (77 (2) Install propeller shaft intermediate bearing support/supports to frame floor and tighten bolts to (3) Install propeller shaft intermediate bearing with retaining bracket and bracket for brake cable. NOTE: The bracket is only installed on vehicles (4) Install propeller shaft to rear axle and trans- mission flange with installation marks are aligned. (5) Install retaining bracket and tighten bolts to 100 N·m (74 ft. lbs.). CENTER BEARING REMOVAL (1) Remove propeller shaft. 10). (3) Loosen both collar clamps (Fig. 11). Fig. 9 3 PIECE PROPELLER SHAFT 1 - FLANGE BOLT 7 - BRACKET 2 - INTERMEDIATE BEARING 8 - RETAINING BRACKET 3 - CENTER SHAFT 9 - BOLT 4 - REAR SHAFT 10 - FRONT SHAFT 5 - REAR AXLE 11 - TRANSMISSION 6 - NUT Fig. 10 ALIGNMENT MARKS 1 - ALIGNMENT MARK VA PROPELLER SHAFT 3 - 9 |
