Mercedes-Benz Sprinter / Dodge Sprinter. Service manual - part 74

10.3.2

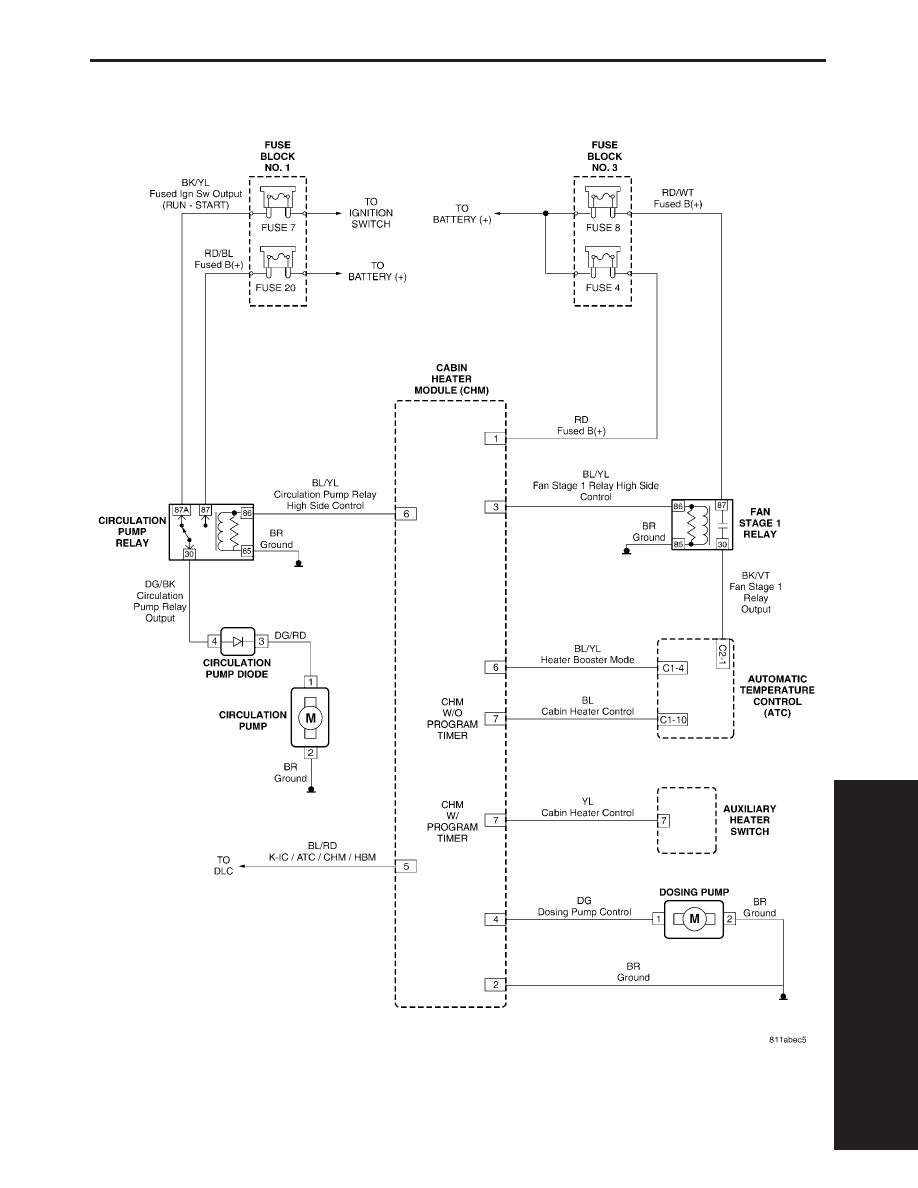

CABIN HEATER MODULE (CHM)

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

293

SCHEMATIC DIAGRAMS

10.3.3

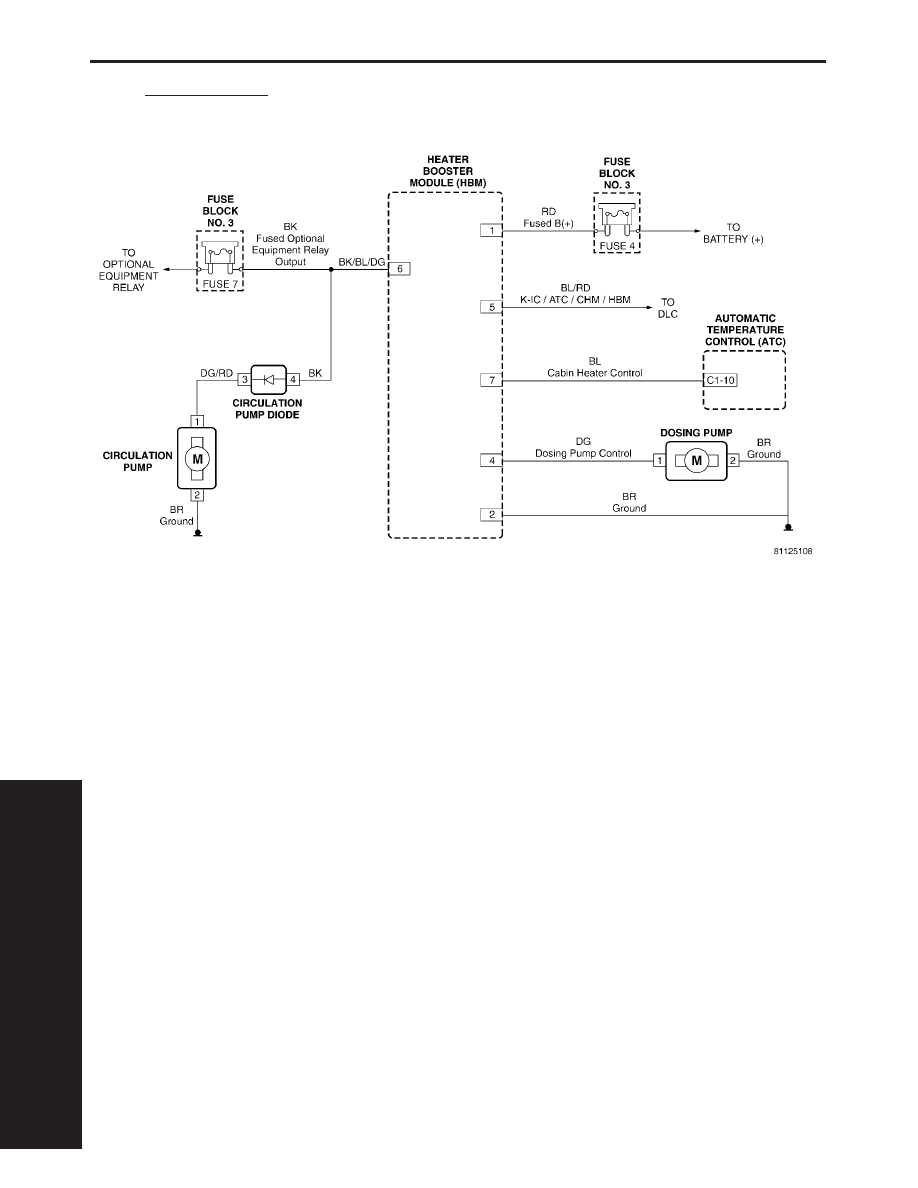

HEATER BOOSTER MODULE (HBM)

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

294

SCHEMATIC DIAGRAMS

10.3

HEATING & A/C (Continued)

10.4

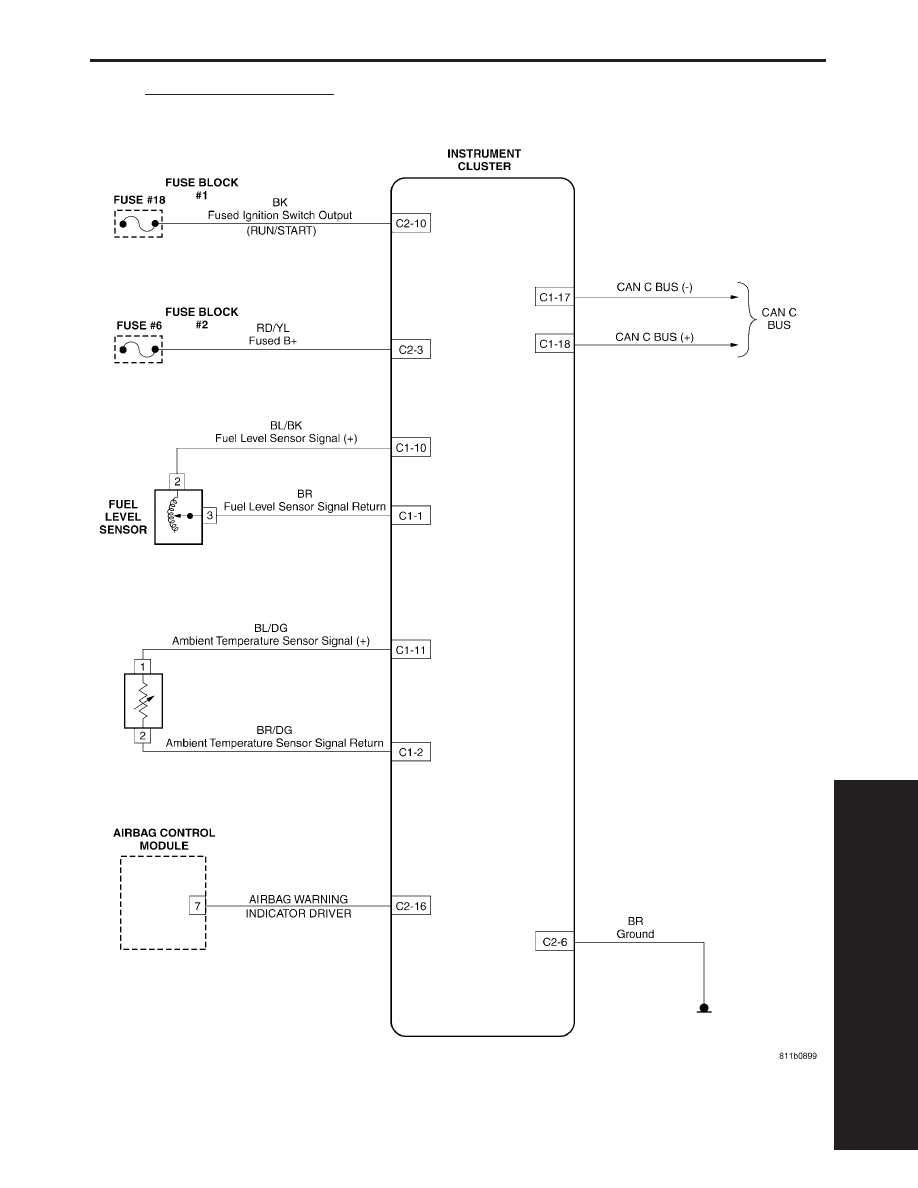

INSTRUMENT CLUSTER

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

295

SCHEMATIC DIAGRAMS

10.5

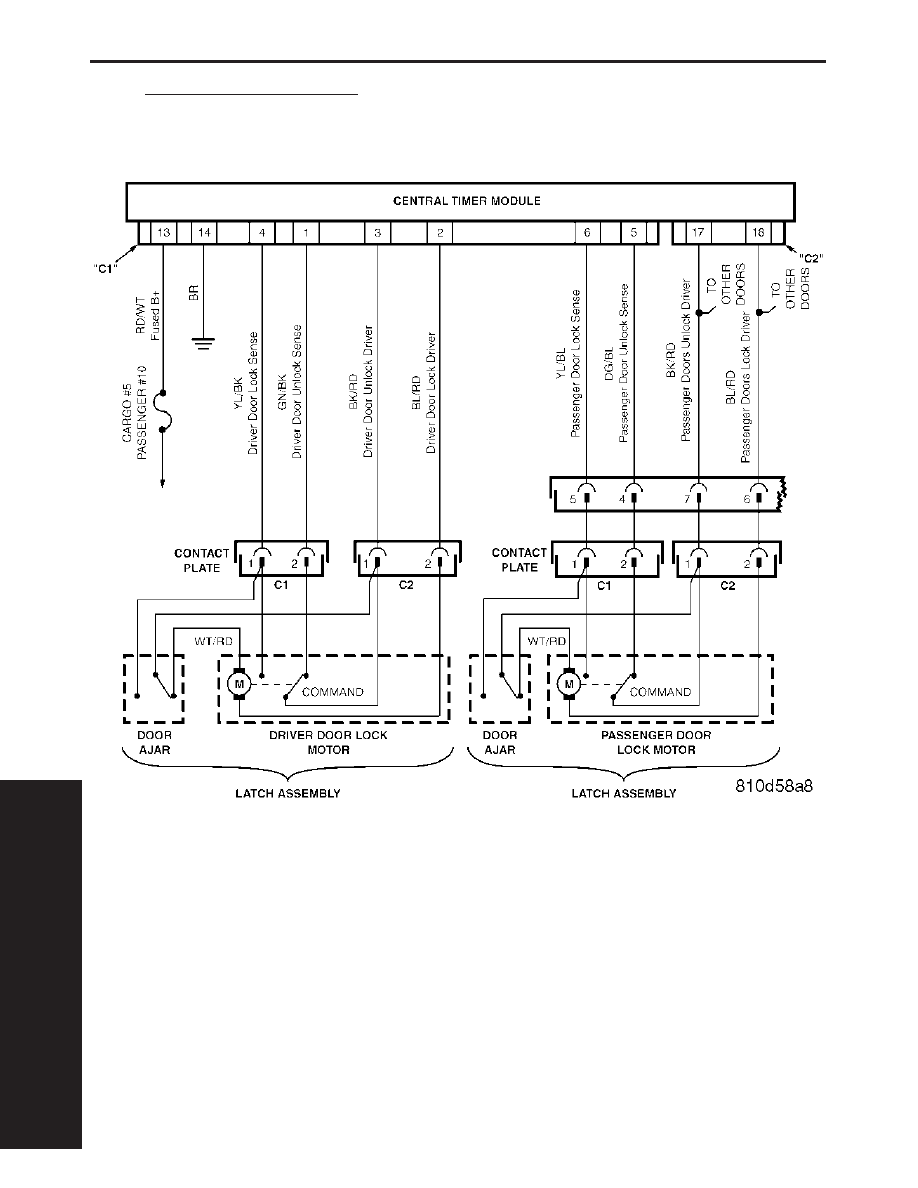

POWER DOOR LOCKS/RKE

10.5.1

FRONT DOORS

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

296

SCHEMATIC DIAGRAMS
