AD00.00-P-2000-04A

Connect STAR DIAGNOSIS and read out
fault memory

Workshop equipment/MB testers (see Workshop Equipment Manual)

WE58.40-Z-1013-06A

STAR DIAGNOSIS Compact diagnosis system for passenger cars, order number 6511 1801 00

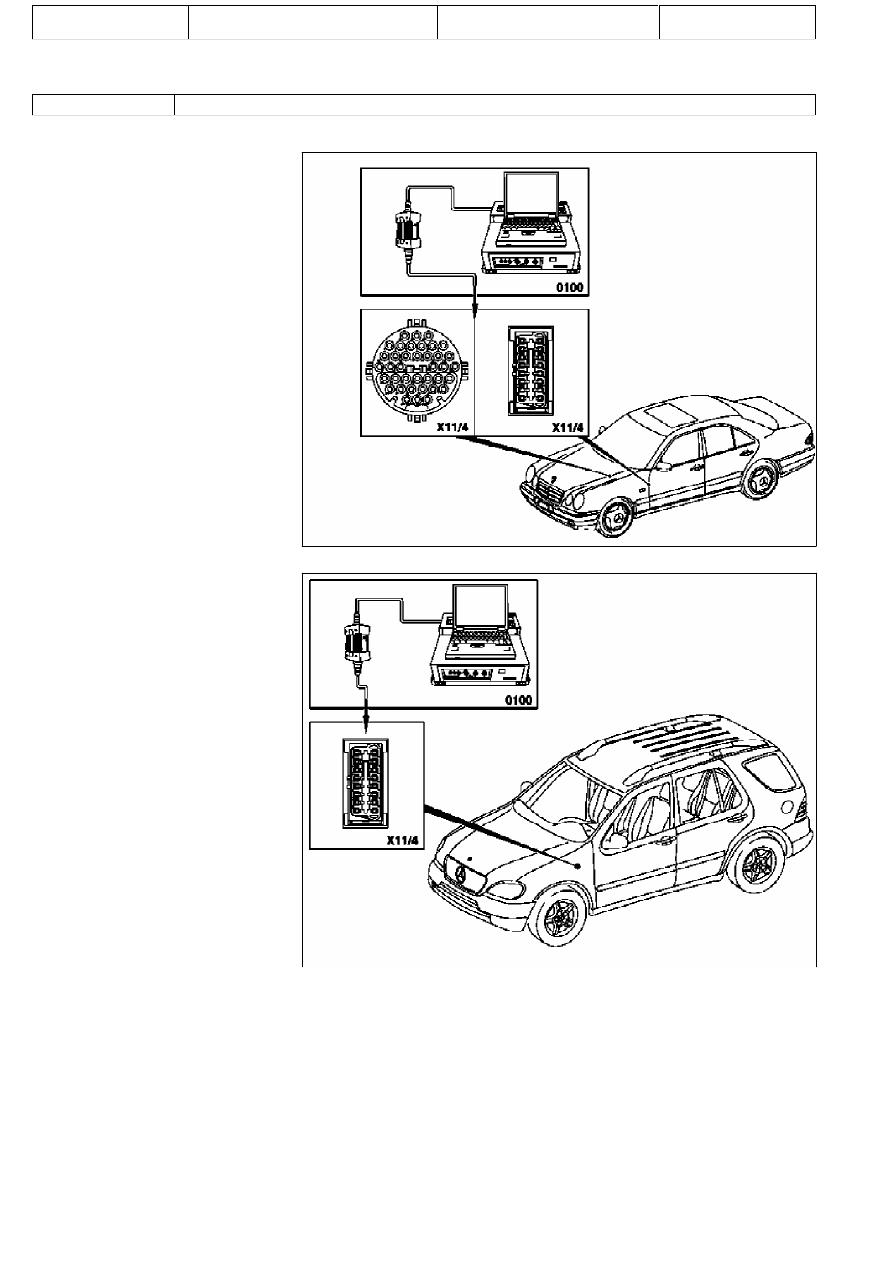

P00.30-2002-06

Shown on model 210
0100

STAR DIAGNOSIS

X11/4

Data link connector

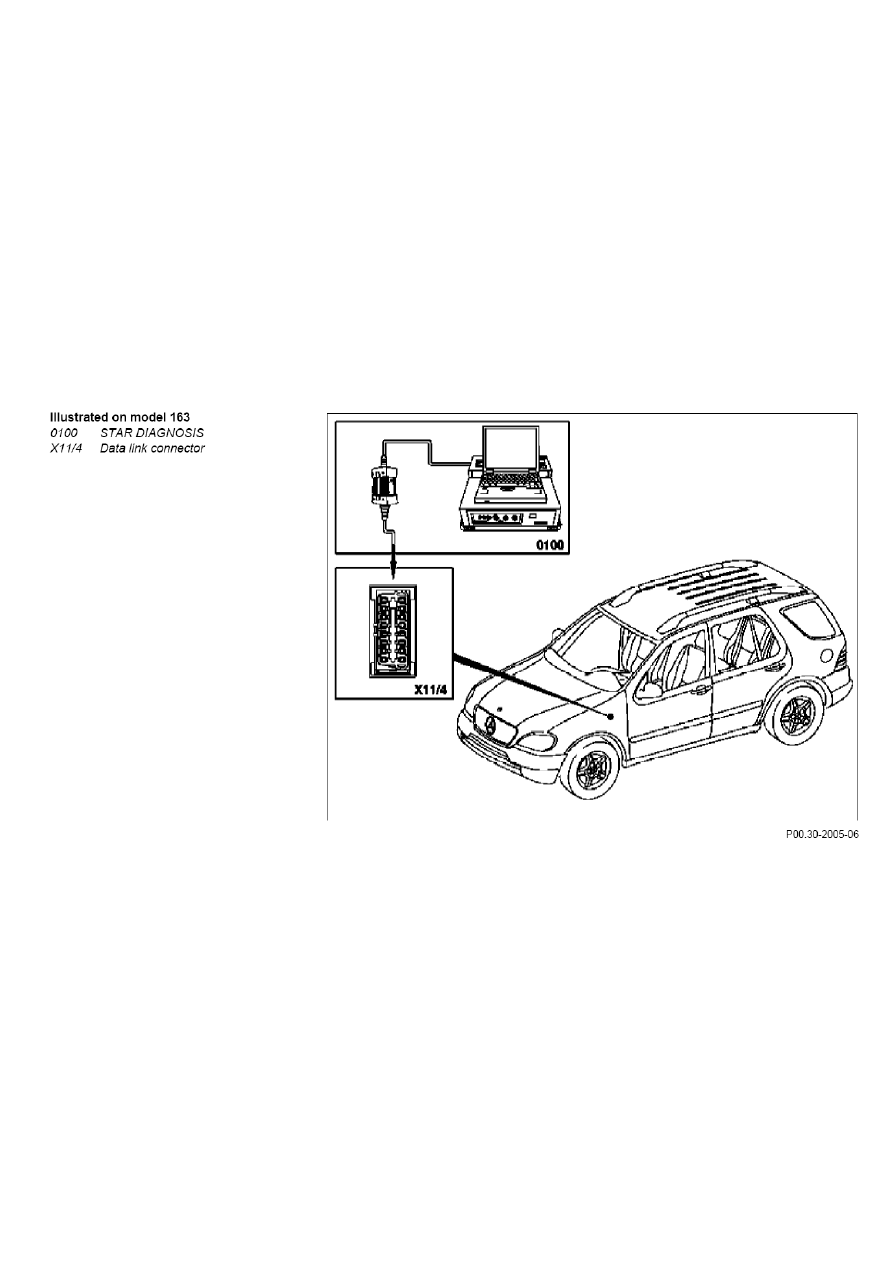

P00.30-2005-06

Illustrated on model 163
0100

STAR DIAGNOSIS

X11/4

Data link connector

Copyright DaimlerChrysler AG  05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

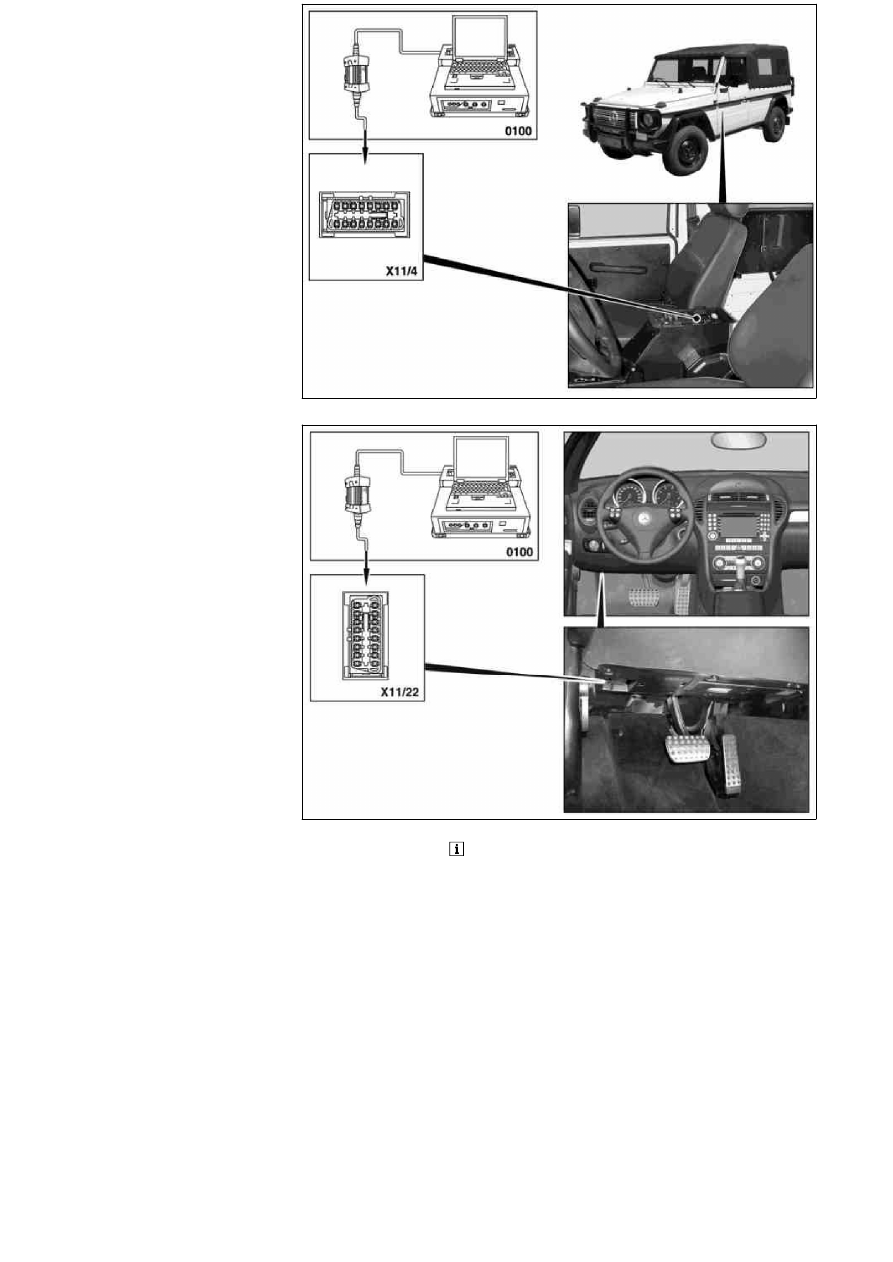

P00.00-3388-06

Shown on model 461.302
0100

STAR DIAGNOSIS

X11/4

Data link connector

P00.30-2028-06

Shown on model 171.4
0100

STAR DIAGNOSIS

X11/22

Data link connector (1.3)

1

Connect STAR DIAGNOSIS (0100) to the data link connector
(X11/4) or the data link connector (1.3) (X11/22).

2

Switch on ignition.

3

Start the Diagnosis Assistance System.

4

In the "Model designation" menu select the "Additional model
designation" submenu.

5

Follow the instructions on the screen:
D Enter new control unit version.
D Read fault memory, erase
D Read actual values.
D Perform actuations.
D Adaptation of control units.

6

Disconnect STAR DIAGNOSIS (0100).



Stored faults which may be caused by disconnecting cables or by

simulation during testing operations must be deleted in the diagnostic
trouble code memory following completion of the operations.

Copyright DaimlerChrysler AG  05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AD00.00-P-2004-02A

STAR DIAGNOSIS procedural schematic

Division selection

Control module group

Test steps

Measuring

technology

WIS

DAS innovations

Functions

Control module version
Fault code
Actual values
Actuations
Control module adaptations
Overall list of guided tests
Overall list of fault codes
Troubleshooting via complaint or symptoms

Main function groups

Control modules

System-specific assistance

Model series/type

System control module

Individual functions

Control module selection

Quick test

Copyright DaimlerChrysler AG  05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.
