Vehicles with EZS control unit without column sleeve module (MRM)

The signals from the push-button switch for the cruise control are detected by the control unit EIS and
transmitted to the CAN data bus.

Vehicles without EZS control unit

The signals from the cruise control switch are transmitted directly to the engine control unit.

Vehicles with manual transmission (MT)

Cruise control remains active during gear change, in other words the cruise control is not switched off when the
clutch is operated.

Traction systems control unit

Transmits the vehicle speed signal via CAN to the ME control unit.

CRUISE CONTROL SWITCH, LOCATION/TASK/DESIGN/FUNCTION - GF30.30-P-3100F

ENGINE 104 (except 104.98),



Motor electronics control unit, location/task/
design/function

other than engine 111 EVO

GF07.61-P-
5000F

Engine 111 EVO

GF07.61-P-
5000GS



Cruise control switch, location/task/design/
function

with cruise control or Distronic





GF30.30-P-
3100F



Variable cruise control switch, location/task/
design/function

with cruise control or Distronic except





GF30.30-P-
3101A



Electronic accelerator/cruise control/idle speed
control actuator location/task/design/function



GF30.22-P-
4010F



Throttle valve actuator, location/task/design/
function

Engine 111 EVO

GF30.22-P-
4101GS

  Stop lamp switch, location/task/function



GF42.10-P-
4000A

  Clutch pedal switch, location/task/function

with MT

GF29.10-P-
2100F

  Variable speed limiter, function

Additional cruise control function except





GF30.30-P-
3001A

  ETC control unit, location/task

Transmits information about the selector
lever position P/N and the driving mode
selected via CAN.
Transmission 722.6

GF27.19-P-
4012G



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me



111.946 up to 31.5.98,

111.943,

111.973 up to 31.5.97,

111.920,

111.921 up to 31.8.98,

111.941,

111.942 up to 31.8.98,

111.944 up to 31.5.98,

111.945 up to 31.8.98, 111.974,

111.947/970, 112.942 up to 31.5.98,

119, 120 up to 31.5.97,

668.940/941,611.960/961

with CODE (440a) Cruise control

with CODE (443a) Cruise control and electrically adjustable steering column (codes 400 and 441)

with CODE (446) Cruise control, electrically adjustable steering column and airbag (440, 441 and 442)

ENGINE 104, 111, 112, 113, 119, 120, 137, 613.960, 628.960 (except, 112.96, 113.99) with CODE (494a)
USA version

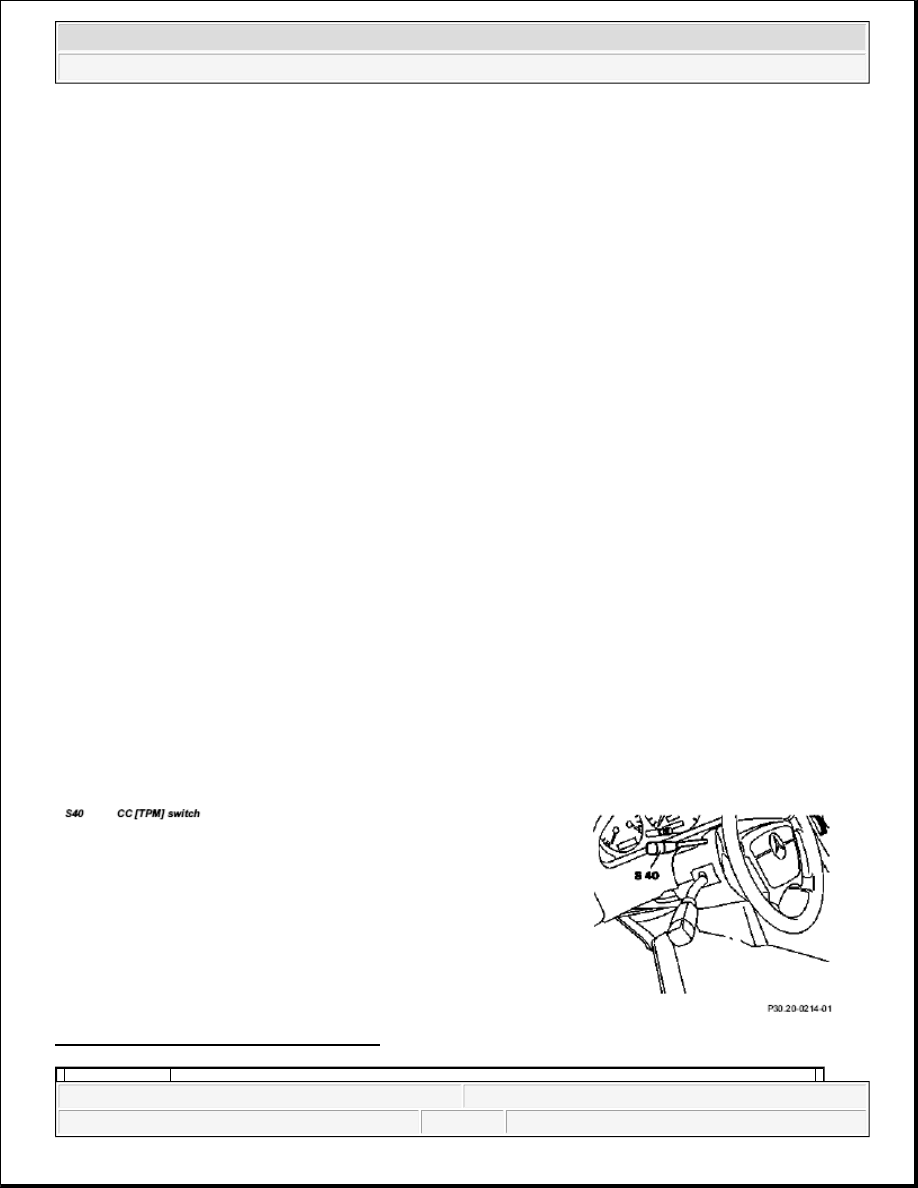

Fig. 16: Identifying Cruise Control Switch



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me



KICKDOWN SWITCH LOCATION/TASK/DESIGN/FUNCTION - GF30.30-P-4000A

ENGINE 112, 113, 119, 120 in MODEL 129

ENGINE 104, 119, 120 in MODEL 140

ENGINE 112, 113 in MODEL 163

ENGINE 166 in MODEL 168

ENGINE 111,112 (except, 112.96) in MODEL 170

ENGINE 111,112, 113 in MODEL 202

ENGINE 111,112 (except, 112.96) in MODEL 203

ENGINE 111,112, 113 in MODEL 208

ENGINE 111,112, 113 in MODEL 210

ENGINE 112,113,137 (except, 113.99) in MODEL 220

ENGINE 113,137 (except 113.99) in MODEL 215

ENGINE 112,113 (except, 113.99) in MODEL 230

ENGINE 112, 113 in MODEL 211

ENGINE 112, 113 in MODEL 209



Cruise control
switch
location

Left top behind the steering wheel.





Cruise control
switch task



Setting of cruise control and Distronic.



With 30 km/h limitation: Switch on and off 30 km/h limitation when below 30
km/h.





Cruise control
switch design

Push-button switch with several switching contacts.





Cruise control
switch
function

When the cruise control push-button switch is operated, two switching contacts are
always activated simultaneously. The actual input takes place by closing one of the
switching contacts (e.g. storing the speed). The safety contact must close simultaneously
so that the input is accepted.





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me



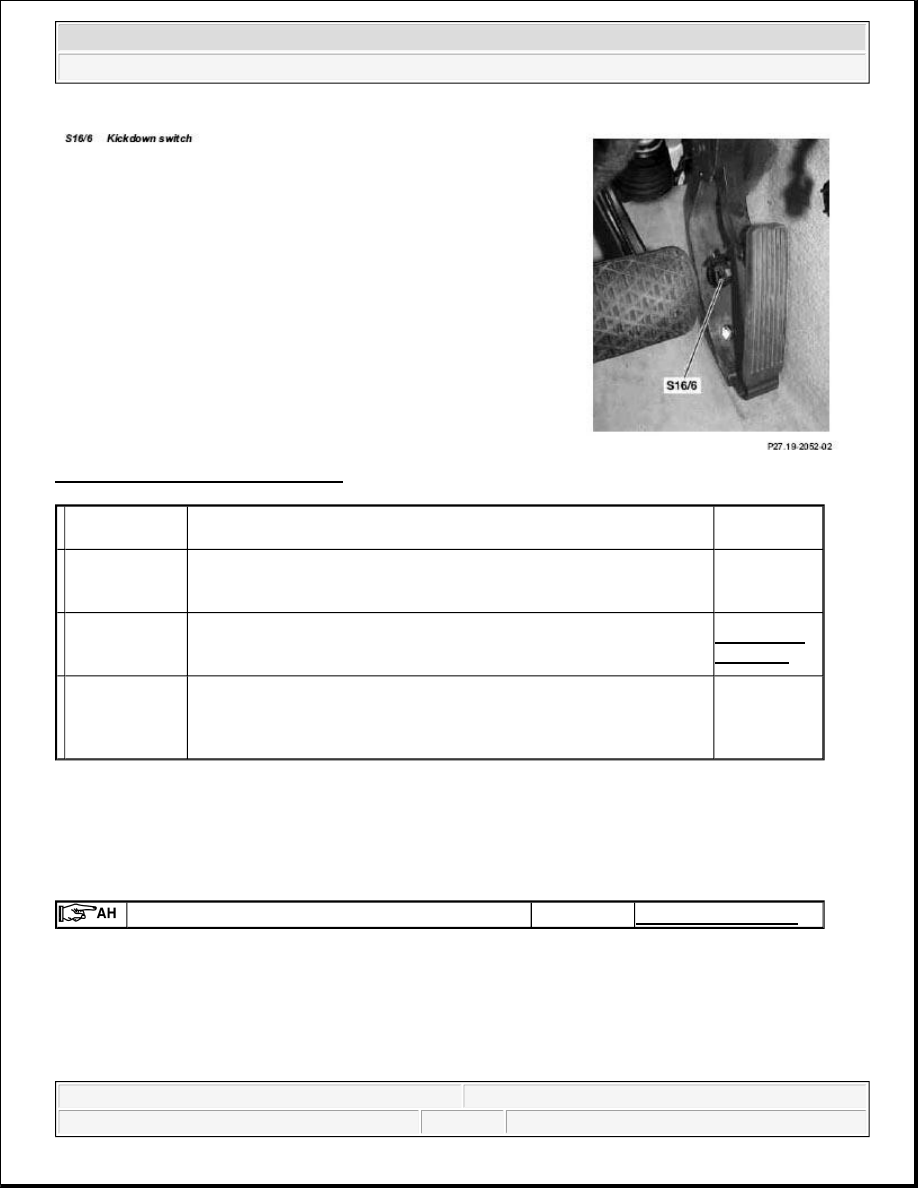

Fig. 17: Identifying Kickdown Switch

SAFETY PRECAUTIONS

SAFETY INFORMATION: THROTTLE CONTROL, CRUISE CONTROL SYSTEM - AS30.00-Z-9999ZZ

MODEL all

RISK OF INJURY - AS30.30-Z-0001-01A

Never look directly into the laser beam. Do not attempt to suppress the natural reflex of the eyelids.
Avoid direct skin contact with the laser beam. If eye damage is suspected, consult an eye specialist
without delay.



Kickdown
switch position

in footwell behind accelerator pedal





Kickdown
switch task

Identify kickdown position of accelerator pedal, in order to influence
transmission control, cruise control, variable speed limiter and
Distronic.





Kickdown
switch design

Up to approx. 6/02 designed as an electrical switch (S16/6). As of
approx. 7/02 (without engine 166) the electrical switch is replaced by
the Kickdown simulator (spring).

GF30.20-P-
4011-02C



Kickdown
switch function

Engine 111, 112, 113, 119, 120, 137 up to approx 6/02 and Engine 166:
on closed contact the ground is switched to the engine control unit
As of approx. 7/02 (without Engine 166): Kickdown recognition is
performed via the signal of the accelerator pedal sensor.



  Risk of injury to skin and eyes from laser beams

MODEL all

AS30.30-Z-0001-01A
