Mercedes-Benz ML320. Service manual - part 808





ENGINE 111.945

in MODEL 208.335 /435 as of 1.6.98,

202.020/080 as of 1.9.98

ENGINE 111.974

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

ENGINE
112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /95

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

ENGINE 119.980 /981 /982 /985

ENGINE 120.982/983

ENGINE 137.970

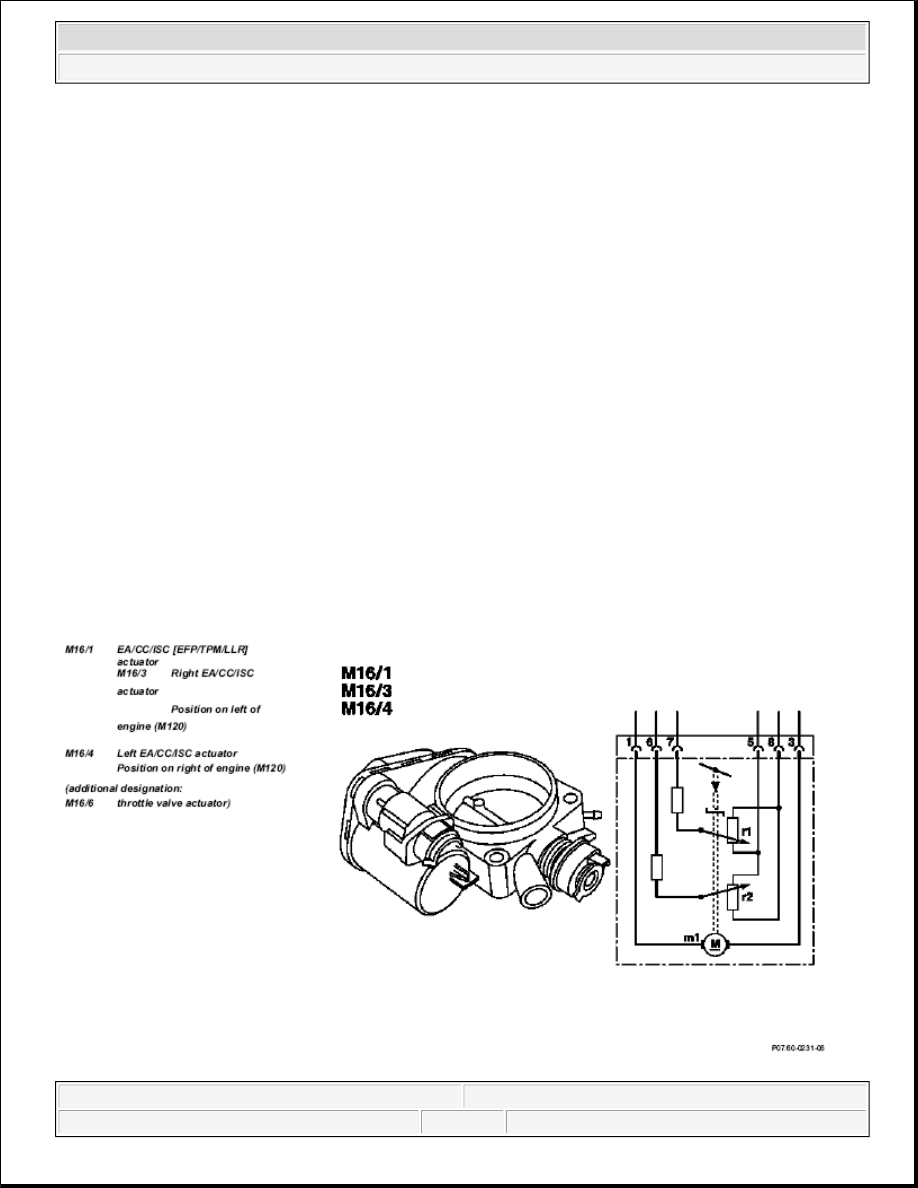

Fig. 14: Identifying Electronic Accelerator/Cruise Control/Idle Speed Control Actuator Function



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me



CRUISE CONTROL (CC) FUNCTION - GF30.30-P-0001FA

ENGINE 112.923 /943, 113.961, 120.983 in MODEL 129

ENGINE 112.942 /970, 113.942 /965 in MODEL 163

ENGINE 111.943 /946 /958 /973 /983, 112.947 in MODEL 170

ENGINE 111.921 /944 /945 as of 1.8.99,

111.952/956/974,

111.975 as of 1.8.99,

112.910/920,113.944



Electronic accelerator/cruise
control/idle speed control actuator
position

Engine 104

GF30.22-P-
4010-01D

Engine 111

GF30.22-P-
4010-01G

Engine 112, 113

GF30.22-P-
4010-01A

Engine 119

GF30.22-P-
4010-01E

Engine 120

GF30.22-P-
4010-01F

Engine 137

GF30.22-P-
4010-01L



Electronic accelerator/cruise
control/idle speed control actuator
task

Determining the opening angle of the throttle valve
in accordance with the operating condition:

Controlling idle speed under different engine
loads (power steering turned to full lock, AC
compressor engaged)

Cruise control mode

Emergency electronic accelerator pedal

Driving, in accordance with accelerator pedal
position.





Electronic accelerator/cruise
control/idle speed control actuator
task



GF30.22-P-
4010-02F



Electronic accelerator/cruise
control/idle speed control actuator
function



GF30.22-P-
4010-03F



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me



in MODEL 202

ENGINE 111.951 /955, 112.912 /916 /946 /953 in MODEL 203

ENGINE 111.945/975#2,

111.945 /975 #0 as of 1.8.99,

111.956/982, 112.940, 113.943

in MODEL 208

ENGINE 111.957, 112.911 /914/921 /941, 113.940/980,

111.942/947 as of 1.8.99

in MODEL 210

ENGINE 112.922 /944 /972 /975, 113.941 /948 /960 /966, 137.970 in MODEL 220

ENGINE 113.960, 137.970 in MODEL 215

ENGINE 112.973, 113.963 in MODEL 230

ENGINE 112.913 /917 /949 /954, 113.967 /969 in MODEL 211

ENGINE 112.912 /955, 113.968 in MODEL 209

Shown on engine 111 EURO3/4 B37



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me

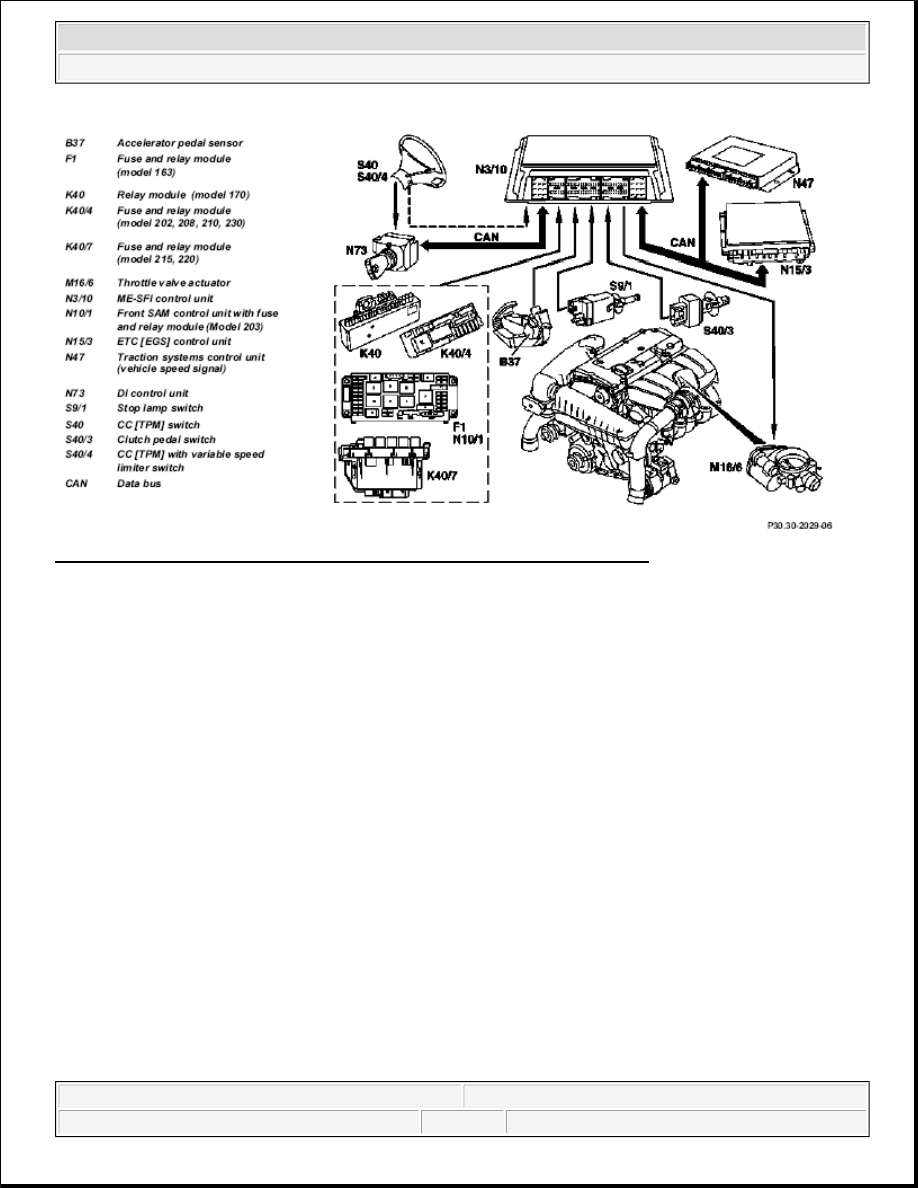

Fig. 15: Identifying Cruise Control Function - Shown On Engine 111 Euro3/4

Task

Maintaining the preselected vehicle speed constant irrespective of the engine load, without operation of the
accelerator pedal.

Function

The cruise control function is integrated in the engine control unit. It can be activated from > 40 km/h with the
cruise control switch. The engine control unit operates the throttle valve actuator for the cruise control function
with the aid of the input signals and the position of the cruise control switch.

The cruise control mode is switched off by:

pushing the cruise control push-button switch (S40) or variable cruise control push-button switch (S40/4)
into the "OFF" position

Operating the service brake

Moving selector lever into position "N"

Control intervention function of traction system

Vehicles with column sleeve module (MRM)

The signals from the push-button switch for the cruise control are detected by the steering column module and
transmitted to the CAN data bus.
