Mercedes-Benz ML320. Service manual - part 793





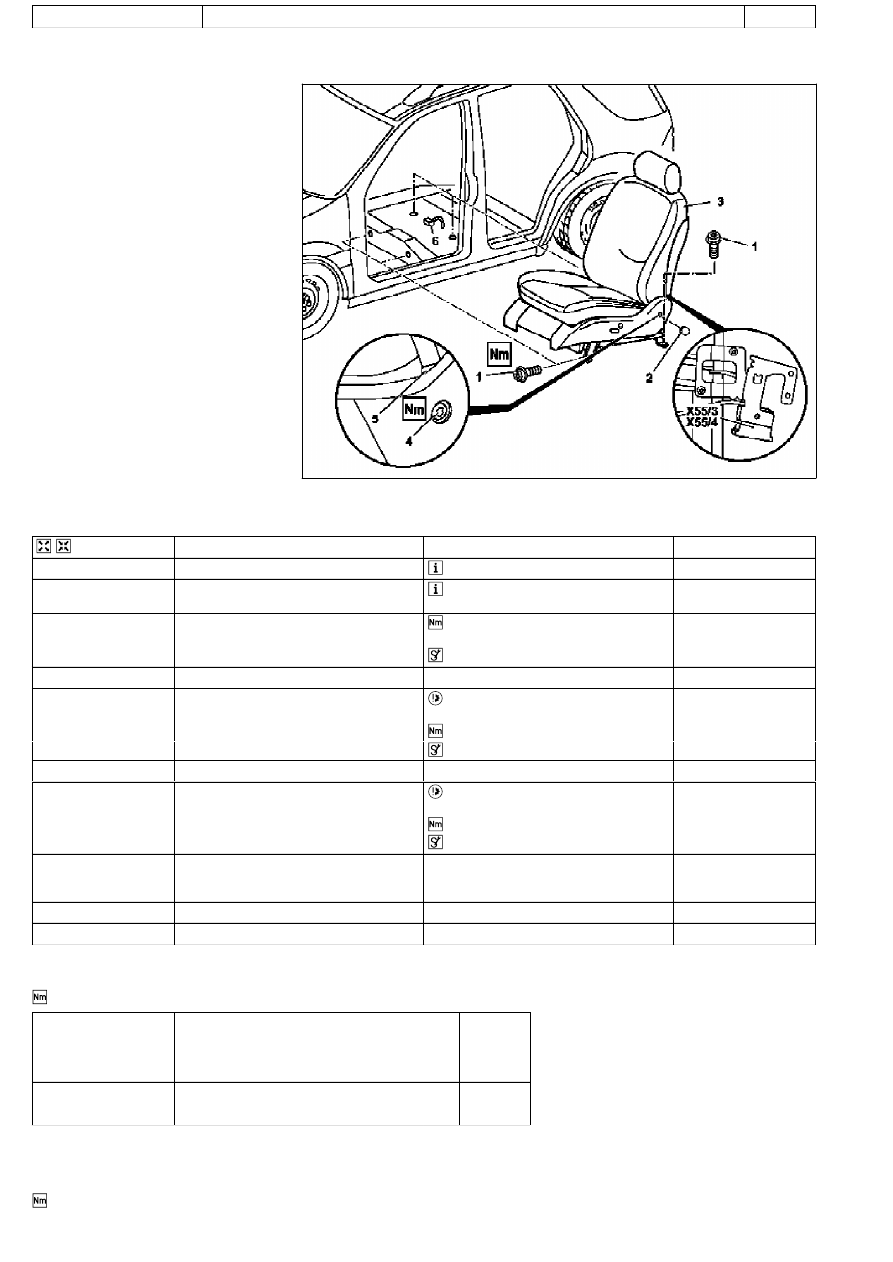

AR91.10-P-1000GH

Remove/install front seat

3.3.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (221b) Electrically adjustable driver and passenger seat

P91.10-0547-06

1

Torx socket screws

2

Cover cap

3

Front seat

4

Torx socket bolt

5

Belt end fitting

6

Connector

X55/3

Left front seat contacting strip

X55/4

Right front seat connector block



Remove/install

1

Remove headrest

 See owner's manual

2

Remove cover cap (2) from seat rail paneling

 Set the seat height adjustment such that

the screw on the belt end fitting is visible.

3

Unscrew internal Torx drive bolt (4) from the
belt end fitting (5)



*BA91.40-P-1001-01D



Torx bit set

*000589011000

4

Remove belt end fitting (5)

5

Unscrew internal Torx drive bolts (1) from the
front seat console

 Installation: Replace bolts.



*BA91.10-P-1001-01B

Torx bit set

*000589011000

6

Move the front seat (3) forward

7

Unscrew internal Torx drive bolts (1) from the
back seat console

 Installation: Replace bolts.



*BA91.10-P-1001-01B



Torx bit set

*000589011000

8

Detach connector (6) from the front left seat
connector block (X55/3) and the front right
seat connector block (X55/4)

9

Remove front seat (3)

10

Install in the reverse order



Front seats

Number

Designation

Model
Series 163

BA91.10-P-1001-01B

Bolt of seating mounting bracket to vehicle
floor

Nm

40



Safety belts/emergency tensioning retractors

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

Number

Designation

Model 163 up to
08/99

Model 163 as of
09/99

BA91.40-P-1001-01D

Belt end fitting screw

Nm

35

35

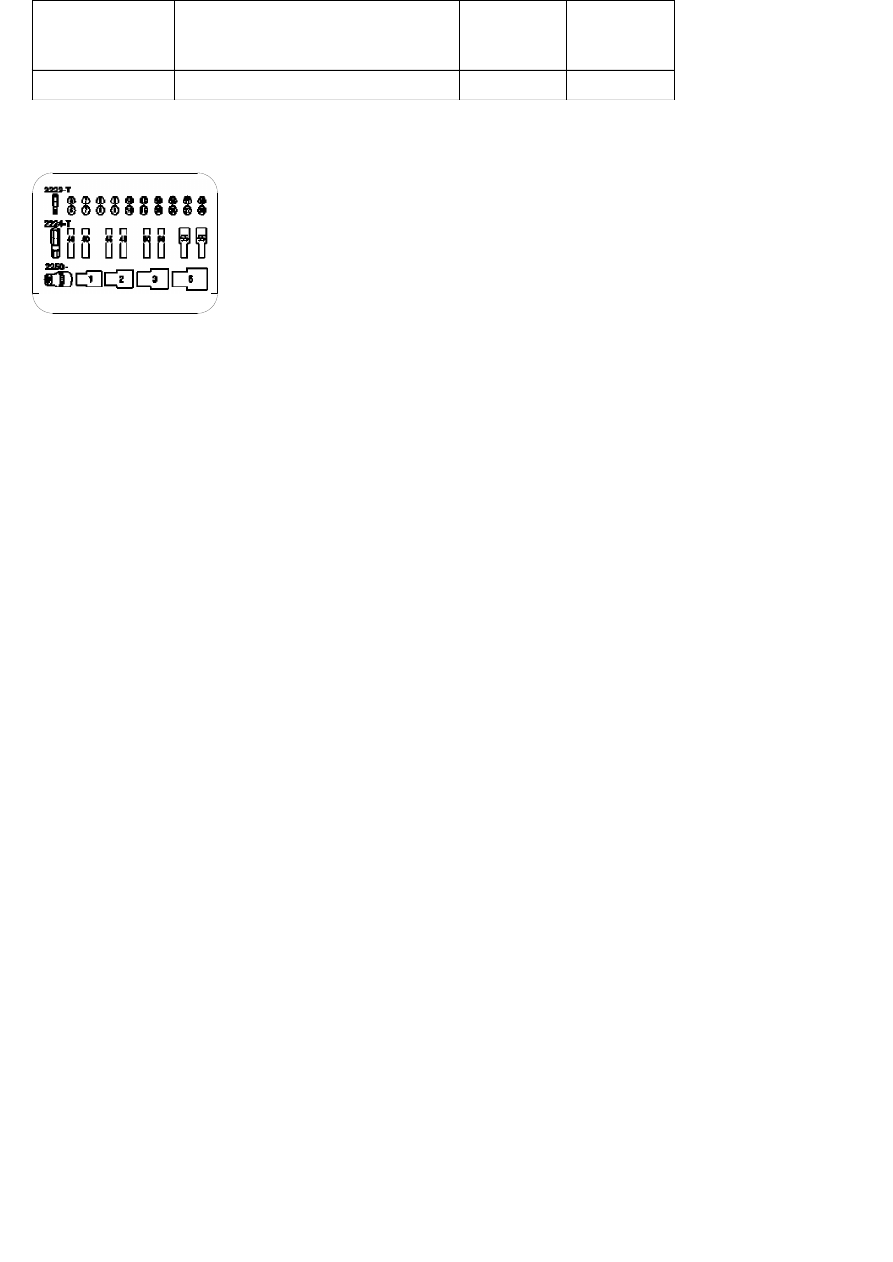

Torx bit set

000 589 01 10 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

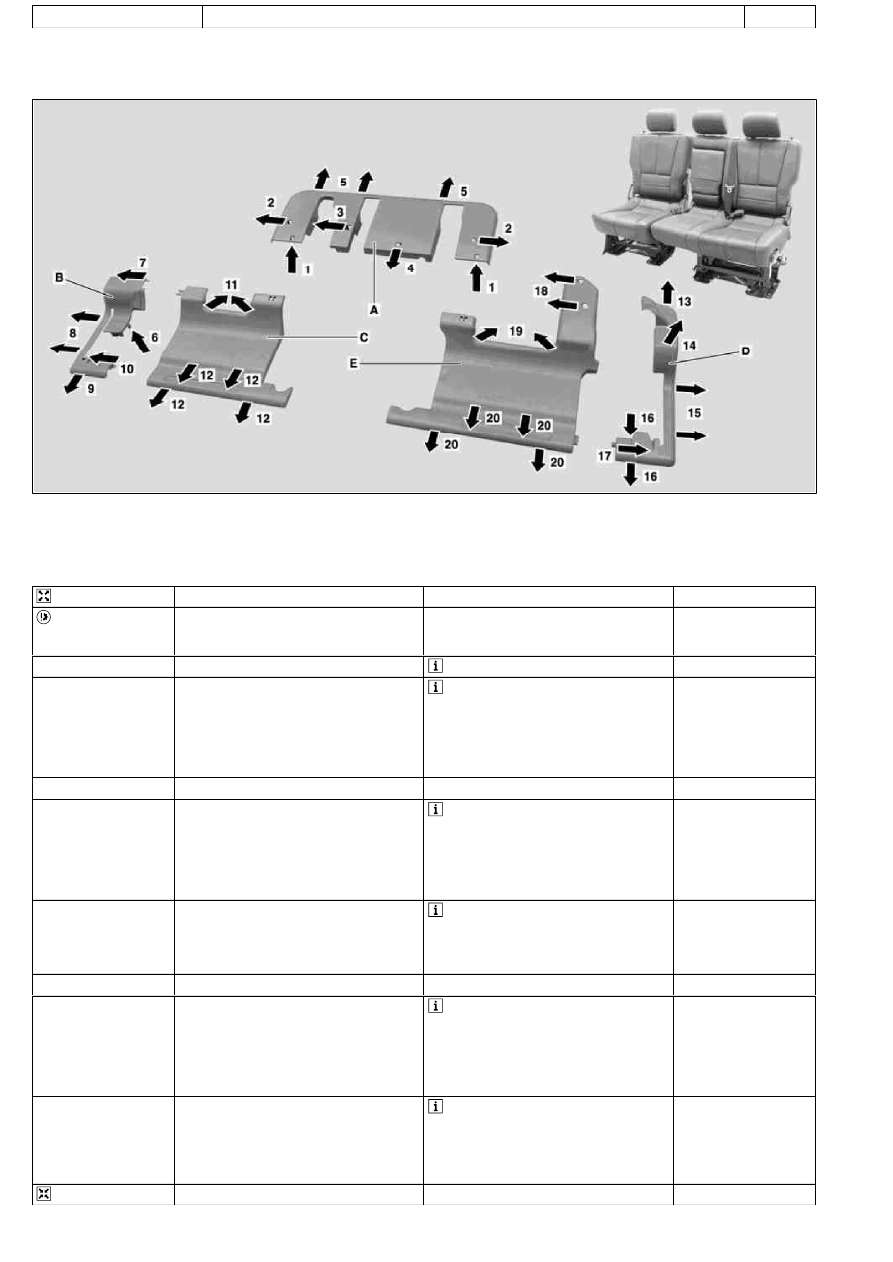

AR91.12-P-1100GH

Remove and install cover on bottom of rear seat

22.2.00

MODELS  163.136 /154 /172 as of 1.9.99,
163.113 /128 /157 /174 /175

P91.12-2189-09

Arrows

Pushing directions for releasing
the locating tabs



Remove



Risk of breakage! Carefully press covers off
with a short screwdriver or suitable long
wedges.

1

Remove rear cargo space floor flaps

 See Operating Instructions

2

Remove rear cover (A)

 Pull front outer edges of the cover

upwards in order to release the locating tabs
(1). Press outer locating tabs (2) outwards. In
the center of the cover, press locating tab (3)
to the right and locating tab (4) forwards. In
order to release the locating tabs (5), press
the cover down and remove to the rear.

3

Remove curtain at front 40 % bench

4

Remove outer cover (B) from 40 % bench

 Press the cover in and pull upwards at

locating tab (6). Pull outwards at locating tabs
(7, 8). Press the cover forwards in order to
release the locating tab (9). At locating tab
(10), press down with a long wedge between
the covers. Guide the cover past the lateral
curtain.

5

Remove inner cover (C) from 40 % bench

 Pull the outer rear corners of the cover up

in order to release the rear locating tabs (11).
In order to release the locating tabs (12),
press the cover forwards and remove to the
front.

6

Remove curtain at front 60 % bench

7

Remove outer cover (D) from 60 % bench

 Push locating tab (13) up and turn cover

out and up at locating tab (14). Pull outwards
at locating tabs (15). Press the cover
forwards in order to release the locating tabs
(16). At locating tab (17) press down with a
long wedge between the covers. Guide the
cover past the lateral curtain.

8

Remove inner cover (E) from 60 % bench

 Press locating tabs (18) in. Pull the outer

rear corners of the cover up in order to
release the rear locating tabs (19). In order to
release the locating tabs (20), press the cover
forwards, rotate counterclockwise and remove
past the springs towards the rear.



Install

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

9

Install inner cover (E) at 60 % bench

 Insert cover past the springs from the rear

and rotate into position in a clockwise
direction. Insert locating tabs (19). Press the
front cover down and reset so that locating
tabs (20) engage. Press rear cover down until
locating tabs (18) engage.

10

Install outer cover (D) at 60 % bench

 Guide the cover past the lateral curtain.

Insert locating tab (17), push front cover down
and reset so that locating tabs (16) engage.
Press the outer edge of the cover down and
insert lateral locating tabs (15). Raise rear
cover on the inside, press down until locating
tab (14) and rear locating tab (13) engage.

11

Install curtain at front 60 % bench

12

Install inner cover (C) at 40 % bench

 Insert cover from the front and insert

locating tabs (11). Press the front cover down
and reset so that locating tabs (12) engage.

13

Install outer cover (B) at 40 % bench

 Guide the cover past the lateral curtain.

Insert locating tab (10), push front cover down
and reset so that locating tab (9) engages.
Press the outer edge of the cover down and
insert lateral locating tabs (8). Insert locating
tab (7), push cover down at locating tab (6)
and engage.

14

Install curtain at front 40 % bench

15

Install rear cover (A)

 Insert cover from the rear and press down

and forwards so that locating tabs (5) engage.
Press front ends of the cover down, so that
locating tabs (2, 3, 4) engage. Insert locating
tabs (1) into covers (C, E).

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
