Mercedes-Benz ML320. Service manual - part 786





AP15.10-P-1580GH

Replace spark plugs

1.7.97

ENGINE

112.942 in MODEL 163.154

ENGINE

112.970 in MODEL 163.157

ENGINE

113.942 in MODEL 163.172

ENGINE

113.981 in MODEL 163.174

ENGINE

113.965 in MODEL 163.175

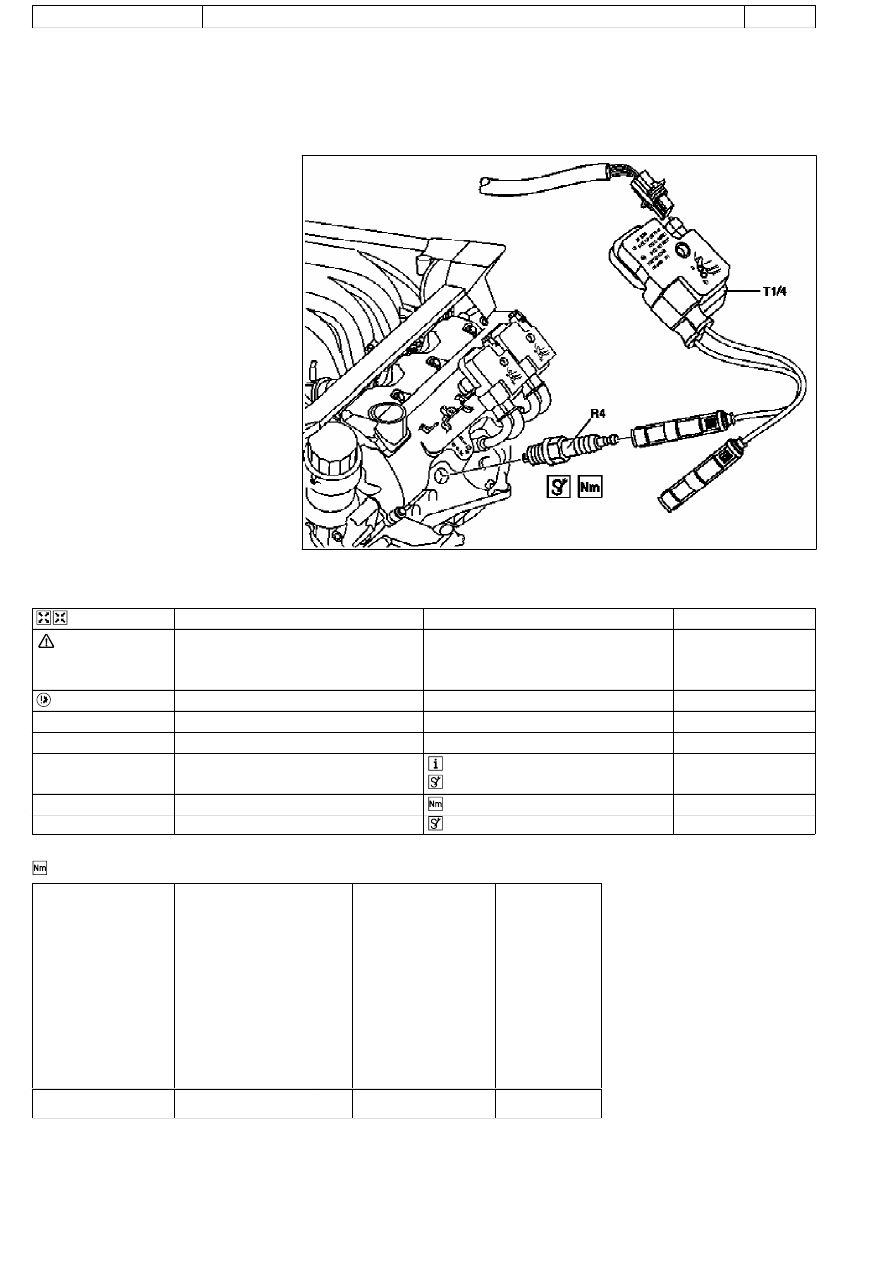

P15.10-0221-06

Shown on engine 112

R4

Spark plugs

T1/4

Ignition coil cylinder 4



Remove/install and replacing



Danger!

Risk of death caused by contact with parts
conducting high voltages.

Do not touch parts which conduct high
voltages. Persons who wear electronic
implants (e.g. heart pacemakers) must not
carry out work on the ignition system.

AS15.10-Z-0001-01A



Notes on avoiding damage to ignition system

Engine 104, 111, 112, 113, 119, 120, 271

AH15.10-P-0002-01D

1

Remove/install air filter upper section

2

Removing and installing ignition coils

AR15.12-P-2003A

3

Disconnect spark plug connectors

 Prise over cylinder head cover.



Double open-ended wrench

*110589010100

4

Remove/install spark plugs (R4)



*BA15.10-P-1001-01A

 Spark plug wrench

*112589010900



Spark plugs

Number

Designation

Engines
104, 110, 111,
113.940/941/942/943/
944/948/960/961/962/
963/965/966/967/968/
969/980/981/982/984/
986/992/993,
115, 117, 119, 120

Engine
112.910/911/
912/913/914/
915/916/917/
920/921/922/
923/940/941/
942/943/944/
945/946/947/
949/951/953/
954/955/960/
961/970/972/
973/975

BA15.10-P-1001-01A

Spark plugs

Nm

28

28

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

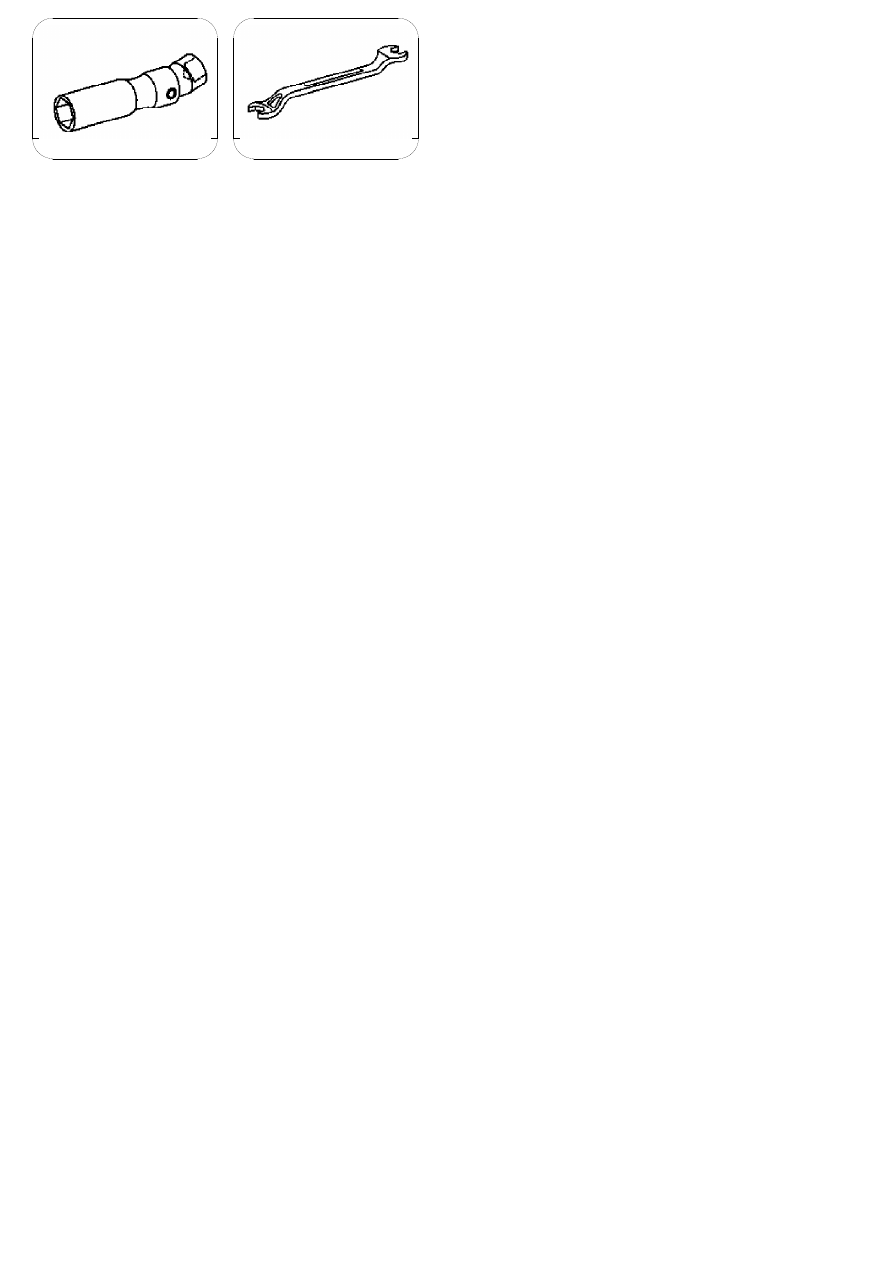

112 589 01 09 00

110 589 01 01 00

Double open-end wrench

Spark plug wrench

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AR40.10-P-1030A

Replace tire

27.1.95

MODELS  124, 129, 140, 163, 168, 170, 171, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240
MODEL

414

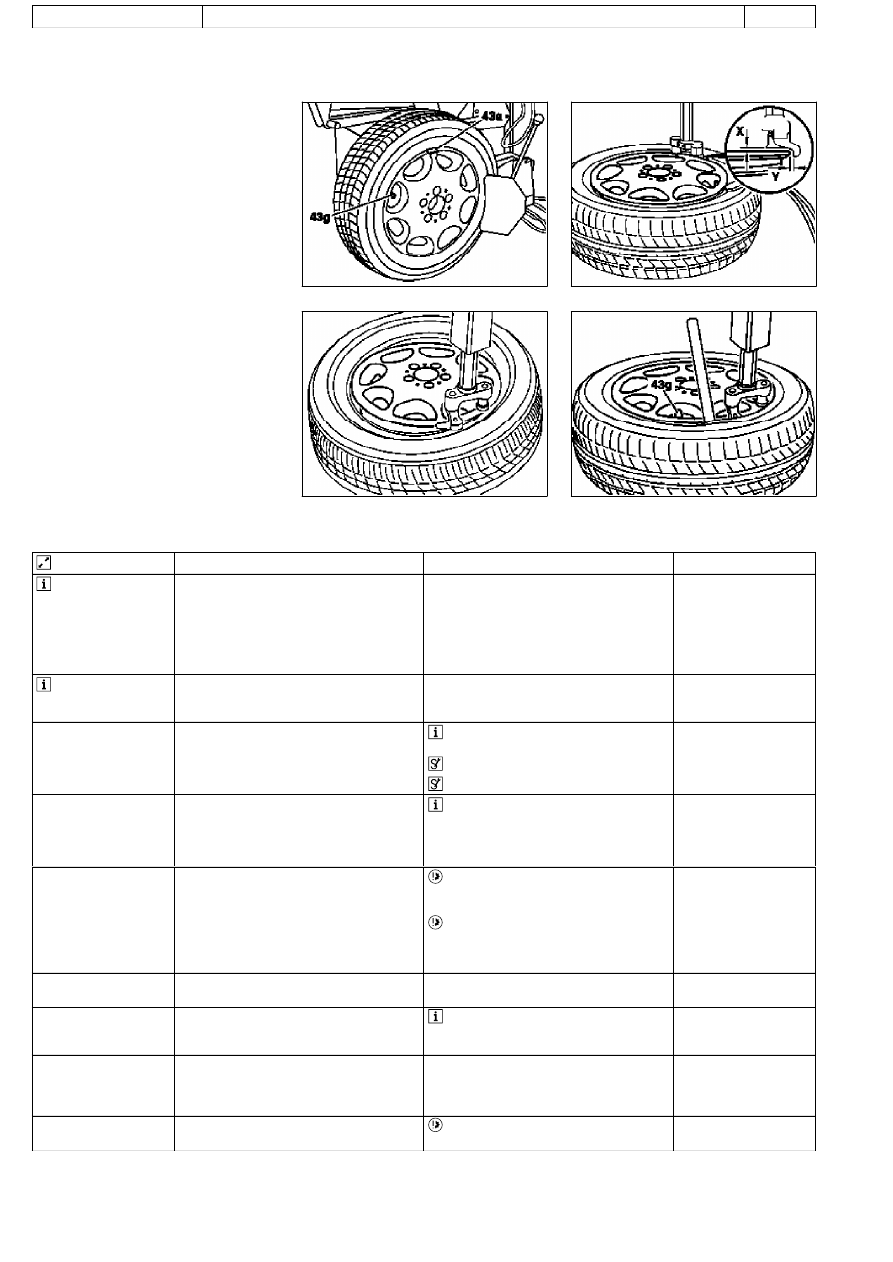

P40.10-0218-01

P40.10-0217-01

P40.10-0219-01

P40.10-0220-01



Detaching



Models 163, 170, 171, 203, 211, 230: The
spare wheel with collapsible tire is only
available as an assembly component. The
spare wheel with collapsible tire can only be
replaced complete. If the spare wheel is
damaged, remove the collapsible tire and
dispose of it and the rim separately.



Observe notes on tires and rims

Models 124, 129, 140, 163, 168, 170, 171,
201, 202, 203, 208, 209, 210, 211, 215, 220,
230, 240, 414

AH40.10-P-9411-01A

1

Unscrew valve element from valve (43g) and
remove balance weights (43a)

 Do not  unscrew valve element on disk

wheels with tire pressure monitor sensor.



Assembly tool

*124589176300

 Removal tool

*129589005900

2.1

Drain tire sealant from tire.

 On tires which have been filled with

TIREFIT tire sealing agent:

#

AR40.10-P-1080A

Replace wheel sensor

AR40.15-P-0080A

3

Position pressing-off blade of tire installer on
the tire bead opposite the valve (43g)

 Do not position on the tire side wall, but

on the bead flank, otherwise the carcass will
be damaged.

 Wheels with wheel sensors: Do not

position press-off blades on both sides of the
rim in the area of the valve (43g), otherwise
the wheel sensor will be damaged.

4

Press inside and outside of tire over the
safety bead seat on the rim

5

Clamp the rim on the tire installer. Coat the
rim flange and tire bead with soapy water.
Align mounting head close to disk wheel (X, Y)



Only use soapy water for fitting and

removing tires.

6

Position the disk wheel so that the valve (43g)
is approx. 10 cm in front of the assembly
head, seen in the direction of rotation of the
tire mounting device

7

Lever tire bead with a tire iron over the
mounting lug and pull off the tire



Do not apply compressive force to the

wheel sensor otherwise it will be damaged.

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

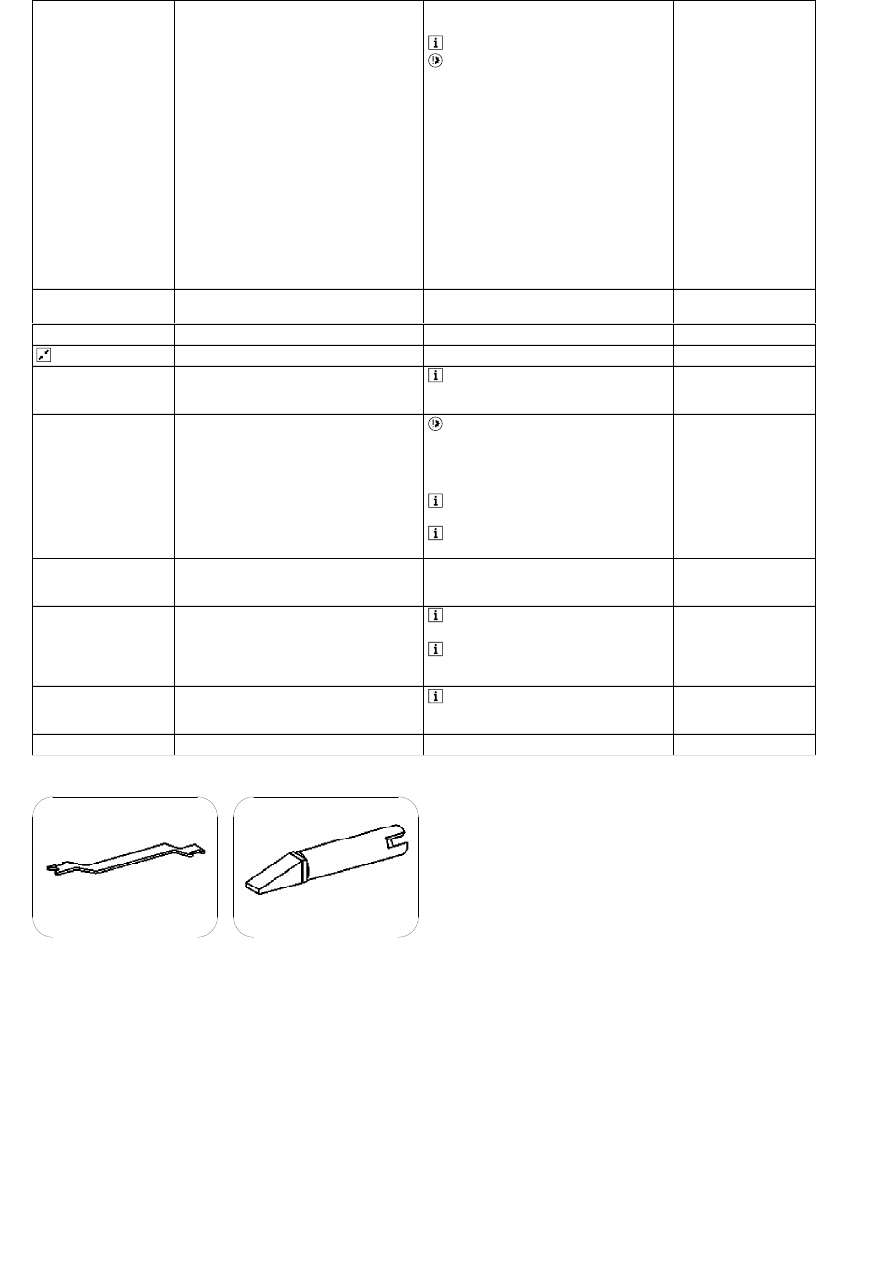

8.1

Check wheel sensor, valve body and sealing
rubber for damage

Vehicles with tire pressure monitor (code 475)

 Do not remove wheel sensor for this.



Do not use compressed air, solvents or

detergents to clean the wheel sensor. Wipe
off dirt with a clean, lint-free cloth only.
Do not retighten the female torx bolt and
union nut.
Replace all valve components of wheel
electronics if:
D The wheel sensor mounting bolt or union

nut is visibly loose.

Replace the wheel sensor if:

D The wheel sensor is obviously damaged.

D Tire sealant was used.

Install new wheel sensors:

#

Replace wheel sensor.

AR40.15-P-0080A

8.2

Install new valve (43g).

Vehicles without tire pressure monitor (code
475)

9

Checking condition of rim

AR40.10-P-1010-01A



Mounting

10

Moisten rim flange and tire beads with soapy
water and align assembly head at a small
distance (X, Y) to the disk wheel



Only use soapy water for fitting and

removing tires.

11

Place tire obliquely on the rim and pull on
over the rim flange using the tire installer



Position wheels with wheel sensors so

that the wheel sensor is approximately 180°
opposite the mounting head.

Do not apply compressive force to the wheel
sensor otherwise it will be damaged.



Observe the running direction on tires with

specified running direction.



Put as little stress as possible on bead

area.

12

Align the match points of the tire and disk
wheel with each other and remove the disk
wheel with tire from the tire mounting device

13

Inflate tires without valve element up to max.
3 bar



Do not  unscrew valve element on disk

wheels with tire pressure monitor sensor.

 The tire must slide evenly over the safety

shoulders of the disk wheel, otherwise coat
the tire beads with soapy water again.

14

Screw the valve element into the valve (43g)
and adjust the tire inflation pressure to the
specified value

 Observe the tire pressure information in

the fuel filler flap of the vehicle.

15

Balance wheel

AR40.10-P-1040A

124 589 17 63 00

129 589 00 59 00

Removal tool

Assembly tool

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
