Mercedes-Benz ML320. Service manual - part 784





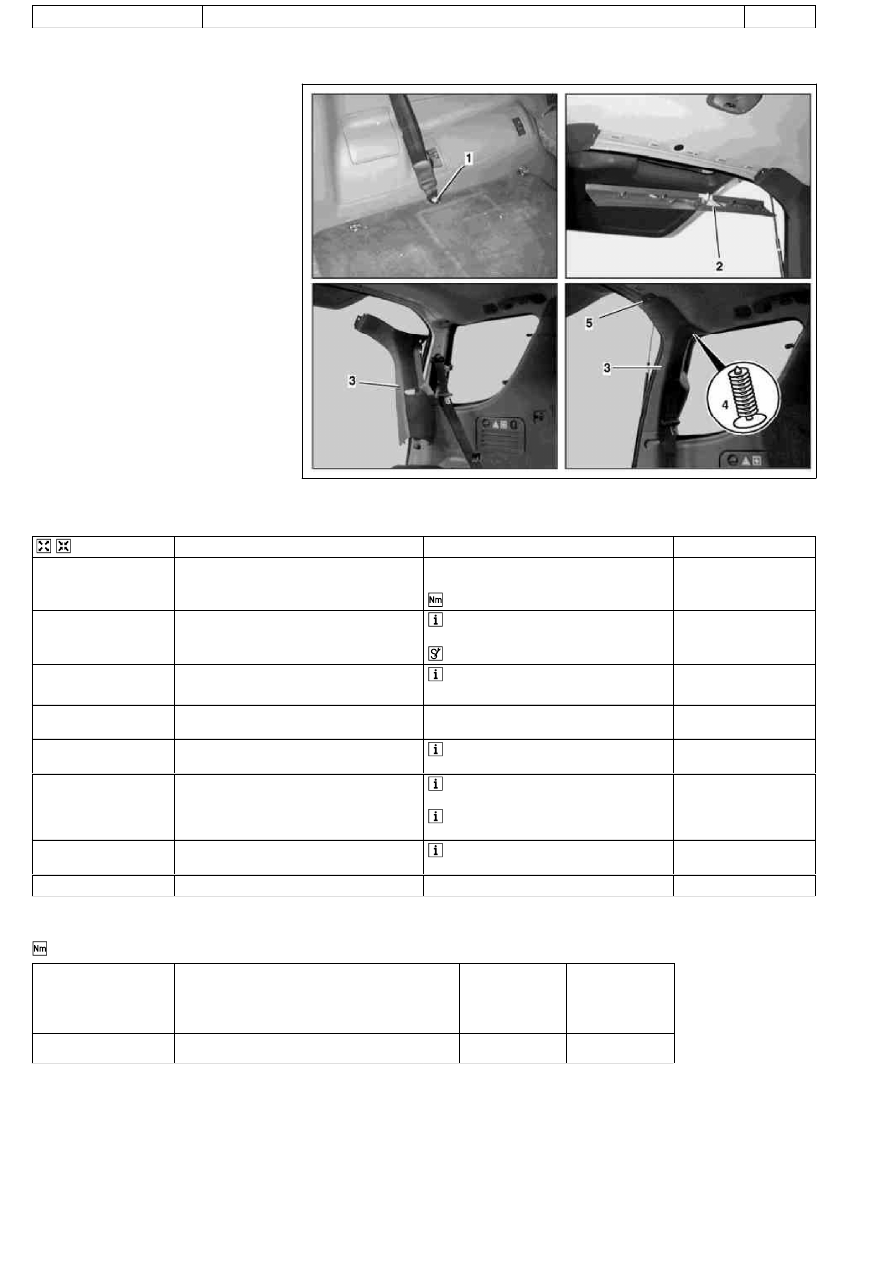

AR68.30-P-4470GH

Remove/install rear roof frame paneling

24.2.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P68.30-0507-06

1

Belt end fitting in 3rd seat row

2

Center paneling of roof frame

3

Side paneling of roof frame

4

Expanding anchor

5

Screw



Remove, Install

1.1

Remove belt end fitting at bottom of 3rd seat
row (1)

Only with 3rd seat row, code 847.

*BA91.40-P-1001-01D

2

Unclip center roof frame covering (2)



Installation: Install paneling in door

rubber seal.

 Long wedge

*115589035900

3.1

Remove expanding anchor (4) from side roof
frame covering (3)

 up to 31.08.01

Installation: Replace expanding anchor.

3.2

Remove screw (5) from side roof frame
paneling (3)

4.1

Unclip side roof frame paneling in upper outer
corner

 As of 01.09.01

4.2

Remove side roof frame paneling (3) upward

 Only on 3rd seat row, code 847: remove

seatbelt and remove paneling



Installation: Install paneling in door

rubber seal.

5.1

Disconnect connector from loudspeaker

 As of 01.09.01 and with sound system,

code 810.

6

Install in the reverse order



Seat belts/belt tensioners

Number

Designation

Model 163 up to
08/99

Model 163 as of
09/99

BA91.40-P-1001-01D

Screw on belt end fitting

Nm

35

35
